MP-Man MP4 FIESTA Manuel utilisateur

DIGITAL VIDEO / MUSIC PLAYER

MP3/WMA/AMV

USER MANUAL

MP-MP4FIESTA

www.mpmaneurope.com

Before connecting, operating or adjusting this product please read these instructions completely.

GENERAL

1.1 MP4FIESTA characteristics

zSupport MP1/MP2/MP3/WMA/WMV/ASF/WAV/OGG music format.

zSupport AMV movie format

zSupport JPEG/BMP/GIF picture format

zSupport WAV/MP3 format voice recording

z1.8” high resolution full color display

zGraphic user control interface

z2 built in speakers

1.2 Box set includes

zMP3 player

zStereo earphone

zDriver & utilities CD disc

zQuick guide

zUSB cable

1.3 Computer requirements

zPentium 100 MHz or faster

z32MB RAM or above

zCD- ROM

zHard disk with at least 15MB free memory space

zUSB 1.1/2.0

zWindows 98/ME/2000/XP, Mac OS 10, Linux 2.4.2

1.4 The player appearance interface

1.5 Figure & Keys

(1) MENU” 　　 Switch modes, menu selection by pressing on button

(2) NEXT/FWD or volume increase

(3) “VOL” 　selects Volume adjustments mode or A-B replay

(4) PREV/REV or volume decrease

(5) PLAY “” 　　 OPEN/PLAY/PAUSE/STOP/POWER OFF

(6) Earphone

(7) MIC

(8) USB connector

(9) ON/OFF switch

(10) Color screen

(11) Speakers

1.6 Battery

MP4FIESTA has an on screen battery monitor:

•When battery level low , recharge immediately (connect MP4FIESTA to external charger or PC)

•Nine level battery indicator (indicator flashes when charging)

Attention: Voice recording can only work at battery level 2 or above!

1.7 Power on/off

zPower on/off the player by switching “POWER” switch to on position

zWhen powered on, press and hold the “PLAY” key for 2 seconds. Player will power-off. Press and hold “PLAY” key to power on

again.

OPERATION

2.0 Main Menu

Seven mode at main menu with different featuring, respectively:

zMusic

zMovie

zRecord

zVoice

zJPG View

zSetting

Use “NEXT” or “PREV” keys to select among these modes, then press “MENU” key to enter

2.1 Music mode

From main menu, select MUSIC mode and press MENU button to enter.

Use “PREV” or “NEXT” keys to select music file, press “PLAY” key for specific music playback

There are two sub-modes at Music mode, respectively:

zPlay mode (available during playback)

zStop mode (available during standby)

Play mode

During music playback, press “MENU” key to enter. Seven options:

Repeat

Normal All songs are played once

Repeat One Repeats the current song

Folder Plays all the music of a specific folder

Repeat Folder Repeats the music of a specific folder

Repeat All Repeats all the music

Random Plays music at random

Intro First 10 seconds of each song is played

Equalizer

Natural

Rock

Pop

Classic

Soft

Jazz

DBB

Tempo rate

Change music playback speed by pressing “NEXT” and “PREV” keys

Attention: Tempo rate setting works only on MP3 file!

Replay

A-B replay – user can mark certain segment of music for continuous repeat

When replay mode selected, icon appears with letter “A” flashing

Press “NEXT” to set repeat segment starting point A.

Letter “B” starts flashing

Press “NEXT” to set repeat segment ending point B

A-B music segment repeats continuously. Press “MENU” button to return to normal playback

Adding voice to A-B segment

During A-B segment playback, press and hold “NEXT” key, icon appears

Voice is recorded. Press “MENU” key to stop recording

A-B music segment mixed with recorded voice will repeated continuously. Press “MENU” button to return to

normal playback

Replay times

Choose how many times the A-B segment must replayed, range from 1-10 times

Replay gap

Configure the time gap between each A-B segment, range from 1-10 seconds

Exit

Stop mode

During standby, short press “MENU” key to enter. Four options:

Local folder

Here the user is able to browse between all files and folders stored on the device

Use “NEXT” or “PREV” keys and “MENU” key to enter or confirm a selection

Delete file

Here the user is able to delete any file stored on the device

use “NEXT” or “PREV” keys and “MENU” key for delete confirmation

Delete all

Deletes all music files stored on the device

Exit

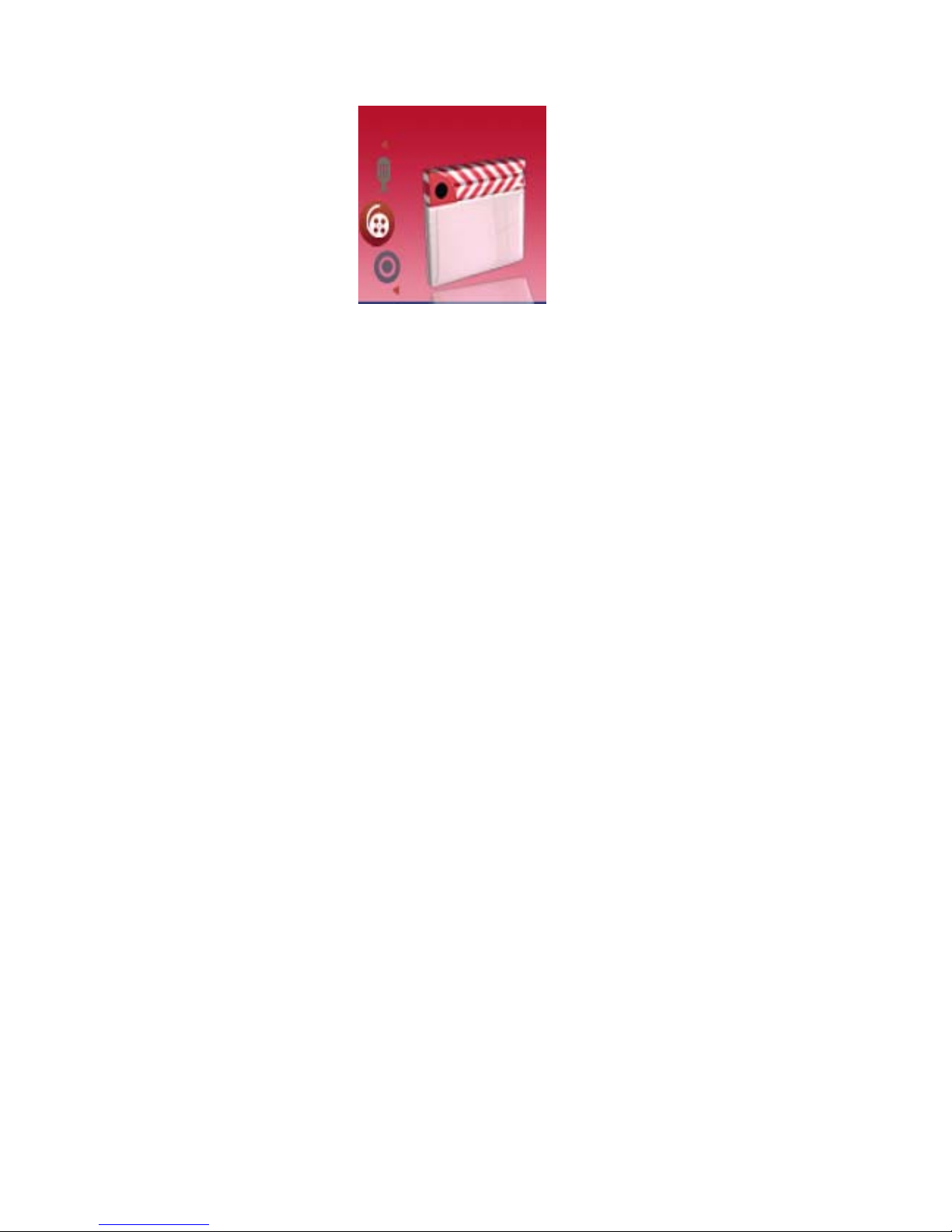

2.2 Movie mode

From main menu, select MOVIE mode and press MENU button to enter

This player can only play AMV movie files.

Remember that most currently popular movie formats such as AVI, RM, 3GP, MP4…are not directly support by MP4FIESTA. File

conversion by computer with AMV Converter software is needed. AMV Converter in included on the CDROM.

Use “NEXT” or “PREV” keys to select AMV file, press “PLAY” key to playback movie

During pause, press “MENU” key to enter movie mode submenu:

zLocal Folder

zDelete

zRepeat

zExit

(Options features and controls are similar to Music mode, see 2.1 for reference)

Attention: Volume cannot be increased or decreased during movie playback. Volume can only be set at movie standby

mode by pressing “VOL” key to recall volume control interface

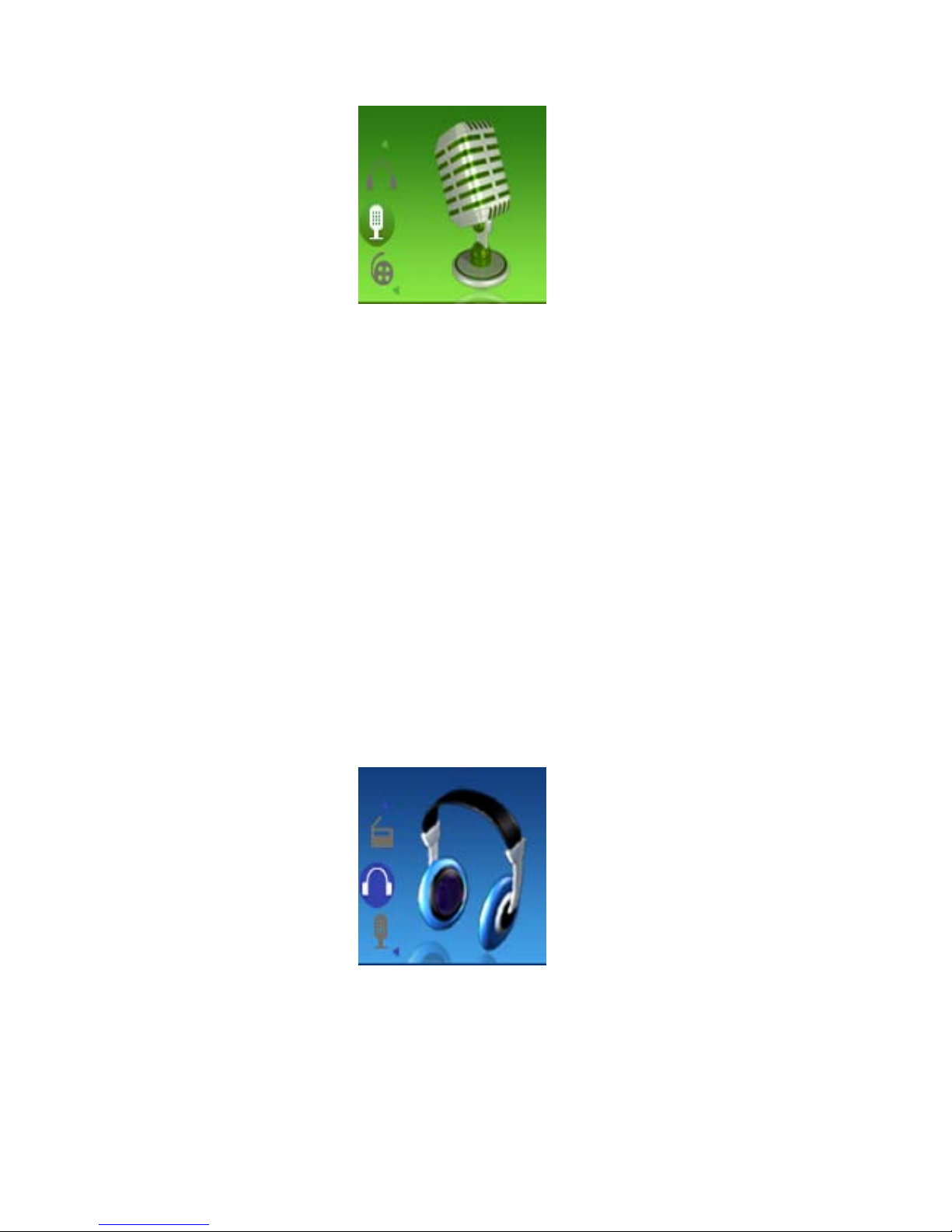

2.3 Record mode

From main menu, select RECORD mode and press MENU button to enter

zPress “PLAY” key to start recording

zPress “PLAY” key again to pause recording (recording time flashes)

zPress “PLAY” key again to continue recording.

zPress and hold “PLAY” button to stop recording and save recorded voice to file (“SAVING…” message appears)

When the device is not recording, short press “MENU” to enter RECORD submenu, options available:

Local folder

REC type ( choose between WAV or MP3 format in SETTING mode)

32K BPS (WAV)

64K BPS (WAV)

192K BPS (WAV)

384K BPS (WAV)

192K BPS (MP3)

128K BPS (MP3)

64K BPS (MP3)

32K BPS (MP3)

Exit

Attention: 384K BPS WAV file provides the highest quality, but requires a lot of storage space.

High compression rate MP3 format consumes less storage space than WAV format at same sampling rate

Recorded MP3 music files can replayed in Music mode

Recorded WAV files are stored at [device:\ RECORD \ VOICE] folder and can be replayed in VOICE mode

2.4 Voice mode

From main menu, select VOICE mode and press MENU button to enter

Voice files recorded in Record mode can be replayed in VOICE mode

VOICE mode supports WAV recorded files only; MP3 recorded files need to replayed in Music mode

When playback is paused, short press “MENU” button to enter VOICE submenu:

zLocal folder

zDelete

zDelete all

zExit

(Detail features and controls are similar to MUSIC mode, please check for reference)

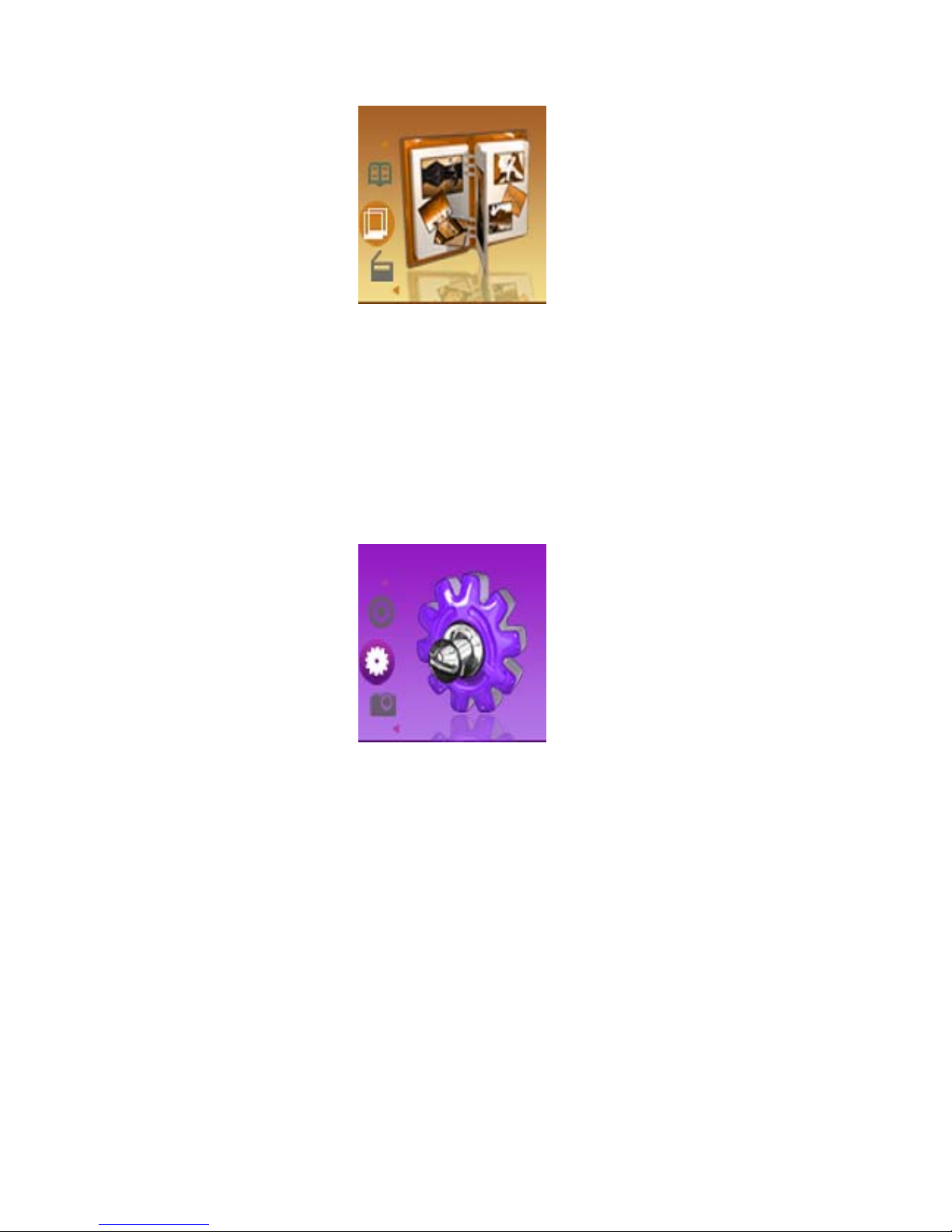

2.5 JPG View

From main menu, select RECORD mode and press MENU button to enter

JPEG View is designed for picture viewing.

JPEG, BMP and GIF format files are supported.

Use “NEXT” or “PREV” to select pictures file you like to view, then press “PLAY” for confirmation.

Push “MENU” button to enter submenu, options:

zLocal folder

zPlay set

zDelete file

zExit

2.6 Setting Mode

From main menu, select SETTING mode and press MENU button to enter

zRecord type

Selection of voice recording file format. Choose between WAV and MP3.

zDark mode

Setting of standby time before LCD screen switches off.

Push any button to switch the LCD screen back on.

Time can be set between 0 and 30 seconds. 0 seconds means dark mode is deactivated

zLanguage

Selection of display language

zPower off

Off time - Setting of “automatic power off” time from 0-60 minutes with 10 minutes interval.

Sleep time - Setting of “automatic power off” time from 0-120 minutes at 10 minutes interval

Attention: 0 minutes means automatic power off or sleep mode is deactivate

Sleep mode features only once when selected.

zMemory

Showing MP4 FIESTA total storage size (MB) and percentage of storage being used.

zF/W version

Showing current firmware version information.

zExit

SPECIFICATION

DISPLAY 1.8" Diagonal CSTN Display

PC CONNECTION USB 2.0 High Speed

FLASH MEMORY 1, 2, 4GB

POWER SUPPLY 3.8V Rechargeable Lithium Battery

MUSIC FORMAT MP1, MP2, MP3, WMA, WMV, ASF, WAV, MTV, OGG

MOVIE FORMAT AMV (16 frames/second)

RECORD FORMAT WAV (32-384K BPS sampling rate)

MP3 (32-192K BPS sampling rate)

DISTORTION Less than 0.1%

FREQUENCY RESPONSE 20Hz~20KHz

HEADSET OUTPUT 5mW (320Ohm)

OPERATION SYSTEM WINDOWS 98/2000/ME/2000/XP, Mac OS 10, Linux 2.4.2

TECHNICAL SUPPORT

Furthermore information, visit our website

www.mpmaneurope.com
