MP-Man MP-CL1 Manuel utilisateur

Digitale MP3

Thank you for purchasing the MPMAN MP-CL1 Digital Player. This manual provides detailed operation instructions

and features explanations to enhance your product enjoyment. Please read this manual carefully before using this

product for the first time.

Cautions

1. This player is a high precision electronic product and is serviceable only by authorized personnel. Please do not

attempt to open the unit.

2. Do not subject the unit to severe impact.

3. Do not subject the unit to splash or spill of water or other liquid.

4. Keep the unit from extreme high / low temperatures, high humidity, strong magnetic field, dust and exposure to

direct sunlight.

5. Select proper volume when using the unit to avoid causing eternal harm to hearing.

6. Do not attempt to modify any part of this unit.

7. Use only batteries, charger and accessories approved by the manufacturer. Use of non-manufacturer approved

parts may invalidate warranty.

8. Please observe your local environmental regulations when dispose of any electronic product.

9. Use damp cloth to clean the unit only. Do not use any chemical solution.

10. Please contact your local authorized MPMAN retailer, or our Marketing Department directly, with any problems

you might have encountered while using this product.

Important

1. MPMAN Ltd. assumes no responsibility for any damaged or loss data caused by accidental deletion of data as a

result of malfunction, repairs or battery replacement. Backing up of all important data on other media to protect

against data loss is strongly recommended.

2. For the latest operation instructions and updates, please refer to the enclosed CD ROM or visit our company

website.

Content

I．

．．

．Product Description

1. Brief introduction

2. Accessories attached

3. Minimum computer configuration requirement

4. Connection with computer

5．Specification

II．

．．

．Description of Keys and Screen

1. Function introduction on keys/slots

2. Function introduction on keys/sockets of the line controller

3. Power supply

2. Memory

III. Operation Description

(i)Music play

1. How to set playing speed, EQ, play mode and repeat time?

How to use A-B repeat, timed repeat and sentence repeat?

(II) Set and record

Start record

Audio resource selection

Record setup

Operation on direct source record

(III) FM Radio

1. Search and store channel

2. FM internal record

3. Delete channels

4. How to set frequency, step size, frequency band, channel and channel saving mode.

5. How to edit mane of a channel

(IV) View pictures

(V) E-book

How to listen to music and radio when you are reading e-book

How to set and use a bookmarker

How to operate menu on-line

(VI) Game

1. Independent diamond

2. Fighting

3. Huarongdao

4. Case game

5. Mine sweeping

(VII) System setup

(VIII) Saving management

(IX) Topic management

IV. Portable hard disc

V. Unplug from USB port

VI. Install, use and delete MPMAN MP-CL1 software

Vii Appendix

Troubleshooting

I. Product Description

1. 1. Brief introduction

This product is among the first flash-based ultra-big LCD COLOR display that integrates digital music enjoyment,

digital picture viewing, radio listening, e-book, games and other unique features. It supports digital image viewing in

JPEG, BMP, and a user’s friendly photo editing file format developed for MPMAN, and digital music in MP3 / WMA

formats. This unit also supports wallpaper setup, synchronization of audio and text, auto shut off and bookmarker.

Driver-free operation (Except Win98), timed repeating, internal FM recording, voice recording with the built- in

microphone, and external audio recording (LINE IN) are available in this player. Nine built-in interface styles and three

languages, namely, simplify Chinese, traditional Chinese and English are available. To add to it, text in Korean and

Japanese are available in text Browse function). You can now enjoy crisp digital music and read an e-book on the

road. This is a vast improvement over the traditional MP3 player that only allows its user to listen to FM

programming while reading back text files. The simple and elegant design of this 64K Color LCD Display digital

player from MPMAN will undoubtedly reflect your personality and provides a totally new personal digital experience!

2. Packaged contents

Your MPMAN MP-CL1 is packaged with the following accessories. Please contact your local retailer if any of the

these contents is missing

 ●Earphone (1 set)

●Line controller (1)

●Charger (1)

●USB cord(1)

●LINE IN wire(1)

●Hanging necklace (1)

●Pocket(1 )

●Installation Software on CD ROM( 1 )

●User’s manual(1)

3. Minimum system requirements

●Microsoft Windows 98/2000/ me/XP

●Pentium 200MHz CPU or above

●USB interface

●CD-ROM drive

●40MB hard disk space

●32MB RAM

4. Connecting to your PC

Connect the player to your PC using the USB cord provided. Connect the circular end of the USB cord to the

USB port on the player, and connect the rectangular end of the USB cord to the available USB port on your PC.

5. Specification

●Model: MP-CL1

●Storage media: Built-in Flash memory (Available in 64/ 128/ 256MB)

●Interface: USB1.1

●Transmission speed: >500Kbps

●Record form: MP3

●Bit rate: 8KBps~384KBps for MP3 playing, 32KBps~320KBps for WMA

●Recording time: About 130 minutes (128M)

●Screen: STN color LCD(Model); 65536 Colors(Color); 128×160(Pixies)

●Power supply: Adopting lithium battery●Recharging time: Three hours

●The maximum output: For earphone output, 4.0mw×2

●FM frequency range: 87.500～108.000MHz ; 76.000 ~ 108.000 MHz (wide frequently mode)

●Size: 65mm(L)×47mm(W)×13mm(H)

II. keys Instruction

1. Function introduction on keys/slots

(1)Play (



) / Pause (



) / Power ( )

Play, Pause track and Power On/Off

(2)Stop (ESC) / Quit

This key is mainly to stop and exit out of the current operation. In “independent diamond” and Box pushing game, press th

Key to cancel the previous step; while playing songs, audio file and listening radio, press

this key and hold it to access the screen.

(3) Previous file / Fast rewind ( )

Press this key once to rewind current File /voice to the previous one. Hold this key while playing to fast rewind in current tr

In setting the repeat duration and start time, press this key to shift between hour, minute and second.

In selecting tone, press this key to shift between audio frequencies.

In channel search, press this key for forward search.

In the directory, press this key to move cursor up.

(4) Next file / Fast forward (

)

Press this key once to forward current File /voice to the next. Hold this key while playing to fast forward in current

track ;

In selecting tone, press this key to shift between audio frequencies; When setting up repeat duration and start time,

press this key to shift between hour, minute and seconds; In channel search, press this key to search forward.

In the directory, press this key to move cursor down.

(5)Sound field ( EQ)

While playing songs or audio files, press this key to shift between EQ settings; while playing songs, audio files, or FM

radio, press and hold this key to close the screen. Key will be locked at the same time.; press this key while playing

game will restart game.

(6)/(7) Increase volume (VOL+) / Reduce volume (VOL-)

(8)MENU

Press this key to access the menu.

(9)A-B/TRP

Repeat between two points and within set time

(10)RESET

Press this button to reset when unit is not performing properly.

(11)Neckstrap hole

(12)Earphone jack

(13)LINE IN / USB port/charging port

(14)Microphone

Note: In the main menu, press “

““

“”

””

”and “

““

“ ”

””

”or / VOL+ / VOL – to select between functions

2. Power supply

A green bar indicates the unit power level.

Charging the unit

(1) Using charger

Connect the charger to the unit to recharge the battery. Battery can be charged with the unit turned ON or OFF.

See Fig.:

(2) Using USB to charge

Connect the player to PC by the supplied USB cable. Click the removable media icon in the task bar on your PC to

stop the USB equipments (Do not unplug USB cord or press any key). When the MP-CL1 restarts, battery will be

automatically recharged if low. To start recharging manually, press key “A - B” and hold. If unit is powered off when it

is connected to the PC, automatic charging will be ON.

Note: The battery bar in the main menu will display the battery charging process. When recharging finishes, the

battery bar will display at full strength. A full recharge will take about 3 to 4 hours. Unplug the charger when the

battery is fully recharged. Do not connect the charger to the unit for a prolonged period of time.

4Memory status

In the main menu, the blue bar indicates memory used, and green indicates unused memory.

Three. Operation instruction

Power ON: Press /and hold to power the unit on.

Power OFF: Press and hold to power the unit off.

※The MP-CL1 is equipped with the Automatic Power off feature to save power. The unit will turn itself off after three

minutes of non-operation.

(I). Play Music

In the main menu (Fig. 1), press the ““key and”“ or “vol+” and “vol –” to select the music icon. Press key ““ to confirm

that you have entered a folder or a track list (Fig 2). Press key Up or Down to select folder or track. Press key ““to

enter the folder or play a song. Music playing screen is shown in Fig. 3 (with lyric display). Clicking “ESC” will stop

playing of the current track.

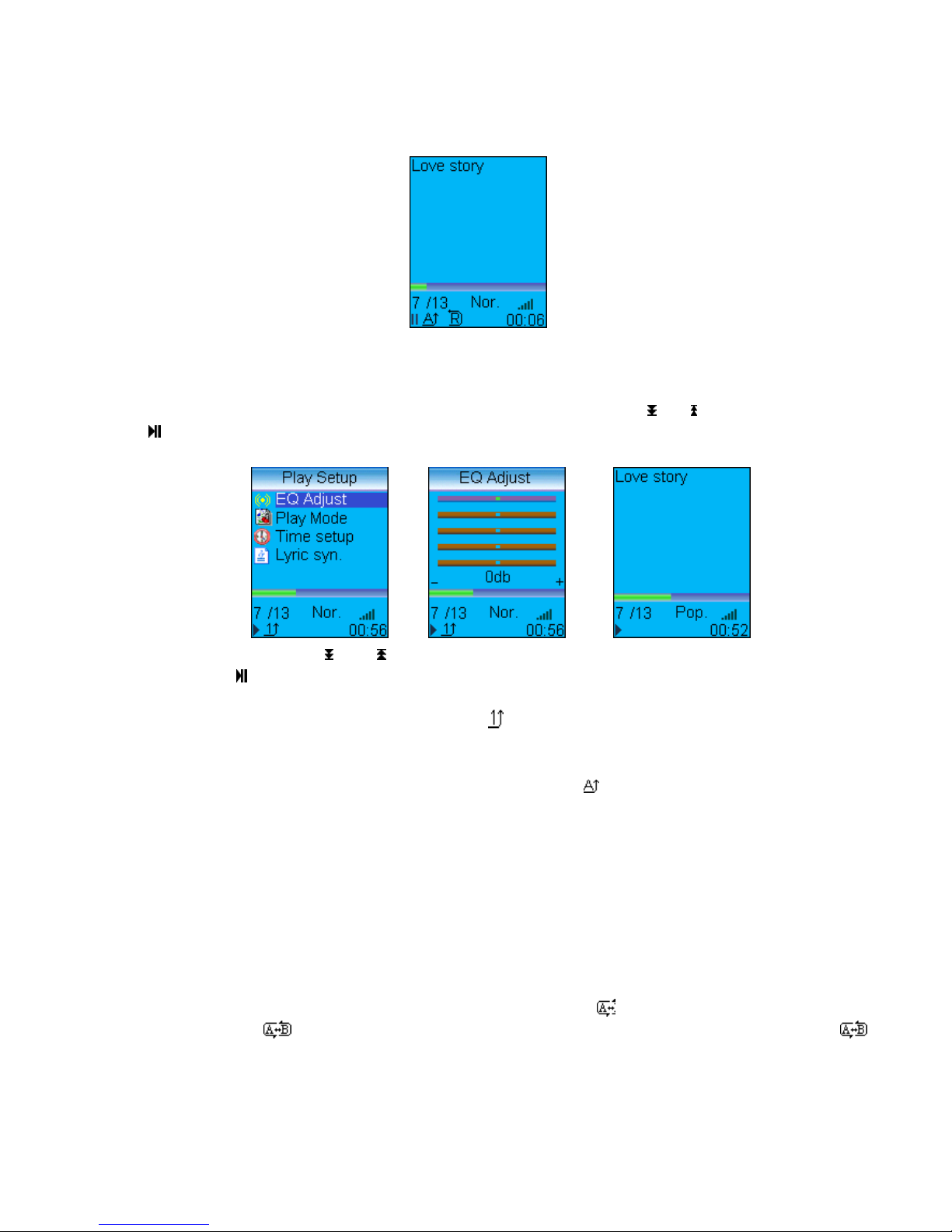

Fig.1 Fig.2

Fig.3

Fig.4

1. How to setup EQ adjustment, play mode, play duration and lyric synchronization？

？？

？

Press EQ key during play to shift between five preset EQ modes. EQ can be manually set in the EQ Adjustment

menu. (Fig 6.)

When playing a track, click “ MENU” key to enter Play Setup menu. (fig 5) Use “ “and” “ key to select setting and

press “ “ key to confirm. There are four settings in the Play Setup menu: EQ adjustment, play mode, play duration,

and lyric synchronization.

Fig.5 Fig.6 Fig.7

EQ adjustment: Gig 6. Click key “ ” and “ ” to shift to another audio frequency then press “vol +” or vol－” to adjust.

When done, press “ “ key to confirm and return to play menu. (WMA only supports setting of Play Mode & Lyric

Synchronization.)

Single track repeat: Repeat playing current track. (Icon “ “) Fig.5

Normal play: Keep playing from the current track in the play list to the last track. The screen will not display the

Repeat icon. (Fig. 7)

Repeat all: repeat playing all files in the play list or in the player. (Icon ) Fig. 4

Random Repeat: randomly playing tracks in the play list or in the player. Icon in Fig 3 will be displayed when

RandomRepeatisselected.

Duration setting: including repeating duration and starting time. Press ““and “ to shift between hour, minute and

second, then press key “vol” +”vol－” to adjust the highlighted value. The repeating duration is the specified repeating

time. If the starting time of the preset repeating time is not 0, the player will start playing from the specified time.

(WMA does not support this function.)

Lyric synchronization: Select “ON” and press ”“key to confirm your selection. Only tracks with lyric files will be able

to use this function. Lyric will not be displayed if the Lyric Synchronization is set to “OFF”.

2. How to use A - B repeating and timed repeating？

？？

？

A - B repeating: While playing, press the “A-B” key to set the starting point, “ “ will be displayed. Press this key again

to set up the end point, “ “ will be displayed. Press the “A-B” key again to cancel the section repeat. The “ ”

symbol disappears and resumes to normal playback.

Timed repeating: Press the “A-B” key and hold while playing to mark the ending point of timed repeating. The

““ symbol will be displayed. Press the “A- B” key to cancel timed repeating and return to normal playback.

Note: A - B repeating and timed repeating are not available in WMA.

Recording and its setting FM radio recording, voice recording (built-in microphone), direct sound (LINE IN) and

other high quality recording are available in this player. Some recording features are not available depending on

selected recording quality.

1. How to record

In the main menu, click “ “and “ “ or “VOL+” and “VOL-” to select the “Recording” icon and press “ “ to confirm.

Select “Starting recording” and press “ “ to start. The blinking Mic symbol indicates recording in process. The letter

“MIC” or “LINE IN” will display indicating recording source.

Press ” ” to pause and press the same key again to resume recording. Press “ESC” key to stop and save recording.

If disk memory is full during recording, a reminder message will be displayed. At this time, press key Certain or key

exit to save and exit recording.

Fig.8 Fig.9

Fig.10

Note: A directory will be automatically created during first recording according to the selected recording source.

e.g. LINE IN directory, MICIN directory, and RADIO directory. All recording files will be saved and stored in their

respective directories.

2 tone source selection (signal source)

MIC: built-in microphone recording

LINE IN: Record via LINE IN port

3. Setting up the recording options

When recording via the built-in MIC, recording quality in high, middle, and low are available. When recording via the

LINE IN feature, Sync mode, Silence mode, Silence interval and sound quality selection are available.

1) SYNC Mode

SYNC OFF: Normal recording mode. Select “Start recording“ and press “ “ to begin. Press the “ESC” key to end

recording.

SYNC ON: In this mode, after “Start recording” is selected, recording will automatically start when the sound source

signal reaches the preset lower limit. Recordings will be saved when between brief intervals. Recording will be

saved and the unit will automatically exit out of the recording mode if the interval is longer than one minute.

2) Silence Mode

This setting will influence SYNC ON and 1 SYNC's amplitude in judging external sound source signal. The lower limit

sound source signal amplitude is LOW Level (low), MID Level (middle), HIGH Level (high).

3) Silence Interval

0.5S (second), 0.7s, 0.9s, 1.1s, 1.3s and 1.5s are available.

4) Quality selection

High, medium, low.

4. Operation of direct recording

Connect your MP-CL1 player to other recording source via the supplied LINE IN audio cable.

Select LINE IN as the recording source in Recording Source screen. After finish setting other recording options,

select “Start recording” and press “ “ to begin recording. Press the “ESC” key to end recording. A new file will be

automatically saved in the LINE IN directory.

I. Listening to FM radio

Note: Connect earphone when perform channel search. The earphone cable is your radio antenna.

Select the FM Radio symbol in the main menu and press “ “ to view the list of saved channels. (Fig. 11) Press Up or

Down key to scroll through channel list and press “ “ to listen to the selected station. (Fig.12) Press the “ESC”

key to go back to the channel list anytime during the broadcast. If the channel list is empty, press the “Menu” key

access the Channel Search function..

Fig.11 Fig.

12 Fig.

1. Channel Search

In the Channel List screen, click “MENU” key to access the FM Setup menu. (Fig. 14) Press the “Up/Down” key to

select “Channel Search” and press “ “ to confirm. (Fig. 15)

Autres manuels pour MP-CL1

Table des matières

Autres manuels MP-Man Lecteur MP3

MP-Man

MP-Man MP-FUB34 Manuel utilisateur

MP-Man

MP-Man FIESTA2WOM Manuel utilisateur

MP-Man

MP-Man MP-CS155 Manuel utilisateur

MP-Man

MP-Man MP-FUB26 Manuel utilisateur

MP-Man

MP-Man MP-F400 Manuel utilisateur

MP-Man

MP-Man MP107 Manuel utilisateur

MP-Man

MP-Man MP-FOL10 Manuel utilisateur

MP-Man

MP-Man MP-F72 Manuel utilisateur

MP-Man

MP-Man MP-FOL10 Manuel

MP-Man

MP-Man MP-E2002 PLUS Manuel utilisateur

MP-Man

MP-Man MIRROR2 Manuel utilisateur

MP-Man

MP-Man MP-FOL8 Manuel utilisateur

MP-Man

MP-Man Sporty 5 Manuel utilisateur

MP-Man

MP-Man MP-F62 Manuel utilisateur

MP-Man

MP-Man MP-F56 Manuel

MP-Man

MP-Man MP-F50 Manuel utilisateur

MP-Man

MP-Man BT28 Manuel utilisateur

MP-Man

MP-Man TK1 Manuel utilisateur

MP-Man

MP-Man MP-FUB26 Manuel utilisateur

MP-Man

MP-Man MP-CS250 Manuel utilisateur

MP-Man

MP-Man MP-F700 Manuel utilisateur

MP-Man

MP-Man MP-F400 - annexe 1 Manuel utilisateur

MP-Man

MP-Man MP-FOL7 Manuel utilisateur

MP-Man

MP-Man MP-FOL6 Manuel utilisateur

Manuels Lecteur MP3 populaires d'autres marques

Blaupunkt

Blaupunkt Compact Drive MP3 Manuel utilisateur

Memorex

Memorex MMP9008 - 8GB USB 2.0 Manuel utilisateur

Meizu Electronic Technology

Meizu Electronic Technology E5 Manuel utilisateur

Naxa

Naxa NMV-173NX Manuel utilisateur

Philips

Philips PSA250 Manuel utilisateur

Zipy

Zipy go! Waving Manuel utilisateur

Sylvania

Sylvania SMPK4068 Manuel utilisateur

Sony

Sony NW-MS7 - Memory Stick Walkman Manuel utilisateur

Irradio

Irradio RF-42UC Manuel utilisateur

NABAIJI

NABAIJI SWIM MUSIC 100 Manuel utilisateur

Laser

Laser MP3-A9-4GB Manuel utilisateur

Samsung

Samsung YP-T7F Manuel utilisateur

Savant

Savant SMS-1001-00 Guide de référence rapide

Trevi

Trevi XP 71 BT Manuel utilisateur

AGPtek

AGPtek C2 Manuel utilisateur

MobiBlu

MobiBlu DAH-1500i Manuel utilisateur

Denver

Denver MPS-201 Manuel utilisateur

Steren

Steren MP3-002 Manuel utilisateur
