Moxa Technologies AWK-4121 Manuel utilisateur

Moxa AirWorks AWK-4121

Quick Installation Guide

Third Edition, July 2009

Reproduction without permission is prohibited.

P/N: 1802041210012

—1 —

Notes for the Reader

WARNING

Indicates that death or personal injury may occur if proper

precautions are not taken.

ATTENTION

Indicates that possible damage to this product or your property

may result if proper precautions are not taken.

NOTE

Highlights important information related to this product.

Package Checklist

Moxa’s AWK-4121 is shipped with the following items. If any of these items

is missing or damaged, please contact your customer service representative for

assistance.

y1 AWK-4121

y2 Antennas (5dBi, N-type (male), 2.4GHz)

y1 Quick Installation Guide

y1 Software CD

y1 Moxa Product Warranty Booklet

y1 Accessory Pack (including wall-mounting kit, screws and RJ45 field

plug)

NOTE

The above items come with the AWK-4121 standard version. The

package contents may vary in a different customized version.

Installation

Before installing the AWK-4121, make sure that all items in the Package

Checklist are in the box. In addition, you will need access to a notebook

computer or PC equipped with an Ethernet port. The AWK-4121 has a default

IP address, user name and password that you must use when resetting or

connecting to your AWK-4121 device.

Default IP address: 192.168.127.253

User name: admin

Password: root

Please read “Chapter2 Getting Started” in AWK-4121 User’s Manual for

more details about installation and configuration.

—2 —

ATTENTION

For security reasons, we strongly recommend changing the

password. To do so, go to Maintenance ÆPassword, and then

follow the on-screen instructions.

NOTE

To make the change effective, you must save the change and then

click Restart ÆSave and Restart button to apply all changes.

Panel Layout of the AWK-4121

Front Panel View

Bottom Panel View

Side Panel View

Rear Panel View

1. MAIN antenna port.

2. AUX antenna port.

3. LEDs for PWR, FAULT,

STATE, WLAN and

LAN.

4. M12 A-coding connector

for PWR1 and PWR2.

5. M12 8-pin connector for

DI/DO

6. 10/100BaseT(X) RJ45

Port

7. RS-232 console port.

8. Reset button

9. Screw holes for wall

mounting

10. Waterproof vent

11. Grounding screw

12. Screw holes for DIN-rail

mounting

ATTENTION

Please DO NOT open or remove the vent 10. The warranty will

be invalid if the seal is removed.

All exposed connectors, including 1, 2, 4 - 8, should be tightly

covered by suitable caps when they are not in use.

—3 —

Dimensions (unit = mm)

66.5

224.0

147.7

Wall Mounting

In most applications, wall mount provides an easier installation. You will find

it quite easy to mount AWK-4121 on the wall, as illustrated below.

STEP 1:

Attach the wall-mounting kit with

M4 screws, as shown in the

diagram below.

STEP 2:

Mounting the AWK-4121 on the wall

requires 4 screws. Use the AWK-4121

device, with wall-mounting kit attached, as

a guide to mark the correct locations of the

4 screws. The heads of the screws are

recommended to be between 5.5mm and

8.5 mm in diameter, and the shafts should

not be more than 5.0 mm in diameter, as

shown in the figure.

5.5 - 8.5 mm

< 5.0 mm

Do not screw the screws all the way in to the wall—leave a space of about 2

mm to allow room for sliding the wall-mounting kit between the wall and the

screws.

ATTENTION

You can test the screw head and shank size by inserting the screw

into one of the keyhole shaped apertures of the wall mounting

plates before it is screwed into the wall.

—4 —

STEP 3:

Once the screws are fixed into the wall, insert the four screw heads through the

large opening of the keyhole-shaped apertures, and then slide the AWK-4121

downwards, as indicated to the right. Tighten the four screws for added

stability.

⇒

ATTENTION

To avoid environmental vibration or shock, you can consider a

robust installation with four bigger screws, which the shafts are

between 7.0 mm and 8.5 mm in diameter, and fix the AWK-4121

onto wall directly and tightly.

DIN-Rail Mounting (Optional)

The DK-DC50131 die-cast metal kit can be

bought separately, and enable easy and robust

installation for the AWK-4121. A pair of

DK-DC50131s is needed for DIN-Rail

mounting. To install the DIN-Rail mounting

kits, tightly attach the two DIN-Rail mounting

kits on the rear panel of AWK-4121 with 12

screws. (6 screws for each kit)

—5 —

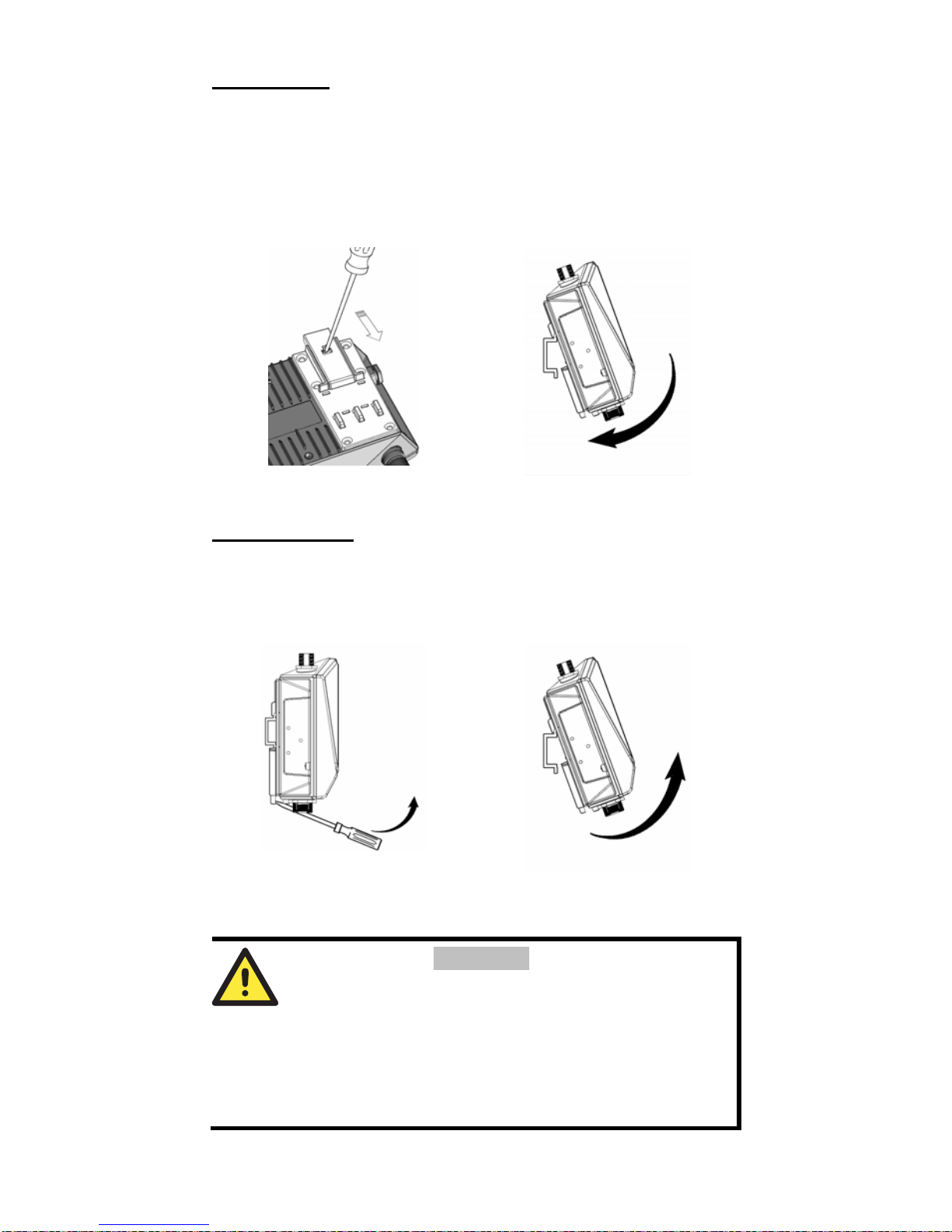

To Install

STEP 1:

Use the recessed button on the

spring-loaded bracket to lock it into

position.

STEP 2:

Insert the top of the DIN-Rail into

the slot just below the upper hook of

the DIN-Rail mounting kit. Push the

AWK-4121 toward the DIN-Rail

until the DIN-Rail attachment

bracket snaps into place.

To Release

STEP 1:

Pull out the two spring-loaded

brackets from the bottom until they

are fixed in the “release” position.

STEP 2:

Pull the AWK-4121 out and

upward.

Wiring Requirements

WARNING Safety First!

Be sure to disconnect the power cord before installing and/or

wiring your Moxa AWK-4121.

Calculate the maximum possible current in each power wire and

common wire. Observe all electrical codes dictating the

maximum current allowable for each wire size. If the current goes

above the maximum ratings, the wiring could overheat, causing

serious damage to your equipment.

—6 —

You should also pay attention to the following items:

yUse separate paths to route wiring for power and devices. If power wiring

and device wiring paths must cross, make sure the wires are perpendicular

at the intersection point.

NOTE: Do not run signal or communications wiring and power wiring in

the same wire conduit. To avoid interference, wires with different signal

characteristics should be routed separately.

yYou can use the type of signal transmitted through a wire to determine

which wires should be kept separate. The rule of thumb is that wiring with

similar electrical characteristics can be bundled together.

yKeep input wiring and output wiring separate.

yIt is strongly advised that you label wiring to all devices in the system when

necessary.

Grounding Moxa AWK-4121

Grounding and wire routing help limit the effects of noise due to

electromagnetic interference (EMI). Run the ground connection from the

ground screw to the grounding surface prior to connecting devices.

ATTENTION

This product is intended to be mounted to a well-grounded

mounting surface, such as a metal panel. There must be no

potential difference between two ground potentials, otherwise

there is a risk that the device could be destroyed.

Wiring the Redundant Power Inputs

The AWK-4121 must be connected to a power-over-Ethernet (PoE) IEEE

802.3af compliant power source or an IEC60950 compliant limited power

source. When AWK-4121 is powered via DC power, the M12 A-coding

connector on the bottom panel is used for the AWK-4121’s two redundant

inputs. The pin assignment is shown below:

Pin Power Input

1 V1+

2 V2+

3 V1-

4 V2-

5 GND

ATTENTION

This product is intended to be supplied by a Listed Power Unit

marked “Class 2” or “LPS” and rated O/P: 12 to 48 VDC,

minimum 6 W (12 V/0.494 A to 48V/0.121 A, 25°C).

Make sure External Power Adaptor (includes power cords and

plug assemblies) provided with the unit is certified and suitable

for use in your country.

Before connecting the AWK-4121 to the DC power inputs, make

sure the DC power source voltage is stable.

—7 —

Wiring the Digital Inputs and Relay

Contact (Digital Output)

The AWK-4121 has two sets of digital input—DI1 and DI2. Each DI

comprises two contacts of the 8-pin M12 connector on the AWK-4121’s

bottom panel. These two digital inputs can be connected to

digital-output-enabled sensors for on-site status monitoring.

The AWK-4121 also has one relay output, which consists of the two contacts.

These relay contacts are used to detect user-configured events. The two wires

attached to the Relay contacts form an open circuit when a user-configured

event is triggered. If a user-configured event does not occur, the Relay circuit

will be closed.

A field-installable plug, M12A-8PMM-IP68, is recommended for connecting

the AWK-4121’s DIs and relay.

Communication Connections

10/100BaseT(X) Ethernet Port Connection

The 10/100BaseT(X) ports located on the AWK-4121’s bottom panel are used

to connect to Ethernet-enabled devices.

Below we show pinouts for both MDI (NIC-type) ports and MDI-X

(HUB/Switch-type) ports.

MDI Port Pinouts MDI-X Port Pinouts 8-pin RJ45

Pin Signal Pin Signal

1 Tx+ 1 Rx+

2 Tx- 2 Rx-

3 Rx+ 3 Tx+

6 Rx- 6 Tx-

Pin Signal

2 Relay

3 DI1 I1

4 DI1 COM_1

5 DI2 I2

6 DI2 COM_2

8 Reserved

—8 —

RS-232 Connection

The AWK-4121 has one RS-232 (8-pin RJ45) console port located on the

bottom panel. Use either an RJ45-to-DB9 or RJ45-to-DB25 cable to connect

the Moxa AWK-4121’s console port to your PC’s COM port. You may then

use a console terminal program to access the AWK-4121 for console

configuration.

Console Pinouts for 10-pin or 8-pin RJ45

10-Pin Description 8-Pin

1 -----

2 DSR 1

3 RTS 2

4 GND 3

5 TxD 4

6 RxD 5

7 DCD 6

8 CTS 7

9 DTR 8

10 -----

NOTE 1. The pin numbers for male DB9 and DB25 connectors, and

hole numbers for female DB9 and DB25 connectors are

labeled on the connector. However, the numbers are typically

quite small, so you may need to use a magnifying glass to see

the numbers clearly.

2. The pin numbers for both 8-pin and 10-pin RJ45 connectors

(and ports) are typically not labeled on the connector (or port).

Refer to the Pinout diagram above to see how RJ45 pins are

numbered.

ATTENTION

To ensure the IP67-rated connectivity, you must use a waterproof

housing during any communication activities. An IP67-rated field

installable plug, which is attached in AWK-4121’s accessory

pack, may be needed in this case. The installation guide is shown

below:

Waterproof RJ45 Plug (Optional)

Dimensions (unit: mm)

—9 —

Installation

STEP 1:

Attach the gasket ①to the housing ③

STEP 2:

Insert the cable (ex. CAT5e) through the clamp ring ④, screw nut ②, seal ⑤

and housing ③, as follows:

STEP 3:

Crimp the modular RJ plug to the cable; (NOTE: the snagless cover shield and

strain-relief boot are not recommended.) Then, assemble the seals and the

housing (③and ⑤).

STEP 4:

Tightly screw the clamp ring ④to the housing and check to make sure that the

plug is securely fastened.

(NOTE: for a tighter connection, you can connect the RJ-45 plug to the

AWK-4121 before STEP 4.)

Autres manuels pour AWK-4121

Table des matières

Autres manuels Moxa Technologies Point d'accès sans fil

Moxa Technologies

Moxa Technologies AirWorks AWK-1127 Manuel utilisateur

Moxa Technologies

Moxa Technologies AirWorks AWK-3251A-M12-RCC Series Manuel utilisateur

Moxa Technologies

Moxa Technologies AWK-3131 Manuel

Moxa Technologies

Moxa Technologies AirWorks AWK-3131A-M12-RCC-EU Manuel utilisateur

Moxa Technologies

Moxa Technologies AWK-3121B Series Manuel utilisateur

Moxa Technologies

Moxa Technologies airworks awk-5232 Manuel utilisateur

Moxa Technologies

Moxa Technologies AirWorks AWK-3191 Manuel utilisateur

Moxa Technologies

Moxa Technologies AirWorks AWK-1137C Manuel utilisateur

Moxa Technologies

Moxa Technologies NPort NWH650 Manuel utilisateur

Moxa Technologies

Moxa Technologies AirWorks AWK-3131-RCC Series Manuel utilisateur

Moxa Technologies

Moxa Technologies TAP-6226 Manuel utilisateur

Moxa Technologies

Moxa Technologies TAP-6226 Manuel utilisateur

Moxa Technologies

Moxa Technologies AirWorks AWK-3121 Manuel utilisateur

Moxa Technologies

Moxa Technologies AirWorks AWK-3131A Manuel utilisateur

Moxa Technologies

Moxa Technologies airworks awk-5232 Manuel utilisateur

Moxa Technologies

Moxa Technologies AWK-6232 Manuel utilisateur

Moxa Technologies

Moxa Technologies Airworks AWK-3131A-M12-RCC Manuel utilisateur

Moxa Technologies

Moxa Technologies AWK-4121 Manuel utilisateur

Moxa Technologies

Moxa Technologies AirWorks AWK-1200-AC Manuel utilisateur

Moxa Technologies

Moxa Technologies AirWorks WK-1137C-EU-T Manuel utilisateur

Moxa Technologies

Moxa Technologies AirWorks AWK-1200-AP Manuel utilisateur

Moxa Technologies

Moxa Technologies AirWorks AWK-3131A Manuel utilisateur

Moxa Technologies

Moxa Technologies AirWorks AWK-3121-RTG Manuel utilisateur

Moxa Technologies

Moxa Technologies AirWorks AWK-3131A Manuel utilisateur

Manuels Point d'accès sans fil populaires d'autres marques

D-Link

D-Link DWL-2100AP - AirPlus Xtreme G Manuel utilisateur

Ubiquiti

Ubiquiti NanoStation NSM2 Manuel utilisateur

Cisco

Cisco Aironet 1550 Series Manuel utilisateur

Aruba

Aruba IAP-335 Manuel utilisateur

Advantek Networks

Advantek Networks AWN-AP-54MR Manuel utilisateur

IP-COM

IP-COM AP355 Manuel utilisateur

Buffalo

Buffalo AirStation WLA-L11G Manuel utilisateur

EnGenius

EnGenius EnStationACv2 Manuel utilisateur

D-Link

D-Link DAP-3662 Manuel utilisateur

xG Technology

xG Technology xMax CN1300 Manuel utilisateur

Widelink

Widelink ezWave WAP-1100 Series Manuel utilisateur

Edimax

Edimax CAP1200 Manuel utilisateur

Ubiquiti

Ubiquiti LBE-5AC-Gen2 Manuel utilisateur

Aruba

Aruba AP-203R Manuel utilisateur

LuXout Shades

LuXout Shades LUXSHADE MOTION Manuel utilisateur

CreatComm

CreatComm TB5F Manuel utilisateur

SineDigital

SineDigital MW-1500AP(H) Manuel utilisateur

TP-Link

TP-Link AP9650 V1 Manuel utilisateur
