AWK-1121

Quick Installation Guide

Moxa AirWorks

Edition 2.1, July 2016

Technical Support Contact Information

www.moxa.com/support

Moxa Americas:

Toll

-free: 1-888-669-2872

Tel:

1-714-528-6777

Fax:

1-714-528-6778

Moxa China (Shanghai office):

Toll

-free: 800-820-5036

Tel:

+86-21-5258-9955

Fax:

+86-21-5258-5505

Moxa Europe:

Tel:

+49-89-3 70 03 99-0

Fax:

+49-89-3 70 03 99-99

Moxa Asia-Pacific:

Tel:

+886-2-8919-1230

Fax:

+886-2-8919-1231

Moxa India:

Tel:

+91-80-4172-9088

Fax:

+91-80-4132-1045



- 2 -

Overview

Moxa’s AWK-1121 WLAN client is ideal for applications that are hard to

wire, too expensive to wire, or use mobile equipment that connect over a

TCP/IP network. The AWK-1121 is rated to operate at temperatures

ranging from 0 to 60°C for standard models and -40 to 75°C for extended

temperature models, and is rugged enough for any harsh industrial

environment. Installation is easy, with either DIN-rail mounting or

distribution boxes. The DIN-rail mounting ability, wide operating

temperature range, and IP30 housing with LED indicators make the

AWK-1121 a convenient yet reliable solution for any industrial wireless

application.

Package Checklist

Moxa’s AWK-1121 is shipped with the following items. If any of these

items is missing or damaged, please contact your customer service

representative for assistance.

•1 AWK-1121

•2 dBi dual band antenna

•Console protective cap

•Resistive Terminator

•Document and software CD

•Quick Installation Guide (printed)

•Warranty card

- 3 -

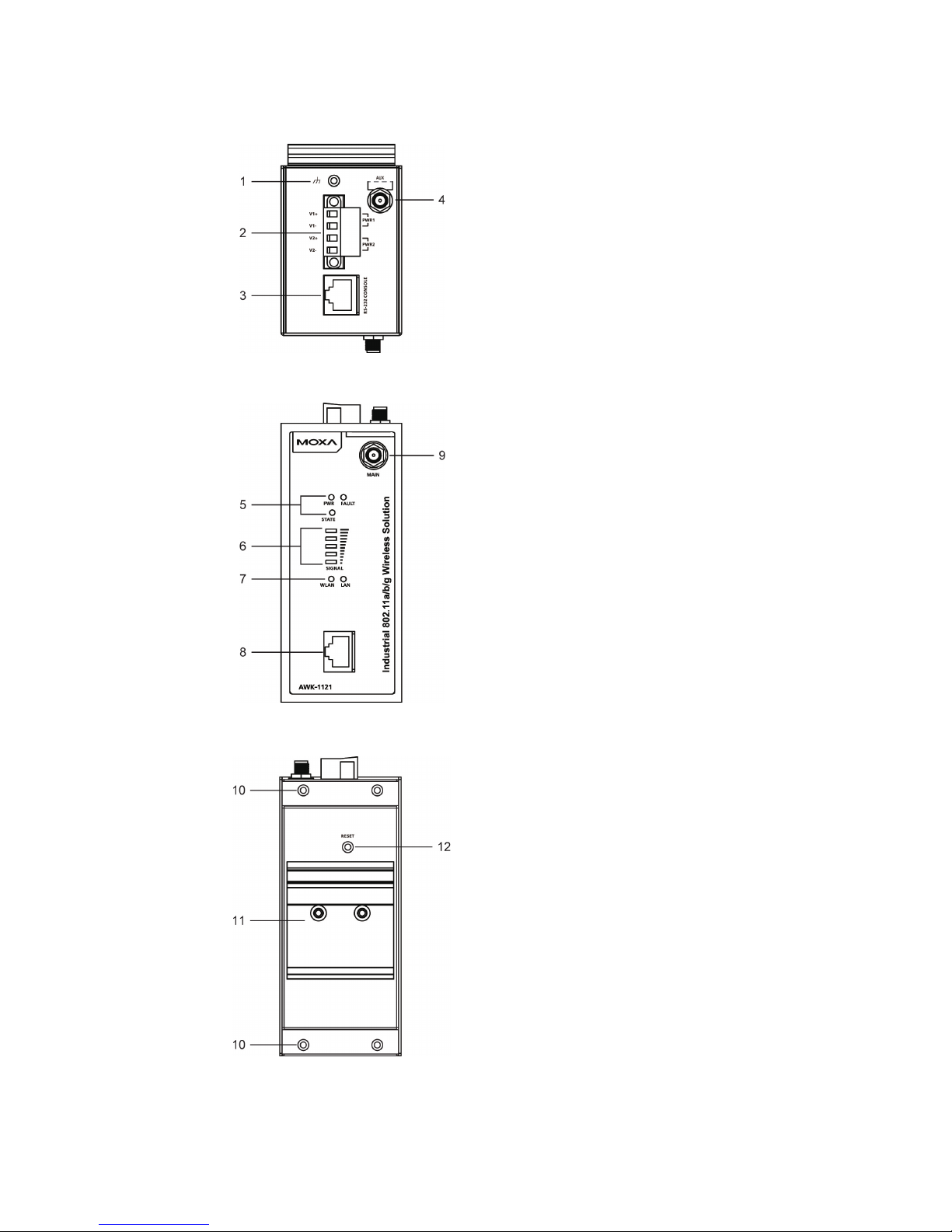

Panel Layout of the AWK-1121

Top Panel View

Front Panel View

Rear Panel View

1. Grounding screw (M3)

2. Terminal block for PWR1 and

PWR2

3. RS-232 console port

4. AUX antenna port

5. System

LEDs: PWR, FAULT, and

STATE LEDs

6. LEDs for signal strength

7. WLAN and LAN LEDs

8. 10/100BaseT(X) RJ45 Port

9. MAIN antenna port

10.

Screw hole for wall-

mounting kit

11.

DIN-rail mounting kit

12.

Reset button

- 4 -

Mounting Dimensions

DIN-Rail Mounting

The aluminum DIN-rail attachment plate should be fixed to the back panel

of the AWK-1121 when you take it out of the box. If you need to reattach

the DIN-rail attachment plate to the AWK-1121, make sure the stiff metal

spring is situated towards the top, as shown in the figures below:

STEP 1:

Insert the top of the DIN rail into the

slot just below the stiff metal spring

in the upper hook of the DIN

-rail

mounting kit.

STEP 2:

Push the AWK

-1121 towards the

DIN rail until the DIN

-rail

attachment bracket snaps into

place.

To remove the AWK-1121 from the DIN rail, simply reverse Steps 1 and 2.

- 5 -

Wall Mounting (optional)

For some applications, it may be more convenient to mount the

AWK-1121 to a wall, as illustrated below.

STEP 1:

Remove the aluminum

DIN

-rail attachment plate

from the AWK

-1121, and

then attach the wall mount

plates with M3 screws, as

shown in the adjacent

diagrams.

STEP 2:

Mounting the AWK

-1121 to a wall requires 4 screws.

Use the AWK

-1121 device, with wall mount plates

attached, as a guide to mark the correct locations of

the 4 screws. The heads of the screws should be less

than 6.0 mm in diameter, and the

shafts should be

less

than 3.5 mm in diameter, as shown in the figure

the

right.

Do not drive the screws in all the way into the wall—leave a space of about

2 mm to allow room for sliding the wall mount panel between the wall and

the screws.

NOTE

Test the screw head and shank size by inserting the screw into

one of the k

eyhole shaped apertures of the wall-mounting p

lates

before attaching the plate to the wall.

STEP 3:

Once the screws are fixed into

the wall, insert the four screw

heads through the large opening

the keyhole-shaped

apertures, and then slide the

AWK

-1121 downwards, as

indicated to the right. Tighten

the four screws for added

stability.

- 6 -

Deployment Precautions

Wiring Requirements

WARNING

Safety First!

Be sure to

disconnect the power cord before installing and/or

wiring your Moxa AWK-1121.

WARNING

Safety First!

Calculate the maximum possible current in each power wire and

common wire. Observe all electrical codes dictating the

maximum current allow

able for each wire size.

If the current goes

above

the maximum ratings, the wiring could

overheat, causing

serious damage to your equipment.

You should also pay attention to the following items:

•Use separate paths to route wiring for power and devices. If power

wiring and device wiring paths must cross, make sure the wires are

perpendicular at the intersection point.

NOTE

Do not run signal or communications wiring and power wiring in

the same wire conduit. To avoid interference, wires

with different

signal characteristics should be routed separately.

•You can use the type of signal transmitted through a wire to

determine which wires should be kept separate. The rule of thumb is

that wiring with similar electrical characteristics can be bundled

together.

•Keep input wiring and output wiring separate.

•It is strongly advised that you label wiring to all devices in the system

for easy identification.

ATTENTION

This pr

oduct is intended to be supplied by a Listed Power Unit

marked

“Class 2” or “LPS” and rated O/P:

12 to 48 VDC, 0.16 to

0.55 A.

ATTENTION

Make sure

the external power adapte

r (includes power cords and

plug assemblies) provided with the unit is certified and suitable

for use in your country.

- 7 -

Grounding the Moxa AWK-1121

Grounding and wire routing help limit the effects of noise due to

electromagnetic interference (EMI). Run the ground connection from the

ground screw to the grounding surface prior to connecting devices.

ATTENTION

This product is intended to be mounted to a well

-grounded

mounting surface, such as a metal panel.

Installations with Unstable Power Inputs

There are cases where the device has to be wired to the same power

source as other equipment. In such cases if equipment such as motors

that are connected in the circuit draw a large amount of current during

operation, the transient voltage drop could potentially cause the AWK to

become unstable. Installing a DC/DC power isolator in between the two

equipment is recommended to isolate the transient effect and to ensure a

stable power input for the AWK.

Installations with Cable Extended Antennas for Outdoor

Applications

If the antenna or the AWK device is installed outdoors or in an open-air

setting, proper lightning protection is required to prevent direct lightning

strikes on the AWK device. In order to prevent coupling currents from

nearby lightning strikes, a lightning arrester should be installed as part of

your antenna system. Ground the device, antenna, as well as the arrester

properly to provide maximum outdoor protection for the device.

- 8 -

Arrester Accessories

•SA-NMNF-01: Surge arrester, N-type (male) to N-type (female)

•SA-NFNF-01: Surge arrester, N-type (female) to N-type (female)

Wiring the Redundant Power Inputs

The 4-contact terminal block connector on the AWK-1121’s top panel is

used for the AWK-1121’s two DC inputs. The top and front views of the

terminal block connector are shown here.

Top View

Front View

STEP 1: Insert the negative/positive DC wires

into the

V-/V+ terminals.

STEP 2:

To keep the DC wires from pulling

loose,

use a small flat

-blade screwdriver to

tighten the

wire

-clamp screws on the front of the terminal

block connector.

STEP 3:

Insert the plastic terminal block

connector prongs into the terminal block

receptor, which is

located on the AWK-1121’s t

panel.

ATTENTION

If the AWK

-1121 is connected to a motor or other similar type

equipment, be sure to use power isolation protection. Before

connecting the

AWK-1121

to the DC power inputs, make sure the

DC power source voltage is stable.

- 9 -

Communication Connections

10/100BaseT(X) Ethernet Port Connection

The 10/100BaseT(X) ports located on the AWK-1121’s front panel are

used to connect to Ethernet-enabled devices.

The pinouts for both MDI (NIC-type) ports and MDI-X (HUB/Switch-type)

ports are shown below:

MDI Port Pinouts

MDI-X Port Pinouts

8-pin RJ45

Signal

Tx+

Rx+

Tx-

Rx-

Rx+

Tx+

Rx-

Tx-

RS-232 Connection

The AWK-1121 has one RS-232 (8-pin RJ45) console port located on the

top panel. Use either an RJ45-to-DB9 or RJ45-to-DB25 cable to connect

the Moxa AWK-1121’s console port to your PC’s COM port. You may then

use a console terminal program to access the AWK-1121 for console

configuration.

Console Pinouts for 10-pin or 8-pin RJ45

10-Pin

Description

8-Pin

–

DSR

RTS

GND

TxD

RxD

DCD

CTS

DTR

–

NOTE

1. The pin numbers for DB9 and DB25 male connectors, and

hole numbers for DB9 and DB25 female connectors are

labeled on the connector strip. However, the numbers are

typically quite small, so you may need to use a magnifying

glass to see the numbers clearly.

2. The pin numbers for both the 8-pin and 10-pin RJ45

connectors (and ports) are typically not labeled on the

connector (or port). Refer to the pinout diagram above

for

details.

- 10 -

LED Indicators

The front panel of the Moxa AWK-1121 contains several LED indicators.

The function of each LED is described in the table below:

LED

Color

State

Description

PWR Green

Power is on.

Off

Power is not being supplied.

FAULT Red

System is booting up.

Blinking

(slow at

1-second

intervals)

IP address cannot be got from DHCP

server.

Blinking

(fast at

0.5-second

intervals)

IP address conflict.

Off

Status is normal.

STATE Green/

Red

Green

System startup is complete and the

system is in operation.

Green

(Blinking at

1-second

intervals)

The AWK Search Utility has located

the AWK.

Red

System is booting up.

SIGNAL

(5 LEDs)

Green

Signal level.

Off

Reserved.

WLAN Green

WLAN is connected.

Blinking

WLAN is transferring data.

Off

WLAN is not in use or not working

properly.

LAN Green

Green

100/10 Mbps LAN port is active.

Blinking

Data is being transmitted.

Off

100/10 Mbps LAN port is inactive.

Specifications

WLAN Interface

Standards

IEEE 802.11a/b/g for Wireless LAN

IEEE 802.11i for Wireless Security

IEEE 802.3 for 10BaseT

IEEE 802.3u 10/100BaseT(X)

IEEE 802.3af for Power-over-Ethernet (PoE

models only)

IEEE 802.1D for Spanning Tree Protocol

IEEE 802.1w for Rapid STP

Spread Spectrum and

Modulation (typical)

•DSSS with DBPSK, DQPSK, CCK

•OFDM with BPSK, QPSK, 16QAM, 64QAM

•802.11b:

CCK @ 11/5.5 Mbps, DQPSK @ 2 Mbps,

DBPSK @ 11 Mbps

•802.11a/g:

64QAM @ 54/48 Mbps, 16QAM @ 36/24 Mbps

QPSK @ 18/12 Mbps, BPSK @ 9/6 Mbps

Autres manuels pour AWK-1121

Table des matières

Autres manuels Moxa Technologies Serveur

Moxa Technologies

Moxa Technologies NPort 5100 Series Manuel utilisateur

Moxa Technologies

Moxa Technologies NPort W2150 Plus Manuel utilisateur

Moxa Technologies

Moxa Technologies NPort 5230 Manuel utilisateur

Moxa Technologies

Moxa Technologies NPort 6250 Series Manuel utilisateur

Moxa Technologies

Moxa Technologies ioLogik 4000 Series Manuel utilisateur

Moxa Technologies

Moxa Technologies NPort IA5000A-I/O series Manuel utilisateur

Moxa Technologies

Moxa Technologies NPort 5000AI-M12 Manuel utilisateur

Moxa Technologies

Moxa Technologies NPort 6250 Series Manuel utilisateur

Moxa Technologies

Moxa Technologies NPort 5200-P Series Manuel utilisateur

Moxa Technologies

Moxa Technologies 2140 Manuel utilisateur

Moxa Technologies

Moxa Technologies NPort 5610 series Manuel utilisateur

Moxa Technologies

Moxa Technologies NPort 6000 Series Manuel utilisateur

Moxa Technologies

Moxa Technologies NPort 6450 Series Manuel utilisateur

Moxa Technologies

Moxa Technologies NPort W2150Plus Series Manuel utilisateur

Moxa Technologies

Moxa Technologies AirWorks AWK-1127 Manuel utilisateur

Moxa Technologies

Moxa Technologies NPort P5150A Series Manuel utilisateur

Moxa Technologies

Moxa Technologies NPort 6450 Series Manuel utilisateur

Moxa Technologies

Moxa Technologies NPort IA5000A Series Manuel utilisateur

Moxa Technologies

Moxa Technologies NPort 5150AI-M12 Manuel utilisateur

Moxa Technologies

Moxa Technologies CN2610 series Manuel utilisateur

Moxa Technologies

Moxa Technologies NPort S9000 Series Manuel utilisateur

Moxa Technologies

Moxa Technologies NPort DE-311 Manuel utilisateur

Moxa Technologies

Moxa Technologies NPort Express DE-211 Manuel

Moxa Technologies

Moxa Technologies NPort W2150A Manuel utilisateur

Manuels Serveur populaires d'autres marques

HP AlphaServer ES47 Manuel utilisateur

Dell

Dell PowerEdge R410 Manuel utilisateur

PowerNAS

PowerNAS CMA Manuel utilisateur

Supero

Supero FatTwin F617R3-FT Manuel utilisateur

MSI

MSI P1-109N-L70 Manuel utilisateur

Dell

Dell PowerEdge XE9640 Manuel

Dell

Dell PS4100 Instructions de montage

EtroVISION

EtroVISION EV3151 Manuel utilisateur

NEC

NEC Express5800/T110j Manuel utilisateur

HP ProLiant Gen9 Manuel utilisateur

Compaq

Compaq ProLiant 3000 Manuel

Dell

Dell PowerEdge 3YPMN Manuel utilisateur

iRobo

iRobo IPC2U Manuel utilisateur

Nortel

Nortel 1000 Con?guration guide Manuel utilisateur

Asus

Asus AP7500 Manuel d'utilisation et d'entretien

Avid Technology

Avid Technology AirSpeed 5000 Manuel utilisateur

HP Integrity rx2600 Guide d'installation

Milestone

Milestone Husky IVO 350T Manuel utilisateur
