VPort 36-1MP Series

Quick Installation Guide

First Edition, March 2012

P/N: 1802000360010

- 2 -

Overview

The VPort 36-1MP Series is the world’s first rugged IP camera that

withstands environmental temperatures ranging from -40 to 75°C

without a heater/cooling fan. It is an industrial-grade, H.264 box-type IP

camera that combines HD resolution (1280 x 720), advanced IVA

(Intelligent Video Analysis) technology, and de-mist technology to

enhance surveillance system efficiency while delivering state-of-the art

video quality. Optional housing and PT scanner accessories are available

for indoor and outdoor installation.

VPort 36-1MP Series is designed to be compatible with C/CS mount lenses

to meet any viewing angle and distance requirement. With a built-in

removable IR-cut filter and automatic color mode switching, the VPort

36-1MP Series is suitable for day-and-night use. Highly-tuned ROI

(Region of Interest), BLC (Back Light Compensation), and WDR (Wide

Dynamic Range) functions enable the VPort 36-1MP Series to produce

exceptionally clear images. VPort 36-1MP Series can encode analog video

into both H.264 and MJPEG video streams and can transmit up to 3

independent video streams (2 in H.264, and 1 in MJPEG) simultaneously.

Advanced video encoding technology enables the camera to support up to

30 fps for each of the H.264 and MJPEG streams.

Package Checklist

Moxa’s VPort 36-1MP Series is shipped with the following items. If any of

these items is missing or damaged, please contact your customer service

representative for assistance.

•1 VPort 36-1MP series camera (one of models below)

Standard model

Description

VPort 36-1MP

VPort 36-1MP, POE, 0 to 60°C operating

temperature

VPort 36-1MP-T VPort 36-1MP, POE, -40 to 75°C operating

temperature

VPort 36-1MP-IVA

VPort 36-1MP, POE, 0 to 60°C operating

temperature, 1 IVA license

VPort

36-1MP-IVA-T

VPort 36-1MP, POE, -40 to 75°C operating

temperature, 1 IVA license

VPort 36-1MP-DM VPort 36-1MP, POE, 0 to 60°C operating

temperature, de-mist function

- 3 -

•Screw handle accessory package

Inner hexagon

screwdriver for

tightening/ loosening

lens holder

C/CS mount adapter ring

5-pin terminal block

for DI and relay

3-pin terminal block

for power input

2-pin terminal block for

RS-485 DX+ and DX-

•Quick Installation Guide

•Document & Software CD (includes User’s Manual, Quick Installation

Guide, and VPort Utility)

•Warranty Statement

NOTE

Check the model name on the VPort’s side label to determine if

the model name is correct for your order.

NOTE

This product must be installed in compliance with your local laws

and regulations.

Features

Sensor: 1/2.7” HD progressive scan CMOS

Lens: C/CS mount lens (lens not included)

Auto Iris Type: DC drive

Illumination (low light sensitvity): • Color: 0.2 lux at F1.2 • B/W:

0.05 lux at F1.2

Synchronization: Internal

Gamma Correction: 0.45 or 1.0 (default 0.45)

White Balance: ATW/AWB (range: 3200 to 10000°K)

Dynamic Range: Color: 100 dB; B/W: 110 dB

Auto Electronic Shutter: 1/30 to 1/25000 sec.

Electronic Shutter: 1/50, 1/100, 1/250, 1/500, 1/1000, 1/2000,

1/4000, 1/10000 sec.

S/N Ratio: 50 dB (Gamma, Aperture, AGC OFF; DNR ON)

ICR Control: Auto (light sensor control) or DI control

DNR: Built-in DNR

WDR: On/Off 2 www.moxa.com info@moxa.com IP Surveillance

AGC Control: On/Off

Flickerless Control: On/Off

- 4 -

Backlight Compensation: On/Off

Auto Exposure: On/Off

Image Rotation: Flip, Mirror, and 180° rotation

Image Setting: Manually tuning with brightness, saturation, contrast,

and hue

Video Compression: H.264 (ISO/IEC 14496-10) or MJPEG

Video Outputs: Ethernet

Video Streams: Up to 3 video streams (2 x H.264 and 1 x MJPEG)

• Stream 1: H.264, 1280 x 720 resolution (max.)

• Stream 2: H.264, 720 x 480 resolution (max.)

• Stream 3: MJPEG, 720 x 480 resolution (max.)

Note: Streams 2 and 3 must be at the same resolution

Video Motion Detection: 3 independently configurable motion areas

Scheduling: Daily repeat timing schedule

Imaging: JPEG snapshots for pre/trigger/post alarm images

Video Recording: Event recording and stored in the SD card

Email/FTP Messaging: Automatic transfer of stored images via email or

FTP when alert

Custom Alarms: HTTP event servers for setting customized alarm

actions

Pre-alarm Buffer: 24 MB video buffer for JPEG snapshot images

Advance Software Feature:

• DynaStream™ support for automatic adjustment of frame rate

• 3 privacy mask areas provided

• ROI (Region of Interest) configuration for up to 3 areas

Safety: UL 60950-1, EN 50121-4, NEMA TS2, Class 1 Division 2

(Pending), Atex Zone 2 (Pending)

EMI: FCC Part 15, CISPR (EN 55022) class A

EMS: EN 61000-4-2 (ESD), Level 3 EN 61000-4-3 (RS), Level 3 EN

61000-4-4 (EFT), Level 3 EN 61000-4-5 (Surge), Level 3 EN 61000-4-6

(CS), Level 3 EN 61000-4-8, EN 61000-4-11

Shock: IEC 60068-2-27

Freefall: IEC 60068-2-32

Vibration: IEC 60068-2-6

Warranty: 5-year warranty

Product Description of the VPort 36-1MP

Top View

- 5 -

Bottom View

NOTE

You will find

the mounting bracket fastened at

the bottom of the

camera. Y

ou can

remove and reposition the bracket to the top of

the camera to meet your deployment requirements..

•Auto Iris Socket: Plug auto-iris cable from camera lens to this socket

for auto-iris function

•Lens Holder: Lens holder is designed for CS mount lenses, C/CS

adapter is required if you want to use C mount lenses. Find more

details in the HW installation section of this manual.

•SD Card Slot: Remove the SD card slot cover and insert an SD card

for disconnection/event local storage

•Mounting Bracket Screw Hole: Screw holes for fastening mounting

brackets.

•Reset Button: Use a pointed object to push down the reset button to

reboot. Push and hold the button until system reboot to restore

factory defaults.

- 6 -

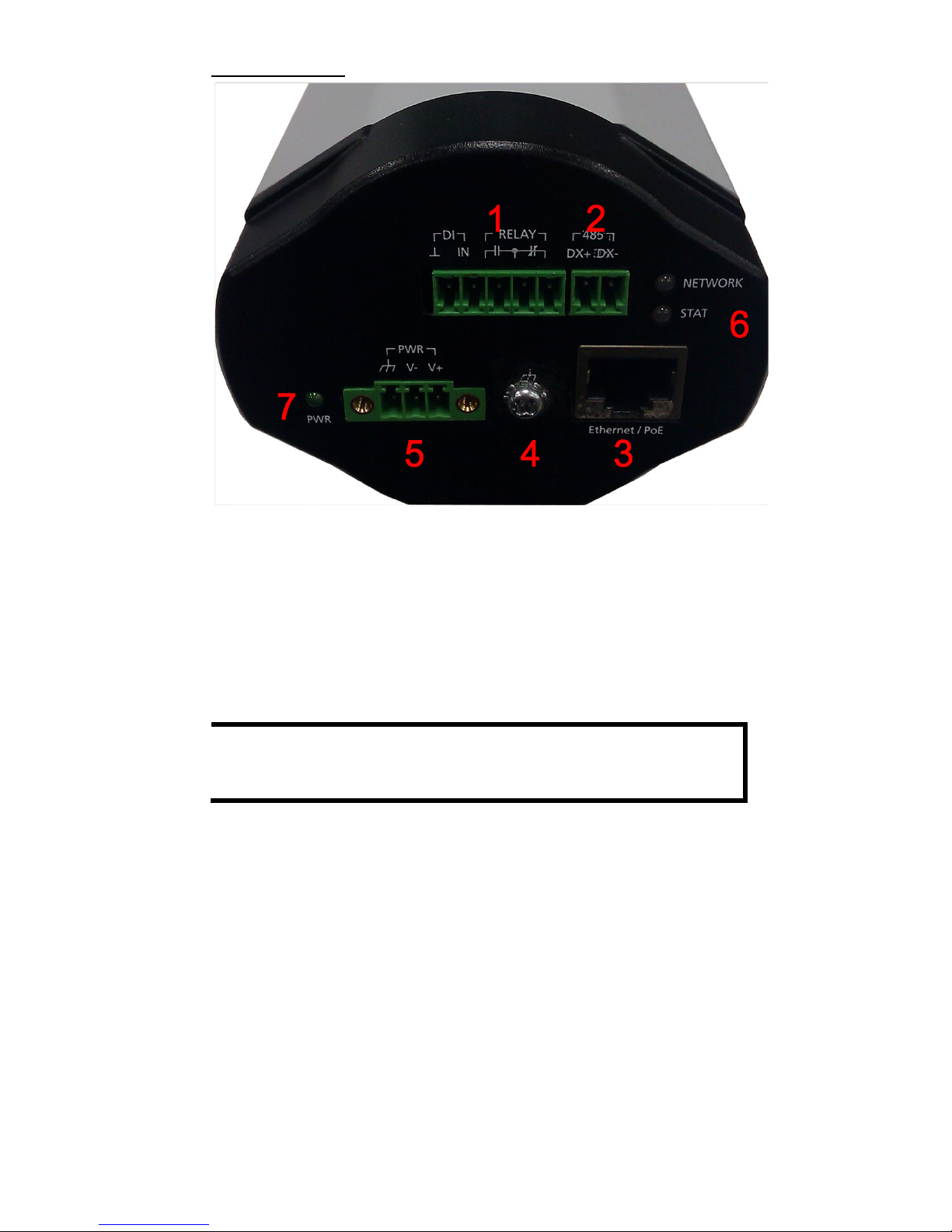

Back Panel View

1. 5 pin terminal block for DI and relay connection

2. 2 pin terminal block for RS-485 pin connection

3. RJ45 port for PoE/non-PoE connection

4. Ground screw for connection grounding wire

5. 3 pin terminal block for power input

6. LED indicator to show network and system status. Green when

normal.

7. LED indicator to show power status. Green when normal.

NOTE

VPort 36-1MP can be powered by 12 VDC / 24 VDC / 24 VAC input

or Power over Ethernet (PoE, 802.3af). You can install both to

make a redundant power input.

- 7 -

Hardware Installation

Step 1: Remove lens cover

Step 2: Loosen the lens holder pressing screw with the L-type

inner hexagon screw driver

- 8 -

Step 3: Remove lens holder

NOTE

Make sure

to loosen the screw affixing the lens holder in step 2

before trying to remove

the lens holder. The l

ens holder may be

too tight to loosen if screw is not loosened first

Step 4: Screw lens holder to the lens you are going to use.

NOTE

Observe carefully, make sure you screw lens holder to the lens by

right side. The side of lens holder with groove should be facing

the lens, the other side without groove should be facing outward.

Step 5: Screw lens and lens holder to VPort 36-1MP

NOTE

You are suggested do this step while viewing live video from the

camera via web browser,

for instant feedback on when to stop.

Make sure you don’t screw all the way to the end, or the lens

holder may fix to the camera when you remove the lens.

NOTE

You can screw tight the lens holder pressing screw in step 2 to fix

the position of lens holder and lens

Step 6: Power on your VPort 36-1MP

NOTE

The

VPort 36-

1MP can be powered by 12 VDC / 24 VDC / 24 VAC

input or Power over Ethernet (PoE, 802.3af). You can install both

for a redundant power input.

Groove

- 9 -

Software Installation

Step 1: Configure the VPort 36-1MP’s IP address

When the VPort 36-1MP is first powered on, the POST (Power On Self Test)

will run for a few moments (about 30 seconds). The network environment

determines how the IP address is assigned.

Network Environment with DHCP Server

For this network environment, the unit’s IP address will be assigned by

the network’s DHCP server. Refer to the DHCP server’s IP address table to

determine the unit’s assigned IP address. You may also use the Moxa

VPort and Ether Device Configurator Utility (edscfgui.exe), as described

below:

Using the Moxa VPort and EtherDevice Configurator Utility

(edscfgui.exe)

Run the edscfgui.exe program to search for the VPort. After the utility’s

window opens, you may also click on the Search button to initiate a

search.

When the search has concluded, the Model Name, MAC address, IP

address, serial port, and HTTP port of the VPort will be listed in the utility’s

window.

Users can double click the selected VPort, or use the IE web browser to

access the VPort’s web-based manager (web server).

Non DHCP Server Network Environment

If your VPort 36-1MP is connected to a network that does not have a

DHCP server, then you will need to configure the IP address manually.

The default IP address of the VPort 36-1MP is 192.168.127.100 and the

default subnet mask is 255.255.255.0. Note that you may need to change

your computer’s IP address and subnet mask so that the computer is on

the same subnet as the VPort.

To change the IP address of the VPort manually, access the VPort’s web

server, and then navigate to the System Configuration Network 

General page to configure the IP address and other network settings.

Check the Use fixed IP address to ensure that the IP address you

assign is not deleted each time the VPort is restarted.

Step 2: Accessing the VPort 36-1MP’s web-based manager

Type the IP address in the web browser’s address input box and then

press enter.

- 10 -

Step 3: Install the ActiveX Control Plug-in

A security warning message will appear the first time you access the

VPort’s web-based manager. The message is related to installing the

VPort AcitveX Control component on your PC or notebook. Click Yes to

install this plug-in to enable the IE web browser for viewing video images.

NOTE

For Windows XP SP2 or above operating systems, the ActiveX

Control component will be blocked for system security reasons.

In this case, the VPort’s security warning message window may

not

appear. Users should unlock the ActiveX control blocked

function or disable the security configuration to enable the

installation of the VPort’s ActiveX Control component.

Step 4: Access the homepage of the VPort 36-1MP’s web-based

manager.

After installing the ActiveX Control component, the homepage of the

VPort 36-1MP’s web-based manager will appear. Check the following

items to make sure the system was installed properly:

1. Video Images

2. Video Information

Step 5: Access VPort’s system configuration.

Click on System Configuration to access the overview of the system

configuration to change the configuration. Model Name, Server Name,

IP Address, MAC Address and Firmware Version appear in the green

bar near the top of the page. Use this information to check the system

information and installation.

For details of each configuration, check the User’s Manual on the software

CD.

Autres manuels pour VPort 36-1MP

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Moxa Technologies Caméra IP

Moxa Technologies

Moxa Technologies VPort 06EC-2V36M Manuel utilisateur

Moxa Technologies

Moxa Technologies VPort P06-2L25M Manuel utilisateur

Moxa Technologies

Moxa Technologies VPORT P06-1MP-M12 Manuel utilisateur

Moxa Technologies

Moxa Technologies VPORT P06-1MP-M12 Manuel utilisateur

Moxa Technologies

Moxa Technologies Vport P16-1MP-M12-IR Series Manuel utilisateur

Moxa Technologies

Moxa Technologies VPort 16-M12 Series Manuel utilisateur

Moxa Technologies

Moxa Technologies VPort 26A-1MP Series Manuel utilisateur

Moxa Technologies

Moxa Technologies VPort P06HC-1MP-M12 Manuel utilisateur

Moxa Technologies

Moxa Technologies VPort 36-1MP Manuel utilisateur

Moxa Technologies

Moxa Technologies VPort 36-1MP Manuel utilisateur

Moxa Technologies

Moxa Technologies VPort 56-2MP Manuel utilisateur

Moxa Technologies

Moxa Technologies VPort 26 Series Manuel utilisateur

Moxa Technologies

Moxa Technologies VPort P06-1MP-M12-CAM36 Manuel utilisateur

Moxa Technologies

Moxa Technologies VPort P06HC-1MP-M12 Manuel utilisateur

Moxa Technologies

Moxa Technologies VPort 26A-1MP Series Manuel utilisateur

Moxa Technologies

Moxa Technologies VPort P16-1MP-M12 Series Manuel

Moxa Technologies

Moxa Technologies VPort 36-1MP Manuel utilisateur

Moxa Technologies

Moxa Technologies VPort 56-2MP Manuel utilisateur

Manuels Caméra IP populaires d'autres marques

FLIR

FLIR Exx series Manuel utilisateur

Avigilon

Avigilon H4A-BO1-IR Manuel utilisateur

Digital Watchdog

Digital Watchdog DWCA-C128-64 Manuel utilisateur

ShareTech

ShareTech AV1 Manuel utilisateur

Ezviz

Ezviz C6C Manuel utilisateur

Melchioni

Melchioni UCAM 2015 Manuel utilisateur

Geutebruck

Geutebruck G-Cam/ESD-4630 Manuel utilisateur

Arecont Vision

Arecont Vision MegaBall AV3146DN-3310-D-LG Manuel utilisateur

Mitel

Mitel 6800i Series Manuel de service

Vitek

Vitek VTC-IR403-212NP Manuel utilisateur

THOMSON

THOMSON DSC - 323W Manuel utilisateur

AVer

AVer FB2027 Manuel utilisateur

ENFORCER

ENFORCER EV-T5105-N2SQ Manuel utilisateur

Wansview

Wansview NC543 Manuel utilisateur

Eneo

Eneo MCB-64A0003M0A Manuel utilisateur

deView electronics

deView electronics CBDNI36F Manuel utilisateur

Swann

Swann SwannEye Manuel utilisateur

LevelOne

LevelOne IP CamSecure Manuel utilisateur
