UC-5100 Series

Quick Installation Guide

Edition 1.0, May 2018

Technical Support Contact Information

www.moxa.com/support

Moxa Americas:

Toll

-free: 1-888-669-2872

Tel:

1-714-528-6777

Fax:

1-714-528-6778

Moxa China (Shanghai office):

Toll

-free: 800-820-5036

Tel:

+86-21-5258-9955

Fax:

+86-21-5258-5505

Moxa Europe:

Tel:

+49-89-3 70 03 99-0

Fax:

+49-89-3 70 03 99-99

Moxa Asia-Pacific:

Tel:

+886-2-8919-1230

Fax:

+886-2-8919-1231

Moxa India:

Tel:

+91-80-4172-9088

Fax:

+91-80-4132-1045



- 2 -

Overview

The UC-5100 Series embedded computers are designed for industrial

automation applications. The computers feature 4 RS-232/422/485 full-

signal serial ports with adjustable pull-up and pull-down resistors, dual

CAN ports, dual LANs, 4 digital input channels, 4 digital output

channels, a SD socket, and a mini PCIe socket for wireless module in a

compact housing with convenient front-end access to all these

communication interfaces.

Model Names and Package Checklist

The UC-5100 Series includes the following models:

UC-5101-LX: Industrial computing platform with 4 serial ports, 2

Ethernet ports, SD socket, 4 DI, 4 DO, -10 to 60°C operating

temperature range

UC-5102-LX: Industrial computing platform with 4 serial ports, 2

Ethernet ports, SD socket, mini PCIe socket, 4 DI, 4 DO, -10 to 60°C

operating temperature range

UC-5111-LX: Industrial computing platform with 4 serial ports, 2

Ethernet ports, SD socket, 2 CAN ports, 4 DI, 4 DO,-10 to 60°C

operating temperature range

UC-5112-LX: Industrial computing platform with 4 serial ports, 2

Ethernet ports, SD socket, mini PCIe socket, 2 CAN ports, 4 DI, 4 DO,

-10 to 60°C operating temperature range

UC-5101-T-LX: Industrial computing platform with 4 serial ports, 2

Ethernet ports, SD socket, 4 DI, 4 DO, -40 to 85°C operating

temperature range

UC-5102-T-LX:Industrial computing platform with 4 serial ports, 2

Ethernet ports, SD socket, mini PCIe socket, 4 DI, 4 DO, -40 to 85°C

operating temperature range

UC-5111-T-LX: Industrial computing platform with 4 serial ports, 2

Ethernet ports, SD socket, 2 CAN ports, 4 DI, 4 DO, -40 to 85°C

operating temperature range

UC-5112-T-LX: Industrial computing platform with 4 serial ports, 2

Ethernet ports, SD socket, 2 CAN ports, mini PCIe socket, 4 DI, 4 DO,

-40 to 85°C operating temperature range

NOTE

The operating temperature range of the wide temperature

models is:

-40 to 70°C with an LTE accessory installed

-10 to 70°C with a Wi-Fi accessory installed

Before installing a UC-5100 computer, verify that the package contains

the following items:

•UC-5100 Series computer

•Console cable

•Power jack

•Quick Installation Guide (printed)

•Warranty card

Notify your sales representative if any of the above items are missing

or damaged.

- 3 -

NOTE

The console cable and power jack can be found beneath the

molded pulp cushioning inside the product box.

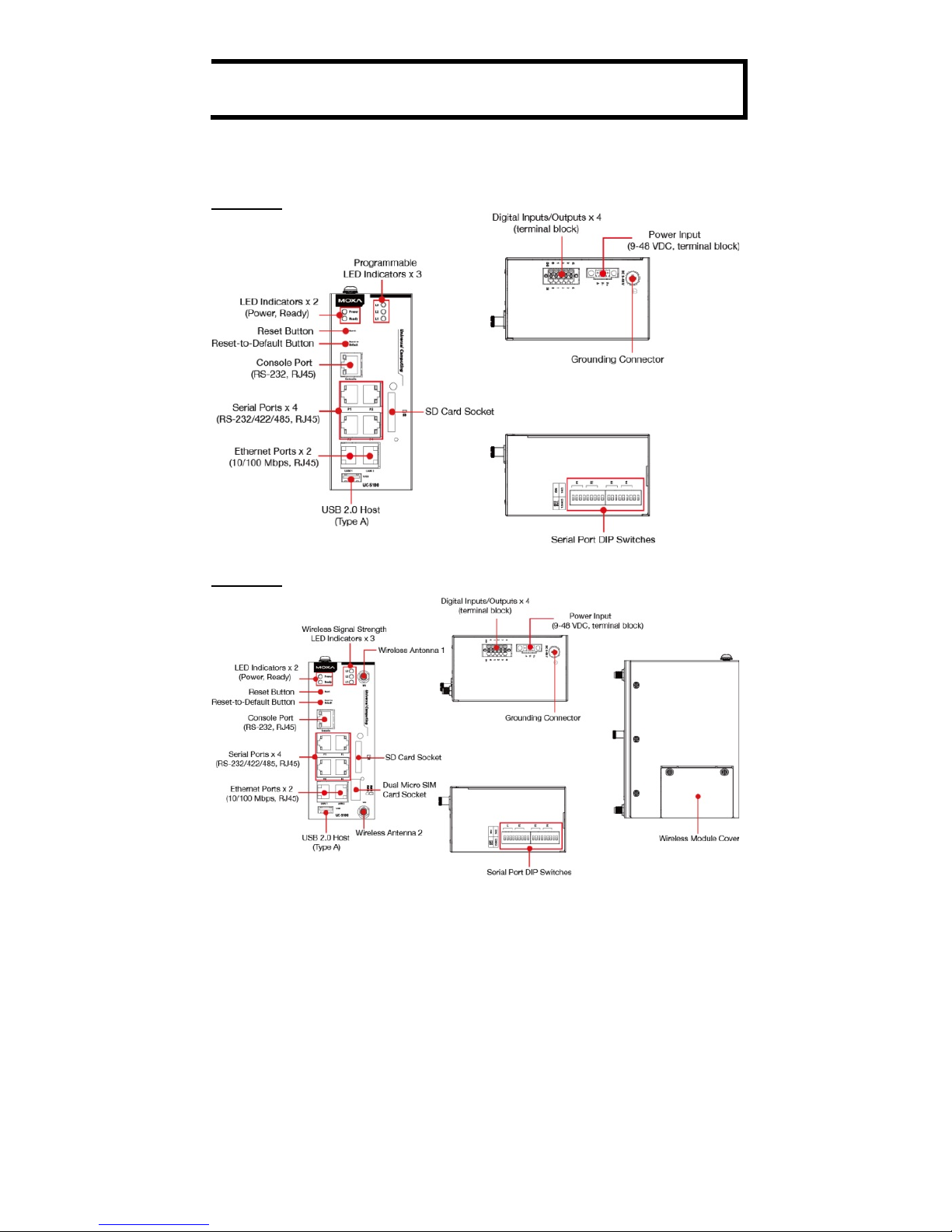

Appearance

UC-5101

UC-5102

- 4 -

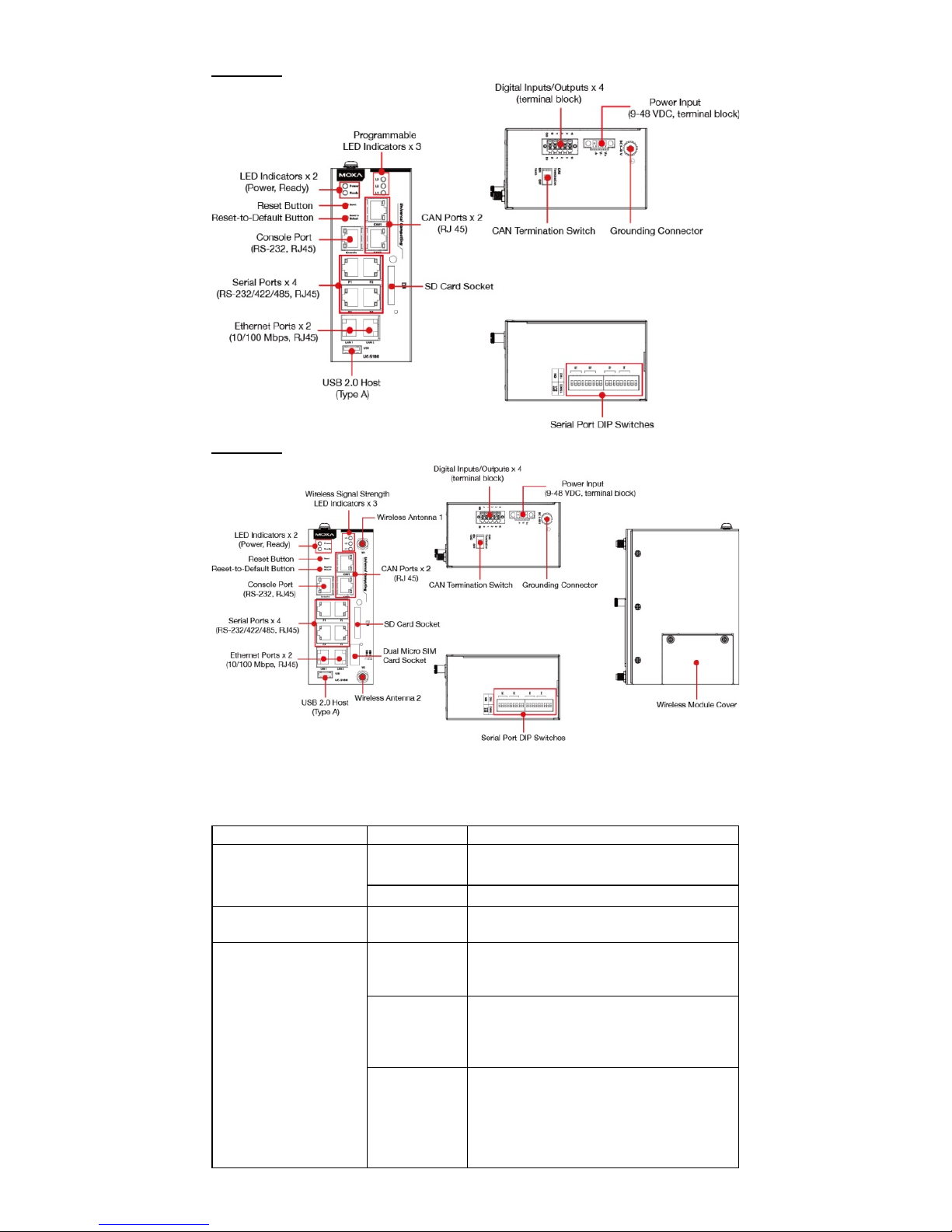

UC-5111

UC-5112

LED Indicators

The function of each LED is described in the table below:

LED Name

Status

Function

Power

Green

Power is on and the device is

functioning normally

Off

Power is off

Ready

Yellow

OS has been successfully enabled

and the device is ready

Ethernet

Green

Steady On: 10 Mbps Ethernet link

Blinking: Data transmission is in

progress

Yellow

Steady On: 100 Mbps Ethernet

link

Blinking: Data transmission is in

progress

Off

Transmission speed below 10

Mbps or the cable is not

connected

- 5 -

LED Name

Status

Function

Serial (Tx)

Green

Serial port is transmitting data

Off

Serial port is not transmitting

data

Serial (Rx)

Yellow

Serial port is receiving data

Off

Serial port is not receiving data

L1/L2/L3

(UC-

5102/5112)

Yellow

The number of glowing LEDs

indicates the signal strength.

All LEDs: Excellent

L1 & L2 LEDs : Good

L1 LED : Poor

Off

No wireless module detected

L1/L2/L3

(UC-

5101/5111)

Yellow/Off

Programmable LEDs defined by

users

Reset Button

The UC-5100 computer is provided with a Reset button, which is

located on the front panel of the computer. To reboot the computer,

press the reset button for 1 second.

Reset to Default Button

The UC-5100 is also provided with a Reset to Default button which

can be used to reset the operating system back to the factory default

status. Press and hold the Reset to Default button between 7 to 9

seconds to reset the computer to the factory default settings. When the

reset button is held down, the Ready LED will blink once every second.

The Ready LED will become steady when you hold the button

continuously for 7 to 9 seconds. Release the button within this period to

load the factory default settings.

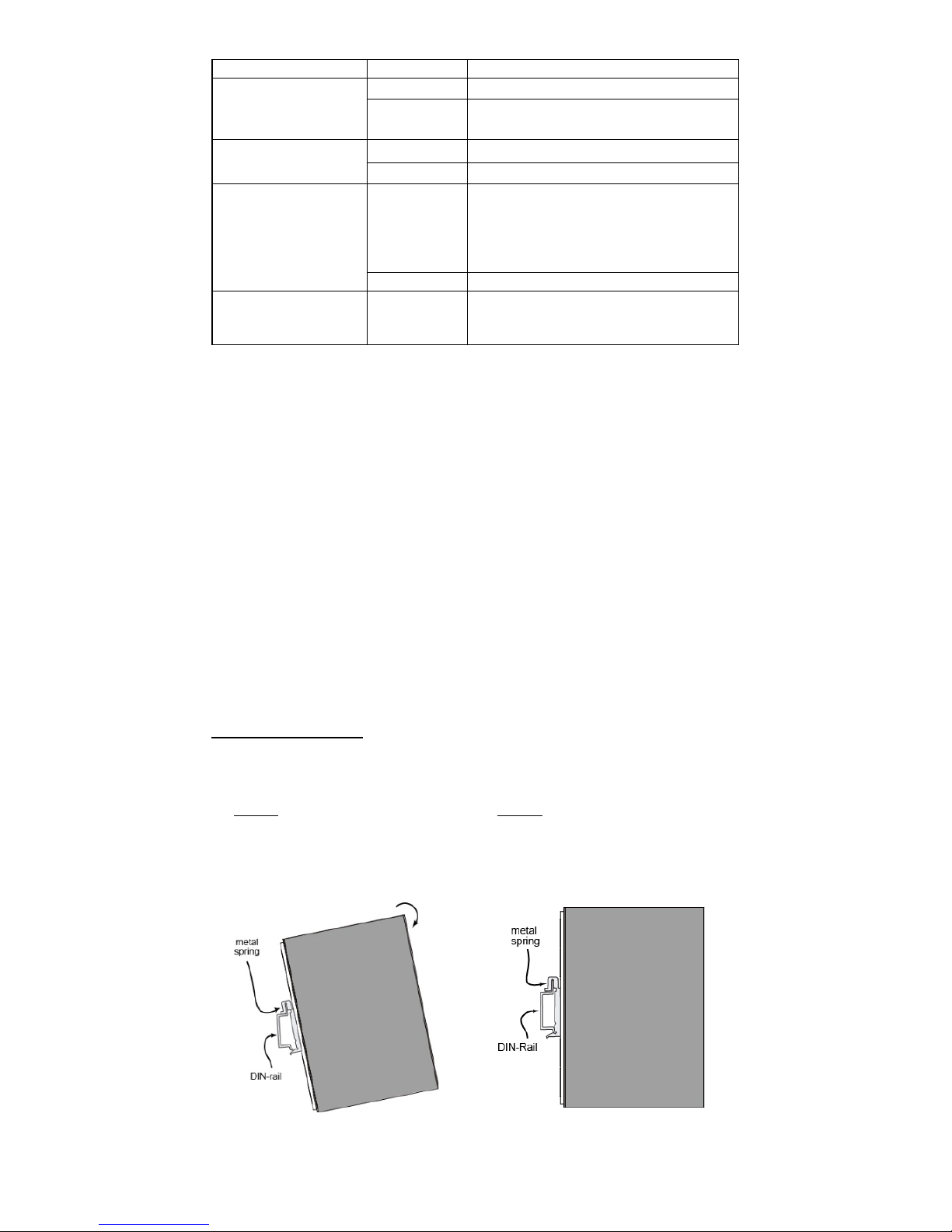

Installing the Computer

DIN-Rail Mounting

The aluminum DIN-rail attachment plate comes attached to the product

casing. To mount the UC-5100 on to a DIN rail, make sure that the stiff

metal spring is facing upwards and follow these steps.

Step 1

Insert the top of the DIN rail

into the slot just below the stiff

metal spring in the upper hook

of the DIN-rail mounting kit.

Step 2

Push the UC-5100 towards the

DIN rail until the DIN-rail

attachment bracket snaps into

place.

- 6 -

Wiring Requirements

Be sure to read and follow these common safety precautions before

proceeding with the installation of any electronic device:

•Use separate paths to route wiring for power and devices. If power

wiring and device wiring paths must cross, make sure the wires are

perpendicular at the intersection point.

NOTE

Do not run signal

or communication wiring and power wiring in

the same wire conduit. To avoid interference, wires with

different signal characteristics should be routed separately.

•Use the type of signal transmitted through a wire to determine

which wires should be kept separate. The rule of thumb is that

wiring that shares similar electrical characteristics can be bundled

together.

•Keep input wiring and output wiring separate.

•It is strongly advised that you label wiring to all devices for easy

identification.

ATTENTION

Safety First!

Be sure to disconnect the power cord before installing and/or

wiring your

UC-5100 Series computers.

Wiring Caution!

Calculate the maximum possible current in each power wire and

common wire. Observe all electri

cal codes dictating the

maximum current allowable for each wire size. If the current

goes above the maximum ratings, the wiring could overheat,

causing serious damage to your equipment.

This equipment is

inten

ded to be supplied by a certified External Power Supply,

the

output of which meets SELV and LPS regulations.

Temperature Caution!

Be careful when handling the unit. When the unit is plugged in,

the internal components generate heat, and consequently the

outer casing may feel hot to the touch.

is equipment is intended for installation in Restricted Access

Locations.

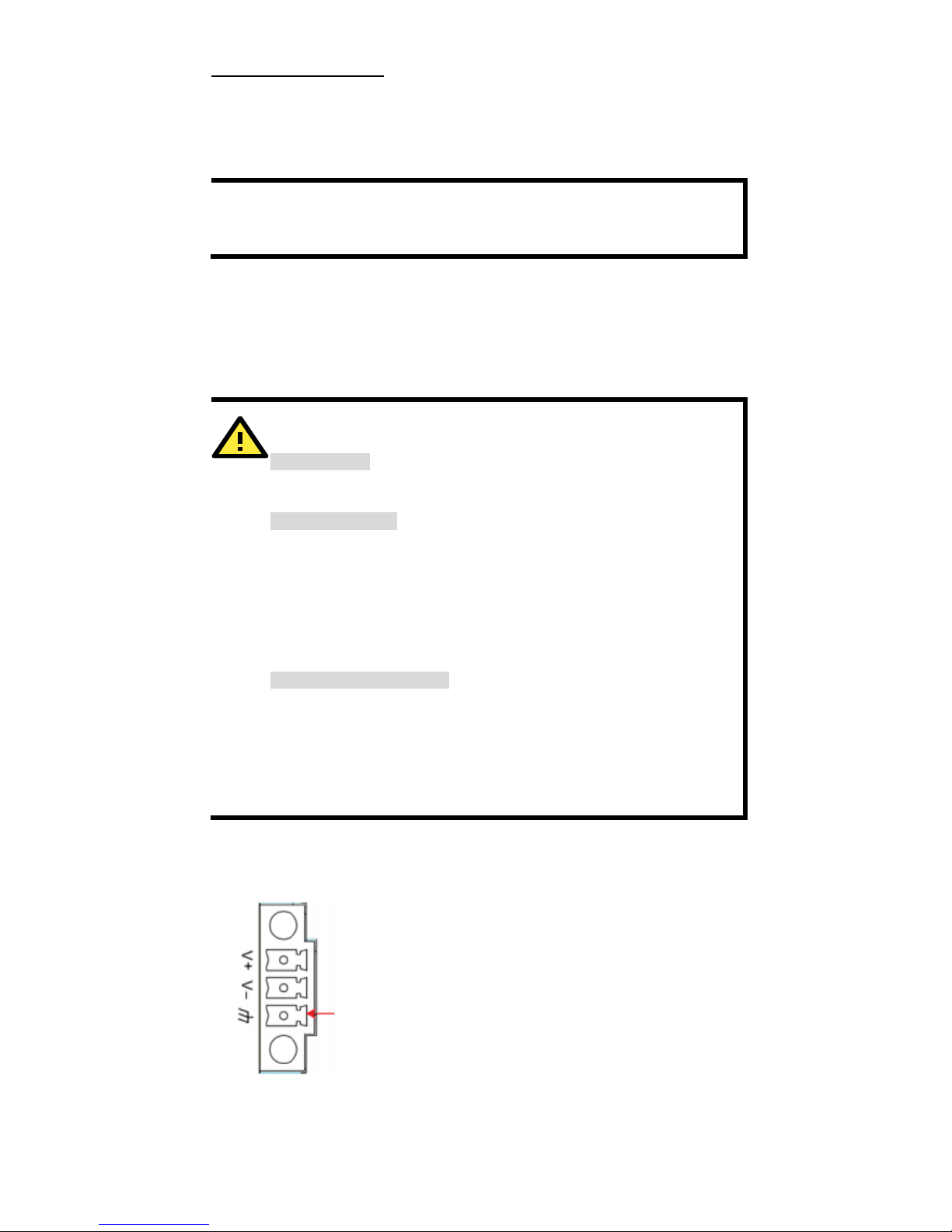

Connecting the Power

Connect the 9 to 48 VDC power line to the

terminal block

, which is connector to the UC-

5100

Series computer. If the power is supplied

properly, the

Power LED will glow a solid green

light

. The power input location and pin definition

are shown in the

adjacent diagram.

SG:

The Shielded Ground (sometimes called

Protected Ground) contact is

the contact at the

bottom

of the 3-pin power terminal block

connector when viewed from the angle shown

here. Connect the wire to an appropriate

grounded metal surface

or to the grounding

screw on top of the device.

- 7 -

NOTE

The input rating of UC-5100 Series is 9-48 VDC, 0.95-0.23 A.

Grounding the Unit

Grounding and wire routing help limit the effects of noise due to

electromagnetic interference (EMI). Run the ground connection from

the terminal block connector to the grounding surface prior to

connecting the power. Note that this product is intended to be mounted

on a well-grounded mounting surface, such as a metal panel.

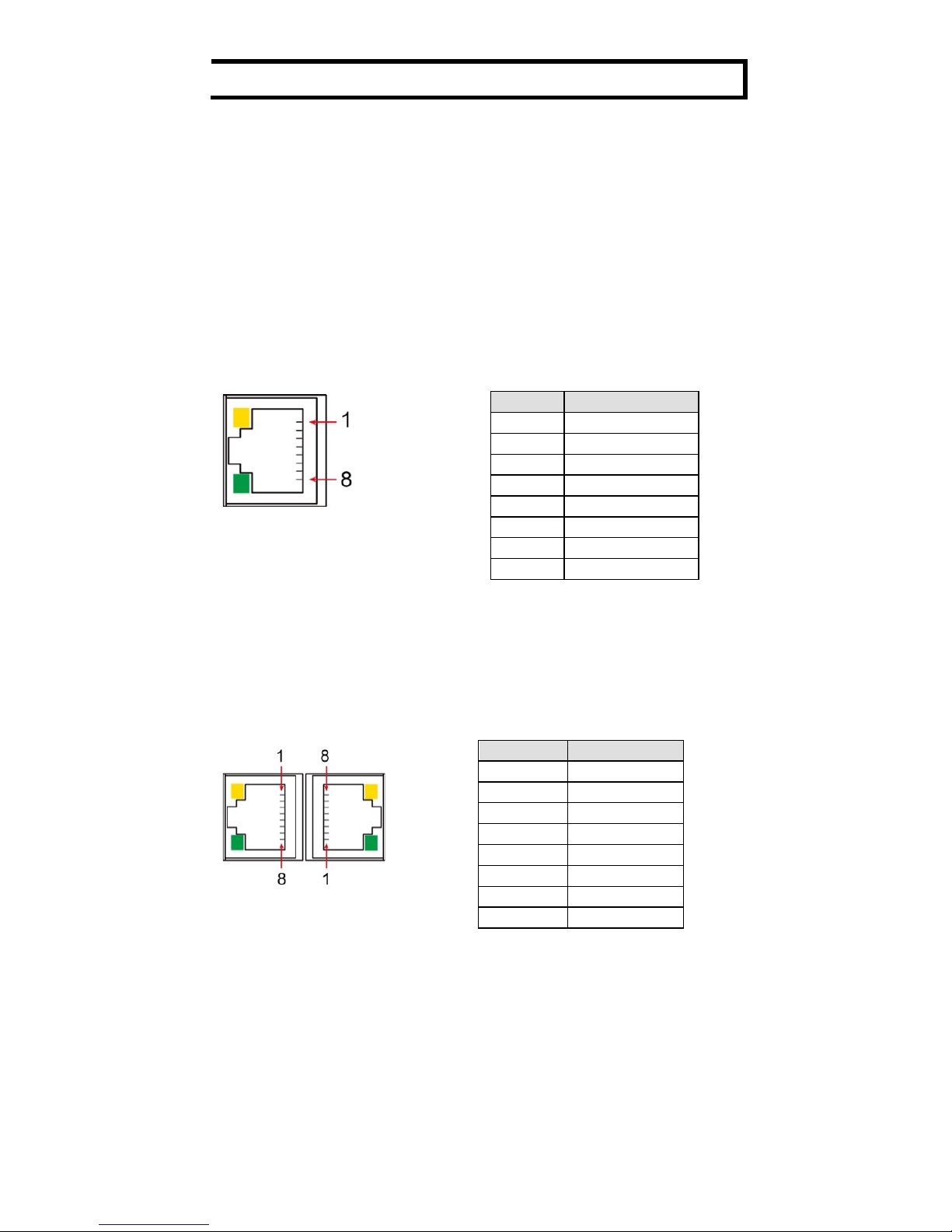

Connecting to the Console Port

The UC-5100’s console port is an RJ45-based RS-232 port located on

the front panel. It is designed for connecting to serial console terminals,

which are useful for viewing boot up messages, or for debugging

system boot up issues.

Signal

GND

TxD

RxD

Connecting to the Network

The Ethernet ports are located on the front panel of the UC-5100. The

pin assignments for the Ethernet port are shown in the following figure.

If you are using your own cable, make sure that the pin assignments on

the Ethernet cable connector match the pin assignments on the

Ethernet port.

Signal

Tx+

Tx-

Rx+

–

Rx-

–

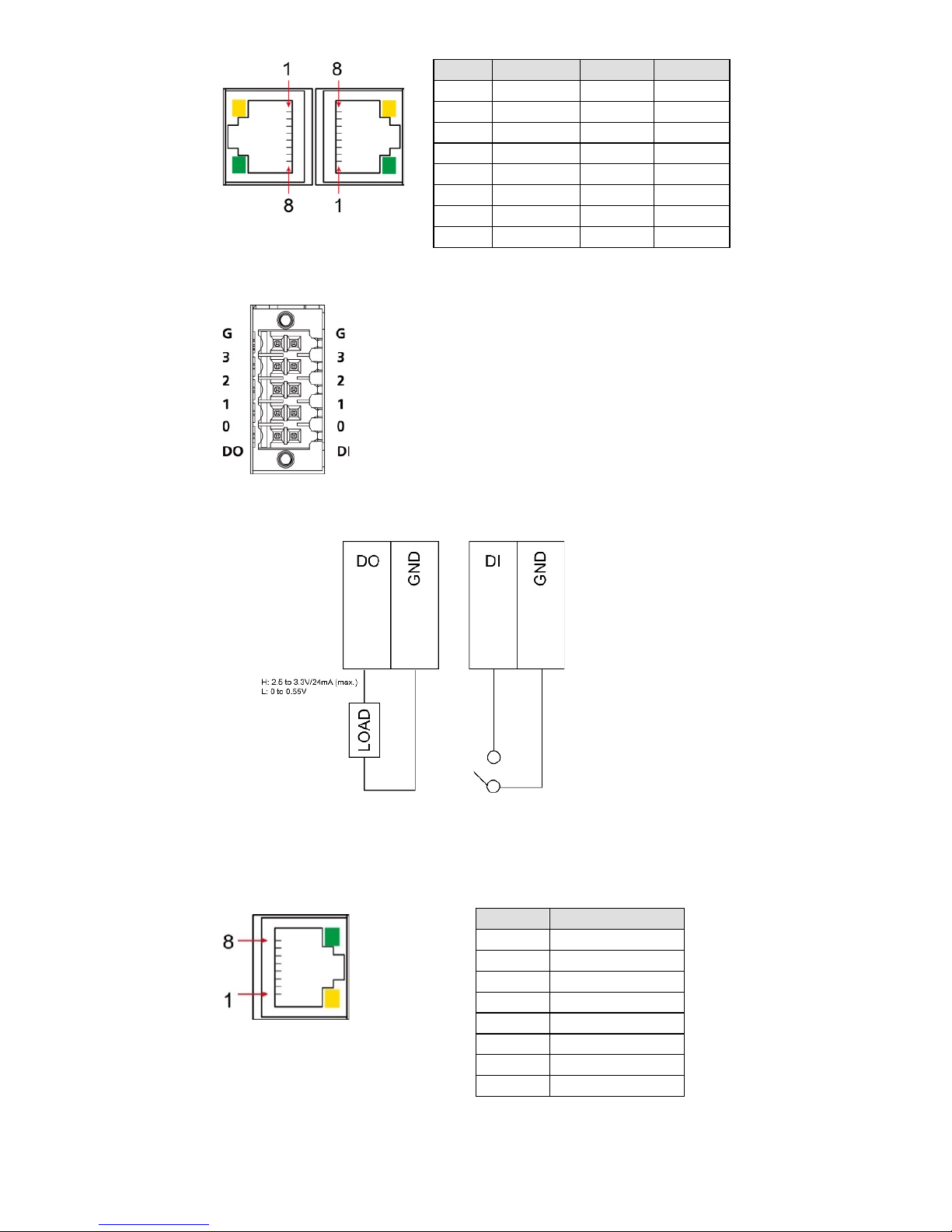

Connecting to a Serial Device

The serial ports are located on the front panel of the UC-5100

computer. Use a serial cable to connect your serial device to the

computer’s serial port. These serial ports have RJ45 connectors and can

be configured for RS-232, RS-422, or RS-485 communication. The pin

location and assignments are shown in the table below.

- 8 -

RS-232

RS-422

RS-485

DSR

RTS

TxD+

GND

TxD

TxD-

RxD

RxD+

Data+

DCD

RxD-

Data-

CTS

DTR

Connecting to DI/DO Devices

The UC-5100 computer comes with

4 digital inputs and 4 digital

outputs. The DI/DO connectors are

located on the top panel of the

computer. Refer to the adjacent

diagram for the pin definitions.

The DI/DO wiring diagram is given below:

Connecting to a CAN Device

The UC-5111 and UC-5112 are provided with 2 CAN ports, allowing

users to connect to a CAN device. The pin location and assignments are

shown in the following table:

Signal

CAN_H

CAN_L

CAN_GND

- 9 -

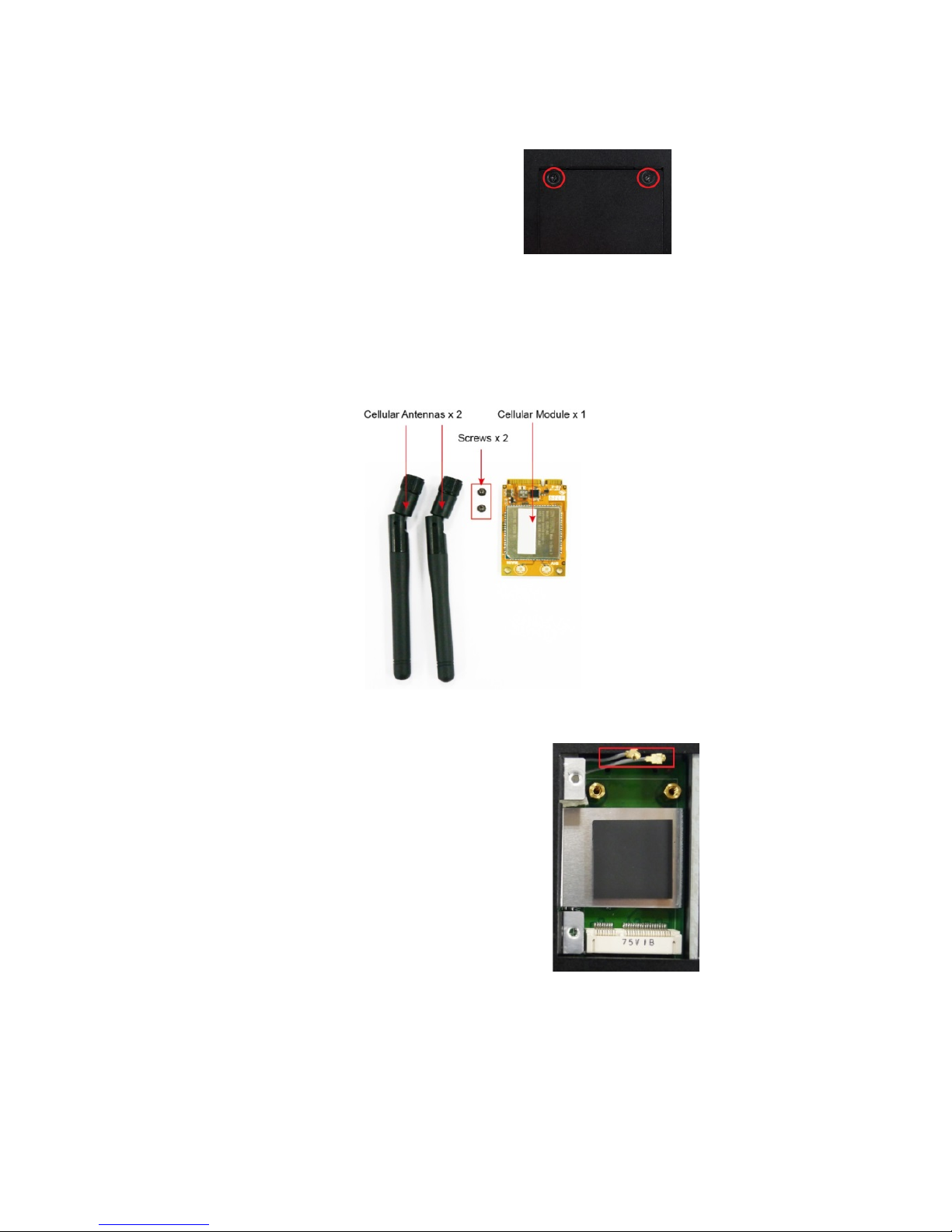

Connecting the Cellular/Wi-Fi Module and

Antenna

The UC-5102 and UC-5112

computers come with one

Mini PCIe socket for

installing a cellular or Wi-Fi

module. Unfasten the two

screws on the right panel to

remove the cover and find

the location of the socket.

The cellular module package includes 1 cellular module, and 2 screws.

The cellular antennas should be purchased separately to fit your

installation requirements.

Follow these steps to install the cellular module.

1. Set the antenna cables aside

for convenience of installation

and clear the wireless module

socket as shown in the figure.

- 10 -

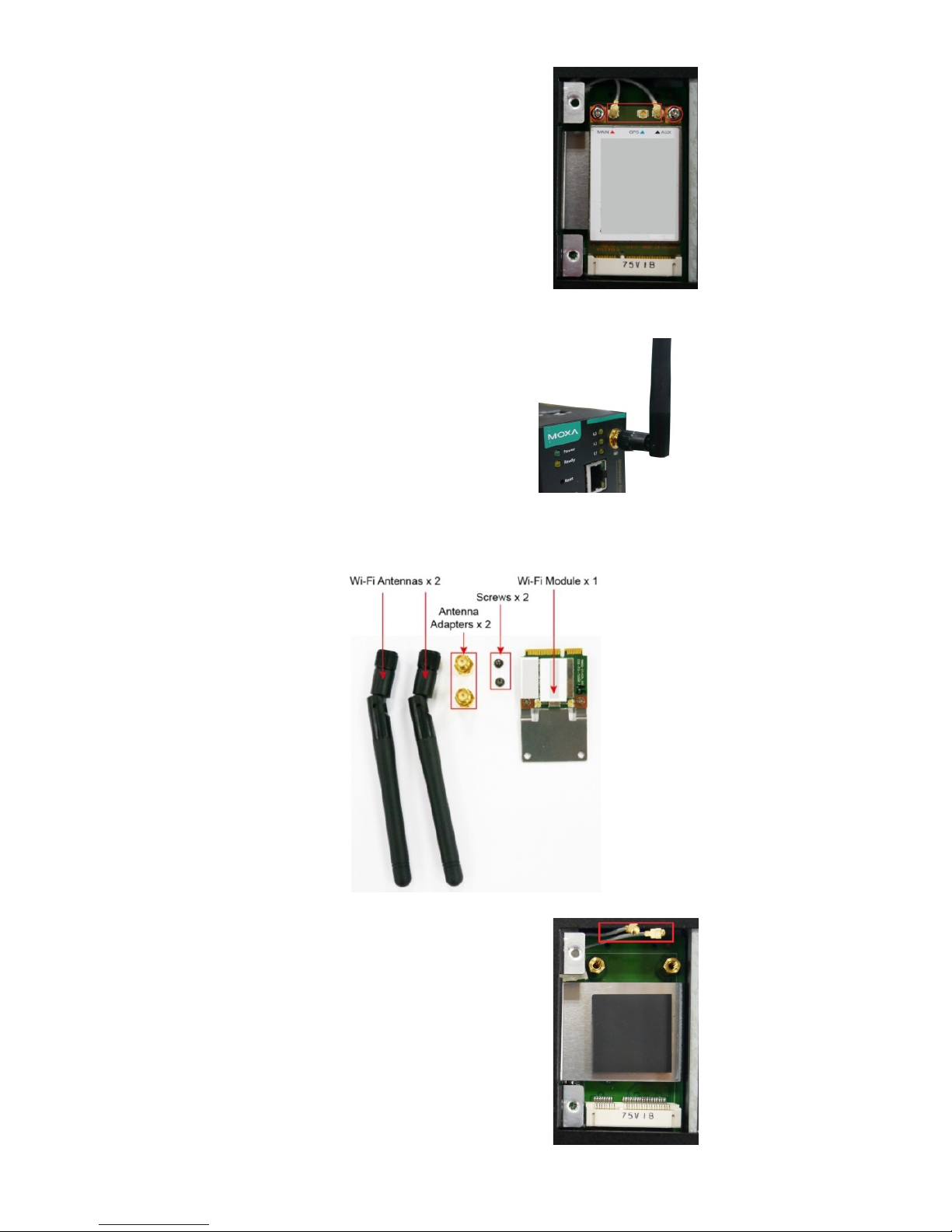

2. Insert the cellular module

into the socket and fasten

two screws (included in the

package) on to the top of the

module.

We recommended using a

tweezer when installing or

removing the module.

3. Connect the free ends of the

two antenna cables next to

the screws as shown in the

image.

4. Replace the cover and secure

it using two screws.

5. Connect the cellular antennas

to the connectors.

Antenna connectors are

located on the front panel of

the computer.

The Wi-Fi module package includes 1 Wi-Fi module, and 2 screws. The

antenna adapters and Wi-Fi antennas should be purchased separately

to fit your installation requirements.

Follow these steps to install a Wi-Fi module.

1. Set the antenna cables

aside for convenience of

installation and clear the

wireless module socket as

shown in the figure.

Autres manuels pour UC-5100 Series

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Moxa Technologies PC industriel

Moxa Technologies

Moxa Technologies DA-681C Series Manuel utilisateur

Moxa Technologies

Moxa Technologies TC-6110 Series Manuel utilisateur

Moxa Technologies

Moxa Technologies UC-8200 Series Instructions d'utilisation

Moxa Technologies

Moxa Technologies THINKCORE W345 Manuel utilisateur

Moxa Technologies

Moxa Technologies V2426A-C2 Manuel utilisateur

Moxa Technologies

Moxa Technologies IA260 series Manuel utilisateur

Moxa Technologies

Moxa Technologies UC-2200A Series Instructions d'utilisation

Moxa Technologies

Moxa Technologies IA240-LX Manuel utilisateur

Moxa Technologies

Moxa Technologies EM-1240-LX Manuel utilisateur

Moxa Technologies

Moxa Technologies UC-8112-LX STK Manuel utilisateur

Moxa Technologies

Moxa Technologies IA3341 Manuel utilisateur

Moxa Technologies

Moxa Technologies DA-681A Series Instructions d'utilisation

Moxa Technologies

Moxa Technologies UC-7400-LX Plus Manuel utilisateur

Moxa Technologies

Moxa Technologies CN2510 Series Manuel utilisateur

Moxa Technologies

Moxa Technologies W406 WinCE Manuel utilisateur

Moxa Technologies

Moxa Technologies AWK-4252A Series Manuel utilisateur

Moxa Technologies

Moxa Technologies NPort W2150A Manuel utilisateur

Moxa Technologies

Moxa Technologies V2406-24I Series Instructions d'utilisation

Moxa Technologies

Moxa Technologies UC-8200 Series Instructions d'utilisation

Moxa Technologies

Moxa Technologies MC-7400 Series Manuel utilisateur

Moxa Technologies

Moxa Technologies V481-CE Manuel utilisateur

Moxa Technologies

Moxa Technologies ioLogik 2500 Series Manuel utilisateur

Moxa Technologies

Moxa Technologies V2616A Series Manuel utilisateur

Moxa Technologies

Moxa Technologies V2406 Manuel utilisateur

Manuels PC industriel populaires d'autres marques

Chipsee

Chipsee PPC-A72-101 Manuel utilisateur

Advantech

Advantech UNO-2184G Manuel utilisateur

MSI

MSI MS-9A76 Manuel utilisateur

Stackrack

Stackrack THOR200 Manuel utilisateur

Nodka

Nodka eBOX-3000-ETC Manuel utilisateur

Siemens

Siemens SIMATIC IPC627E Manuel utilisateur

MSI

MSI MS-9A89 Manuel utilisateur

Artila

Artila Matrix-516 Manuel utilisateur

Siemens

Siemens SIMATIC Rack PC 840 V2 Manuel utilisateur

Advantech

Advantech IPPC-6152A Manuel utilisateur

Beckhoff

Beckhoff CX9020 Manuel utilisateur

Dell

Dell Embedded Box PC 5000 Manuel utilisateur

IBASE Technology

IBASE Technology ASB200-918 Series Manuel utilisateur

Lenovo

Lenovo ThinkCentre M90q Manuel du propriétaire

IXXAT

IXXAT Econ 100 Manuel utilisateur

Kontron

Kontron KBox A-151-TGL Manuel utilisateur

AXIOMTEK

AXIOMTEK ICO500-518 Series Manuel utilisateur

JLT

JLT 1214N Manuel utilisateur
