Moxa Technologies IA260 series Manuel utilisateur

IA260 Hardware User’s Manual

Edition 4.0, March 2017

www.moxa.com/product

IA260 Hardware User’s Manual

The software described in this manual is furnished under a license agreement and may be used only in accordance with

the terms of that agreement.

Trademarks

The MOXA logo is a registered trademark of Moxa Inc.

All other trademarks or registered marks in this manual belong to their respective manufacturers.

Disclaimer

Information in this document is subject to change without notice and does not represent a commitment on the part of

Moxa.

Moxa provides this document as is, without warranty of any kind, either expressed or implied, including, but not limited

to, its particular purpose. Moxa reserves the right to make improvements and/or changes to this manual, or to the

products and/or the programs described in this manual, at any time.

Information provided in this manual is intended to be accurate and reliable. However, Moxa assumes no responsibility for

its use, or for any infringements on the rights of third parties that may result from its use.

This product might include unintentional technical or typographical errors. Changes are periodically made to the

information herein to correct such errors, and these changes are incorporated into new editions of the publication.

Technical Support Contact Information

www.moxa.com/support

Moxa Americas

Toll

-free: 1-888-669-2872

Tel:

+1-714-528-6777

Fax:

+1-714-528-6778

xa China (Shanghai office)

Toll

-free: 800-820-5036

Tel:

+86-21-5258-9955

Fax:

+86-21-5258-5505

Moxa Europe

Tel:

+49-89-3 70 03 99-0

Fax:

+49-89-3 70 03 99-99

Moxa Asia

-Pacific

Tel:

+886-2-8919-1230

Fax:

+886-2-8919-1231

Moxa India

Tel:

+91-80-4172-9088

Fax:

+91-80-4132-1045

Table of Contents

1. Introduction...................................................................................................................................... 1-1

Overview...........................................................................................................................................1-2

Model Descriptions and Package Checklist..............................................................................................1-2

Product Features ................................................................................................................................1-3

Product Hardware Specifications...........................................................................................................1-3

Hardware Block Diagram .....................................................................................................................1-6

2. Hardware Introduction ..................................................................................................................... 2-1

Appearance........................................................................................................................................2-2

Top View....................................................................................................................................2-2

Front View..................................................................................................................................2-2

Rear View...................................................................................................................................2-3

Dimensions........................................................................................................................................2-3

LED Indicators....................................................................................................................................2-4

Reset Button......................................................................................................................................2-4

Reset Function............................................................................................................................2-4

Reset to Default..........................................................................................................................2-4

Real Time Clock..................................................................................................................................2-5

Placement Options..............................................................................................................................2-5

DIN-Rail Mounting.......................................................................................................................2-5

Wall Mounting (optional) ..............................................................................................................2-6

3. Hardware Connection Description ..................................................................................................... 3-1

Wiring Requirements...........................................................................................................................3-2

Connecting the Power ..................................................................................................................3-2

Grounding the Unit......................................................................................................................3-3

Connecting to the Console Port.............................................................................................................3-3

Connecting to a Display.......................................................................................................................3-4

Connecting to a Keyboard and Mouse....................................................................................................3-4

Connecting to the Network...................................................................................................................3-4

Connecting to a Serial Device...............................................................................................................3-5

Connecting to the DI/DO .....................................................................................................................3-5

Digital Input Wiring .....................................................................................................................3-6

Digital Output Wiring ...................................................................................................................3-6

Insert CompactFlash Card....................................................................................................................3-6

USB Hosts .........................................................................................................................................3-7

A. Regulatory Approval Statements....................................................................................................... A-1

1. Introduction

Thank you for purchasing the Moxa IA260 RISC-based industrial ready-to-run embedded computer. This

computer features 4 RS-232/422/485 serial ports, dual 10/100 Mbps Ethernet ports, 8 digital input and 8

digital output channels, a VGA output, a CompactFlash socket for adding additional storage space, and USB

ports for a keyboard/mouse connection or for adding additional storage space. These features make the IA260

series ideal for your industrial embedded applications, such as SCADA, manufacturing automation, and other

industrial applications.

This manual introduces the IA260’s hardware. After a brief introduction of the hardware features, the manual

focuses on installation and configuration.

The following topics are covered in this chapter:



Overview



Model Descriptions and Package Checklist



Product Features



Product Hardware Specifications



Hardware Block Diagram

IA260 Hardware Introduction

1-2

Overview

The IA260 embedded computers feature 4 RS-232/422/485 serial ports, dual Ethernet ports, 8 digital input

channels, 8 digital output channels, VGA output, 2 USB hosts and a CompactFlash socket in a compact,

industrial-strength aluminum rugged casing. The DIN-Rail vertical form factor makes the IA260 a cost effective

solution for installation in small cabinets. This space-saving solution also makes wiring easy, and is the best

front-end embedded controller for industrial applications.

Because of its VGA output capability, the IA260 can be used for protocol conversion or data acquisition for field

site devices, and is also suitable for SCADA systems in industrial applications, such as manufacturing

automation, production line process monitoring, and mining automation. It can serve as an operator interface

terminal at a field site by connecting a VGA monitor and appropriate HMI software.

The IA260 comes with RS-232/422/485 ports, digital inputs and outputs, and dual LAN ports, making it an ideal

communication platform for redundant network applications.

In addition to the standard model, the IA260 also comes in a wide temperature model. The IA260-T has an

operating temperature range of -40 to 75°C, making it suitable for harsh industrial automation environments.

The IA260’s industrial design provides robust and reliable computing, and the RISC-based architecture allows

the IA260 to operate without generating too much heat. The high communication performance and fan-less

design make the IA260 ideal for industrial automation environments.

The IA260 embedded computer uses a Cirrus Logic EP9315 ARM9, 32-bit, 200 MHz RISC CPU. Unlike the X86

CPU, which uses a CISC design, the RISC design architecture and modern semiconductor technology provide

the IA260 with a powerful computing engine and communication functions, but without generating a lot of heat.

The built-in 32 MB NOR Flash ROM and 128 MB SDRAM give you enough memory to run your application

software directly on the IA260.

The IA261/262 runs Linux or WinCE 6.0 (pre-installed), providing a friendly environment for developing

sophisticated application software. Moxa’s quality software support makes programming and developing

bug-free code easier, quicker, and less expensive.

Model Descriptions and Package Checklist

Two models of the IA260 are available:

IA260-CE

RISC-based embedded computer with VGA, 4 serial ports, dual LANs, DIO, CompactFlash, USB, WinCE 6.0

IA260-T-CE

RISC-based embedded computer with VGA, 4 serial ports, dual LANs, DIO, CompactFlash, USB, WinCE 6.0,

wide operating temperature

IA260-LX

RISC-based embedded computer with VGA, 4 serial ports, dual LANs, DIO, CompactFlash, USB, Linux

IA260-T-LX

RISC-based embedded computer with VGA, 4 serial ports, dual LANs, DIO, CompactFlash, USB, Linux, wide

operating temperature

IA260 Hardware Introduction

1-3

Both models are shipped with the following items:

•1 IA260 Embedded Computer

•Wall-Mounting Kit

•DIN-Rail Mounting Kit (attach to the product’s casing)

•Ethernet Cable: RJ45 to RJ45 cross-over cable, 100 cm

•CBL-4PINDB9F-100: 4-pin header to DB9 female console port cable, 100 cm

•Universal Power Adaptor (includes terminal block to power jack converter)

•Document & Software CD

•Quick installation guide (printed)

•Warranty card

NOTE: Notify your sales representative if any of the above items are missing or damaged.

Product Features

•Cirrus Logic EP9315 ARM9 CPU, 200 MHz

•128 MB RAM on-board, 32 MB Flash Disk

•VGA interface for field site monitoring

•4 RS-232/422/485 serial ports

•Dual 10/100 Mbps Ethernet ports for network redundancy

•8+8 DI/DO channels

•12 to 48VDC power input design

•Supports CF socket and USB 2.0 Host

•Ready-to-Run WinCE 6.0 or Linux platform

•-40 to 75°C wide temperature model available

Product Hardware Specifications

Computer

CPU:

Cirrus EP9315 ARM9 CPU, 200 MHz

USB:

USB 2.0 hosts x 2, type A connector

DRAM:

DDR2 SDRAM, 128 MB

Flash:

NOR Flash, 32 MB

OS (pre

-installed): Linux or Windows CE 6.0

Storage

Storage Expansion:

CF card type I/II

Display

Graphics Controller:

EP9315 internal graphics accelerator engine with TTL graphical signal support

Display Memory:

Dynamic video memory (shares system memory)

Display Interface:

CRT interface for VGA output, DB15 female connector

Resolution:

1024 x 768, 8 bits

Ethernet Interface

LAN:

Auto-sensing 10/100 Mbps ports (RJ45) x 2

Magnetic Isolation Protection:

1.5 kV built-in

Serial Interface

Serial Standards:

RS-232/422/485 ports, software-selectable (DB9 male) x 4

ESD Pro

tection: 4 kV for all signals

Console Port:

RS-232 (TxD, RxD, GND), 4-pin header output (115200, n, 8, 1)

IA260 Hardware Introduction

1-4

Serial Communication Parameters

Data Bits:

5, 6, 7, 8

Stop Bits:

1, 1.5, 2

Parity:

None, Even, Odd, Space, Mark

Flow Control:

RTS/CTS, XON/XOFF, ADDC® (automatic data direction control) for RS-485

Baudrate:

50 bps to 921.6 kbps (supports nonstandard baudrates; see user's manual for details)

Serial Signals

-232: TxD, RxD, DTR, DSR, RTS, CTS, DCD, GND

-422: TxD+, TxD-, RxD+, RxD-, GND

-485-4w: TxD+, TxD-, RxD+, RxD-, GND

-485-2w: Data+, Data-, GND

Digital Input

Input Channels:

DI x 8

Input Voltage:

0 to 30 VDC

Digital Input Levels for Dry Contacts:

• Logic level 0: Close to GND

• Logic level 1: Open

Digital Input Levels for

Wet Contacts:

• Logic level 0: +3 V max.

• Logic level 1: +10 V to +30 V (COM to DI)

Connector Type:

10-pin screw-fastened terminal block (8 points, COM, GND)

Isolation:

3 kV optical isolation

Digital Output

Output Channels:

DO x 8, sink type

Output

Current: Max. 200 mA per channel

-State Voltage: 24 VDC nominal, open collector to 30 V

Connector Type:

9-pin screw-fastened terminal block

Isolation:

3 kV optical isolation

LEDs

System:

Power, Ready, Storage

LAN:

10M/Link x 2, 100M/Link x 2 (on connector)

Serial:

TxD x 4, RxD x 4

Switches and Buttons

Reset Button:

Supports "Reset to Factory Default"

Physical Characteristics

Housing:

Aluminum, industrial vertical form factor

Weight:

1 kg (2.22 lb)

Dimensions:

52 x 112.6 x 162 mm (2.05 x 4.43 x 6.38 in)

Mounting:

DIN-rail, wall

Environmental Limits

Operating Temperature:

Standard Models:

-10 to 60°C (14 to 140°F)

Wide Temp. Models:

-40 to 75°C (-40 to 167°F)

Storage Temperature:

Standard Models:

-20 to 80°C (-4 to 176°F)

Wide Temp.

Models: -40 to 85°C (-40 to 185°F)

Ambient Relative Humidity:

5 to 95% (non-condensing)

Anti

-Vibration: 2 Grms @ IEC-68-2-34, random wave, 5-500 Hz, 1 hr per axis

Anti

-Shock: 20 g @ IEC-68-2-27, half sine wave, 11 ms

Power Requirements

Input Volta

ge: 12 to 48 VDC (3-pin terminal block)

IA260 Hardware Introduction

1-5

Input Current:

With no load on USB ports:

• 240 mA @ 24 VDC

• 480 mA @ 12 VDC

With full load on USB ports:

• 450 mA @ 24 VDC

• 900 mA @ 12 VDC

Power Consumption:

With no load on USB ports: 5.8 W

With full load

on USB ports: 11 W

Standards and Certifications

Safety:

UL 60950-1, CSA C22.2 No. 60950-1-03, EN 60950-1, CCC (GB4943, GB9254, GB17625.1)

EMC:

EN 55032 Class A, EN 61000-3-2 Class A, EN 61000-3-3, EN 55024, FCC Part 15 Subpart B Class A

EMS:

IEC 610

00-4-2 ESD: Contact: 4 kV; Air: 8 kV

IEC 61000

-4-3 RS: 80 MHz to 1 GHz: 3 V/m

IEC 61000

-4-4 EFT: Power: 1 kV; Signal: 0.5 kV

IEC 61000

-4-5 Surge: Power: 1 kV; Signal: 1 kV

IEC 61000

-4-6 CS: Signal: 3 V/m

IEC 61000

-4-8 1 A/m

IEC 61000

-4-11

Green Product:

RoHS, CRoHS, WEEE

Reliability

Automatic Reboot Trigger:

Built-in WDT (watchdog timer)

MTBF (mean time between failures)

Time:

145,328 hrs.

Standard:

Telcordia (Bellcore) Standard

Warranty

Warranty Period:

5 years

Details:

See www.moxa.com/warranty

Note: The Hardware Specifications apply to the embedded computer unit itself, but not to accessories. In

particular, the wide temperature specification does not apply to accessories such as the power adapter and

cables.

IA260 Hardware Introduction

1-6

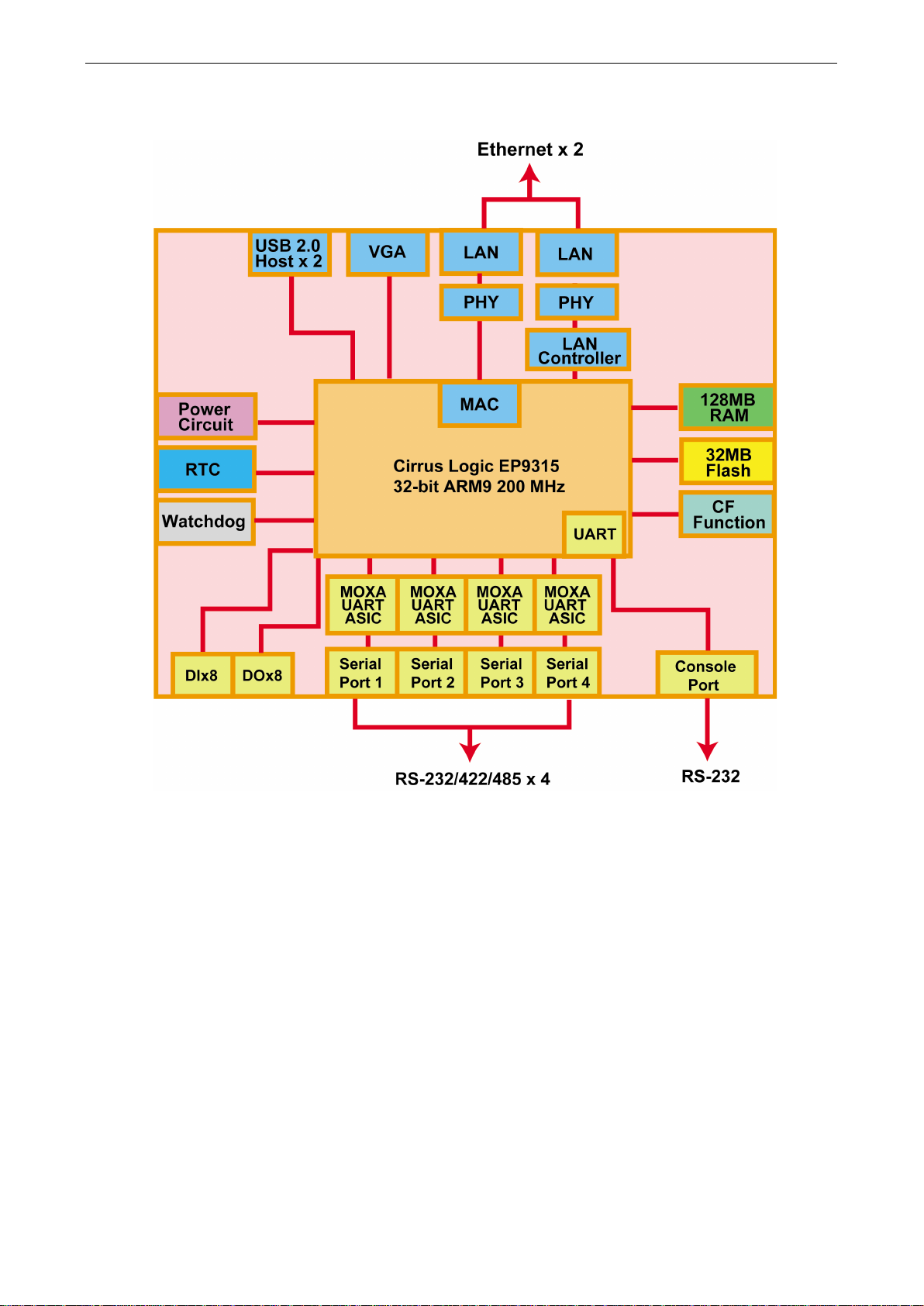

Hardware Block Diagram

2. Hardware Introduction

The IA260 embedded computers are compact and rugged, making them suitable for industrial applications. The

LED indicators allow users to monitor performance and identify trouble spots quickly, and the multiple ports can

be used to connect a variety of devices. The IA260 comes with a reliable and stable hardware platform that lets

you devote the bulk of your time to application development. In this chapter, we provide basic information

about the embedded computer’s hardware and its various components.

The following topics are covered in this chapter:



Appearance

Top View

Front View

Rear View



Dimensions



LED Indicators



Reset Button

Reset Function

Reset to Default



Real Time Clock



Placement Options

DIN-Rail Mounting

Wall Mounting (optional)

Autres manuels pour IA260 series

Table des matières

Autres manuels Moxa Technologies PC industriel

Moxa Technologies

Moxa Technologies V460 Series Manuel utilisateur

Moxa Technologies

Moxa Technologies UC-7101-LX Manuel utilisateur

Moxa Technologies

Moxa Technologies UC-2200A Series Instructions d'utilisation

Moxa Technologies

Moxa Technologies AWK-4252A Series Manuel utilisateur

Moxa Technologies

Moxa Technologies TC-6110-W7E Manuel utilisateur

Moxa Technologies

Moxa Technologies IA260 series Manuel utilisateur

Moxa Technologies

Moxa Technologies IA240 Instructions d'utilisation

Moxa Technologies

Moxa Technologies DA-660 Series Manuel utilisateur

Moxa Technologies

Moxa Technologies IA260 series Manuel utilisateur

Moxa Technologies

Moxa Technologies AIG-300 Series Manuel utilisateur

Moxa Technologies

Moxa Technologies DA-681A Series Instructions d'utilisation

Moxa Technologies

Moxa Technologies THINKCORE W345 Manuel utilisateur

Moxa Technologies

Moxa Technologies IA260 series Manuel utilisateur

Moxa Technologies

Moxa Technologies IA3341 Manuel utilisateur

Moxa Technologies

Moxa Technologies ioLogik 2500 Series Manuel utilisateur

Moxa Technologies

Moxa Technologies DA-662A-8 Instructions d'utilisation

Moxa Technologies

Moxa Technologies V2201 Manuel utilisateur

Moxa Technologies

Moxa Technologies DRP-C100 Series Instructions d'utilisation

Moxa Technologies

Moxa Technologies V481-XPE Manuel utilisateur

Moxa Technologies

Moxa Technologies UC-3100 Series Manuel utilisateur

Moxa Technologies

Moxa Technologies TC-6110 Series Manuel utilisateur

Moxa Technologies

Moxa Technologies CP-132 Manuel utilisateur

Moxa Technologies

Moxa Technologies V481-XPE Manuel utilisateur

Moxa Technologies

Moxa Technologies MC-7400 Series Manuel utilisateur

Manuels PC industriel populaires d'autres marques

Chipsee

Chipsee PPC-A72-101 Manuel utilisateur

Advantech

Advantech UNO-2184G Manuel utilisateur

MSI

MSI MS-9A76 Manuel utilisateur

Stackrack

Stackrack THOR200 Manuel utilisateur

Nodka

Nodka eBOX-3000-ETC Manuel utilisateur

Siemens

Siemens SIMATIC IPC627E Manuel utilisateur

MSI

MSI MS-9A89 Manuel utilisateur

Artila

Artila Matrix-516 Manuel utilisateur

Siemens

Siemens SIMATIC Rack PC 840 V2 Manuel utilisateur

Advantech

Advantech IPPC-6152A Manuel utilisateur

Beckhoff

Beckhoff CX9020 Manuel utilisateur

Dell

Dell Embedded Box PC 5000 Manuel utilisateur

IBASE Technology

IBASE Technology ASB200-918 Series Manuel utilisateur

Lenovo

Lenovo ThinkCentre M90q Manuel du propriétaire

IXXAT

IXXAT Econ 100 Manuel utilisateur

Kontron

Kontron KBox A-151-TGL Manuel utilisateur

AXIOMTEK

AXIOMTEK ICO500-518 Series Manuel utilisateur

JLT

JLT 1214N Manuel utilisateur
