Moxa Technologies IoThinx 4530 Series Manuel utilisateur

P/N: 1802045300003

*1802045300003*

ioThinx 4530 Series

Quick Installation Guide

Version 1.2, December 2019

Technical Support Contact Information

www.moxa.com/support

Moxa Americas:

Toll

-free: 1-888-669-2872

Tel:

1-714-528-6777

Fax:

1-714-528-6778

Moxa China (Shanghai office):

Toll

-free: 800-820-5036

Tel:

+86-21-5258-9955

Fax:

+86-21-5258-5505

Moxa Europe:

Tel:

+49-89-3 70 03 99-0

Fax:

+49-89-3 70 03 99-99

Moxa Asia-Pacific:

Tel:

+886-2-8919-1230

Fax:

+886-2-8919-1231

Moxa India:

Tel:

+91-80-4172-9088

Fax:

+91-80-4132-1045



- 2 -

Introduction

The ioThinx 4530 Series is an advanced modular controller with a

unique hardware and software design that makes it ideal for a variety

of industrial data acquisition applications.

ATTENTION

If the equipment is used in a manner not specified by the

manufacturer, the protection prov

ided by the equipment may

be impaired. The manufacturer is not responsible for accidents

caused by improper use of the equipment.

Appearance (ioThinx 4533)

Package Checklist

•1 x ioThinx 4530 Series product

•1 x quick installation guide (printed)

•2 x side cover plate

Installation

Connecting the System Power

Connect your 12 to 48 VDC power

source to the SP+ and SP

terminals on the ioThinx

4530

Series

’ terminal block.

- 3 -

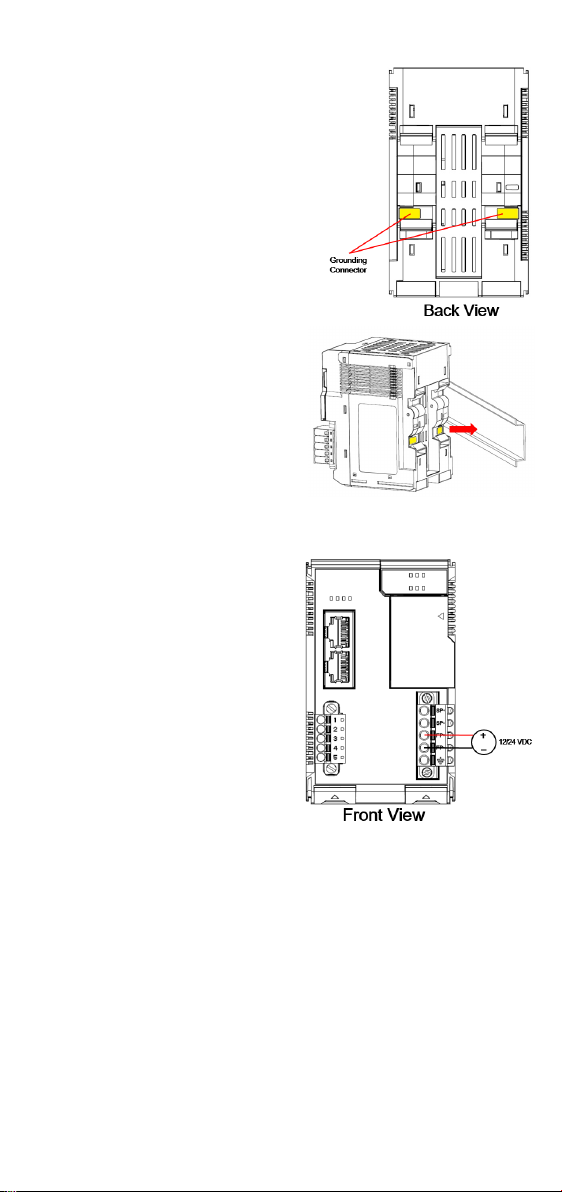

The system grounding connectors

are

located on the back of the unit,

as shown in

the diagram.

The grounding connectors will

contact the DIN

rail when the

product is attached to it.

Connecting the Field Power

The ioThinx

4530 Series can receive

field power

through a 12/24 VDC

powe

r input. Field power can be used

to supply power fo

r some types of

I/O

modules, such as digital input and

analog output modules.

- 4 -

Connecting the Field Power Ground

Connect the Field Ground pin ( )

to the

field power ground.

Connecting to the Network

Ethernet Communication

The ioThinx 4530 Series is equipped with two RJ45 LAN ports with two

MAC addresses. Connect a network Ethernet cable to either port to

provide an Ethernet connection to the unit.

Serial Communication

The ioThinx 4530 Series is equipped with a 3-in-1 serial interface that

supports either 1 RS-232 port, 1 RS-422 port, or 2 RS-485 ports. Refer

to the pin assignment table below for details.

RS-232

(P1)

RS-422

(P1)

RS-485

(P1/P2)

TXD

TXD+

DATA 1+

RXD

TXD-

DATA 1-

RTS

RXD+

DATA 2+

CTS

RXD-

DATA 2-

GND

45M Module Wiring

For more detailed information about 45M module wiring, additional

ioThinx 4530 Series documentation can be downloaded from the Moxa

website.

- 5 -

Installing the System on a DIN Rail

Reserve at least 55 mm of space above the DIN rail to ensure that

there is enough room to install the unit.

Step 1: Hook the top mounting clip of the unit onto the DIN rail and

then rotate the unit downwards until the bottom mounting clip comes in

contact with the DIN rail.

Step 2: Push the unit towards the

DIN

rail until the mounting clip snaps

to place.

Installing a 45M Module on a DIN Rail

Step 1:

Align the 45M module

side by side with the head/CPU

module, making sure that the

upper and lower rails are hooked

together.

- 6 -

Step 2: Push the 45M module

until it touches the DIN rail. Next,

apply more force until the module

clips to the DIN rail.

NOTE

After the module is firmly attached to the DIN

rail, the

connections between the

module and the internal bus will be

established.

Removing a 45M Module from a DIN Rail

WARNING

Be sure the power is off before removing modules to avoid

damaging the equipment.

Step 1: Use your finger to lift the

release tab on the lower part of the

module.

Step 2: Push the top of the release tab to latch it, and then pull the

module out.

NOTE

Electrical connections for the internal bus will be disconnected

when the 45M module is removed.

- 7 -

Installing Covers on the First and Last Modules

Attach the covers to the first and last module to protect the modules’

contacts.

NOTICE

Be sure to attach the covers to provide

protection against

electrostatic discharge.

Horizontal Installation

Before installing the

device, make sure there is

enough space between the

device and nearby items

(walls, other devices, etc.)

to ensure proper heat

dissipation.

To ensure that the device

works properly, we

suggest reserving

at least

30 mm o

f space

on each of

the four sides, as

shown

the figure.

AUTION

o not install the device vertically. If the device is installed

vertically, the fanless heat dissipation design will not perform

as intended.

- 8 -

LED Indicators

Label

Usage

Qty

Color

Action

System

Power

1 Green

On: Power on

Off: Power off

Field

Power

1 Green

On: Power on

Off: Power off

RDY System

(kernel) 1 Green/Red

Green: System ready

Green (blinking): System is

booting up

Red: System error, or

executing factory default

Red (blinking): Triggering

factory default, or upgrading

the firmware

U1/U2

User

defined

1 of each

Green/Red User-defined

SD microSD

card 1 Green

Green: SD card is inserted

OFF: SD card is being

accessed

L1/L2 Ethernet 1 of each

Green/

Amber

Green: 100Mb

Amber: 10Mb

Blinking: Data is being

transmitted

Off: Inactive

P1/P2 Serial 1 of each

Green/

Amber

Green: Tx

Amber: Rx

Blinking: Data is being

transmitted

Off: Inactive

Connecting to the ioThinx 4530 Series Controller

Use the following configuration information to log in to the ioThinx 4530

Series controller:

Port

Default IP

Subnet Mask

LAN1

192.168.127.254

255.255.255.0

LAN2

192.168.126.254

255.255.255.0

•Username: moxa

•Password: moxa

NOTE

Be sure to configure the host PC’s IP address to use the same

subnet as the unit. For example, 192.168.127.253

for LAN1

port.

Loading the Factory Default Settings

1. Power off the device.

2. Press and hold the reset button; while holding the reset button:

a. Power on the device; the RDY LED will blink green while the

device is booting up.

b. After the device has booted up, the RDY LED will blink red;

continue holding the reset button until the RDY LED stops

blinking.

3. Release the reset button to load the factory default settings.

- 9 -

NOTE

It should take about 20 seconds from the time the RDY LED

starts blinking green until it stops blinking red.

How to Download the Software

Related software packages can be downloaded from the Moxa website.

Step 1: Go to the following address:

https://www.moxa.com/en/support

Step 2: Select a product list from the drop-down box or type the model

name in the search box. In the following screenshot, the ioLogik E1200

Series is used to illustrate.

Step 3: Go to the Software & Documentation page to download the

latest software for the product.

Specifications

Input Current

System Power: 1.94 A (Max.)

Field Power: 2 A (Max.)

Input Voltage System Power: 12 to 48 VDC

Field Power: 12/24 VDC

Operating Temperature

Standard Models:

-20 to 60°C (-4 to 140°F)

Wide Temp. Models:

-40 to 75°C (-40 to 167°F)

Storage Temperature

-40 to 85°C (-40 to 185°F)

- 10 -

Attention

1. This device is only for indoor use in environments with pollution

degree 2.

2. This device has field power ground and two ground pins on the

back of the device. For surge protection, connect the field power

ground pin to your field power ground and connect the DIN rail to

earth ground. See pages 3 and 4 for location and wiring

information.

3. Cables rated for a minimum temperature of 105°C must be used

for the Power Supply Terminal.

4. We suggest using the following cable types for wiring:

•ioThinx 4530 Series:

> AWG 12 to 16 for power connections

> AWG 16 to 28 for serial connections

> AWG 12 to 18 for field power ground connections

•45MR-7210:

> AWG 12 to 16 for power connections

•45MR-2600/2601/2606 Digital Output Terminals:

> AWG 16 to 18

•45MR-2404 Relay Output Terminal:

> AWG 16 to 18

•All other 45MR modules:

> AWG 16 to 24

Moxa Inc.

Fl.4, No. 135, Lane 235, Baoqiao Rd.

Xindian Dist., New Taipei City, Taiwan R.O.C.
