SAFETY INSTRUCTIONS
1. Entrust mounting equipment only to experienced professionals and strictly follow the providedv safety
instructions. Improperly installed equipment may result in property damage, personal injury and/or liability for the
installing contractor.
2. Only use appropriate fastening hardware.
3. Always make sure to securely use and lock all mounting bolts. Loose bolts may become unscrewed over time due
to vibration which will then create a safety hazard.

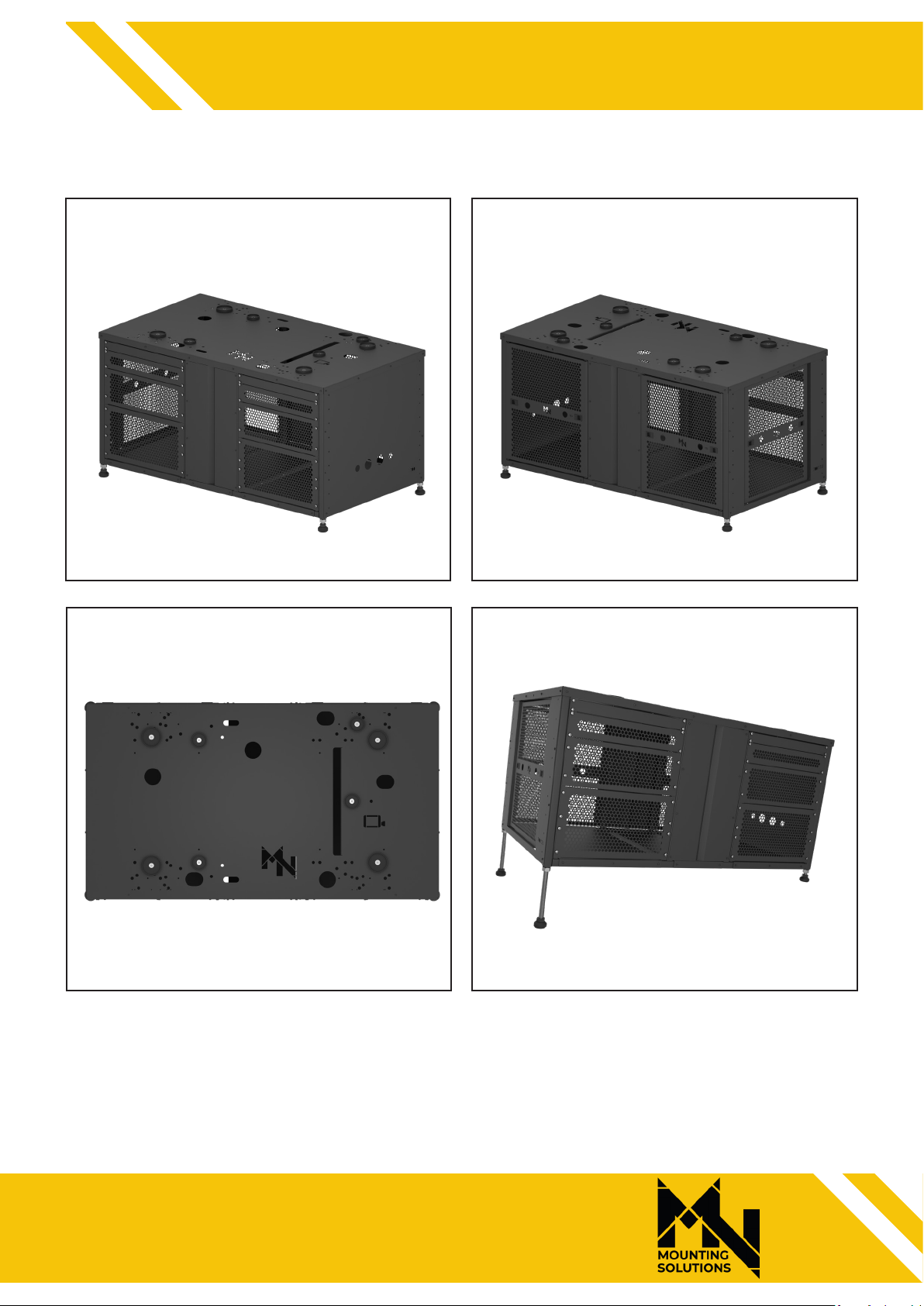

Assembly Guide for Projector Pedestals Long
Assembly Guide
PAP Long
www.mnmounting.com
2 Merezhna str., Bila Tserkva,
Kyiv region, 09100, Ukraine

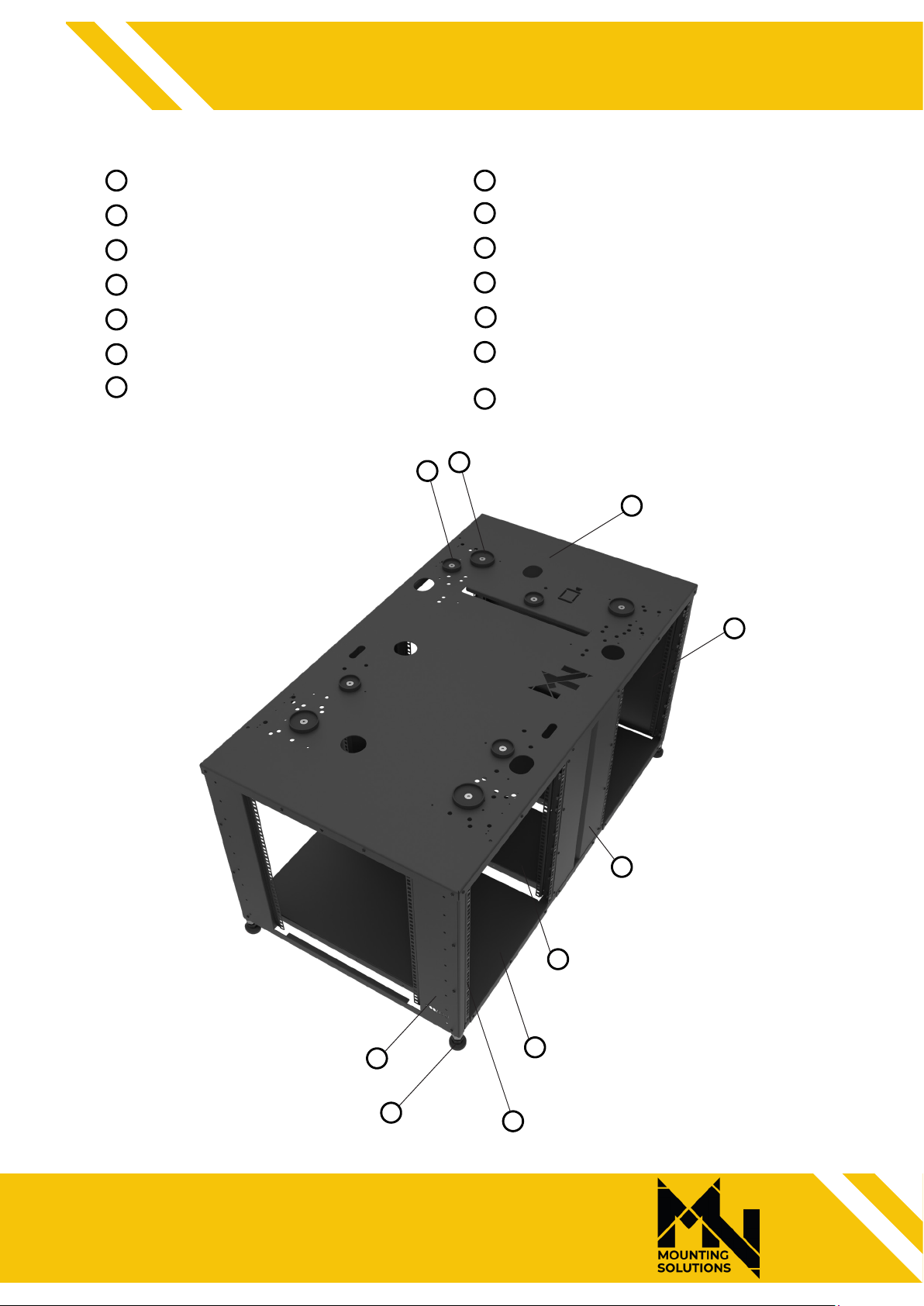

Assembly components:
1
Frame - 2 pcs
2
3
5
4
Bottom Shelf - 2 pcs
Top Plate - 1 pcs
Back Cover - 1 pcs
Front Cover - 1 pcs
6
8
9
10
11
12
Side Cover - 2 pcs
M4x10 thread cutting screws
Rack Rail (RR-1U) - 2 pcs
M6 rack screw pack
Steel Cup, (SG-50) - 4 pcs
Steel Cup, (SG-70) - 4 pcs
Mounting kit М10 (screw,
washer, nut) - 4 pcs
1
2
7
Adjustable Leg - 4 pcs
3
1
7
5
4
3
6
12
1
4
Bottom Center Shelf - 1 pcs
8
3
1
Assembly Guide
PAP Long
www.mnmounting.com
2 Merezhna str., Bila Tserkva,
Kyiv region, 09100, Ukraine

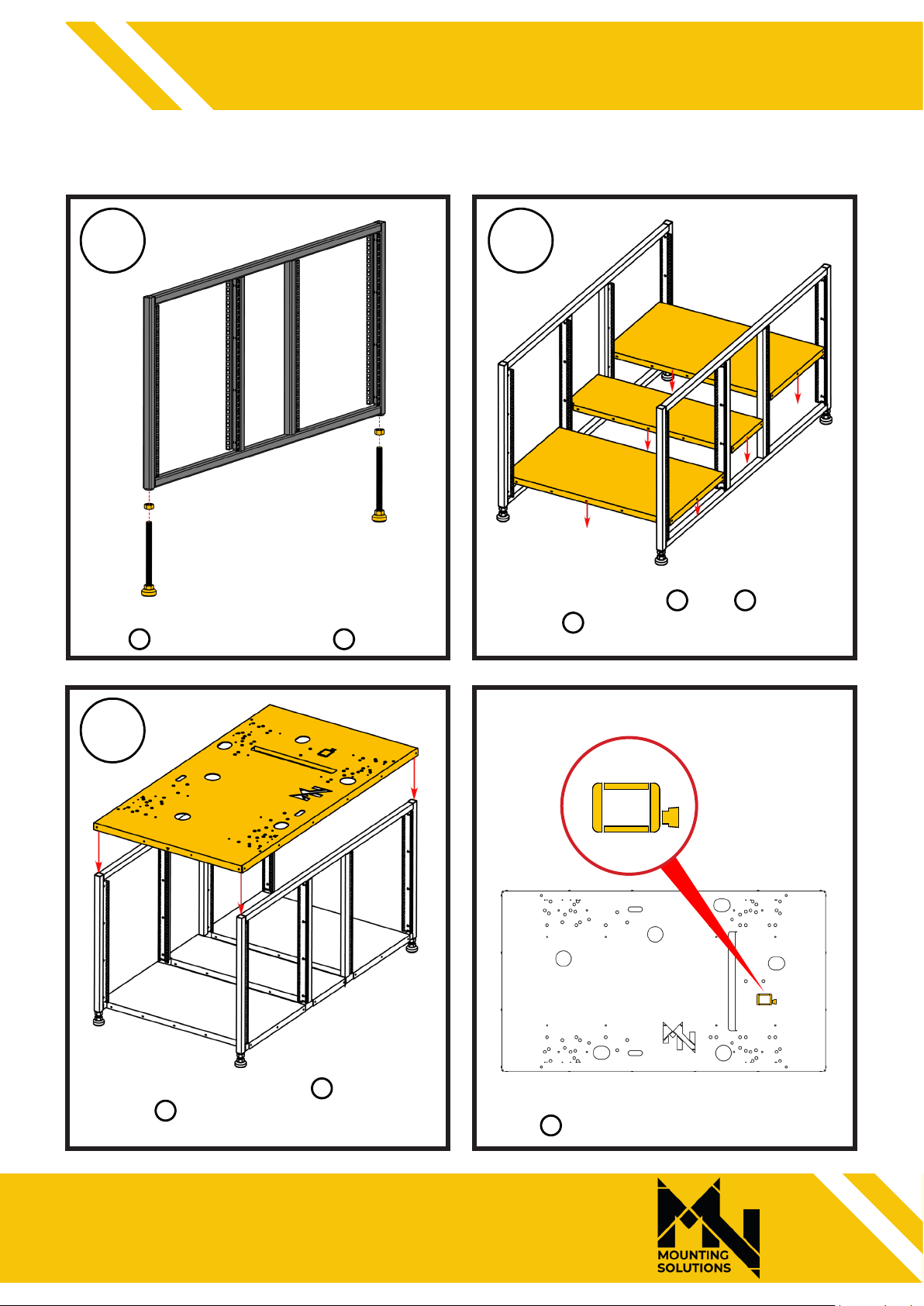

1. Start the assembly by installing
Legs (
8
) into both Frames (
1
).
2. Install Shelves (
2
and
3
) in
Frames (
1
), without xing them with
screws.
Assembly Instructions:
1
2
3
3. Install the Top Plate (
4
) onto
Frames (
1
), without xing them with
screws.
Pay attention to the orientation Top
Plate (
4
) of the front and rear.
Attention!!!
REAR
FRONT
Assembly Guide
PAP Long
www.mnmounting.com
2 Merezhna str., Bila Tserkva,
Kyiv region, 09100, Ukraine

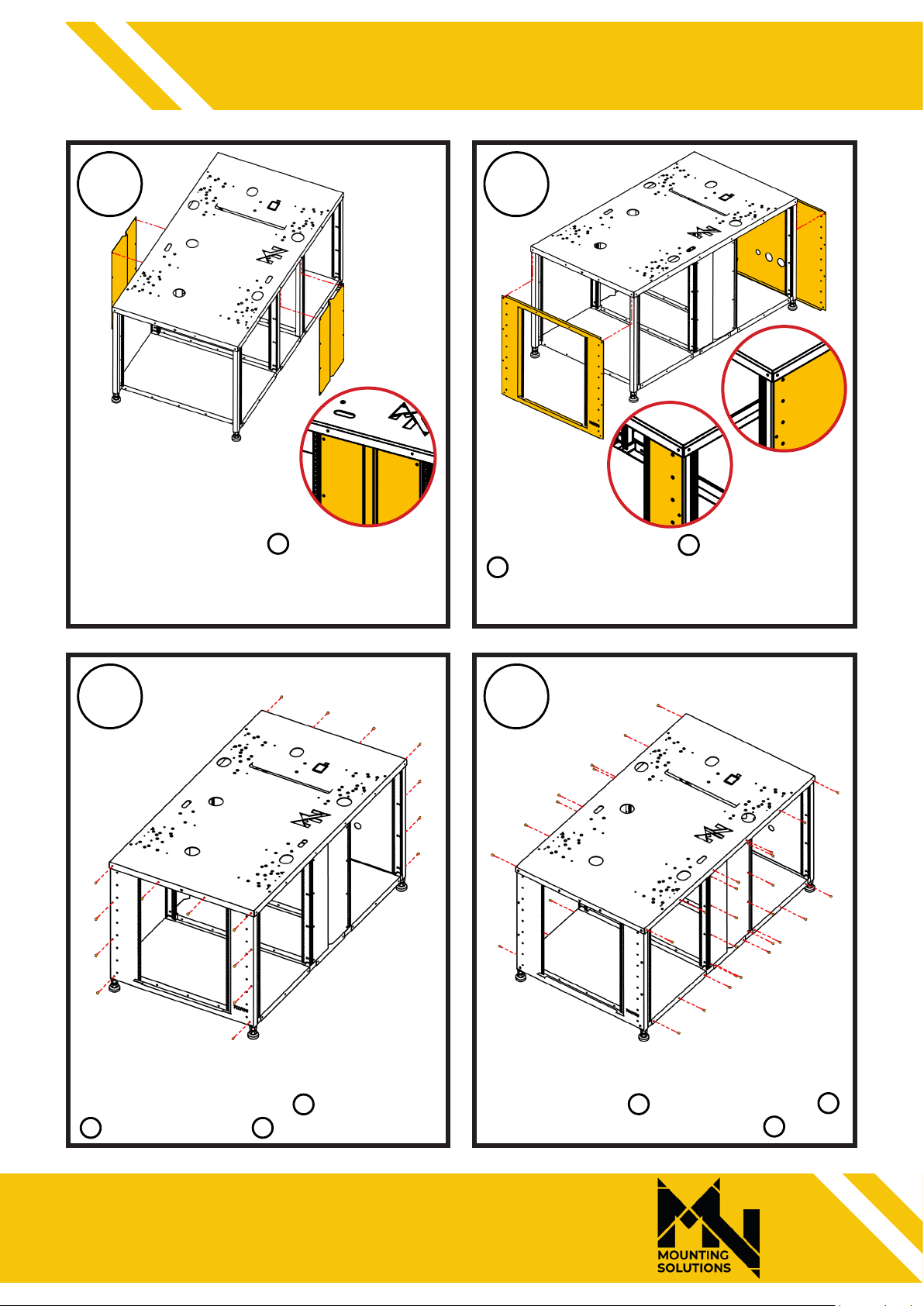

4. Install the Side (
7
) covers without
xing them with screws.
Pay attention that the Covers must
go under the edge of the Top Plate.
4
6. Tighten the remaining M4x10
thread cutting screws (
9
) of the Back
(
5
) and the Front (
6
) covers.
6
7. Finally tighten the M4x10 thread
cutting screws (
9
) of the Top Plate (
4
)
and then the bottom Shelves (
2
).
7
5. Install the Back (
5
) and the Front
(
6
) covers.
Pay attention that the Covers must
go under the edge of the Top Plate.
5
Assembly Guide
PAP Long
www.mnmounting.com
2 Merezhna str., Bila Tserkva,
Kyiv region, 09100, Ukraine

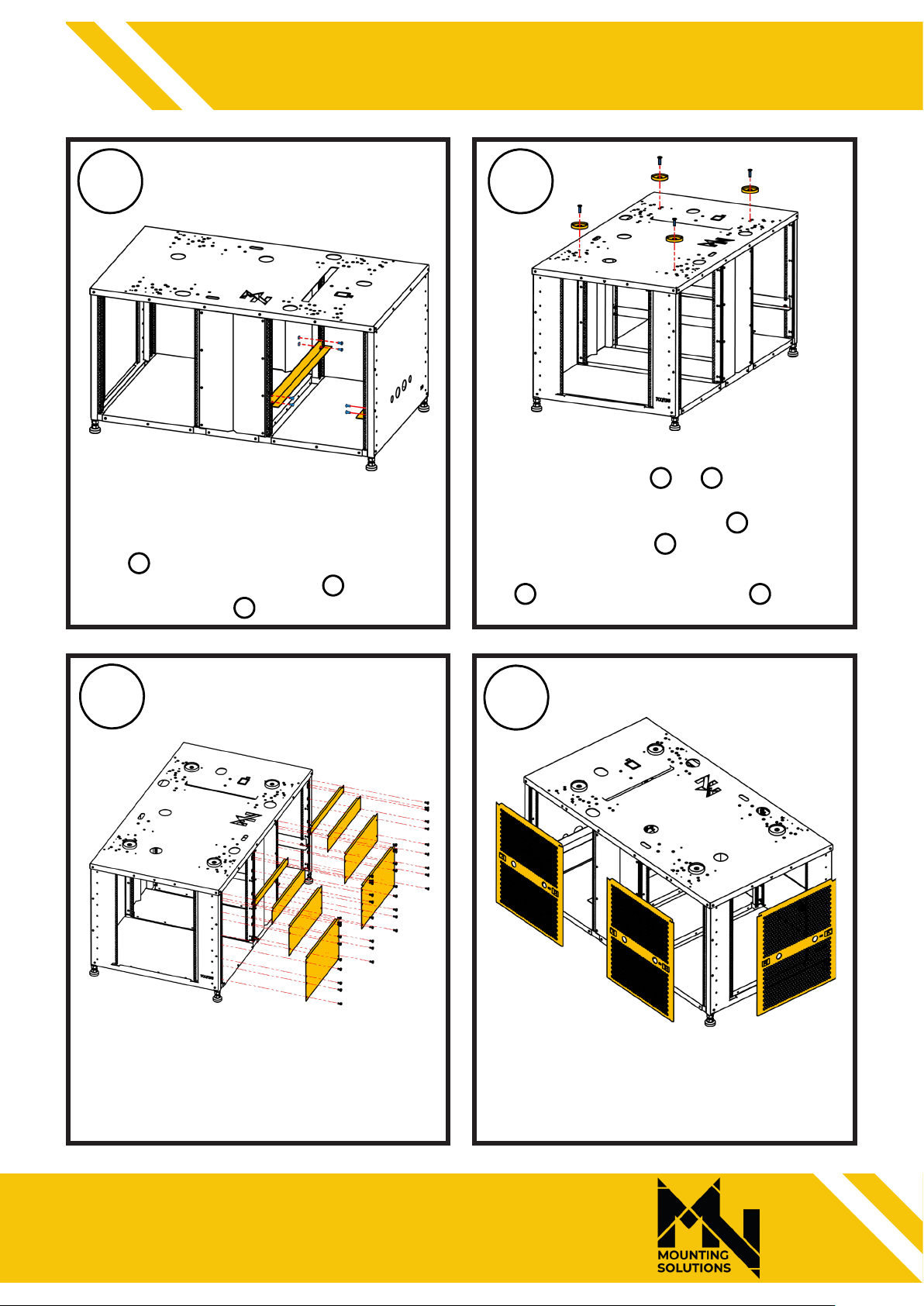

9. Before setting up the projector,
install Steel Cups (
12
or
3
1
), according
to the hole pattern shown below, by
xing them on Top Plate (
4
) with
Mounting kit М10 (
1
4
).
Pay attention that the Steel Cup SG-
50 (
12
) and Steel Cup SG-70 (
3
1
) is for
different projectors.
8. Determine the location for the
media server, and install there Rack
Rails (
10
) by xing them to the side
mounting holes of Frame (
1
) with M6
rack screw pack (
11
).
10. Install the necessary rack covers
on front for your PAP assembly. (Look
in Accessories)
9
10
8
11
11. Install the Hinged Rack Mount
Vented Cover on side and rear for your
PAP assembly. (Look in Accessories)
Assembly Guide
PAP Long
www.mnmounting.com
2 Merezhna str., Bila Tserkva,
Kyiv region, 09100, Ukraine

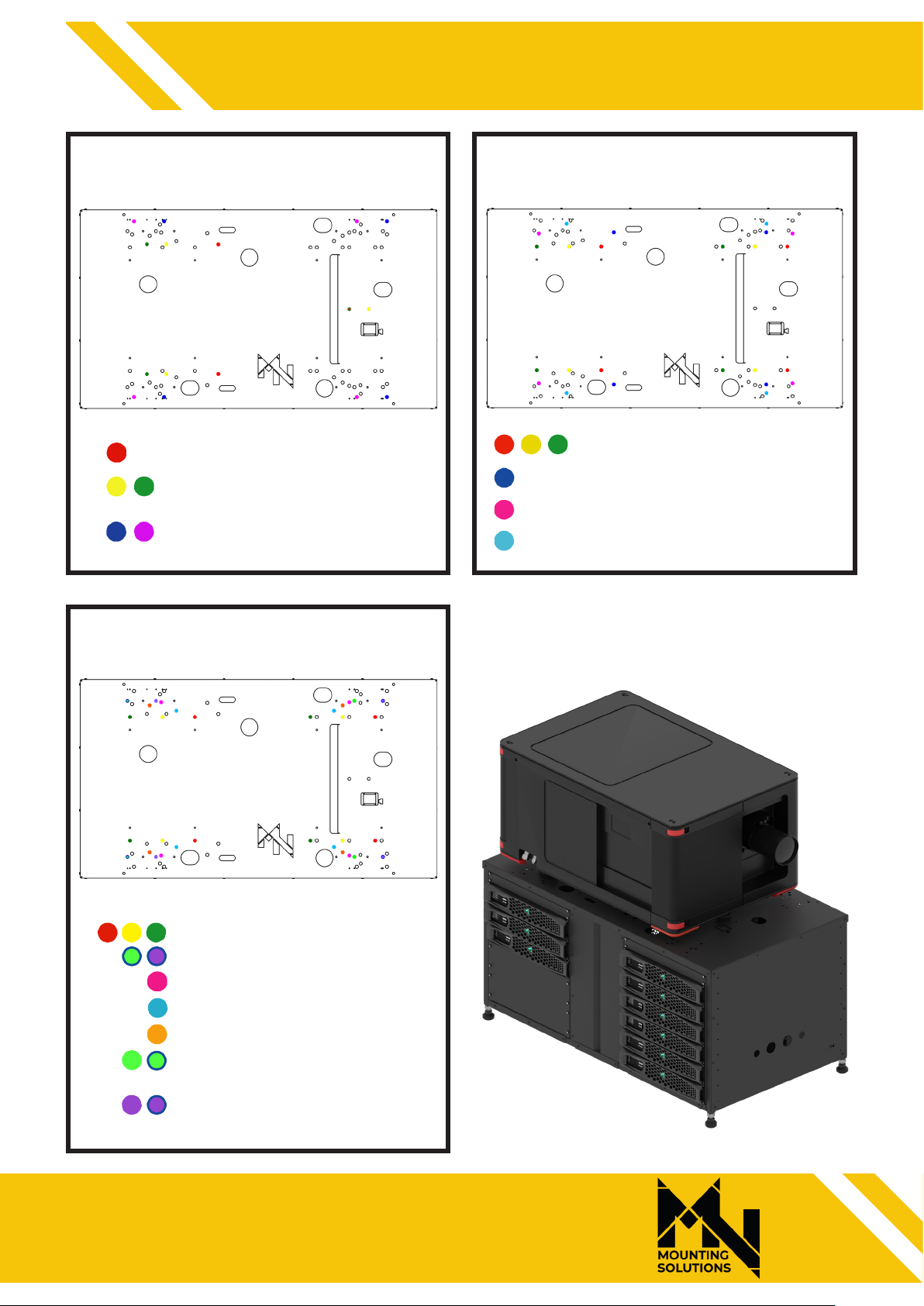

Hole pattern Barco projectors
Hole pattern Nec projectors
NEC NC 900/1000 (position 1, 2, 3)
NEC NC 32XX - series
Hole pattern Christie projectors
NEC NC 1700,
NEC NC1202L/NC 1402L
NEC NC 3541L/2041L
NEC NC 1201L-A
NEC NC2402ML/2403ML/2443ML
NEC NC1803ML/2003ML,
NEC NC1843ML/2043ML (position 1)
NEC NC2402ML/2403ML/2443ML
NEC NC1803ML/2003ML,
NEC NC1843ML/2043ML (position 2)
Barco E - series
Barco S, C, SLP, CLP - series
SP2K - series, SP4K- series (position 1, 2)
Barco B, BLP, L - series
SP4K-27/35/40/55 - series (position 1, 2)
Christie CP 2220/2230; CP 4220/4230,
CP2420-XE, CP4420-XE (position 1, 2, 3)
Christie SolariaONE; CP2306/2308/2310, CP2415-XE
Christie CP 2309/2315/2320, CP2420-RGB, CP2415-RGB
Christie CP 4315/4320/4330, CP 4415/4420/4425/4430/4435
An example of installing a
projector on the pedestal
Assembly Guide
PAP Long
www.mnmounting.com
2 Merezhna str., Bila Tserkva,
Kyiv region, 09100, Ukraine

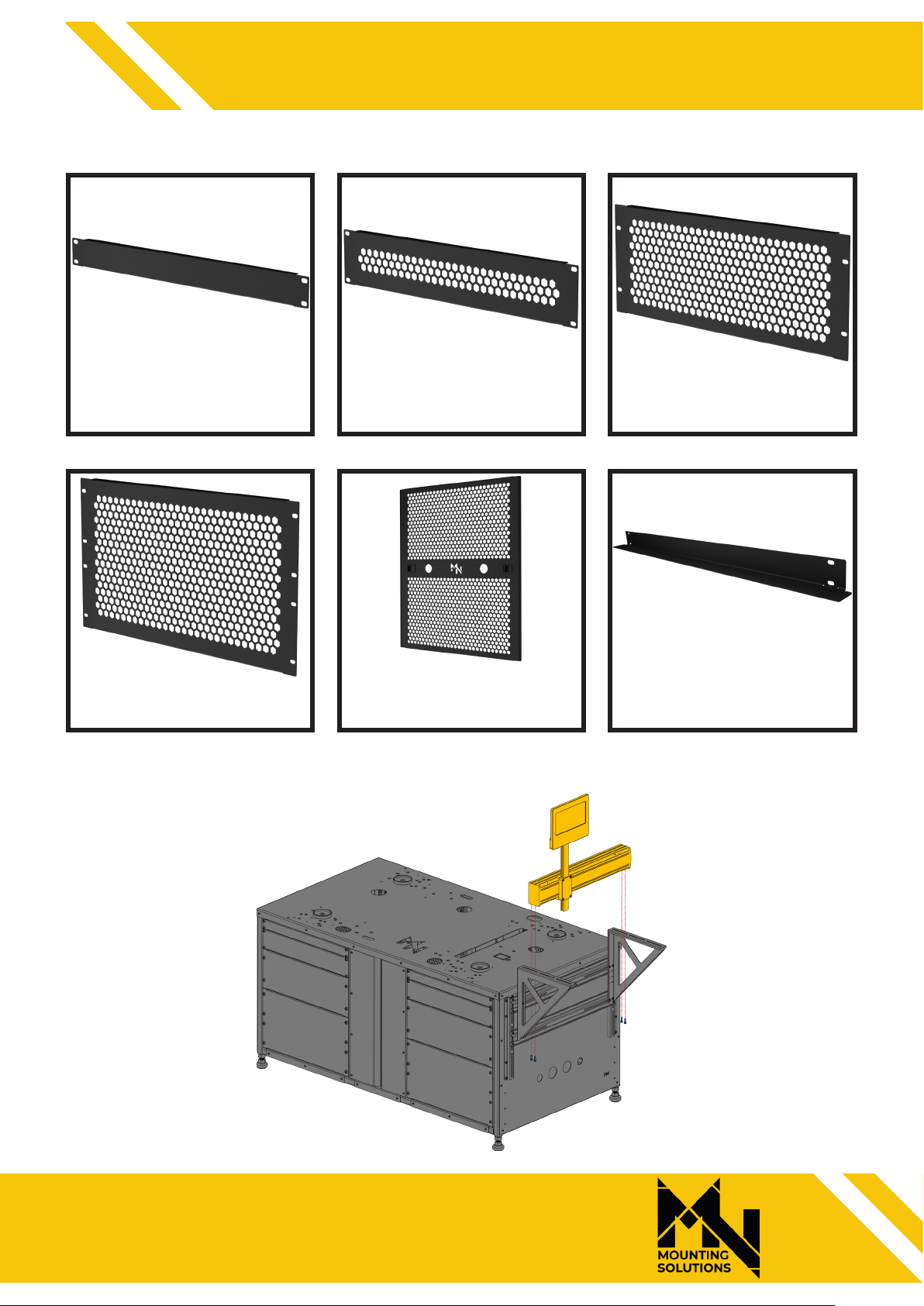

ACCESSORIES
Installation 3D system:
RCHV-13U
Hinged Rack Mount Vented Cover,
13U height
(3 pcs included)
RR-1U
Rack rail for media server, UPS or other
heavy devices, 1U height
(2 pcs included)
RC-1U
Rack Blank, 1U height
(2 pcs included)
RCV-2U
Vented Rack Blank, 2U height
(2 pcs included)
RCV-4U
Vented Rack Blank, 4U height
(2 pcs included)
RCV-6U
Vented Rack Blank, 6U height
(2 pcs included)
