Welcome to cellular telephone service. Your

phone represents the state-of-the-art in personal

cellular telephones today. The listing below shows

just a few of the exceptional features that your

telephone contains.

Simplified Programming

PIN Code and Authentication Capable

Signal Strength Meter

Battery Meter

Low Battery Warning

Volume Meter

Nine numeric memories

Nine selectable ringer tones

Nine number Turbo

DiaP

Nine number Super Speed Dial

Highlights

Remember, these are just a few of the great

features that your phone provides to meet your

needs. In addition, accessory options are

available to help you tailor your cellular system

to your individual preferences.

To cover all of your phone’s features properly, this

manual will take you through a logical,

step-by-

step learning procedure that explains everything

you need to know to operate your new telephone.

To help you become familiar with your

telephone’s features, it is suggested that you

experiment with them as you progress through

this manual.

Please

read

the safety information on

page

before operating your telephone.

In addition, simple instructions for the most

commonly used features of your phone can be

found on the inside of the battery compartment

door.

ST0

(Store) Key Operation

Depending on the cellular phone model you have

purchased, your keypad may have separate RCL

and

ST0

keys or one key for both RCL and STO.

With either model, your phone’s functions and

features are identical.

Instructions in this manual have been written to

detail the key strokes for models with separate

RCL and

ST0

keys.

For models with one key

for both RCL and STO, pressing FCN, then

RCL is equivalent to pressing

ST0

in all

instructions in this manual.

For models with one key for both RCL znd STO,

note that both

“FCN”

and

“STO”

are printed in

blue to help you remember that you need to press

FCN,

then

RCL

for a

ST0

operation.

Getting

Started

Before you can use your telephone, you need to

activate your service and program your phone. In

addition, if you will be using a rechargeable

Battery Pak, it must be fully charged before you

make your first call.

Activating Your Phone Service

Your Cellular Service Provider will need to

activate or “turn on” your cellular phone service.

Depending on where you purchase your cellular

telephone, your phone may be activated by your

sales person or you may need to contact a

Cellular Service Provider.

You will be given your cellular phone number

when you activate your service.

Don’t

worry!

If you make a mistake,

,-I

will appear. After a few seconds, your

phone will display the incorrect number you

entered for that step. Press

CLR

to erase the last

digit or press and hold

CLR

to erase the entire

entry. Re-enter the correct number, then press

ST0

and you’re finished!

Programming Your Phone

You

cellular telephone may be programmed by

your sales person or you may be asked to

program your phone. In either case, our

Simplified Programming makes this process easy!

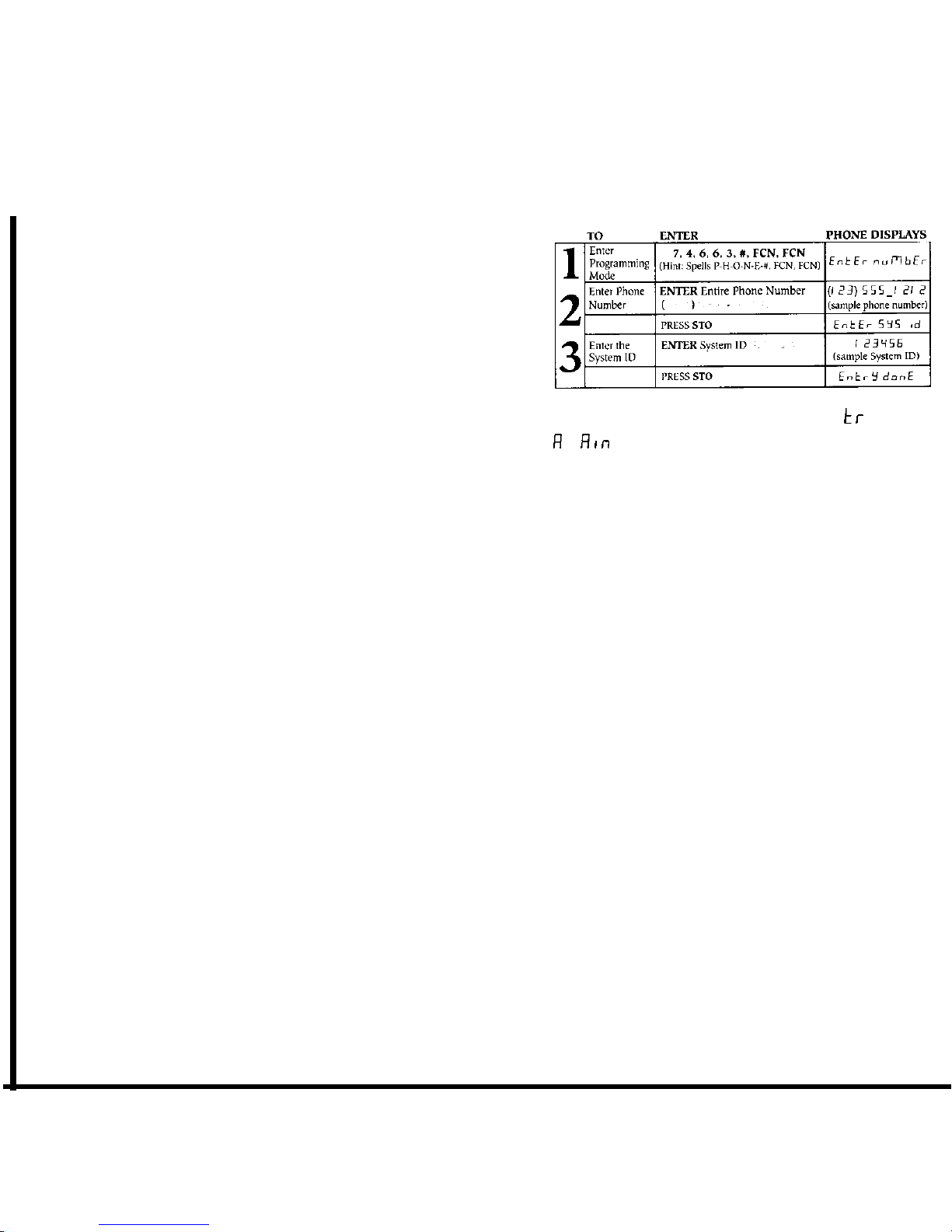

l-2-3

Simple Programming

Before you start,

write down your cellular

phone number here

(

and your Carrier System ID* (a one to five

digit number)

here

*Contact your Cellular Service Provider to confirm your

Carrier System ID

number.

Preparing a Rechargeable

Battery Pak for Initial Use

A rechargeable Battery Pak must be fully charged

before being used in your phone. Fully charging a

Battery Pak will give you the longest

ta%

and

standby times throughout the life of the

Battery Pak.

All rechargeable Battery Paks are shipped from

the factory in a discharged statein order to

extend their life. It

is recommended that you

charge a new rechargeable Battery Pak at

least

hours, with your phone powered off,

using the charger supplied with your phone.

Please see page 10 for Battery Pak installation

and removal instructions and page 12 for Battery

Pak charging instructions.

NOTE

Standard AA batteries

cannot

recharged

by the phone.

WARNING

Battery Paks and

standard batteries

may explode if exposed to fire.

CAUTION To

avoid damage to a Battery Pak, do

not place them anywhere that might cause the

battery terminals to short together. To prevent

injuries or burns, do not allow metal objects to

contact or short circuit Battery

Pak

terminals.

Power Options

This cellular telephone can use an array of power

sources which include:

Rechargeable nickel metal hydride

(NiMH)

Battery Pak

Rechargeable nickel-cadmium

(NiCd)

Battery Pak

Four AA standard batteries

Cigarette Lighter Adapter

Power your phone directly from your vehicle

using the Cigarette Lighter Adapter even

without batteries in your phone!

Battery Compartment

Door

The battery compartment door must be removed

before a rechargeable Battery Pak or AA standard

batteries can be installed. Always be sure to

reinstall the battery compartment door to prevent

its loss.

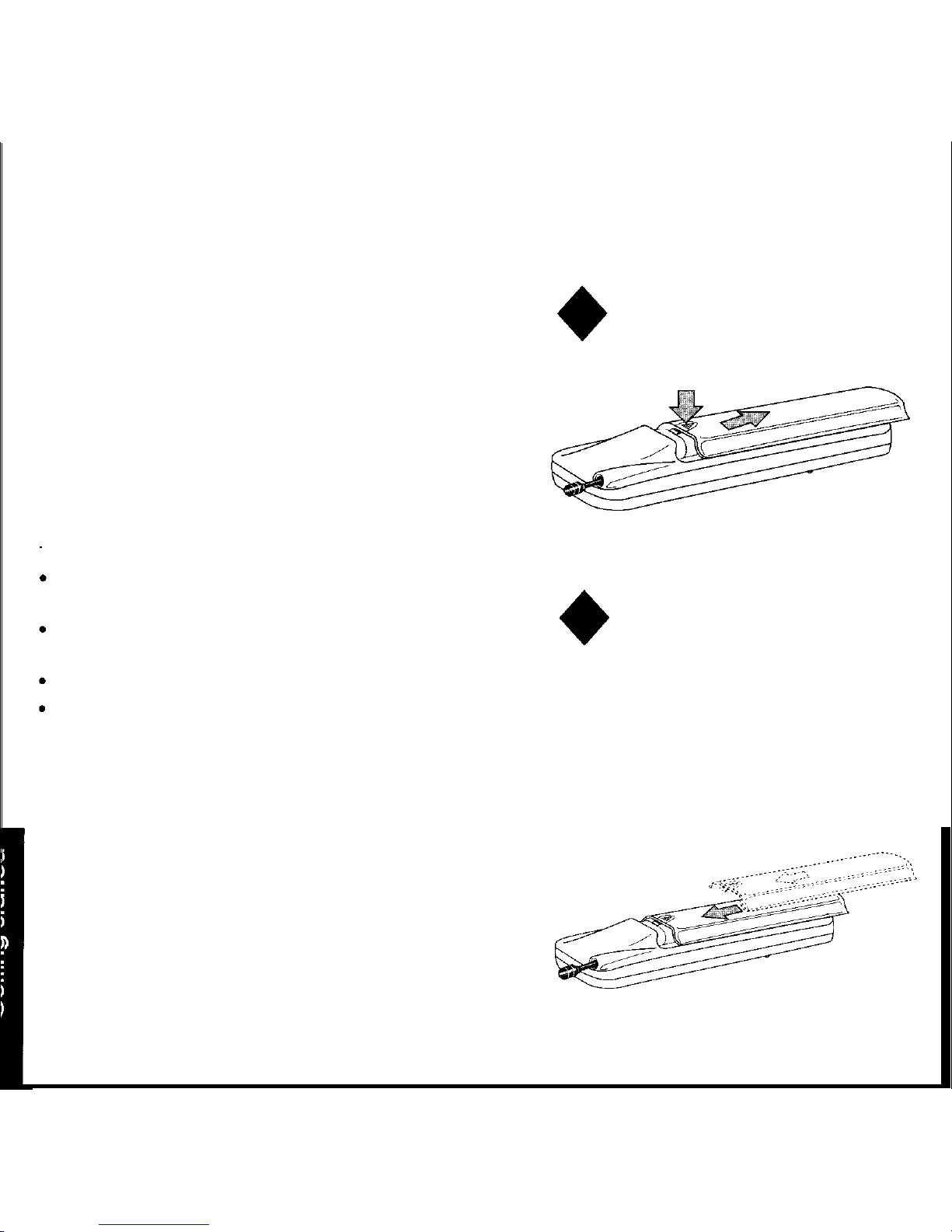

Removing the Battery

Compartment Door

Press down on the tab above the

arrow on the battery compartment

door and slide the door toward the

bottom of the phone.

Installing the Battery

Compartment Door

Place the battery compartment

door into the channels at the side

of the battery compartment

opening. Make sure that the top of

the door, which has the

loEking

tab

and arrow, is oriented toward the

top of the phone.

Slide the door in the channels

toward the top of the phone until

the locking tab clicks securely into

the phone.

Installing and Removing

Removing a

BatterY

Pak

Batteries

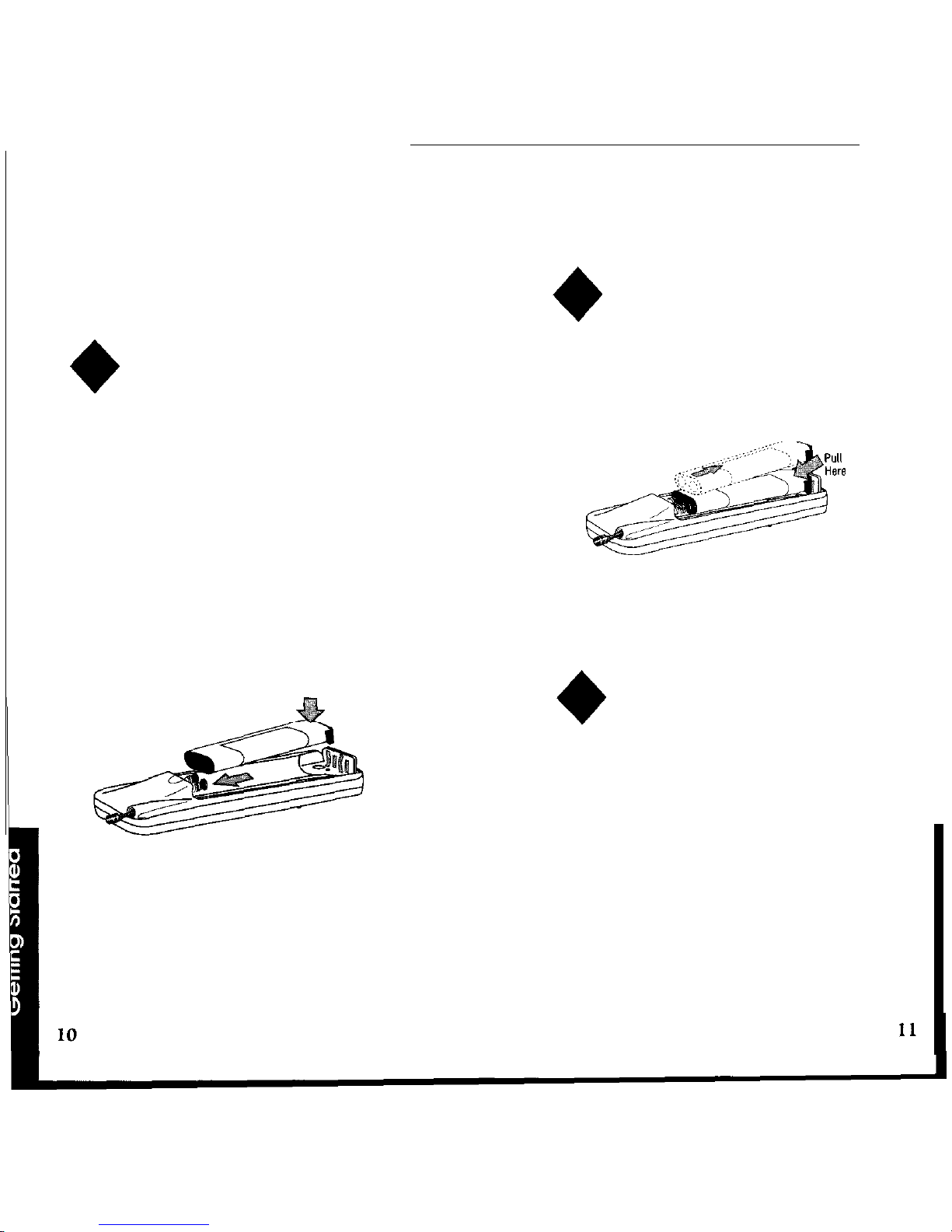

Installing a Battery Pak

Remove the battery compartment

door.

Align the Battery Pak with the

battery compartment, making sure

the front of the Battery Pak is

facing toward you.

First, insert and press the top of

the Battery Pak against the springs

in the top of the battery

compartment. Then, press the

bottom of the Battery Pak into the

bottom of the battery

compartment.

Install the battery compartment

Installing AA Standard Batteries

aoor.

Remove the battery compartment

door.

Grasp the bottom of the Battery

Pak and pull it out of the battery

compartment.

Install the battery compartment

door.

Remove the battery

compcrtment

door.

Insert, one at a time, four AA

standard batteries, aligned as

pictured on the label inside the

battery compartment.

Install the battery compartment

3. door.

Removing AA Standard Batteries

Remove the battery compartment

door.

Grasp one AA standard battery and

pull to remove from battery

compartment.

Remove the remaining three AA

standard batteries from the battery

compartment.

Install the battery compartment

door.

Battery

Pak Charging

Your Battery Pak needs no other maintenance

than routine charging. Please note that AA

standard batteries

cannot

be recharged by

your phone.

Charger Choices

Your phone may be packaged with one of three

chargers: an AC Standard Transformer Charger,

an AC Fast Transformer Charger or a Cigarette

Lighter Adapter. When your phone is powered

off,

the following charging times are required:

Charging time required for

Charger 90% Battery Pak capacity

AC Standard

Transformer Charger 4.5 hours

AC Fast Transformer Charger 1.5 hours

Cigarette Lighter Adapter

1.5

hours

Each of these chargers will also charge a

rechargeable Battery Pak when your phone is

powered on. Operating the phone extends the

time required to recharge a Battery Pak.

Both the AC Fast Transformer Charger and the

Cigarette Lighter Adapter have been designed to

power your phone even when a Battery Pak or

AA standard batteries are not installed. Once

either of these chargers is properly installed,

simply press PWR to power on your telephone.

Please note that the AC Standard Transformer

Charger

cannot

be used to power your phone

when a Battery Pak or AA standard batteries are

not installed in your phone.

Installing a Charger to Your

Phone

Insert the jack plug on the charger

into the jack port located in the

lower left side of your phone.

Plug your charger into

th,e

appropriate power source.

Your phone will emit a “beep” when a charger

has been properly installed.

Monitoring Charging Status

Once your charger is properly installed and

charging begins, the display of your phone will

help you monitor the charging status of your

Battery Pak. To help conserve power and more

rapidly charge your Battery Pak when your phone

is powered on, this status display will only

remain lit for

seconds after charging begins.

When your phone is powered on and has timed

out into standby mode, or your phone is powered

off, the display will flash b while the Battery Pak

is charging and continually light a b when your

Battery Pak is completely charged.

To review your battery charging status at any time

when charging with your phone powered on,

press FCN, then 4. If your Battery Pak is still

being charged, the display will briefly show

7. If your Battery Pak is fully charged,

the display will show b __ z

E:.

Power On Reminder

To help you conserve your Battery Pak power,

when you remove a charger while your phone is

powered on, the phone will emit a “beep” to

remind you of its powered on state. If you wish to

power your phone off, press

PWR.

Low Battery Warning

Low battery power is indicated by a short

dual-

tone alert repeated periodically, and the display

message

t If the message is ignored, the

phone will automatically turn itself off as the

battery approaches full discharge.

Battery Voltage Meter

To monitor your relative battery power when your

phone is not externally powered by a charger,

press FCN, then 4.

The Battery Voltage Meter

(BVM)

represents the

current relative voltage level of your battery.

Similar to your vehicle’s gas gauge, you can use

your phone’s BVM to estimate the amount of

“fuel for your phone” or battery capacity

remaining. The BVM is displayed in the form of a

bar graph following the letter b at the left side of

the display.

(7)

(Kzz-)

Low Battery Charged battery

If a charger is installed to your phone, but a

battery is not present, pressing FCN, then 4 will

cause the phone to display a fully

char&

battery meter.

Variables such as temperature, battery age, and

charging conditions may affect battery voltage. To

help remember which key to use to view your

BVM, note that

“BAR”

is printed on the 4 key.

14 15

Turning

the Phone On

Press PWR once.

Check the status indicators and

display messages before placing a

call.

Start-up

Self

Tests

Each time the telephone is powered on, it

performs a series of self tests, sounds a tone and

lights all display positions and status indicators

to check their operation. The keypad will light

momentarily, as it will any time a key is pressed.

SSM when not in a call by pressing END. (Please

remember that pressing

END

during a call will

terminate the call.)

Start-up Display Messages

The display will show

if the volume is

at its lowest setting, then your phone number,

then the Signal Strength Meter.

Signal Strength Meter

The Signal Strength Meter

(SSM)

represents the

relative strength of the cellular signal received by

your phone. The SSM is displayed as a bar graph

following the letter

at the left side of the

display. An

alone in the display represents no

signal strength, with each additional bar

representing a relatively stronger signal.

(7)

c5-----_)

Weak Signal Strong

Signal

To best utilize the SSM, you should familiarize

yourself with the relative signal strength levels

and their associated call placement and

call-in-

progress qualities.

The SSM appears every time you turn on your

phone and to conserve battery power, will only

remain lit for 16 seconds. You can redisplay the

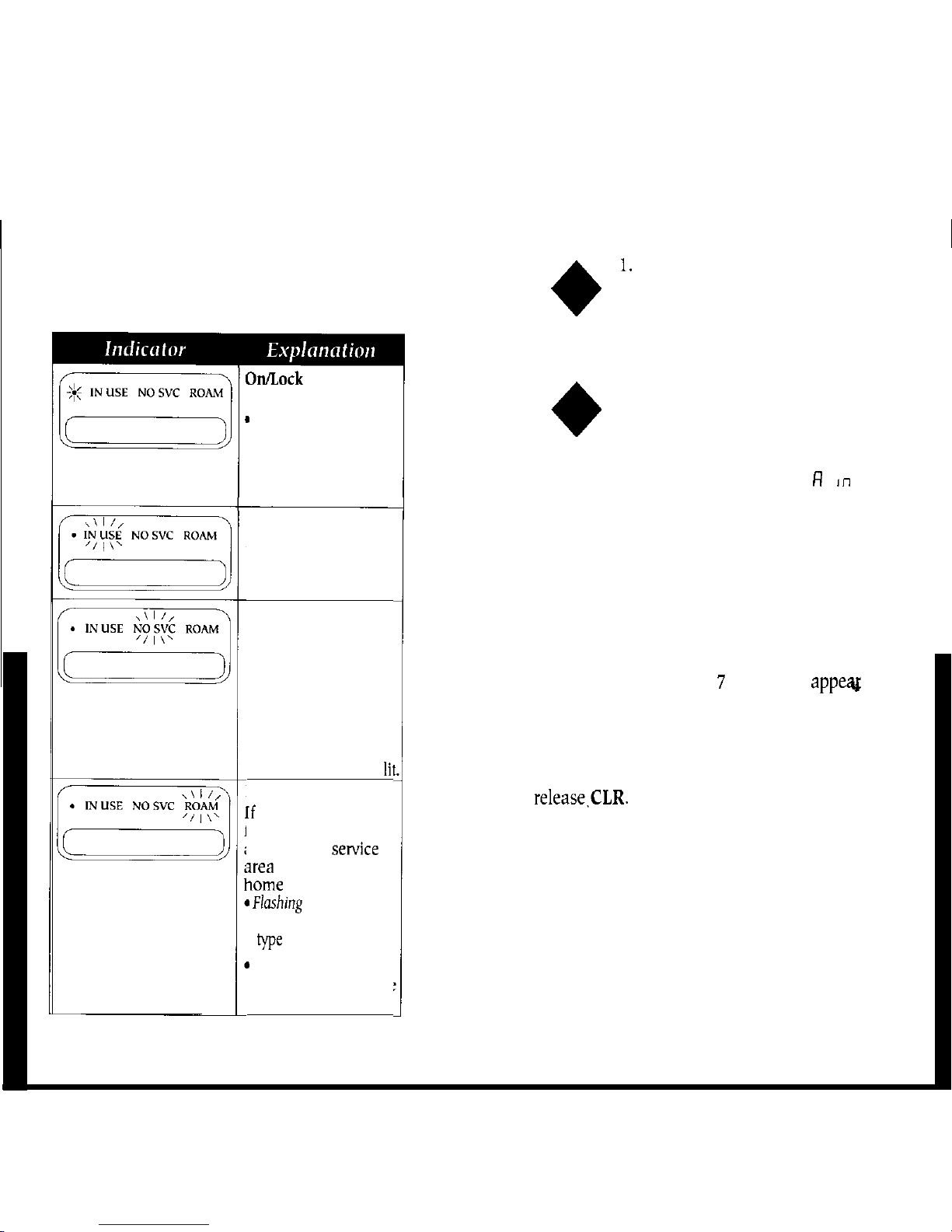

Display Indicators

Turning the Phone Off

Your phone’s display has four status indicators to

help you easily monitor the status of

your phone’s

operation.

Press

PWR once

to turn the phone

off.

On/Lock

Indicator

(green light)

When on “home”

system, flashes

slowly to indicate

the phone is ready

to use.

IN USE Indicator

Flashes slowly

while a call is in

progress.

NO SVC (No Service)

Indicator

Flashes slowly

if phone is beyond

range of a cellular

service area.

Calls cannot be

placed or received

while NO SVC is

iii

ROAM Indicator

slow or rapid

‘lashing, you are

accessing a

senrice

area

outside of your

lome system.

Ffashing

Slowly

Roaming on a home

system.

Flashing

Rapidly

Roam on a non-home

type system.

Placing a Call

1. With power on, enter the number

you

wish to call.

2. Press SND.

The green “IN USE”

indicator light will flash. The

display will show d

7 and

then the phone number you are

calling.

3. Begin conversation when the called

party answers.

4. To terminate

the

call, press END.

Entering More than 7 Digits

You

can call a phone number with up to 32

digits, but only the last

digits will

appeag

in the

display.

To Correct an Error when Dialing

To clear the last digit entered, press and quickly

release,CLR.

To clear the entire entry, press and

hold

CLR

for about one second, until the entire

entry is erased. You may now re-enter the

number you wish to call.

Table des matières

Autres manuels Motorola Téléphone

Motorola

Motorola Timeport P8097 Manuel utilisateur

Motorola

Motorola Q GSM Manuel utilisateur

Motorola

Motorola HS1101 Manuel utilisateur

Motorola

Motorola i870 Manuel utilisateur

Motorola

Motorola T720 - 1 Manuel utilisateur

Motorola

Motorola i570 Manuel utilisateur

Motorola

Motorola MOTOMING A1200 Manuel utilisateur

Motorola

Motorola fx1900xg Manuel utilisateur

Motorola

Motorola T215 Manuel utilisateur

Motorola

Motorola L Series Manuel utilisateur

Motorola

Motorola T505 - MOTOROKR - Speaker Phone Manuel utilisateur

Motorola

Motorola L702CBT Manuel utilisateur

Motorola

Motorola NNTN5565A Manuel utilisateur

Motorola

Motorola CT2 Manuel utilisateur

Motorola

Motorola W175G Manuel utilisateur

Motorola

Motorola T505 - MOTOROKR - Speaker Phone Manuel utilisateur

Motorola

Motorola T720 CDMA Manuel utilisateur

Motorola

Motorola A1000 Manuel utilisateur

Motorola

Motorola I720 - SOUTHERNLINC Manuel utilisateur

Motorola

Motorola T307 Manuel utilisateur

Motorola

Motorola ML25254 Manuel utilisateur

Motorola

Motorola SD4590 Manuel utilisateur

Motorola

Motorola PMLN6481 Manuel utilisateur

Motorola

Motorola ML1000 Manuel utilisateur

Manuels Téléphone populaires d'autres marques

GE 2-9480 Manuel utilisateur

Geemarc

Geemarc PHOTOPHONE 155 Manuel utilisateur

D-Link

D-Link DWR-720/PW Manuel utilisateur

Interquartz

Interquartz Gemini IQ333 Manuel utilisateur

SSS Siedle

SSS Siedle HT 840-0 Manuel utilisateur

Panasonic

Panasonic ICX Manuel utilisateur

LG H870DS Manuel utilisateur

Samsung

Samsung GT-I9500 Manuel utilisateur

AT&T

AT&T Trimline 205 Manuel utilisateur

Selta

Selta zenyth 600 Manuel utilisateur

Doro

Doro AFTI 20 Manuel utilisateur

UNIQCELL

UNIQCELL A1 Manuel utilisateur

Panasonic

Panasonic KX Series Manuel utilisateur

Jabra

Jabra SP5050 - Bluetooth hands-free Speakerphone Manuel utilisateur

BT Decor 425 Manuel utilisateur

NEC

NEC SV8500 Manuel utilisateur

Teledex

Teledex PEARL Manuel utilisateur

Ericsson

Ericsson Dialog 3213 Manuel utilisateur
