Motorola GM380 Manuel utilisateur

Professional Radio

GM380

User Guide

68P64110B90

Issue:July 2000

12345

78910 12

1English

CONTENTS

RadioOverview .................... 3

RadioControls......................3

ProgrammableButtons ...............3

KeypadKeys....................... 7

KeypadLock/Unlock ................. 7

MenuKeys.........................8

MenuNavigationChart ............... 9

LCDDisplayandIcons............... 10

AudioSignalTones................. 11

LEDIndicators..................... 12

GettingStarted.................... 13

TurningtheRadioOn-Off.............13

RadioOnMessage ................. 13

Adjusting the Radio’s Volume . . . . . . . . . 13

SelectingaRadioChannel............ 14

MemoryChannel...................15

SendingaCall..................... 15

ReceivingaCall....................16

CancellingaCall ................... 16

EndingaCall...................... 16

RadioCalls........................17

SelectiveCalls......................17

MakingaSelectiveCall...............17

ReceivingaSelectiveCall.............17

ContactList........................18

KeypadEdit........................19

MissedCalls .......................20

StatusCalls........................23

MakingaStatusCall...............23

ReceivingaStatusCall ............24

EmergencyCalls....................25

DTMF.............................26

Features..........................31

VoiceStorage......................31

VoiceRecorder...................31

EmergencyMessage..............34

PublicAddressMode.................35

CarRadioMute.....................36

Utilities . . . . . . . . . . . . . ..............37

Scan .............................39

CallForward .......................42

Talkaround.........................43

ExternalAlarm......................44

LoneWorker.......................45

English

CONTENTS

PowerLevel.......................46

Companding.......................47

Backlight..........................48

Brightness ........................ 49

OptionBoard...................... 50

VoiceOperatedTransmit(VOX)....... 51

Stun/Unstun....................... 52

RadioInformation ................. 53

SafetyInformation................. 55

SafeandEfficientOperation.......... 55

Exposure to Radio Frequency Energy. . . 55

Electromagnetic Interference/

Compatibility.......................56

OperationalWarnings ............... 56

Potentially Explosive Atmospheres. . . 56

Blasting Caps and Areas. . . . . . . . . . . 56

Radio Operation and EME Exposure. . . . 57

Mobile Antenna Installation . . . . . . . . . . . 57

ControlStationOperation............. 57

GeneralRadioCare.................58

Computer Software Copyright

The products described in this manual may include copyrighted computer

programmes stored in semiconductor memories or other media. Laws in the

United States of America and other countries preserve for Motorola Europe

and Motorola Inc. certain exclusive rights for copyrighted computer

programmes, including the right to copy or reproduce in any form the

copyrighted computer programme. Accordingly, any copyrighted computer

programmes contained in the products described in this manual may not be

copied or reproduced in any manner without the express written permission of

the holders of the rights. Furthermore, thepurchase of these products shall not

be deemed togrant either directly or by implication, estoppel, orotherwise, any

licence under the copyrights, patents, or patent applications of the holders of

the rights, except for the normal non-exclusive royalty free licence to use that

arises by operation of the law in the sale of the product.

3English

RADIO OVERVIEW

This user guide covers the operation of the

GM380 Professional Mobile Radio.

Please read pages 55 to 58 before using this radio.

RADIO CONTROLS

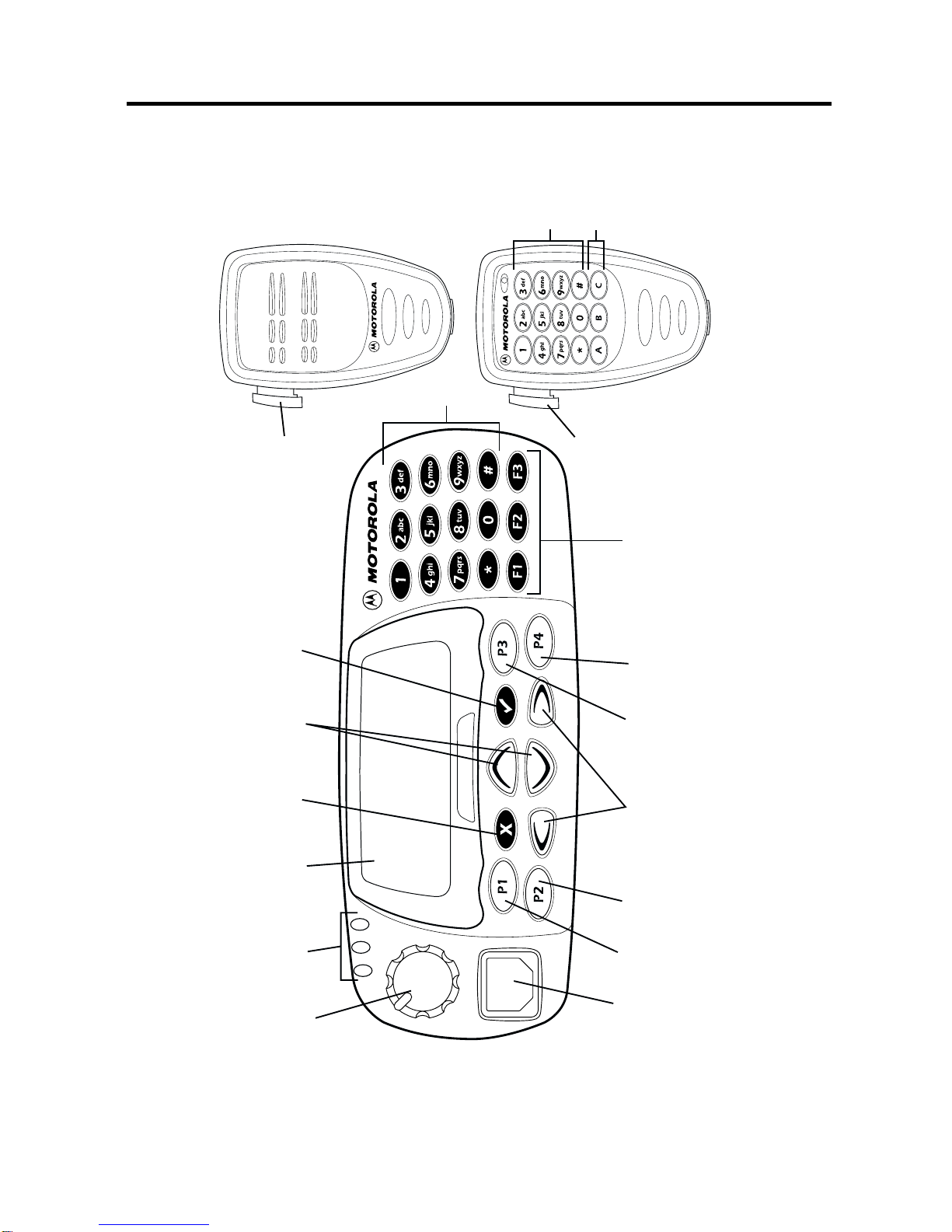

The numbers below refer to the illustrations on

the inside front cover.

1. On-Off / Volume Knob

Used to turn the radio on or off, and to adjust

the radio’s volume.

2. LED Indicators

Indicates channel, scan, and monitor status, as

well as receipt of a selective call.

3. LCD Display (4 Line)

4. Menu Exit/Escape Button x

5. Channel Selector/Menu Navigation

Up/Down yor z

Used for channel scrolling. When in menu

mode, used for menu navigation.

6. Menu Enter/Select Button c

7. Mic Jack

8. Programmable Button 1 g

9. Programmable Button 2 h

10. Edit Buttons Left/Right vor w

11. Programmable Button 3 i

12. Programmable Button 4 j

13. Keypad

14. Programmable Keys $%&

MICROPHONE CONTROLS

Hold the microphone 2.5 to 5 cm (1-2 inches)

from your mouth, and speak clearly into it.

13. Keypad

14. Programmable Keys {}|

15. Push-to-talk (PTT)

Press and hold down this button to talk;

release it to listen.

PROGRAMMABLE BUTTONS

Several of your radio buttons can be

programmed (by Customer Programming

Software CPS) to activate the radio features.

The following table shows the features that can

be assigned to the P1-P4 buttons and the F1-F3

buttons.P1-P4areexchangeableforcustomised

icon buttons to match programming.

English

RADIO OVERVIEW

Feature Description

Monitor/Cancel

Monitor allows user to select between signalling squelch,

carrier squelch and unsquelch, and to suspend scan when

landed on a channel in scan mode.

Cancel allows user to cancel current incoming or outgoing

call.

Radio Call To make an individual or group selective call.

Missed Call List Allows user direct access into the Missed Call List menu

feature.

Contact List Allows user direct access into Contact List menu feature.

Status List Allows user direct access into Status List menu

feature.

Channel Allows user direct access into the Channel mode. The up/

down keys (5) are set to increment/decrement the channel

number.

Scan On/Off To toggle between start and stop of the scan

operation.

5English

RADIO OVERVIEW

Nuisance

Delete/Cancel

(Voice Storage)

To delete a nuisance (unwanted) channel when scanning,

with exception of priority channel, last channel in scan list

and home channel.

Cancel, deletes messages being played back from the

Voice Storage feature.

Nuisance Delete To delete a nuisance (unwanted) channel when scanning,

with exception of priority channel, last channel in scan list

and home channel.

Cancel

(Voice Storage) Cancel, deletes messages being played back from the

Voice Storage feature.

Power Level To toggle the radio’s transmit power level between High

and Low.

Talkaround On/Off To talk directly with another radio without going through a

system or despatcher.

Emergency Activates emergency alarm sequence. A pre- recorded

message (using the voice storage feature) may be sent to

enable the user’s location or status to be determined.

Lone Worker To identify user as a lone worker. Radio enters emergency

sequence unless user responds, when prompted, by

pressing any radio button.

Feature Description

English

RADIO OVERVIEW

Call Forward To transfer calls automatically to another radio if user is

unable to take the call.

Companding On/Off To toggle between compression/expansion of audio signal

and normal audio signal.

Option Board

On/Off Allows user to toggle the option board between on and off.

Keypad Lock

On/Off Allows user to lock/unlock menu keys and keypad keys.

DTMF To place the keypad into permanent DTMF live dial mode.

External Alarm To toggle the External Alarm feature on and off.

Memory Channel Allows user direct channel access on single button press.

Backlight To toggle the display/keypad backlight on and off.

Record/Play-back

(Voice Recorder) To record/play-back incoming calls, emergency

message or memo using voice recorder feature.

Feature Description

7English

RADIO OVERVIEW

KEYPAD KEYS

These keys are used when dialling a phone number,

making a radio call, or for numeric channel

selection.

KEYPAD LOCK/UNLOCK

On your radio there is a keypad lock feature which

allows you to lock the keypad keys and menu keys

to eliminate accidental key presses.

Press the keypad lock button to lock the keys, the

display icon Lwill be lit and the display will show:

After 2 seconds the radio returns to the IDLE

STATE.

Press the keypad lock button again to unlock the

keyswhentheiconwillbeextinguishedandthe

display will show:

The radio will then return to the IDLE STATE.

Keypad Unlock may be performed during a call, to

allow menu access to the contact list, status list and

scan on/off features.

123

456

789

*0#

$%&

Lock Keypad

Unlock Keypad

English

RADIO OVERVIEW

MENU KEYS

Menu/Select Key c

Used to enter the Menu Mode. When you are in the

MenuMode,thiskeyisalsousedtomakemenu

selections.

Note: When the radio is in the IDLE STATE,

pressing any of the cxvw

menu keys causes the radio to enter the

Menu mode.

Exit Key x

Used to move up to the next higher Menu level.

When the top level menu is selected, this key is

used to exit the Menu Mode.

Up /Down Key y/z

Used to scroll when in Menu Mode.

Increment/decrement channel number or scroll

address/status list, whichever is defined as IDLE

STATE.

Right Key w

Used as More key to provide additional information.

Left Key v

Used as a destructive backspace key when editing.

Left

Down Right

Menu/

Select

Exit
