Motorola TALKABOUT FLEX T10 Manuel utilisateur
#
$
*(
™
NUMERIC PAGER
User’s Guide
Guide de l’utilisateur
Model T10
FLEXTM Technology
Modèle T10
Technologie FLEXMC
6881036b50o.fm Page -3 Wednesday, August 23, 2000 4:01 PM
6881036b50o.fm Page -2 Wednesday, August 23, 2000 4:01 PM
Contents
Introduction .................................................... 1
Effective Use of Your Pager......................... 1
Getting Started .............................................. 2
Battery Information..................................... 2
Installing/Replacing the Battery ................ 2
Control Buttons ........................................... 4
Turning Your Pager On ............................... 5
Turning Your Pager Off............................... 5
Sending a Test Page to Yourself.................. 6
Backlight ...................................................... 7
Using the Main Menu.................................. 8
Status Indicators ......................................... 8
Time and Date ................................................ 9
Setting the Time .......................................... 9
Setting the Date........................................... 9
Displaying the Date................................... 10
Setting the Alarm ...................................... 11
Alerts ............................................................ 12
Setting the Alert Type............................... 12
Reminder Alert .......................................... 13
Low Cell Alert............................................ 13
Messages ..................................................... 15
Reading Messages...................................... 15
Locking/Unlocking Messages .................... 16
Message Information................................. 16
Deleting Messages ..................................... 17
Care & Maintenance .................................... 18
Cleaning Your Pager.................................. 19
Questions ..................................................... 20
FCC Compliance .......................................... 21
6881036b50o.fm Page -1 Wednesday, August 23, 2000 4:01 PM
Table des matières
Introduction .................................................. 31
Utilisation efficace du Téléavertisseur..... 31
Mise en route ............................................... 32
Renseignements sur la pile ....................... 32
Installation et remplacement de la pile.... 32
Boutons de commande............................... 34
Mise sue tension du Téléavertisseur ........ 35
Mise hors tension du Téléavertisseur....... 35
Comment vous envoyer un message
d’essai .................................................... 36
Rétroéclairage ............................................ 37
Utilisation du menu principal................... 38
Indicateurs d'état....................................... 38
Date et heure ................................................ 39
Réglage de l'heure...................................... 39
Réglage de la date...................................... 39
Affichage de la date ................................... 40
Réglage de l'alarme.................................... 41
Avertissements ............................................ 42
Réglage du type d'avertissement .............. 42
Avertissment de rappel ............................. 43
Avertissement de pile faible...................... 43
Messages ..................................................... 45
Lecture des messages ................................ 45
Verrouiller et déverrouiller les messages. 46
Renseignements sur les messages ............ 46
Suppression des messages......................... 47
Entretien approprié ..................................... 49
Nettoyage du téléavertisseur .................... 50
Questions ..................................................... 51
Conformité FCC ........................................... 52
6881036b50o.fm Page 0 Wednesday, August 23, 2000 4:01 PM
INTRODUCTION
1
Introduction
Congratulations on your purchase of your
Talkabout™T10 pager.
This booklet contains operation
instructions that explain how to use your
new pager and provides helpful
suggestions for first-time as well as
experienced users.
Effective Use of Your Pager
Your pager can help you keep in contact
with everyone important to you. By
giving your pager number to business
associates, family, and friends, you can be
contacted whenever needed.
6881036b50o.fm Page 1 Wednesday, August 23, 2000 4:01 PM
GETTING STARTED
2
Getting Started
Battery Information
Your pager operates with a single
AAA-size alkaline battery (do not use
carbon zinc batteries). See the diagram
on the following page for the battery
door location.
If lobat displays, the pager’s AAA-size
battery is low. Replace the AAA-size
battery.

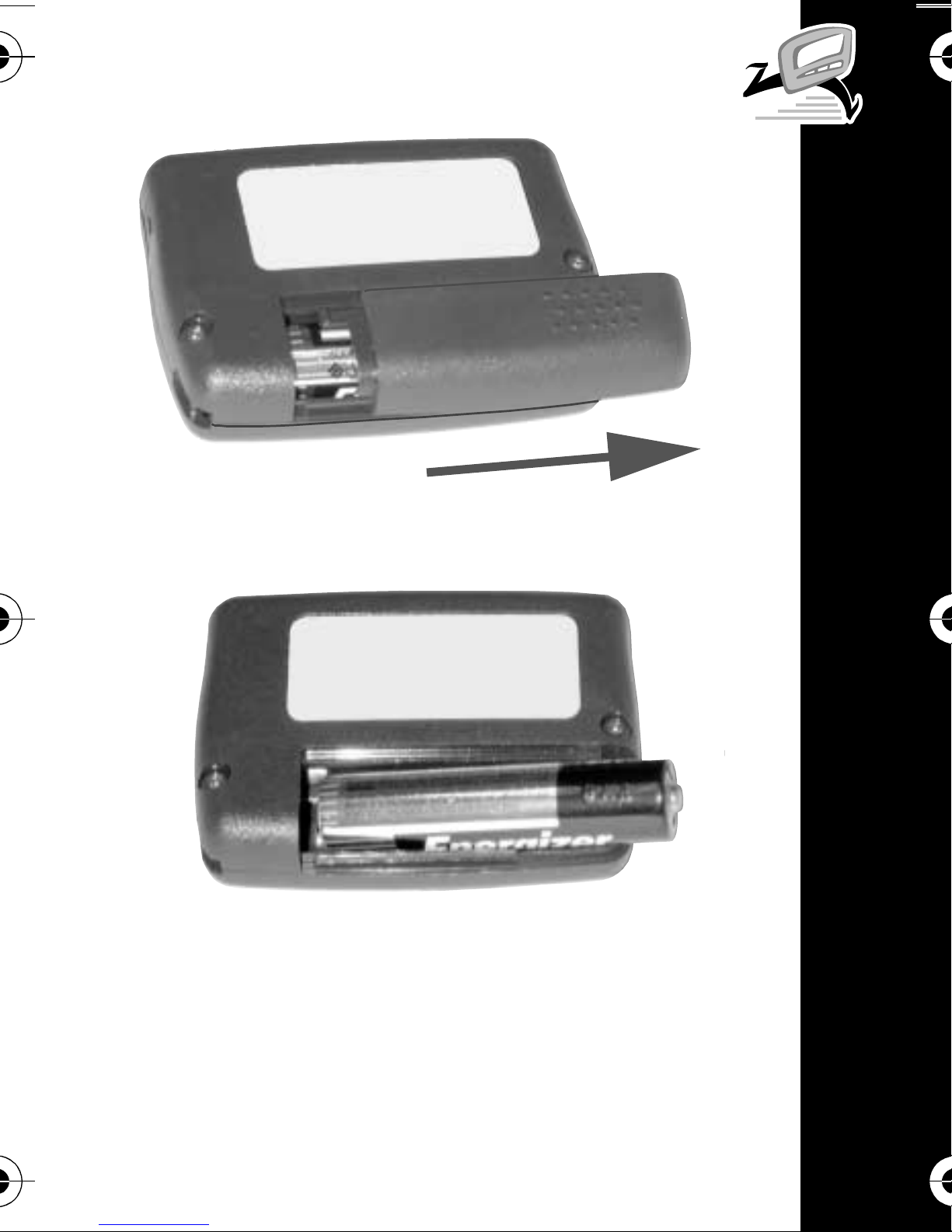

Installing/Replacing the Battery
Holding the pager face down, slide
the battery door in the direction of
the arrow (toward the outer edge).
Lift the battery door away from the
pager’s housing to remove it.
Remove the old battery, noting the
positive (+) and negative (-) polarity
markings.
Insert a new battery so the polarity
markings on the battery match the
polarity diagram in the battery
compartment.
6881036b50o.fm Page 2 Wednesday, August 23, 2000 4:01 PM
GETTING STARTED
3
Replace the battery door.
CAUTION!
Note the (+) and (-) polarity markings.
Do not insert the battery backwards, or
all messages will be erased.
6881036b50o.fm Page 3 Wednesday, August 23, 2000 4:01 PM
GETTING STARTED
4

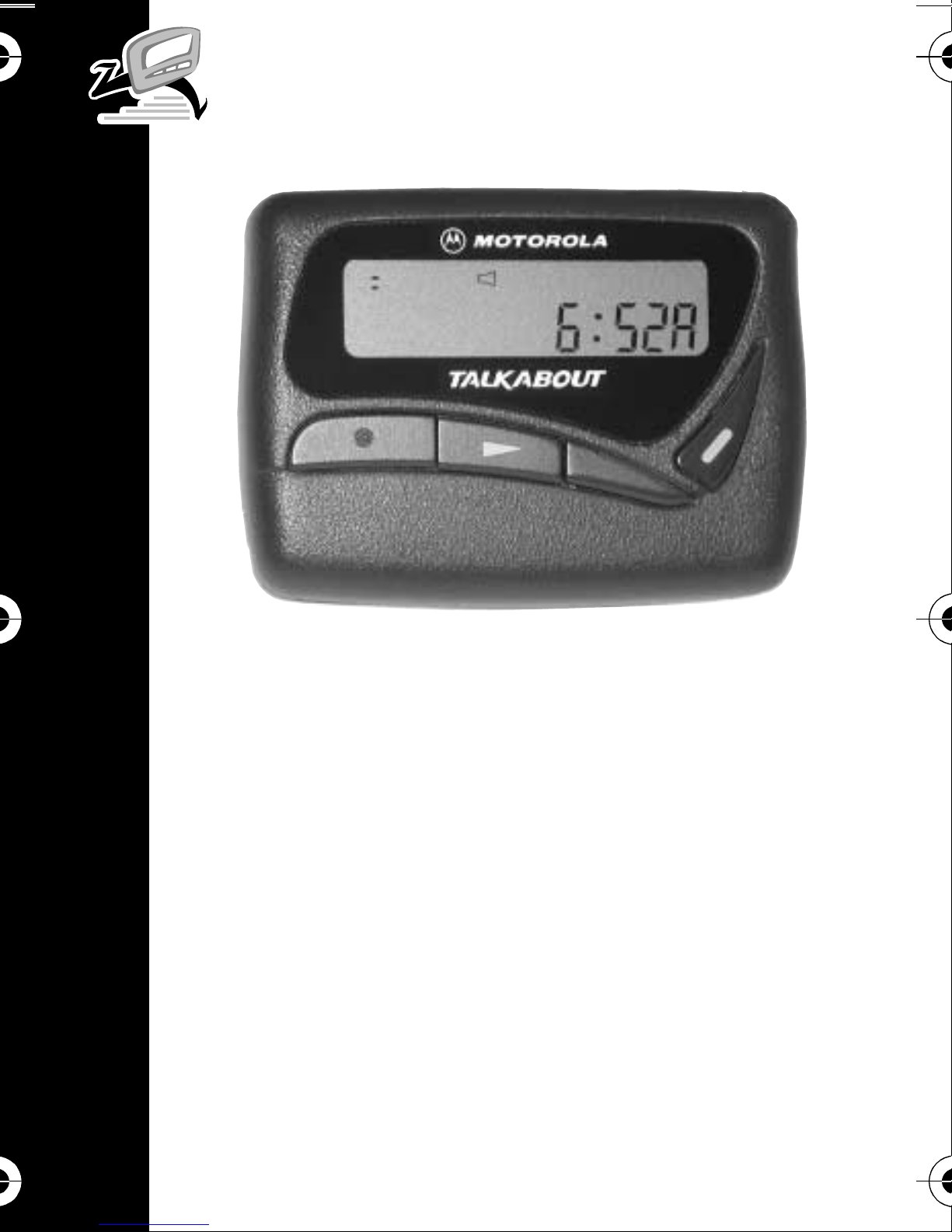

Control Buttons
<Function: Pressto move between
features and change values.
>Select/Backlight: Press to select
features and turn on/off the
backlight.
=Read/Escape: Press to read
messages or return to the Status
screen.
#
$(
*
6881036b50o.fm Page 4 Wednesday, August 23, 2000 4:01 PM
GETTING STARTED
5
Turning Your Pager On
Ensure that a fresh battery is
properly installed as listed in
“Installing/Replacing the Battery”on
page 2.
Press and hold =for 3 to 4 seconds to
turn your pager on. The Status screen
displays.
When the pager is on and no activity is
taking place, the Status screen displays.
The Status screen displays the power-on
indicator and may also display other
pager status indicators.
Turning Your Pager Off
Press <until PAgEr OFF displays,
and then press >.
* \ #
4:29p
Battery Gauge
Time Display
Alarm Indicator
Alert Indicator
6881036b50o.fm Page 5 Wednesday, August 23, 2000 4:01 PM
GETTING STARTED
6
Sending a Test Page to Yourself
It's a good idea to test your pager and
service by sending a page to yourself.
Start by using the phone number, web
site, or email address (and a PIN, if
required) your service provider gave
you, then enter a short message. If you
are sending a word message from a
phone, an operator will assist you;
otherwise, press the phone buttons to
enter a numeric message or type a
message and send it. While you are
waiting for the message to reach your
pager, refer to page 15 for information
about how to read a message. If your
pager does not receive the message
within a few minutes, contact your
service provider. After you've tested the
pager, read the rest of this guide to learn
about the many useful features of your
new pager.
6881036b50o.fm Page 6 Wednesday, August 23, 2000 4:01 PM
