Motorola ADVISOR Gold FLX Manuel utilisateur

User’s Guide

24b55toc.fra Page i Thursday, December 5, 1996 10:01

All manuals and user guides at all-guides.com

all-guides.com

Contents

Page

ADVISOR GOLD FLX Pager.......................................1

GettingThe Most FromYour ADVISOR GOLD FLX

Pager...................................................................1

Display Symbols .........................................................2

Controls ......................................................................2

ADVISOR GOLD FLX Pager Symbols........................3

TurningThe ADVISOR GOLD FLX Pager On.............4

TurningYour Pager Off................................................5

Receiving and ReadingYour Messages......................5

Using the Function Menu............................................6

Backlighting.................................................................6

Locking and Unlocking Messages ..............................6

Setting theTime and Date ..........................................7

Setting the Alarm ........................................................8

Setting the Alert Mode..............................................10

Setting the Alert Pattern............................................10

Turning the Maildrop Alert On and Off ......................11

Deleting Messages from Memory.............................12

Moving Messages toYour Personal Notebook..........13

Deleting Messages FromYour Personal Notebook...13

Setting Auto On/Off...................................................14

Other Features..........................................................15

Battery Information ...................................................16

Functionality and Use ofYour Pager.........................17

CleaningYour ADVISOR GOLD FLX Pager..............17

Repair and Maintenance...........................................17

Patent Information.....................................................17

24b55toc.fra Page ii Thursday, December 5, 1996 10:01

All manuals and user guides at all-guides.com

ADVISOR GOLD FLX Pager

Congratulations on purchasing an ADVISOR GOLD

FLX pager by Motorola.It provides exciting capabilities

in messaging and can become a vital part of your busi-

ness and personal life.

TheADVISORGOLDFLXpager’sfour-linedisplayand

expanded functionality incorporates many of the most

advanced electronic, communications, and wireless

technologies available.It is reliable, convenient, and

designed for easy operation.

These operating instructions explain how to use your

new ADVISOR GOLD FLX

pager and provide helpful

suggestions for ﬁrst-time as well as experienced users.

Keep this guide handy for quick reference.

GettingThe Most FromYour ADVISOR GOLD

FLX Pager

• Spend a few minutes learning all of the functions and

messagingcapabilitiesof yourADVISOR GOLDFLX

pager.

• Give your pager number to secretaries, business

associates, friends and family.

• Include your pager number on business cards and

on your answering machine message.

• Leave your pager number at your children’s school

and with the baby-sitter so you can always be

reached in an emergency.

1024b55a.fra Page 1 Thursday, December 5, 1996 10:08

All manuals and user guides at all-guides.com

Display Symbols

GOTO STATUS SCREEN

È Ñ å É ó ò ï ñ í Ö ¶

Set

Time/

Alarm

Set

Auto

On/Off AddTo

Note-

book

Set

Message

Alarm

Choose

Alert

Set

Audible/

Silent

Alert

Turn

Pager

Off

GoTo

Status

Screen Delete

Message

Delete All

Messages

Lock/

Unlock

Message

Controls

Left/Right

Directional

Buttons

Function/

Select

Button

Read/

Reset/

Power On

Button

Up/Down

Directional

Buttons

ARPB-943486-O

1024b55a.fra Page 2 Thursday, December 5, 1996 10:08

All manuals and user guides at all-guides.com

ADVISOR GOLD FLX Pager Symbols

Pager Status Symbols: (Left column)

Power On

Audible Alert Mode

Auto On/Off

Alarm

Message Status Symbols:

Locked Message

Maildrop Indicator (Alert Enabled)

Message In Memory (Maildrop Alert Disabled)

Memory Full Indicator

Alarmed Message

Function Menu Symbols: (Bottom row of display)

Set Audible Alert

Set Silent Alert

Maildrop Indicator (Alert Enabled)

Maildrop Indicator (Alert Disabled)

Turn Pager Off

Lock Message

Unlock Message

Delete Message

Delete All Messages

Go to Status Screen

Set Auto On/Off

Choose Alert Mode

SetTime/Alarm

1024b55a.fra Page 3 Thursday, December 5, 1996 10:08

All manuals and user guides at all-guides.com

Add to Notebook

Set Message Alarm

Other Symbols:

Enter Auto On/Off Menu and Auto On/Off

Enabled

Auto On/Off Disabled

24 HourTime

AMTime

PMTime

Disable Alarm

Enable Alarm

No Message Alert (On Choose Alert Menu)

Chirping Alert (On Choose Alert Menu)

Low Battery Indicator

öö

Out-Of-Range

Message Continuation

Truncated Message

<..> Alphanumeric Missing Fragment Indicator

_____ Long Numeric Missing Fragment Indicator

Errored Data Indicator

Turning the ADVISOR GOLD FLX Pager On

Press

Your pager alerts and shows the Power On

indica-

tor on the left of the display.The time and date are

shown at the bottom of the display.

1024b55a.fra Page 4 Thursday, December 5, 1996 10:08

All manuals and user guides at all-guides.com

all-guides.com

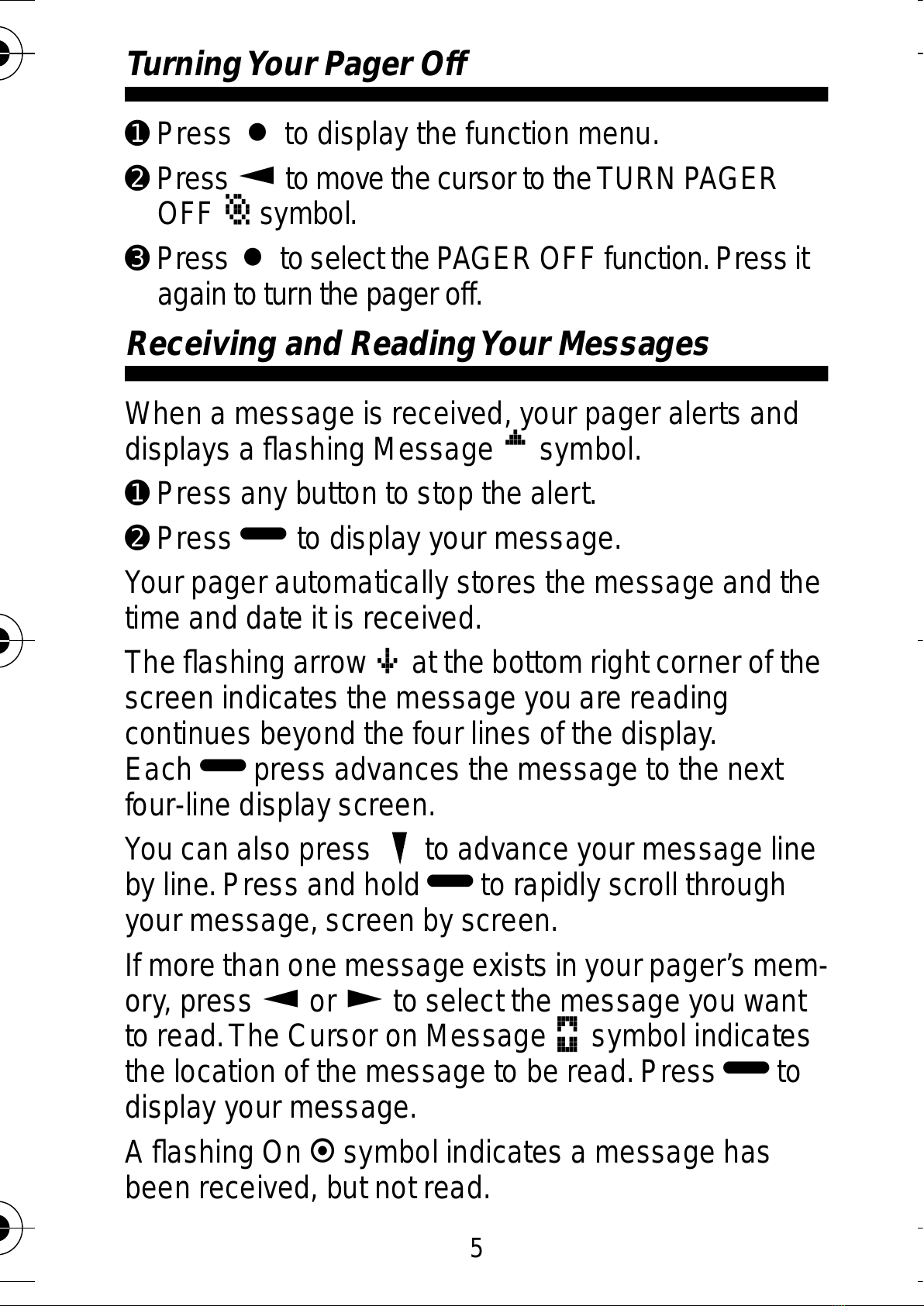

TurningYour Pager Off

➊

Press

to display the function menu.

➋

Press

to move the cursor to theTURN PAGER

OFF

symbol.

➌

Press

to select the PAGER OFF function.Press it

again to turn the pager off.

Receiving and ReadingYour Messages

When a message is received, your pager alerts and

displays a ﬂashing Message

symbol.

➊

Press any button to stop the alert.

➋

Press

to display your message.

Your pager automatically stores the message and the

time and date it is received.

The ﬂashing arrow

at the bottom right corner of the

screen indicates the message you are reading

continues beyond the four lines of the display.

Each

press advances the message to the next

four-line display screen.

You can also press to advance your message line

by line.Press and hold

to rapidly scroll through

your message, screen by screen.

If more than one message exists in your pager’s mem-

ory, press

to select the message you want

to read.The Cursor on Message

symbol indicates

the location of the message to be read.Press

display your message.

A ﬂashing On

symbol indicates a message has

been received, but not read.

1024b55a.fra Page 5 Thursday, December 5, 1996 10:08

All manuals and user guides at all-guides.com

If programmed with reminder alerts, your pager alerts

at predetermined intervals to remind you of any

unread messages.

Using the Function Menu

Press

to display the function menu.

The function menu gives you access to the many fea-

tures of your pager through a series of symbols and

prompts.For example, when the function menu screen is

ﬁrst displayed, the Go To Status Screen

symbol

ﬂashes, indicating the present position of the cursor.

You can now press

to move the cursor within

the function menu.

NOTE:

To exit from any menu without making

changes, press

Backlighting

The backlight on your pager illuminates in low light

conditions when any button is pressed.You can manu-

ally activate or deactivate the pager’s backlight at any

time by pressing and holding

for two seconds.If no

other buttons are pressed, the backlight automatically

turns off when the display returns to the standby

mode.

Locking and Unlocking Messages

Up to 10 messages can be locked in memory, preventing

them from being replaced when the memory is full, as

indicated by the Memory Full

symbol.

➊

Press

1024b55a.fra Page 6 Thursday, December 5, 1996 10:08

All manuals and user guides at all-guides.com

➋

Press

to select the message you want to

lock.

➌

Press

to display the function menu.

➍

Press

ãto move the cursor to the Lock íor

Unlock ìsymbol.

➎Press Áto lock or unlock the message.

➏The Lock íor Unlock ìsymbol is displayed, indicat-

ing the status of the message.

Setting theTime and Date

➊Press Áto display the function menu.

➋Press äto move the cursor left to the SetTimeÑ

symbol.

➌Press Áto display the SetTime screen.

➍Press ãto move the cursor to the hour digit.

➎Press or to adjust the time to the desired hour.

➏Press ãto move the cursor to the minute digit.

➐Press or to adjust the time to the desired

minute.

➑Repeat the process for each set of digits:AM/PM/

24 hr., month/day/year.

➒Press Áto activate the time change.

●Ñ22:23ô05/14/94●

Ö0:00ô--/--/--

SET TIME

Example of Set Time Screen

1024b55a.fra Page 7 Thursday, December 5, 1996 10:08

All manuals and user guides at all-guides.com

If you move your cursor past the last symbol in the row

(far right), it automatically wraps around and is

displayed at the ﬁrst symbol in the beginning of that

same row (far left).

NOTE:To exit from any menu without making

changes, press Ë.

Setting the Alarm

The alarm feature on your pager can be set for either

a speciﬁc time and date, or it can be used as a daily

alarm.

To set the alarm for a speciﬁc time and date:

➊Press Áto display the function menu.

➋Press äto move the cursor to the SetTime Ñ

symbol.

➌Press Áto display the SetTime and Alarm screen.

➍Press to move the cursor down to the Alarm Ö

line.

The alarm symbol deﬁnes the alarm status -- either

Alarm Enabled Àor Alarm Disabled Ã.

➎Press ãto move the cursor to the Alarm Ösym-

bol.

Ñ22:23ô05/14/94

●Ã0:00ô--/--/--●

SET ALARM

Example of Set Alarm Screen

1024b55a.fra Page 8 Thursday, December 5, 1996 10:08

All manuals and user guides at all-guides.com

Table des matières

Autres manuels Motorola Téléavertisseur

Motorola

Motorola Pronto FLX Manuel utilisateur

Motorola

Motorola Advisor TPG2200 Manuel utilisateur

Motorola

Motorola LIFESTYLE PLUS Manuel utilisateur

Motorola

Motorola LS355 Manuel utilisateur

Motorola

Motorola ADVISOR Gold Manuel utilisateur

Motorola

Motorola LS350 Manuel utilisateur

Motorola

Motorola LX2 plus Manuel utilisateur

Motorola

Motorola 6881029B15-A Manuel utilisateur

Motorola

Motorola ULTRA Express FLX Manuel utilisateur

Motorola

Motorola LS350 Manuel utilisateur

Motorola

Motorola PAGE WRITER 2000X Manuel utilisateur

Motorola

Motorola Advisor Pro Manuel utilisateur

Motorola

Motorola BRAVO LX Manuel utilisateur

Motorola

Motorola BRAVO LX Manuel utilisateur

Motorola

Motorola PAGE WRITER 2000X Manuel utilisateur

Motorola

Motorola MINITOR VI Manuel utilisateur

Motorola

Motorola Scriptor FLX4 Manuel utilisateur

Motorola

Motorola Timeport P930 Series Manuel utilisateur

Motorola

Motorola Bravo classic Manuel utilisateur

Motorola

Motorola PAGE WRITER 2000X Manuel utilisateur

Motorola

Motorola Talkabout T900 Manuel utilisateur

Motorola

Motorola RSVP RSVP Numeric Display Pager for Micro-TAC Cell... Manuel utilisateur

Motorola

Motorola Pro FLX Manuel utilisateur

Motorola

Motorola Jazz Pager Manuel utilisateur

Manuels Téléavertisseur populaires d'autres marques

Alpha

Alpha Elite Manuel utilisateur

LRS

LRS RX-E467 Manuel utilisateur

Bellman & Symfon

Bellman & Symfon Visit BE1470 Manuel utilisateur

unication

unication E3 Manuel utilisateur

Infostream

Infostream X5 Instructions de montage

ACE TELECOM

ACE TELECOM ACE-2040 Manuel utilisateur

Intek

Intek Allure Manuel utilisateur

Pocsag

Pocsag PG-2092P Manuel utilisateur

Alert Systems

Alert Systems HyperGuard MP10D Manuel utilisateur

Radio Shack

Radio Shack 17-7040 Manuel utilisateur

PageOne

PageOne Advisor Graphix Manuel utilisateur

Syscall

Syscall Nttworks GP-210RT Manuel utilisateur

unication

unication G4 Manuel utilisateur

GE LBI-31482 Manuel utilisateur

Gold Apollo

Gold Apollo AL-A27 Manuel utilisateur

Diva Telecom

Diva Telecom profile Manuel utilisateur

scope

scope GEO40A Manuel utilisateur

ISE

ISE ISP-5900 Manuel utilisateur
