Preface

MOTOROLA’s Bluetooth Headset CHYN4590A is a cordless mobile solution built on Bluetooth wireless

technology.

Please proceed the instructions before using your Headset

What is Bluetooth Technology?

The Bluetooth wireless Technology eliminates constraint of cables by making connection to any portable and

stationary device realized. This is built on the technology that is based on a radio link that provides voice

and data transmission.

The Bluetooth wireless technology uses a worldwide available range of frequency to ensure communication

compatibility throughout the globe.

How the Headset is Used?

For Headset to work, it must be used with mobile phone, PC or any device with Bluetooth technology that

conforms to the Headset Profile. This User’s Guide concentrates on how to use the Headset with your mobile

phone. When the Headset is connected to your mobile phone, calls can be made by using voice control

(provided that this function is supported by your phone). Because the Headset is designed to keep your

hands free, the phone can be tucked away in your pocket or in a bag. By using a two-side push button on the

Headset, you can easily handle incoming and outgoing calls, and adjust the volume.

Operating Your Headset

Overview

To be able to use the Headset together with a mobile phone, or any device that you want to use with the

Bluetooth Headset, it has to be compatible with Bluetooth wireless technology and supports the Headset

Profile. In order to use the Headset with a mobile phone, you need to have a phone with Bluetooth capability

built-in.

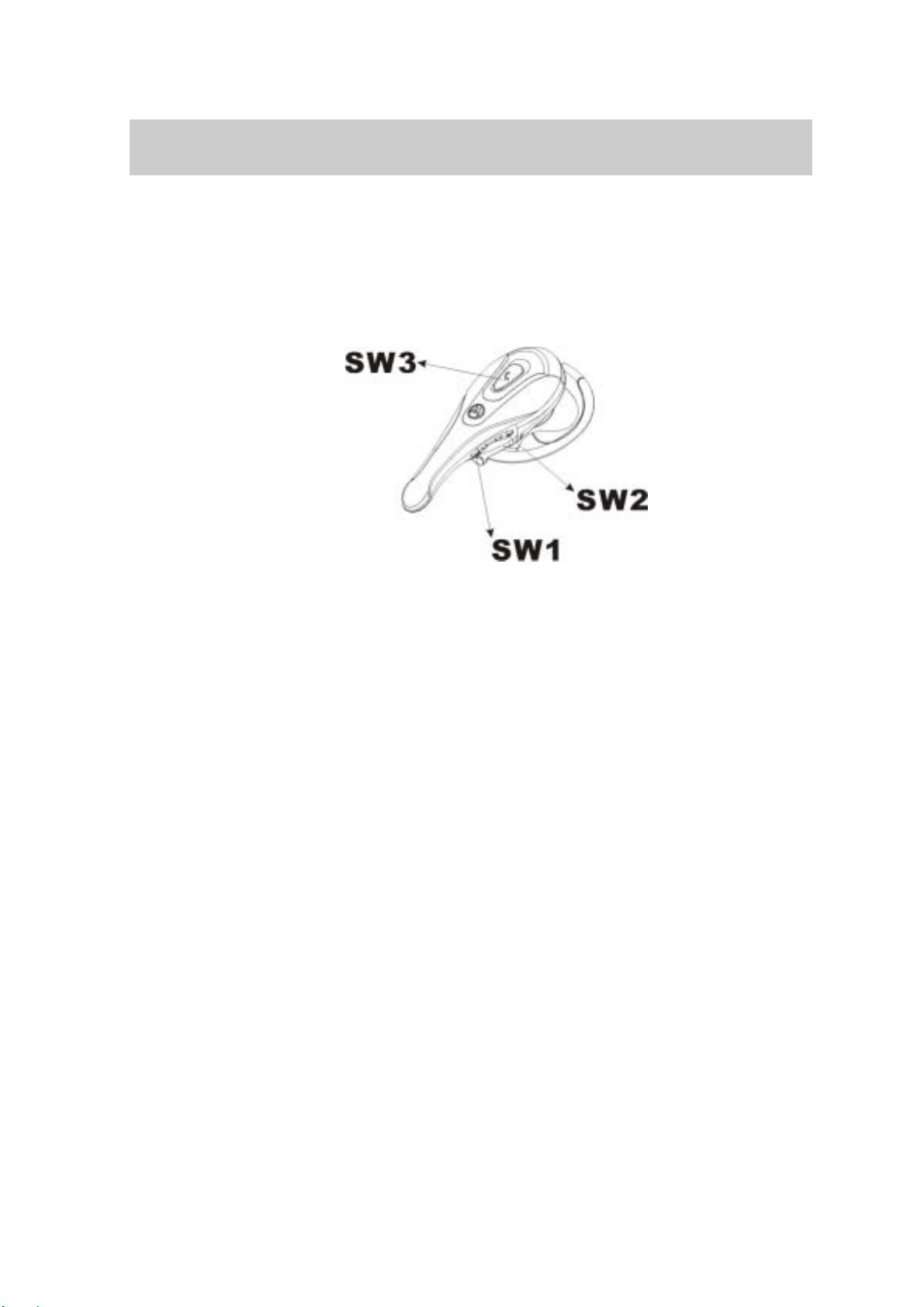

SW1 : Decrease Volume

SW2 : Increase Volume

SW3 : On/Off and Answer/End calls

Getting Started

You should do the following prior to using the Headset with a phone or other device for the first time,

 Decide on which ear you want to wear the headset (factory setup is for right-ear use).

 Pair the Headset with a device (mobile phone).

 Use appropriate MOTOROLA charger to charger the Headset

The above stages are described in detail below.

Right or Left Ear

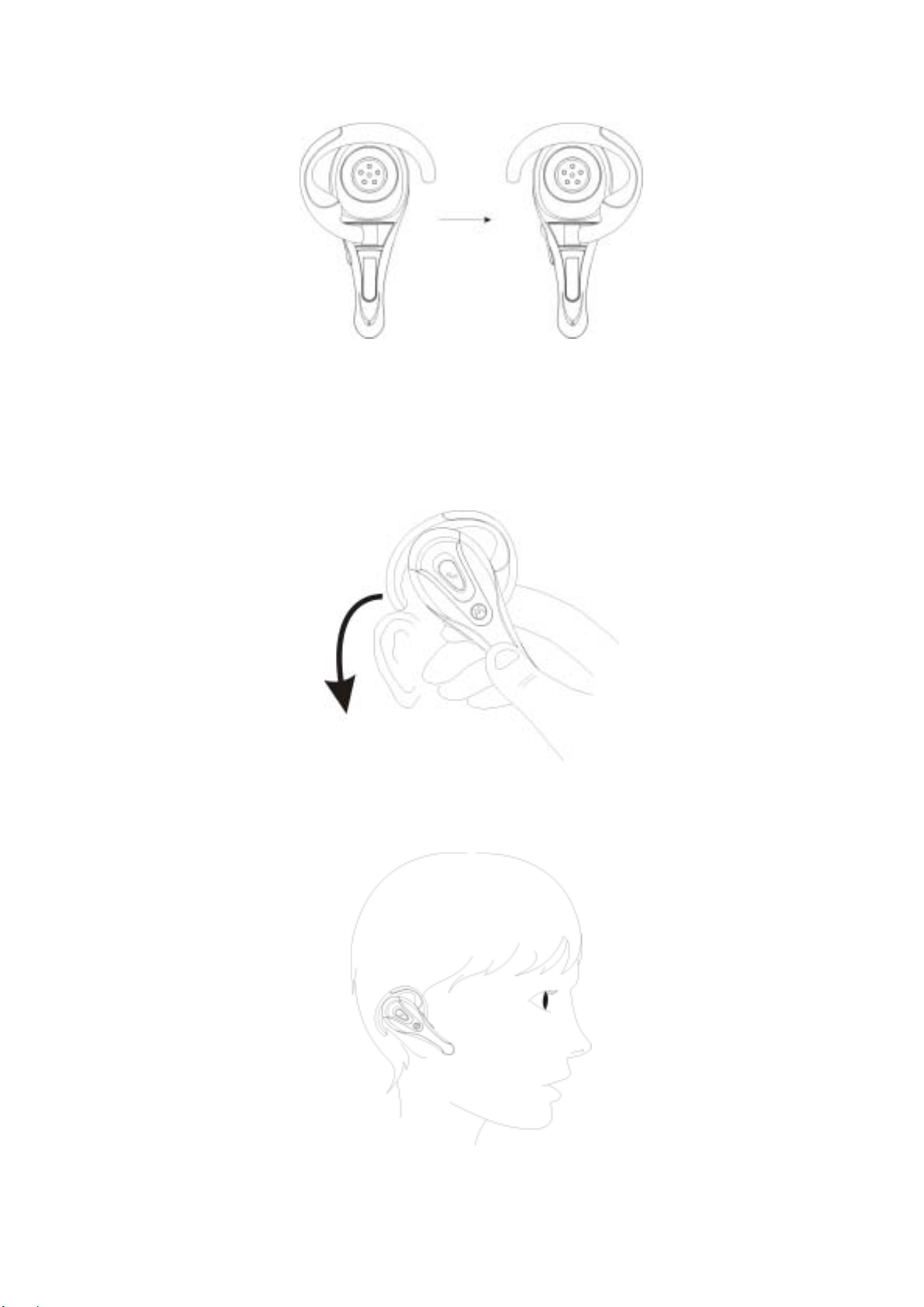

The direction of the ear clip has to be changed should you decide to wear the Headset on your left ear.

To adjust the ear clip for left-ear use:

Putting On the Headset

 Put on the Headset with the ear clip behind your ear.

 Ensure the microphone is pointing toward your mouth.

Turning the Headset On or Off

To turn the Headset on

 Press and hold the Headset SW3 and (SW2orSW1) button, followed by the indicator light. The

Headset indicator light will flash blue, but alarming sound when low battery is detected.

To turn the Headset off

 The indicator light flashes one time when you press and hold the Headset SW3 and (SW2orSW1)

button. The Headset is now turned off.

Pairing the Headset

Pairing the Headset with the device you want to use with is required before starting to operate the Headset

for the first time.

Using a Mobile Phone with Built-in Bluetooth Capability.

You can simply pair the Headset with your phone by adding it to a list of paired device in the phone. They

will connect each other based on the recognition between the phone and the Headset.

Putting Headset in Pairing Mode

While the Headset is powered down, press and hold SW2 for 10 seconds. LED flashing alternately will

indicate the Headset is in Pairing Mode. The default Passkey required for pairing is 0000. If the Headset

is not successfully paired within the Pairing Timeout period, it will automatically shutoff.

How to pair Headset and cell phone?

1. In the cell phone, scroll the “Extras”, press YES, “Bluetooth”, press YES, “Paired devices”, press

YES, ”Add device?”, press YES , “Phone initiates”, press YES.

2. The cell phone shows a list of device types that can be paired with it is displayed. Scroll the

“Headset” and press YES.

3. Putting Headset in pairing mode, press ”SW3” on Headset for more than 10 seconds until LED keeps

lighting. Be sure that the Headset is not far away from the cell phone.

4. The phone commences searching for the Headset as soon as the Headset passkey “0000” is entered,

and press YES..

5. When the search is complete, the display shows a list of available devices, ex. “CHYN4590A”, then

press YES.

6. The preset Headset name may be modified to your own personal name tag now. Press YES. When

pairing has been completed, the indicator light on the Headset flashes green.

If you still have any questions about how to pair different brand of cell phones, you could refer to your cell

phone vendor.

Charging

The Headset comes with a rechargeable battery included. The battery is not fully charged when it is new. For

first time use, insert the adaptor into the Headset to charge until the indicator light turns green.

 It takes 1-1.5hours to fully charge the battery.

 To indicate that the Headset runs on low power, the Headset indicator light flashes red when the

Headset is on.

 When the Headset is turned off during the process of charging, the indicator light shows a steady red

light, and flashes red when the Headset is on.

 When the headset is turned off once the battery is fully charged, the indicator shows a steady green

light, or shows green light if the Headset is on.

 After battery fully charged, do not recommend charging again while indicator light flashes green.

Which Charger Can I Use

Please use MOTOROLA travel charger to the Headset.

How to Charge the Battery

.Connect the adaptor into the Headset as shown in the

picture. Gently press the adaptor until it clicks into place.

Volume Adjustment

Listening volume adjustment

Headset listening volume can be adjusted during a call.

To adjust the listening volume

 To turn down the volume, slide and return the Headset button SW1.

 To turn up the volume, slide and return the Headset button SW2.

Note: The orientation of the volume button must be changed when you change the ear on which the Headset

is worn.

Making and Receiving Calls

Once the Headset is successfully paired with your phone, you can use the Headset to make and receive calls,

provided that the Headset is on and operated within up to 10m/ 30ft. with no solid obstructions of the phone.

The Headset can be used with voice dialing if your phone supports this feature. For detailed operation on

voice control, please refer to your phone’s user’s manual.

The Headset light indicator will flash slower during an ongoing call.

The Headset button has following functions:

 make a call (by using voice control and redial)

 receive a call

 terminate a call

 transfer the sound from the phone to the Headset

The following is for user’s reference should you be using the Headset with a built-in Bluetooth phone.

Making Calls

Using voice dialing to make a call

1. Be sure the phone and the Headset are power on and are within close proximity to each other. Single

click ”SW3” on the Headset.

2. Once a beep is heard, voice dial as you normally would.

3. Press “SW3” button on the Headset to end the call, or press the NO key on the phone.

How to redial last phone call

Be sure the phone and the Headset are power on and are within close proximity to each other. Press ”SW3”

on the Headset for a few seconds to automatically redial last phone call.

Should the phone not supporting voice dialing, you can also make a call using the phone’s keypad or phone

book

Using the phone keys to make a call

1. Ensure the Headset and the phone is turned on and within 10m/ 30ft of each other.

2. Enter the number as you normally would.

3. With a built-in Bluetooth mobile:

Once the call has been connected, press the Headset button “SW3” to transfer the sound to the Headset. 4.

Press the Headset button “SW3” or the NO key to end the call.

Answering Calls

 When the Headset rings, press the button “SW3” on the Headset to answer a call.

 Single click “SW3” on the Headset or the NO key to end the call.

 Press ”SW3” on the Headset for a few seconds or the NO key to refuse all the phone calls.

To answer a second call

During a conversation, you can answer a second incoming call by pressing the “SW3” for a few seconds,

and you can still use the Headset for talking and listening.

Transferring the sound from phone to Headset

You can still transfer the sound to the Headset if you make a call without using it. Make sure the Headset is

on and within close range to the phone.

Transferring calls

Calls can be transferred from the cell phone to the Headset and from the Headset to the cell phone.

Transferring the sound from phone to Headset

1. With a Bluetooth phone, press the button on the Headset to transfer the sound to the Headset.

2. If you turn on the Headset after receiving the phone call, you could press “SW3” to transfer the sound to

the Headset.

Transferring sound from Headset to phone

Use with a built-on Bluetooth phone.

During an ongoing call, scroll to Ongoing Call, choose “Yes”, then select “Transfer Call” and press “Yes”

to confirm the transfer.

Additional information

Troubleshooting

This section lists some problems that you might encounter while using your Headset.

The Headset Indicator Light Flashes Red

This indicates that the Headset is running on low battery and has limited talk time and standby time left.

Charge the Headset for approximately 1 to 1.5 hours.

No Sound Contact Between Headset and Other Device

In order for the Headset and the device you are using to recognize one another, they ought to be paired.

Make sure the Headset and the device you are using with are no more than

10 m. /30 ft. apart, so they are within operable range.

No Indication of Charging is Shown

For the Headset battery that is empty, or has not been used for a long time, it may take several minutes for

the indicator to show charging status (a steady red light).

Guidelines for Safe and Efficient Use

Note: Read this information before using your Bluetooth Headset.

Product Care and Maintenance

Please read the following to get the most out of your sophisticated Bluetooth Headset about product care,

safe and efficient use.

For any queries about any exceptions when using Bluetooth equipment, due to national requirements or

limitations, please visit www.bluetooth.com.

Product Care

• Use of non-Motorola original accessories may result in performance deterioration, product damage, injury,

or electronic shock, and warranty termination.

• Do not attempt to disassemble your Headset, as it does not contain any components serviceable or

repairable by consumers.

• Do not paint your product as the paint could prevent normal use.

• Do not place the Headset in a dusty area, and only use soft cloth to clean your Headset.

• Do not allow children to play with your Headset, as they might injure themselves or others as well as

damaging the Headset.

• When the Headset is not in use, always place it in its case.

• Do not place the Headset in extreme hot or cold temperature if the Headset will not be used for a while.

Potentially Explosive Atmospheres

When surrounded by possible explosive atmosphere, turn off the electronic device as it may generate sparks

which can cause an explosion or fire. Explosive atmosphere may include gas stations, fuel or chemical

storage facilities, and in environment where metal powders, grain, dust are contained in the air.

For safety reasons, do not carry or store flammable goods such as gas, liquid in your vehicle compartment

containing an electronic device.

Power Supply

• Power supply must be connected to designated power sources as marked on the product.

• To avoid potential damage to the electric cord, only remove it by grasping onto the AC adaptor rather than

the cord itself from the outlet.

• Ensure the cord is well positioned as to avoid potential damage.

•Before attempting to clean, please unplug the unit from any power source to avoid potential electric shock.

• The charger is designed for indoor use only, and must not be used outdoors.

Children

Do not allow children to play with your Headset since small parts may become a choking hazard.

Emergency Calls

IMPORTANT!

Connection cannot be guaranteed at all times under all conditions as the Headset used with the electronic

device operates using radio signals, landline and cellular networks. Therefore its not recommended

depending primarily on any electronic device for essential communication (e.g. 911 calls).

Keep in mind that when making or receiving calls, the Headset and the electronic device connected to it

must be turned on and within signal strength. Emergency calls can sometimes be disturbed on certain

cellular phone networks or when certain network services and/or phone features are in use. Check with your

local cellular service provider for details.

Battery Information

New Batteries

The battery is not fully charged when it is new. For first time use, insert the adaptor into the Headset to

charge it full until the indicator light turns green.

Battery use and care

Note: Only Qualified Service Centers are authorized to remove or replace the battery.

If treated with care, a rechargeable battery has a long service life.

A new battery, or one that has not been used for a long period of time, could have reduced capacity the first

few times it is used.

• Use only Motorola original accessories. Use of non-original Motorola accessories could be risky and the

warranty is void should the product failure is caused by using non-Motorola original accessories.

• Do not expose your battery in an environment temperature above +55°C (+131°F). If the battery is

operated in cold temperatures, the battery capacity is reduced.

Use your battery in room temperature for maximum battery capacity.

• The battery can only be charged when the temperature is between +10°C (+50°F) and +45°C (+113°F).

Table des matières

Autres manuels Motorola casque

Motorola

Motorola HS810 - Headset - Over-the-ear Manuel utilisateur

Motorola

Motorola H680 - Headset - Over-the-ear Manuel utilisateur

Motorola

Motorola HS801 Manuel utilisateur

Motorola

Motorola 6809494A40-O Manuel utilisateur

Motorola

Motorola H700 - H700 Manuel utilisateur

Motorola

Motorola XBT Manuel utilisateur

Motorola

Motorola HX550 Manuel utilisateur

Motorola

Motorola Tracks Air Manuel utilisateur

Motorola

Motorola HS820 - Headset - Over-the-ear Mode d’emploi

Motorola

Motorola Moto Hint Instructions d'installation

Motorola

Motorola MOTOSTART H350 Manuel utilisateur

Motorola

Motorola S605 Manuel utilisateur

Motorola

Motorola H720 Manuel utilisateur

Motorola

Motorola QG-HS801 Manuel utilisateur

Motorola

Motorola HK110 Manuel utilisateur

Motorola

Motorola H710 - Headset - Over-the-ear Manuel utilisateur

Motorola

Motorola H300 Manuel utilisateur

Motorola

Motorola VERVE ONES ME Manuel

Motorola

Motorola H520 Manuel utilisateur

Motorola

Motorola HX1 - Endeavor - Headset Manuel utilisateur

Motorola

Motorola MOTOSTART H3 Manuel utilisateur

Motorola

Motorola Motopure H15 - H15 Noise-Canceling Bluetooth Wireless... Guide de démarrage rapide

Motorola

Motorola H550 Manuel utilisateur

Motorola

Motorola Sliver II Manuel utilisateur

Manuels casque populaires d'autres marques

Sena

Sena SMH10 Manuel utilisateur

IASUS

IASUS Stealth IA-NT4-BASIC-BT Manuel utilisateur

Sennheiser

Sennheiser EPOS ADAPT 230 Manuel utilisateur

Doro

Doro Flexus HS2005 Manuel utilisateur

GE 98971 Manuel utilisateur

Hama

Hama 00184070 Manuel utilisateur

Plantronics

Plantronics Blackwire 3200 Series Manuel utilisateur

Blue Tiger

Blue Tiger Advantage PLUS Manuel utilisateur

Jawbone

Jawbone Icon Manuel utilisateur

Jabra

Jabra FR 20 Manuel utilisateur

Roxcore

Roxcore Flow A+ Manuel utilisateur

Turtle Beach

Turtle Beach XP 510 Manuel utilisateur

Philips

Philips SHB6101 Manuel utilisateur

Jabra

Jabra PRO 9460 Duo Manuel utilisateur

HyperX

HyperX HyperX Cloud Flight Manuel utilisateur

Bose

Bose MIE2 Mobile Manuel utilisateur

Jabra

Jabra Steel Manuel utilisateur

HyperX

HyperX cloud ii Manuel utilisateur
