Motorola M930

Car Phone

Installation Guide

Manuel d’installation

Installationsanleitung

Guida all'installazione

Guía de instalación

Installatiehandleiding

Руководство по установке

D A

M930.IG.book Page 1 Wednesday, March 7, 2007 2:00 PM

M930.IG.book Page 2 Wednesday, March 7, 2007 2:00 PM

Motorola Propietary

Car Phone Installation Guide

Product parts

Head Control unit

Swivel

Holder

GPS Antenna

(M800 only)

Speaker

Power Cable

AUX +12V GND MUTE IGN

2A Fuses

Antenna

(Optional)

Microphone

Octopus Control

Cable

Privacy

Handset +

Holder

(Optional)

M930.IG.book Page 1 Wednesday, March 7, 2007 2:00 PM

Motorola Propietary

Head control unit

When installing the fixed mobile car phone avoid positioning the head control unit where

it may disrupt the proper operation of the vehicle and/or its components, such as car

stereo, air bags, cubbyhole, glove compartments, ashtray, lighter, gear stick, hand brake,

etc....

Attach the car phone to a stable surface, in a position that is safe and convenient for the

driver to use.

Special warning:

Do not position the head control unit in front of the air bag or where it

may impair air bag performance, as the air bag might inflate in an accident and cause

damage.

Verify that the control unit does not face the sun or source of humidity, such as air

conditioner vents.

When the phone is powered off insert the SIM into socket at the right side of the phone

(M900, M930 only).

Swivel Holder

M930.IG.book Page 2 Wednesday, March 7, 2007 2:00 PM

Motorola Propietary

Microphone

Install the microphone at a distance of no more

than 30 cm (12 inch) away from the driver’s

mouth, ideally on the upper right hand side of the

sun visor and away from any noise source such as

windscreens, window, fan/air conditioner, car

stereo etc.

Make sure the microphone is at a distance of at

least 1.5 m (4.9 ft) from the speaker and is not

directed towards the speaker.

Make sure that the microphone is correctly

positioned. See picture below for microphone

position.

Do not thread the microphone cable close to antenna cable, to avoid audio interference.

Plug the microphone cable into the compatible connection in the octopus control cable.

Important:

Make sure that the microphone cable does not come in contact and does not

interfere with the steering wheel and/or the pedals of the vehicle.

Attention!

The speaker and microphone (which is fitted on the sun visor above the driver)

should be pointed towards

opposite directions

to avoid echo.

Microphone location

Slot towards the driver

M930.IG.book Page 3 Wednesday, March 7, 2007 2:00 PM

Motorola Propietary

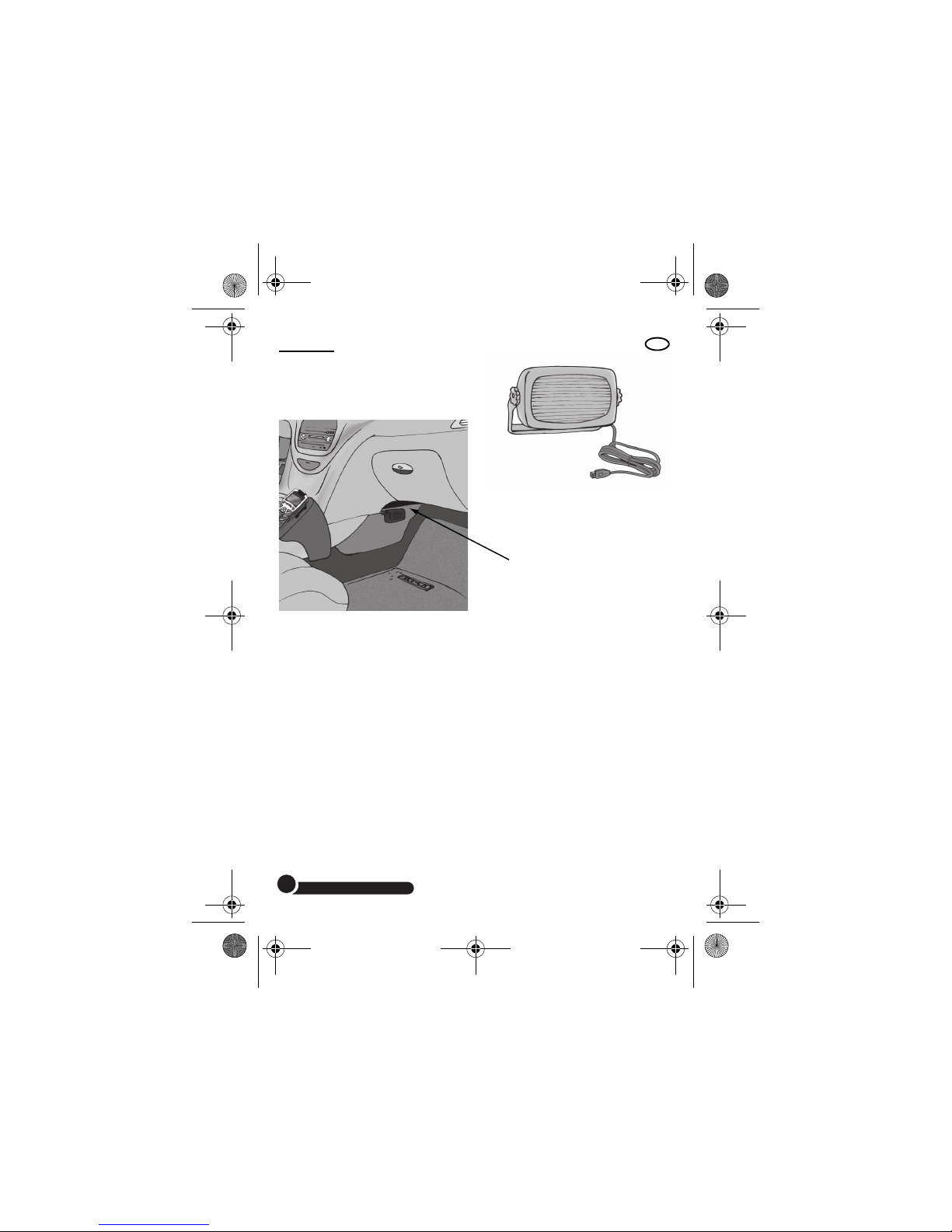

Speaker

Install the speaker on the side of the central console, ideally alongside the legs of the

passenger sitting beside the driver, as far as possible from the microphone.

Thread the speaker cable under the carpet along the floor of the vehicle.

Plug the speaker cable into the compatible connection in the octopus control cable.

Verfiy that the cable does not interfere with the proper operation of the vehicle and/or its

componets.

Do not conceal the speaker behind any obstacle such as dashboard, glove compartment,

carpet or any other barrier which will result in bad audio quality.

Attention!

The speaker and microphone (which is fitted on the sun visor above the driver)

should be pointed towards

opposite directions

to avoid echo, speaker slots should be

pointed towards passenger door.

speaker location

M930.IG.book Page 4 Wednesday, March 7, 2007 2:00 PM

Motorola Propietary

RF Antenna

On-glass antenna specifications

M900, M930 (GSM):

Frequency band: 900+1800MHz (850+ 1900MHz)

VSWR:Tx<=1.5:1 ; Rx <=2:1

Gain: 3dBi @ 900MHz & 2dBi @ 1800MHz (3dBi @

850MHz & 2dBi @ 1900MHz)

Recommended antenna:

(1) 900/1800MHz, GDE-5M, Mfr. Panorama

Antenna, UK

(2) 850/1900MHz. APDM928M, Mfr. PC-TEL

Antenna Product USA, Part Number Z2307

M800 (CDMA):

Frequency band: 800+1900MHz

VSWR:Tx<=1.5:1; Rx <=2:1

Gain: 3dBi @ 850 MHz & 2dBi @ 1900MHz

Recommended antenna:

(1) 850/1900MHz, APDM928M, Mfr. PCTEL Antenna Product USA

Additional Information

RF Cable: RG58U, PVC coated / polyethylene dialeptic cable, length 5M

RF Connector: M800, M900 (900/1800), M930 (900/1800): Mini UHF Male

M900 (850/1900), M930 (850/1900): SMA Male

Radiator and Foot cover:The following environmental parameters are mandatory:

Operating temperature: -30°C to +85°C

Heat and UV stabilised

Flammability UL94V0

Adhesive pads: Operating temperature: -40°C to +90°C and bond not effected by

moisture.

Attention!

Ensure the antenna is located at least 20 cm from driver or passengers.

M930.IG.book Page 5 Wednesday, March 7, 2007 2:00 PM

Motorola Propietary

Antenna Installation

The preferred position for the antenna is on the upper right side of the windshield

Should another cellular device already be installed in the vehicle, the antennas should be

located at a distance of at least 30 cm (1ft) from each other.

Remember:

In certain car models (such as “Renault Megane” and “Renault Kangoo”), the

anterior windshield has a radiation filter, and therefore it is necessary to paste the antenna

in the side or rear windshield only.

Remember:

Do not thread the antenna cable close to the microphone cable to avoid

audio interference.

Use original antenna plug and clamping tools only.

Test antenna and cable performance using a VSWR meter.

Note:

In certain M800 models there is a GPS connection to be used with 4V external

active GPS antenna for navigation services

M930.IG.book Page 6 Wednesday, March 7, 2007 2:00 PM

Motorola Propietary

Cable connections

Power

Connect the

RED

wire to a positive (+) 12V pole for steady power supply. Ensure the use

of a 2A/250V fuse.

Ground

Connect the

BLACK

wire to a negative pole (-) in the vehicle body. Ensure the use of a 2A/

250V fuse.

Ignition

Connect the

GREEN

wire to car IGN voltage and check the appropriate voltage using

voltmeter. This connection switches the phone on when turning the ignition on and it

switches the phone off when turning the ignition off. Ensure the use of a 2A/250V fuse.

Entertainment Mute

Connect the

ORANGE

wire to the car stereo system entertainment mute connection to

mute the stereo system when receiving or dialling a call.

*Ent. Mute is an optional feature

Auxiliary alert

Connect the

WHITE

wire to the car's horn and/or to the car's light connection to turn on

the lights and/or to activate the horn when receiving a call.

*Aux. Alert is an optional feature

*Certain M800 models have a 3-wire connection, without Auxiliary alert and enterainment mute wires.

M930.IG.book Page 7 Wednesday, March 7, 2007 2:00 PM

Motorola Propietary

Cable connections (continue)

Entertainment Mute & Auxiliary Alert - open collector connections

M800/M900/M930

Command signal

12V

Relay Common

Normally

Open

Connect to white wire (for Aux.

Alert) or to orange wire (for

Ent. Mute)

AUX +12V GND MUTE IGN

2A Fuses
