i500plus User’s Guide

Draft #2

3/10/99

Comments due: 3/17/99

D R A F T Welcome

WELCOME

ongratulations on purchasing your Motorola iDEN i500plus data-

enabled, multi-service, digital portable phone. Superior features

and state-of-the-art technology help to keep you in constant touch

with all your business and personal contacts.

The i500plus offers:

• Phone Mode—for cellular phone operation.

See page 8.

• Private Mode—for two-way radio use to talk with one person.

See page 18.

• Group Mode—for two-way radio use to talk with several people.

See page 22.

• Mail Services—for message, voice, and net mail.

See page 24.

Optional features:

With optional wireless access to the Internet, you can check on the latest

news and weather, get stock quotes, send and receive e-mail, and

download information from your computer. Wireless features include:

• Net Mode - to access the built-in microbrowser.

• Fax and Data Transfer- to send and receive faxes and transfer files.

If your i500plus has the Net Mode option, see the “Net Mode User’s

Guide”.

This guide describes the features of the

500

plus

they were set up by Motorola. However, your carrier

or your organization may have changed or added

features. For more information, check with your

carrier or your organization.

i500plus User’s Guide D R A FT

Features of Your i500plus

• Remove the plastic lens protector from

the display before initial use.

• Some keys have multiple uses. For more

information, see the Net Mode User’s

Guide.

• Press any key or button to turn o the

keypad backlight.

wxyz

mno

def

5jkl

tuv

abc

pqrs

ghi

Mode

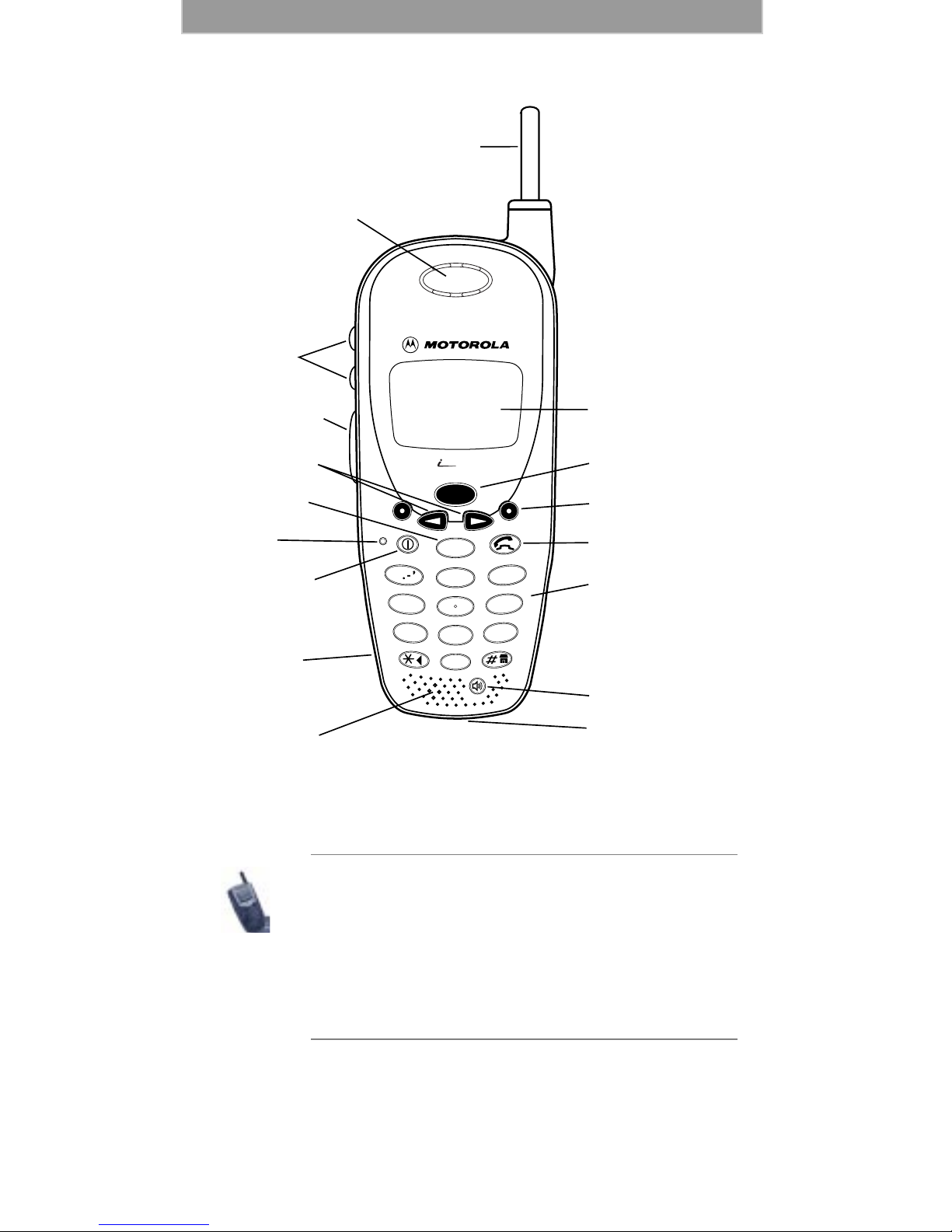

1. Antenna

8. On/Off Key

4. Nextel Direct

Connect (PTT)

Button

3. Volume

Control

Buttons

6. Mode Key

7. LED

2. Earpiece

5. Scroll Keys

10. Microphone

12. Menu Key

15. Alphanumeric

Keypad

14. Send/End Key

11. Alphanumeric

Display

13. Option Keys

17. Data Port

Adapter Connector

MAEPF-26674-A

16. Speaker Key

9. Accessory

Charger

Connector

500plus

D R A F T Welcome



1. Antenna Extend for optimal signal.

2. Earpiece Hold to your ear to hear the other party.

3. VolumeControl

Buttons Press to adjust volume levels in Phone,

Private, and Group modes.

4. Push-To-Talk

(PTT) Button Transmit a Private or Group Call, or a Call

Alert. Press and hold the PTT button to

talk; release it to listen.

5. Scroll Keys Press the left side to scroll backward or

the right side to scroll forward through

menu options and lists.

6. Mode Key Press to change modes.

7. LED (Light

EmittingDiode) Check the phone’s status. See Table 1 on

page 5 for more information.

8. On/Off Key Press and hold to turn your

500

plus

on or

off.

9. Accessory

Connector Attach accessories or the battery charger.

10. Microphone Use to speak during calls.

11. Alphanumeric

Display View up to four lines (up to 12 characters

per line) or six lines (up to 16 characters

per line) on the display.

12. Menu Key Press to scroll through menu options.

13. Option Keys Press the right or left option key to select

the menu option that appears directly

above the key.

14. Send/End Key Press to answer an incoming Phone call.

After entering a phone number, press to

begin an outgoing Phone call or to redial

the entered phone number. Press to end

Phone calls.

15. Alphanumeric

Keypad Enter telephone numbers, Private call IDs,

and alphanumeric characters.

16. Speaker Key Use to hear Private and Group

conversations.

17. Data Port

Adapter

Connector

Use to connect the data cable to your

phone for wireless data connection.

i500plus User’s Guide D R A FT

Attaching and Charging the Battery

Remove the battery from the protective case provided in the original

packaging. When the battery is not attached to the phone or being

charged, store it in this case.

Attaching the Battery

To attach the battery to your i500plus:

1. Push down the door lock located at

the bottom of the battery door.

2. Insert the battery.

3. Press down on the battery to

position it. (SEE BATT LABEL)

Charging the Battery

To get the maximum use from the

battery, charge it overnight before you use it for the first time.

Attach the charger connector to the i500plus, then flip open the prongs

and plug the charger into an electrical outlet. For more information

about chargers, see “Accessories” on page 37.

Battery and Charging Status

A low battery is indicated by a short, chirp-like sound through the

speaker. The battery strength icon shows the remaining charge in the

battery. Three bars indicate full charge. When you have less than five

minutes of talk time remaining, the indicator flashes.

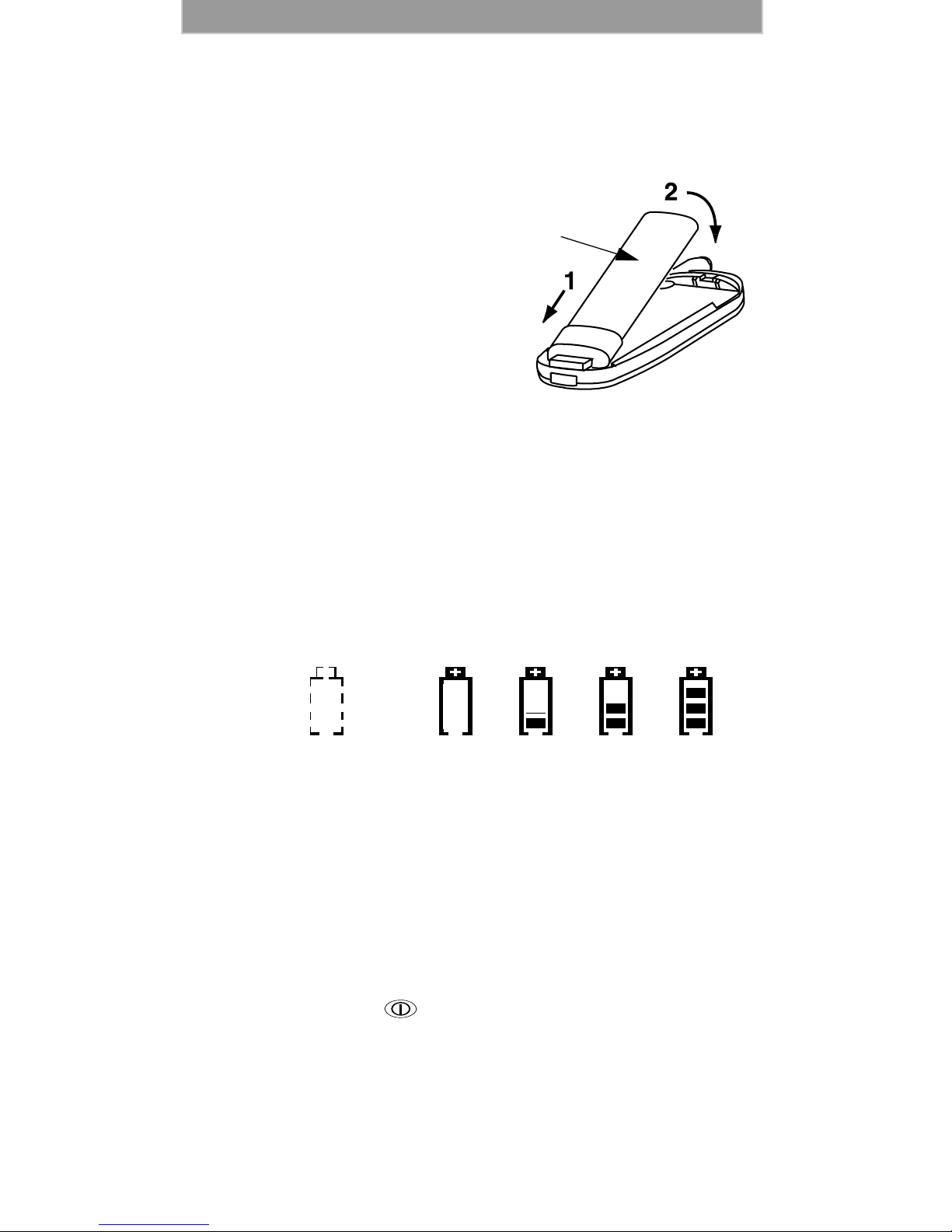

Figure 1. Battery Charging Status

Detaching the Battery

To detach the battery, release the battery door by pressing the battery

door lock upwards. Remove the battery.

Turning On Your i500plus

Press the On/Off button until a set of icons appears on your

display. Next, a welcome message displays while the i500plus connects

to your carrier’s network.

The LED indicator located on top of the i500plus shows the service

state. See Table 1 .

Icon

Flashes

Charging Low Battery 0-30% 31-60% 61-90% 91-100%

Discharging Low Battery 0-10% 11-40% 41-70% 71-100%

Battery Door

D R A F T Welcome

Table 1: Status LIght (LED) Indicator

Turning Off Your i500plus

Press and hold the On/Off button until you see the message

“Powering Off”.

LED Indicator Status of Your

500

plus

Flashing Red Registering—your

500

plus

is signing on

to your carrier’s network. Please wait.

Solid Red No service—your

500

plus

cannot sign

on. It will continue trying to connect

every two minutes as long as it is turned

on.

Flashing Green In service—your

500

plus

is ready to

use.

You can now place and receive calls and

use the browser.

Solid Green In use—-your

500

plus

is currently being

used. Check to make sure that you

ended the last call by pressing .

i500plus User’s Guide D R A FT

Display Icons

Display icons appear on the screen to inform you of existing conditions.

See the following list.

The following icons may appear along the top of the display.

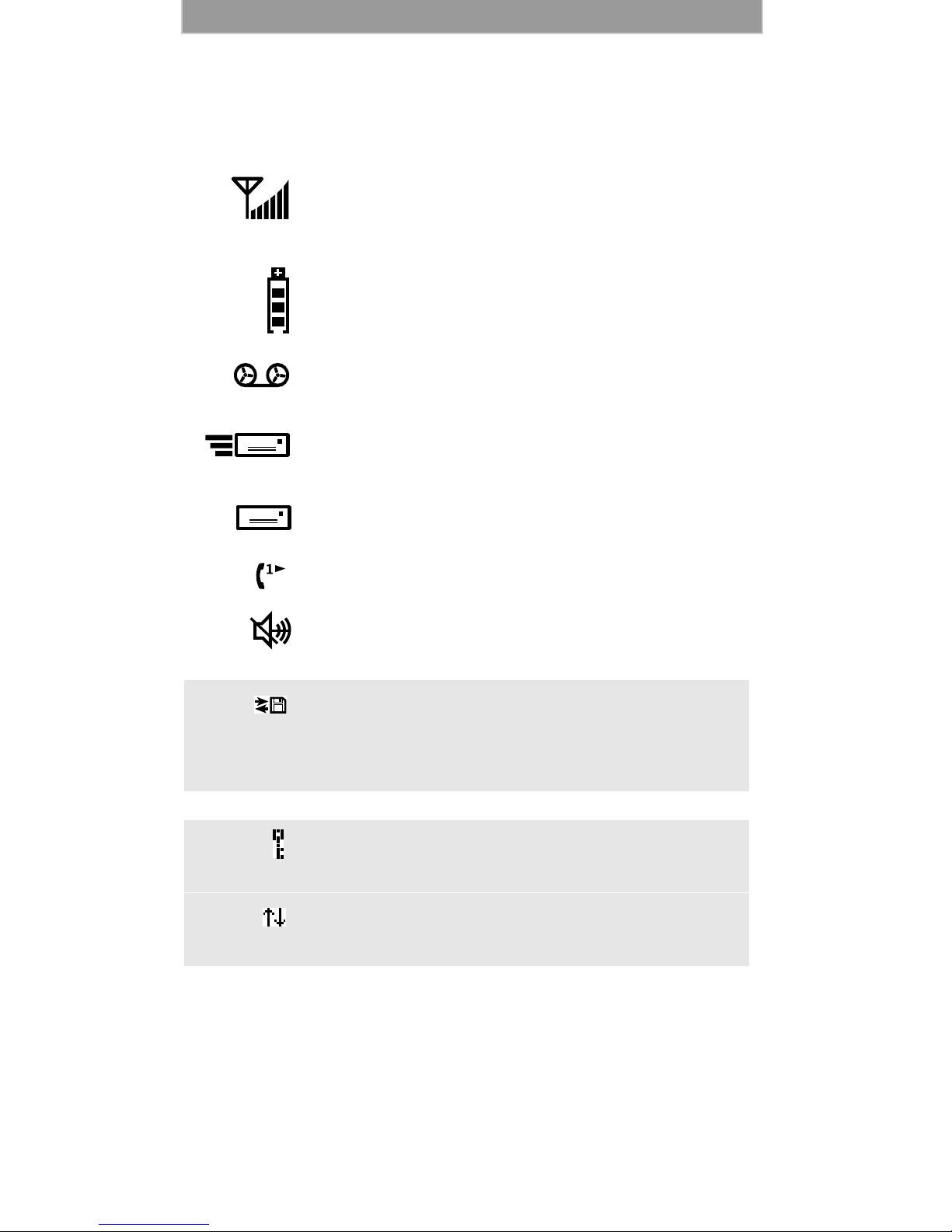

Signal Strength Indicator

Shows the signal strength. Six bars indicate the strongest

signal. Calls and messages may not be sent or received in

weak signal areas.

Battery Strength Indicator

Shows the remaining charge in your battery. Three bars

show full charge. The indicator flashes when you have

less than five minutes of talk time remaining.

Voice Mail

Indicates that unplayed messages are waiting in your

voice/fax mail box

New Message Mail

Indicates that you have new text messages in your mail

box.

Unread Message Mail

Indicates that you have unread text messages.

Call Forward

Indicates that incoming phone calls are being forwarded.

Private/Group Speaker

Indicates that the Private/Group speaker is off. You will

hear calls through the earpiece.

Optional: Packet Data

Indicates packet data registration. The blinking arrows

indicate send and receive activity. For more information,

see the Wireless Data User’s Guide (publication

68P81090C75-O).

Some of the following icons may appear on the last line of the display.

Optional: Secure Packet Data Connection

Indicates that your packet data information is encrypted

during transmission.

Optional: More Information

Indicates that there is more text to read above, below, or

above and below the current screen.

D R A F T Welcome

About Modes and Menus

Modes and menus are the navigational tools, providing access to the

various features of your i500plus. There are four modes:

• Phone—for cellular phone calls. See page 8.

• Private—for one-to-one radio calls. See page 18.

• Group—for radio calls with all individuals in a designated

talkgroup. See page 22.

• Net—(optional) for browser use. See the Net Mode User’s Guide.

To change modes, press .

Menu choices within each mode provide access to the various features

of your i500plus.

To select menu options:

1. Press until you see the desired menu option.

2. Press under the desired menu option.

Changing the Display Language

You can customize your i500plus to display one of four languages:

English, French, Spanish, or Portuguese.

To change the displayed language:

1. Press , , , .

2. Select “Ok”.

3. Press and to scroll through the

language options.

Selecting “Exit” at any time retains the

current language selection.

4. When the desired language appears on

your display, select “Ok”. The displayed

text immediately changes to the selected

language.

5. Select “Exit”.

The language that you select will be the displayed language.

Mode

pqrs

0next

70=Language

English

Exit Ok

70=Language

Francais

OkCancl

i500plus User’s Guide D R A FT

MAKING PHONE CALLS

In addition to making and receiving phone calls in Phone mode, you can

forward calls, use call waiting, put calls on hold, and create and use

stored lists. Phone Ready is the main screen.

You can place a call by entering the phone number on the keypad.

1. From the “Phone Ready” screen, using

the keypad, enter the desired number..

If you make a mistake, press once to

move back one digit, or select “Cancl” to

start over.

2. Press to place the call.

3. To end the call, press .

Using Other Dialing Methods

To use Scroll, Speed Dial, or Name Search, names and numbers must be

programmed in your phone. See “Creating, Editing, and Using Stored

Lists” on page 13.

Scroll

1. From the Phone Ready screen, press and to scroll

backward or forward through the stored list of numbers and

names.

2. Press to place the call.

3. To end the call, press .

Speed Dial

1. From the Phone Ready screen, press until you see the

“Spd#” option on the last line of your display.

2. Select “Spd#”.

3. Enter the assigned speed-dial number (1-100). You will see the

stored name and phone number associated with the speed-dial

number.

4. Press to place the call.

5. To end the call, press .

Name Search

1. From the Phone Ready screen, select “Name”.

2. Using the keypad, enter the first letter of the desired name, for

example, to search for the name Bob:

Phone Ready

Name Mail

D R A F T MakingPhoneCalls

a. Enter “B” by pressing twice.

b. Press to scroll through all the names starting with “B” until

you see “Bob”.

3. Press to place the call.

4. To end the call, press .

Emergency Dial

You can dial the emergency phone number even if the keypad is locked.

If you are on an active call, you must end it before using the emergency

number.

1. From any mode (Phone, Private, Group, or Net), press and

hold for two seconds until the phone displays

“EMERGENCY”. The phone then automatically dials the

emergency number.

2. To end the call, press . The emergency phone number will not

be saved as the last number dialed.

Automatic Redial

If you receive a “System Busy, Try Later” message, press to have

your phone automatically redial the number. You will hear a ring-back

tone when the call is successful.

Last Number Redial

To redial the last number that you called, press .

Receiving a Phone Call

1. Press one of the following keys: , or

, or . Or press any numeric key

(0 through 9).

2. To end a call, press .

For more information on the Emergency Dial feature,

contact your carrier.

abc

wxyz

Incoming

Phone Call

Autres manuels pour I500 PLUS

Table des matières

Autres manuels Motorola Téléphone portable

Motorola

Motorola W180 Manuel utilisateur

Motorola

Motorola C290 CDMA Handset Manuel utilisateur

Motorola

Motorola Timeport P8190 Manuel utilisateur

Motorola

Motorola Moto E13 Manuel utilisateur

Motorola

Motorola V551 Mode d’emploi

Motorola

Motorola Tarpon V. 120C Manuel utilisateur

Motorola

Motorola MOTOROKR E8 Manuel utilisateur

Motorola

Motorola IHF1000 - Blnc Bluetooth Car Manuel utilisateur

Motorola

Motorola MOTORAZR VE20 Manuel utilisateur

Motorola

Motorola Z6w Manuel utilisateur

Motorola

Motorola XT2165DL Manuel utilisateur

Motorola

Motorola MOTORAZR V3M Manuel utilisateur

Motorola

Motorola MOTOSLVR L7c Manuel utilisateur

Motorola

Motorola C257 Manuel utilisateur

Motorola

Motorola TC55CH Manuel utilisateur

Motorola

Motorola V1075 Manuel utilisateur

Motorola

Motorola CE0168 Manuel utilisateur

Motorola

Motorola V3-Razor Mode d'emploi

Motorola

Motorola T180 Manuel utilisateur

Motorola

Motorola iDEN i930 Manuel utilisateur

Motorola

Motorola DROID 2 Global Manuel utilisateur

Motorola

Motorola V3 Manuel utilisateur

Motorola

Motorola KRZR K1 Manuel utilisateur

Motorola

Motorola MOTO W845 Manuel utilisateur

Manuels Téléphone portable populaires d'autres marques

Zte

Zte BLADE A520 Manuel utilisateur

Nokia

Nokia Lumia 620 Manuel utilisateur

Blackbe;rry

Blackbe;rry KEYone Manuel utilisateur

Bea-fon

Bea-fon X5 Premium Manuel utilisateur

Blackbe;rry

Blackbe;rry 8707 Series Manuel utilisateur

Blackbe;rry

Blackbe;rry Storm Mode d'emploi

LG LM-X420QN Manuel utilisateur

LifeWatch

LifeWatch V Manuel utilisateur

Bea-fon

Bea-fon SILVER LINE SL860 Manuel utilisateur

IKI Mobile

IKI Mobile KF4.5i Manuel utilisateur

Hitech

Hitech HT-850 Manuel utilisateur

Yezz

Yezz Fashion F10 Manuel utilisateur

Point Mobile

Point Mobile PM60 Manuel utilisateur

Blackbe;rry

Blackbe;rry Q10 Manuel utilisateur

Blackbe;rry

Blackbe;rry Bold 9900 Manuel utilisateur

Blackbe;rry

Blackbe;rry STORM 9500 - VERSION 5.0 Manuel utilisateur

LG LM-K420EMW Manuel utilisateur

ISAFE MOBILE

ISAFE MOBILE IS655.2 Manuel utilisateur
