GETTING STARTED

i1000

Motorola

iDEN

Digital Portable

i1000 - Multi-Service Wearable

GettingStarted

June 17, 1998

68P81088C88-O

i1000 Page 0 Wednesday, June 17, 1998 1:53 PM

GETTING STARTED

i1000

CONTENTS

YOUR i1000 PORTABLE . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

About Your Portable’s Features . . . . . . . . . . . . . . . . . . . . . . . . . . .1

Features of Your

1000 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

Charging the Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

Attaching the Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

Detaching the Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

Battery and Charging Status . . . . . . . . . . . . . . . . . . . . . . . . . .4

Display Icons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Turning On Your Portable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Turning Off Your Portable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Speakerphone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

VibraCall™ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

Selecting All Incoming Calls and Messages . . . . . . . . . . . . . .8

Selecting Individual Services . . . . . . . . . . . . . . . . . . . . . . . . .8

Turning Off Group and Private Modes . . . . . . . . . . . . . . . . . . . .10

Setting the Time and Date Format . . . . . . . . . . . . . . . . . . . . . . . .12

Storing Numbers in the Phone and Private Lists . . . . . . . . . . . . .14

Entering Phone Numbers Using the Keypad . . . . . . . . . . . .14

Entering a Name Using the Keypad . . . . . . . . . . . . . . . . . . .14

Entering Names and Numbers . . . . . . . . . . . . . . . . . . . . . . .15

Editing and Erasing Phone List Contents . . . . . . . . . . . . . . .17

Editing and Erasing Private ID List Contents . . . . . . . . . . . .17

Changing the Display Language . . . . . . . . . . . . . . . . . . . . . . . . .18

Modes and Menus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

Menus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

PHONE MODE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

At First Glance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23

Making a Phone Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24

Emergency Dial . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25

Automatic Redial . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25

Last Number Redial . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25

Receiving a Phone Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26

Programming Your Own Phone Number . . . . . . . . . . . . . . . . . . .27

Selectable Ring Styles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27

Call Forwarding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28

Selecting a Call Forward Number . . . . . . . . . . . . . . . . . . . . .28

Unconditional Call Forwarding . . . . . . . . . . . . . . . . . . . . . .29

Conditional Call Forwarding . . . . . . . . . . . . . . . . . . . . . . . .29

i1000TOC Page i Wednesday, June 17, 1998 2:02 PM

GETTING STARTED

i1000

Call Waiting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31

Call Hold . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31

3-Way Calling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32

Alternate Phone Line . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32

Setting the Active Line . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33

Receiving a Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33

Receiving Calls on Your Second Line . . . . . . . . . . . . . . . . .33

PRIVATE MODE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

At First Glance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35

Group/Private Speaker . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36

Making a Private Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36

Receiving a Private Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37

Programming Your Private ID . . . . . . . . . . . . . . . . . . . . . . . . . . .37

Recalling Your Private ID . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37

Call Alert™ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38

Sending a Call Alert . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38

Receiving a Call Alert . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38

Call Alert Stacking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38

Receiving a Call Alert with Stacking . . . . . . . . . . . . . . . . . .39

Responding to a Call Alert in the Stack . . . . . . . . . . . . . . . .39

GROUP MODE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

At First Glance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41

Group/Private Speaker . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42

Making a Group Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42

Changing Talkgroups . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42

Receiving a Group Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .43

Area Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .43

Talkgroup Naming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .43

Call Alerts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .43

VOICE MAIL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

Retrieving Voice Mail . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45

Viewing Voice Mail Status . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45

MESSAGE MAIL™ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

Receiving New Message Mail . . . . . . . . . . . . . . . . . . . . . . . . . . .47

Retrieving Stored/Unread Mail . . . . . . . . . . . . . . . . . . . . . . . . . .47

Saving and Erasing Mail . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48

Auto Call Back . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48

Message Mail Memory Full . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48

i1000TOC Page ii Wednesday, June 17, 1998 2:02 PM

GETTING STARTED

iii

i1000

PROGRAMMING MENU OPTIONS . . . . . . . . . . . . . . . . . 49

ERROR MESSAGES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

ACCESSORIES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

Safety Instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .57

Batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .59

Battery Operating Instructions . . . . . . . . . . . . . . . . . . . . . . .59

Charging Lithium Ion Batteries . . . . . . . . . . . . . . . . . . . . . .59

Travel Charger . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .60

Installing the Travel Charger . . . . . . . . . . . . . . . . . . . . . . . .60

Travel Charger Operating Specifications . . . . . . . . . . . . . . .60

Vehicular Battery Charger . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .61

Installing the Vehicular Battery Charger . . . . . . . . . . . . . . .61

Removing the Vehicular Battery Charger . . . . . . . . . . . . . . .62

Vehicular Battery Charger Operating Specifications . . . . . .62

Desktop Charger . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .63

Charging a Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .63

Desktop Battery Charger Troubleshooting . . . . . . . . . . . . . .64

Audio Adapter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .65

Installation Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . .65

Attaching/Detaching the Earpiece Microphone . . . . . . . . . .65

Removing the Audio Adapter . . . . . . . . . . . . . . . . . . . . . . . .65

SAFETY AND GENERAL INFORMATION . . . . . . . . . . . 67

Radio Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .67

Cleaning Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .72

For Further Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .72

Owner’s Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .73

Private Number Directory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .74

Talkgroup Directory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .74

i1000TOC Page iii Wednesday, June 17, 1998 2:02 PM

GETTING STARTED

i1000

Patent Information

This product is protected under one or more of the following

patents:

4817157, 4896361, 4857928, 5041793, 5060294, 5066923, 5134718,

5140156, 5239963, 5257411, 5287387, 5265219, 5289504, 5316168,

5317247, 5338396, 5389927, 5406588, 5424921, 5457376, 5460906,

5551063, 5557079, 5596487, 5615412, 5638403, 5559468, 5469465,

5170413, 5140615, 5519730, 5241544, 5584059, 5574992, 5396656,

5487091, 5533004, 5299199, 5343499, 5369501, 5509031, 5515379,

5528723, 5598417, 5066923, 5241650, 5278833, 5359696, 5548631,

5410632, 5440582, 5457735, 5457818, 5471670, 5477550, 5481537,

5566181, 5229767, 5208804, 5295140, 5381449, 5440590, 5467398,

5490230, 5620242, 5623523, 5655913

Trademarks

, Motorola, VibraCall, Call Alert, and Message Mail are trademarks or

registered trademarks of Motorola, Inc.

iDEN is a registered trademark of Motorola, Inc.

®Reg. U.S. Pat. & Tm. Off.

All other trademarks mentioned in this manual are trademarks of their

respective companies.

Important!

Be sure to read “Safety and General Information” on

page 67 before using your i1000 Portable.

i1000TOC Page iv Wednesday, June 17, 1998 2:02 PM

GETTING STARTED

i1000

YOUR

1000 PORTABLE

ongratulations on purchasing your Motorola iDEN i1000

multi-service digital portable. Superior features and state-of-

the-art technology help to keep you in constant touch with all

of your business and personal contacts.

The sleek, compact design of the i1000 portable:

• Makes it easy to wear or to carry in your pocket or purse.

• Provides a speakerphone feature for placing hands-free

incoming and outgoing phone calls.

• Includes a protective cover that, when open, provides a

comfortable earpiece.

he i1000 portable offers the following functions:

Phone

Private

Group

Voice Mail

Message Mail

ABOUT YOUR PORTABLE’S FEATURES

You can use various features of your portable with the cover open or

closed. Look for special operating instructions in this manual.

This manual describes the features that most people use every day.

However, your service provider or organization might have

customized the portable for your individual needs. For more

information, check with your service provider or organization.

Additional information for your iDEN Digital Portable

can be found on the Motorola iDEN web site at:

http://www.mot.com/LMPS/iDEN

▲▲▲▲▲

Youri1000Portable

i1000 Page 1 Wednesday, June 17, 1998 1:53 PM

GETTING STARTED

i1000

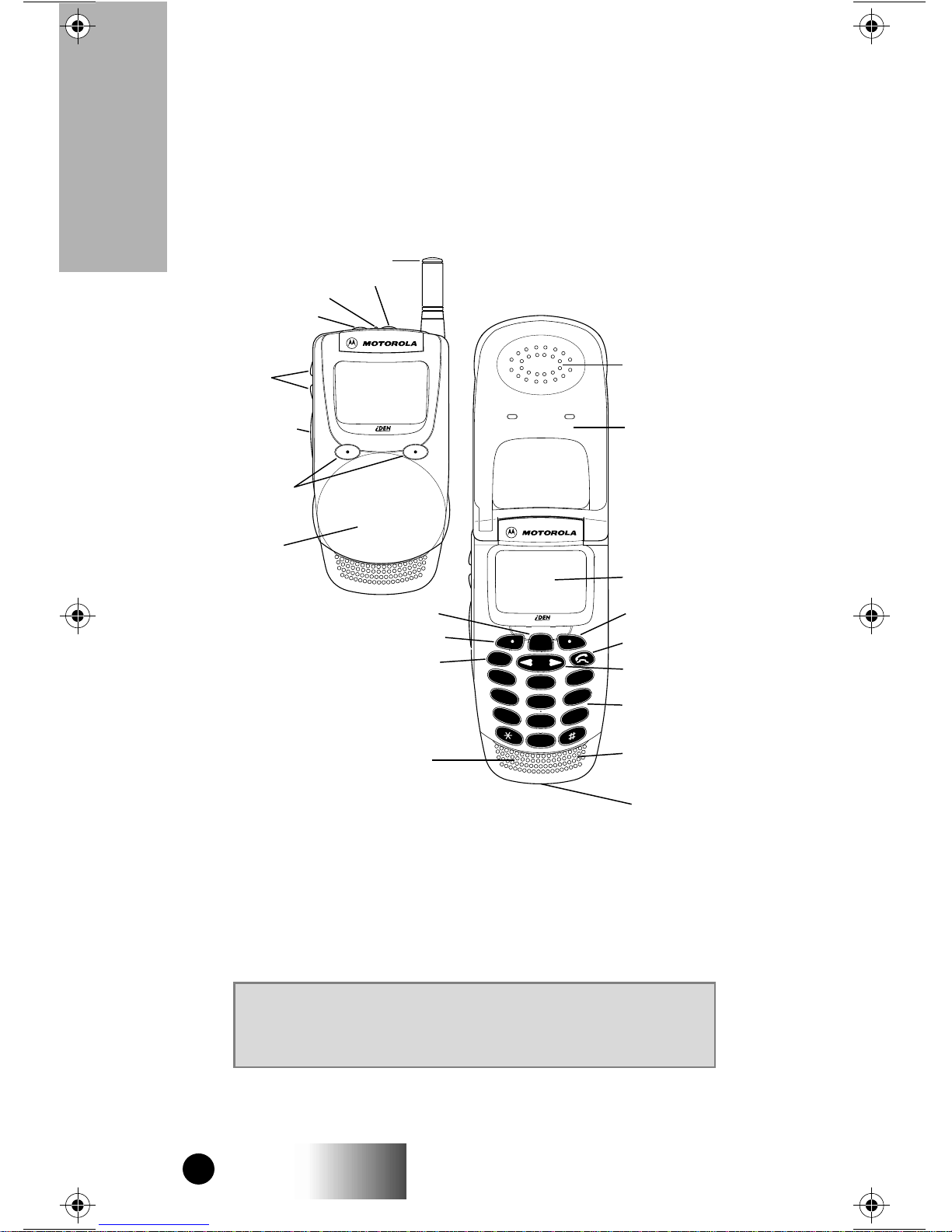

FEATURES OF YOUR

1000

1. Antenna

7. Option Keys

2. On/Off Key

3. LED

4. Speaker Key

8. Flip Cover

(Closed)

6. Push-To-Talk

(PTT) Button

5. Volume

Control

Buttons

16. Alphanumeric

Keypad

11. Speaker

10. Mode Key

9. Menu Key

8. Flip Cover

(Open)

12. Earpiece

13. Alphanumeric

Display

7. Option Key

15. Scroll Key

14. SEND/END Key

17. Microphone

18. Accessory Connector

def

abc

mno

jkl

pqrs

tuv

wxyz

ghi

Mode

Youri1000Portable

NOTE

Remove the three plastic ﬁlm lens protectors from the

display and cover before initial use.

i1000 Page 2 Wednesday, June 17, 1998 1:53 PM

GETTING STARTED

i1000

1. Antenna

Extend for optimal signal.

2. On/Off Key

Press to turn your portable on or off.

3. LED

Check the i1000Õs status. See page 6 for

more information.

4. Speaker Key

Press to set incoming calls through either the

earpiece or the speaker during Group and

Private calls.

5. Volume Control

Buttons

Press to adjust volume levels.When using the

List menu option, press to scroll forward and

backward.

6. Push-To-Talk (PTT)

Button

Transmit a Group or Private Call, or a Call

Alert. Press and hold the PTT button to talk;

release it to listen.

7. Option Keys

Press to select a menu option on the display

that appears directly above the left or right

option key.

8. Cover

Protect the keypad.

9. Menu Key

Press to scroll through menu options.

10. Mode Key

Press to change between Phone, Group, and

Private modes.

11. Speaker

Listen to Group and Private (high-audio)

conversations. Listen to Phone calls in

Speakerphone mode.

12. Earpiece

Hold to your ear to listen during Phone calls

and Group/Private (low-audio) conversations.

Listen to calls when the speakerphone is

turned off.

13. Alphanumeric

Display

View up to four lines (up to 12 characters per

line) on the display.

14. Send/End Key

Press to answer an incoming Phone call.

After entering a phone number, press to

begin an outgoing Phone call or to redial the

entered phone number.

Press to end Phone calls.

15. Scroll Key

Press the left side to scroll backward or the

right side to scroll forward through menu

options and lists.

16. Alphanumeric

Keypad

Enter telephone numbers, Private call IDs,

and alphanumeric characters.

17. Microphone

Use to speak during outgoing calls.

18. Accessory

Connector

Use to connect accessories.

Youri1000Portable

i1000 Page 3 Wednesday, June 17, 1998 1:53 PM

GETTING STARTED

i1000

Youri1000Portable

BATTERY

Charging the Battery

To get the maximum use from the battery, charge it for at least three

hours before you use it for the ﬁrst time.

Attach the charger connector to the i1000 then connect the adapter

to an electrical outlet.

For more information about chargers, see

“Accessories” on page 57.

Attaching the Battery

To attach the battery to your i1000,

align the battery as shown and press

down on the battery until you hear a

click.

Detaching the Battery

To detach the battery, press the latch

to release the battery and slide the

battery downward.

Battery and Charging Status

A low battery is indicated by a short, chirp-like sound through the

speaker. The battery strength icons display battery level

information, as shown below. The battery indicators show the

battery level during both operation and charging.

Low

Battery -

Icon

ßashes

0-30% 31-60% 61-90% 90-100%

Latch

i1000 Page 4 Wednesday, June 17, 1998 1:53 PM

GETTING STARTED

i1000

DISPLAY ICONS

After you turn on the portable and use various features, icons appear

on the screen to inform you of existing conditions.

Some of the following icons may appear along the top of the display.

Signal Strength Indicator

Shows the signal strength. Six bars indicate the

strongest signal. Calls and messages may not be

sent or received in weak signal areas.

Battery Strength Indicator

Shows the remaining charge in your battery. Three

bars show full charge. The indicator ﬂashes when

you have less than ﬁve minutes of talk time

remaining.

Voice Mail

Indicates that unplayed messages are waiting in

your voice mail box

New Message Mail

Indicates that you have new text messages in your

mail box.

Unread Message Mail

Indicates that you have unread Message Mail.

Vibrate All

Indicates that the Vibrate All option is turned on.

You will not hear a ring tone.

Call Forward/Active Line Indication

Indicates that incoming phone calls are being

forwarded and displays the associated phone line

(1, 2, or both).

Group/Private Speaker

Indicates that the Group/Private speaker is off. You

will hear group and private calls through the ear

piece.

Roam

Displays when you enter the service area of another

iDEN service provider. The portable learns and

remembers the new radio frequencies and channels

in use.

Youri1000Portable

i1000 Page 5 Wednesday, June 17, 1998 1:53 PM

Autres manuels pour i1000

Table des matières

Autres manuels Motorola Téléphone portable

Motorola

Motorola XT720 Manuel utilisateur

Motorola

Motorola RAZR maxx Ve Manuel utilisateur

Motorola

Motorola XT2165DL Manuel utilisateur

Motorola

Motorola MOTOROKR Z6M - Z6m QSG Manuel utilisateur

Motorola

Motorola Droid ULTRA Manuel utilisateur

Motorola

Motorola W375 Manuel utilisateur

Motorola

Motorola i90c Manuel utilisateur

Motorola

Motorola T56ML3 Manuel utilisateur

Motorola

Motorola I886 Manuel utilisateur

Motorola

Motorola T191 Manuel utilisateur

Motorola

Motorola MOTORAZR2 V8 Manuel utilisateur

Motorola

Motorola Mobile Phone Manuel utilisateur

Motorola

Motorola I412 Manuel utilisateur

Motorola

Motorola i90c Manuel utilisateur

Motorola

Motorola Moto e Mode d'emploi

Motorola

Motorola i776 Manuel utilisateur

Motorola

Motorola W315 Manuel utilisateur

Motorola

Motorola Moto G Manuel utilisateur

Motorola

Motorola FLIPSIDE Manuel utilisateur

Motorola

Motorola EX430EX431G MOTOGO Manuel utilisateur

Motorola

Motorola i833 Manuel utilisateur

Motorola

Motorola CITRUS Manuel utilisateur

Motorola

Motorola V186 Manuel utilisateur

Motorola

Motorola ATRIX 2 Manuel utilisateur

Manuels Téléphone portable populaires d'autres marques

Zte

Zte BLADE A520 Manuel utilisateur

Nokia

Nokia Lumia 620 Manuel utilisateur

Blackbe;rry

Blackbe;rry KEYone Manuel utilisateur

Bea-fon

Bea-fon X5 Premium Manuel utilisateur

Blackbe;rry

Blackbe;rry 8707 Series Manuel utilisateur

Blackbe;rry

Blackbe;rry Storm Mode d'emploi

LG LM-X420QN Manuel utilisateur

LifeWatch

LifeWatch V Manuel utilisateur

Bea-fon

Bea-fon SILVER LINE SL860 Manuel utilisateur

IKI Mobile

IKI Mobile KF4.5i Manuel utilisateur

Hitech

Hitech HT-850 Manuel utilisateur

Yezz

Yezz Fashion F10 Manuel utilisateur

Point Mobile

Point Mobile PM60 Manuel utilisateur

Blackbe;rry

Blackbe;rry Q10 Manuel utilisateur

Blackbe;rry

Blackbe;rry Bold 9900 Manuel utilisateur

Blackbe;rry

Blackbe;rry STORM 9500 - VERSION 5.0 Manuel utilisateur

LG LM-K420EMW Manuel utilisateur

ISAFE MOBILE

ISAFE MOBILE IS655.2 Manuel utilisateur

Motorola i1000 Manuel utilisateur

Manuels Téléphone portable populaires d'autres marques
