Welcome
Welcome to the world of Motorola digital wireless
communications! We are pleased that you have chosen the
Motorola E680 GSM wireless phone.
Note:
Your phone may not appear exactly as shown above.
All features and functions remain the same regardless of your
phone’s appearance.
040112o

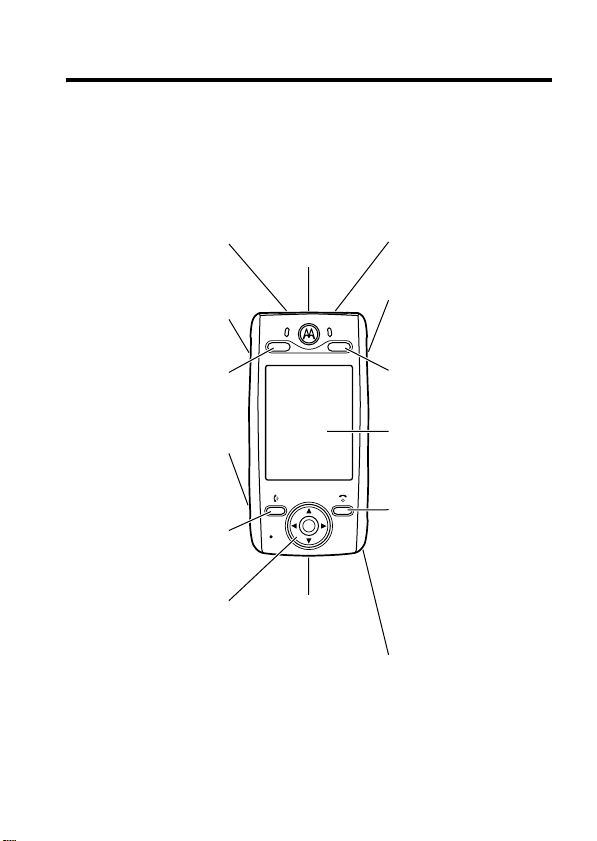

Game Card &
Memory Card
Slot
Phone Lock
Switch
Up Volume &
Right Game Key
Down Volume &
Left Game Key
4-Way Navigation
Key with Center
Select
Headset Jack
Game Key "A"
Send Key
Make & answer
calls.
Touchscreen
Display
Camera Key
Game Key "B"
Stylus
Power & End Key
Turn phone
on/off, end calls,
return to main
screen.
USB Connector
DRAFT
2
Check It Out!
Feature Description
Take Photo
Press the camera key to activate the
camera, point lens at subject, then press
the camera key to take a photo.
Record Video
Press the camera key to activate the
camera. Tap , then tap
Record Video
. Tap
Record
to start video recording. Tap
Done
to
stop video recording.

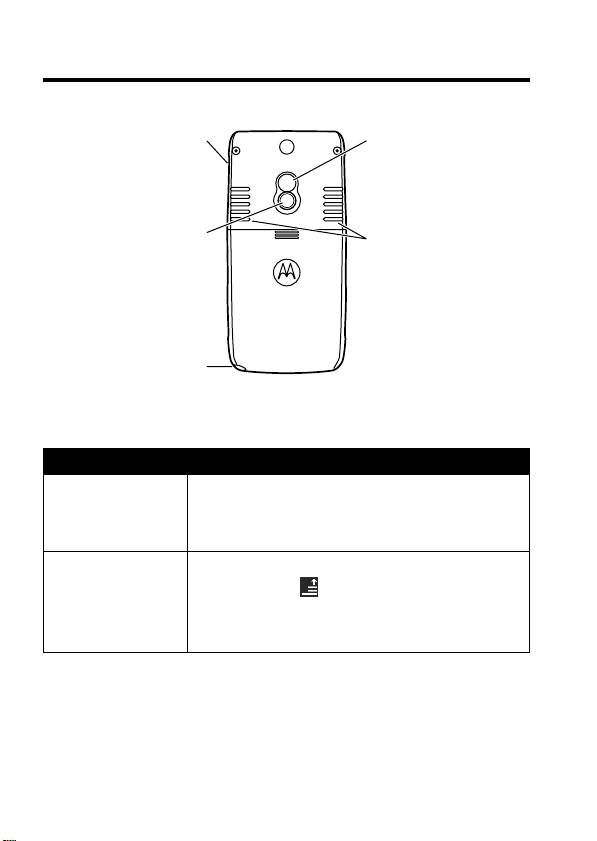

041013o
Stylus
Camera Key
Activate camera
& take photos.
Mirror
Aim camera lens
for self portraits.
Camera Lens Stereo Speakers
DRAFT
3
Send
Multimedia
Message
Send a multimedia message
with pictures, animations,
sounds, and videos:
Tap , then tap
Compose
. Tap
the message type pull-down menu, then
tap
MMS
.
Read
Multimedia
Message
Read a new multimedia
message that you have
received:
Tap , tap
Download
, tap
to play.
Play Music or
Video Clip
Play a song or watch a video clip stored
on your phone:
Ta p
Media
, tap , then tap
Open
. Tap
File
, then tap filename to play.
Wireless
Connection
Set up a Bluetooth
®
wireless connection
to a headset accessory, car kit, or
external device:
Ta p
Bluetooth
, tap , tap
Setup
. Tap
Turn On
. Tap
Search
to locate the Bluetooth
device.
Phone Theme
Apply a phone theme:
Ta p
Theme
, tap and hold
theme name, tap
Set to Current
.
Feature Description
032380o
032380o
DRAFT
4
Motorola, Inc.
Consumer Advocacy Office
1307 East Algonquin Road
Schaumburg, IL 60196
www.motorola.com
1-800-331-6456 (United States)
1-888-390-6456 (TTY/TDD United States for hearing impaired)
1-800-461-4575 (Canada)
MOTOROLA and the Stylized M Logo are registered in the US Patent &
Trademark Office. The Bluetooth trademarks are owned by their proprietor and
used by Motorola, Inc. under license. Java and all other Java-based marks are
trademarks or registered trademarks of Sun Microsystems, Inc. in the U.S. and
other countries. Microsoft, Windows, ActiveSync and Windows Media are
registered trademarks of Microsoft Corporation; and Windows XP and
Windows Mobile are trademarks of Microsoft Corporation. All other product or
service names are the property of their respective owners.
©
Motorola, Inc. 2004.
Caution:
Changes or modifications made in the radio phone, not expressly
approved by Motorola, will void the user’s authority to operate the equipment.
Manual number: 68XXXXXX46-O
DRAFT
5
Contents
Safety and General Information
. . . . . . . . . . . . . . . . . . . . 8
Getting Started
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
About This Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Installing the SIM Card . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Installing a Memory Card . . . . . . . . . . . . . . . . . . . . . . . . 18
Battery Use. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Installing the Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Charging the Battery. . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Turning Your Phone On. . . . . . . . . . . . . . . . . . . . . . . . . . 22
Turning Your Phone Off. . . . . . . . . . . . . . . . . . . . . . . . . . 22
Adjusting Volume . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Making a Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Answering a Call. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Changing the Call Alert. . . . . . . . . . . . . . . . . . . . . . . . . . 24
Viewing Your Phone Number . . . . . . . . . . . . . . . . . . . . . 25
Locking and Unlocking Your Phone . . . . . . . . . . . . . . . . 25
Highlight Features
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Using the Camera. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Sending a Multimedia Message . . . . . . . . . . . . . . . . . . . 29
Receiving a Multimedia Message . . . . . . . . . . . . . . . . . . 32
Using the RealOne Media Player . . . . . . . . . . . . . . . . . . 34
Using a Bluetooth® Wireless Connection. . . . . . . . . . . . 35
Learning to Use Your Phone
. . . . . . . . . . . . . . . . . . . . . . 39
Using the Touchscreen Display. . . . . . . . . . . . . . . . . . . . 39
Using the 4-Way Navigation Key. . . . . . . . . . . . . . . . . . . 42
Using the Game Keys. . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Opening Phone Features . . . . . . . . . . . . . . . . . . . . . . . . 43
Entering Text. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
DRAFT
6
Using the Handsfree Speaker . . . . . . . . . . . . . . . . . . . . 48
Changing a Code, PIN, or Password. . . . . . . . . . . . . . . 48
Locking and Unlocking Your Phone. . . . . . . . . . . . . . . . 49
If You Forget a Code, PIN, or Password . . . . . . . . . . . . 50
Using the Address Book . . . . . . . . . . . . . . . . . . . . . . . . 50
Setting Up Your Phone
. . . . . . . . . . . . . . . . . . . . . . . . . . 52
Storing Your Name and Phone Number . . . . . . . . . . . . 52
Setting the Date and Time . . . . . . . . . . . . . . . . . . . . . . 53
Setting a Ring Style. . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Setting a Phone Theme . . . . . . . . . . . . . . . . . . . . . . . . 54
Setting Backlight Brightness and Duration . . . . . . . . . . 56
Conserving Battery Power . . . . . . . . . . . . . . . . . . . . . . 57
Calling Features
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Changing the Active Line . . . . . . . . . . . . . . . . . . . . . . . 58
Redialing a Number . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Using Automatic Redial. . . . . . . . . . . . . . . . . . . . . . . . . 59
Using Caller ID . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Canceling an Incoming Call . . . . . . . . . . . . . . . . . . . . . 60
Turning Off a Call Alert . . . . . . . . . . . . . . . . . . . . . . . . . 60
Calling an Emergency Number . . . . . . . . . . . . . . . . . . . 60
Dialing International Numbers. . . . . . . . . . . . . . . . . . . . 61
Direct Dialing an Extension or Voicemail Number. . . . . 61
Dialing an Extension Number During a Call . . . . . . . . . 62
Dialing Recent Calls . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
Calling With Turbo Dial . . . . . . . . . . . . . . . . . . . . . . . . . 63
Putting a Call On Hold. . . . . . . . . . . . . . . . . . . . . . . . . . 63
Muting a Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
Dialing Another Number During a Call . . . . . . . . . . . . . 64
Transferring a Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
DRAFT
7
Phone Features
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
Calling Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
Instant Messaging. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
Email. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
Address Book . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
Personalizing Features . . . . . . . . . . . . . . . . . . . . . . . . . . 73
Special Dialing Features. . . . . . . . . . . . . . . . . . . . . . . . . 75
Call Monitoring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
Handsfree Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
Sending and Receiving Data . . . . . . . . . . . . . . . . . . . . . 77
Network Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78
File Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78
Voice Instruction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
Personal Organizer Features . . . . . . . . . . . . . . . . . . . . . 79
Security. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82
News and Entertainment . . . . . . . . . . . . . . . . . . . . . . . . 82
Specific Absorption Rate Data
. . . . . . . . . . . . . . . . . . . . 84
Software Copyright Notice
. . . . . . . . . . . . . . . . . . . . . . . 86
RF Energy Interference
. . . . . . . . . . . . . . . . . . . . . . . . . . 86
Index
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87
DRAFT
8
Safety and General Information
IMPORTANT INFORMATION ON SAFE AND EFFICIENT OPERATION.
READ THIS INFORMATION BEFORE USING YOUR PHONE.
The information provided in this document supersedes the general safety
information in user’s guides published prior to December 1, 2002.
Exposure To Radio Frequency (RF) Energy
Your phone contains a transmitter and a receiver. When it is ON, it
receives and transmits RF energy. When you communicate with your
phone, the system handling your call controls the power level at which
your phone transmits.
Your Motorola phone is designed to comply with local regulatory
requirements in your country concerning exposure of human beings to RF
energy.
Operational Precautions
To assure optimal phone performance and make sure human exposure to
RF energy is within the guidelines set forth in the relevant standards,
always adhere to the following procedures.
External Antenna Care
Use only the supplied or Motorola-approved replacement antenna.
Unauthorized antennas, modifications, or attachments could damage the
phone.
Do NOT hold the external antenna when the phone is IN USE. Holding
the external antenna affects call quality and may cause the phone to
operate at a higher power level than needed. In addition, use of
unauthorized antennas may result in non-compliance with the local
regulatory requirements in your country.
Autres manuels pour E680 - Smartphone - GSM
2
Table des matières
Autres manuels Motorola Téléphone portable
Motorola
Motorola Moto G5 Manuel utilisateur
Motorola
Motorola moto g71 Manuel utilisateur
Motorola
Motorola Moto G5 Plus Feuille d'instructions
Motorola
Motorola RIZR Z6tv Manuel utilisateur
Motorola
Motorola Sprint ES400S Manuel utilisateur
Motorola
Motorola L2 Manuel utilisateur
Motorola
Motorola MOTO W233 RENEW Manuel utilisateur
Motorola
Motorola DROID by Guide de l'utilisateur
Motorola
Motorola Z6c Manuel utilisateur
Motorola
Motorola Verizon DROID 4 Instructions originales
Motorola
Motorola MOTORAZR2 V9 Manuel utilisateur
Motorola
Motorola V2288 Manuel utilisateur
Motorola
Motorola MOTO e4 Feuille d'instructions
Motorola
Motorola DROID RAZR Mode d’emploi
Motorola
Motorola MOTO EM325 - HOW TO GUIDE Manuel utilisateur
Motorola
Motorola INT2700 Manuel utilisateur
Motorola
Motorola hintTM QA30 Manuel utilisateur
Motorola
Motorola MOTOKRZR K1m Manuel utilisateur
Motorola
Motorola ST7867 Manuel utilisateur
Motorola
Motorola MOTOKEY Wi-Fi Manuel utilisateur
