Motorola TK30 Bluetooth and iPod Car

Kit

User Guide

DRAFT 7 - 10/27/2009

congratulations

[tbd]

contents

install the harness . . . . . . . . . . . . 4

before you begin . . . . . . . . . . . . . 4

install the vehicle integration kit . 5

connect the ISO cable . . . . . . . . 6

connect the audio cable . . . . . . . 7

mount and connect the user

interface module . . . . . . . . . . . . . 8

install the microphone . . . . . . . . 11

set install preferences. . . . . . . . 12

selective mute feature . . . . . . . 13

basics. . . . . . . . . . . . . . . . . . . . . . 14

buttons and scroll knob. . . . . . . 14

home screen. . . . . . . . . . . . . . . 14

icons . . . . . . . . . . . . . . . . . . . . . 15

pair & connect . . . . . . . . . . . . . . 17

pair to Bluetooth devices . . . . . 17

connect to devices . . . . . . . . . . 17

set Bluetooth device

preferences . . . . . . . . . . . . . . . . 18

calls . . . . . . . . . . . . . . . . . . . . . . . 19

receive a call . . . . . . . . . . . . . . . 19

make a call. . . . . . . . . . . . . . . . . 19

while on a call . . . . . . . . . . . . . . 20

swap phones . . . . . . . . . . . . . . . 22

play music . . . . . . . . . . . . . . . . . . 23

from a Bluetooth device . . . . . . 23

from an iPod/iPhone . . . . . . . . . 23

from a USB storage device . . . . 24

from an auxiliary device. . . . . . . 24

control your music. . . . . . . . . . . 25

volume. . . . . . . . . . . . . . . . . . . . 25

set music preferences. . . . . . . . 25

phonebook. . . . . . . . . . . . . . . . . . 26

manually download contacts from

your phone. . . . . . . . . . . . . . . . . 26

synchronize contacts with phone .

messages . . . . . . . . . . . . . . . . . . . 27

read new messages . . . . . . . . . 27

read existing messages. . . . . . . 28

reply to message. . . . . . . . . . . . 28

call message sender . . . . . . . . . 28

settings . . . . . . . . . . . . . . . . . . . . 28

set general preferences. . . . . . . 28

set voice prompt volume . . . . . . 28

set display preferences . . . . . . . 29

Safety, Regulatory & Legal. . . 30

install the harness

before you begin

Caution:

Only qualified personnel should install this car kit.

Because of the wide variety of vehicle types and models, it

may be necessary to contact the vehicle manufacturer for

detailed installation information. If needed, contact the

vehicle manufacturer for air bag information specific to the

vehicle.

Caution:

An air bag inflates with great force.

Do not

place

objects, including communication equipment, in the area

over the air bag or in the air bag deployment area. If the

communication equipment is improperly installed and the

air bag inflates, serious injury could occur.

Please follow these guidelines:

•

Mount components securely on strong surfaces to

prevent shifting that could cause injury or interfere with

safe vehicle operation. Use the supplied mounting

hardware as needed.

•

Mounted components and attached wires or cables

must not interfere with seating or leg space.

•

Route cables so they are protected from pinching, sharp

edges and crushing. Keep all in-line connectors easily

accessible.

•

The car kit is intended for use in 12 Volt negative ground

systems only. The car kit draws less than 10 Amps.

Confirm that the vehicle's electrical system can supply

this current.

install the harness

install the vehicle integration kit

The vehicle integration kit is the central connection point

for the car kit. Connections to the vehicle, microphone,

audio input device, and user interface module (UIM) are

made from the vehicle integration kit.

The vehicle integration kit should be secured to the vehicle

after the rest of the car kit components are installed and

cables are secured

Mount the vehicle integration kit securely. The best location

for the kit is under the dashboard. The kit should be

protected from dirt and moisture, have adequate space for

cooling, and allow for cable connections.

Caution:

The location

must not

interfere with the vehicle’s

air bag.

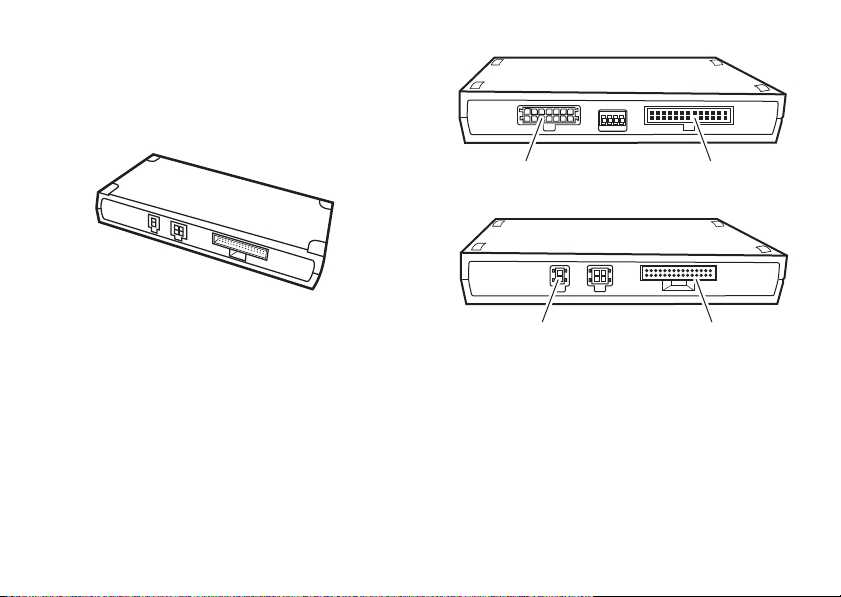

The vehicle integration kit consists of these connectors:

ISO Cable

(connector A)

Audio Cable

(connector D)

User Interface Cable

(connector B)

Microphone

(connector C)

install the harness

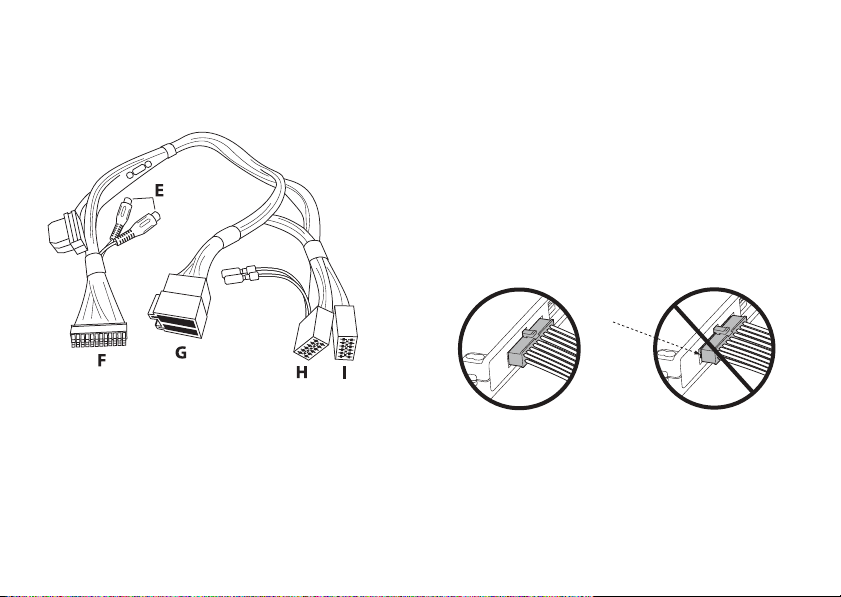

connect the ISO cable

Use the ISO cable to connect the car kit to your vehicle’s

wiring. It connects the vehicle's power, ignition, and

entertainment system to the car kit.

Disconnect battery from vehicle.

Caution:

Removing battery power may set trouble

codes that can only be reset by a factory diagnostic

tool on some vehicles. Please check with your vehicle

manufacturer if you are unsure how your vehicle may

react.

Disconnect appropriate connections on the vehicle

audio system to allow installation of the ISO cable (and

adapters, if needed).

Connect cable connectors H and I to the vehicle

entertainment system.

Connect cable connector G to the vehicle wiring

harness ISO connectors.

Connect cable connector F to vehicle integration kit

connector A (shown on page 4).

Note:

Make sure cable connector is plugged all the

way into the vehicle integration kit.

Reconnect battery to vehicle.

Failure to follow these steps may cause the harness not to

work properly and could damage the harness.

should be no gap

between connector

and housing

install the harness

install with third-party vehicle specific harness

Some vehicles require a vehicle-specific harness (not

supplied) that allows integration of the harness into the

vehicle entertainment system. The connectors on the ISO

cable are designed to connect directly to such a third-party

harness. If you choose to use a vehicle-specific harness,

follow the guidelines provided with that harness.

install to auxiliary input (optional)

If you wish to connect your car kit's music audio output to a

stereo auxiliary input on your vehicle entertainment

system:

Note:

Not all vehicle entertainment systems offer a stereo

auxiliary audio input. In some cases, if your system does

not support this input, one may be created using an adapter

from a third-party vendor.

Connect an RCA cable (not supplied) to connector E on

the ISO cable.

Connect the other connectors on the RCA cable to the

vehicle entertainment system’s Auxiliary input.

From the Installer menu, set the

Line Out

parameter

to ON (see “set install preferences” on page 11 for

details).

connect the audio cable

Use the audio cable(s) to connect the car kit to your music

input device(s). You can connect:

•

one iPod/iPhone

•

one USB storage device with music (AAC, M4A, MP3,

and WMA audio files are supported)

•

one music device with 3.5mm headphone jack

To connect the audio cable:

Connect cable connector J to vehicle integration kit

connector D (shown on page 4).

Connect your music device to the audio cable(s):

•

To play music

from a USB storage device

connect cable connector K to the USB storage

device.

Note:

Only one USB device at a time can be

connected to your car kit.

install the harness

•

To play music

from an auxiliary device

, connect

cable connector L to the 3.5mm headphone jack on

the auxiliary music device.

•

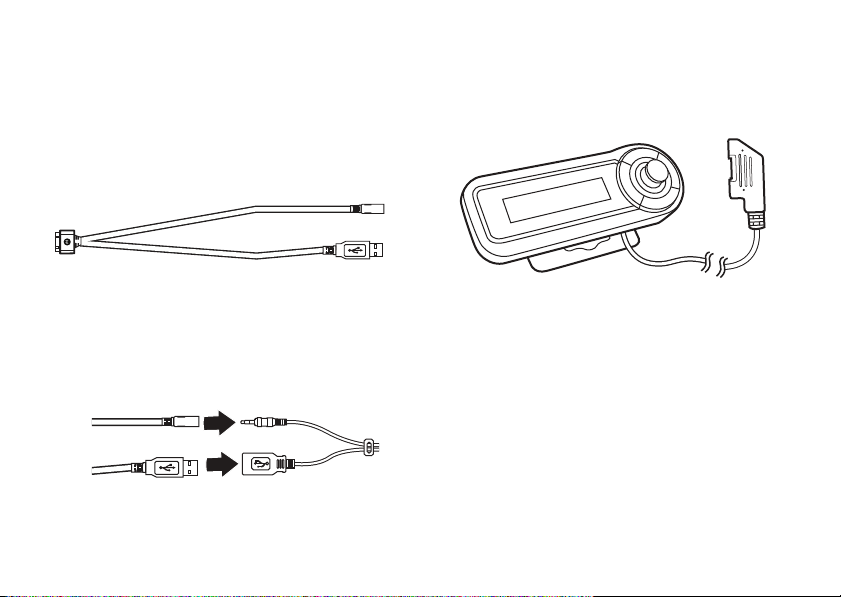

To play music

from an iPod/iPhone

, use the

second audio cable (supplied):

Connect cable connector O to the iPod/iPhone.

Connect cable connectors K and L on first audio

cable to connectors M and N on second audio

cable.

mount and connect the user interface

module

Use the User Interface Module (UIM) to operate your car

kit.

The UIM can be mounted in two different configurations:

•

directly on a flat spot within easy reach of the driver

using the supplied mounting tape

•

using the supplied mounting bracket.

Caution:

Do not mount in a location that obstructs driver’s

vision or interferes with operation of the vehicle.

direct to flat surface

To install the UIM directly on a flat service:

install the harness

Note:

It is recommended to install the UIM directly on a

flat surface as a curved surface can cause difficulties in

pushing the buttons, and can cause the UIM to come

loose.

Caution:

The location of the UIM must not

interfere with

the vehicle's air bag deployment.

Clean mounting surface thoroughly with an alcohol

wipe (not supplied).

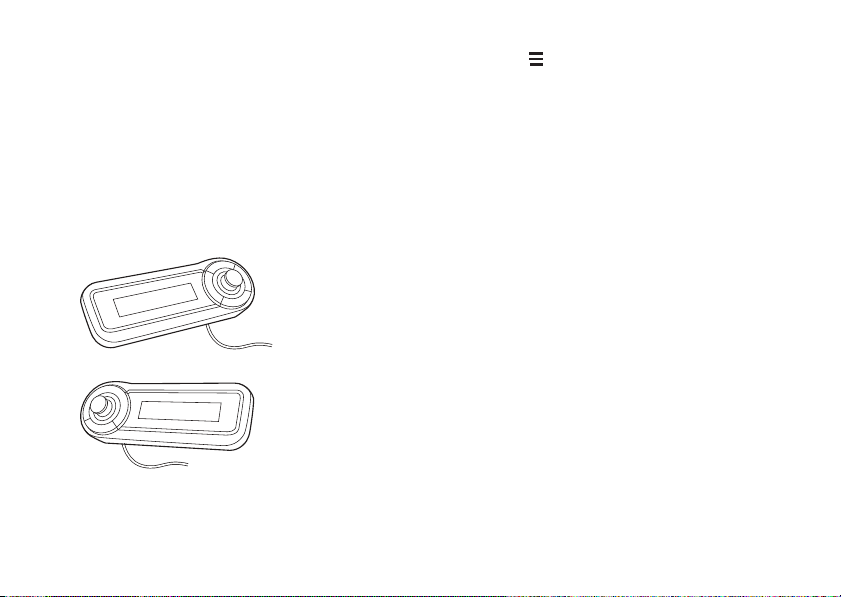

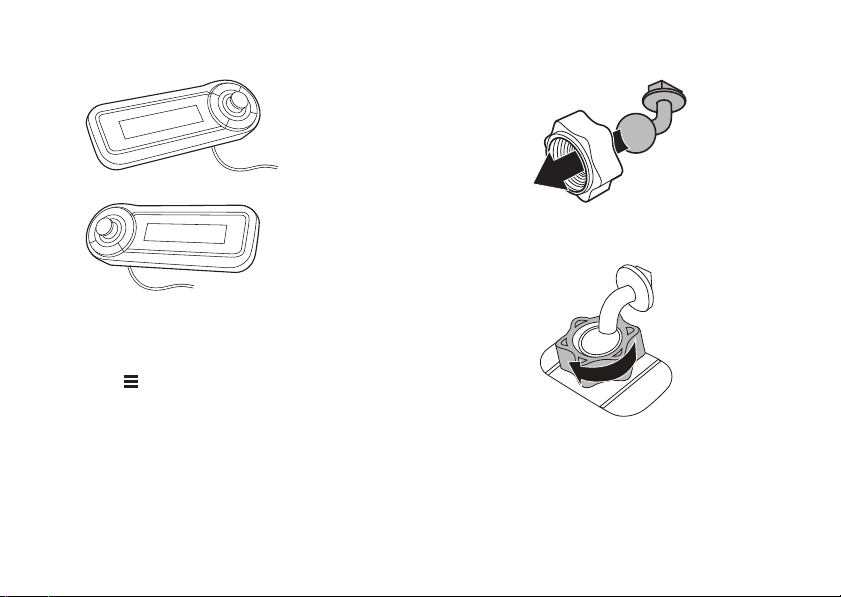

Select UIM orientation (controls on left or right of

display).

Note:

To change screen display orientation, see “set

install preferences” on page 11.

Press key tabs (supplied) onto UIM:

•

Place key at top position.

•

Place

key at bottom position.

Verify cable is fitted into a groove on the back of the

UIM. The cable must be contained in the slot to

provide a flat surface for mounting.

Remove one side of mounting tape (supplied) and

press firmly onto rear of the UIM.

Remove other side of mounting tape and attach UIM to

flat spot location on your vehicle.

Connect cable connector P (shown on page 7) to the

vehicle integration kit connector B (shown on page 4).

use mounting bracket

To install the UIM using the mounting bracket:

Caution:

The location of the UIM

must not

interfere with

the vehicle's air bag deployment.

Clean mounting surface thoroughly with an alcohol

wipe (not supplied).

optimal for

right-handed

operation

optimal for

left-handed

operation

install the harness

Select UIM orientation (controls on left or right of

display).

Note:

To change screen display orientation, see “set

install preferences” on page 11.

Press key tabs (supplied) onto UIM:

•

Place key at top position.

•

Place

key at bottom position.

Place mounting nut (straight or curved) onto selected

mounting arm.

Push arm into mounting base, and fasten onto base

using mounting nut.

optimal for

right-handed

operation

optimal for

left-handed

operation

Table des matières

Autres manuels Motorola Accessoires automobiles

Motorola

Motorola 6840420Z01-AD Mode d’emploi

Motorola

Motorola ATRIX MB860 Manuel utilisateur

Motorola

Motorola MISSION CRITICAL WIRELESS NTN2570 Manuel utilisateur

Motorola

Motorola VC70N0 Manuel utilisateur

Motorola

Motorola VC70N0 Manuel utilisateur

Motorola

Motorola T325 Manuel utilisateur

Motorola

Motorola Premium Wireless Car Kit Manuel utilisateur

Motorola

Motorola GMLN1040 Manuel utilisateur

Motorola

Motorola Bluetooth Wireless Hands Free Manuel utilisateur

Motorola

Motorola TX500 Manuel utilisateur

Motorola

Motorola TZ900 Manuel utilisateur

Motorola

Motorola HK105 Manuel utilisateur

Motorola

Motorola MOTOROKR T3 Manuel utilisateur

Motorola

Motorola T215 Manuel utilisateur

Motorola

Motorola HF850 - Deluxe Bluetooth Car Manuel utilisateur

Motorola

Motorola VC5090 Manuel utilisateur

Motorola

Motorola H500 Manuel de la liste des pièces

Motorola

Motorola MA1 Mode d’emploi

Motorola

Motorola HF800 - Bluetooth hands-free Speakerphone Manuel utilisateur

Motorola

Motorola VC70N0 Manuel d'installation et d'exploitation

Motorola

Motorola MTP6000 SERIES Manuel utilisateur

Motorola

Motorola PMLN7397 Manuel utilisateur

Motorola

Motorola VC6000 Series Manuel d'installation et d'exploitation

Motorola

Motorola HF850 Manuel utilisateur

Manuels Accessoires automobiles populaires d'autres marques

James Baroud

James Baroud Odyssey Manuel utilisateur

Yakima

Yakima 9MM STANDARD BIKE MOUNT Manuel utilisateur

Feniex

Feniex T3 Manuel utilisateur

Renault

Renault 77 11 423 180 Manuel utilisateur

Kia

Kia E8300-4D000 Manuel utilisateur

Brink

Brink 756843 Manuel utilisateur

Whispbar

Whispbar K085W Manuel utilisateur

v.link

v.link CI-VL2-PC-HSD Manuel utilisateur

Viking

Viking Stack-Rack Guide de configuration rapide

Aries

Aries 203015 Manuel utilisateur

Choetech

Choetech AT0005 Manuel utilisateur

ZZ2

ZZ2 ZZAIR-PRO Manuel utilisateur

Holman

Holman 4A80L Manuel utilisateur

Thule

Thule 2075 Manuel utilisateur

TAUBENREUTHER

TAUBENREUTHER 16-3950 Guide d'installation

DV8

DV8 FBJL-02 Manuel utilisateur

Prorack

Prorack K1163 Manuel utilisateur

Curt Manufacturing

Curt Manufacturing A25 Manuel utilisateur
