1 J3600 Getting StartedModel T008

Sleep

Place your tablet PC in Sleep mode when you go away for a

short period of time to conserve battery power. When you re-

turn, the tablet PC quickly resumes activity and your desktop

is the same as you left it.

To put the tablet PC in Sleep mode, press and release the

power button . To wake up the tablet PC from Sleep mode,

press the power button again.

Tip The power button blinks when in Sleep mode.

Getting Started with the Motion® J3600 Tablet PC

Locking and unlocking

To lock and unlock your tablet PC, press the Security button

on the right side of the tablet PC. It’s equivalent to

pressing Ctrl+Alt+Delete.

Using the digitizer pen

An important difference between traditional PCs and tablet

PCs is that you frequently use a digitizer pen instead of a

mouse and keyboard. A pen can feel more natural in your

hand than a mouse and you can use the pen while stand-

ing or walking. The J3600 pen has a pressure-sensitive tip,

eraser, and a function button. Pressing the function button

is equivalent to right-clicking a mouse.

function button

(right-click)

Pen tip eraser

Using touch (optional feature)

NoTe Touch is an optional feature for the J3600.

In addition to using a pen, your J3600 tablet PC may be

equipped with touch, which means you can use your ngers

to select items and open les, zoom in and out, scroll through

browser windows and documents, and more.

Touch works like a mouse. Tap to select an item and double-

tap to open it.

Tip To open a right-click menu using touch, press your

nger on the display until a swirl appears, then lift

your nger and the shortcut menu appears.

Using the ngerprint reader

The J3600 includes a ngerprint reader so that you can log

on to your tablet PC by scanning your ngerprint instead of

entering a password. This provides an added level of security

for your tablet PC and it’s also a fast and convenient way to

log on.

Power on and off

To power off your tablet PC, tap the Start menu then tap Shut

down. If Windows® does not respond, force the tablet PC to

shut down by pressing the power button for about ve

seconds.

Calibrate the pen and your nger so that they can be detect-

ed more accurately on the touchscreen display. You should

do this when you rst start using the tablet PC and when

the pointer doesn’t align with your pen or nger. To start the

calibration application, open the Motion Dashboard Pen &

Tablet category (see page 3).

Power button

Security button

Fingerprint readerBattery status light

2 J3600 Getting StartedModel T008

Using the buttons on the front of the J3600

You can use the buttons on the front of the tablet PC to perform many functions without having to use the pen. Press a button to perform

certain actions. Press and hold a button to perform a different set of actions.

Microphone and ambient light sensor

Motion Dashboard

Motion QuickNav

Directional pad

Escape

Camera shutter

Press Press and hold

Triggers the built-in

camera to take a photo Opens Windows® photo

gallery

Starts Motion

QuickNav Opens Motion QuickNav

Voice Recorder

Starts Motion

Dashboard Opens Windows®

Journal™

Turns off the display Cancels the current task—

equivalent to the Esc key

Use to move the pointer or navigate through

documents—equivalent to the arrow keys on a key-

board. The center button is equivalent to Enter.

Customizing front panel buttons

As you become more familiar with your J3600, you may want to

customize the buttons on the front panel. For example, you can

congure the buttons to start your favorite program, run a

command, or enter a key combination.

Using speech recognition

You can use speech recognition to interact with your tablet

PC by voice. Say a voice command, for example, to select an

item, open a le, scroll, select, correct or delete a word, and

much more.

Before you can use speech recognition, you must congure

the microphones and train the system for the characteristics

of your voice.

To train your computer to recognize your speech:

1. In the Control Panel, tap the Ease of Access category, then

tap Speech Recognition.

2. Tap Train your computer to better understand you.

You can also take the Speech Tutorial to learn about all the

speech recognition features.

To take the speech tutorial:

1. In the Control Panel, tap the Ease of Access category, then

tap Speech Recognition.

2. Tap Take Speech Tutorial.

For more information about speech recognition, search

Windows® Help and Support for “speech recognition.”

3 J3600 Getting StartedModel T008

Motion Dashboard

Tap the Dashboard icon to open the Motion Dash

board application. Use the Motion Dashboard to

change common tablet settings.

Windows® Taskbar

The taskbar at the bottom of your desktop displays applica-

tions that are included with your J3600.

•Motion Dashboard—Motion application that you can

use to change tablet-related settings.

•Motion QuickNav—User interface designed for touch

devices. You can use this to access the web and

documentation cameras.

Motion

Dashboard

Motion

QuickNav

Windows® taskbar

Help icon

Motion Dashboard

The following table lists some of the tasks you can perform

using the Motion Dashboard.

Category Task

Display Rotate the display orientation

Adjust the brightness of the display

Set up an external display

Audio Adjust speaker and microphone volume

Suppress background noise

Pen &

Tablet Congure touch to use your nger only, pen

only, or both your nger and a pen

Congure front panel buttons

Adjust touch to left-handed setting

Wireless Enable and disable Wi-Fi, Bluetooth®, and

mobile broadband

Choose to have wireless disabled when the

system starts up

Power Dim the display to save power

Change what the power button does when

pressed—sleep, hibernate, or shut down

Security Set up the ngerprint reader

Motion Dashboard

The Motion Dashboard provides a convenient way to change

common tablet-related settings.

To open Motion Dashboard:

•Press the Dashboard button located on the front

of the tablet PC.

•From the Windows® taskbar, tap the Motion

Dashboard icon .

4 J3600 Getting StartedModel T008

Set up wireless

The J3600 comes with built-in Wi-Fi and Bluetooth. Your

tablet PC may also be equipped with mobile broadband for

accessing the Internet. To set up available wireless networks,

follow the steps on this page:

Step 1. Enable wireless from Motion Dashboard

1. From the taskbar, tap the Dashboard icon .

2. Tap Wireless.

3. Tap the checkboxes next to all wireless networks you intend

to use:

•Enable Bluetooth Internal Wireless

•Enable 802.11 Internal Wireless

•Enable Mobile Broadband with GPS

NoTe If mobile broadband is not listed, your J3600 is not

congured with a mobile broadband module.

Step 2. Set up Wi-Fi

1. From the notication area tap the wireless network icon .

2. Select a wireless network from the list of available networks.

Step 3. Set up Mobile Broadband with GPS (optional feature)

If you purchased your J3600 with the optional mobile broad-

band module, you can connect to high-speed cellular net-

works worldwide. With the mobile broadband module and a

data plan from one of several cellular network providers, you

have full Internet access.

NoTe Before you can connect to a mobile broadband

network, you must have an active account with a

cellular network provider. Some providers require a

SIM card for mobile broadband access. If you aren’t

sure whether you need one, contact your mobile

broadband provider.

To set up mobile broadband:

1. Start the Motion Connection Manager. From the Start menu,

select

All Programs > Motion Computing > MotionCM

2. Tap the help icon and follow the instructions

provided in the topic Setting up mobile broadband.

If you purchased the optional mobile broadband module,

your tablet PC has GPS capabilities. You can use GPS with

your preferred mapping applications to nd your current

and destination locations.

To use GPS:

•From the notication area, tap the mobile broadband

icon then tap Start GPS.

Step 4. Set up Bluetooth

The J3600 has a built-in Bluetooth adapter to connect to

other Bluetooth-enabled devices.

To add a Bluetooth device:

1. From the notication area, tap the Bluetooth icon

and select Add a Device.

2. Make sure the Bluetooth device is discoverable according

to the device manufacturer’s instructions. When a Bluetooth

device is discoverable, it is visible to other Bluetooth devices

within range.

3. Select the desired Bluetooth device from the list of devices.

4. Follow the on-screen instructions.

Tip To make the J3600 visible to other devices, tap

the Bluetooth icon then select Open settings. On

the Options tab, select Allow Bluetooth devices to

connect to this computer.

5 J3600 Getting StartedModel T008

Motion QuickNav

Motion QuickNav is a user interface application that works

with both touch and a digitizer pen. You can use Motion

QuickNav to:

•Take photos and insert them directly into your

documents or email

•Add geographical information to photos if your tablet

has GPS that comes with the mobile broadband

module (see page 4)

•Record video clips

•Record or play back voice notes

Using the documentation camera

Your tablet PC may have an integrated 3-megapixel auto-

focus camera. You can use the camera to take pictures and

save them on the tablet PC. The camera lens is on the back

of the unit and includes a light to illuminate the subject.

Tip You can hide the Motion QuickNav tool bar while it’s

running. From the notication area, tap the Motion

QuickNav icon. Tap it again to reopen it.

Windows® notication area

Starting Motion QuickNav

To start Motion QuickNav:

1. Tap the Motion QuickNav icon in the taskbar.

The Motion QuickNav keyboard appears at the bottom of

your desktop.

2. Tap the Motion QuickNav tool bar icon located on the

bottom left of the keyboard to open the Motion QuickNav

toolbar.

3. Tap the QuickNav tool you want to use.

To take a photograph:

1. Open the Motion QuickNav toolbar then and tap the camera

icon to open the camera viewnder.

2. Make sure the folder icon is selected under the Actions

menu.

3. Tap the geotag icon to add geographical information

and the timestamp icon to add date and time informa-

tion to your photos.

4. Frame the subject of your photo in the viewnder and tap

the shutter icon to take the photo.

5. As you continue to take photos, they appear in the tempo-

rary folder located on the left of the viewnder.

6. Select a photo on the left to display it in the edit window.

Tap an icon from the edit toolbar at the bottom of the edit

window to make changes. For example, tap the pencil icon

to write on or highlight the photo.

7. When nished editing the photo, tap the camera icon to

return to the viewnder.

NoTe Your edits are saved automatically.

8. By default, the photos are saved automatically in a folder

called New Pictures under the Documents\Camera folder.

9. When you’re done taking photos, tap the close icon to

close the viewnder.

10. To close Motion QuickNav, tap and hold the QuickNav icon

in the notication area and select Exit.

Tip Make sure you don’t cover the camera lens located on the

back of the tablet PC.

6 J3600 Getting StartedModel T008

Tablet PC Input Panel Writing Pad

Tap the keyboard icon to open the on-screen keyboard.

Tip Resize the keyboard panel by dragging the

handle at the bottom right of the keyboard.

Enter text with the input panel

You can enter text either by tapping characters on an on-

screen keyboard or by writing on a virtual notepad. When

you write on the writing pad, your handwriting converts to

digital ink. “Digital inking” is the process of converting your

handwriting to text. In the writing pad below, someone

started writing Motion Computing and “Motion” has already

been converted into digital ink.

Tip Tap the icons at the top of the input panel to view

videos about making editing gestures. To hide the

video tips, tap the icon on the right.

Video demonstrations

of writing tips

keyboard

icon

writing

pad icon

writing

pad

To open the input panel:

•Tap at the place you want to enter text, such as

in a text box. Then tap the input pane icon.

•Tap the input panel tab on the left edge of the

screen.

To write numbers quickly, use the number pad. To open the

number pad, tap the Num key at the bottom of the writing pad.

You can use the Home, Delete, Print Screen, and other

special keys with the expanded keyboard. Tap Tools at the

top of the input panel and select Show expanded keyboard.

Tip Use the handwriting recognition application to train

the J3600 to recognize your handwriting style. To

start the application, open the Motion Dashboard Pen

& Tablet category (see page 3). Tap Pen & Input

Devices then tap the Handwriting tab.

7 J3600 Getting StartedModel T008

Battery tips

•Use AC power when available. When the J3600 is plugged

in, the battery charges while using the tablet PC.

•Put your tablet PC in Sleep mode when you’re not using it.

•Stop unnecessary background applications and processes.

•When not in use, disable wireless adapters from the

Motion Dashboard Wireless page.

•Set the brightness of the display to automatically dim

after a selected number of minutes of inactivity using the

Motion Dashboard Display page.

•When using mobile broadband, reduce how often the

J3600 updates email and other Internet applications to

perhaps once every half hour.

•Disable mobile broadband where you know a signal is

unavailable.

•Condition your battery once a month. To condition it, run

the tablet PC on battery power until the battery’s charge

level drops below 20%.

•For long-term storage, the battery should be charged to a

level between 20% and 40% and removed from the tablet

PC.

For more power tips, see Motion Computing Tips and Tricks.

Using the battery

The J3600 includes two battery bays for high-capacity Lithi-

um-ion batteries. Under normal conditions, you can run the

tablet PC on battery power for about 3.5 hours with 1 battery

and about 7 hours with 2 batteries.

If a second battery is not installed, the second bay holds a

non-functioning battery cartridge.

Checking battery power

You have several options to check the remaining battery

power:

•Open the Motion Dashboard Power page and view the

value under Remaining charge.

•From the notication area, tap the power indicator, which

looks different depending on whether the tablet PC is

plugged in or running on battery.

– If the tablet PC is plugged in, tap the plug icon.

– If the tablet PC is on battery power, tap the battery

icon.

•From the battery status light located on the right side of

the J3600 (see page 1).

Green indicates that the battery is fully charged.

Amber means that the battery is charging.

If the light is not on, the battery is not charging and the

tablet PC is running on battery power. Pen and Touch tips

•You can change from right- to left-handed use. From

Motion Dashboard Pen & Tablet category, tap Tablet PC

Settings, tap the Other tab, then tap Left-handed.

•You can open items with one tap instead of two and

select an item by pointing to it. From the Control Panel,

tap Appearance and Personalization, Folder Options,

then tap Specify single- or double-click to open. Tap

Single-click to open an item (point to select).

8 J3600 Getting StartedModel T008

http://www.facebook.com/MotionComputing

Motion Computing and Motion are registered trademarks of Motion Computing, Inc. in the United States and other countries. All other trademarks are

properties of their respective owners. Microsoft, Windows, and Windows Journal are trademarks or registered trademarks of Microsoft Corporation in the

United States and/or other countries.

PN 024-02-0356-A00

Learn more

The purpose of this Getting Started document is to introduce

you to your tablet PC’s features and provide you with tips for

you to become familiar with your tablet PC quickly.

The J3600 User’s Guide provides detailed information about

the features introduced here. You can view this and other

J3600 manuals at motioncomputing.com/docs.

In addition to our manuals, you can get information from

these pages on our website:

•Motion Support

•Motion Knowledge Base

•Free online training videos

•J3600 accessories

•Software for the J3600 Tablet PC

General tips

•Use only the J3600 pen or your nger on the display. The

tablet doesn’t respond to any other type of pen or stylus.

•Store the pen in the pen bay when not in use. To store the

pen in the pen bay, insert it into the bay and press it until

it clicks. To remove the pen, press it again. If you have

the pen tether attached, ensure that you release the pen

before you pull it out using the tether.

•When attaching the pen tether, slip one end of the tether

through the hole at the end of the pen and pull the pen

through the loop until it’s tight. Then, slip the other end

of the tether through the attach point and pull the pen

through the loop until it’s tight.

•Clean ngerprints and smudges from the display surface

by wiping it with the display cloth provided. If needed,

use a cleaning solution recommended by Motion

Computing to clean the display. Spray the solution on the

cloth then wipe the display. See the recommended list of

tested solutions on our website.

•You can nd the serial number of the tablet PC in one of

the battery bays of the tablet PC.

Table des matières

Autres manuels Motion Computing Comprimé

Motion Computing

Motion Computing CFT-003 Manuel d'installation et d'exploitation

Motion Computing

Motion Computing CL900 Manuel utilisateur

Motion Computing

Motion Computing LE1600 Manuel utilisateur

Motion Computing

Motion Computing Motion C5v Manuel utilisateur

Motion Computing

Motion Computing M1400 Manuel utilisateur

Motion Computing

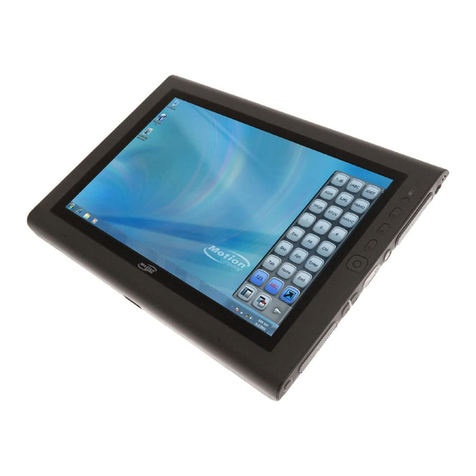

Motion Computing J3500 Manuel utilisateur

Motion Computing

Motion Computing R001 Manuel utilisateur

Motion Computing

Motion Computing CL910 FWS-001 Manuel utilisateur

Motion Computing

Motion Computing CL910 FWS-001 Manuel utilisateur

Motion Computing

Motion Computing J3400 Manuel utilisateur

Motion Computing

Motion Computing LE1700 Series Manuel utilisateur

Motion Computing

Motion Computing C5 Manuel utilisateur

Motion Computing

Motion Computing LE1600 Manuel utilisateur

Motion Computing

Motion Computing CFT-003 Manuel utilisateur

Motion Computing

Motion Computing C5 Manuel utilisateur

Motion Computing

Motion Computing M1200 Manuel utilisateur

Motion Computing

Motion Computing LE1700 Series Manuel utilisateur

Motion Computing

Motion Computing Motion C5v Manuel utilisateur

Motion Computing

Motion Computing Motion F5 Manuel utilisateur

Motion Computing

Motion Computing J3500 T008 Manuel utilisateur

Motion Computing

Motion Computing J3500 Manuel utilisateur

Motion Computing

Motion Computing FWS-001 Manuel utilisateur

Motion Computing

Motion Computing LE1600 Guide de référence rapide

Motion Computing

Motion Computing C5t Manuel utilisateur

Manuels Comprimé populaires d'autres marques

Laser

Laser MID-1060 Guide de l'utilisateur

MUNBYN

MUNBYN IRT09J Guide de démarrage rapide

Motorola

Motorola MC3090R - Win CE 5.0 Professional 520 MHz Manuel utilisateur

Dell

Dell Latitude ST Manuel du propriétaire

Lenovo

Lenovo IdeaTab S6000L Manuel du propriétaire

Venturer

Venturer WT9L11 Manuel utilisateur

EDUGEAR

EDUGEAR UnoBook Manuel utilisateur

Philips

Philips PI3210G/58 Manuel utilisateur

ADLINK Technology

ADLINK Technology IMT-BT Manuel utilisateur

TwinMOS

TwinMOS TwinTAB-T102D1 Manuel utilisateur

Archos

Archos 9.7 xenon Manuel utilisateur

Getac

Getac E100 Manuel utilisateur

HANNspree

HANNspree HANNspad SN70T3 Manuel utilisateur

Philips

Philips PI3105W2/55 Manuel utilisateur

LG LG-V935 Manuel utilisateur

Zeki

Zeki TBDB763B Manuel utilisateur

Ricoh

Ricoh eQuill Manuel utilisateur

DT Research

DT Research DT365CT Instructions de montage
