Health and Safety

•WARNING: Whenever the cleaner is in use, due to

the risk of entrapment in rotating parts, keep loose

clothing, hair, fingers etc. away from the brush bar,

nozzle and any handheld accessories.

•WARNING: Disconnect from the mains supply and

remove the handheld vacuum cleaner (12) before

carrying out any routine maintenance, such as

cleaning any blockages, changing any filters or

accessing the floor nozzle.

•This appliance can be used by children aged from 8

years and above and persons with reduced physical,

sensory or mental capabilities, or lack of experience

and knowledge, if they have been given supervision

or instruction concerning the use of the appliance in

a safe way and understand the hazards involved.

•Children shall not play with the appliance.

•Cleaning and user maintenance shall not be

undertaken by children without supervision.

Personal safety

• WARNING: Only lift the product by the upright handle

(4) and never pick the cleaner up by the floor nozzle.

•To prevent accidental contact with the rotating brush,

always remove the handheld unit before fitting, removing

or cleaning the motorised floor brush (19).

•Never use in the presence of explosive liquid or vapours.

•Never pick up inflammable or poisonous liquids such as

petrol, copier toner or other volatile substances. Never

pick up acids, asbestos or asbestos dust.

•Never touch the adaptor, product or cable with wet

hands.

•Unprofessional repairs can be dangerous for users.

•To protect against fire, electric shock and personal injury,

do not immerse cord, adaptor or cleaner in water or other

liquid.

•The appliance must never be left running unsupervised.

Location

•Do not use or keep this product outside.

•Do not store the appliance near hot surfaces eg. ovens or

heating appliances.

Product safety

•This appliance is not intended for liquid/wet pick up.

•Never use the appliance without the filter being installed.

•Never use the appliance to vacuum hot ashes, broken

glass, sharp objects or liquids.

•Never modify the cleaner in any way.

•Use only Morphy Richards spare parts and accessories.

Electrical requirements

•Check that the voltage on the rating plate of the charging

adaptor corresponds with your house electricity supply

which must be A.C. (Alternating Current).

•Only use the charging cradle (15) supplied with the unit.

•The battery is not a serviceable item. It should only be

removed at the end of the product’s life for recycling.

•Should the fuse in the mains plug require changing, a 13

amp BS1363 fuse must be fitted.

The use of any electrical appliance requires the following common sense safety rules.

Please read these instructions carefully before using the product.

VC70485MUK Rev4_Instruction Book 10/09/2012 15:34 Page 2

Health and safety .......................................................................

Electrical requirements ..............................................................

Product overview / Features .....................................................

Dual functionality .......................................................................

Upright vacuuming: assembly ..................................................

Charging .....................................................................................

Using in upright mode ...............................................................

Handheld vacuum cleaning ......................................................

Using the attachments on the handheld vacuum cleaner .......

Tool storage ...............................................................................

Maintenance ..............................................................................

Emptying the dust canister .......................................................

Maintenance - filter ....................................................................

Storage .......................................................................................

Disposal ......................................................................................

Notes ..........................................................................................

Guarantee ...................................................................................

Contents

8-9

10-11

VC70485MUK Rev4_Instruction Book 10/09/2012 15:34 Page 3

Features

(1) Crevice tool

(2) Upholstery nozzle

(3) Dusting brush (attaches to

upholstery nozzle (2))

(4) Upright handle

(5) Upright On/Off button

(6) Upright handle release

button

(7) Main vacuum cleaner body

(8) Handheld vacuum cleaner

release button

(9) Handheld vacuum cleaner

handle

(10) Handheld vacuum cleaner

On/Off button

(11) Dust canister release

button and charging /

power indicator light

(12) Handheld vacuum cleaner

(13) Dust canister

(14) Dust canister filter

(15) Charging cradle

(16) Accessory holder

(17) Floor brush release button

(18) Floor brush power indicator

light

(19) Motorised floor brush

(20) Charging cradle base

(21) Mains plug

Product overview

VC70485MUK Rev4_Instruction Book 10/09/2012 15:34 Page 4

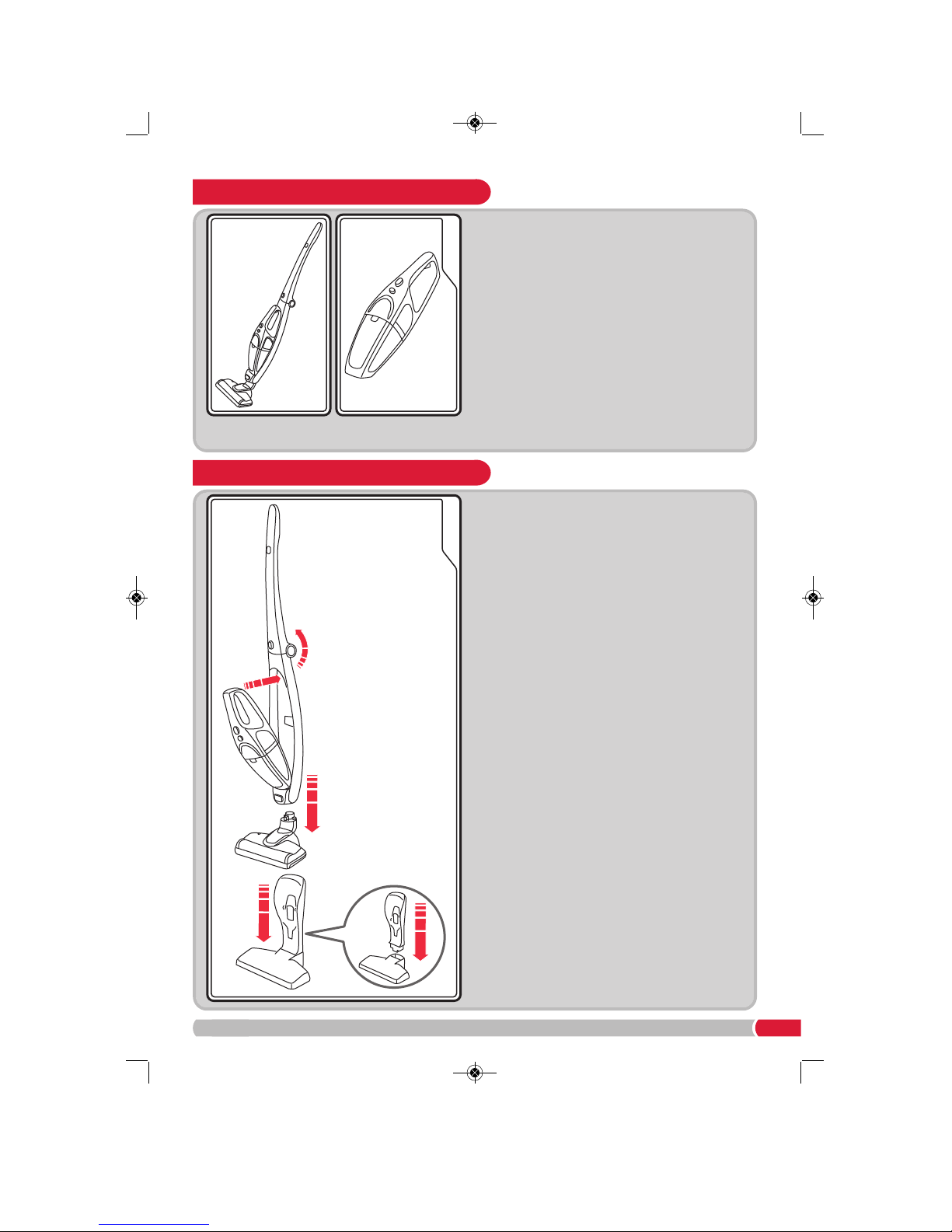

Dual functionality

Upright vacuuming Handheld vacuum

cleaner

Your vacuum cleaner can easily be configured

into two different cleaning modes:

•Upright vacuum cleaner for floors and carpets.

•Handheld vacuum cleaner (12) which can be

carried with you whilst cleaning hard to reach

places.

Upright vacuuming: assembly

1Assemble the charging cradle (15) onto the

charging cradle base (20). Securely click it into

place.

Place the assembled charging cradle on a flat,

stable surface.

2Swing the upright handle (4) on the main vacuum

cleaner upwards until it clicks into place in an

upright position.

3Place the motorised floor brush (19) on a level

surface and align the connector on the neck of

the motorised floor brush with the connector hole

on the base of the main vacuum cleaner body (7).

Holding the neck of the motorised floor brush in

place, lower the main vacuum cleaner body onto

the motorised floor brush until you hear the two

pieces click into place.

When attaching the motorised floor brush, ensure

that the latching mechanism is fully locked in

place to ensure electrical connection is made.

4Fit the handheld vacuum cleaner (12) into the

cavity on the main vacuum cleaner body by firstly

sliding the suction end into place over the suction

hole in the main vacuum cleaner body cavity, then

push the handle end in to place until a click is

heard.

5With the handheld vacuum cleaner in place on the

main vacuum cleaner body, insert the vacuum

cleaner into the charging cradle, ensuring that the

lip on the rear of the main vacuum cleaner body

hooks onto the notch on the concave section of

the charging cradle.

VC70485MUK Rev4_Instruction Book 10/09/2012 15:35 Page 5

Using in upright mode

Turn the product On by using either the upright

On/Off button (5) or the handheld vacuum

cleaner On/Off button (10).

The handheld vacuum cleaner power indicator

light (11) and the floor brush power indicator

light (18) will illuminate green.

NOTE: When the battery reduces to a pre-set

level the product will stop, the light will

extinguish and the product must be recharged.

If the motorised floor brush (19) is stalled, eg.

by a foreign object or if used on very deep pile

carpet, the floor nozzle indicator light will

extinguish. Switch off, remove the cause of the

stall, and leave for a few minutes to allow the

floor nozzle protection to self reset.

To clean the motorised floor brush, you must

remove the handheld vacuum cleaner as shown

in ‘Handheld vacuuming’, page 7. Then, press

the floor brush release button (17) and pull the

motorised floor brush away.

Turn the floor brush over to inspect the brush

bar.

Using a coin, turn the locking button on the

brush bar cover anti-clockwise from the

position to the position.

Remove the brush bar end cover and lift the

brush bar out. Pull away any hairs or fibres from

the brush bar. If they are tightly wound around

the brush, carefully snip the fibres with scissors,

being careful not to damage the rotating brush

bar, pull away from the rotating brush bar and

dispose of.

Charging

Connect the mains plug (21) into the mains supply.

Locate the vacuum cleaner on to the charging

cradle (15). The indicator light (11) will glow red

whilst charging and turn green when fully charged.

A full charge may take 5 hours.

When fully charged, the battery will stay charged

for many days, however, we recommend leaving the

cleaner continuously on trickle charge so the

batteries are always full.

VC70485MUK Rev4_Instruction Book 10/09/2012 15:35 Page 6

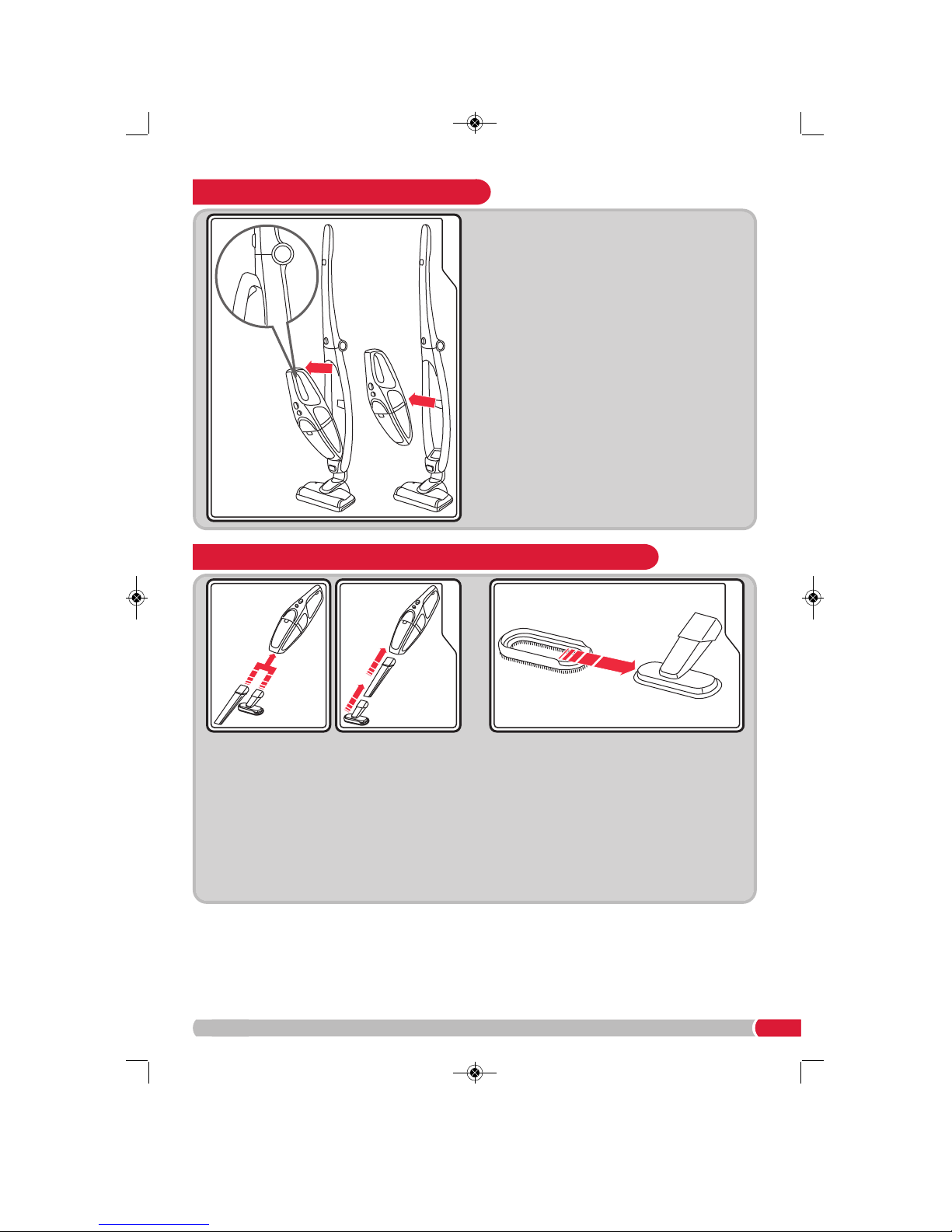

Using the attachments on the handheld vacuum cleaner

Push the accessories (1) or (2) into the suction

inlet on the end of the handheld vacuum

cleaner.

Alternatively, for extra reach, attach the

accessories together and push the assembly

into the suction inlet on the end of the

handheld vacuum cleaner.

Handheld vacuum cleaning

This function is ideal for cleaning stairs,

curtains, upholstery and hard to reach places.

1To separate the handheld vacuum cleaner (12)

from the main vacuum cleaner body (7), press

the handheld vacuum cleaner release button (8).

2Pull the handheld vacuum cleaner away from

the main vacuum cleaner body (7).

•After use, return the handheld vacuum cleaner

(12) to the cavity on the main vacuum cleaner

body (7) by firstly sliding the suction end into

place over the suction hole in the main vacuum

cleaner body cavity, then push the handle end

in to place until a click is heard.

List of attachments

Crevice tool (1) for awkward places, corners

and behind radiators etc. This tool is also

useful on stairs.

Upholstery nozzle (2) for carpet, upholstery

and stairs etc.

Dusting brush (3) for carpet, upholstery and

stairs etc. The dusting brush (3) attaches to

the upholstery nozzle (2) by sliding on from

the side as shown above.

VC70485MUK Rev4_Instruction Book 10/09/2012 15:35 Page 7

When not in use, the attachments may be stored

on the charging cradle base (20). Assemble the

dusting brush (3) onto the upholstery nozzle (2)

and push them onto the crevice tool (1). Then

push this assembly onto the accessory holder

(16) on the charging cradle (15).

WARNING: Always remove the handheld vacuum

cleaner from the main vacuum cleaner body and

the charger from the mains supply before

undertaking any maintenance or cleaning

procedures.

Your cleaner is manufactured to withstand normal

day-to-day use, but an occasional wipe over with

a damp cloth will help maintain its good looks.

Take care not to get the electrical connections wet.

Abrasive cleaners should not be used.

Empty the dust canister (13) regularly even if it

does not look full, this will maintain the

performance.

1. Remove the handheld vacuum cleaner (12) from

the main vacuum cleaner body (7) (see ‘Handheld

vacuuming’, page 7).

2. Press the dust canister release button (11) and

pull the dust canister away from the handheld

vacuum cleaner.

3. Remove the dust canister filter (14) and empty the

dirt from inside the dust canister.

4. If the filter (14) is not washed as instructed in

‘Maintenance - filter’, it is recommended that the

filter is brushed or tapped clean before refitting

on each empty of the dust canister.

5. Replace the filter into the dust canister (13), then

replace the dust canister back onto the handheld

vacuum cleaner.

6. Replace the handheld vacuum cleaner (12) back

into the main vacuum cleaner body (7) if upright

cleaning.

The guarantee may be invalidated if the motor is

damaged due to: using the appliance without

the filter installed; not cleaning the filter; or not

replacing a damaged filter.

Cleaning the dust canister filter

To maintain suction, the dust canister filter must

be cleaned each time the dust canister (13) is

emptied.

1. Follow steps 1-4 of ‘Emptying the dust canister’.

2. Pull the filter out from the filter assembly (14).

Also, open the lid to the cyclone cone and clean

the cyclone.

3. Every month, wash the filter in luke-warm water

and thoroughly air dry before re-fitting.

IMPORTANT: Do not wash filters with hot water

or detergents.

Maintenance

Emptying the dust canister

Tool storage

Maintenance - filter

VC70485MUK Rev4_Instruction Book 10/09/2012 15:35 Page 8

IMPORTANT: Do not use heated appliances to

dry filters.

4. Replace the filter into the dust canister (13) then

replace the dust canister back onto the handheld

vacuum cleaner (12).

5. Replace the handheld vacuum cleaner back into

the main vacuum cleaner body (7) if upright

cleaning.

Fit the handheld vacuum cleaner

(12)

back into

the cavity on the main vacuum cleaner body

(7)

firstly sliding the suction end into place over the

suction hole in the main vacuum cleaner body

cavity, then push the handle end in to place until a

click is heard.

Insert the assembled upright unit into the

charging cradle

(15)

The upright handle

(4)

is collapsible for compact

storage by pressing the upright handle release

button

(6)

Place the tools onto the accessory holder

(16)

(see ‘Tool storage’, page 8).

WARNING: When locking the handle, keep this

area clear. Be careful not to trap your fingers or

any loose items of clothing etc

When the product reaches the end of

its useful life, it must not be disposed

of in normal household waste. The

product must be disposed of at an

authorised recycling plant.

The handheld vacuum cleaner (12) should only be

disassembled by a competent engineer and the

battery removed and disposed of at an authorised

recycling plant.Your local authority will have a

centre which accepts such waste for recycling.

WARNING: Batteries and products containing

batteries must never be disposed of in fires.

Helpline

If you are having a problem with your appliance,

please call our Helpline, as we are more likely to

be able to help than the store you purchased the

item from.

Please have the product name, model number

and serial number to hand when you call to help

us deal with your enquiry quicker.

UK Helpline: 0844 871 0960

IRE Helpline: 1800 409 119

Spares: 0844 873 0726

Talk To Us

If you have any questions or comments, or want

some great tips to help you get the most out of

your products, join us online:

Blog: www.morphyrichards.co.uk/blog

Facebook: www.facebook.com/morphyrichardsuk

Twitter: @loveyourmorphy

Website: www.morphyrichards.com

Storage

Disposal

Batteries

NiMH

VC70485MUK Rev4_Instruction Book 10/09/2012 15:35 Page 9

Notes

VC70485MUK Rev4_Instruction Book 10/09/2012 15:35 Page 10

Autres manuels pour Supervac

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Morphy Richards Aspirateur

Morphy Richards

Morphy Richards SpillMaster Manuel utilisateur

Morphy Richards

Morphy Richards 73380 Manuel utilisateur

Morphy Richards

Morphy Richards Storm pets cylinder vacuum cleaner Manuel utilisateur

Morphy Richards

Morphy Richards ESSENTIALS CYLINDER VACUUM CLEANER - REV 3 Manuel utilisateur

Morphy Richards

Morphy Richards PERFORMAIR CYCLONIC VACUUM CLEANER Manuel utilisateur

Morphy Richards

Morphy Richards Supervac Sleek Pro Manuel utilisateur

Morphy Richards

Morphy Richards PerformAir Upright Vacuum Manuel utilisateur

Morphy Richards

Morphy Richards IB71061 Manuel utilisateur

Morphy Richards

Morphy Richards ESSENTIALS BAGLESS VACUUM CLEANER - REV 1 Manuel utilisateur

Morphy Richards

Morphy Richards Bagless Cylinder Vacuum Cleaner Manuel utilisateur

Morphy Richards

Morphy Richards Pod vacuum cleaner Manuel utilisateur

Morphy Richards

Morphy Richards CYCLONIC BAGLESS VACUUM CLEANER - REV 4 Manuel utilisateur

Morphy Richards

Morphy Richards IB73301 Manuel utilisateur

Morphy Richards

Morphy Richards Bagged cylinder Vacuum Manuel utilisateur

Morphy Richards

Morphy Richards Essentials 73179 Manuel utilisateur

Morphy Richards

Morphy Richards Upright Bagless Vacuum Cleaner Manuel utilisateur

Morphy Richards

Morphy Richards VC73240MUK Manuel utilisateur

Morphy Richards

Morphy Richards 71077 VACUUM CLEANER Manuel utilisateur

Morphy Richards

Morphy Richards IB70313 Manuel utilisateur

Morphy Richards

Morphy Richards ESSENTIALS CYCLONIC BAGLESS UPRIGHT VACUUM CLEANER - REV... Manuel utilisateur

Morphy Richards

Morphy Richards VC73410 MUK Manuel utilisateur

Morphy Richards

Morphy Richards 73332 Manuel utilisateur

Morphy Richards

Morphy Richards GrimeBuster steam cleaner Manuel utilisateur

Morphy Richards

Morphy Richards 700006 Manuel utilisateur

Manuels Aspirateur populaires d'autres marques

Bissell

Bissell LittleGreen Proheat 1425 Series Manuel utilisateur

Panasonic

Panasonic MC-YL637S147-AE Manuel utilisateur

NEFF

NEFF N17XH10 0 Series Manuel utilisateur

LG A9 Series Manuel utilisateur

Oreck

Oreck Cordless Captura BK51700 Series Manuel utilisateur

Kogan

Kogan KAVACROBVWA Manuel utilisateur

Kränzle

Kränzle VENTOS 50 ID Guide de l'utilisateur

EVVO

EVVO Ai35 Manuel utilisateur

DeWalt

DeWalt DWH200D Manuel utilisateur

Pontec

Pontec Pondomatic Vacuum Cleaner Manuel utilisateur

Cleanmaxx

Cleanmaxx PC-P007E Manuel utilisateur

Exido

Exido 240-114 Manuel utilisateur

RIDGID

RIDGID WD1685AU0 Manuel utilisateur

Ezviz

Ezviz RE4P Manuel utilisateur

STG global

STG global TANVAC HDV3000 Manuel utilisateur

Shark

Shark ROTATOR PRO COMPLETE NV550 Series Manuel utilisateur

Factory

Factory M3340 Manuel utilisateur

Shop-Vac

Shop-Vac VN92 SERIES Manuel utilisateur
