Morphy Richards EG820C2LP-PM Instructions de montage
Version 2 31/03/2021
MICROWAVE
OVEN
Installation & User Instructions –
Please keep for future reference
EG820C2LP(F)-PM
1
Version 2 31/03/2021
Contents
3
7
8
9
10
10
11
11
12
12
13
14
15
16
17
18
19
23
24
25
26
27
28
29
Safety infor
mation……………………………………………………
Installation…………………………………………………............…
Parts and assemb
ly……………………………………………………
Control panel………………………………………………..............……
Setting the clock…………………………………………………...
Stop cooking / Cancel…………………………………………
Control panel lock………………………………………………
Kitchen Timer………………………………………………......
Selecting microwave oven power……………………………
Express microwave mode ……………………………………
…………
Microwave cooking……………………………………………….........……
Defrosting
…………………………………………………………………
Grill cooking……………………………………………………………………
Multistage cooking…………………………………...……………
Memory cooking……………………………………………………
Auto cook function……………………………………………………
Cleaning your oven…………………………………………........…
Materials suitable for use in the ov
en…………………............….
General microwave cooking ad
vice……………………..............5....……
Troub
leshooting……………………………………………………
Tec
hnical Specification……………………………………..........….
Recyc
ling electrical products……………………………................…
Plug re
wiring…………………………………………………............…
Guar
antee………………………………………………………………………………
Combination cooking
…………………………………………………
32
2
Version 2 31/03/2021
Safety information
Important –Please read these instructions fully before
installation
•WARNING: It is hazardous for anyone other than a
competent person to carry out any service or repair
operation that involves the removal of a cover that gives
protection against exposure to microwave energy. Servicing
of this appliance must only be carried out by a qualified
electrician.
•WARNING:If the door or door seals are damaged, the oven
must not be operated until it has been repaired by a
competent person. Do not operate this appliance if
damaged or modified in any way.
•Keep the appliance and its cord out of reach of children less
than 8 years.
•When operating in combination or grill modes, the oven
becomes extremely hot. Do not allow children to use the
appliance without adult supervision
•This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning
use of the appliance in a safe way and understand the
hazards involved. Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by
children unless they are aged from 8 years and above and
supervised.
•Switch off and unplug before cleaning or servicing the
appliance.
•Keep microwave, cable and plug dry and away from areas
where it is likely to get splashed. Never immerse in water.
Never clean with a steam cleaner.
•Do not pull on the cable to disconnect from the mains supply.
3
Version 2 31/03/2021
•This oven must be positioned so that the plug is accessible
and the plug socket is within easy reach of the power cord.
•Do not operate the microwave if damaged or after it
malfunctions. In the event the supply cord is damaged, it
must only be replaced by a qualified service engineer, with a
suitably approved part.
•Do not place items with naked flames or containers with
liquids on this appliance.
•The mains plug shall be connected into a mains socket outlet
with a protective earth connection.
•All microwaves are tested and approved in accordance with
current electromagnetic safety and compatibility regulations
and standards. As a precautionary measure, pacemaker
manufacturers recommend wearers to keep a minimum
distance of 20-30 cm between an operating microwave oven
and the pacemaker in order to avoid possible interference
with the pacemaker. If you suspect there may be interference,
turn the microwave off immediately and contact the
manufacturer of the pacemaker.
WARNING!
•This appliance is not intended to be used in: staff kitchen
areas in shops, offices and other working environments; farm
houses; by clients in hotels, motels and other residential
type environments; bed and breakfast type environments.
•This appliance must not be operated by a timer or a separate
remote control system.
•Liquids and other foods must not be heated in sealed
containers since they are liable to explode.
•Microwave heating of beverages can result in delayed
eruptive boiling; therefore care must be taken when handling
the container.
•If you are preparing food or liquid for a baby stir or shake
the contents and check the temperature before consumption
in order to avoid burns.
4
Version 2 31/03/2021
WARNING! (continued)
•
•
•
•
•
•
•
•
•
•
•
•
•
Never cook or heat eggs in their shell or whole hard boiled
eggs, as they may explode even after cooking in the
microwave has been completed.
The oven should be cleaned regularly and any food deposits
removed – see page 23 for details. Failure to maintain the
oven and seals in a clean condition could lead to
deterioration of the surface or seals, adversely affect the life
of the oven and possibly result in a hazardous situation.
Never operate the oven when empty and avoid leaving
unattended during use.
Do not cover and allow adequate ventilation – see page 7 for
clearance required.
The surfaces of the oven and the containers inside
will become hot during and immediately after use;
wear oven gloves when handling.
Check regularly during cooking cycle especially when using
plastic or paper containers to ensure food and containers do
not ignite.
If smoke is emitted, switch off or unplug the appliance and
keep the door closed in order to stifle any flames.
Do not use oven on, near or under flammable or heat
sensitive items.
Do not place foil wrapped food, metal containers or
containers with metal parts or trim when using the
microwave or combination oven.
Do not use with a cracked or missing turntable or without
the turntable ring.
The microwave oven is intended for heating food and
beverages. Drying of clothing and heating of warming
buttons, slippers, sponges, damp cloth and similar may lead
to risk of injury, ignition or fire.
Always check for container and utensil suitability before
using in the microwave oven - see page 24 for advice.
The appliance must not be placed in a cabinet.
5
Version 2 31/03/2021
FOOD SAFETY
•Do not cook raw meat or raw shellfish in a microwave, due
to the possibility for uneven heating.
•Do not use microwave for home canning or bottling.
Improperly canned or bottled foods may spoil and be
dangerous to eat.
•Always check the temperature of food before serving.
•Food cooking times will vary with microwave wattage (MAFF
rating). When following recipes and on pack cooking
instructions always check the MAFF rating / wattage of the
appliance being used (marked on the front of the microwave)
and follow the corresponding cooking advice.
6
Version 2 31/03/2021
Installation
•This microwave is designed to be free standing and is not
intended to be used ‘built in’ or in a cabinet.
•Select a level surface away from televisions, cookers and
other heat producing appliances.
•Ensure adequate ventilation and allow a clearance of
➢at each side of the oven20cm
➢0cm clearance above the oven3
➢10cm at the rear of the oven
➢The minimum installation height is 85cm
•Ensure that the cable is not close to any sharp or hot
surfaces, or where it is likely to cause a trip hazard.
20cm
30cm
20cm
min85cm
0cm1
7
Version 2 31/03/2021
Parts and assembly
1. Interlocking catches
3. Turntable shaft
4. Control panel
5. Door with viewing panel
6. Glass turntable
7. Grill Rack
8. Grill element
9. Door release button
2. Turntable roller
23
4
6
1
59
7 8
•Ensure all packaging materials, protective film and adhesive
tape are removed and check the oven and door for any
damage. Do not remove the waveguide cover.
•Assemble as shown above and ensure that the glass
turntable is correctly positioned on the shaft and roller.
•When using the microwave do not fit the grill rack.
•When using the grill, place the grill rack onto the glass
turntable.
•Always check for damage before using the grill rack. It is
not advised to use the rack when microwave or
combination cooking.
• The grill rack is not allowed to be used in combi cooking.
8
Version 2 31/03/2021

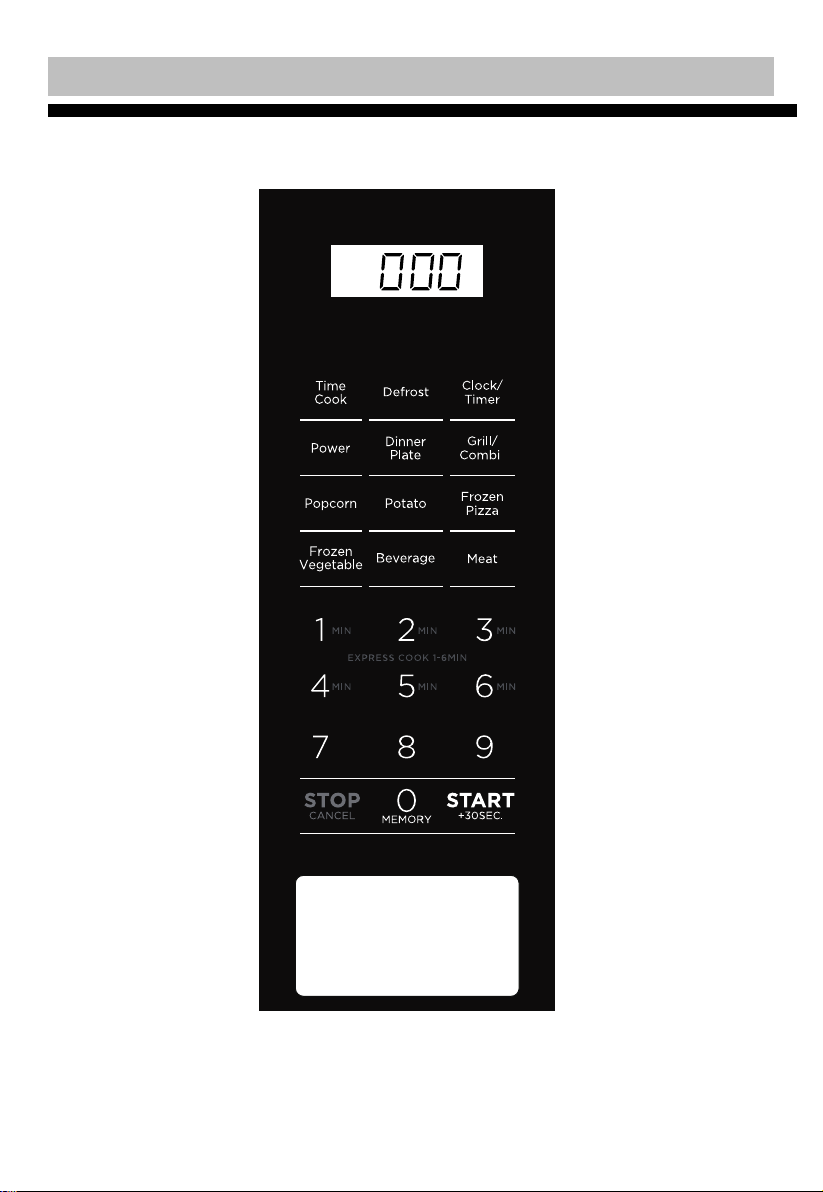

Control panel
•
.
.
9
Version 2 31/03/2021
Setting the clock
Stop cooking / Cancel
1. Fully unwind the cable, plug in and switch on. The microwave will emit
a single bleep and the display will show 0:00.
2. Press CLOCK/TIMER pad once, 00:00 will display.
3. Press the number pads to enter the correct time. For example, the
time is 8:15 now, please press 0-8-1-5 in turn.
4. Press CLOCK/TIMER to save the setting.
Notes:
• It is a 24-hour clock.
• In the process of clock setting, if the STOP/CANCEL pad is pressed or if
there is no operation within 1 minute, the oven will go back to the
former setting automatically.
• If the oven is unplugged or turned off at the mains the clock setting will
be lost.
• To check the time during oven operation, press the CLOCK/TIMER pad
and the time will display briefly before returning to the countdown
timer.
The oven can be stopped at any time by pressing the STOP/CANCEL
pad or by opening the door.
If the oven door is OPEN, press the STOP/CANCEL pad ONCE to clear
all settings.
If the oven door is CLOSED, press the STOP/CANCEL pad TWICE to
clear all settings.
•
•
•
10
