MORLEY SPRINGWOUND Manuel utilisateur

Buy A Morley. And Step On It.

SPRING REPLACEMENT INSTRUCTIONS FOR:

MARK 1, VAI-1, VAI-2, PBA, PBA-2, NSW OR WAH-SP (wound spring style)

Follow the below instructions to replace a broken or fatigued spring on any of the above

mentioned pedal models.

Tools you will need:

-12 mm nut driver

-5/16” nut driver

-1/4” nut driver

-Phillips Screwdriver (medium tip)

-Long tip Needle-nose pliers (2” long tip)

-3/8” Wrench (Open end or Box end)

DISASSEMBLY

1) Remove four bottom cover screws using Phillips screwdriver.

2) Remove bottom cover.

3) Remove two Chrome jack nuts and black plastic rings from 1/4” input and output jacks.

4) Remove four 1/4” nuts that hold down circuit board.

5) Slip battery snap out from battery foam slit.

6) The circuit board can now be removed from base.

7) Remove four 5/16” nuts, four 6-32 x 1/2” Phillips pan head screws and three washers that attach base to

treadle.

8) The base, treadle and spring will be completely disassembled at this point. Discard old spring.

CAUTION: Coiled spring steel version may have sharp edges especially where a break has occurred!

ASSEMBLY

1) Diagram 1 indicates the direction in which the spring should when assembled. The short side of the spring

(also indicated in diagram #1) should rest on the surface of the bracket. Although the diagrams show a pedal

with a base, the spring is to be assembled to the treadle/treadle bracket first.

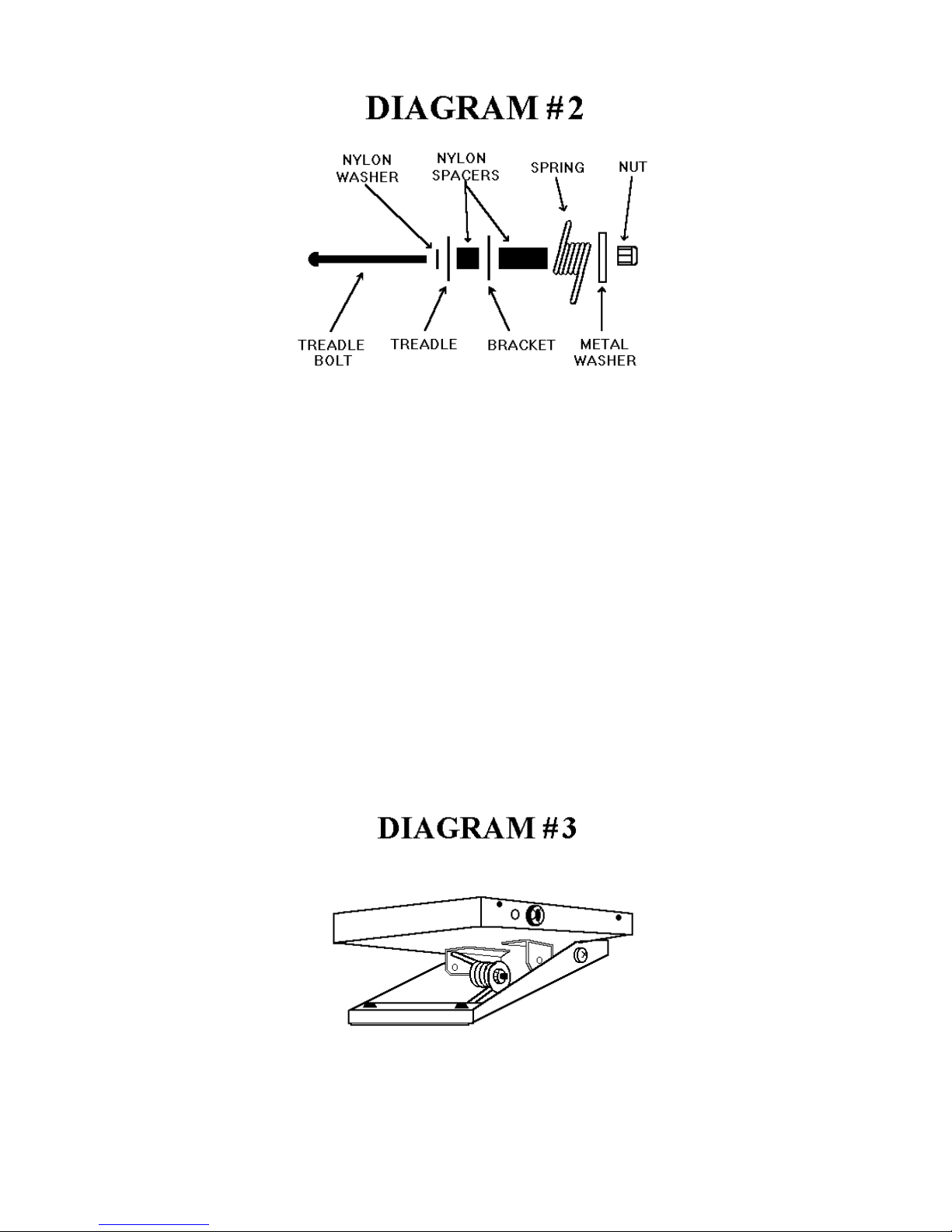

2) Diagram #2 shows the proper assembly order of spring and associated components.

3) Place all components (per diagram #2) into place.

4) Place base onto treadle and align screw hole openings in base to line up with holes in treadle bracket.

5) Place a int. tooth washer on 6-32 a 1/2” screw. Using the needle-nose pliers, hold the 6-32 x 1/2” Phillips

pan head screw by the head and insert from underside of treadle bracket. (The thread should stick up in the

inside of the pedal base) Replace washer and 5/16” nut. Repeat for three remaining mounting locations. Do

not tighten any of the four nuts yet.

6) Align and center treadle to base. This can be accomplished by setting the pedal assembly on its heel end,

pushing the treadle as far toward the toe end as possible and visually centering the treadle so it is not cocked

to the right or left. This is important so the shutter is located properly between the optics.

7) Tighten the four 5/16” nuts thoroughly.

8) Set the screw tightness on each side of the treadle. To accomplish this, place the 3/8” wrench on the nut

located on the inside of the treadle/bracket assembly. Tighten bolt all the way down and loosen it one half turn

to allow treadle to move freely. Repeat for opposite side.

9) Replace circuit board, four 1/4” nuts, two black plastic rings & two chrome jack nuts.

10) Insert battery snap through the slit in battery foam.

11) Perform sound test to verify wah setting is still within acceptable range.

12) Replace bottom cover and bottom cover screws.

13) Diagram #3 shows the assembled spring.

If you need further assistance, please call 1-800-284-5172

Bill Wenzloff ext 12

Chad Montrose ext 14
