Morgan Olson C250 Manuel

C250

OPERATOR’S GUIDE

MORGAN OLSON

DISCLAIMER: The information contained in this publication was correct at the time of going to print. In the interest of continuous

development, we reserve the right to change specications, design, or equipment at any time without notice or obligation.

Contact Information:

1801 South Nottawa Street Sturgis, Michigan 49091

1 (800) 233-4823

www.morganolsonparts.com 800-262-3437

www.morganolson.com/after-sale-care/

Warranty Department:OEM Parts Support:

This manual is a supplement to the original equipment Ford F150 owner’s manual. Information contained in this manual supersedes

all applicable text in the F150 owner’s manual.

PART# 49013981 GOE OPER C250 MORG/OLS

TABLE OF CONTENTS

PAGE PAGE

1-6 Instrument Panel 27 Cargo Area

7-12 Instrument Cluster 28-32 Vehicle Systems Controls

13-23 Cab Features 33 Hood Release

24 Keyless Operation 34-36 Maintenance

25 Curbside Front Exterior 37-42 Headlights

26 Roadside Rear Exterior 43 Vehicle Information Labels

44 Customer Information

F150 Owner’s Manual:

Enter your vehicle details to view

www.ford.com/support/owner-manuals/

Page 4 Page 5

Page 4

4 Page 4

INSTRUMENT PANEL GEAR SHIFT

The gear shift system features a manual

shift mode. The manual shift mode can

be selected by pressing the (M) button

on the shifter, then using the (+) and (-)

switches on the shifter lever.

NOTE: Your vehicle must be in drive (D)

to activate manual mode.

STEERING WHEEL

See page 13 for details on adjusting the

steering wheel.

1 2 3

7654

4 Page 1

FOUR-WHEEL DRIVE (if equipped)

The four-wheel drive system is designed

to continuously monitor and adjust power

delivery to the front and rear wheels to

optimize traction. The system is designed

to control and prevent wheel slip.

2H Two-Wheel High - Standard for

on-road driving

4H Four-Wheel High - Locked

four-wheel drive operation

for use in o󰀨-road or winter

conditions. Not for use on dry

pavement.

4L Four-Wheel Low - Locked

four-wheel drive with increased

torque multiplication. For

o󰀨-road conditions only, such

as deep sand, steep slopes, or

pulling heavy objects.

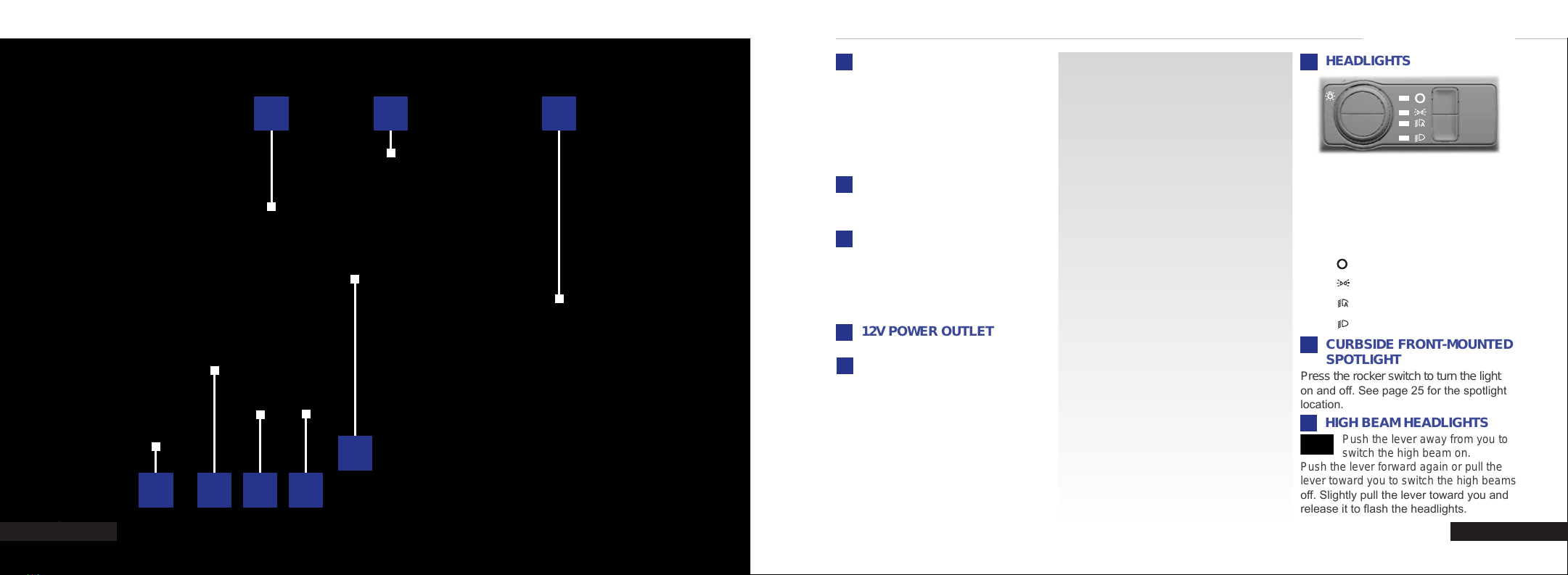

HEADLIGHTS

Lamps o󰀨.

Parking lamps on.

Auto lamps on.

Headlights on.

CURBSIDE FRONT-MOUNTED

SPOTLIGHT

Press the rocker switch to turn the light

on and o󰀨. See page 25 for the spotlight

location.

HIGH BEAM HEADLIGHTS

Push the lever away from you to

switch the high beam on.

Push the lever forward again or pull the

lever toward you to switch the high beams

o󰀨. Slightly pull the lever toward you and

release it to ash the headlights.

12V POWER OUTLET

Rotate the control to make a selection.

Note: The lighting control defaults to

auto lamps every time you switch your

vehicle on.

Note: Daytime running lamps are activated

when the shift is out of park, regardless of

the headlight selected.

Page 2

INSTRUMENT CLUSTER

DISPLAY CONTROLS

Monitor and control important vehicle

information and features through the

instrument cluster display. See page 11

for more details.

C250 INSTRUMENT PANEL

Page 6 Page 7

Page 6

INSTRUMENT PANEL

6 Page 3 4

With the transmission in park (P), press

the brake pedal and press the push button

ignition switch. An indicator light on the

button illuminates when the ignition is on

and when the engine starts.

Mode Sources: Press the MODE button

to switch between AUX, FM, AM, and

Bluetooth (BT MUSIC).

Automatic Station Search: Press

or to start automatic station search.

The search stops when a station is found.

(+)

(-) Volume Up/Down

►II Play/Pause

Power On/O󰀨

Mute

MODE Audio Source

Audio Settings

Track Forward/Back

Station Forward/Back

Menu Settings Up/Down

Power On/O󰀨: Press ►II to power on.

Press and hold ►II to power o󰀨.

Volume: Press the VOL (+) or (-) button

to increase or decrease the volume.

Mute On/O󰀨: Press ►II briey to mute

the sound. Press ►II again to un-mute the

sound.

Mode Settings (Bass/Treble/Balance/

Fader/EQ/Loudness): Press the MODE

button for two seconds and then press the

button until the function you want is

shown on the display (see below). Press

VOL (+) (-) to change the settings of the

menu item displayed.

RADIO

GENERAL RADIO OPERATIONS

BLUETOOTH AUDIO STREAMING

1. Open the Bluetooth setup program

on the mobile device and activate the

Bluetooth feature.

2. The device will show up as “SSV”.

Select this device and enter passkey:

OOOO

3. After successfully pairing, a Bluetooth

logo will appear on the phone menu

screen and show “CONNECT”

“BT MUSIC” on the device LCD display.

Stop Playback: Press ►II briey to pause

the music. Press the button again to

continue playback.

Skip Track: Press or to play the

previous/next song.

PUSH BUTTON IGNITION

SWITCH

STARTING THE ENGINE

When the ignition is on or in accessory

mode, press the push button ignition

switch once without your foot on the brake

pedal.

SWITCHING THE IGNITION OFF

When the ignition is o󰀨, press the push

button ignition switch once without your

foot on the brake pedal.

All electrical circuits and accessories are

operational and the warning lamps and

indicators illuminate.

Note: Your vehicle has a battery saver

feature that shuts your vehicle o󰀨 when it

detects a certain amount of battery drain,

or after approximately 30 minutes of

inactivity in accessory mode.

SWITCHING THE IGNITION TO

ACCESSORY MODE

Press the button to lock all cab

doors.

Press the button to unlock all cab

doors.

DOOR LOCK SWITCH

HAZARD LIGHT SWITCH

Press the button to switch the

hazard ashers on if your vehicle

is creating a safety hazard for other road

users. See page 23 for more details.

Page 4

C250 INSTRUMENT PANEL

Page 8 Page 9

Page 8

INSTRUMENT PANEL

1 2

8 Page 5

CAB CONTROLS

LEFT/

REAR/

RIGHT

Left/Rear/Right Roll-Up Door Lights

Press to toggle on or o󰀨. The lights

will automatically turn on when the

associated door is opened and will turn

o󰀨 after a short delay once the door is

closed.

AUX Auxiliary Lights - Press to toggle

auxiliary asher lights.

CARGO

Cargo Light - Press to toggle the cargo

dome light. The light also automatically

turns on when a roll-up door is opened.

CAB

Cab Lights - Press to toggle the cab

dome lights.

OPEN Cargo Door Open - Indicates when

a cargo door is open. Long press the

button to adjust the brightness of the

cab control display.

First Light - Roadside roll-up door

Second Light - Rear roll-up door

Third Light - Curbside roll-up door

ALL All Exterior Lights - Press to

simultaneously toggle all three exterior

roll-up door lights.

Heated Mirror - Press to toggle the

heated mirror control. Will turn o󰀨

automatically after a timer expires.

Heated Steering Wheel - Press to toggle

between high and low control heating of

the steering wheel. This setting is

remembered after vehicle shutdown.

Heated Seat - Press to toggle between

high and low control heating of the driver

seat. This setting is remembered after

vehicle shutdown.

Cab Fan - Press to toggle between high

and low power to the cab fan. This setting

is remembered after vehicle shutdown.

SETTING THE BLOWER MOTOR SPEED

Turn the control switch between 0,

1, 2, and 3 to select the blower

motor speed.

SETTING THE TEMPERATURE

Turn the temperature control to the left for

cooler temperature settings.

Turn the temperature control to the right for

warmer temperature settings.

DIRECTING THE FLOW OF AIR

Select to turn the instrument panel

air vents on.

Select to turn the instrument panel

and footwell air vents on.

Select to turn the footwell air vents

on.

Select to turn air recirculation on.

Select to turn footwell and defrost air

vents on.

Select to turn the defrost air

vents on.

CLIMATE CONTROLS

C250 INSTRUMENT PANEL

Select to turn the air conditioning

on and o󰀨.

Page 6

CAB CONTROLS (cont.)

Page 10 Page 11

Page 10

1 2

3 4

10Page 10

10 Page 7

INFORMATION DISPLAY

Shows important vehicle information and features. See

page 11 for more details.

Page 8

ENGINE OIL

PRESSURE GAUGE

Indicates the engine oil pressure.

Note: This is a congurable gauge.

C250 INSTRUMENT CLUSTER

ENGINE COOLANT

TEMPERATURE GAUGE

Indicates the engine coolant temperature.

FUEL GAUGE

TRANSMISSION FLUID

TEMPERATURE GAUGE

Indicates the transmission uid temperature. Special

operating conditions can cause higher than normal

operating temperatures. See Maintenance Intervals on

page 35.

Note: This is a congurable gauge.

TACHOMETER

Indicates the engine speed.

SPEEDOMETER

Indicates the vehicle speed.

WHAT IS THE FUEL GAUGE

Indicates approximately how much fuel is in the fuel

tank.

FUEL GAUGE LIMITATIONS

The fuel gauge may not provide an accurate reading

when your vehicle is on an incline.

LOCATING THE FUEL ACCESS

The arrow adjacent to the fuel pump symbol indicates

on which side of your vehicle the fuel access is

located. See page 26 for the fuel access location.

WHAT IS THE LOW FUEL REMINDER

A low fuel level reminder displays and sounds when the

distance to empty reaches 50 mi. (80km), 25 mi. (40

km), 12 mi. (20 km) and 0 mi (0 km).

Note: The low fuel reminder can appear at di󰀨erent fuel

gauge positions depending on fuel economy conditions.

This variation is normal.

WHAT IS DISTANCE TO EMPTY

Indicates the approximate distance your vehicle can

travel on the fuel remaining in the tank. Changes in

driving pattern can cause the value to not only decrease

but also increase or stay constant for periods of time.

INSTRUMENT CLUSTER

Page 13

Page 12

Brake System

It illuminates when you apply the parking brake

and the ignition is on. If it illuminates when your

vehicle is moving, make sure the parking brake

is released. If the parking brake is released,

this indicates low brake uid level or the brake system

requires service. Have your vehicle checked as soon as

possible.

Note: Indicators may vary depending on region.

Door Ajar

It illuminates when you switch the ignition on

and remains on if any door is open.

Electric Parking Brake

It illuminates or ashes when the electric

parking brake requires service.

Engine Coolant Temperature

If it illuminates, safely stop your vehicle and

switch the vehicle o󰀨.

Fasten Seatbelt

It illuminates and a tone sounds until you

fasten the seatbelts.

Hood Ajar

It illuminates when the ignition is on and the

hood is not completely closed.

Low Fuel Level

It illuminates when the fuel level is low.

Low Washer Fluid Level

It illuminates when the washer uid is low.

Oil Pressure

It illuminates when the engine oil pressure is

low.

Powertrain Malfunction, Reduced Power,

Electronic Throttle Control, Check 4X4

Illuminates when the powertrain or four-wheel

drive require service. Have the system checked

as soon as possible.

Malfunction Indicator Lamp

It illuminates when the ignition is on and the

engine is o󰀨, this is normal. If it illuminates

when the engine is on this indicates the emission control

system requires service. If it ashes, have your vehicle

checked immediately. See Starting and Stopping the

Engine - Warning Lamps (page 32).

Stop Safely

Illuminates if an electrical component requires

service or a failure that causes your vehicle to

shut down or enter into a limited operating mode.

Indicators notify you of various features that are active on

your vehicle.

Automatic High Beam

See page 22 for more details.

Four-Wheel Drive

See page 2 for more details.

Note: Some indicators appear di󰀨erent

depending on vehicle options.

High Beam

See page 22 for more details.

Lamps On

See page 22 for more details.

Stability Control and Traction Control

See Traction Control (page 28).

See Stability Control (page 29).

Turn Signal Lamps

See page 23 for more details.

WHAT ARE THE INSTRUMENT CLUSTER

INDICATORS

Instrument Cluster Warning Lamps

Instrument Cluster Indicators

Anti-Lock Brake System

If it illuminates when you are driving, this

indicates a concern. Your vehicle continues to

have normal braking without the anti-lock brake system

function. Have your vehicle checked as soon as

possible.

Battery

It illuminates when you switch the ignition on.

If it illuminates when the engine is running,

this indicates your vehicle requires service. Have your

vehicle checked as soon as possible.

WHAT ARE THE INSTRUMENT CLUSTER

WARNING LAMPS

Warning lamps alert you to a vehicle condition that could

be come serious. Some lamps illuminate when you

start your vehicle to make sure they work. If any lamps

remain on after starting your vehicle, refer to the

respective system warning lamp for further information.

C250 INSTRUMENT CLUSTER

Page 9 Page 10

Page 15

Page 14

Status Indicator

Menu items with a check box indicates a

feaure’s status.A check in the box indicates the

feature is on, and unchecked indicates the feature is o󰀨.

Depending on your vehicle options, some menu items

can appear di󰀨erent or not at all.

Note: For your safety, some features are speed

dependent and could be unavailable when your vehicle is

above a certain speed.

Menu Item

Select Screens

Truck Info

Towing

Settings

ACCESSING THE TRIP COMPUTER

TRIP COMPUTER

Using Select Screens

1. Select Select Screens.

2. Use the controls on the steering wheel to navigate the

menu.

Using the Home Screen

Once screens have been added, use the controls on the

steering wheel to view each trip screen.

RESETTING THE TRIP COMPUTER

1. Use the controls on the steering wheel to navigate

the home screen.

2. Select Trip 1 or Trip 2.

3. Press and hold the OK button for a few seconds.

Note: This Trip resets every time you start your vehicle.

PERSONALIZED SETTINGS

CHANGING THE MEASUREMENT UNIT

1. Press Settings on the touchscreen.

2. Press General.

3. Press Measure Units.

4. Select a measurement unit.

CHANGING THE TEMPERATURE UNIT

1. Press Settings on the touchscreen.

2. Press General.

3. Press Temperature Units.

4. Select Fahrenheit or Celsius.

INSTRUMENT CLUSTER DISPLAY MAIN

CHANGING THE TIRE PRESSURE UNIT

1. Press Settings on the touchscreen.

2. Press General.

3. Press Tire Pressure Units.

4. Select a pressure unit.

Press to go back or to exit a menu

Press to make a selection

Press the up or down buttons to scroll

through the menu items

Press to display the submenus

Instrument Cluster Display

USING THE INSTRUMENT CLUSTER

DISPLAY CONTROLS

Driving while distracted can result in

loss of vehicle control, crash and injury. We strongly

recommend that you use extreme caution when using

any device that may take your focus o󰀨 the road. Your

primary responsibility is the safe operation of your

vehicle. We recommend against the use of any

hand-held device while driving and encourage the use of

voice-operated systems when possible. Make sure you

are aware of all applicable local laws that may a󰀨ect the

use of electronic devices while driving.

The controls are on the steering wheel.

C250 INSTRUMENT CLUSTER

Page 11 Page 12

Page 17

Page 16

PARKING BRAKE

To engage the parking brake, pull on the parking

brake switch. To disengage the parking brake,

push the parking brake switch.

Pressing the accelerator pedal when the vehicle

is in drive (D) will automatically turn o󰀨 the

parking brake.

NOTE: A light on the instrument

cluster will indicate when the parking

brake is activated. The indicator may

vary depending on the region.

Press the switch to lower the windows, and pull the

switch to raise the windows. The power windows only

function when the corresponding door is fully closed.

ONE-TOUCH OPEN

Long press the window switch and release it to

automatically fully lower the window. Press again

or lift it to stop the window.

Cab Features

POWER WINDOWS

16Page 13

The window does not have bounce-back, and will

not reverse if it detects an obstacle when closing. Take care when

closing the windows to avoid personal injury or damage to your

vehicle.

C250 CAB FEATURES

The C250 features a manual transmission override,

mounted to a leg below the center stack of the instrument

panel. This can be used to shift the transmission into

neutral without vehicle power if the vehicle needs to be

towed.

ACTIVATING THE NEUTRAL MECHANICAL

OVERRIDE

Page 14

When doing this procedure, you need

to take the transmission out of park (P) which means

your vehicle can roll freely. To avoid unwanted vehicle

movement, always fully apply the parking brake prior to

doing this procedure. Use wheel chocks if appropriate.

Do not activate the override lever until you are in the

driver’s seat.

1. Apply the parking brake.

2. Switch the ignition on, but not the engine.

3. From the driver’s seat, fully apply the brake pedal and

hold. Do not release. Pull the override straight out toward

the passenger seat until engaged. If done correctly, a

message will appear in the instrument cluster.

Note: Your vehicle remains in neutral (N) for emergency

towing purposes and is free to roll.

4. Turn o󰀨 the ignition.

5. Once safe to do so, and there is no risk that your vehicle

will roll, disconnect the negative (black) battery cable from

the battery.

Neutral Mechanical Override

RETURNING YOUR VEHICLE

TO NORMAL MODE

1. Once safe to do so, reconnect the negative (black)

battery cable to the battery.

2. Apply the parking brake.

3. Once in the driver seat, fully apply the brake pedal and

hold, do not release. Using the tether, pull the handle

towards the passenger seat until you hit a hard stop.

4. Pull the lever toward the oor until it hits a hard stop,

before returning to the stowed position.

Note: Maintain tension on the strap until the lever reaches

the stowed position.

5. With your foot fully applied on the brake pedal, start

your vehicle. Conrm that your vehicle is in the park (P)

position and that the instrument cluster indicates park (P).

Page 19

Page 18

The rear view camera monitor is located above

the windshield. The monitor provides a video image

of the area behind your vehicle when the

transmission is in reverse (R). A road side view

camera also provides a video image of the area

to the road side of your vehicle when the left turn

signal is activated. See page 26 for the location of

the rear view and road side cameras.

1. Unlock the steering column.

2. Adjust the steering wheel to the

position you prefer.

3. Lock the steering column.

MANUAL ADJUSTMENT

Steering Wheel

Do not adjust the steering wheel when

your vehicle is moving.

Page 15

Rear View Camera and

Road Side Camera Monitor In a rollover crash, an unbelted person is signicantly more likely to die than a person

wearing a seatbelt.

It is extremely dangerous to ride in a cargo area, inside or outside of a vehicle. In a

crash, people riding in these areas are more likely to be seriously injured or killed. Do not allow people

to ride in any area of your vehicle that is not equipped with seats and seat belts. Make sure everyone

in your vehicle is in a seat and properly using a seatbelt. Failure to follow this warning could result in

serious personal injury or death.

The airbag system in the C250 is not functional. The label covering the airbag

indicator on the steering wheel must not be removed. All occupants, including the driver, should always

wear their seat belts assemblies whether or not an air bag is also provided at their designated seating

position to minimize the risk of severe injury or death in the event of a crash.

Each seating position in your vehicle has a seatbelt system made up of a lap and

shoulder belt, one buckle and one tongue designed to be used as a pair. Use the shoulder belt on the

outside shoulder only. Never wear the shoulder belt under the arm. Never use a single seatbelt for

more than one person. Failure to properly wear your seatbelt could seriously increase the risk of injury

or death.

Always drive and ride with your seat back upright, with the shoulder belt snug and

across the torso, and the lap belt snug and low across the hips, and not across the abdomen.

Seatbelt

SEATBELT PRECAUTIONS

Page 16

C250 CAB FEATURES

Table des matières

Autres manuels Morgan Olson Véhicule tout-terrain

Morgan Olson

Morgan Olson Amazon P80 2019 Manuel utilisateur

Manuels Véhicule tout-terrain populaires d'autres marques

Polaris

Polaris RANGER XP 1000 EPS 2018 Manuel utilisateur

Yamaha

Yamaha Tri Moto 125 Manuel utilisateur

Yamaha

Yamaha YFM350X Warrior Manuel utilisateur

APRILIA

APRILIA QUASAR 100 Manuel utilisateur

Polaris

Polaris RZR 900 Manuel utilisateur

Suzuki

Suzuki LT-A700X Manuel utilisateur

Ski-Doo

Ski-Doo SCANDIC WT Manuel

Suzuki

Suzuki LT-Z400 Manuel utilisateur

Arctic Cat

Arctic Cat 120 sno pro Manuel utilisateur

Yamaha

Yamaha RS90PB Manuel utilisateur

Yamaha

Yamaha FX Nytro FX10X Manuel utilisateur

Dinli

Dinli DL702 Manuel utilisateur

Yamaha

Yamaha SXV70ML Manuel utilisateur

Baja motorsports

Baja motorsports ATV 90 Manuel

Polaris

Polaris Sportsman 550 XP EPS Manuel utilisateur

Arctic Cat

Arctic Cat ALTERRA 450 Manuel utilisateur

Polaris

Polaris Sportsman 9922233 Manuel utilisateur

Yamaha

Yamaha YFM45FAT Manuel
