moon METEOR VORTEX Manuel utilisateur
METEOR VORTEX
User Manual • Uživatelský manuál •
Užívateľský manuál • Használati utasítás
Dear customer,
Thank you for purchasing our product. Please read the following instructions carefully
before first use and keep this user manual for future reference. Pay particular attention
to the safety instructions. If you have any questions or comments about the device,
please contact the customer line.
✉www.alza.co.uk/kontakt
✆+44 (0)203 514 4411
Importer Alza.cz a.s., Jankovcova 1522/53, Holešovice, 170 00 Praha 7, www.alza.cz
The light is locked for shipment, refer to OPERATION instruction to unlock.
Read this manual carefully before using and keep for future
reference. Visit www.moon-sport.com for manual updates.
Contents
LX-BAT-2600 (LG LI-ION Battery)
RB-25 (HANDLEBAR BRACKET)
LX-BC (MAGNETIC COVER)
USB-C (USB CABLE)
Optional accessories:
RB-28 (GoPro mount adapter)
LX-BAT-3350 (LG Lithium ion battery 3350 mAh)
RB-16 (Helmet Bracket)
Operation
ON / OFF : Hold for 1s
MODE SELECT : Click
BOOST MODE : Double click
LOCK/UNLOCK : 1. Power off
2. Press for 6s: Locked Unlocked
Flash 1 time Flash 2 times
* Lock system: Lock the light to prevent accidentally turned on.
* Mode memory: The light resumes previous mode upon next usage.
Mode indicator
Modes
Boost Mode 1 Mode 2
mode Blue Green
Flash 1 Steady FL Day FL S.O.S.
Flashing Flashing Flashing Flashing
Blue Green Red Red & Green
Variable Lumen system
1. Select desired mode.
2. Press and hold to set lumen
3. Release when reaching desired lumen.
Light flashes once when reaching the MAX or MIN lumen level.
Restore default setting: Release battery and click
Mode memory: The light resumes previous VLS setting upon next usage.
Runtime
* Steady Flash Mode: High lumen flashing plus low lumen steady beam for safety
purpose.
Use the SOS sign for real emergency only!
BOOST
MODE1
MODE2
FLASH1
STEADY
FLASH
DAY
FLASH
SOS
LUMEN
1000 700 100 100 200 400 40
H:MIN
1:45 3:00 14:00 70:00 30:00 61:00 87:00
LUMEN
-700-20 700-20 700-20 700-20 700-20 -
H:MIN
-
3:00-
70:00
3:00-
70:00
10:00-
240:00
15:0050:00
59:00-
300:00
-
Handlebar mounting
Helmet mount (Optional)
Handle
Release
Wrapping
Press
Handlebar mount
Remote switch mount
Screw knob
Open
Close
Belt
Helmet mount
Press
Release
Install
Press
Overheat protection
The overheat protection device can ensure the bicycle light in a good running
temperature condition, so that to protect the LEDs without burning case. If the light is in
high temperature during operation, it will dim the light output.
Charging
1. Power off.
2. Plug USB cable to USB port.
3. Unplug after fully charged.
*Do not charge over 5V.
*Keep away from flammable objects while charging.
Battery installation
Install
Release
Lock
Open
USB port
Battery capacity and charging indicator
Battery indicator
Charging indicator
Charged indicator
Battery installed
indicator RED
Table des matières
Langues :
Autres manuels moon Accessoires pour vélos
moon
moon NOVA 80 Mode d’emploi
moon
moon Arcturus Auto Manuel utilisateur
moon
moon Helix Lite Manuel utilisateur
moon
moon Mask Mode d’emploi
moon
moon X-POWER 2500 Manuel utilisateur
moon
moon Arcturus Auto Mode d’emploi
moon

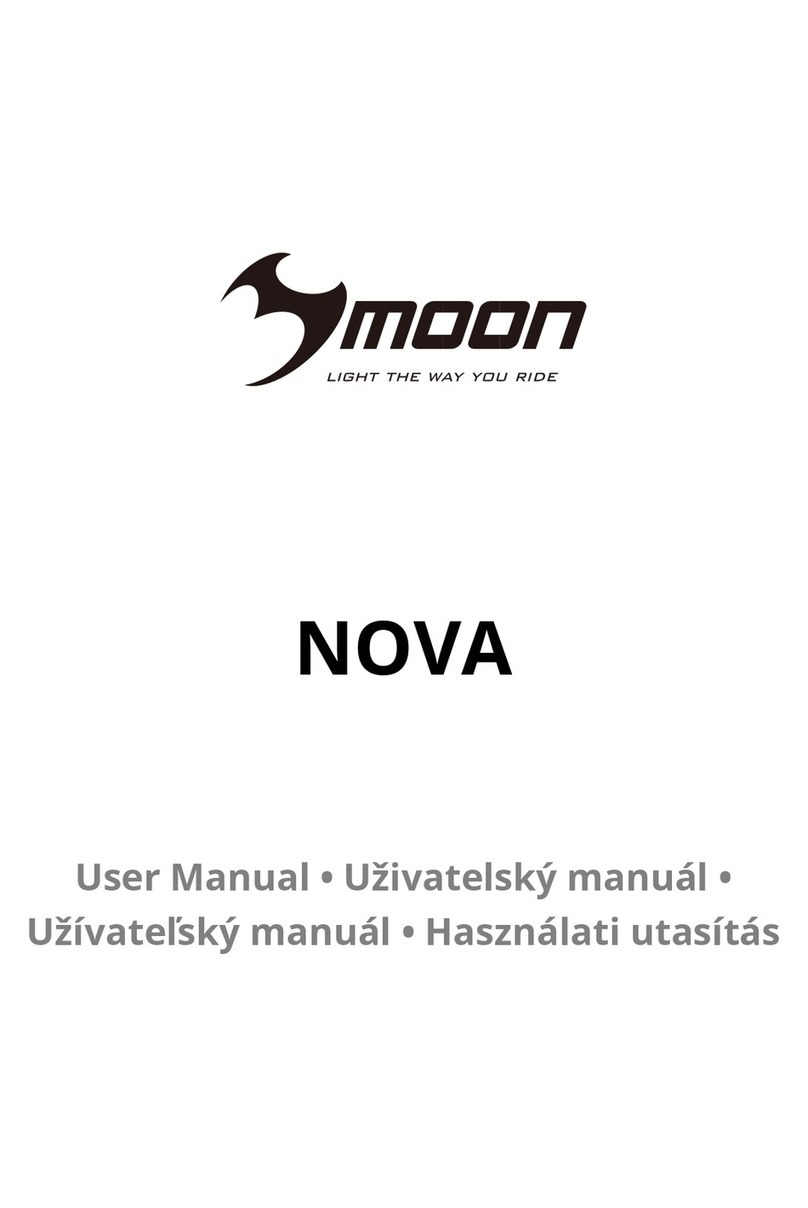

moon Nova Manuel utilisateur
