Moog Videolarm P1600 Manuel utilisateur

•

Designed specically for video surveillance camera systems

•

Solid construction; designed to reduce or eliminate vibration

from strong wind loads up to 170 mph

Key Features

Pole mounted video surveillance offers several monitoring benets, but at the same time can turn into installation nightmares and service

headaches due to faulty pole construction and picture/video distortion. To counter these frustrations, Moog Videolarm offers its line of

video surveillance rated steel poles.

Constructed of heavy-gauge steel, Moog Videolarm surveillance poles are engineered with the sole purpose to enhance video surveillance.

Capable of supporting up to 75 Lbs. and withstanding wind gusts of up to 170 mph, Moog Videolarm poles are ideal for optimizing your

video surveillance system.

•

Compatible with most major camera manufacturers (Contact a

Moog Videolarm associate for appropriate mounting brackets)

•

Powder coat nish for greater longevity

•

Supports up to 75 Lbs.

•

Video Surveillance Rated Poles

LOWERING

DEVICES_

P1600

P1800, P1800TB

SURVEILLANCE POLES_

VIDEO SURVEILLANCE POLES_

Fixed Steel Poles - 4”x4” Square Supports

up to 75 Lbs.:

Applications:

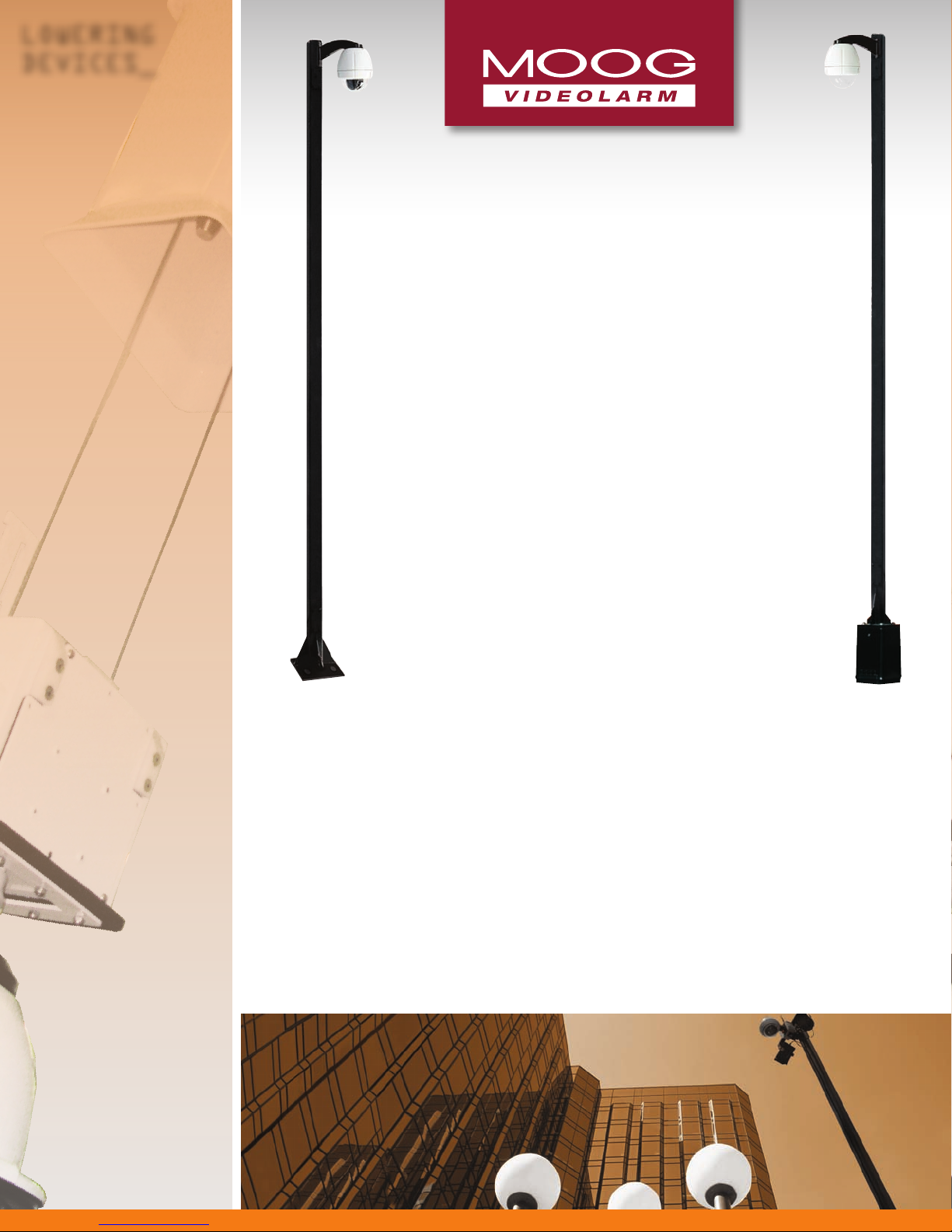

18’ Fixed Steel Pole:

16’ Fixed Steel Pole:

P1600

Standard 16’ steel pole (4” x 4” tubing) with access panels on top and

bottom, square base with a maximum load of 75 Lbs.

• Video Surveillance Rated

• High-Wind Resistance

• Multi-Functionality

• Parking lots

• Warehouses

• Truck terminals

• Cargo areas

• Jails and prisons

P1800

Solid construction 16’ steel pole with 2’ transformer base NEMA

enclosure. Base includes terminal strip, 115Vac to 24Vac transformer

and surge protection

P1800TB

P1800 without NEMA Box or electronics

Additional Benets of Pole

Mounted Video Surveillance:

SPECIFICATIONS:

Product Specications

Construction P1600/P1800:

Steel

Dimensions

P1600:

16 Feet Height (4.75” x 4.75” Pole + 12” x 12” Base)

P1800:

18 Feet Height (4.75” x 4.75” Pole + 13” x 13” Base)

Weight

1600/1800:

200 Lbs. (90.72 Kg.)

Base:

34 Lbs. (15 Kg.)

Max Load

Capacity:

75 Lbs. (90.72 Kg.)

Max Wind

Load:

170 mph ( 16’ pole without base. Up to 3 cameras)

Mounting

Plate

Mounting

Pattern:

5.5” x 2” (4) 3/8”-16 threaded inserts

7” x 3.5”

Size:

Max

Housing

Height

P1600:

16.5’

P1800:

18.1’

Architectural Drawings

Shipping Specications

MODEL SHIPPING WEIGHT BOX DIMENSIONS

P1600

250 Lbs. (113 Kg.) 16’ x 12” x 12” (406.4 x 304.8 x 304.8mm)

P1800

250 Lbs. (113 Kg.) 18’ x 12” x 12” (483 x 304.8 x 304.8mm)

The P1800 also includes the following items, separately boxed:

Terminal Base

34 Lbs. (15.42 Kg.) **

** Call Moog Videolarm for complete dimensional information on separately boxed items.

Video Surveillance Rated Multi-Functionality

High-Wind Resistance

21.00

( 533.4 )

4.75

( 120.6 )

216.68

( 5503.8 )

2.00

( 50.8 )

5.50

(139.7)

5.17

(131.3 )

4.50

(114.3)

196.04

( 4979.3 )

ACCESSORIES:

Product and company names listed are trademarks or trade names of their respective companies.

Moog Videolarm, 2525 Park Central Boulevard, Decatur, GA 30035 USA +1 770.987.7550 www.videolarm.com

500-687 06-06-2012

Dimensions are in (in”) and (mm)

PV1

Lightning Rod for

Free-standing

poles

PV6

Dual illuminator

bracket

(IR not included)

PV8

Pole mount for two

dome installation

(Gooseneck bracket(s)

not included)

PV4

Anchoring Jig

(recommended for

each pole ordered)
