Introduction

The MultiPlay 7200®, developed by our teams of R&D engineers , is a digital

musical broadcast program player.

The MP7000® is the technological synthesis of 0 years of experience and of

tried and tested know-how.

Of a unique industrial technology, it intelligently

operates 24 hours a day without any human intervention.

Easy to use and immediately operational, it can directly be connected to

all types of sound equipment.

Its sharp programming capacity together with a large storage capacity offer

musicale wealth equivalent to none.

The MultiPlay 7200® allows managing the broadcasting of sound messages

via a network or the Internet.

Although it uses a highly sophisticated development technology, Mood Media

endeavours once again to offer the greatest ease of use.

The program can at any time be selected with the LCD display

and the keys…

The LCD display also allows accessing a wealth of information for parameter

setting or not; the name in progress of being played, the automatic start

and stop of the MultiPlay… everything was designed to offer the most

complete product.

The MP 7200® also allows zoning. Zoning consists in independently

managing 2 or 3 musicale atmospheres from a same equipment.

The musical databank is regularly updated through CD-Rom, DVD-Rom,

network or the Internet.

Precautions to take before using

First of all observe the instructions below, related to your safety and to the operating safety

of your equipment.

To protect one elf

•Never touch the supply cable’s plug

with wet hands.

•To remove the plug from the wall

socket, never pull on the cable but handle

the plug.

On the u e of electrical equipment

•Power upply

Plug the power supply cable of the

Multiplay 7200® into a wall socket with a

correct ground connection to avoid electric

shocks. The cable is equipped with a three-

pin plug to ensure correct grounding of the

equipment.

•Overload

Do not use adaptor plugs and do not try to

remove the cable’s grounding pin. If you

use an extension cable, use a three-wire

extension cable equipped with a ground

plug.

•Current variation

preferably use a regulated power source to

protect the equipment from variations of

the electric current.

•Penetration of object or liquid

Do not insert anything in the equipment for

it would risk entering in contact with the

high voltage circuits or short-circuiting the

components and thus provoke a fire or an

electric shock or discharge.

Never to liquids on the player.

On the emplacement

•Protection of electric cable

Do not put anything on the cables and do

not place the cables on a passage axis.

Particularly make sure of protecting the

connectors, the plugs and the cable’s

connection point with the MP 7200®

player.

•Ventilation:

The air vents are designed to allow an

appropriate ventilation and to ensure

normal operating.

•do not obstruct the air vents,

•avoid placing sheets of paper and flyers

on the equipment,

•Do not place this appliance in a wall

recess,

•Keep your appliance far from

radiators and other sources of heat.

Unpacking

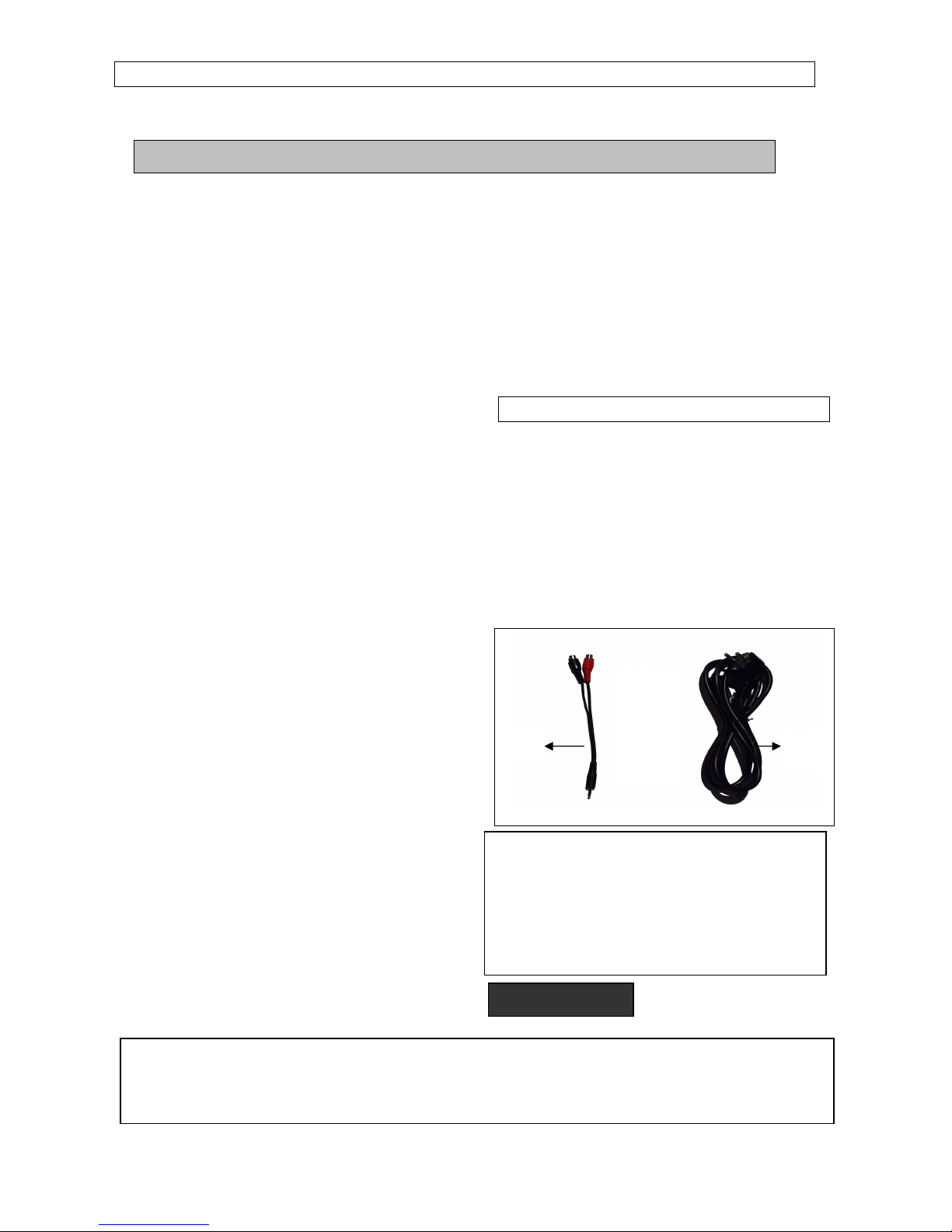

Check the following accessories:

The Multiplay 7200® player is supplied with

2 cables:

•a black electric cable (A)

•an audio adaptor cable (B)

In case of zoning, the audio adaptor cables

(B) are supplied according to the number of

zones.

Safety in truction

Before operating this equipment, please attentively read these user instructions.

The re pon ibility of MOOD MEDIA cannot be committed in ca e of eventual

damage due to inappropriate u e or non compliant with the u er manual.

Keep these instructions for further reference.

B A

IMPORTANT!

The audio adaptor cable (B) is at RCA

standard, the most used for general public

amplifiers. If this standard does not

correspond to that of your amplifier, use

an audio cable adapted to the auxiliary

input or tuner of your sound equipment.

MP7200® user instructions

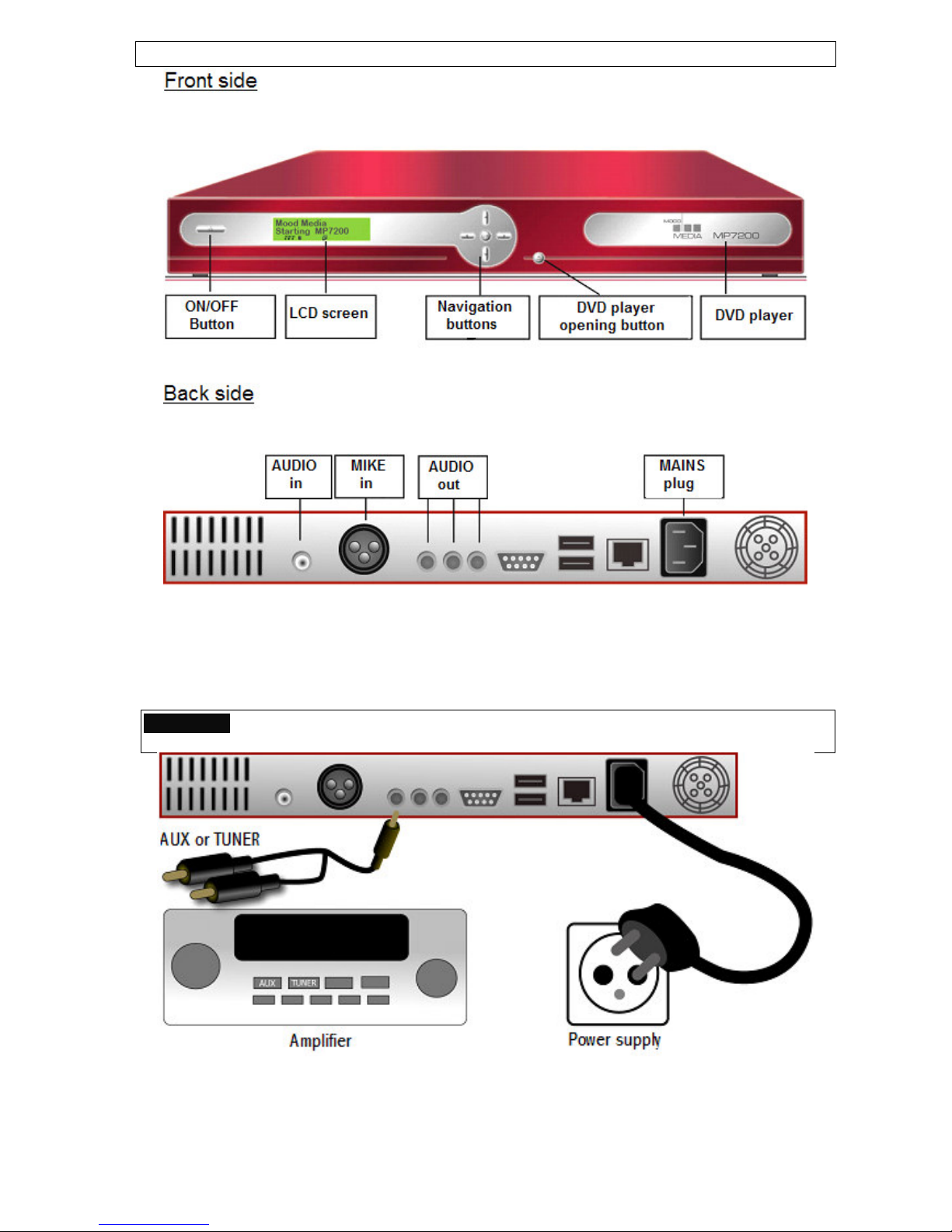

Description and illustration

Connection to the electric supply network

PRECAUTION

To avoid risks of electrocution, only use the electric cable that was supplied. Plug the cable

into the mains socket.

Connect the electric plug in a correctly grounded mains socket.

Important Before plugging in, it is imperative to switch off your amplifier (sound

equipment).

MP7200® user instructions 6

Zoning

Connection to your amplifier (1 zone):

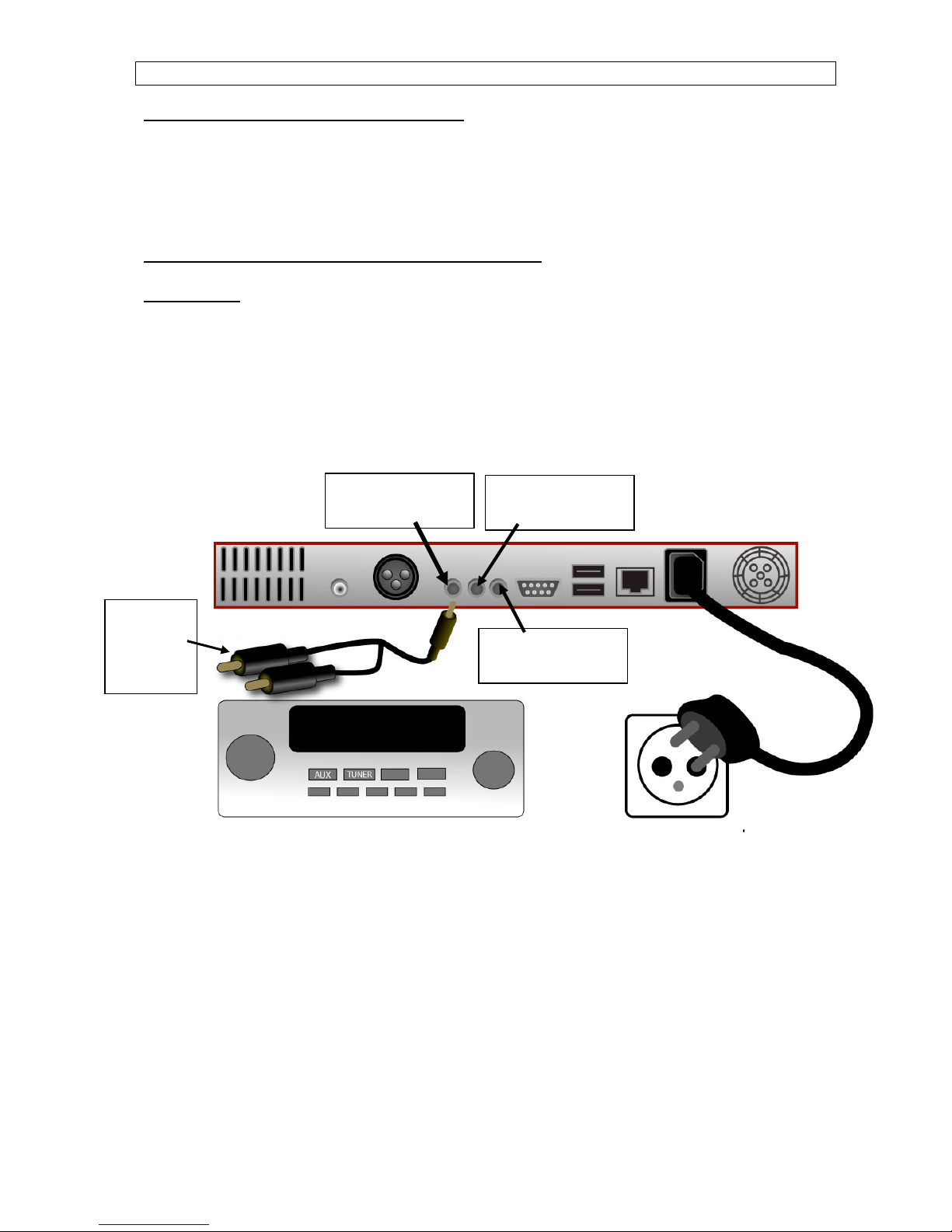

a - Connect the audio cable’s plug to the audio output (audio out 1) of your MP7000®.

b – Depending on your amplifier, you will find an “AUX” or “TUNER” input on which to

connect the MP7000® with the RCA plugs.

c – Switch your amplifier on and select “AUX” or “TUNER”.

Connection to everal amplifier (2 or 3 zone ):

ATTENTION: For each zone (1,2 or 3), an amplifier and a network of loudspeakers

are needed.

There i a through zone audio output.

a - Connect the audio cable’s plug in the audio output (audio out 1/2/ or 3) of your

MP7200®.

b – Depending on your amplifiers, you will find an “AUX” or “TUNER” input on which to

connect the MP7200® with the RCA plugs.

c – Switch on your amplifiers and select “AUX” or “TUNER”.

Repeat the above process for each zone.

Before any handling, the display asks for which zone you wish to set parameters and play

music (see page 10).

Audio out2

for zone 2

Audio out1

for zone 1

Audio out3

for zone 3

Identical

cable for

each

zone

Power plug

Amplifier

AUX or TUNER

MP7200® user instructions 7

Switching on

Press the ON/OFF key.

The music starts after a few seconds.

The default setting of the MP7000® is programmed to switch on automatically at :30 a.m.

and to switch off at 10:30 p.m.

In case of starting of the MP7000® with the ON/OFF key, the appliance switches off after a

few moments if the switching on was done out of the times defined in the "Power Time"

(see 1a page 12 or 2a page 14) and no music is played.

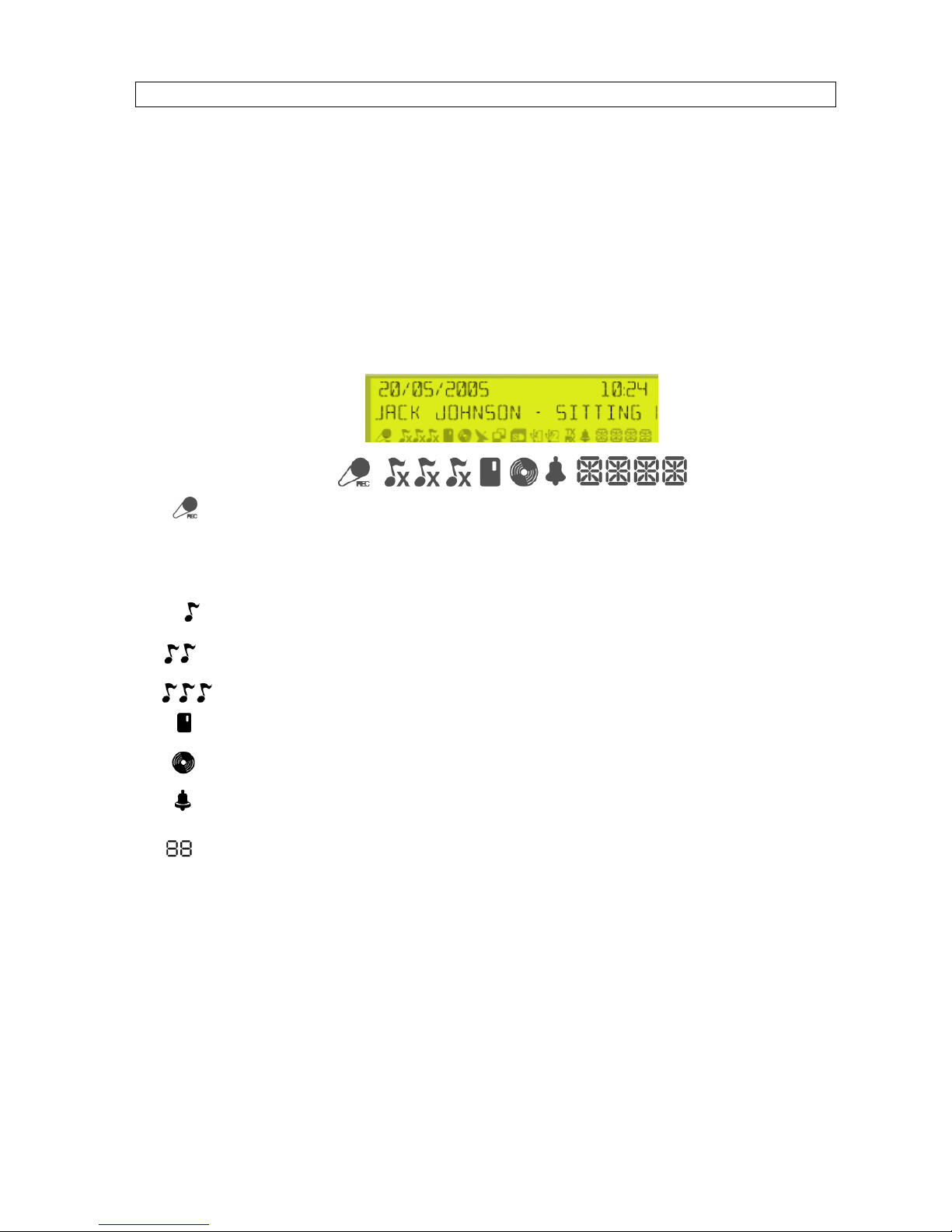

Information di played during the playing of mu ic

At the end of loading, the date and time appear on the 1st line of the LCD display. The

performer, the tile and the name of the program scroll across the 2nd line.

On the third line:

To give a message directly, put the mike in position "one" and speak. The icon

representing the mike should appear on the display.

Important: the mike hould be connected in “off” po ition when tarting the

MP7000®.

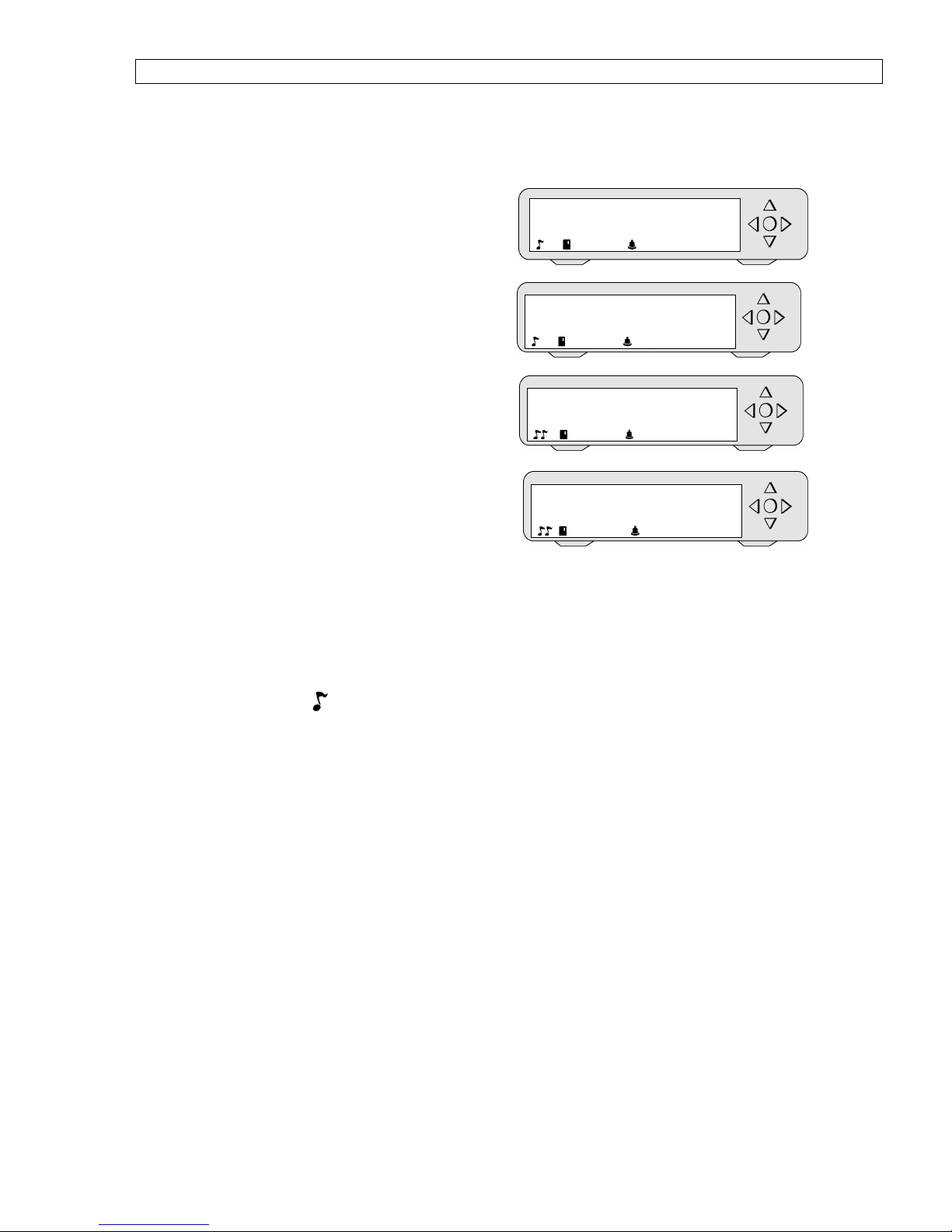

shows that the player is playing 1 program.

shows that the player is playing 2 programs.

shows that the player is playing 3 programs.

shows that the MP7000® is operating in hard disc mode.

shows that a CD or DVD is present in the player.

shows that the MP7000® is programmed to start and stop automatically

(operating time.)

shows the number of the last update.

If the indicator blinks, it shows that the update sequence is not valid; contact the

hotline to obtain the procedure to follow.

MP7200® user instructions 8

Using the display’s keys

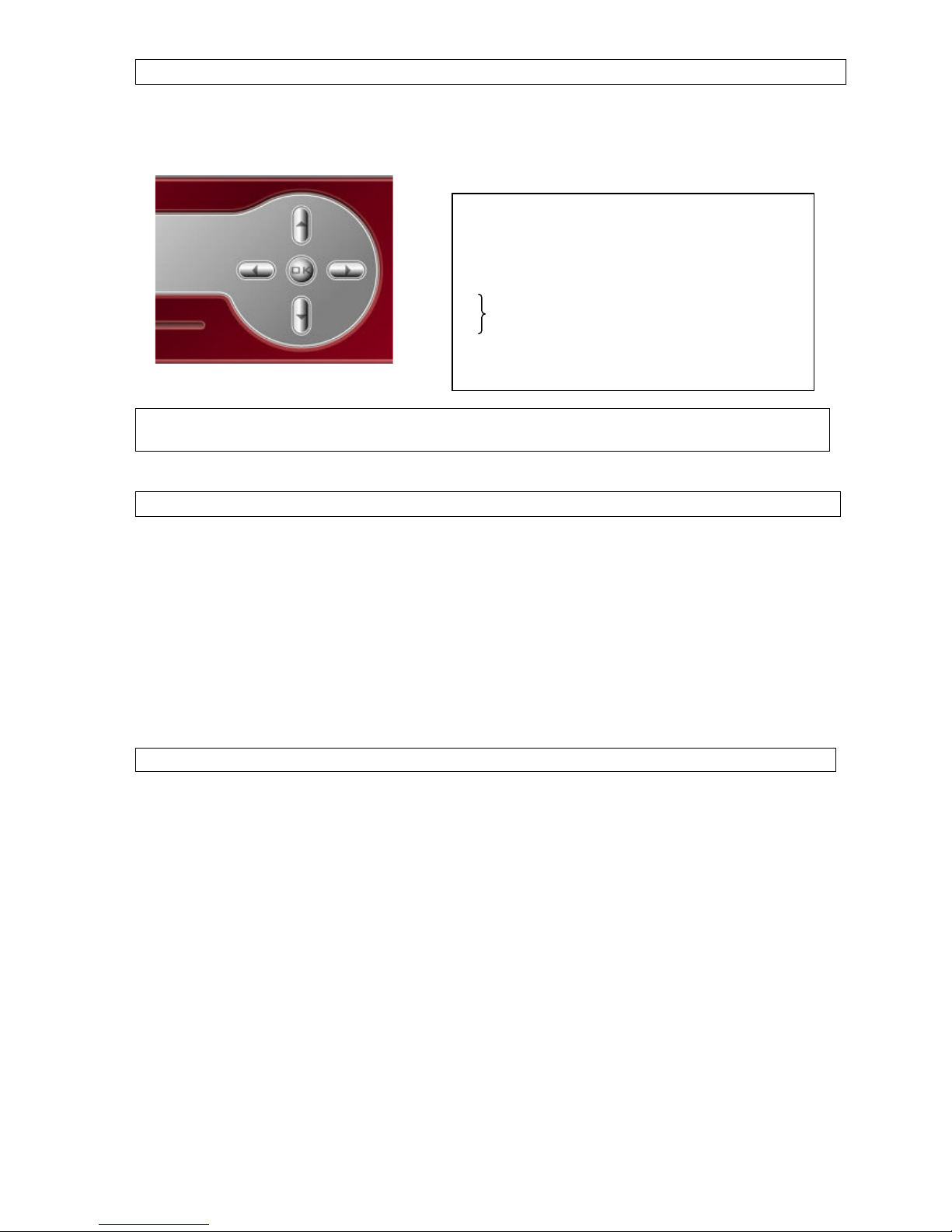

The centre key "OK" and the arrow direction keys: ◄/▲/▼/► allow accessing the various

menus and functions of the Multiplay 7200®.

Important: When you press the directions keys, give the system the time to

record your order.

Stopping the MP 7200®

Use the ON/OFF key

The MP 7200® is designed to operate in a continuous manner. You can thus leave it on-line.

Comment: In the "MUSIC" menu, you can set the "Power Time". The MP 7200® will switch

off automatically at the end of playing time that that you entered in parameters and will

switch on again automatically the next day at the preset time.

See the "MUSIC" menu page 12 (1a) or page 14 (2a).

The serial number

The erial number is located under the Multiplay 7200®.

Pressing:

►:Name stopped!: allows going to the next

name (on all the zones).

◄: Control out 1/2/or 3: allows checking what

music is played (on each zone).

▲-------------#--: allows setting the volume.

▼

OK: validates an action and accesses the

menus.

MP7200® user instructions 9

Menu functions of the MP 7200®

The MultiPlay 7200® proposes a range of functions allowing you to personalize it according

to your needs. These functions are gathered in menus and submenus.

List of the menu’s functions

I. MUSIC

1) Selection of the day: Immediately

2) Choice of the day: Every day

a) Power Time

b) Time slot

c) Selection of the program

d) Selection of the music

e) Save the selection

f) Renaming

g) Exit

3) Selection of the day: Monday,

Tuesday, Wednesday…

a) Power Time

b) Time slot

c) Selection of the program

d) Selection of the music

e) Save the selection

f) Rename

g) Exit

II. EVENTS

a) Selection of the music

b) Frequency

c) Start of the event

d) End of the event

e) Time slot

III. MESSAGES

1) Listen to messages

Selection of the message

2) See scenario

List of messages

3) Local messages

a) Selecting the message

b) Selecting the action

4) Open/close messages

a) Selection of the day

b) Time slot

c) Closing at noon?

d) Exit

) Exit the menu

IV. SETTINGS

1) The music’s volume

2) Volume of messages

3) Date/time

4) Soft mode

a) Selection of the day

b) Time of reduced volume

c) Exit

) LCD Password

6) Exit the menu

V. MAINTENANCE

1) Status

a) List of updates and update

via the SAS

b) Non used programs

c) Serial number

d) Uptime

e) More info…

f) Exit the menu

2) Expert

3) Exit the menu

Each menu has its own submenu and its own functions.

Acce ing a menu function

1. Press the central "OK" key to access the "MUSIC" menu or if you are playing on

several zones, proceed at first as indicated page 13.

2. Press any direction key ◄/▲/▼/►, to access the following menus: "EVENTS" or

"MESSAGES" or "SETTINGS" or "MAINTENANCE".

3. Press the "OK" key to validate your selection.

4. With the direction keys ◄/▲/▼/►, scroll the display to the desired function and press

"OK" to access it.

5. Parameter, select or adjust the function with the direction keys ◄/▲/▼/►.

6. Press the centre "OK key to confirm.

MP7200® user instructions 10

Selection of the zone

When your appliance is in zoning mode, that is to say it plays different musicale

atmospheres on several zones, before any handling the display asks, the zone to

parameter.

Press the central "OK" key.

The display shows "Audio choice - Zone 1".

With the direction keys ◄/▲/▼/►,

select the desired zone.

For example, zone 2.

Press the central "OK" key

to confirm the zone.

The display then shows "Music – GO!"

you can start your various

parameter setting in this zone.

Refer to the "MUSIC" menu on the

following page.

Important: When you make a direct announcement with the microphone, the message is

played on all the zones. As well as the setting of the sound’s volume (music and messages)

is the same on all the zones.

On the other hand, the pre-recorded or personal messages can have different parameters

from one zone to another.

Comment: If a quaver flickers on the display, it shows you are in zone 1.

When you have two or three quavers, the quaver that flickers represents the zone in which

you are setting parameters. For example, for 3 zones, if you work on zone 2, the second

quaver, present on the display will flicker.

Music

< > GO!

11/08/2003 18:32

Audio selection

Zone 1

Audio selection

Zone 2

Table des matières

Autres manuels Mood Media Lecteur multimédia

Mood Media

Mood Media Harmony K140A1 Manuel utilisateur

Manuels Lecteur multimédia populaires d'autres marques

Visual Land

Visual Land Impulse Manuel utilisateur

limHD

limHD 200i Manuel utilisateur

Transcend

Transcend DMP10 Manuel utilisateur

Philips

Philips GoGear Muse SA2MUS08 Manuel utilisateur

Fantec

Fantec MM-HDRL Manuel utilisateur

Dune HD

Dune HD Duo 4K Manuel utilisateur

IAdea

IAdea HMP-505S Manuel utilisateur

Camos

Camos MMS-1000 Manuel utilisateur

Energy

Energy 75 Series Manuel utilisateur

Z3 Technology

Z3 Technology DME-03 Manuel utilisateur

Sony

Sony SVR-2000 Guide de l'utilisateur

Meicheng

Meicheng HD-1080K12 Manuel utilisateur

DENAFRIPS

DENAFRIPS ARCE Manuel utilisateur

Topaz

Topaz CMS Media Player Instructions d'utilisation

InFocus

InFocus LightCast Manuel utilisateur

IconBiT

IconBiT XDS1003D Manuel utilisateur

Quanmax

Quanmax QDSP-2090 Series Manuel utilisateur

Samsung

Samsung MP-80S Manuel utilisateur
