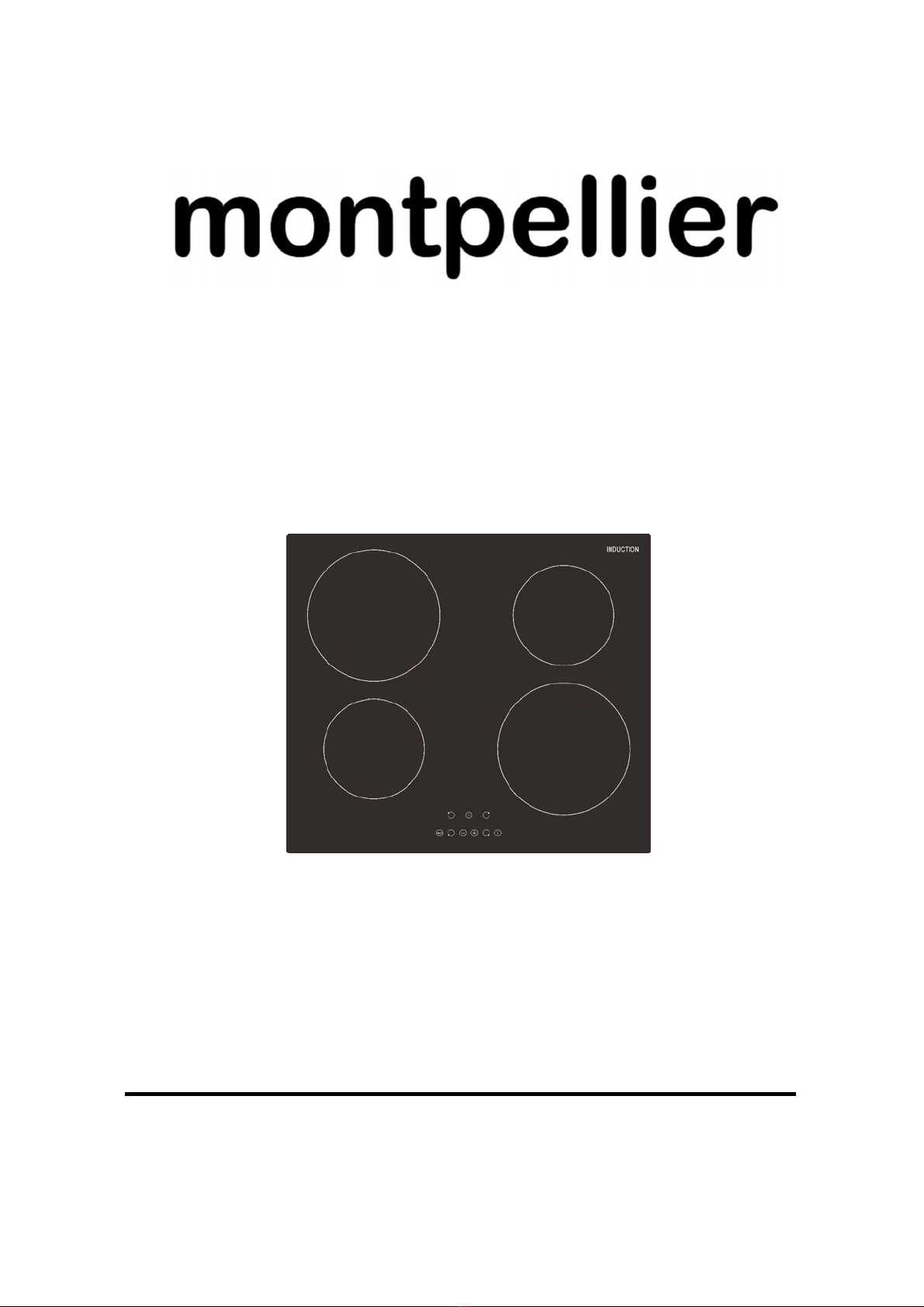

montpellier INT400 Manuel utilisateur
Installation and Operating Instructions
MODEL: INT400/INT450
Built-In 4 Zone Induction Hob
(Picture shown for indicative purposes only)
Please read these instructions carefully before attempting to install or use this appliance.
It is advisable to keep these instructions in a safe place for future reference.
Introduction
Thank you for choosing this montpellier branded appliance. It
has been designed to give years of trouble-free use provided
it is installed and maintained correctly.
Please read these instructions carefully before installing or
using your appliance. It is advisable to keep your purchase and
installation receipts with these instructions in a safe place for
future reference. Included is some important safety information
in addition to guidelines and recommendations that will enabl
you to take full advantage of all the functions available.
This quality appliance has been tested and certified to meet all
applicable UK electrical and safety standards.
This appliance must be installed and connected in
accordance with current regulations.
After unpacking the appliance ensure that there is no visibl
damage. If the appliance has been damaged during transit,
do not use it, contact your retailer immediately.
2
3
Your 2 year Manufacturer's guarantee
THIS DOES NOT AFFECT YOUR STATUTORY RIGHTS.
Your new montpellier appliance carries a free guarantee which protects you against the cost of
repairs during the first 24 months from date of purchase provided that:
Any claim is accompanied by evidence of the model reference, model serial number and proof of
purchase, such as a Sales Receipt, showing that the appliance was purchased within the 24
months prior to the date of claim.
What is not covered under the Guarantee:
Any appliance not correctly installed and operated in accordance with the
manufacturer's instructions.
Any appliance that is used for anything other than domestic purposes.
Any defect caused by accident, misuse, unauthorized modification or inexpert repair.
Cost of Call-out where a fault cannot be found with the appliance.
Cost of Call-out for work covering routine maintenance, such as, but not exclusively,
cleaning of filters or defrosting.
Cost of Call-out for work required to correct the alignment of doors following door
reversal procedures carried out by you.
Use of the appliance by anyone other than the Householder.
Use in any commercial environment.
Consumable items, such as, but not exclusively, fuses in plugs, bulbs and breakable
items which require routine replacement.
Repair costs incurred that have not been authorised by Repairtech and/or carried
out by a non-approved Repairtech engineer.
YOUR GUARANTEE IS VALID ONLY IN THE UK.
To Register your Appliance simply complete the card in your appliance pack and return it with a
stamp affixed or Alternatively you can Register online at www.repairtechuk.com
SERVICE HELP-LINE
Should your appliance develop a fault, please call the
Repairtech Service Helpline on:
01527-888133
Please remember to have all your product details available, including the model number, serial
number, date of purchase and your retailers’ details before registering a fault.
Your service call cannot progress without this information.
4
Description of the Appliance
1.
Large Cook Zone
2.
Small Cook Zone
3.
Touch Controls
(Picture shown is for indicative purposes only)
1. 2.
2. 1.
3.
5
CONTENTS:
Section 1. Installation
Section 2. Safety Advice
Section 3. Operating the Appliance
Section 4. Maintenance
6
Section 1. Installation
-
Remove all packaging, protective film and securing tape from the appliance.
-
Position the appliance in a dry atmosphere.
-
The following dimensions are provided as a guide for installation – your installer will
carry out the installation in accordance with the current regulations.
-
Your installer will connect the power cable in accordance with the current regulations.
To install this appliance, please proceed as follows:
1.1.
Work-Surface Cut-Out & Position Near Walls
1.2.
Securing the Hob
Apply the self-adhesive sealing tape all the way around the lower edge of the cooking
surface as shown in the diagram below.
Now position the hob into the work surface cut-out to secure it into place.
7
1.3.
Installing above a drawer or Built-in Oven
Ensure air gaps as follows:
1.4.
Electrical Connection
This appliance must be ‘hard wired’ to a suitable fused point adjacent to the
appliance housing and protected with a 32 amp fuse. Please note that a switchable
spur should be accessible above the work surface to allow the power to be turned off.
N.B. This hob cannot be connected via a 3pin plug!
Your installer will connect this appliance in accordance with current regulations.
Electrical connection diagram:
8
Section 2. Safety Advice
- Please read this booklet thoroughly before installing and switching on the
appliance. The manufacturer accepts no responsibility for incorrect
installation and usage.
- This appliance is guaranteed for Domestic Use Only.
- The appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience
and knowledge, unless they have been given supervision or instruction
concerning the use of the appliance by a person responsible for their
safety. Children should be supervised to ensure that they do not play with
the appliance.
- This appliance must only be used for cooking/heating foods and liquids.
Do not use it for any other purpose.
- If using an adaptor, this must be used in accordance with the
manufacturers instructions and ensure that the electrical circuit is not
overloaded as this could cause overheating.
- Do not twist or bend the cables, and keep them away from hot surfaces.
- Following installation make sure that the power cable is not trapped
underneath the appliance.
- Keep the appliance surfaces clean. Failure to do this could lead to the
appliance malfunctioning.
- The surface of this appliance will get extremely hot during use. The
surface of this appliance will remain hot after it has been turned off. Do
not touch or clean the heating zone until it has completely cooled down.
- If the power supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualified persons in order to
avoid a hazard.
Important Message for Cardiac Pacemaker Implant
Patients!
THIS INDUCTION HOB GENERATES MAGNETIC FIELDS IN ITS
IMMEDIATE SURROUNDINGS.
Your pacemaker must be designed in compliance with the corresponding
regulations in order for no interference to be caused between it and the
hotplate. Consult the pacemaker manufacturer or your doctor to
determine whether it complies with the regulations in force or whether
any incompatibilities exist.
9
Section 3. Operating the Appliance
3.1.
Cookware Suitable for Induction
Induction hobs are made from smooth, ceramic glass, the heat comes from a
magnetic induction coil which heats the cookware but not the cooking surface. The
heat from the cookware is transferred to the food.
Pans suitable for induction hob use must be made from magnetisable metal such as
cast iron or steel. Pure aluminium, copper or glass pans will not work with this type of
hob unless the base is bonded with a magnetic metal.
Check that pans are attracted to a magnet - this ensures that they are suitable for use
with an induction hob.
3.2.
Control Panel
10
3.3.
Timer, Power and Cooking Functions
Switching the appliance on:
Switch the hob on by touching the ON/OFF key . All heater displays show a static
“0” and the bottom right dot will blink. If no cooking zone is selected within 20
seconds, the hob will automatically turn off.
Switching the appliance off:
Switch the appliance off at any time by .
Switching the cooking zones on:
Touch the heater selection key corresponding to the zone you wish to cook on. There
is a static dot indication of the selected heater display and a blinking dot on all other
displays.
Select the temperature setting by using the increase setting key or decrease
setting . The element is now ready to cook. For the quickest cooking times,
select the desired cooking level and then touch the P key to activate the boost
function.
Switching the cooking zones off:
Select the element you want to switch off by pressing the heater selection key. Using
the key, turn the temperature down to “0”. Also, using the and keys
simultaneously will turn the temperature down to “0”.
If the cooking zone is hot, “H” will be displayed instead of “0”.
Smart Pause:
Press Smart Pause to lower the power of all zones being used – press it again to
restore power. If you do not deactivate Smart Pause, the hob will close down after a
period of 30 minutes.
Safety switch off function:
Every cooking zone will be switched off after a defined maximum operation time if the
heat setting is not modified. Every change in the cooking zone resets the timer of the
safety switch off function. The maximum operation time depends on the selected
temperature level.
