Installation

Instructions

monogram.com

31-49140

Safety Information

BEFORE YOU BEGIN

Read these instructions completely and carefully.

• IMPORTANT– Save these instructions for

local inspector’s use. Observe all governing codes and

ordinances.

• Note to Installer – Be sure to leave these

instructions with the Consumer.

• Note to Consumer – Keep these instructions with

your Owner’s Manual for future reference.

If you received a damaged unit, you should immediately

contact your dealer or builder.

Skill Level – Installation of this unit requires basic

mechanical, carpentry and plumbing skills. Proper

installation is the responsibility of the installer. Product

failure due to improper installation is not covered under

the GE Appliance Warranty. See the Owner’s Manual for

warranty information.

For Monogram local service in your area, call 1.800.432-2737.

For Monogram service in Canada, call 1.800.561.3344

For Monogram Parts and Accessories, call 1.877.959.8688.

www.monogram.com

WARNING Electrical Shock Hazard.

Plug into a grounded 3-prong outlet.

Do not remove the ground prong.

Do not use an adapter.

Immediately replace electric cords that become

frayed or damaged.

Do not use an extension cord with this appliance.

Failure to follow these instructions can result in

death, fire, or electrical shock.

Follow the instructions in the section Grounding the

Unit.

WARNING Tip Over Hazard.

These appliances are top heavy, especially with any doors open, and must be secured to prevent tipping

forward which could result in death or serious injury. Read and follow the entire installation instructions for

securing the appliance with the anti-tip system.

WARNING Explosion Hazard.

Keep flammable materials and vapors, such as gasoline, away from appliance. Failure to do so can result

in fire, explosion, or death.

WARNING To reduce the risk associated with choking, do not allow children under 3 years of age to

have access to small parts during the installation of this product.

CAUTION Lifting Hazard

This unit is very heavy. To reduce the risk of person injury during maneuvering and installing this appliance,

3 people are required for proper installation.

31-49140

CONSIGNES DE SÉCURITÉ

AVERTISSEMENT Risque de basculement

Ces réfrigérateurs présentent une partie supérieure lourde, en particulier avec une porte ouverte; ils

doivent donc être fixés pour prévenir le basculement vers l’avant et le risque concomitant de blessure

grave ou fatale. Lisez et suivez les instructions d’installation complètes pour l’installation du système

anti-basculement.

AVERTISSEMENT Risque d’explosion.

Conservez les matériaux et vapeurs inflammables tels que l’essence à l’écart de votre réfrigérateur. Le

non-respect de cette instruction peut entraîner un risque d’incendie, d’explosion ou de décès.

AVERTISSEMENT Pour réduire le risque d’étouffement pendant l’installation de ce produit, ne pas

laisser les petites pièces à la portée des enfants âgés de moins de 3 ans.

ATTENTION Risque associé à la manutention d’une charge lourde

Ce réfrigérateur est très lourd. Pour réduire le risque de blessure lors de la manutention de ce réfrigérateur,

trois (3) personnes sont nécessaires pour procéder à l’installation appropriée du modèle 36 pouces, quatre

(4) pour l’installation des modèles 42 ou 48 pouces.

AVERTISSEMENT Risque de choc électrique.

Branchez l’appareil dans une prise triple avec terre.

Ne retirez pas la broche de terre.

N’utilisez pas d’adaptateur.

Le non-respect de ces instructions peut entraîner

des risques d’incendies, des chocs électriques ou la

mort.

Remplacer immédiatement tout cordon électrique

effiloché ou endommagé.

N’utilisez pas de rallonge avec cet appareil.

Le non-respect de ces instructions peut entraîner

des risques d’incendies, des chocs électriques ou la

mort.

Suivez les instructions de la section Mise à la terre

du réfrigérateur.

31-49140

Contents

Safety 2

Instructions for Standard Installation 5

Planning Guide

The Installation Space 6

Dimensions and Clearances 6

Customization Basics 8

Refrigerator Location 8

1/4” Framed Panel Dimensions 9

3/4” Overlay Panel Dimensions 9

Side Panels 10

ZUG2 Grille Panel Dimensions 10

130° Door Swing 11

Installation Instructions

Tools, Hardware, Materials 12

Grounding the Unit 12

Step 1. Remove Packaging 13

Step 2. Install Water Line 13

Step 3. Install Side Panels 14

Step 4. Anti-Tip Procedures 14

Step 5. Level Unit 17

Step 6, Secure Unit to Wall 17

Step 7. Adjust Door Swing 18

Step 8. Install Grille Panel 18

Step 9. Install Framed Panels 19

Step 9A. Install Overlay Panels 20

Step 10. Connect Water Supply 21

Step 11. Start Icemaker 21

Step 12. Install Toekick 21

Instructions for Flush Installation 22

Planning Guide

The Installation Space 23

Dimensions and Clearances 23

Custom Handle Design Guide 24

1/2” Overlay Panel Dimensions 25

3/4” Decorative Panel Dimensions 26

3/4” Raised Door Panel Routing 27

3/4” Raised Grille Panel Routing 28

3/4” Raised Door Panel Routing

for Unified Installation 29

Side Panels 30

Side Cleats 30

ZUG2 Grille Panel Dimensions 30

Unified Door Panel Dimensions 30

Refrigerator Location 30

Installation Instructions

Tools, Hardware, Materials 31

Grounding the Unit 31

Step 1. Remove Packaging 32

Step 2. Install Water Line 32

Step 3. Install Side Panels 32

Step 4. Install Case Trim 33

Step 5. Anti-Tip Bracket 33

Step 6. Level Unit 35

Step 7. Adjust Door Swing 36

Step 8. Install Grille Panel 36

Step 9. Install overlay Panels 37

Step 10. Connect Water Supply 38

Step 11. Start Icemaker 38

Step 12. Install Toekick 38

Instructions for Stainless Steel Installation 39

Planning Guide

The Installation Space 40

Dimensions and Clearances 40

Customization Basics 42

Refrigerator Location 42

130° Door Swing 43

Installation Instructions

Tools, Hardware, Materials 44

Grounding the Unit 44

Step 1. Remove Packaging 45

Step 2. Install Water Line 45

Step 3. Install Side Panels 45

Step 4. Anti-Tip Bracket 46

Step 5. Level Unit 48

Step 6, Secure Unit to Wall 49

Step 7. Adjust Door Swing 49

Step 8. Connect Water Supply 50

Step 9. Start Icemaker 50

Step 10. Install Toekick 50

Instructions for Standard Installation

31-49140

Design Guide - Standard Installation

36" Frame to

Frame Width

*84" From

Floor to

Top Frame

35"

Case Width

*83-1/2"

Rear

25-3/8" Case Depth

Depth Including

Handles 26-7/8"

THE INSTALLATION SPACE

Water And Electrical Locations

Electrical and water supply must be located as

shown.

The Cutout Depth Must Be 24” Minimum

The unit will project forward, slightly beyond adjacent

cabinetry, depending on your installation.

Cutout Depth Beneath a Soffit:

When installed beneathh a soffit, the soffit cannot

exceed the 24” installation depth shown. The top

case trim overlaps the bottom of the soffit.

Additional Specifications

• A 115 volt 60Hz., 15 or 20 amp power supply is

required. An individual properly grounded branch

circuit or circuit breaker is recommended. Install

a properly grounded 3-prong electrical receptacle

recessed into the back wall. Electrical must be

located on rear wall as shown.

NOTE: GFI (ground fault interrupter) is not

recommended.

• Water line can enter the opening through the floor

or back wall. The water line should be 1/4” O.D.

copper tubing or QuickConnect™kit between the

cold water line and water connection location,

long enough to extend to the front of the unit.

Installation of an easily accessible shut-off valve in

the water line is required.

DIMENSIONS AND CLEARANCES

* Shipping height. The

product can be adjusted

to fit into a cutout that

is 84-1/2” max. height.

Note that the top case

trim at the front is 1/2”

higher and will overlap

upper cabinetry or soffit.

Use leveling legs and

wheels for a maximum

1” height adjustment.

Product Clearances

These units are equipped with a 3-position door

stop. The factory set 115° door swing can be adjust-

ed to 90° if clearance to adjacent cabinets or walls

is restricted. Order WX14X99 door stop for precise

settings between 90° and 130°.

130° Door Swing 90° Door Swing

90° Door Swing

4” Minimum

to a Wall

90°

23-7/8”

Case Behind

Frame

36-3/4”

Allow 25” minimum clearance for a full 130° door

swing. Allow 15” for pan removal.

For a 90° door swing, allow 4” minimum clearance

to a wall. If the 90° doorstop position is used, pan

access is maintained but pan removal is restricted.

See illustration on page 11 to determine door swing

interaction with adjacent cabinets or countertops.

115° Door Swing

31-49140

Design Guide - Standard Installation

These units are equipped with a 3-position door stop.

The factory set 115° door swing can be adjusted to

90° or 130° if clearance to adjacent cabinets or walls

is restricted. Order WX14X99 door stop for precise

settings between 90° and 130°.

When Installed into a corner:

Allow 25” for a full 130° door swing. Allow 15” for pan

removal. Allow 4” min. clearance when door swing

is adjusted to a 90° opening for pan access, but pan

removal is restricted.

25"

Min. to

Wall

130°

130°Door

Swing

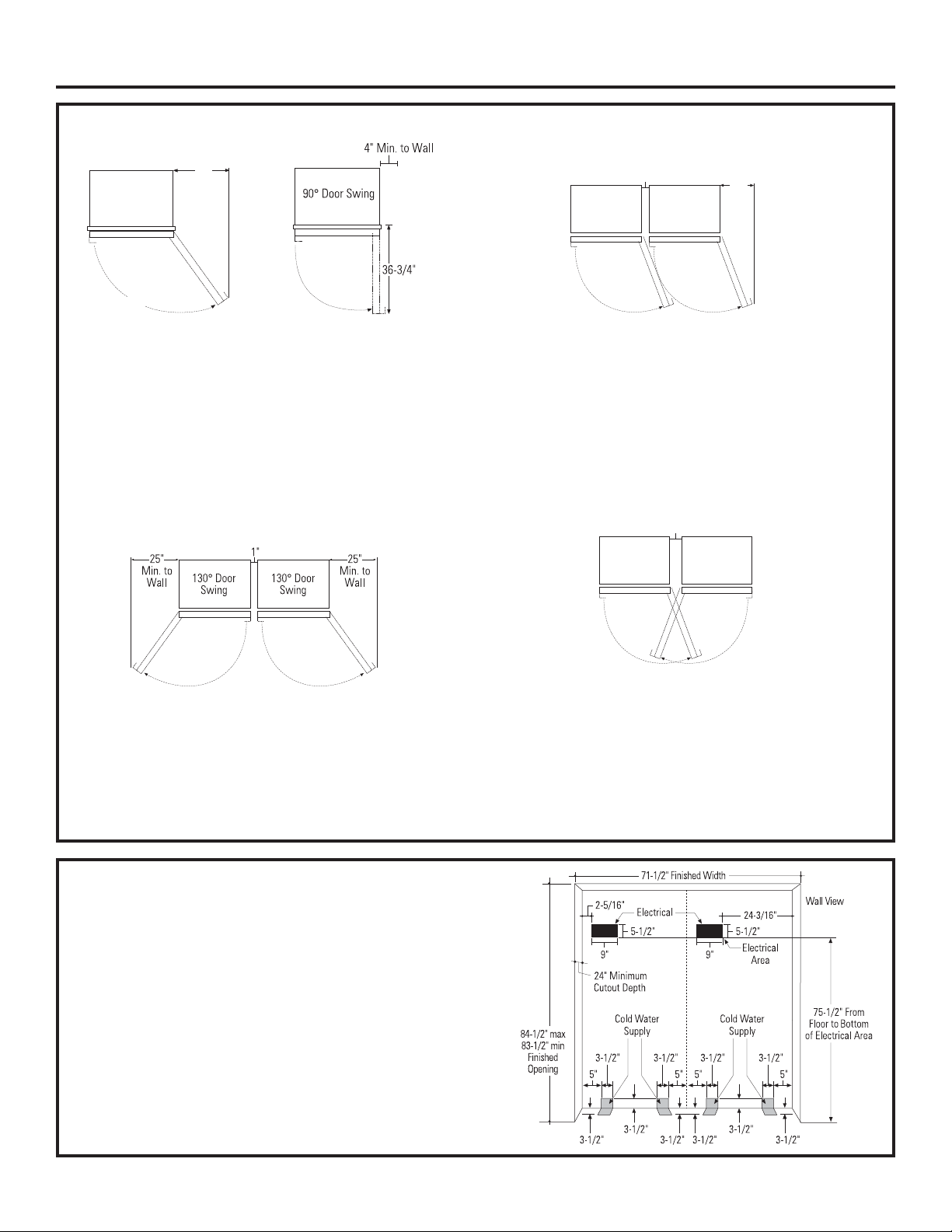

CLEARANCES

ZUG2, ZUGSS2 Unified Grille Panel Kit

• If you are installing two units, side by side, the installation

space must be 71-1/2” wide.

NOTE: Additional cutout width may be required when side

panels are used. Add side panel thickness to the finished

cutout to calculate rough-in width.

• The water and electrical locations for each product must

be located as shown.

• A separate 115V, 60Hz., 15 or 20 amp power supply is

recommended for each product.

Clearances for Multiple Single Door Installations

In a side-by-side installation of a left and right door

swing product, a 1” clearance between the units is

required. Order ZUGSS2 Stainless Steel Unified

Grille Panel Kit or ZUG2 Custom Panel Unified Grille

Panel Kit for one continuous grille panel.

Clearances for two products installed side-by-

side with the same (left or right) door swing

Allow 2” minimum clearance between the products to

prevent door swing interference. Order the WX14X99

adjustable door stop to reduce the factory set 115°

door swing. Allow 15” minimum to a wall to achieve

full drawer extension and pan removal.

NOTE: ZUG2 and ZUGSS2 Grille Panel Kit will NOT

fit this installation.

2" 15"

Clearances for two products installed side-by-

side with right and left side hinges together Allow

5” minimum between the two products to prevent

one door from striking the other. Use the WX14X99

adjustable door stop to reduce the factory set 115°

door swing and to allow pan removal.

NOTE: ZUG2 and ZUGSS2 Grille Panel Kit will NOT

fit this installation.

INSTALLATION

31-49140

Design Guide - Standard Installation

CUSTOMIZATION BASICS:

Framed or Overlay Panels, Custom

Handles and Accessory Kits

Trimmed models are designed to be customized with

decorative panels. Field installed custom door and

grille panels are required.

Optional Accessory Kits

• ZKHSS2: Monogram Tubular Stainless Steel

handles designed to fit 3/4” overlay panels.

• ZKHPSS1: Pro Tubular Stainless Steel handle

designed to fit 3/4” overlay panels.

• ZUG2: For side-by-side installation of two trimmed

models. This kit provides for the installation of a

unified custom grille panel to span the width of two

units using a framed or overlay panel.

REFRIGERATOR LOCATION

• Do not install the refrigerator where the tempera-

ture will go below 55°F (13°C). It will not run often

enough to maintain proper temperatures.

• Do not install the refrigerator where temperatures

will go above 100°F (37°C). It will not perform

properly.

• Do not install the refrigerator in a location

exposed to water (rain, etc.) or direct sunlight.

• Install it on a floor strong enough to support it

fully loaded.

31-49140

Design Guide - Standard Installation

If you choose to install framed panels, they must be cut

to the dimensions shown. The panels will slide into the

frame on the door and grille.

If the custom panel is less than 1/4” thick and if it fits

loosely in the door frame, it can be backed up with a

piece of filler material or foam tape to improve the fit.

IMPORTANT NOTE: Maximum weight for door panel

is 67 pounds. Maximum total weight for assembled

grille panel is 11 pounds.

3/4” OVERLAY PANEL DIMENSIONS

For a more custom appearance, overlay panels may

be installed on trimmed models. The overlay panel

must be secured to a 1/4” thick backer panel which

slides into the trim. A spacer panel 0.10” thick must be

placed between the overlay and backer panel.

IMPORTANT NOTE: Maximum total weight for

assembled door panel is 67 pounds. Maximum total

weight for assembled grille panel is 11 pounds.

Assemble the panels with glue and screws.

• Center the spacer panel on the backer panel, left to

right and top to bottom. Secure the panels with glue.

• Center the spacer and backer panel on the overlay

panel and secure with glue and screws. Screws

must be countersunk into the backer panel.

Framed Panel Dimensions

A (Width) B (Grille Height) C (Door Height)

1/4” Framed Panel 33-7/8” 8-7/8” 69-5/16”

Overlay Panel Dimensions

A (Width) B (Grille Height) C (Door Height)

1/4” Backer Panel 33-7/8” 8-7/8” 69-5/16”

0.10” Spacer Panel 32-1/2” 7-5/8” 67-15/16”

3/4” Overlay Panel 34-1/8” 9” 69-9/16”

NOTE: Left-to-right offset is not always equal

to top-to-bottom offset.

1/4"

Panel

Door

5/16"

Trim

Reveal

1/4” FRAMED PANEL DIMENSIONS

31-49140

SIDE PANELS

Side panels must be used whenever the sides of the

unit will be exposed. The 1/4” side panels will slip into

the side case trim. Secure the panels to the unit with

stick-on hook and loop fastener strips. Order the side

panels from the cabinet manufacturer.

• Cut a notch in the top front corner as shown to allow

clearance for corner keys in the front side trim.

ZUG2 GRILLE PANEL DIMENSIONS

The ZUG2 unified grille panel kit provides for the

installation of a framed or overlay grille panel.

* Depending on

installation height.

Assemble the overlay panels in the same manner

as the door panel.

Framed Panel Dimensions

A (Width) B (Height)

1/4” Framed Panel 69-7/8” 8-7/8”

Overlay Panel Dimensions

A (Width) B (Height)

1/4” Backer Panel 69-7/8” 8-7/8”

0.10” Spacer Panel 68-1/2” 7-5/8”

3/4” Overlay Panel 70-1/8” 9”

IMPORTANT NOTE: The maximum weight for the

unified grill is 25 pounds.

Design Guide - Standard Installation

*84"

2-9/16"

24"

*3" to 4"

3/16"

1-7/8"

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Monogram Réfrigérateur

Monogram

Monogram ZDOG240 Manuel utilisateur

Monogram

Monogram ZDOG240 Manuel utilisateur

Monogram

Monogram ZIFI240 Manuel utilisateur

Monogram

Monogram 36 Ceramic Cooktop Manuel utilisateur

Monogram

Monogram 224D3735P001 Manuel utilisateur

Monogram

Monogram WX08X10002 Manuel utilisateur

Monogram

Monogram Monogram ZFSB26DRSS Guide de l'utilisateur

Monogram

Monogram Bottom-Freezer Built-In Refrigerators Manuel utilisateur

Monogram

Monogram ZlS360N Manuel utilisateur

Monogram

Monogram ZIFS360NHLH Manuel utilisateur

Monogram

Monogram ZIPS360NHSS Manuel utilisateur

Monogram

Monogram ZPB480D Manuel utilisateur

Monogram

Monogram Monogram ZIC36N RH Manuel utilisateur

Monogram

Monogram ZISB360DRF Manuel utilisateur

Monogram

Monogram ZISW36DY Manuel utilisateur

Monogram

Monogram Side-by-side stainless Steell Free-Standing... Manuel utilisateur

Monogram

Monogram zis420nh Manuel utilisateur

Monogram

Monogram ZIFS360 Manuel utilisateur

Monogram

Monogram 36 Ceramic Cooktop Manuel utilisateur

Monogram

Monogram 36 Ceramic Cooktop Manuel utilisateur

Monogram

Monogram ZIPP360NHSS Manuel utilisateur

Monogram

Monogram ZIDI240 Manuel utilisateur

Monogram

Monogram ZICS360NHLH Manuel utilisateur

Monogram

Monogram ZIR300NPKII Manuel utilisateur

Manuels Réfrigérateur populaires d'autres marques

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Manuel utilisateur

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Manuel utilisateur

Sharp

Sharp SJ-BA31IEXW2-EU Manuel utilisateur

CORBERO

CORBERO CC2300MCW Manuel utilisateur

KitchenAid

KitchenAid 2205264 Manuel utilisateur

Stengel

Stengel KU 1101 A++ Manuel utilisateur

NEFF

NEFF KI181 Series Manuel utilisateur

Hoshizaki

Hoshizaki Reach-In Manuel utilisateur

Amana

Amana ASD2524VES00 Manuel utilisateur

BOMANN

BOMANN KGC 213 Manuel utilisateur

Danby

Danby DAR044A1SLDD Instructions de montage

Samsung

Samsung RF323TE Manuel utilisateur

Beko

Beko CSA31022 Manuel utilisateur

IKEA

IKEA FROSTIG C 185 E Manuel utilisateur

Electrolux

Electrolux ER 6821 D Manuel utilisateur

True

True TS-28 Manuel utilisateur

Frigidaire

Frigidaire FSC23R5DW9 Manuel utilisateur

Beko

Beko LSP4579W Manuel utilisateur
