Monnit PoE-X High Temperature Sensor Manuel utilisateur

PoE-X High Temperature

Sensor User Guide

TABLE OF CONTENTS

I. ABOUT THE PoE-X HIGH TEMPERATURE SENSOR 1

PoE-X HIGH TEMPERATURE SENSOR FEATURES 1

APPLICATION EXAMPLES 1

II. SENSOR SECURITY 2

DATA SECURITY ON THE SENSOR 2

iMONNIT SECURITY 2

III. ORDER OF OPERATIONS 2

SET-UP STEPS 2

IV. REGISTRATION 4

REGISTERING A PoE-X HIGH TEMPERATURE SENSOR 4

V. SETTING UP THE PoE-X HIGH TEMPERATURE SENSOR 5

THE LIGHTING SEQUENCE 5

MOUNTING THE SENSOR 5

VI. SENSOR OVERVIEW 6

MENU SYSTEM 6

INTERFACE SETTINGS 8

VII. ACTIONS OVERVIEW 11

VIII. USING THE LOCAL INTERFACE 14

THE STATUS TAB 16

THE SETTINGS TAB 17

SUPPORT 23

WARRANTY INFORMATION 23

SAFETY RECOMMENDATIONS 25

I. ABOUT THE PoE-X HIGH TEMPERATURE SENSOR

The Power-over-Ethernet (PoE) High Temperature Sensor uses a glass coated

platinum RTD transducer to accurately measure temperatures from -50°C to

+370°C (-58°F to +700°F). The High Temperature Sensor outputs the ambient

temperature in degrees Celsius or Fahrenheit and alerts the user when a

temperature threshold is crossed.

The Power-over-Ethernet (PoE) Sensor products measure various conditions

(environmental, power, access). All devices come with flexible settings ?

including notifications, alerts, reports, and maps ? can be customized in the

iMonnit online sensor management interface.

PoE-X SENSOR FEATURES

- Power-over-Ethernet ready (injector hardware required)

- Embedded LEDs for transmission & online condition indicators

- 50,000 sensor message memory (non-volatile)

- Modbus TCP & SNTP v1 interface capabilities

- No PC required (managed through apps and smart devices)

- Remote update capable w/automatic updates

- Works with iMonnit Cloud and Enterprise software applications

- Optional 5V DC power supply available

- US Power Adapter

- International Power Adapter

EXAMPLE APPLICATIONS

- Heaters and Boilers

- Ovens and Cooking Devices

- Environmental Monitoring

- Smart machines and Smart structures

- HVAC Operation & Testing

- And many more!

PAGE 1

PAGE 2

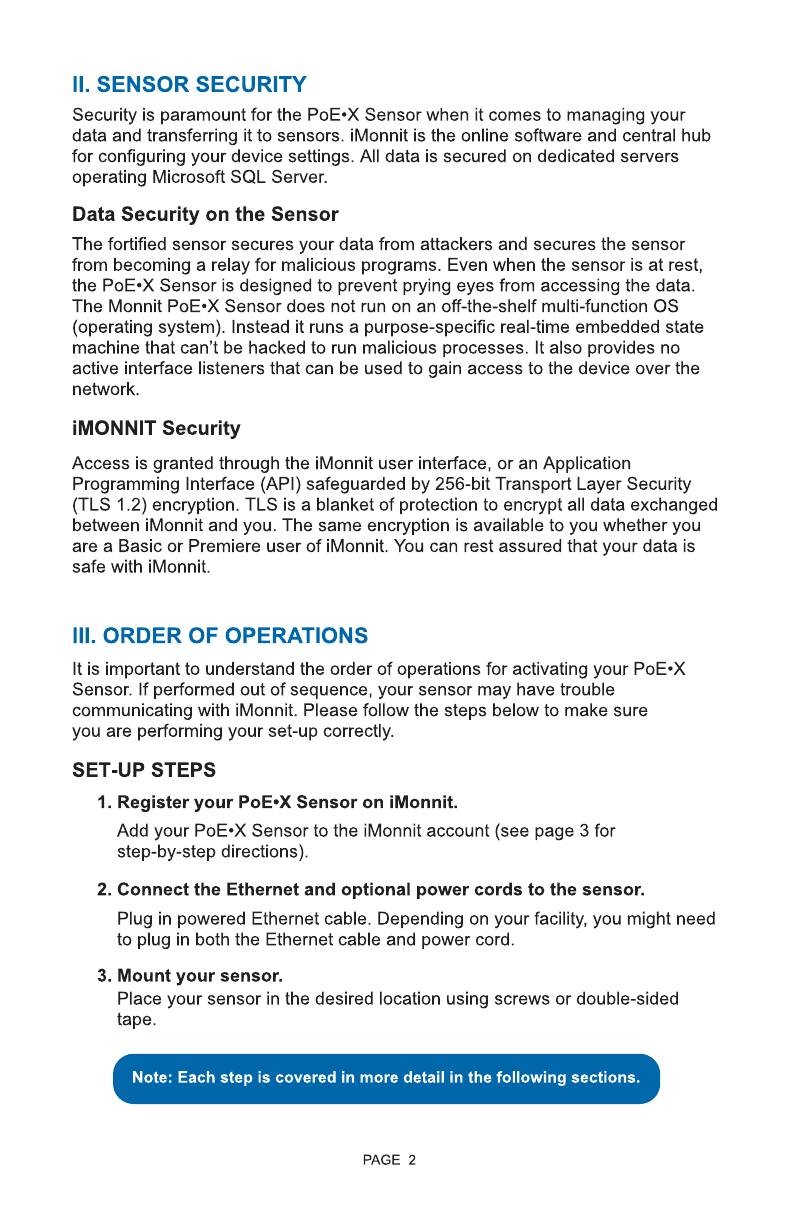

II. SENSOR SECURITY

Security is paramount for the PoE-X Sensor when it comes to managing your

data and transferring it to sensors. iMonnit is the online software and central hub

for configuring your device settings. All data is secured on dedicated servers

operating Microsoft SQL Server.

Data Security on the Sensor

The fortified sensor secures your data from attackers and secures the sensor

from becoming a relay for malicious programs. Even when the sensor is at rest,

the PoE-X Sensor is designed to prevent prying eyes from accessing the data.

The Monnit PoE-X Sensor does not run on an off-the-shelf multi-function OS

(operating system). Instead it runs a purpose-specific real-time embedded state

machine that can?t be hacked to run malicious processes. It also provides no

active interface listeners that can be used to gain access to the device over the

network.

iMONNIT Security

Access is granted through the iMonnit user interface, or an Application

Programming Interface (API) safeguarded by 256-bit Transport Layer Security

(TLS 1.2) encryption. TLS is a blanket of protection to encrypt all data exchanged

between iMonnit and you. The same encryption is available to you whether you

are a Basic or Premiere user of iMonnit. You can rest assured that your data is

safe with iMonnit.

III. ORDER OF OPERATIONS

It is important to understand the order of operations for activating your PoE-X

Sensor. If performed out of sequence, your sensor may have trouble

communicating with iMonnit. Please follow the steps below to make sure

you are performing your set-up correctly.

SET-UP STEPS

1. Register your PoE-X Sensor on iMonnit.

Add your PoE-X Sensor to the iMonnit account (see page 3 for

step-by-step directions).

2. Connect the Ethernet and optional power cords to the sensor.

Plug in powered Ethernet cable. Depending on your facility, you might need

to plug in both the Ethernet cable and power cord.

3. Mount your sensor.

Place your sensor in the desired location using screws or double-sided

tape.

Note: Each step is covered in more detail in the following sections.

IV. REGISTRATION

If this is your first time using the iMonnit online portal, you will need to create a

new account. If you have already created an account, start by logging in. For

instructions on how to register for an iMonnit account, please consult the iMonnit

User Guide.

REGISTERING THE POE-X SENSOR

1. Add the sensor on iMonnit.

Add the sensor to your account by choosing Sensors in the main menu.

Navigate to the Add Sensor button.

2. Find the device ID. See Figure 1.

The Device ID (ID) and Security Code

(SC) are necessary to add a sensor.

These can both be located on the label

on the bottom of your device.

3. Adding your device. See Figure 2.

You will need to enter the Device ID

and the Security Code from your PoE-X

Sensor in the corresponding text boxes.

Use the camera on your smartphone to

scan the QR code on your device. If you

do not have a camera on your phone,

or the system is not accepting the QR

code, you may enter the Device ID

and Security Code manually.

- The Device ID is a unique number

located on each device label.

- Next, you?ll be asked to enter the Security Code on your device. A

security code consists of letters and must be entered in upper case, no

numbers. It can also be found on the barcode label of your device.

When completed, select the Add Device button.

PAGE 3

Figure 1

Figure 2

Desktop Mobile

V. SETTING UP YOUR PoE-X SENSOR

Plug in powered Ethernet cable.

Depending on your facility, you might need

to plug in both the Ethernet cable and power

cord. See Figure 3.

LIGHTING SEQUENCE

The sensor will cycle through three stages as it powers on:

Power-on stage: At this stage, the sensor will analyze electronics and

programming. The LED lights will flash red and green, before all becoming green

for one second. In the case of failure, the light sequence will repeat after ten

seconds. Please contact technical support if the lights aren?t green after two

minutes.

Connection stage: The sensor will attempt to settle all operational connections.

As the sensor attempts to connect, the Sensor Status LED will be off, waiting for

the Ethernet connection to complete. After the Ethernet setup is complete, the

Sensor Status Light will briefly blink red before turning green and then going off

completely. If the Ethernet Status LED is orange, there is a failure in your

Ethernet connection. Check your connection.

Operational stage: In the operational stage, the Ethernet lights will remain

active while the Sensor Status light remains off ? unless there is an issue. See

Figure 4 & Figure 5.

PAGE 4

Ethernet Status LED

Steady Blinking Green:

Performing Ethernet set up

operations

Solid Green with Flicker:

Connection successful for normal

operation

Ethernet Link LED

Off:

No Ethernet cable connected

Green:

Ethernet is connected

Figure 3

Figure 4

PAGE 5

Sensor Status LED

Off:

Everything is fine! Sensor is waiting

to measure

Blinking Green:

Communicating to server

Blinking Red:

Failed to communicate with server

MOUNTING THE SENSOR

Monnit sensors feature mounting flanges

and can be attached to most surfaces

using the included mounting screws or

double-sided tape. See Figure 6.

Figure 5

Figure 6

Mounting flanges

VI. SENSOR OVERVIEW

Select Sensors from the main navigation menu on iMonnit to access the sensor

overview page and begin adjusting your PoE-X Sensors.

MENU SYSTEM

Details - Displays a graph of recent sensor data

History - List of past readings

Actions - List of actions attached to this sensor

Settings - Editable levels for your sensor

Calibrate - Reset calibration for your sensor

Scale - Change the scale of readings for your sensor

Directly under the tab bar is an overview of your sensor. This allows you to see

the signal strength of the selected sensor. A colored dot in the left corner of the

sensor icon denotes its status:

- Green indicates the sensor is checking in and is within user-defined safe

parameters.

- Red indicates the sensor has met or exceeded a user-defined threshold or

triggered event.

- Gray indicates that no sensor readings are being recorded, rendering the

sensor inactive.

- Yellow indicates that the sensor reading is out of date, possibly due to a

missed heartbeat check-in.

Details View

The Details View will be the first page you see upon selecting which sensor

you would like to modify. See Figure 7.

PAGE 6

A. The Sensor Overview section is at the

top of every page. This will display the

present reading, signal strength, battery level,

and status.

B. The Recent Readings section below the

chart shows your most recent data received

by the sensor.

C. The Readings Chart displays how the

sensor readings fluctuate throughout a set

date range. To change the date range

displayed in the graph, navigate up to the top

of the Readings Chart section on the

right-hand corner to change the ?From:?

and/or ?To:?date. Figure 7

PAGE 7

Readings View

Selecting the Readings Tab within the tab bar allows you to view the sensor?s

data history as time stamped data.

- On the far right of the Sensor History Data is a cloud icon. ( ) Selecting

this icon will export an Excel file for your sensor into your download folder.

The data file will have the following fields:

MessageID: Unique identifier of the message in our database.

Sensor ID: If multiple sensors are exported, you can distinguish between the

sensors using this number ? even if the names are the same.

Sensor Name: The name you have given the sensor.

Date: The date the message was transmitted from the sensor.

Value: Data presented with transformations applied, but without additional

labels.

Formatted Value: Data transformed and presented as it is shown in the

monitoring portal.

Raw Data: Raw data as it is stored from the sensor.

Sensor State: Binary field represented as an integer containing information

about the state or the sensor when the message was transmitted. (See

?Sensor State?explained below.)

Alert Sent: Boolean indicating if this reading triggered a notification to be sent

from the system.

Sensor State

The integer presented here is generated from a single byte of stored data.

A byte consists of 8 bits of data that we read as Boolean (True (1) / False (0))

fields.

Using a temperature sensor as an example:

If the sensor is using factory calibrations, the Calibrate Active field is set True

(1) so the bit values are 00010000 and it is represented as 16.

If the sensor is outside the Min or Max Threshold, the Aware State is set True

(1) so the bit values are 00000010 and it is represented as 2.

Note: Make sure you have the date range for the data you need input

in the ?From? and ?To? text boxes. This will be the previous day by

default. Only the first 2,500 entries in the selected date range will be

exported.

If the user has calibrated the sensor, the Calibrate Active field is set False (0)

and the sensor is operating inside the Min and Max Thresholds, the bits look

like 00000000 ? this is represented as 0.

If the sensor is using factory calibrations and it is outside the threshold, the bit

values are 00010010 and it is represented as 18 (16 + 2 because both the bit

in the 16 value is set and the bit in the 2 value is set).

Settings View

To edit the operational settings for a sensor, choose the Sensor option in

the main navigation menu and then select the Settings Tab to access the

configuration page. See Figure 8.

A. Sensor Name is the unique name you give

the sensor to easily identify it in a list along

with any notifications.

B. The Heartbeat Interval is how often the

sensor communicates with the server if no

activity is recorded.

C. Aware State Heartbeat is how often the

sensor communicates with the server while in

an Aware State.

D. Assessments per Heartbeat is how many

times between heartbeats a sensor will check

its measurements against its thresholds to

determine whether it will enter an Aware

State.

E. Below is the minimum reading the sensor

should record before entering an Aware State.

F. Above is the maximum reading the sensor

should record before entering an Aware State.

G. The Aware State Buffer prevents the

sensor from bouncing between Standard

Operation and Aware State when the

assessments are very close to a threshold.

For example, if a Maximum Threshold is set

to 90° and the buffer is 1°, then once the

sensor takes an assessment of 90.1° it will

remain in an Aware State until dropping to

89.0°. Similarly at the Minimum Threshold the

temperature will have to rise a degree above

the threshold to return to Standard Operation.

H. In small sensor networks, the sensors can

be set to synchronize their communications.

The default setting ?Off?allows the sensors to

randomize their communications, maximizing

communication robustness. Setting this will

synchronize the communication of the

sensors.

PAGE 8

Figure 8

Finish by selecting the Save button.

Table des matières

Autres manuels Monnit Accessoires

Monnit

Monnit ALTA Wireless Water Rope Sensor Manuel utilisateur

Monnit

Monnit ALTA Wireless Temperature Sensor Manuel utilisateur

Monnit

Monnit ALTA Wireless Carbon Dioxide Sensor Manuel utilisateur

Monnit

Monnit ALTA Sensor Adapter Series Manuel utilisateur

Monnit

Monnit PoE X Manuel utilisateur

Monnit

Monnit PoE-X Dry Contact Sensor Manuel utilisateur

Monnit

Monnit ALTA MNS2-4-PK-WS-PS Manuel utilisateur

Monnit

Monnit ALTA WirelessCarbon Monoxide Sensor Manuel utilisateur

Monnit

Monnit ALTA Motion+ Manuel utilisateur

Monnit

Monnit MNS2-9-W2-OC-ST Manuel utilisateur

Monnit

Monnit ALTA H2S Manuel utilisateur

Monnit

Monnit PoE-X Water Detect Rope Sensor Manuel utilisateur

Monnit

Monnit ALTA Water Detection Puck Sensor Manuel utilisateur

Monnit

Monnit PoE-X Low Temperature Sensor Manuel utilisateur

Monnit

Monnit PoE-X Thermocouple Sensor Manuel utilisateur

Monnit

Monnit PoE-X Open/Close Sensor Manuel utilisateur

Monnit

Monnit ALTA MNS2-4-W2-GS-C2 Manuel utilisateur

Manuels Accessoires populaires d'autres marques

Hillco

Hillco 2810 Manuel utilisateur

Siemens

Siemens QSA2700D Manuel de l'opérateur

Contours

Contours ZY024 Manuel utilisateur

Saivod

Saivod VS621 Manuel utilisateur

Virtuox

Virtuox VirtuCLEAN 2.0 Manuel utilisateur

SCE

SCE ENVIRO-THERM SCE-TE170B24VSS Manuel utilisateur

Z-Wave

Z-Wave HSD-200Z Manuel utilisateur

turck

turck FMX-IM-2UPLI63FX Manuel utilisateur

Decagon Devices

Decagon Devices 10HS Manuel utilisateur

UPPAbaby

UPPAbaby Cup Holder Manuel utilisateur

Elko

Elko SmartSensor Leakage Wireless Manuel utilisateur

Grizzly

Grizzly H8371 Manuel utilisateur

Panasonic

Panasonic HG-T Series Manuel utilisateur

IFM Electronic

IFM Electronic Efector 250 Series Guide de référence

DigiDesign

DigiDesign 888/24 I/O Manuel utilisateur

PROZIS

PROZIS QUAY Manuel utilisateur

patagonia

patagonia PSI Vest Manuel utilisateur

SFC Energy

SFC Energy EFOY GO! Manuel utilisateur
