Moen Extensa 7560C Manuel utilisateur

FAUCET DESCRIPTION

•Hydrolock® quick connect installation

•Flush button with raised stream and spray indicators

•Metal construction with 10 finishes

•Pullout spray with 59" fiber hose

•1/2" IPS connections will accept standard ball nose

connection for 3/8" tubing

OPERATION

•Lever style handle

•Temperature controlled by 180˚ arc of handle travel

•Spout receptor rotation is 145˚

•Operates with less than 5 lbs. of force

•Operates in stream or spray mode in the pullout or

retracted position

FLOW

•Flow is limited to 2.2 gpm (8.3 L/min) at 60 psi

CARTRIDGE

•1225 cartridge design

•Engineered polymers, non-ferrous and stainless

steel materials

STANDARDS

•Designed and manufactured to comply with the

requirements of: CSA B-125, ASME A112.18.1M, IAPMO PS

49-92, NSF 61 Section 9, California Proposition 65, ANSI

A117.1, ADA

•The backflow protection system in this device consists of

two independently operating check valves, a primary and

a secondary which prevent backflow

WARRANTY

•Lifetime limited warranty against leaks, drips and

finish defects to the original consumer purchaser

•5 year warranty if used in commercial installations

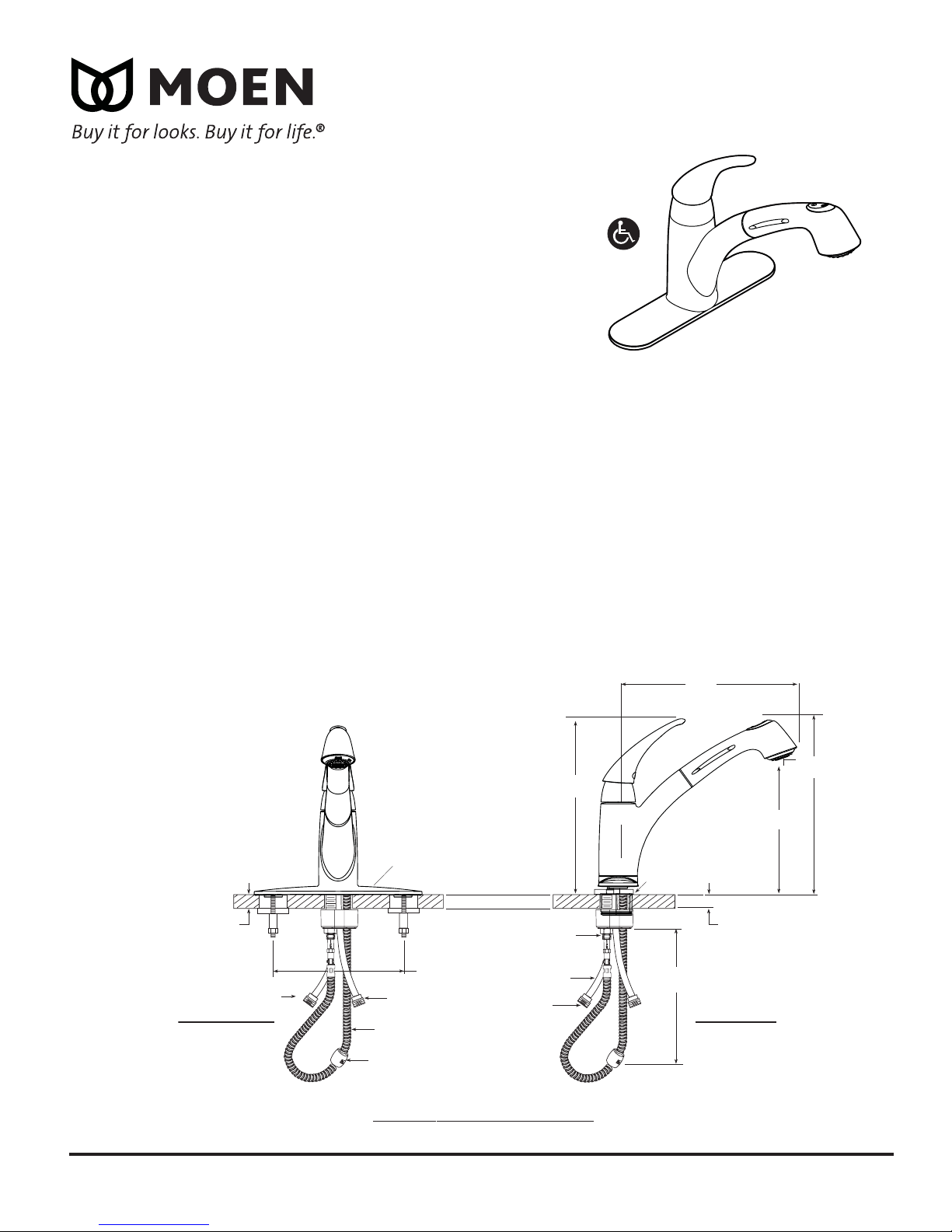

For 8"(203mm)

Mounting

2-1/2"(64mm)

Max. Deck Thickness

Single Mount Esc.

2-1/8"(54mm)

Max. Deck Thickness

Deck Esc.

1-1/4"(32mm) Dia.

Minimum

Mounting Hole

3/8" (10mm)

Supply Tubes

1/2" IPS

Connection

16"

(406mm)

(203mm)

10"

(254mm)

Cold

Hot

Flexible

Metal Hose

Counter Weight

Deck Escutcheon

10-7/16" x 2-7/16" wide

(265mm x 62mm)

3 Hole, 4" o.c. Installation Single Hole Installation

1/4" (6mm)

Threaded Dia.

18 NPSM

11-1/8"

(284mm)

10-3/8"

(264mm)

2-3/8" (60mm)

Escutcheon Dia.

ADA

Rev. 12/06

NOTE: DESIGNED TO INSTALL

THRU 1 OR 3 HOLES 1-1/4” (32mm) MIN. DIA.

Specifications

CRITICAL DIMENSIONS

(DO NOT SCALE)

FOR MORE INFORMATION CALL: 1-800-BUY-MOEN

www.moen.com

Extensa™

Single Control Kitchen Faucet

w/Pullout Spray

Models: 7560C, 7560S, 7560W, 7560V, 7560BL,

7560SL, 7560SLBL

87560W, 87560SL

DISCONTINUED MODELS: 7560, 7560CS,

7560CBL, 87560C, 87560S, 87560SLBL, 87560CS,

87560CBL, 87560
