Modway MOD-6388 Manuel utilisateur

MOD-6388

MOD-6230

Thank you for purchasing the MODWAY BED!

Before you start, here are some helpful advice:

1. We suggest you spend a short time reading through this leaflet and then follow the simple step instructions.

Customer Service 609-256-9000 | www.modway.com 01 of 05

2. Owing to the size and weight of the bed, we recommend that it is assembled by two adults, on a carpeted or

padded area, in the room that it is intended for. Approx assembly time: 40 minutes.

3. Please do not use any tools other than those provided or recommended in these instructions.

4. Please do not throw away any of the packaging or the instruction until you have checked all the components and

hardware and the furniture is fully assembled. Please ensure that the packaging is disposed of in a safe

environmentally friendly way.

5. Assemble all components loosely until advised to tighten. Depending on use, it may be necessary to tighten the

components from time to time, so please save tools that have been provided.

6. Please keep all fitting out of reach of children.

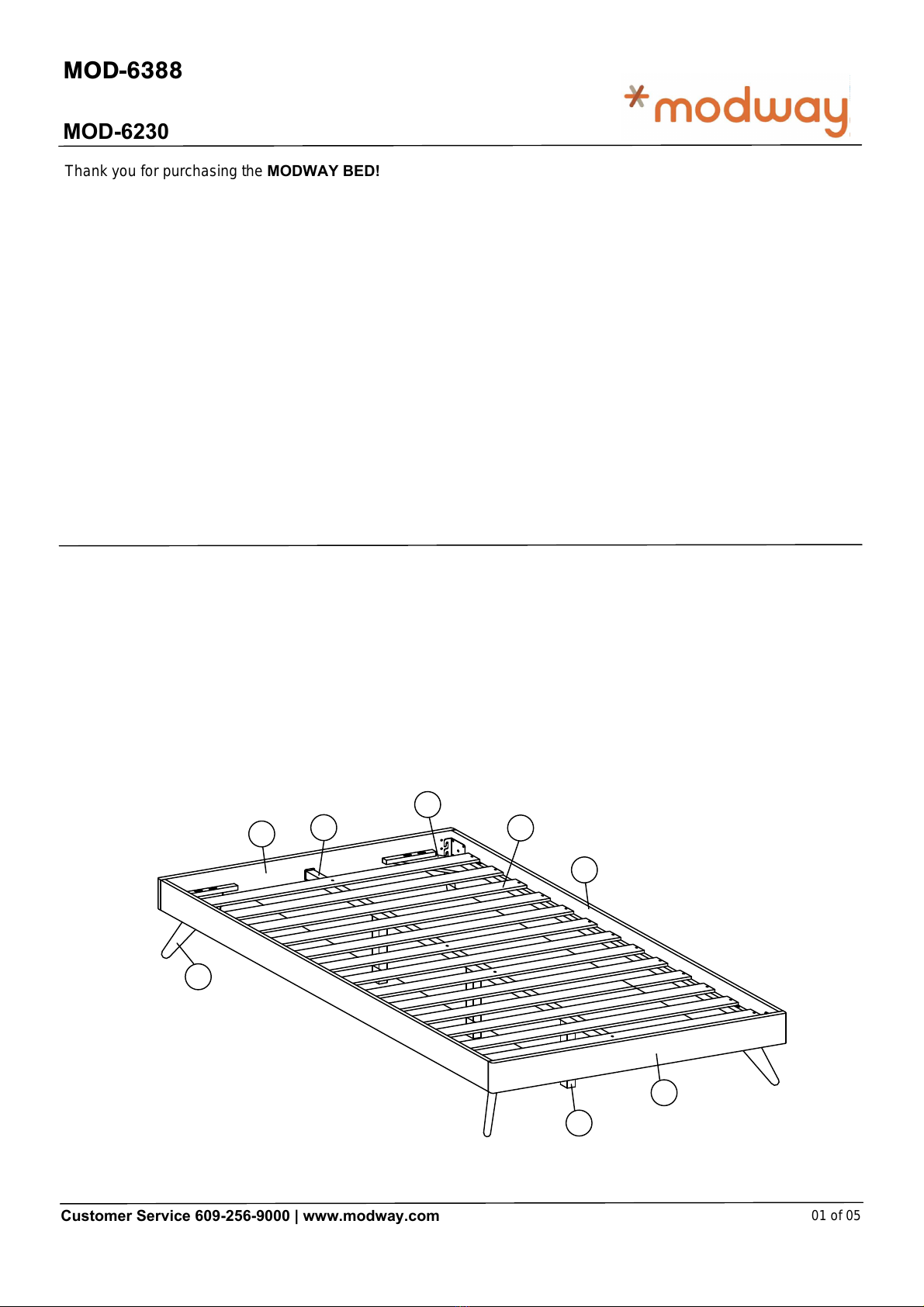

Components:

A HEADBOARD PANEL 1 PC

BFOOTBOARD PANEL 1 PC

C SIDE RAIL 2 PCS

D CENTER RAIL 1 PC

E CENTER RAIL LEG 3 PCS

F BED LEG 4 PCS

GLEG MOUNTING PLATE 4 PCS

H BED SLATS 1 SET

Short Tab of

L Bracket (13)

Side Rail Holes

13 5

MOD-6230

HARDWARE BED FRAME

Customer Service 609-256-9000 | www.modway.com 02 of 05

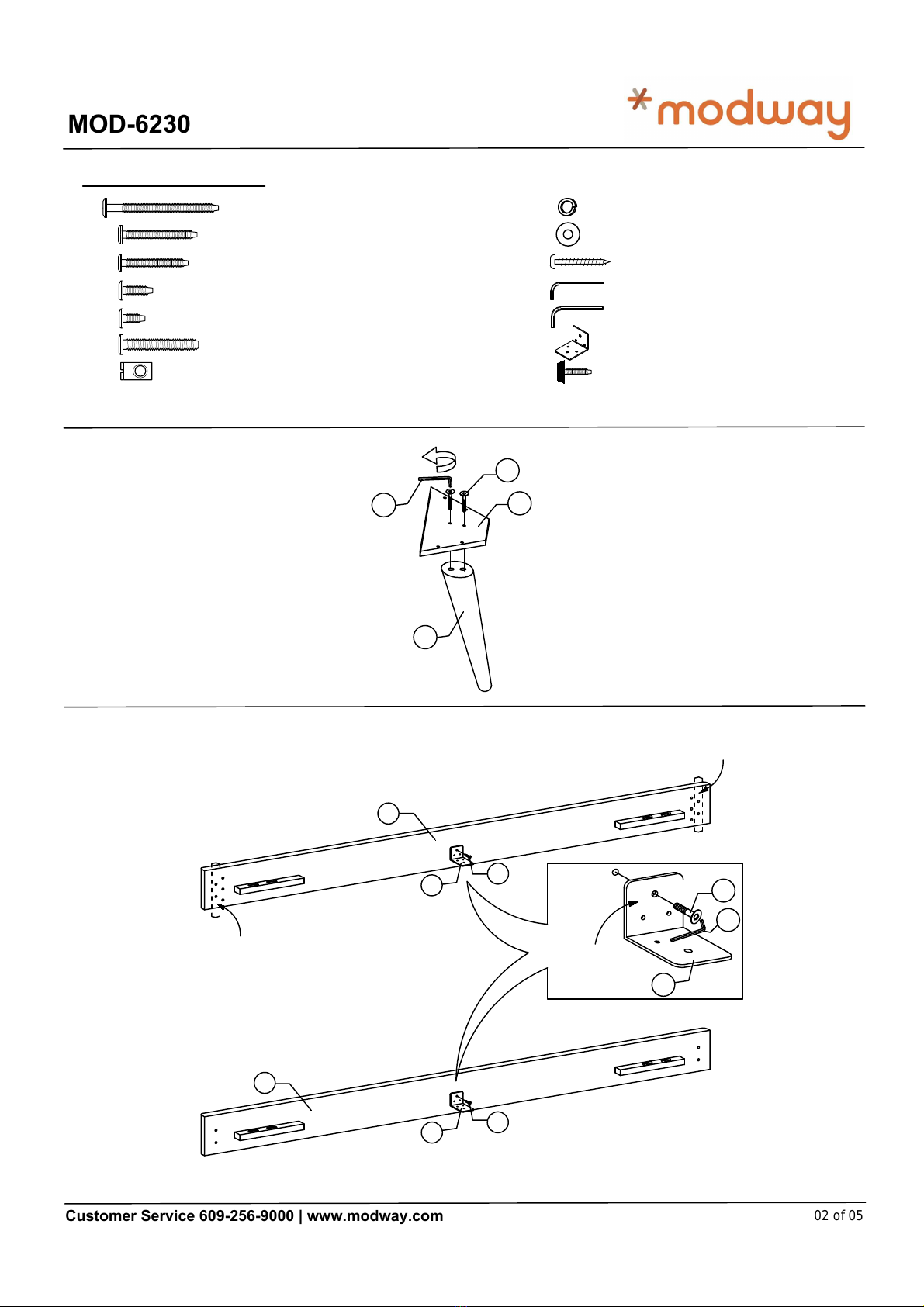

1JCBC BOLT M6 x 90mm 3 PCS

2JCBC BOLT M6 x 50mm 16 PCS

3JCBC BOLT M6 x 40mm 12 PCS

4JCBC BOLT M6 x 20mm 8 PCS

8M6 SPRING WASHER 24 PCS

9M6 FLAT WASHER 24 PCS

10 PH SCREW M4 x 32mm 18 PCS

11 M4 ALLEN KEY 1 PC

STEP 1

5JCBC BOLT M6 x 15mm 4 PCS

6JCBB BOLT M8 x 50mm 8 PCS

7BARREL NUT 3 PCS

12 M5 ALLEN KEY 1 PC

13 L BRACKET 2 PCS

14 ADJUSTABLE FOOT 3 PCS

STEP 2

Side Rail Holes

MOD-6230

Customer Service 609-256-9000 | www.modway.com 03 of 05

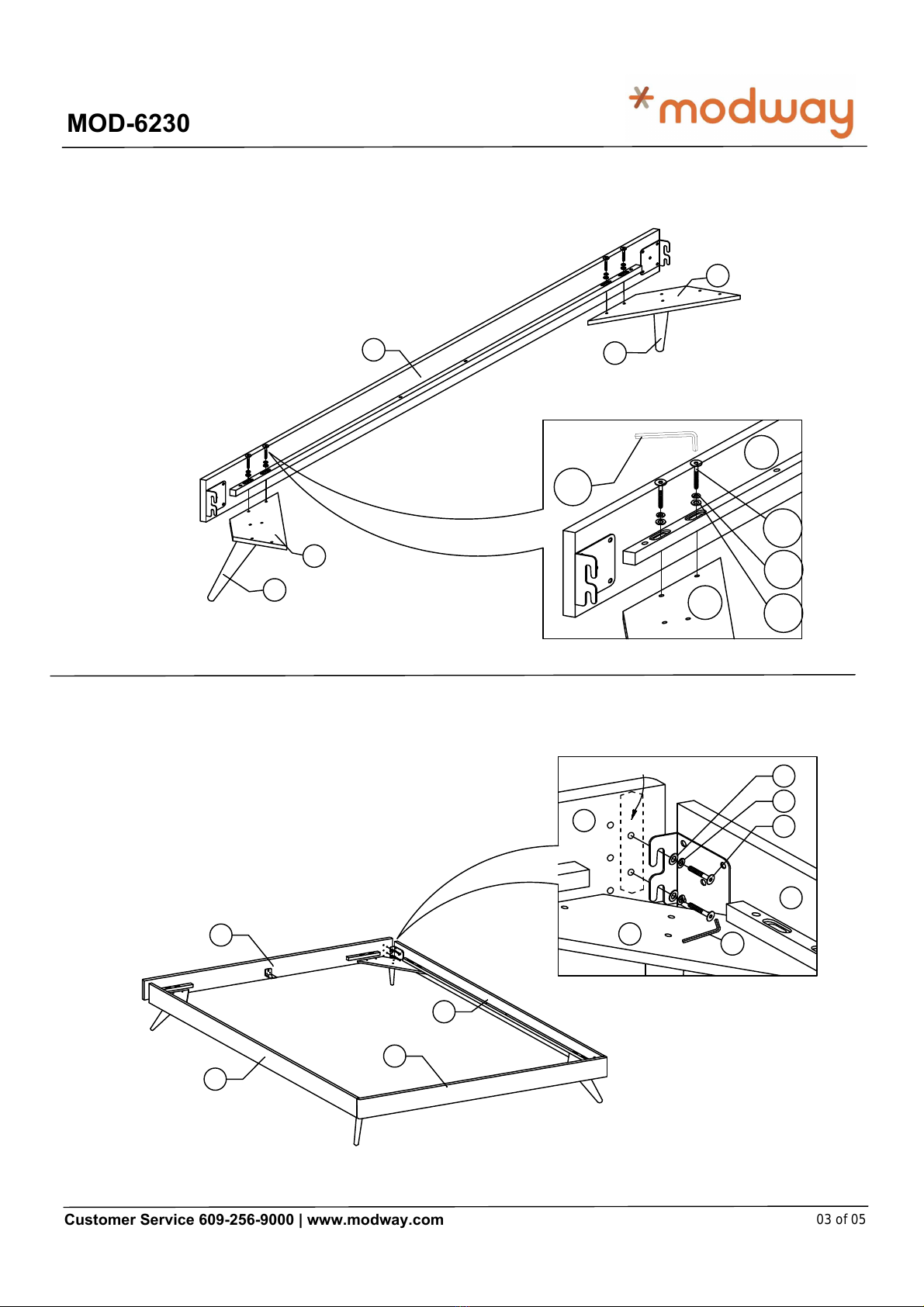

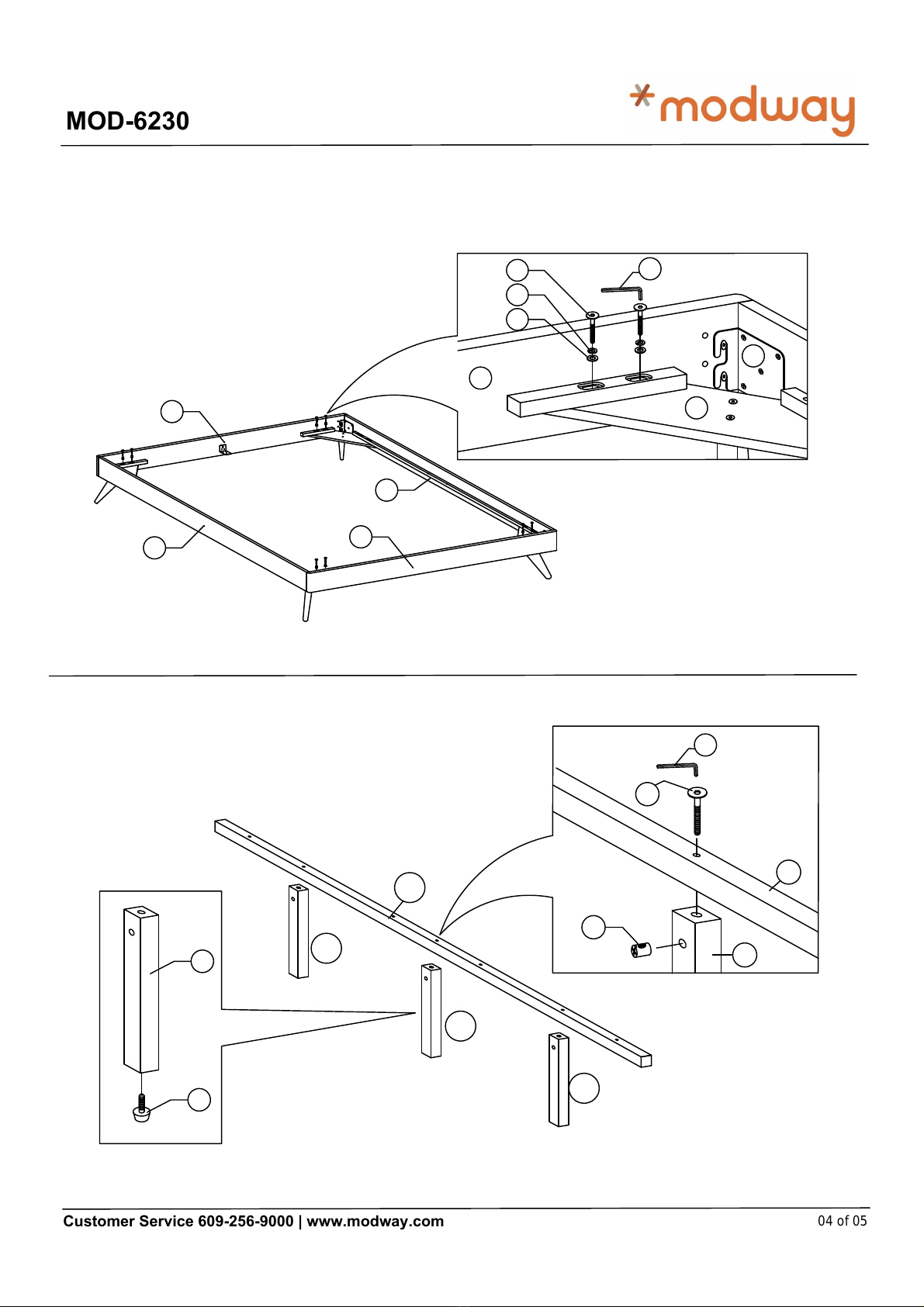

STEP 3

STEP 4

Side Rail Holes

11 C

MOD-6230

Customer Service 609-256-9000 | www.modway.com 04 of 05

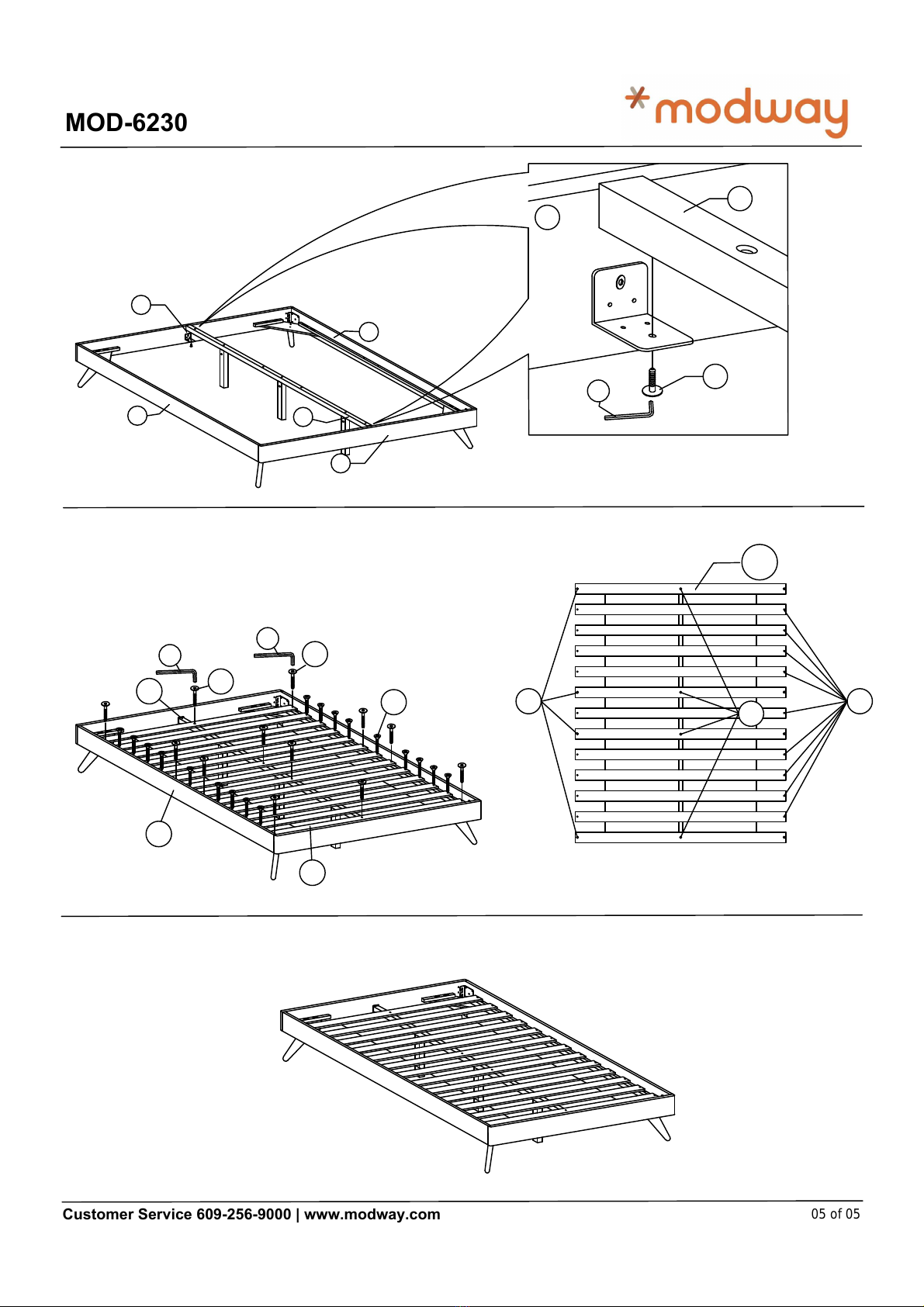

STEP 5

STEP 6

MOD-6230

Customer Service 609-256-9000 | www.modway.com 05 of 05

STEP 7

STEP 8

STEP 9

9.1 Assembly completed.

11 3

MOD-6234

Thank you for purchasing the MODWAY BED!

Before you start, here are some helpful advice:

1. We suggest you spend a short time reading through this leaflet and then follow the simple step instructions.

Customer Service 609-256-9000 | www.modway.com 01 of 03

2. Owing to the size and weight of the bed, we recommend that it is assembled by two adults, on a carpeted or

padded area, in the room that it is intended for. Approx assembly time: 20 minutes.

3. Please do not use any tools other than those provided or recommended in these instructions.

4. Please do not throw away any of the packaging or the instruction until you have checked all the components and

hardware and the furniture is fully assembled. Please ensure that the packaging is disposed of in a safe

environmentally friendly way.

5. Assemble all components loosely until advised to tighten. Depending on use, it may be necessary to tighten the

components from time to time, so please save tools that have been provided.

6. Please keep all fitting out of reach of children.

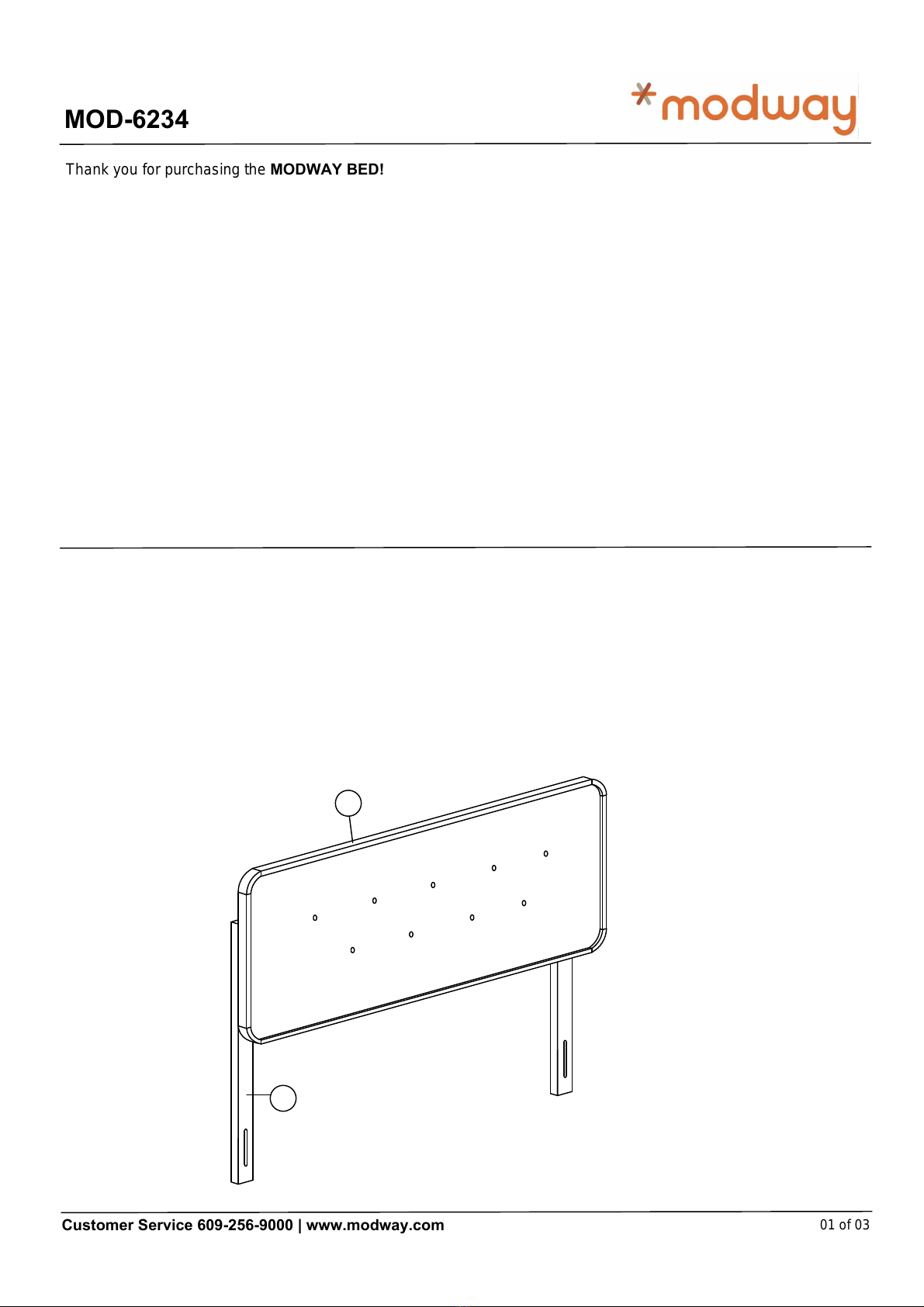

Components:

A HEADBOARD 1 PC

BHB SUPPORT 2 PCS

CBED FRAME

(DOES NOT INCLUDE

WITH THE PURCHASE)

MOD-6234

HARDWARE HEADBOARD

Customer Service 609-256-9000 | www.modway.com 02 of 03

1JCBC BOLT M6 x 35mm 10 PCS

2M6 SPRING WASHER 10 PCS

3M6 FLAT WASHER 10 PCS

4M4 ALLEN KEY 1 PC

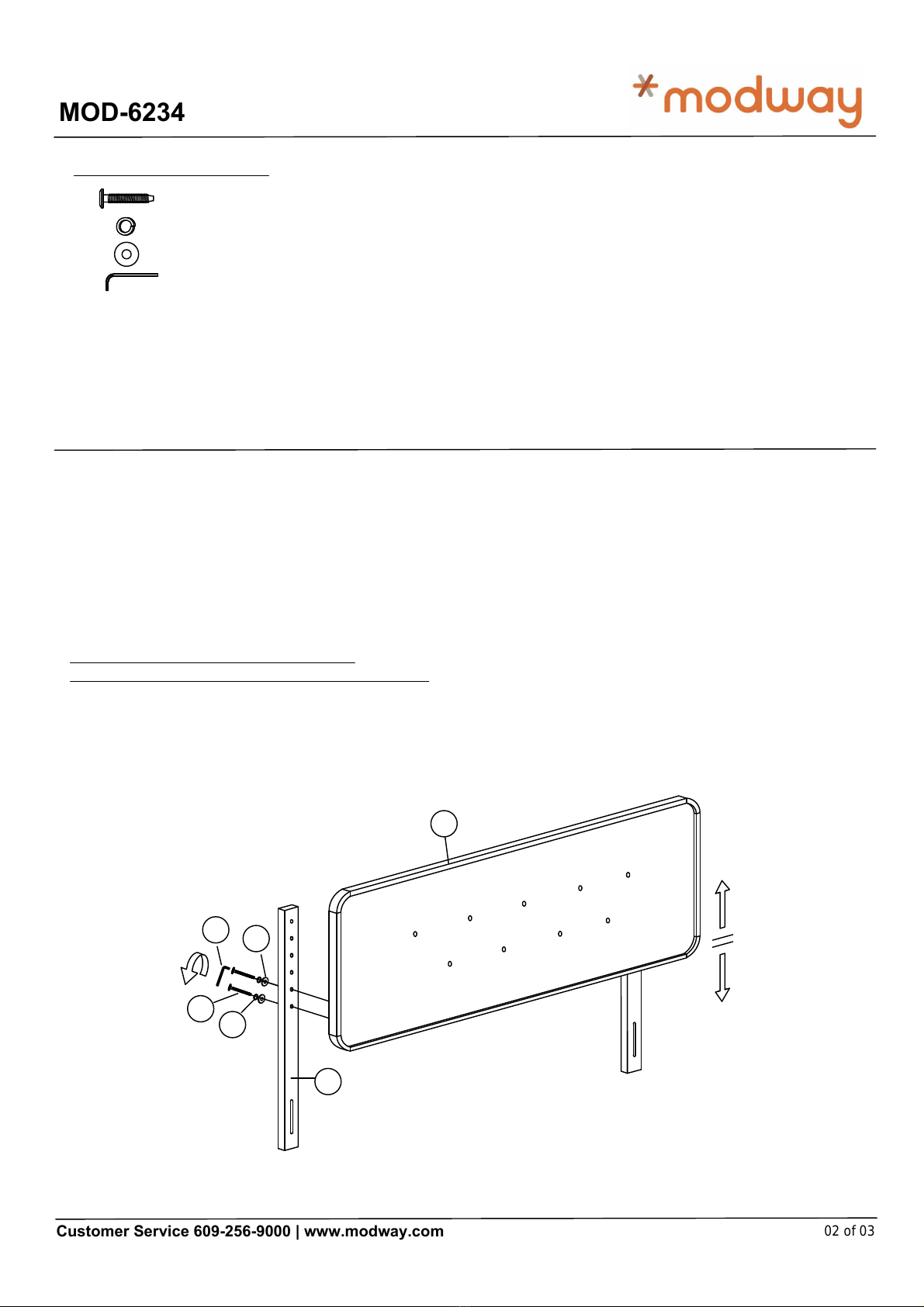

STEP 1

1.1 Align pre-drilled support stand holes over the pre-drilled headboard holes according to your

desired headboard height.

1.2 Secure each HB support stand by using 2x JCBC Bolt [1] and 2x M6 Spring Washer [2] and 2x M6 Flat Washer [3].

Tighten with supplied Allen Key [4].

Repeat the same procedure to secure the other side.

Note: Hardware may loosen over time.

Periodically check that all connections are tight.

MOD-6234

Customer Service 609-256-9000 | www.modway.com 03 of 03

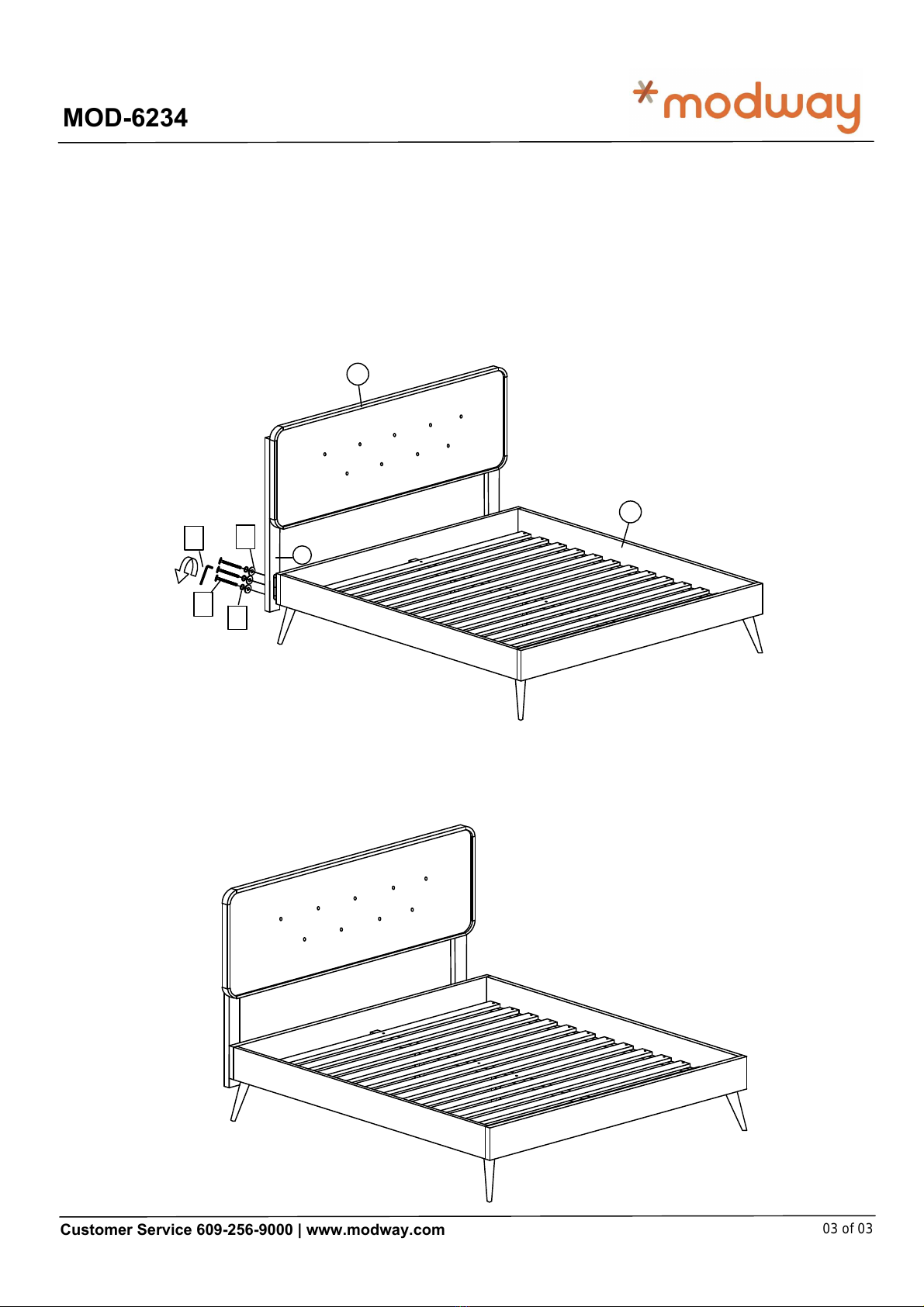

STEP 2

2.1 Line up the bed frame board's pre-drilled holes to match those of the headboard.

2.2 Secure the headboard to the bed frame by using 3x JCBC Bolt [1] and 3x M6 Spring Washer [2] and

3x M6 Flat Washer [3] for the thicker bed frame.

Tighten with supplied Allen Key [4].

2.3 Repeat the same procedure for each screw and each side of the bed frame.

STEP 3

3.1 Assembly completed.
