Modway MOD-6005 Manuel utilisateur

Thank you for purchasing the MODWAY BED!

Before you start, here are some helpful advice:

1. We suggest you spend a short time reading through this leaflet and then follow the simple step instructions.

2. Owing to the size and weight of the bed, we recommend that it is assembled by two adults, on a carpeted or

padded area, in the room that it is intended for. Approx assembly time: 30 minutes.

3. Please do not use any tools other than those provided or recommended in these instructions.

4. Please do not throw away any of the packaging or the instruction until you have checked all the components and

hardware and the furniture is fully assembled. Please ensure that the packaging is disposed of in a safe

environmentally friendly way.

5. Assemble all components loosely until advised to tighten. Depending on use, it may be necessary to tighten the

components from time to time, so please save tools that have been provided.

6. Please keep all fitting out of reach of children.

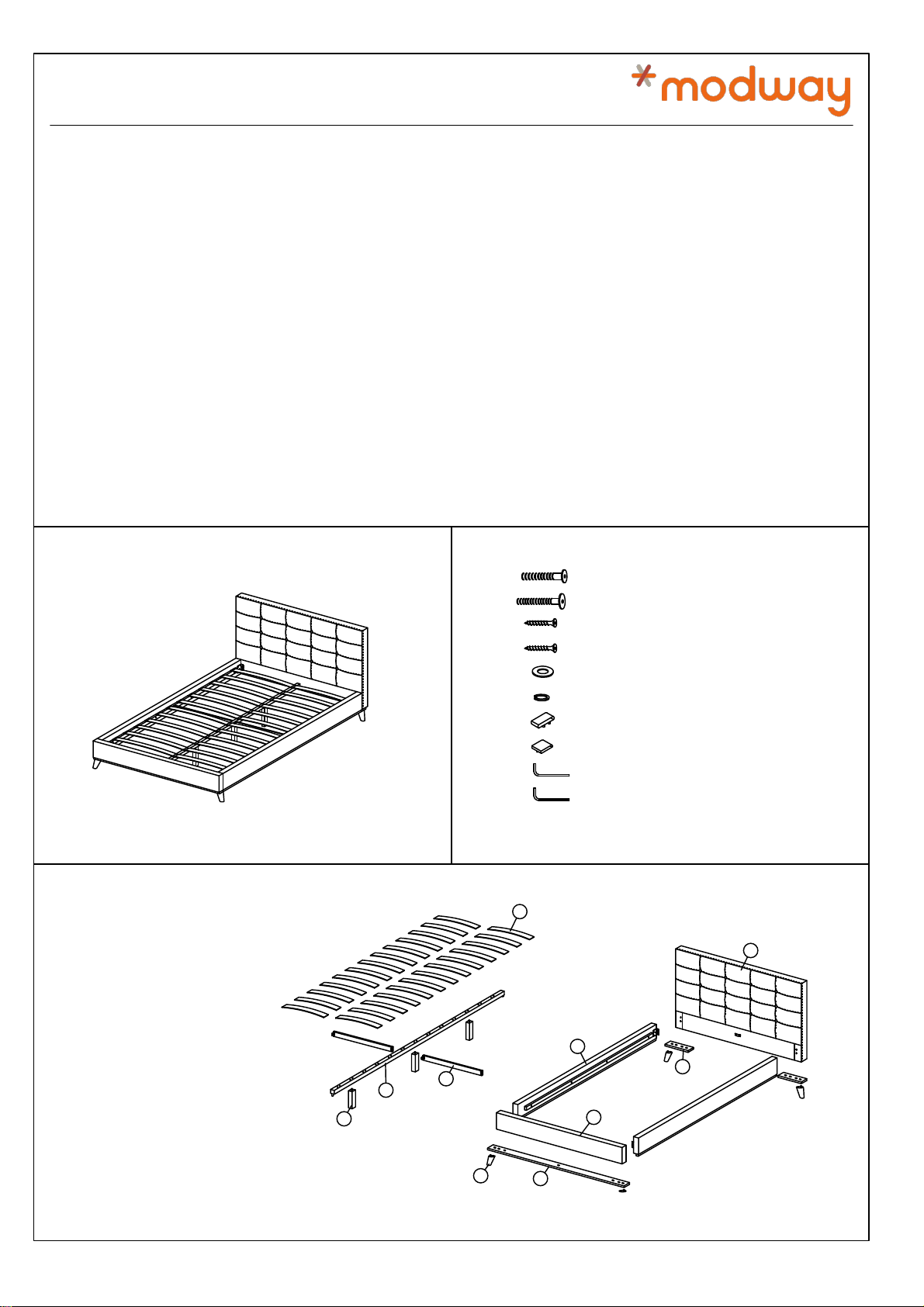

Hardware:

1JCBC BOLT M6 x 40 4 PCS

2 JCBB BOLT M8 x 40 7PCS

3WOOD SCREW M3.5 x 16mm 8 PCS

4WOOD SCREW M4 x 20mm 2 PCS

5FLAT WASHER M8 7 PCS

6SPRING WASHER M8 7 PCS

7BED SLAT SIDE FITTER 26 PCS

8BED SLAT CENTER FITTER 13 PCS

9ALLEN KEY (BALL SHAPE) M4 1 PC

10 ALLEN KEY (BALL SHAPE) M5 1 PC

Component:

A. HEADBOARD

B. FOOTBOARD

C. SIDE RAIL (L&R)

D. CENTER RAIL

E. CENTER RAIL SUPPORT

F. CENTER SUPPORT LEG

G. BED SLAT

H. LEG

I. FOOTBOARD SUPPORT WOOD

J. HEADBOARD SUPPORT WOOD

01 of 06

MOD - 6005 / 6006 QUEEN BED

x 1

x 2

x 1

x 2

x 3

x 26

x 4

x 1

x 2 B

STEP 1

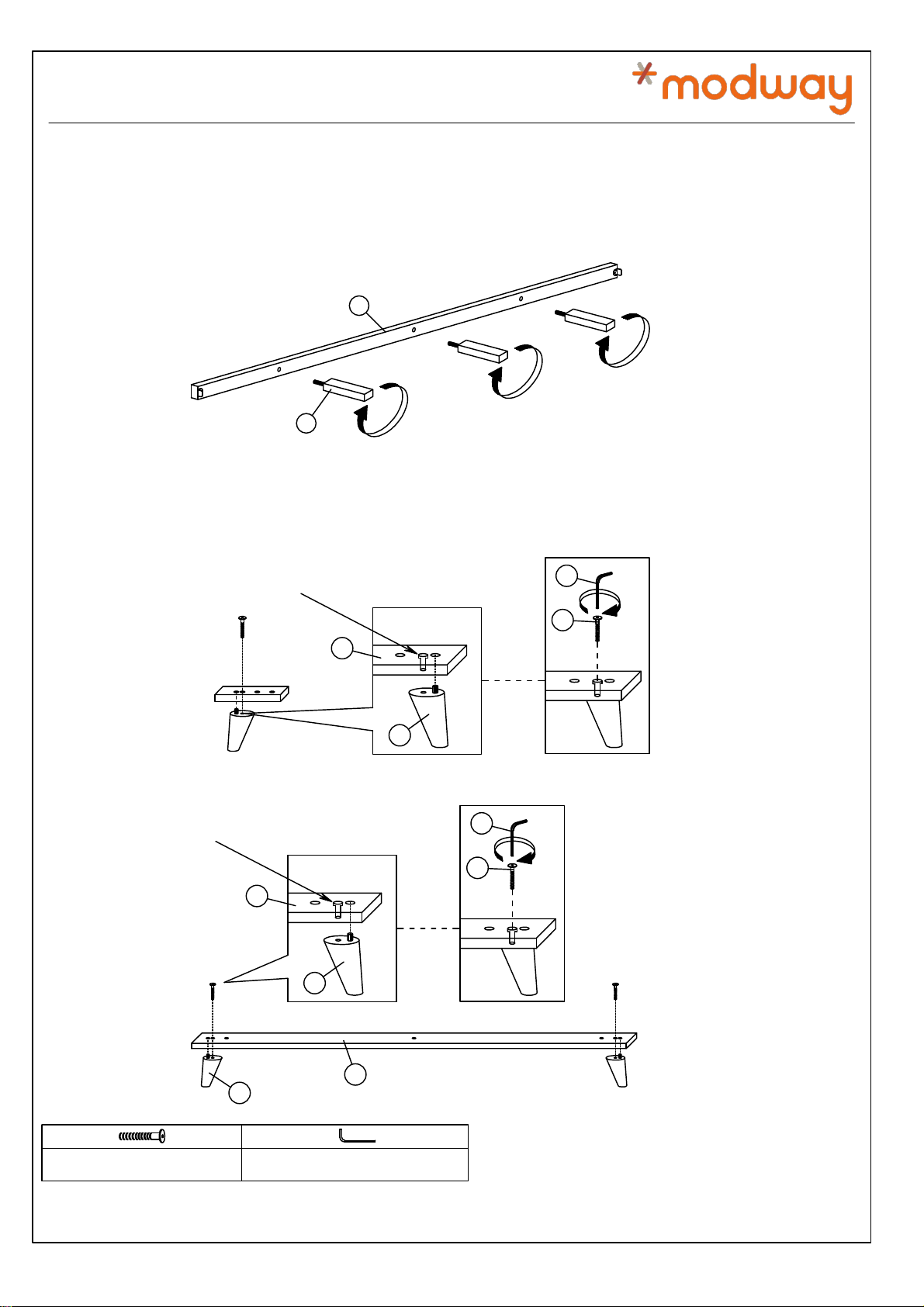

1.1 Fasten center support leg (D) to center rail (F) attach by screwing the protruding nut into

the corresponding holes.

02 of 06

9. ALLEN KEY (BALL SHAPE) M4 x 1pc

1. JCBC BOLT M6 x 40 x 4pcs

1.2 Insert and secure the leg (H) to the HB & FB support wood (I) & (J) using hardware parts

1 and 9.Repeat the same for other side of leg.

STEP A

STEP B

x 2

Remark : Big hole face up,

small hole face down.

STEP A

STEP B

x 2

Remark : Big hole face up,

small hole face down.

MOD - 6005 / 6006 QUEEN BED

STEP 2

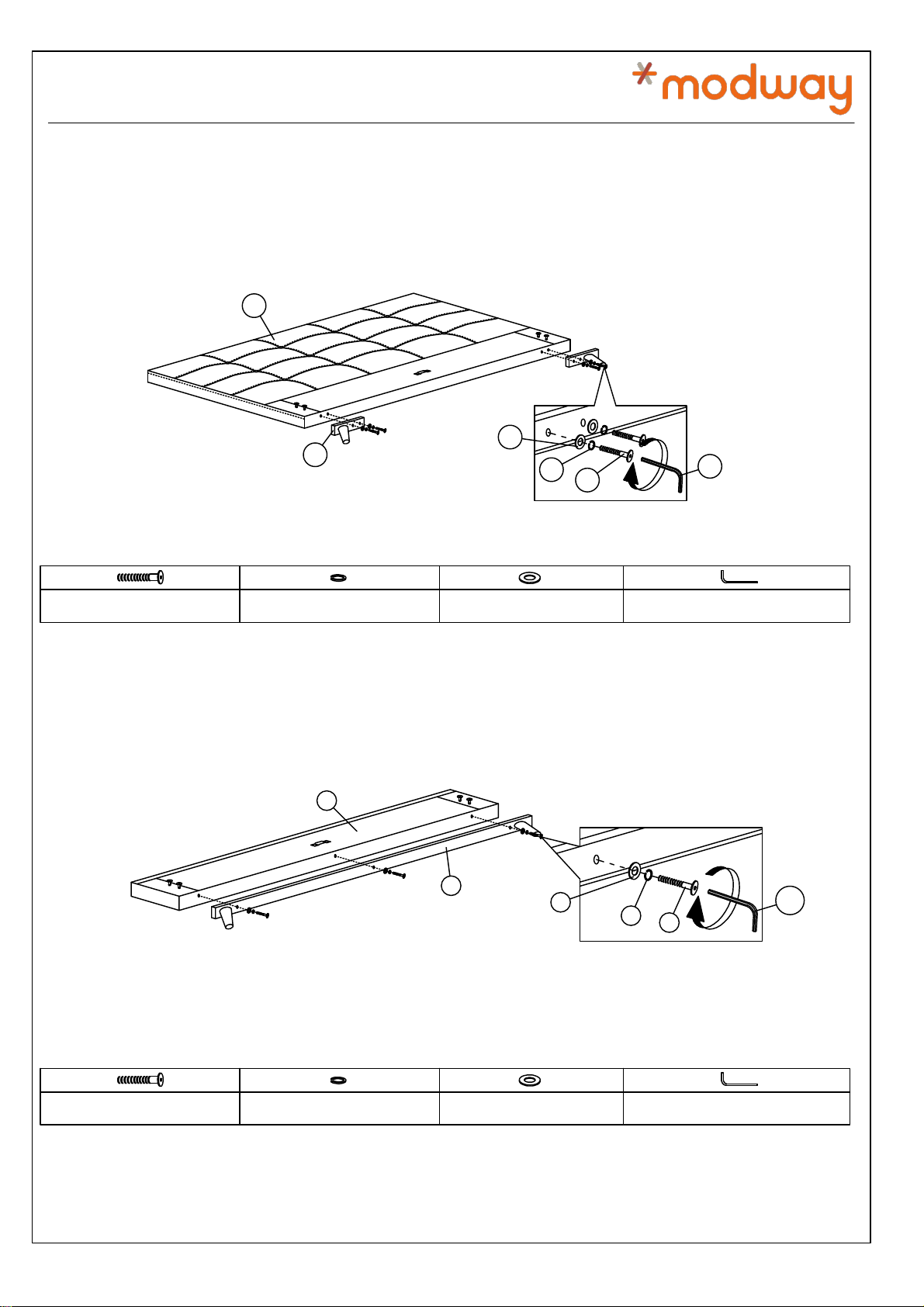

2.1 Insert and secure the Headboard support wood (J) to the headboard (A) using hardware

parts 2,5,6 and 10.

03 of 06

2. JCBB BOLT M8 x 40 x 4pcs 6. SPRING WASHER M8 x 4pcs 5. FLAT WASHER M8 x 4pcs 10. ALLEN KEY (BALL SHAPE) M5 x 1pc

x 3

2. JCBB BOLT M8 x 40 x 3pcs 6. SPRING WASHER M8 x 3pcs 5. FLAT WASHER M8 x 3pcs 10. ALLEN KEY (BALL SHAPE) M5 x 1pc

2.2 Insert and secure the FootBoard support wood (I) to the footboard (B) using hardware

parts 2,5,6 and 10.

MOD - 6005 / 6006 QUEEN BED

x 2

STEP 3

STEP 4

3. WOOD SCREW M3.5 x 16 x 8pcs

04 of 06

10. ALLEN KEY (BALL SHAPE) M5 x 1pc

STEP 4.1

STEP 4.2

Screw Driver

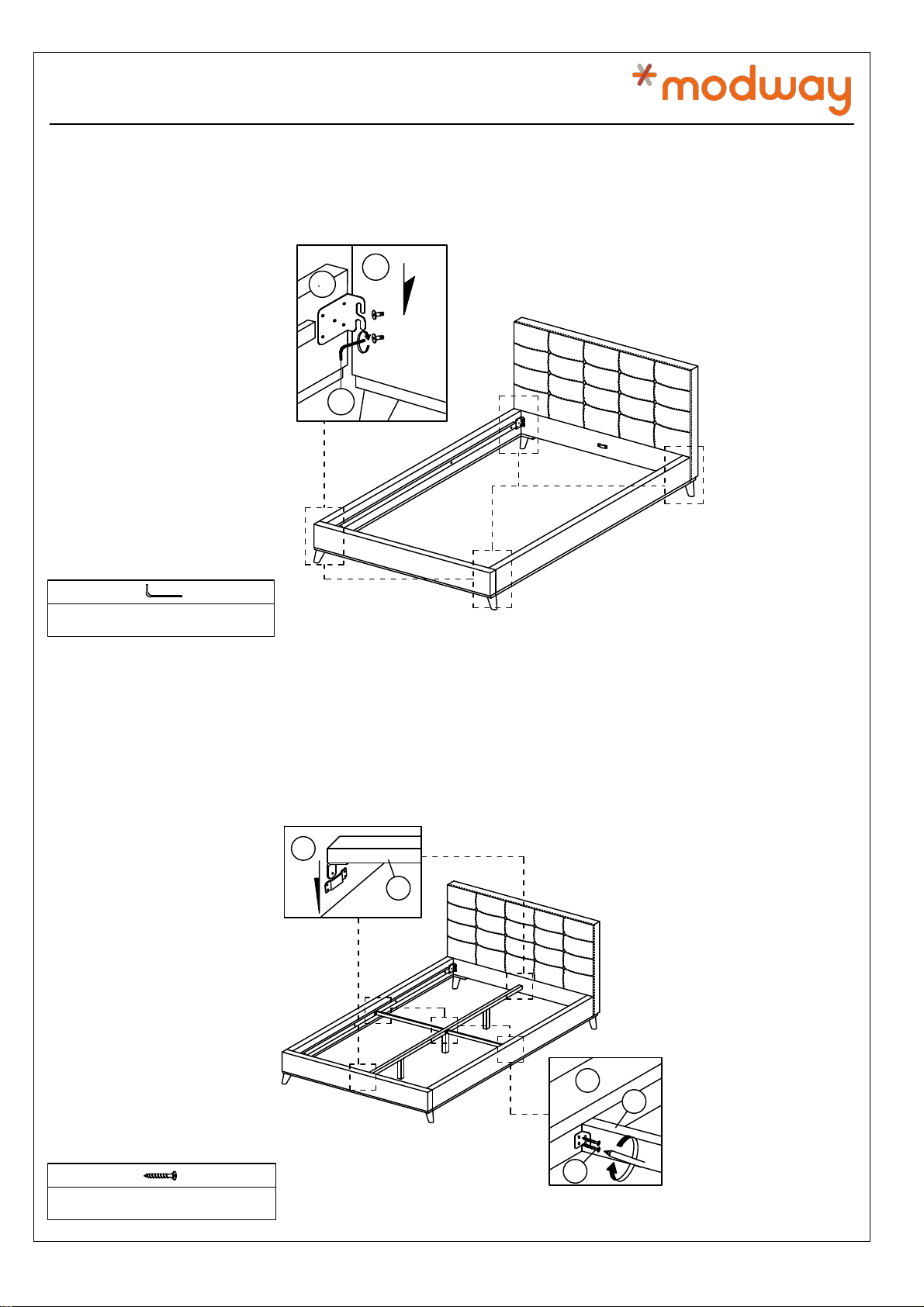

4.1 Locate center rail (D) into the corresponding brackets inside of headboard (A) and

footboard (B).

3.1 Loosen the pre-inserted bolt on the headboard and footboard using Allen key ball shape (10).

Attach the side rails (C) to the headboard (A) & footboard (B)

4.2 Insert and secure the center rail support (E) to the side rail (L/R) (C) using hardware parts 3

& screwdriver.

MOD - 6005 / 6006 QUEEN BED

STEP 5

STEP 6

7. BED SLAT SIDE FITTER x 26pcs

05 of 06

4. WOOD SCREW M4 x 20 x 2pcs Screw Driver

Palm

Palm STEP A

STEP B

8. BED SLAT CENTER FITTER x 13pcs

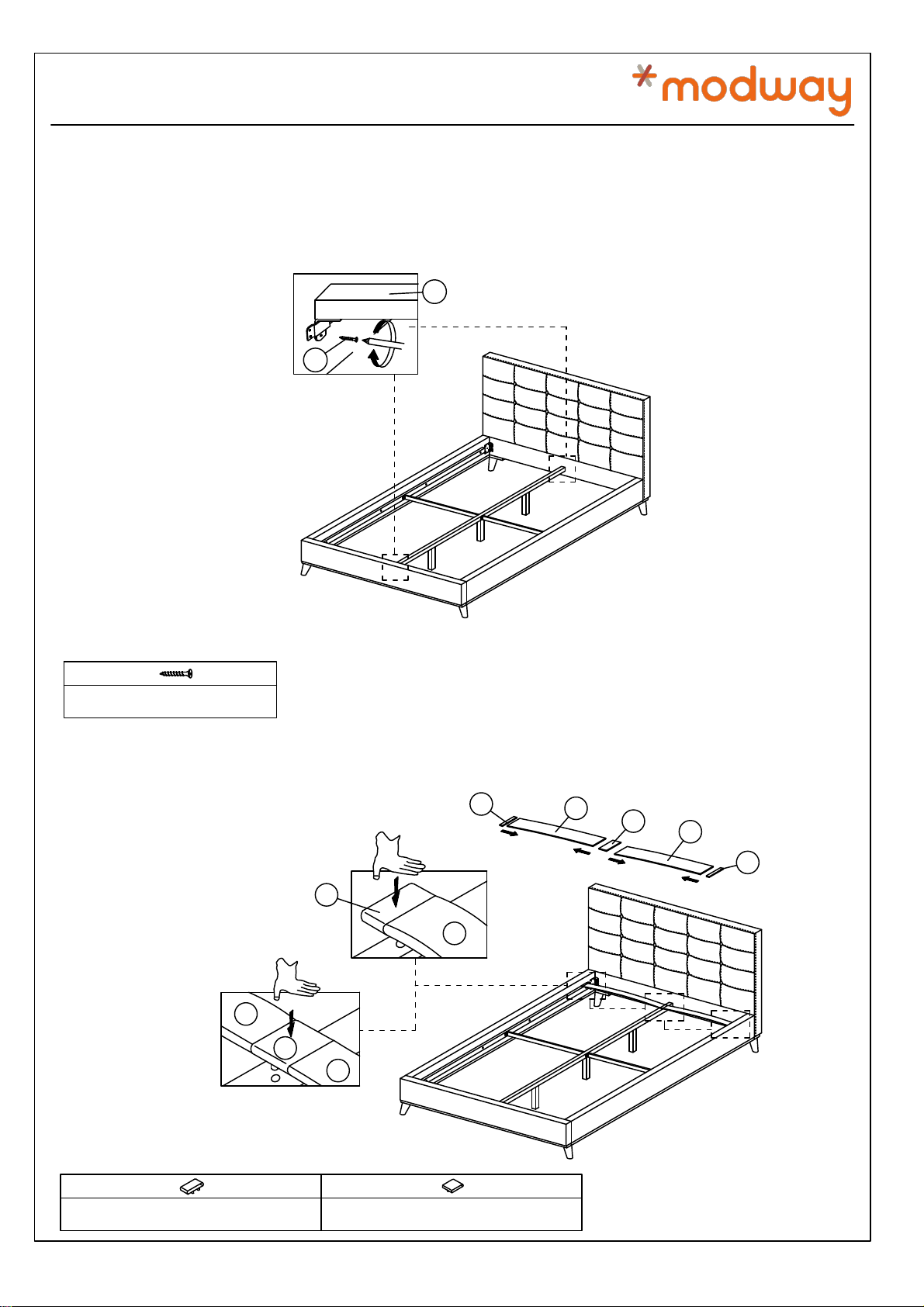

6.1 Insert the slats (G) into the end slat cap (7)&(8) and fix it to the corresponding holes on

the side rail (C)

5.1 Screw center rail (D) bracket holes wood screw M4 x 20mm (4).

MOD - 6005 / 6006 QUEEN BED

STEP 7

7.1 Carefully position the assembled bed to the desired location by four adults.

Assembly is complete. The bed is ready to use now!

NOTE: Hardware may loosen over time. Periodically check that all connections are tight.

06 of 06

MOD - 6005 / 6006 QUEEN BED
