Modway MOD-5551 Manuel utilisateur

MOD-5551

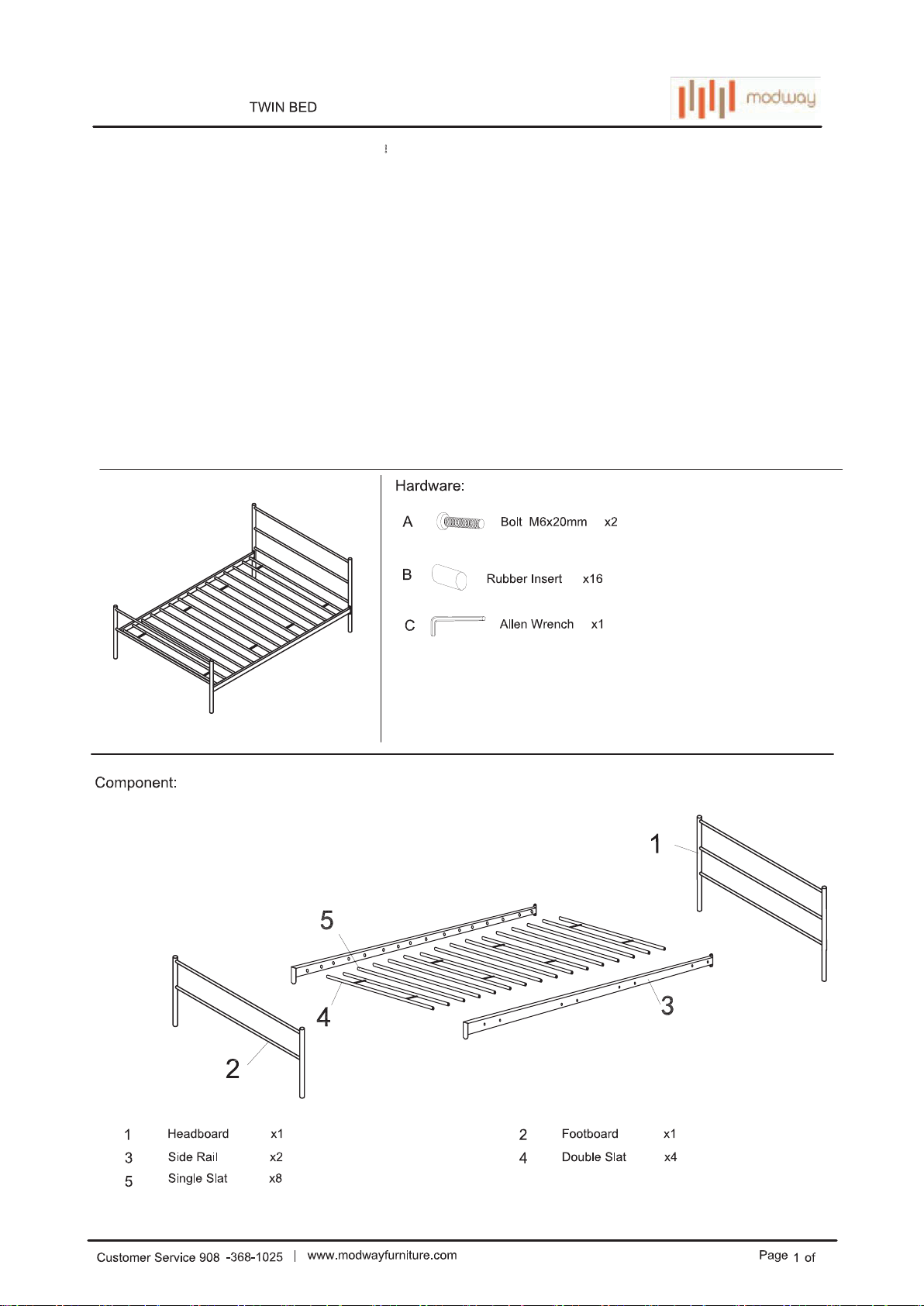

Thank you for purchasing the MODWAY TWIN BED！

Before you start, here is some helpful advice:

1.We suggest you spend a short time reading through this leaflet and then follow the simple step-by-step

instructions.

2.Owing to the size and weight of the bed, we recommend that it is assembled by two adults, on a carpeted or

padded area, in the room that it is intended for. Approximately assembly time: 45 minutes.

3.Please do not use any tools other than those provided or recommended in these instructions.

4.Please do not throw away any of the packaging or the instruction until you have checked all the components and

hardware and the furniture is fully assembled. Please ensure that the packaging is disposed of in a safe and

environmentally friendly way.

5.Assemble all components loosely until advised to tighten. Depending on use, it may be necessary to tighten the

components from time to time, so please save the tools that has been provided.

6.Please keep all fitting out of reach of children.

45444

55555

MOD-5551

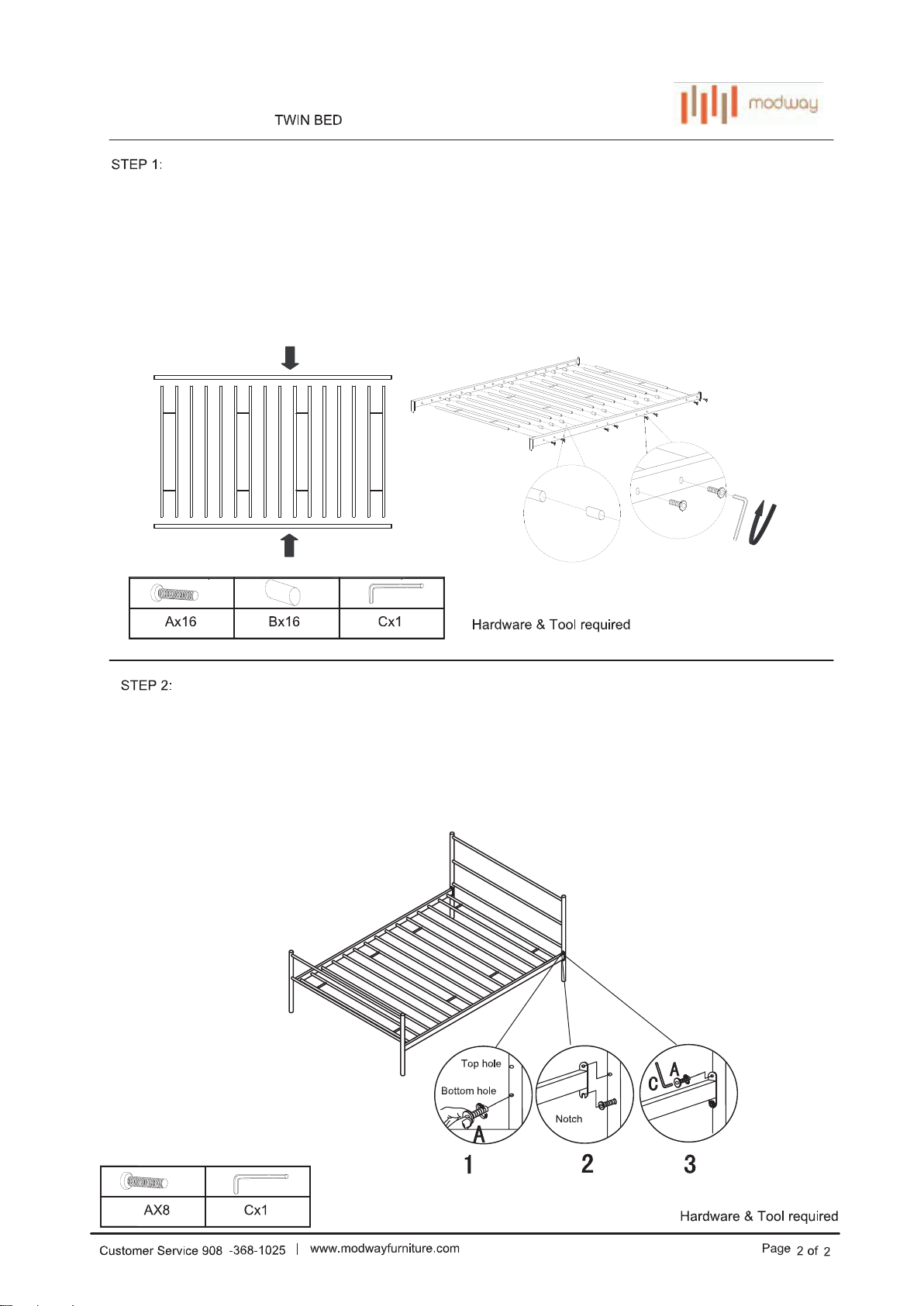

Take out all Double Slats (4), Single Slats (5)

and

Side Rails (3) and place them as shown.

Insert one end of Single Slats (5) into Rubber Insert (B), then insert them into the corresponding holes on one piece of

Side Rail (3) as shown.

Attach Double Slats (4) to the same Side Rail (3) by using Bolts (A). Do not fully Bolts (A) with Allen Wrench (C) yet.

Repeat above for the other Side Rail (3).

Use Allen Wrench (C) to all Bolts (A) clockwise until secure.

Insert Bolts (A) into the bottom holes on the assembled Headboard (1 ) & Footboard (2) by hand.

Leaving 0.3~0.4inch space of the thread of Bolts (A) as shown for inserting the notch of assembled Side Rails (3&4&5).

Insert the notch of assembled Side Rails(3&4&5) into the space left on the Bolts (A).

Screw Bolts (A) into the top holes on the assembled Headboard (1 ) & Footboard (2) as shown.

Tighten Bolts (A) with Allen Wrench (C) after all assembled.

Assembly is completed. The headboard is ready to use now!

fixation
