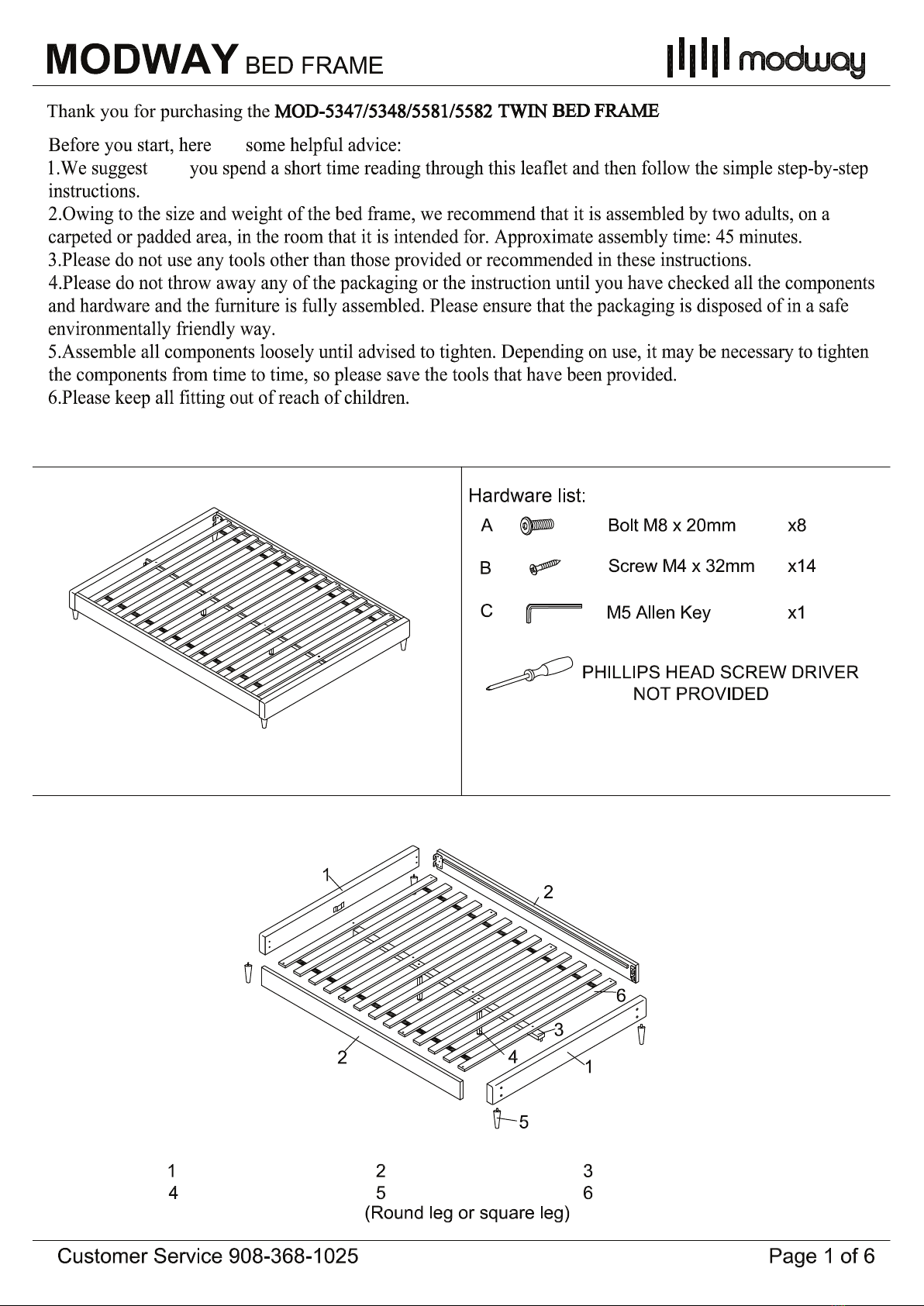

Modway MOD-5347 Manuel utilisateur

are

that

Short Board x2

Support Legs x2

Long Board x2

Legs x4

Center Rail x1

Roll Slats x13

Components:

WWW.MODWAY.COM

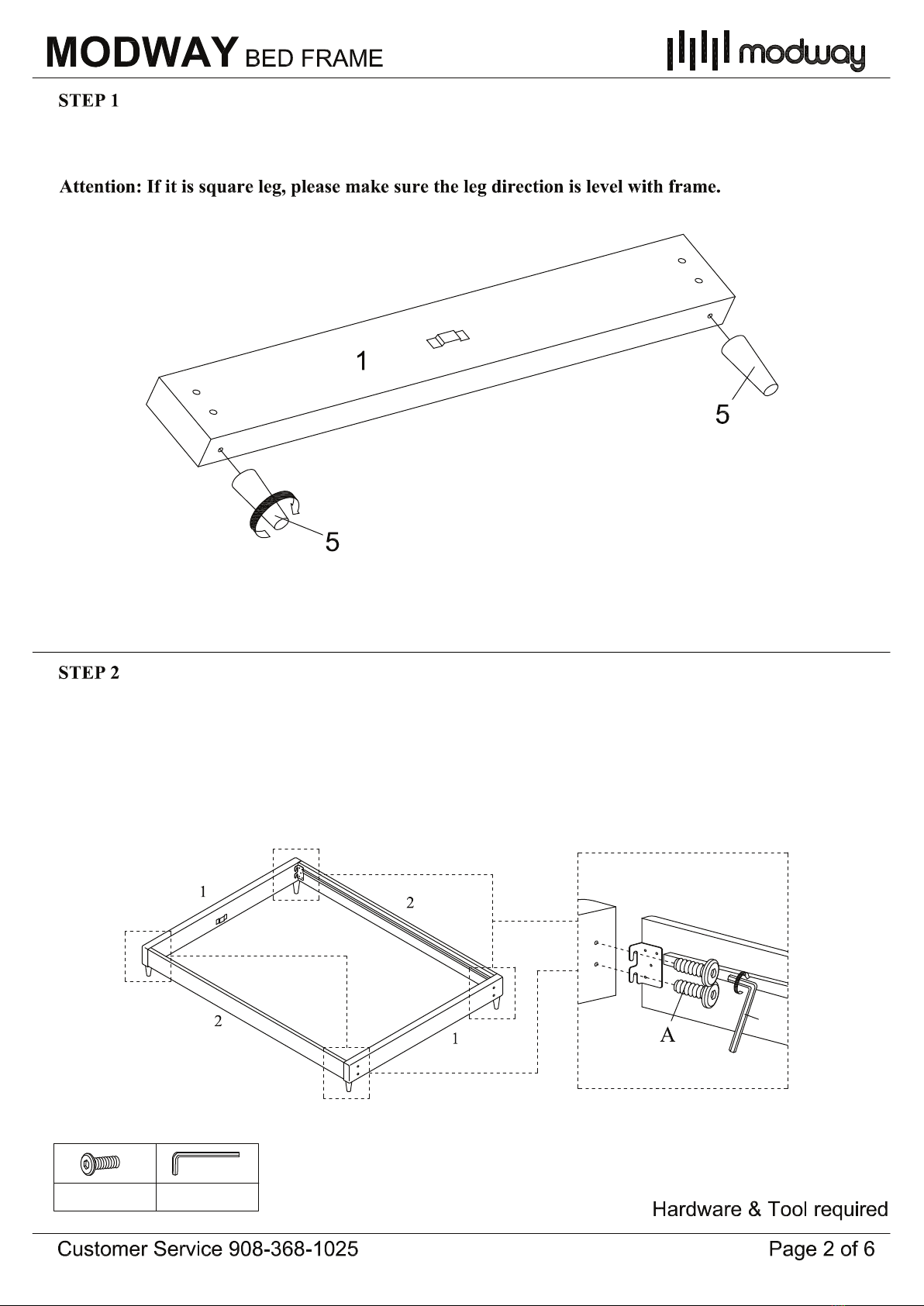

Secure the 2 pieces of Wooden Leg (5) to the Short Board (1) as shown. Repeat the same steps for the

remaining 1 piece of Short Board (1). Tighten the Leg (5)clockwise until secure.

Place 1 piece of Long Board (2) to the assembled 2 pieces Short Board (1) by two adults.

Attach them by using 4 pieces of Bolt (A) as shown.

Use Allen Wrench (C) to tighten the Bolts (A) clockwise until secure.

Repeat the same steps for the remaining 1 piece of Long Board (2).

WWW.MODWAY.COM

C

A x 8 C x 1

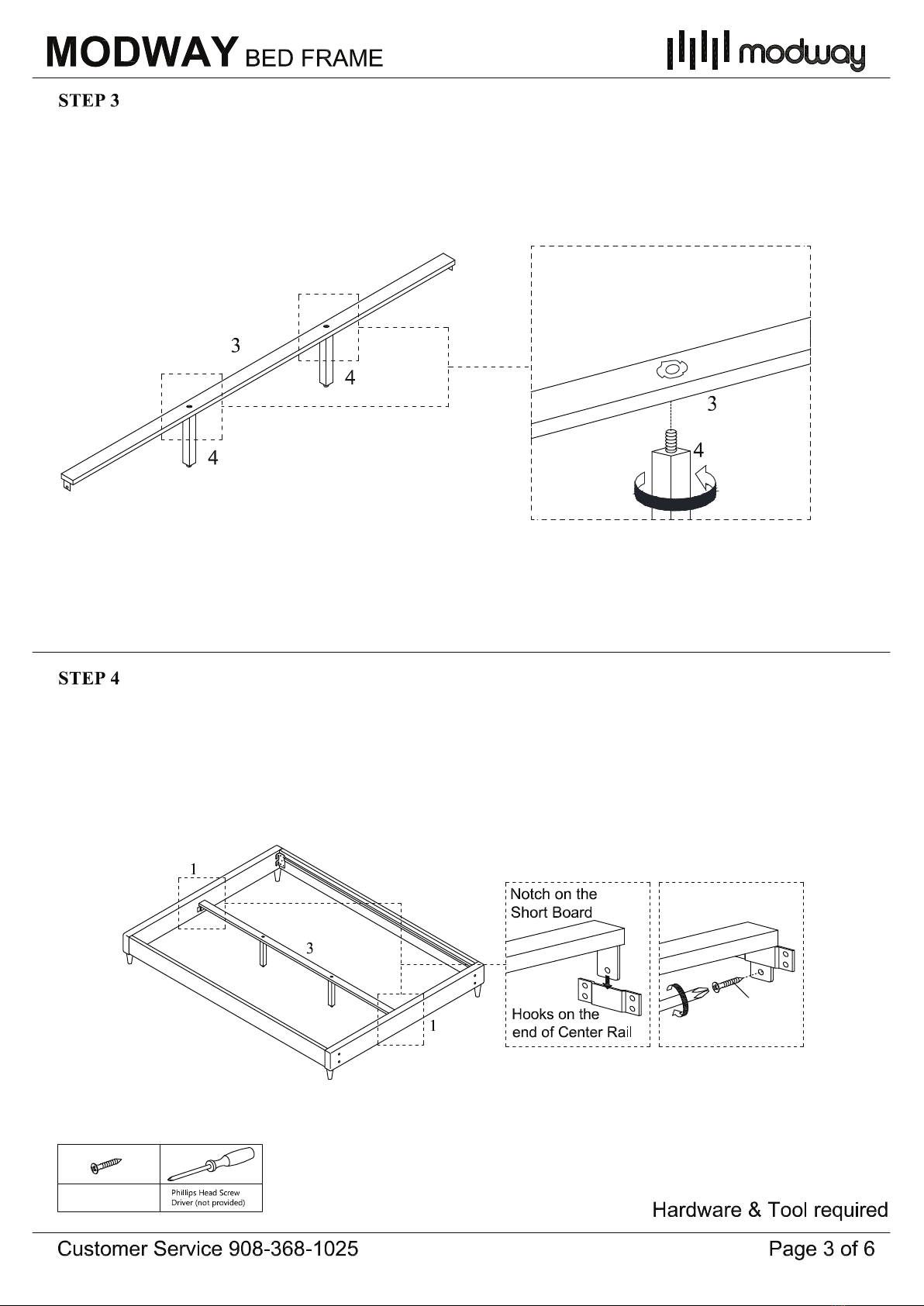

Insert Center Rail (3) to the bracket (provided) on Short Board (1) and then secure with 1 piece

Screw (B) per each end. Tighten the Screws (B) with Phillips Head Screw Driver (not provided).

Secure 2 pieces of

Support leg (4) clockwise until secure.

Support Leg (4) to the Center Rail (3) with pre-set T-nut as shown. Tighten the

WWW.MODAWAY.COM

B

B x 2

Hardware may loosen over time. Periodically check that all connections are tight.

Assembly is complete. The bed frame is ready to use now!

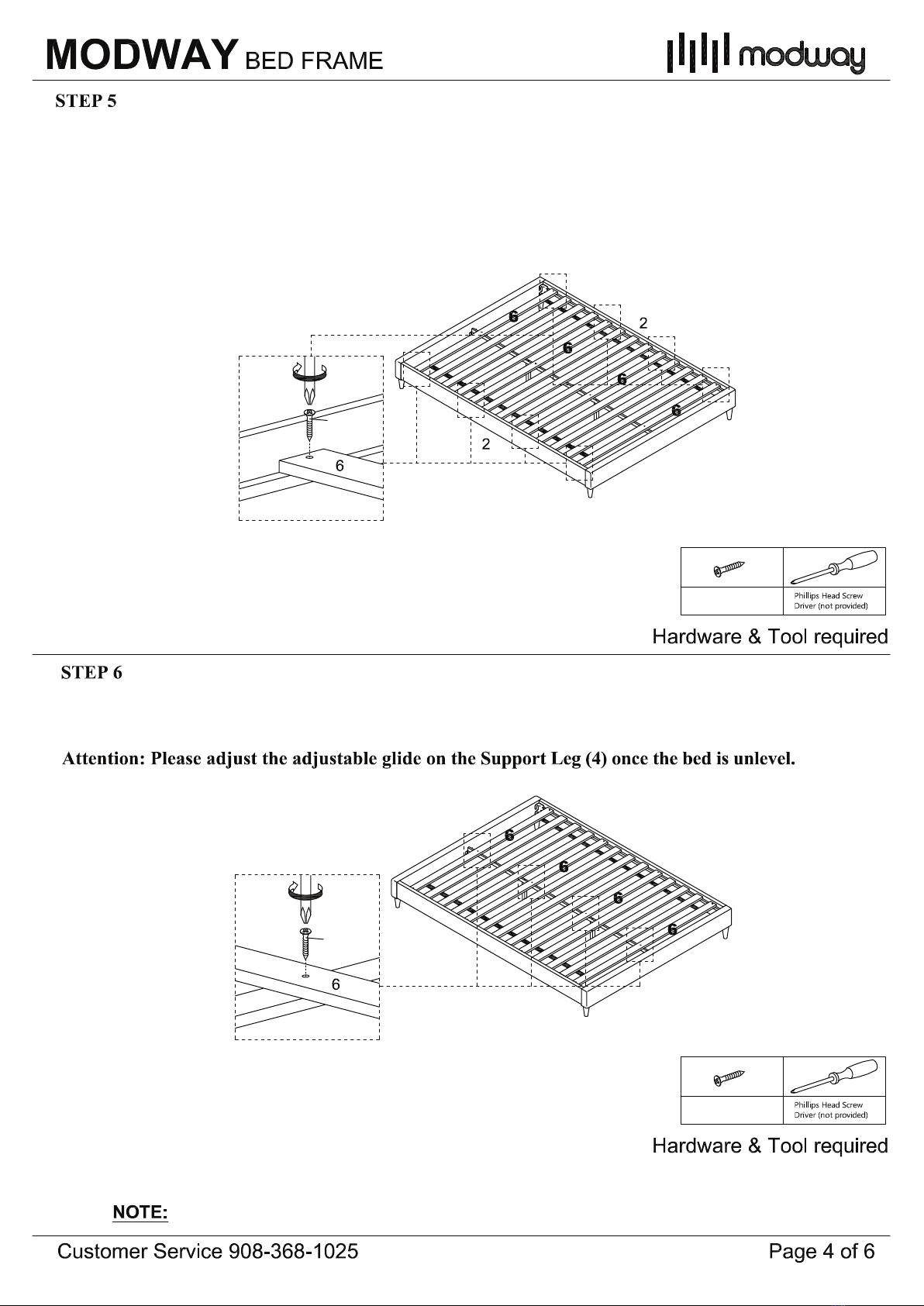

Place the Roll Slats (6) to the Long Board (2) as shown.

Secure 4 pieces of Roll Slats (6) which have countersink holes on each end into the Long Board (2)

by using 8 pieces of Screw (B) as shown.

Tighten the Screws (B) with Phillips Head Screw Driver (not provided).

Secure 4 pieces of Screw (B) into the Slat (6) on the top of Center Rail (3) as shown.

Tighten the Screws (B) with Phillips Head Screw Driver (not provided).

WWW.MODWAY.COM

B

B

B x 8

B x 4

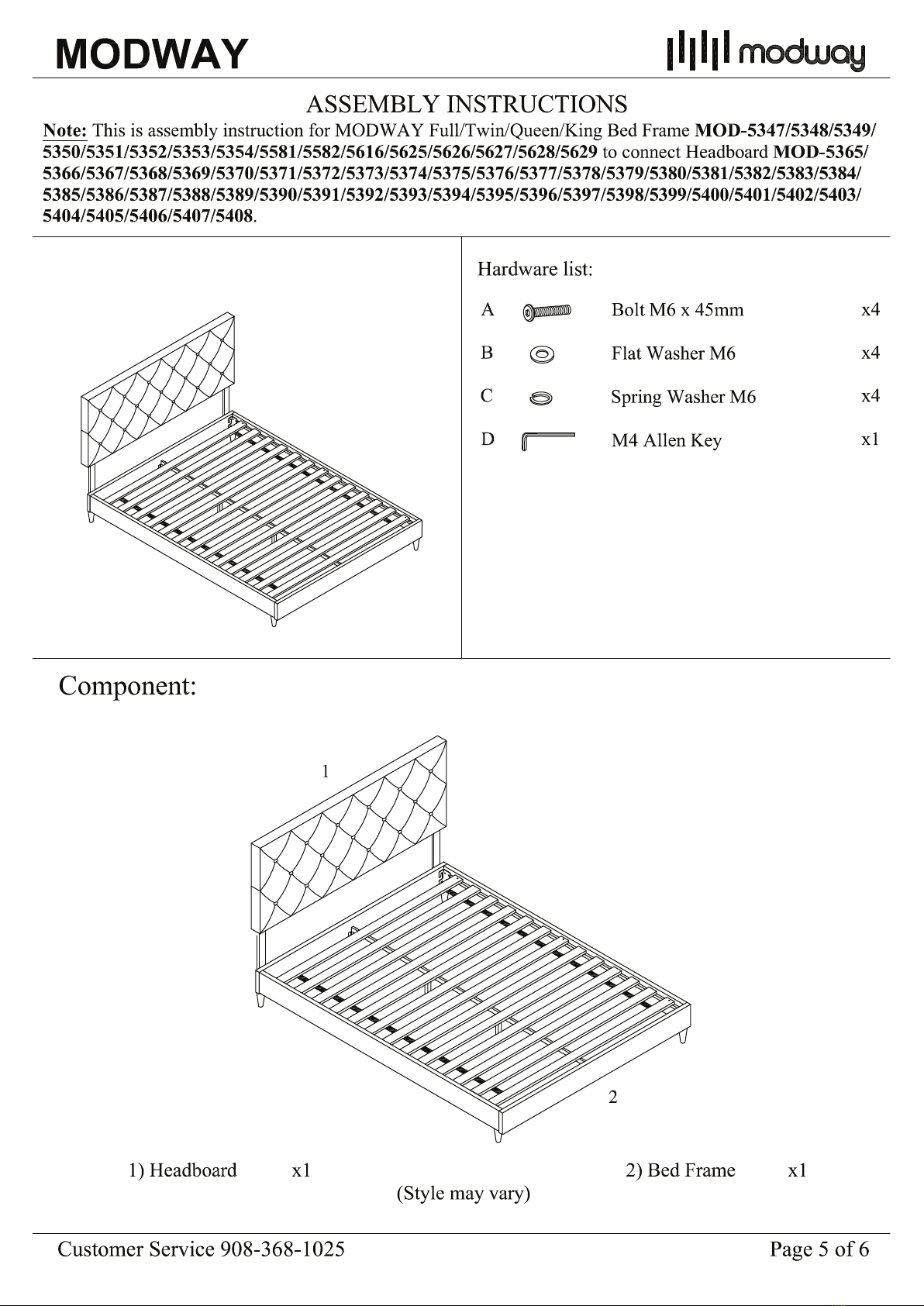

CONNECTING BED FRAME TO HEADBOARD

Reminder: All the hardware packed in the

Headboard you bought. Please use only the above

hardware from Headboard Hardware Package to

assemble the Bed Frame and Headboard.

WWW.MODWAY.COM

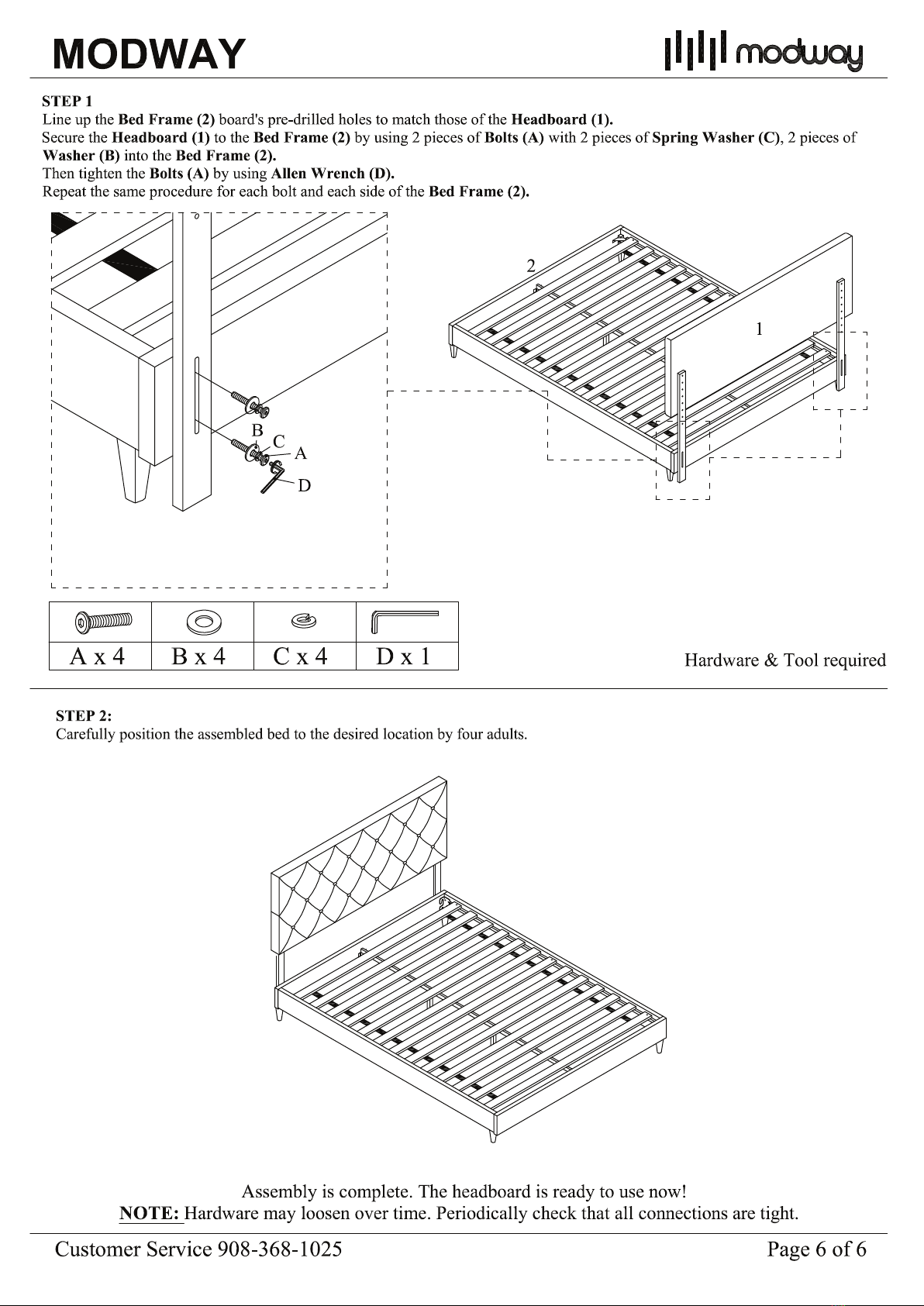

CONNECTING BED FRAME TO HEADBOARD

WWW.MODWAY.COM
