Modway MOD-5347 Manuel utilisateur

Customer Service 908-368-1025︱www.modwayfurniture.com Page 1 of 6

Screw M4x20mm x16

PHILLIPHS HEAD SCREW DRIVER

NOT PROVIDED

Hardware:

Component:

A Bolt M8x25mm x16

E Flat Washer M8 x16

H Allen Wrench M5 x1

1 Short Board x2

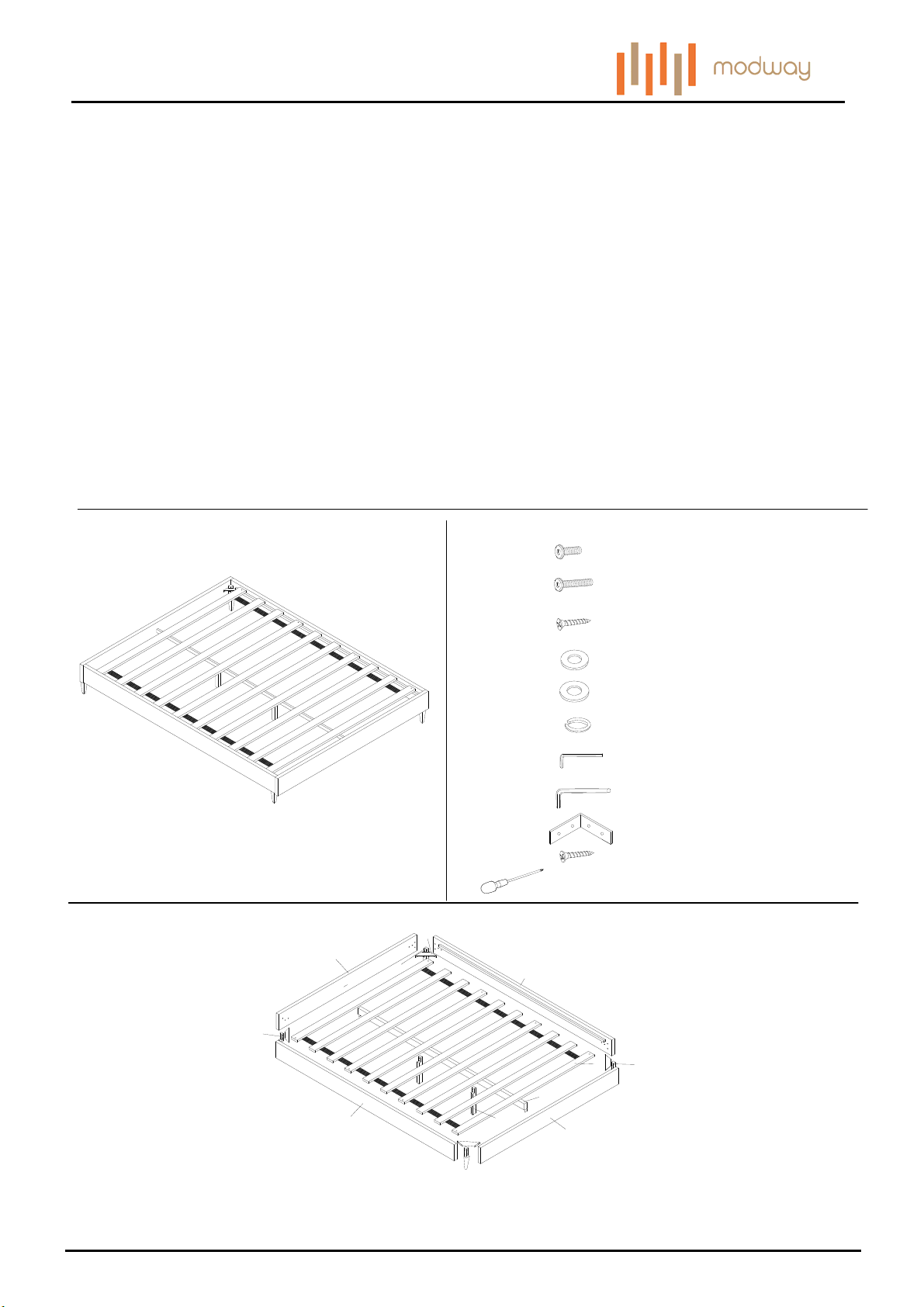

Thank you for purchasing the MOD-5347/5348/5349/5350/5351/5352 TWIN/FULL/QUEEN BED FRAME！

Before you start, here is some helpful advice:

1.We suggest you spend a short time reading through this leaflet and then follow the simple step by step

instructions.

2.Owing to the size and weight of the bed frame, we recommend that it is assembled by two adults, on a carpeted

or padded area, in the room that it is intended for. Approx assembly time: 45 minutes.

3.Please do not use any tools other than those provided or recommended in these instructions.

4.Please do not throw away any of the packaging or the instruction until you have checked all the components and

hardware and the furniture is fully assembled. Please ensure that the packaging is disposed of in a safe

environmentally friendly way.

5.Assemble all components loosely until advised to tighten. Depending on use, it may be necessary to tighten the

components from time to time, so please save the tools that has been provided.

6.Please keep all fitting out of reach of children.

B Bolt M6x45mm x16

C Screw M4x35mm x14

D Flat Washer M6 x16

F Spring Washer M8 x16

G Allen Wrench M4 x1

2 Long Board x2 3 Center Rail x1 4 Support Leg x2

MODWAY BED FRAME

5 7 Slats x10 8 Metal Corner Plate x4

Leg Ⅰx2 Leg Ⅱ x2

J Connect Plate x4

Customer Service 908-368-1025︱www.modwayfurniture.com Page 2 of 6

Bx8 Dx8 Gx1

STEP 1:

Hardware & Tool required

STEP 2:

Bx8 Dx8 Gx1 Hardware & Tool required

Place 1 piece of Long Board (2) to 2 pieces of assembled Short Board (1) by two adults

Attach them by using 4 pieces of Bolt (B) and 4 pieces of Flat Washer (D) as shown.

Use Allen Wrench (G) to tighten the Bolts (B) clockwise until secure.

Repeat the same steps for the remaining 1 piece of Long Board (2).

B D

MODWAY BED FRAME

Note: There are two kinds of legs designed for

this Bed Frame(Mod-5355 or Mod 5356) .

Mod-5355 Leg Mod-5356 Leg

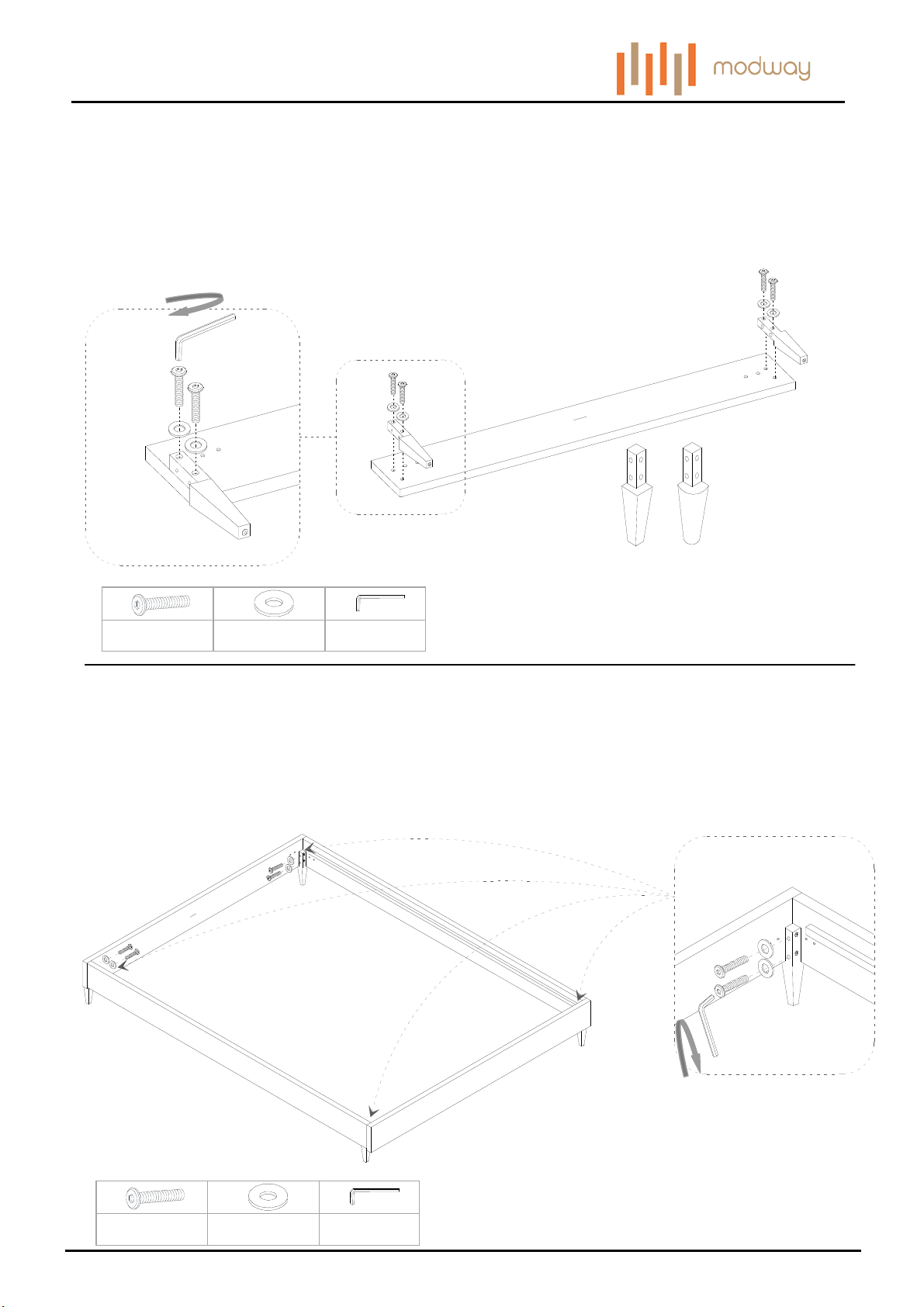

Put 1 piece of Short Board (1) upside down on a carpeted or padded area by two adults

Attach 1 piece of Leg (5) and 1 piece of Leg (6) into the Short Board (1) by using 4 pieces of Bolt (B) and 4 pieces

of Flat Washer (D) as shown.

Use Allen Wrench (G) to tighten the Bolts (B) clockwise until secure.

Repeat the same steps for the remaining 1 piece of Short Board (1) ,1 piece of Leg (5) and 1 piece of Leg (6).

Customer Service 908-368-1025︱www.modwayfurniture.com Page 3 of 6

Cx4 Phillips Head Screw

Driver( not provided)

STEP 3:

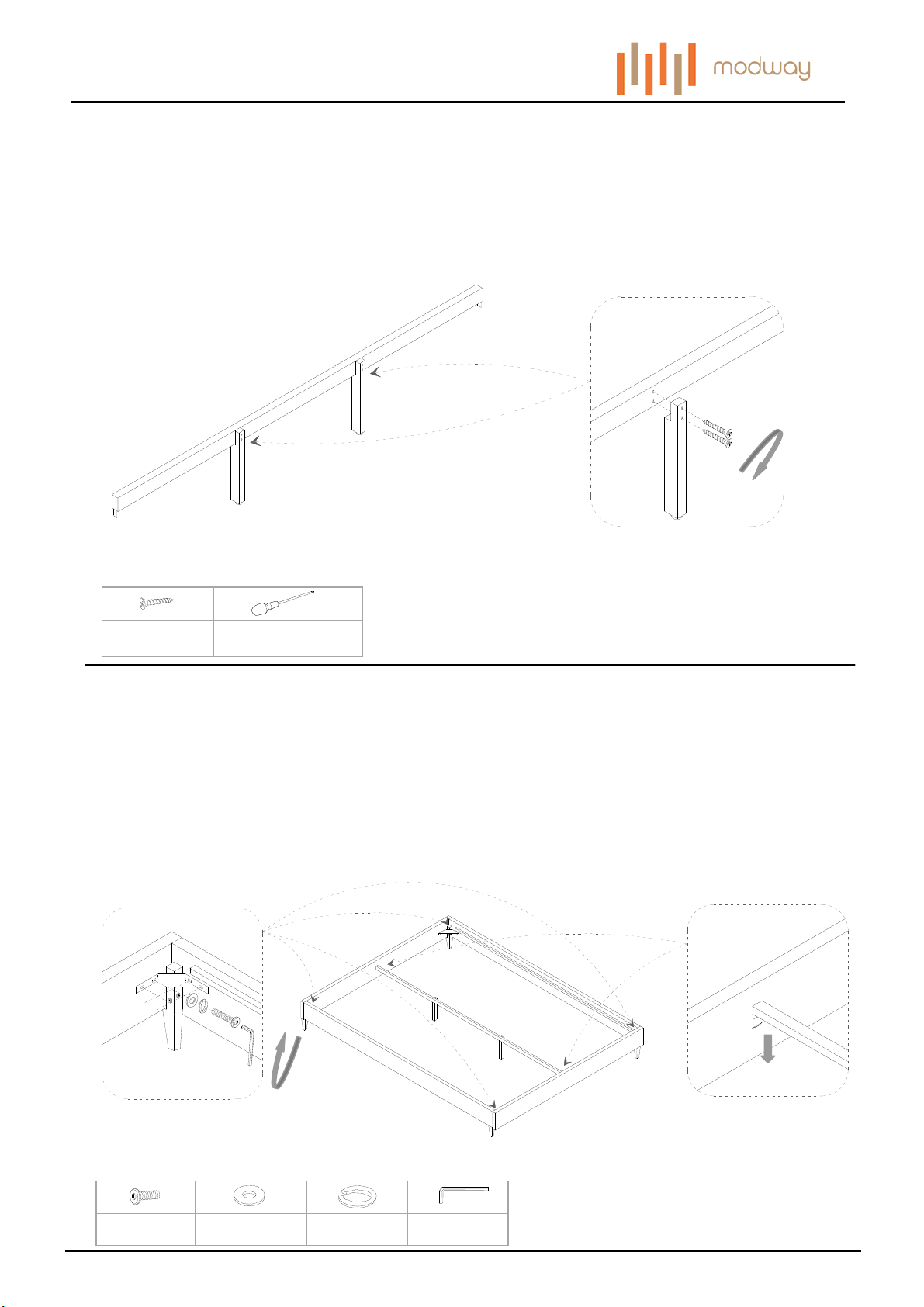

Attach 2 pieces of Support Leg (4) into the Center Rail (3) as shown.

Secure the Support Leg (4) into the Center Rail (3) by using 4 pieces of Screw (C) as shown.

Tighten the Screws (C) with Phillips Head Screw Driver (Not provided).

Hardware & Tool required

STEP 4:

Ax16 Ex16 Hx1

Fx16 Hardware & Tool required

Secure 1piece of Metal Corner Plate (8) into the Short Board (1) and Long Board (2) by using 4 pieces of Bolt (A)

with 4 pieces of Spring Washer (F), 4 pieces of Flat Washer (E) as shown.

Repeat the same steps for the remaining 3 pieces of Metal Corner Plate (8).

Place the assembled Center Rails (3) to the Short Board(1).

Insert the hook on the each end of Center Rail(3) into the notch on the Short Board (1).

Repeat the same steps for the remaining assembled Center Rail (3).

3 3

Notch on the

Short Board

Hooks on the

end of Center Rail

MODWAY BED FRAME

Customer Service 908-368-1025︱www.modwayfurniture.com Page 4 of 6

STEP 5:

Place the Slats (7) to the Long Boards (2) as shown.

Secure 4 pieces of Slat (7) which have countersink Holes on each end into the Long Board (2) by using 8 pieces of

Screw (C) as shown.

Tighten the Screws (C) with Phillips Head Screw Driver (Not provided).

Hardware & Tool required

Assembly is completed. The bed frame is ready to use now!

NOTE: Hardware may loosen over time. Periodically check that all connections are tight.

Cx2 Phillips Head Screw

Driver( not provided)

Jx4

Kx16

7 7

MODWAY BED FRAME

Hardware & Tool required

Cx8 Phillips Head Screw

Driver( not provided)

STEP 6:

In order to strengthen the construction of bed, Please do the steps as below.

Secure 4 pieces of Connect Plate (J) to each corner of assembled bed by using 16 pieces of Screw (K) as shown.

Secure 2 pieces of Screw (C) into the Slat (7) on the top of Support Legs (4) as shown.

Tighten the Screws (C&K) with Phillips Head Screw Driver (Not provided).

7 4

Note: No pre-drilled holes are designed at this step. Please

secure the Screw (K) into Short/Long Board (1/2) directly

when Connect Plate (J) are on the right position. Note: No pre-drilled holes are designed at this step.

Pease make sure Screws (C) are on the center of

Slat (7) and Center Rail (3) during securing.

Customer Service 908-368-1025︱www.modwayfurniture.com Page 5 of 6

A Bolt M6x45mm x4

C Flat Washer M6xD22mm x4

F Allen Wrench M4 x1

D Spring Washer M6 x4

Hardware:

1 2 Bed Frame x1

(Style may vary)

Headboard x1

(Style may vary)

Component:

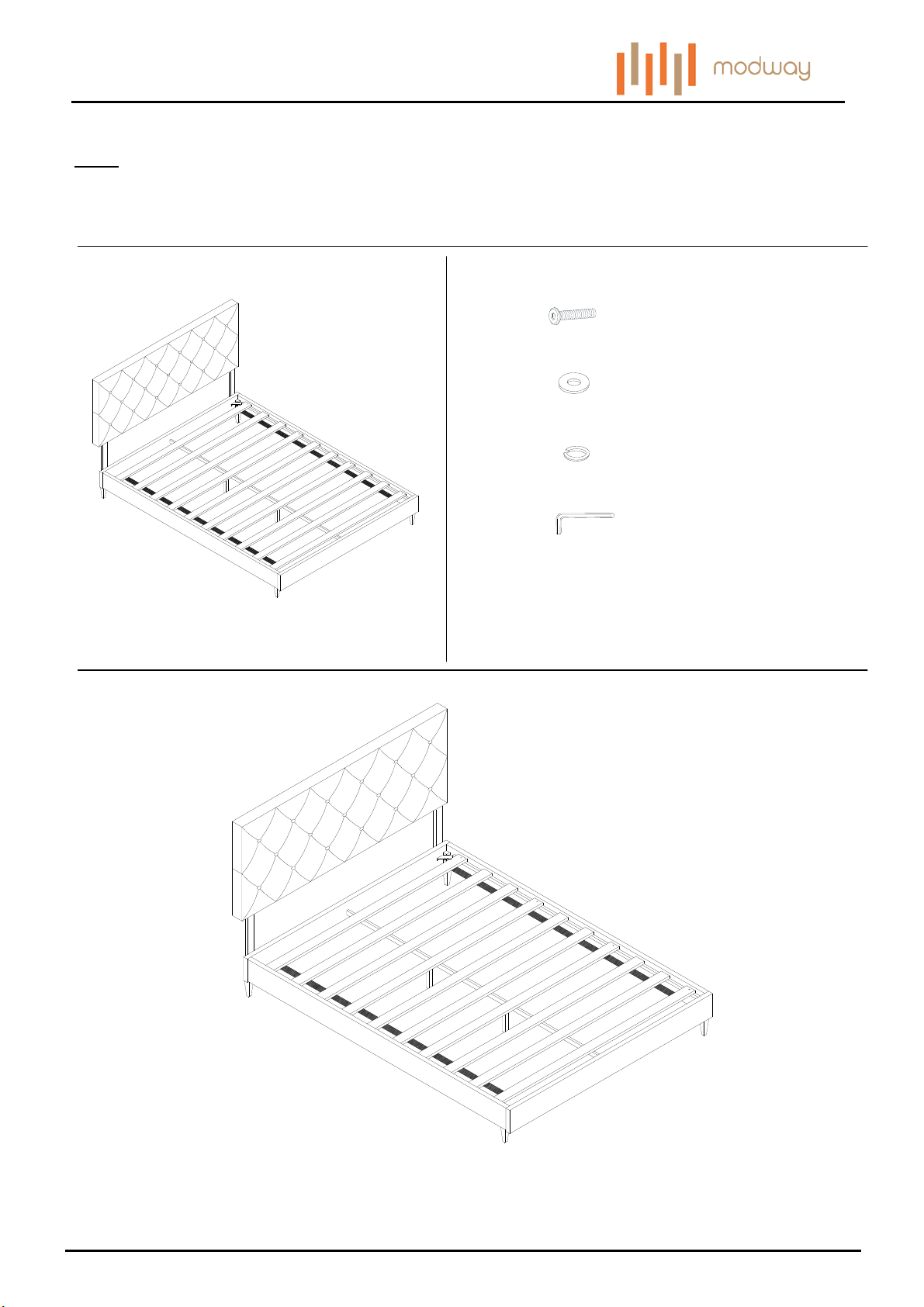

ASSEMBLY INSTRUCTIONS

MODWAY CONNECTING BED FRAME TO HEADBOARD

Important: All the hardware is packed with the

headboard you are buying. Please only use the

above hardware from Headboard Hardware Package

to assemble the Bed Frame and Headboard.

Note: This is assembly instruction for MODWAY Full/Twin/Queen/King Bed Frame MOD5347/5348/5349/5350/

5351/5352/5353/5354 to connect Headboard MOD 5365/5366/5367/5368/5369/5370/5371/5372/5373/5374/

5375/5376/5377/5378/5379/5380/5381/5382/5383/5384/5385/5386/5387/5388/5389/5390/5391/5392/5393/5394/

5395/5396/5397/5398/5399/5400/5401/5402/5403/5404/5405/5406/5407/5408.

Customer Service 908-368-1025︱www.modwayfurniture.com Page 6 of 6

Ax4 Cx4 Dx4 Fx1 Hardware & Tool required

STEP 2:

Assembly is completed. The bed is ready to use now!

NOTE: Hardware may loosen over time. Periodically check that all connections are tight.

1 1

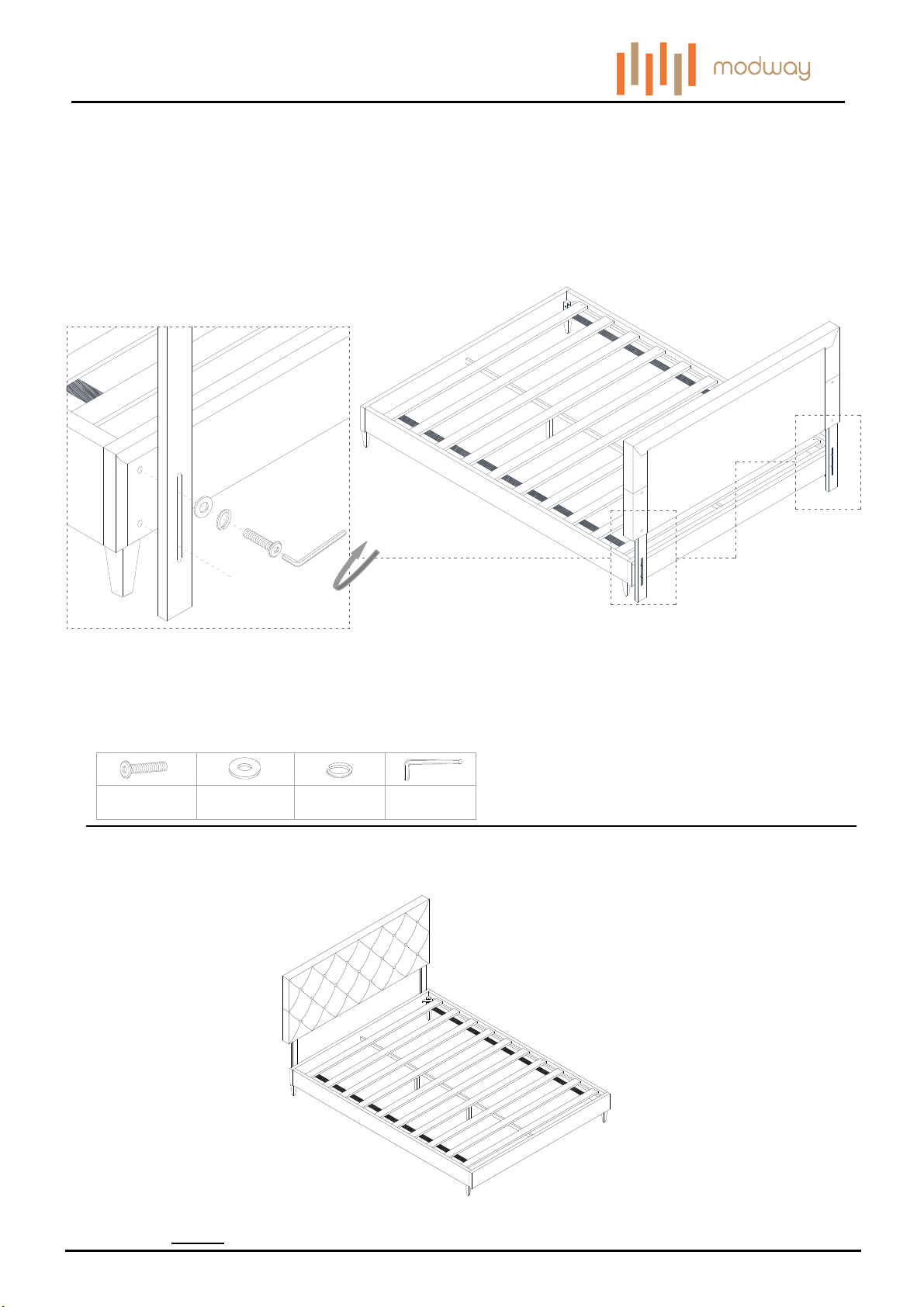

Line up the Bed Frame (2) board’s pre-drilled holes to match those of the Headboard (1).

Secure the Headboard (1) to the Bed Frame (2) by using 2 pieces of Bolt (A) with 2 pieces of Spring Washer (D), 2 pieces

of Flat Washer (C) into the Bed Frame (2).

Then tighten the Bolts (A) by using the Allen Wrench (F).

Repeat the same procedure for each bolt and each side of the Bed Frame (2).

STEP 1:

MODWAY CONNECTING BED FRAME TO HEADBOARD

Carefully position the assembled bed to the desired location by four adults.
