MOD-5178/5179 TWIN BED

Hardware:

Component:

A Bolt M6x20mm x28

B Flat Washer x4

C Rubber Insert x16

D Allen Wrench x1

1 Headboard x1 2 Footboard x1

3 Side Rail x2 4 Double Slat x4

5 Single Slat x8 6 Low Post x2

Thank you for purchasing the MODWAY BED！

Before you start, here is some helpful advice:

1.We suggest you spend a short time reading through this leaflet and then follow the simple step by step

instructions.

2.Owing to the size and weight of the bed, we recommend that it is assembled by two adults, on a carpeted or

padded area, in the room that it is intended for. Approx assembly time: 30 minutes.

3.Please do not use any tools other than those provided or recommended in these instructions.

4.Please do not throw away any of the packaging or the instruction until you have checked all the components and

hardware and the furniture is fully assembled. Please ensure that the packaging is disposed of in a safe

environmentally friendly way.

5.Assemble all components loosely until advised to tighten. Depending on use, it may be necessary to tighten the

components from time to time, so please save the tools that has been provided.

6.Please keep all fitting out of reach of children.

Customer Service 908-368-1025︱www.modwayfurniture.com Page 2 of 3

MOD-5178/5179 TWIN BED

Ax4 Bx4 Dx1

Ax16 Cx16 Dx1

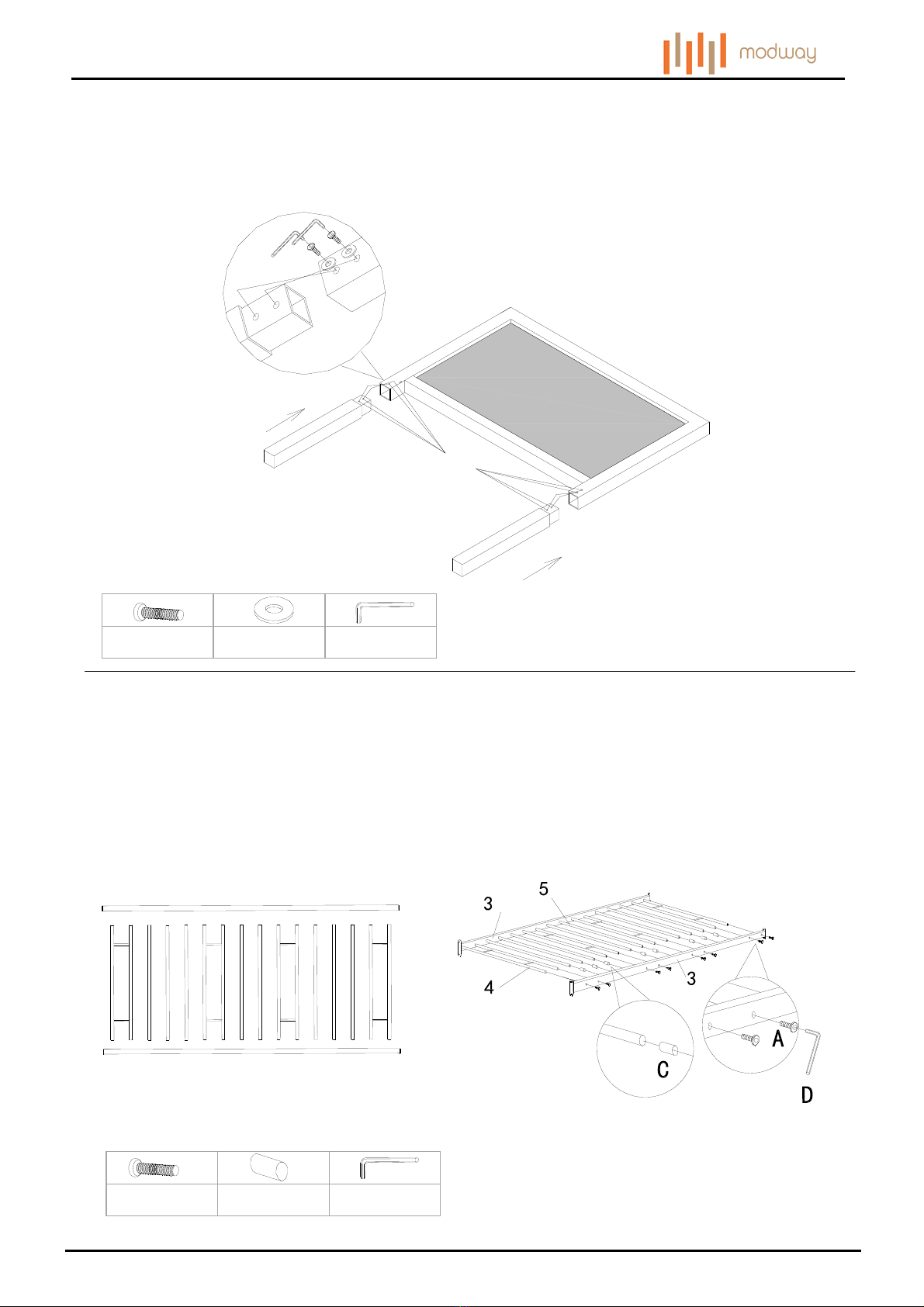

STEP 1:

Insert Low Post (6) into Headboard (1) as shown.

Attach them by using Flat Washer (B) and Bolt (A) from the holes on the back of Low Post (6) and Headboard (1).

Tighten with Allen Wrench (D).

Hardware & Tool required

STEP 2:

Take out all Double Slats (4), Single Slats(5) and Side Rails(3) and place them as shown.

Insert one end of Rubber Insert (C) into Single Slats (5) and the other end into the corresponding holes on one piece of

Side Rail (3) as shown.

And attach Double Slats (4) to the same Side Rail (3) by using Bolts (A), Tighten Bolts (A) with Allen Wrench (D).

Repeat above for the other Side Rail (3).

Hardware & Tool required

Backwithholes

Back

Customer Service 908-368-1025︱www.modwayfurniture.com Page 3 of 3

MOD-5178/5179 TWIN BED

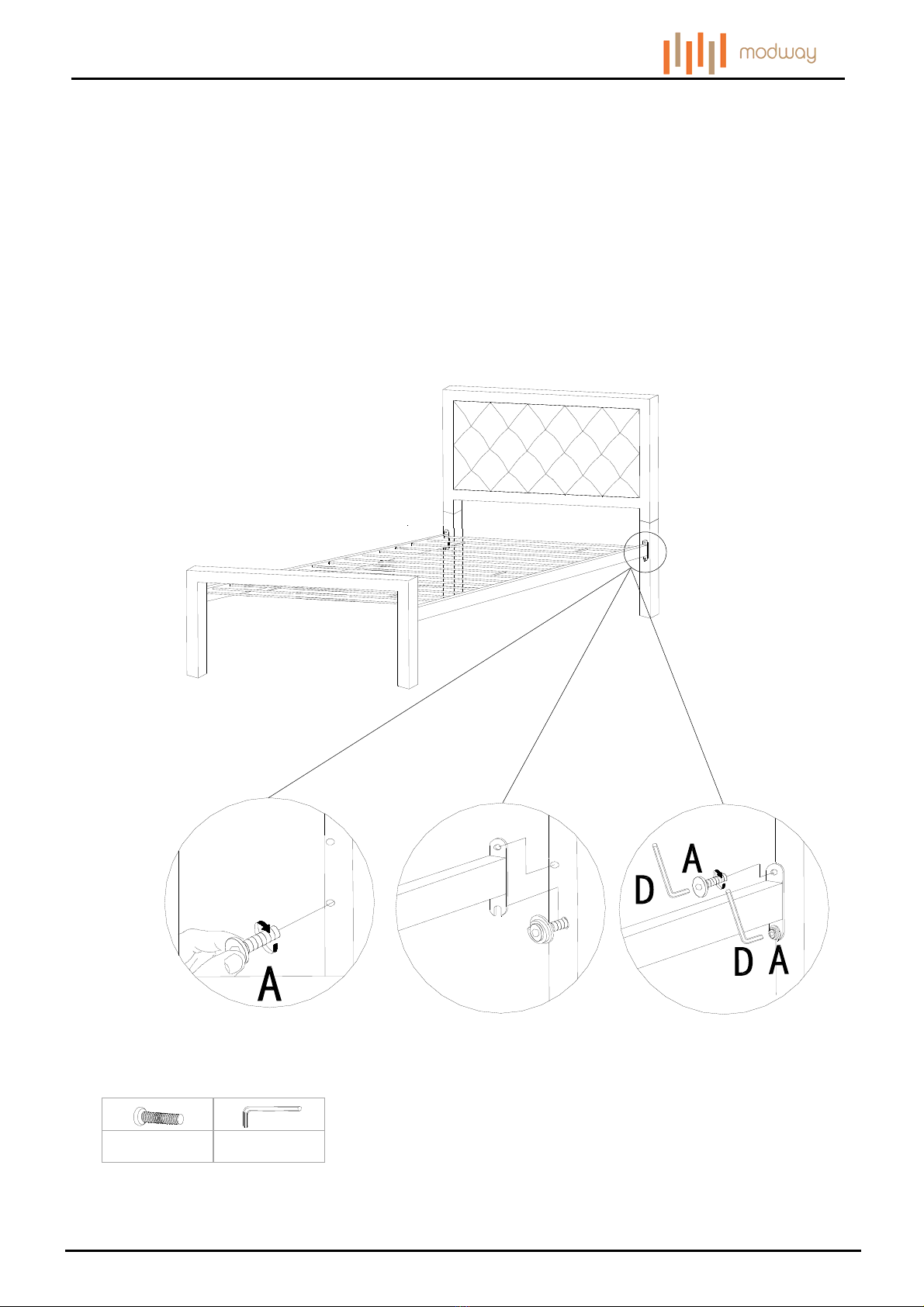

STEP 3:

Screw Bolts (A) into the bottom holes on the assembled Headboard (1&6) & Footboard (2) by hand .

Leaving 8~10mm space of the thread of Bolts (A) as shown for inserting the notch of assembled Side Rails (3&4&5).

Insert the notch of assembled Side Rails(3&4&5) into the space of thread of Bolts (A) which attached into the bottom

holes of assembled Headboard (1&6) & Footboard (2) as shown.

Screw Bolts (A) into the top holes on the assembled Headboard (1&6) & Footboard (2) as shown.

Tighten all Bolts (A) with Allen Wrench (D) after all assembled.

AX8 Dx1 Hardware & Tool required

Assembly is completed. The bed is ready for using now!

Bottom hole

Top hole

2 3

Notch
