2

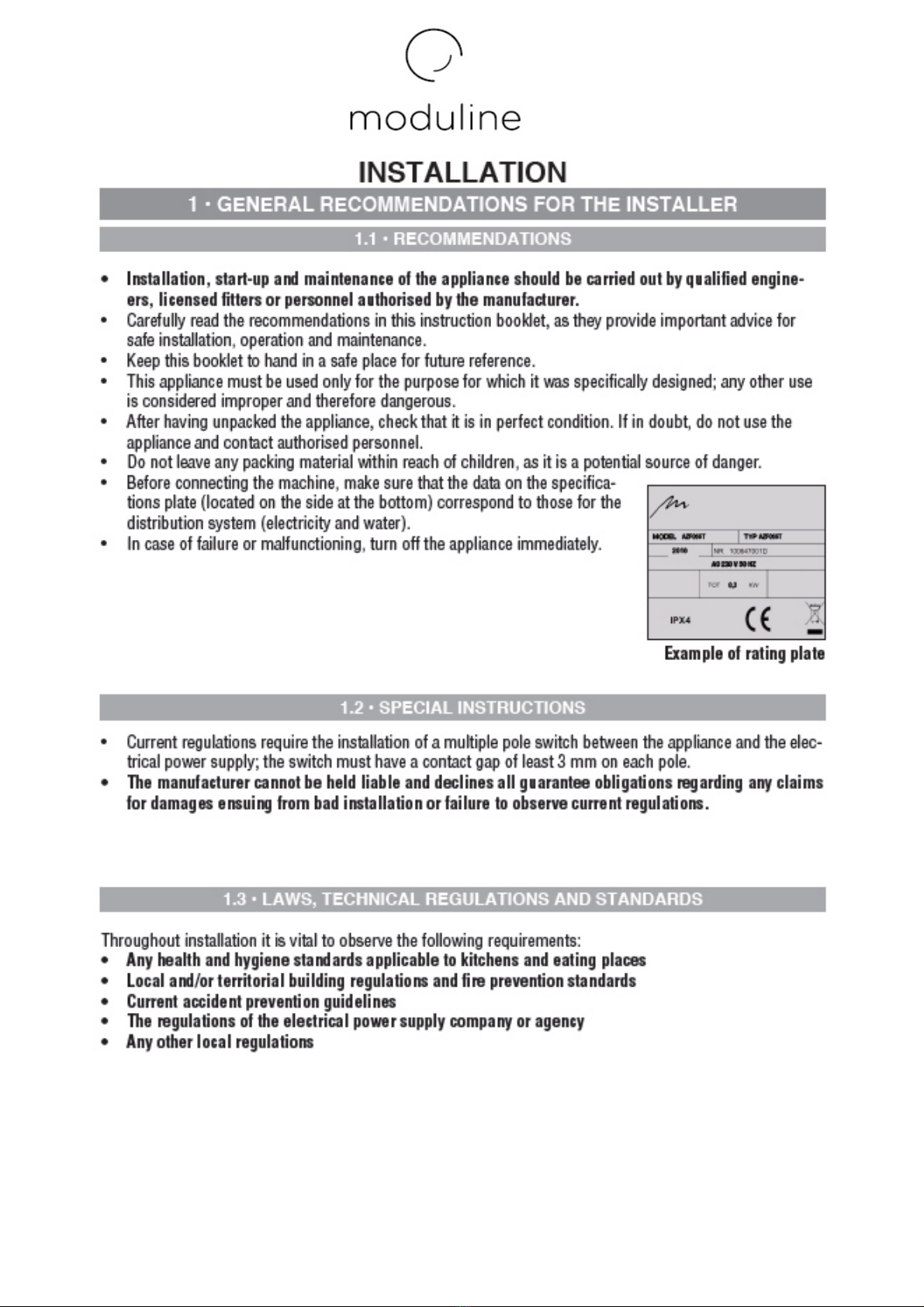

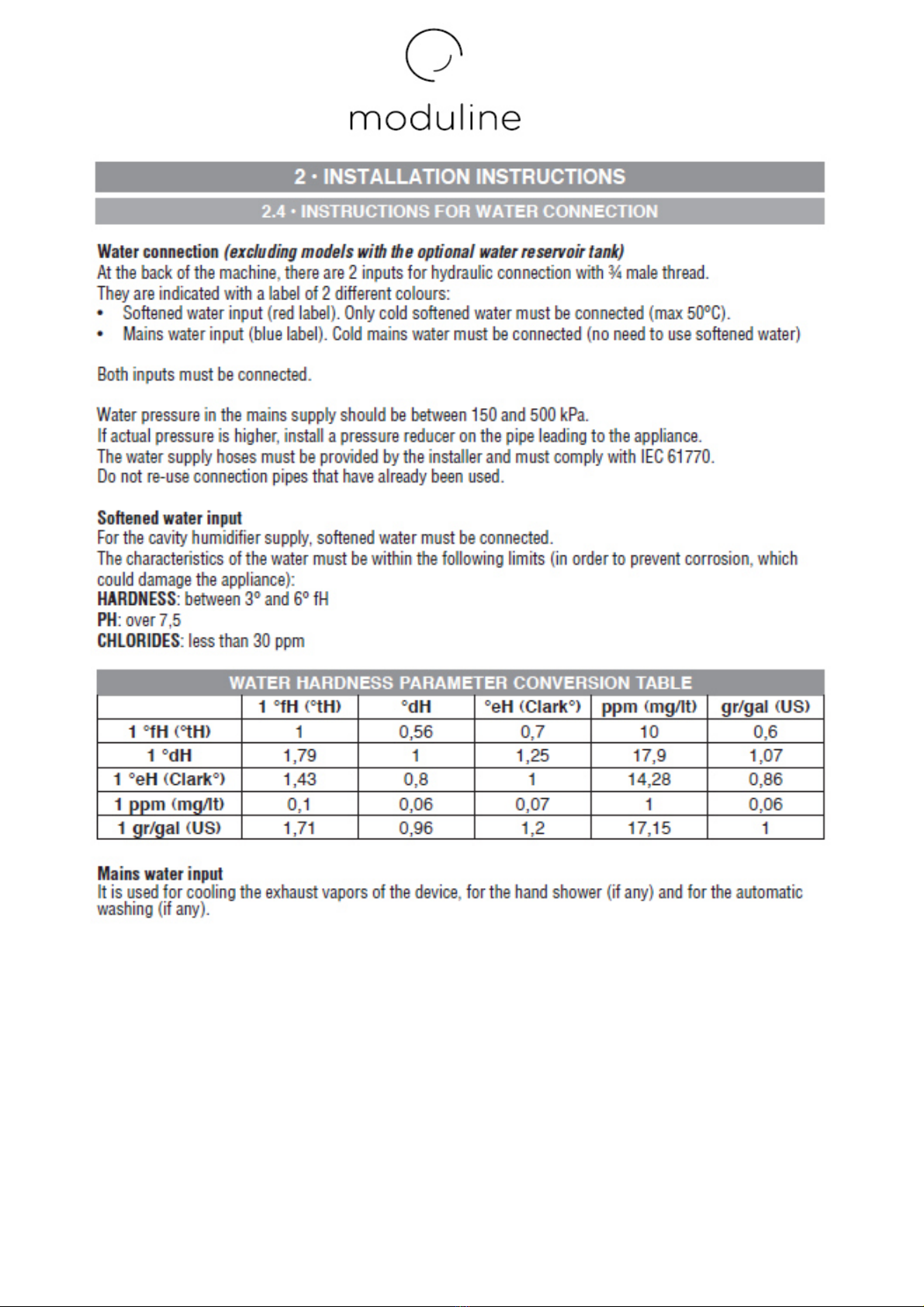

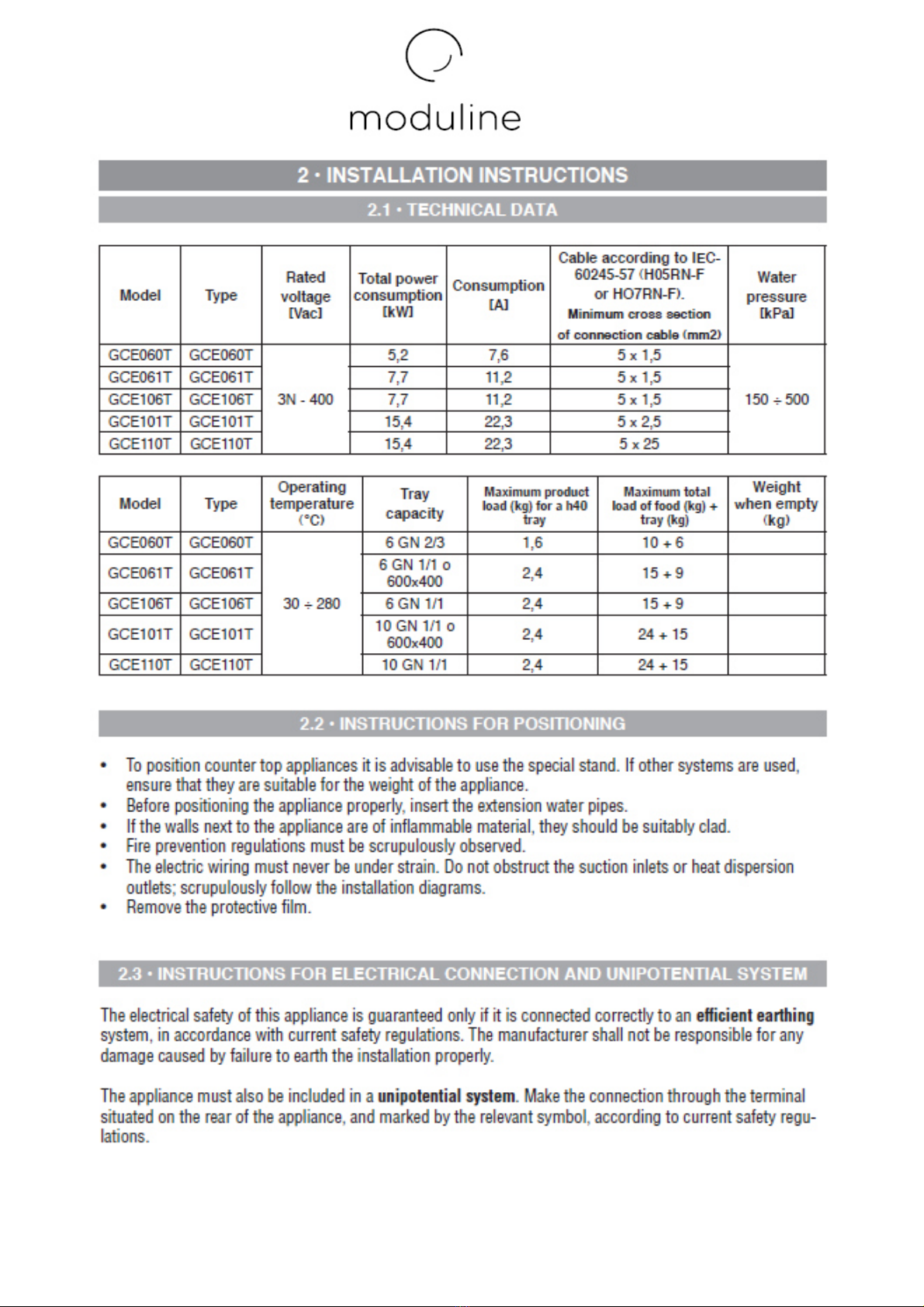

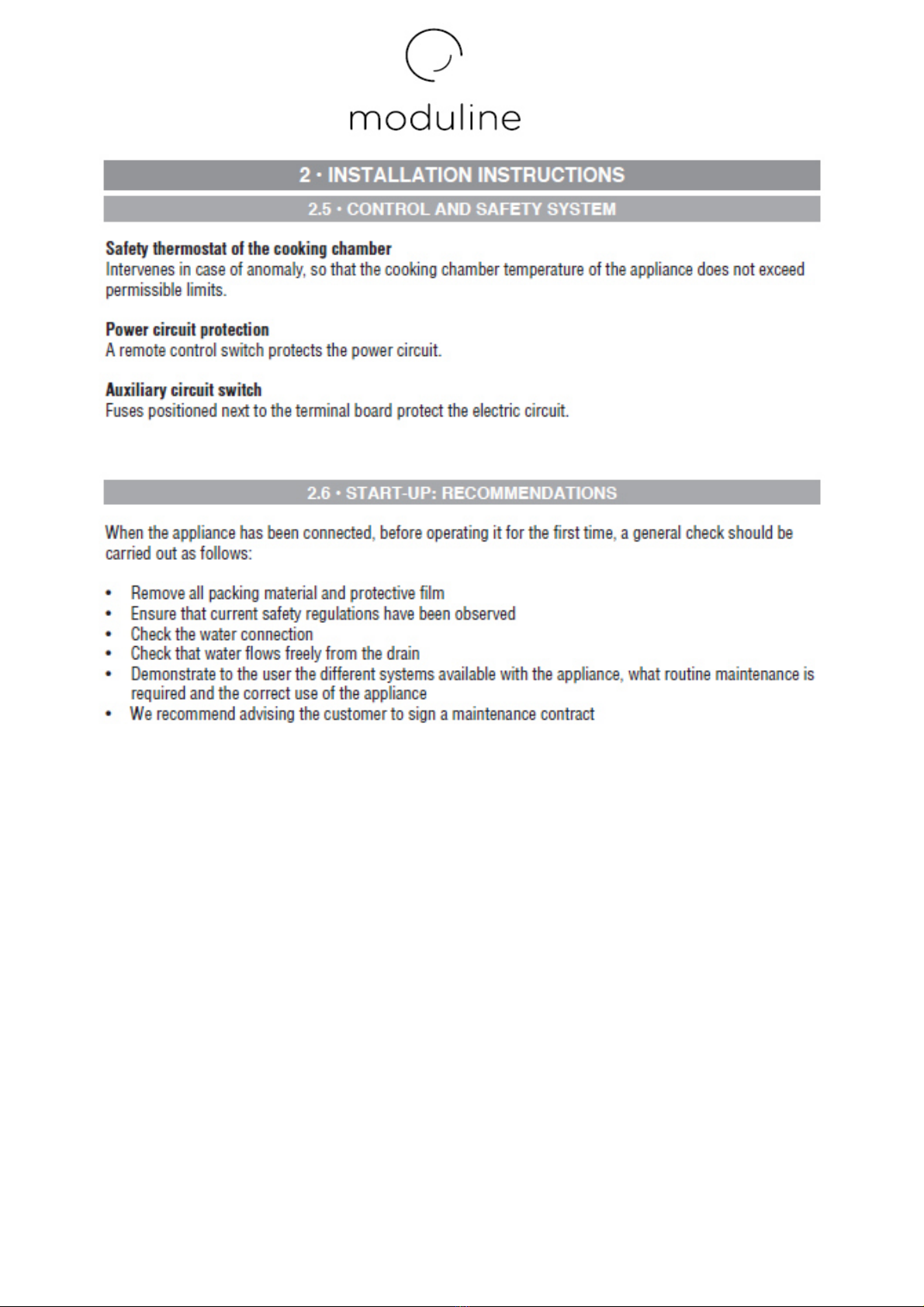

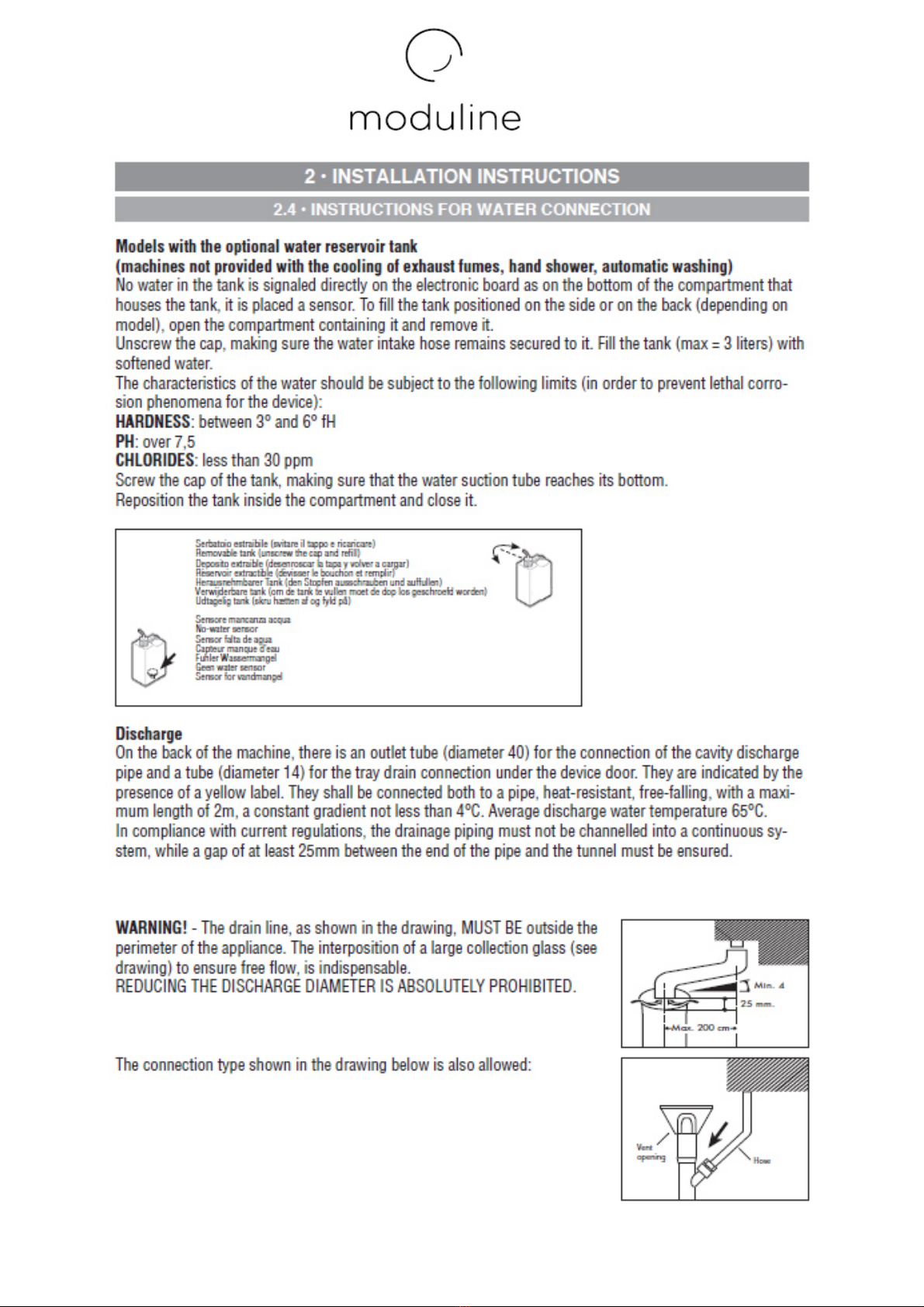

INSTALLATION…………………………………………………………………………………………………………………….….3

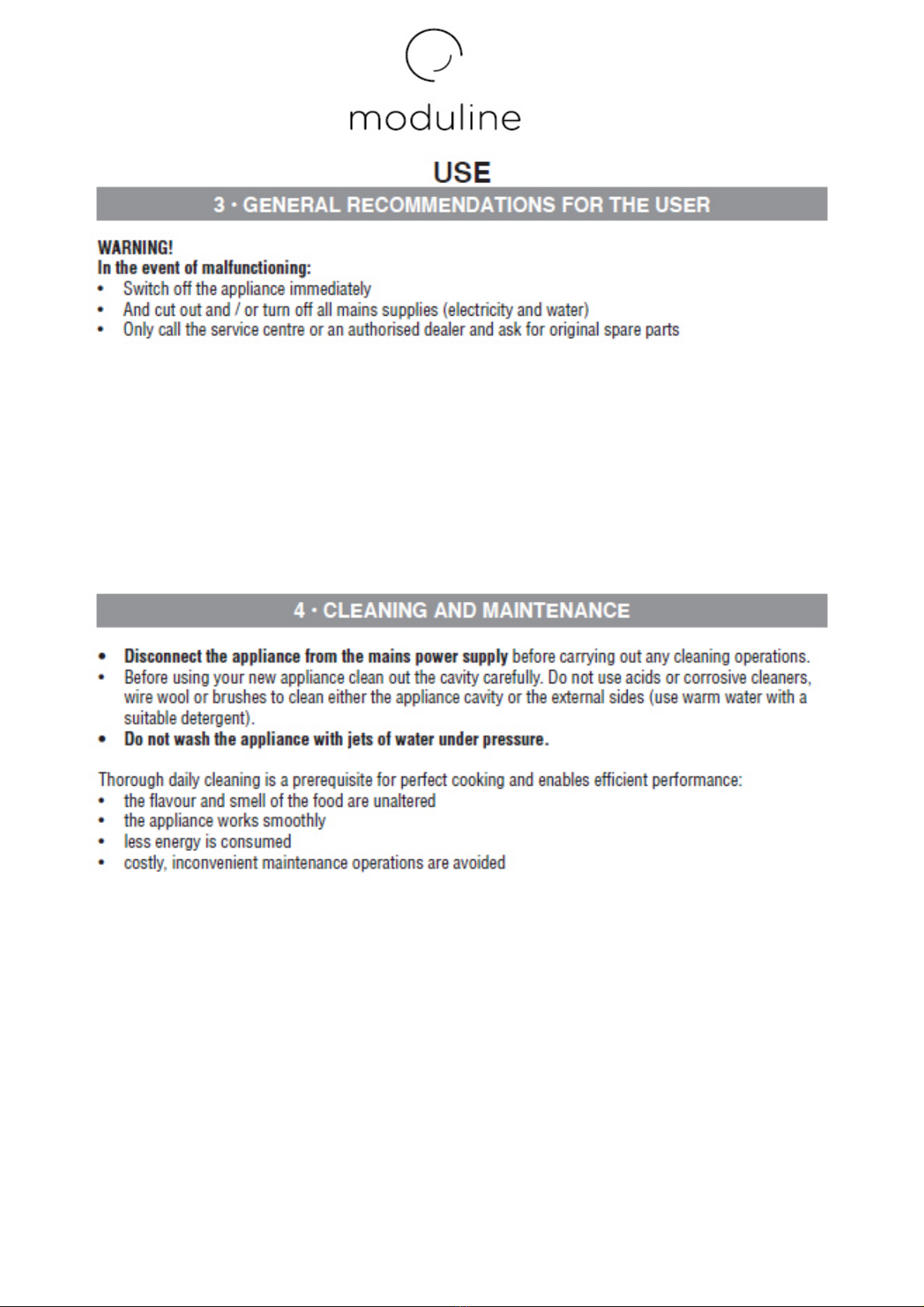

USE……………………………………………………………………………………………………………………….....................8
WARNINGS AN ALARMS……………………………………………………………………………………………………..….10
TECHNICAL RAWINGS…………………………… …..…………………………………………………………..…..….….....16
ELECTRICAL WIRING IAGRAMS...…………………………………………………………………………………………....21
PC BOAR S ………………...………...……………………………………………………………………..................................26
HOW TO ACCESS ON THE SERVICE AREA…………………………………………………………………..……………….29
SUMMARY OF POSSIBLE FAILURES…………………………………………...……………………………………..............44
FAILURES AN RELATIVE TECHNICAL INTERVENTIONS………………………………………………………………….55
- General fuse replacing
- Pc board replacing
- Cavity light fuse replacing Pc board
- Fuse carrier replacing Pc board
- Control panel replacing
- Power pc board replacing
- Expansion pc board replacing
- Pc board buzzer replacing
- Core probe socket replacing
- Usb socket replacing
- Cooling fan pc board co part ent replacing
- Cooling fan back co part ent replacing
- Cavity safety ther ostat restoring
- Cavity safety ther ostat replacing
- Cavity te perature probe replacing
- Safety contactor replacing
- Heating ele ent contactor replacing
- Cavity heating ele ent replacing
- Cli achef vent probe replacing
- Motor fan replacing
- Fan replacing
- Motor fan capacitor replacing
- Cli achef otor replacing
- Cavity u idification valve replacing
- Water pressure switch replacing
- Cavity light bulb replacing
- Door agnetic sensor replacing
- Calibrating door closing
- Door gasket replacing
- Drain condensation valve replacing
- Main switch replacing
- Drain te perature probe replacing
- Flow eter replacing (if present the self cleaning)
- Drain otor valve replacing (if present the self cleaning)
- Pu p replacing (if present the self cleaning)
- Hand shower replacing (if present)
