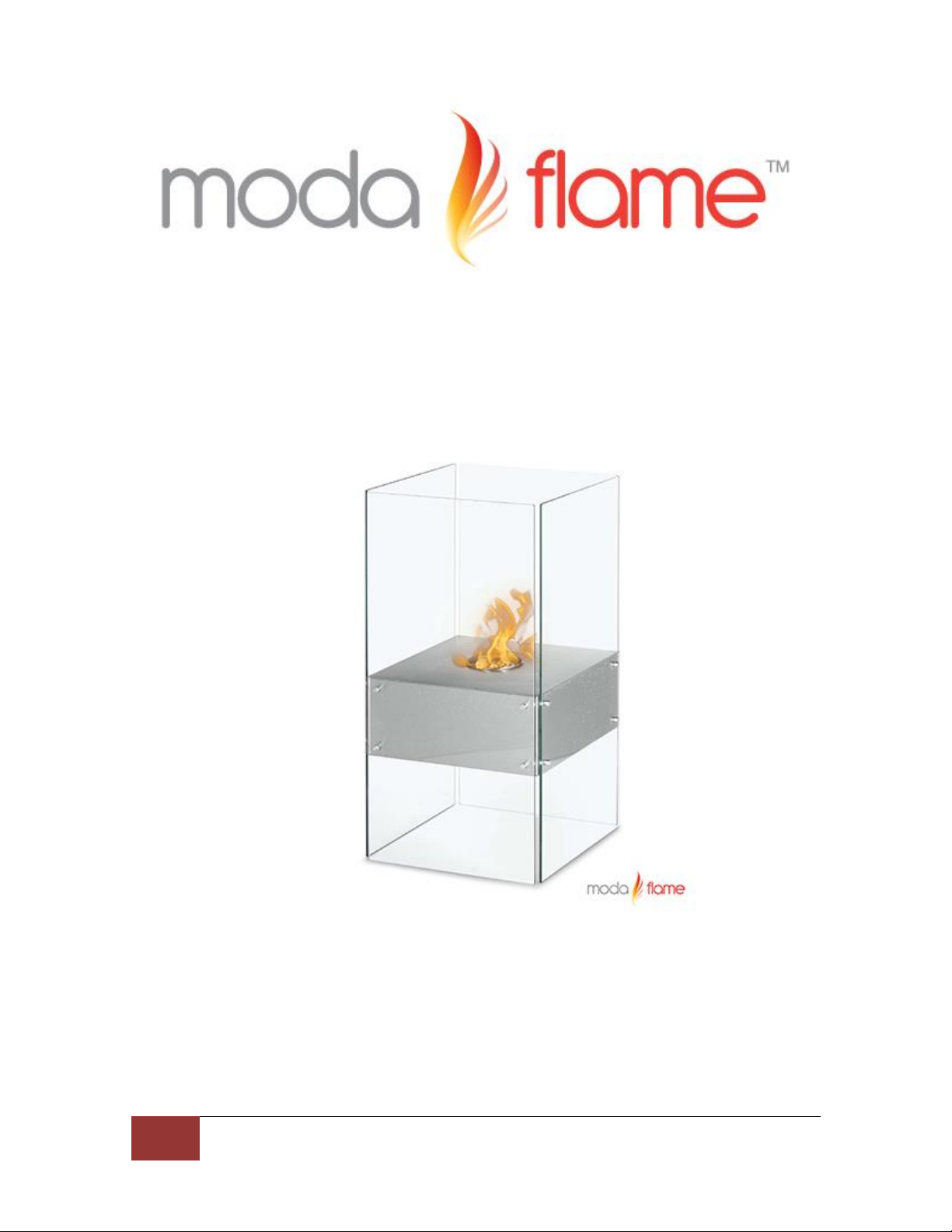

ModaFlame GF203700 Manuel utilisateur

Moda Flame Cella Free Standing Floor Indoor Outdoor Ethanol Fireplace©

Instruction Manual

Cella Free Standing Floor Indoor Outdoor Ethanol Fireplace

User’s Manual

Model: GF203700

Moda Flame Cella Free Standing Floor Indoor Outdoor Ethanol Fireplace©

Instruction Manual

Included in delivery (Parts List):

A. Fireplace body 1pc

B. Tempered Glass 4pcs

C. Round Burner 1pc

D. Control tool 1pc

E. Screws （φ10*18）16pcs

F. Instruction manual and safety instructions.

A. B.

C. D.

E．

Moda Flame Cella Free Standing Floor Indoor Outdoor Ethanol Fireplace©

Instruction Manual

Assembly Instructions:

Unpack the fireplace and accessories. Check the content for completeness and

any damages incurred in transit. Keep children away from the packing.

The fireplace must only be installed on a solid floor of non-flammable material

1. Place the fireplace body on a stable surface.

2. Secure the glasses onto the fireplace body with screws, at the same time,

place the burner into the burning chamber of the fireplace body.

WARNING: Always maintain a safe distance of at least 1 meter (40in) from

the fireplace when the flame is lit.

OPERATION INSTRUCTIONS

Step 1: Remove the burner off the fireplace, Fill the burner with the ethanol.

Then place it into the burning chamber of the fireplace body.

CAUTION: Spilled ethanol must be removed with an absorbent tissue and

cleaned with water to prevent ignition outside the burner reservoir.

Moda Flame Cella Free Standing Floor Indoor Outdoor Ethanol Fireplace©

Instruction Manual

Spilled ethanol may lead to matt stains on parquet flooring.

Fuel must be kept in safe distance (min. 1 m/40 inch) to the fireplace.

Do not place fuel in front of the fireplace.

Step 2: Light the ethanol with stick-lighter. Keep a safe distance to the burner.

CAUTION: Fuel will burn low at first. Please allow 15 minutes to reach the

optimum temperature and flame height.

Extinguish ：

CAUTION: Never extinguish the flame with water!

Let the fuel burn out completely if possible. This prevents ethanol left in the

burner and deflagration when reigniting.

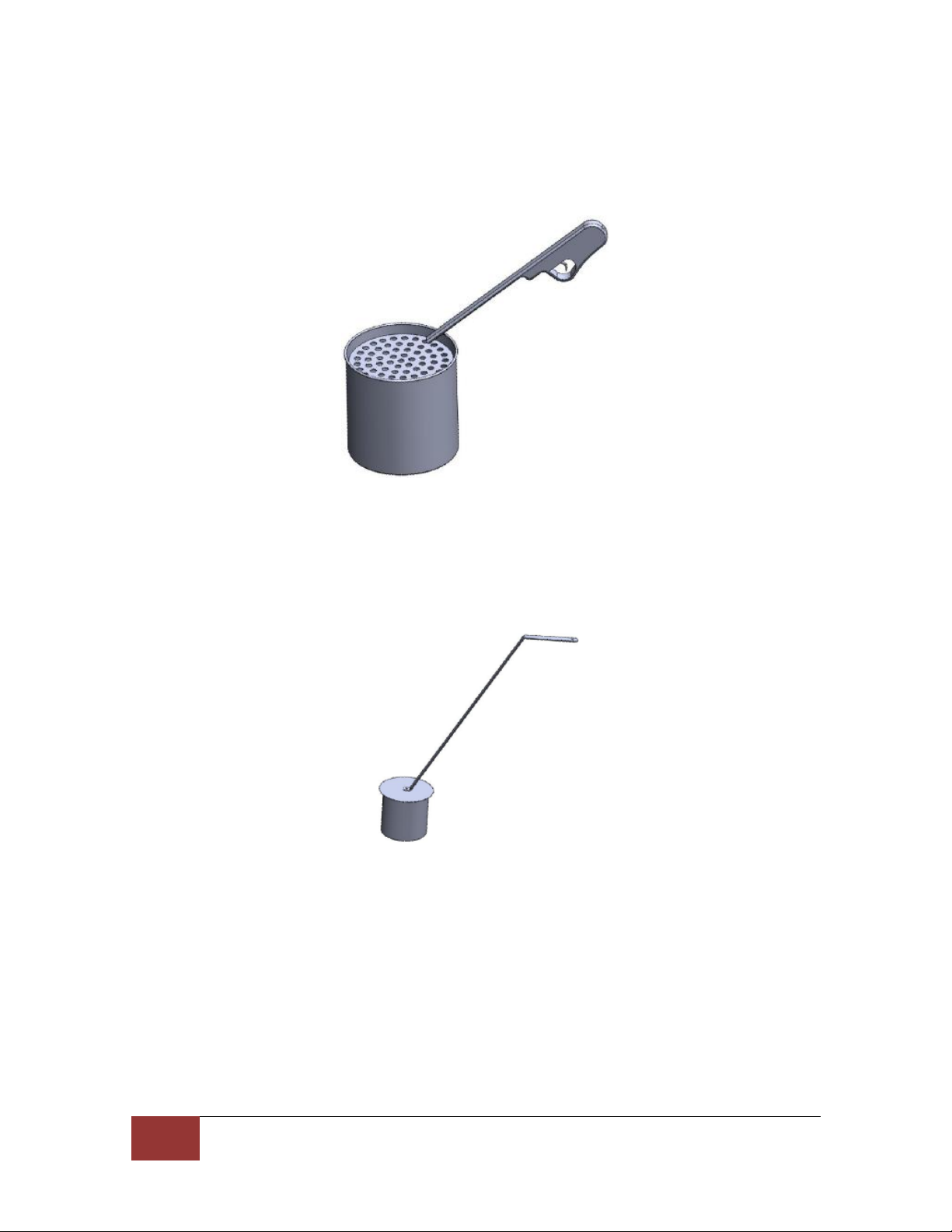

If you wish to extinguish the flame before the fuel has completely burned out.

Please use the controlling tool to extinguish the flame according to the

picture above. Wait approximately 20 minutes until the burner has reached

room temperature. Only then dispose of the remaining fuel.

Moda Flame Cella Free Standing Floor Indoor Outdoor Ethanol Fireplace©

Instruction Manual

In case the flame is not extinguished immediately. Please leave the

controlling tool on the burner for a few seconds and wait approximate10-15

minutes to allow the burner to cool down. Repeat the above instructions until

the flame is fully extinguished.

It is urgently recommended that you keep a Class B fire extinguisher at hand

close to the device in case of fire.

Refill：

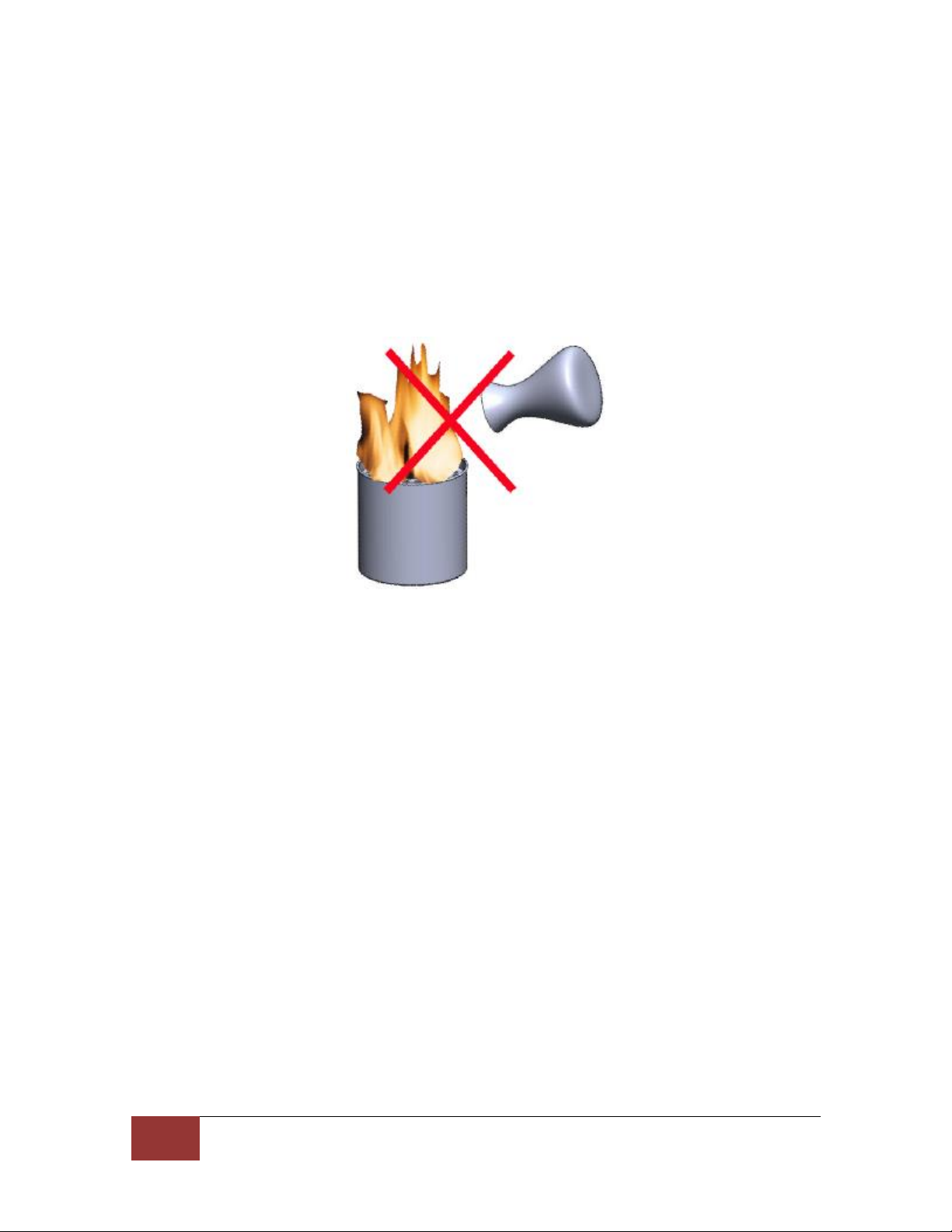

CAUTION: Never pour fuel into the burning flame.

WARNING：Allow the burner to cool down for at least 15 minutes before

refilling. Never refill the burner when the fireplace is operating or still hot.

SAFETY INSTRUCTION

When burning Moda Flame Premium Ethanol, water-vapor and carbon dioxide

are produced.

Never leave an open fire unattended at any time!

In a house of typical construction, that is, one that is not of unusually tight

construction due to heavy insulation and tight seals against air infiltration, an

adequate supply of air for combustion and ventilation is provided through

infiltration. The fireplace should not be used in a small room where less than

5.7m3 (200ft3) of air space is provided for each 1000 Btu per hour of

fireplace (considering the maximum burner adjustment). Do not use the

fireplace in a bathroom, a room where sleeping accommodation is provided

Moda Flame Cella Free Standing Floor Indoor Outdoor Ethanol Fireplace©

Instruction Manual

or any other small room.

CAUTION: Item gets hot while in operation. Do not touch the fireplace while

burning. Please allow at least 15 minutes to cool down before touching the

product after flame is extinguished.

CAUTION: Risk of burns. Do not operate the ethanol fireplace without the

guard or grille or screen completely attached.

Never pour fuel into an open flame or into the burner reservoir unless it has

cooled down for at least 15 minutes after used.

Do not place any flammable material within 1 meter/ 40 inches around the

fireplace. A safety distance of at least 2 meters/80 inches should be kept

from any window or curtain. Do not burn under over hanging items.

CAUTION: Do not smoke while handling the fuel.

Avoid airflow in the room where the fireplace is operated.

WARNING:

ⅰRisk of Explosion

a.Never use any fuel other than Moda Flame Premium Ethanol. Never use

gasoline.

b.Never use the appliance in areas where flammable vapors or gas may be

present.

c.Never store or transport the fuel in other than a metal or plastic container

that is acceptable for use with the specified fuel in accordance with the

Consumer Chemicals and Containers Regulations 2001 and is the original

container for the specified fuel.

d.Never store fuel in the living space or in the same location as the appliance.

ⅱ.Due to high surface temperatures, keep children, clothing, and furniture

away.

ⅲ.Do not use the appliance to heat or boil water or use as a cooking

appliance.

ⅳ.Do not use in a room with Oxygen tanks in use. Do not use the appliance

in a bathroom, a room where sleeping accommodation is provided or any

other small room.

Moda Flame Cella Free Standing Floor Indoor Outdoor Ethanol Fireplace©

Instruction Manual

ⅴ.Do not operate without installing the protective screens, grilles, or guards.

ⅵ.THIS APPLIANCE HAS NOT BEEN TESTED FOR USE WITH DOORS.

TO REDUCE THE RISK OF FIRE OR INJURY, DO NOT INSTALL DOORS.

ⅶ. Risk of Indoor Air Pollution - Use ethanol fireplace only in well-ventilated

areas and with doors of adjacent room open. Do not obstruct air flow to the

fuel holder box by piling logs over the fuel holding box, but only around it and

do not obstruct the fuel holder box in any other way or with any other material.

People with breathing problems should consult a physician before using the

ethanol fireplace.

WARNING: THIS APPLIANCE HAS NOT BEEN TESTED WITH AN

UNVENTED GAS LOG SET. TO REDUCE RISK OF FIRE OR INJURY, DO

NOT INSTALL AN UNVENTED GAS LOG SET INTO THIS APPLIANCE."

CLEANING INSTRUCTION:

After each use, the burner surfaces must be cleaned regularly. Use warm

water and washing-up liquid. If the burner is not cleaned after each use, bad

odors can occur.

Check the sliding cover of burner for warp or damage before each use.

After several uses, the stainless steel burner may discolor depending on the

type of ethanol fuel you use. Rub the burner with a sponge to restore the original

shine of the stainless steel. Marks can be best removed with a soft cloth and a

mixture of lukewarm water and a small amount of cleaning liquid (ph-neutral).

We recommend cleaning the stainless steel items regularly to prevent

contamination.

CAUTION: Never use chemical, steel-wool or scrubbing sponges eight.

These can scratch the surface. The manufacturer cannot be held responsible

for any damages resulting out of false use and/ or cleaning of the products.

Moda Flame Cella Free Standing Floor Indoor Outdoor Ethanol Fireplace©

Instruction Manual

Warranty:

Our fireplaces are guaranteed 1 year, parts and labor. Warranty begins on

the date of purchase.

Warranty will be applied on presentation of a dated cash receipt and is

strictly limited to factory service repair of the piece or pieces that are found to be

defective. Installations costs will not be reimbursed in any case as damages for

any reason whatsoever. Manufacturer will not be held responsible for any

incidental or consequential defects, on goods or individuals.

The warranty will not be applied if devices have been subjected to

abnormal use or if used under other conditions of use than the ones they were

intended for.

The warranty will not apply in case of deterioration or accident due to

negligence, damages caused by failing to maintain and service the device or

resulting from an alteration of material.

Moda Flame

Tel: 347-410-8000

Email: [email protected]

Website: www.MODAFLAME.com
