Mod TONE ATTACK Manuel utilisateur

Use these instructions to learn:

How to build an effects pedal for boosting and cutting tones.

Shape your sound with the Tone Attack. 12 o’clock settings give an approximate unity gain with the pedal.

Rotate the treble or bass knob counterclockwise to cut the corresponding frequencies. Rotate these same

knobs clockwise to boost the frequency bands. The Master Boost knob can be used to attenuate your signal

or push your tone to screaming loud volumes.

THE TONE ATTACK (K-998)

Warning: This circuit was designed for use with a 9 VDC power supply only.

9 VDC

CENTER (-)

ADAPTER

Unplug when not in use

to save battery life.

Signal Input

(From Guitar)

Signal Output

(To Amplifier)

TABLE OF CONTENTS

TOOL LIST 2

PARTS LIST DRAWINGS 3-4

FINAL ASSEMBLY REFERENCE DRAWING 5

SOLDERING TIPS 6

STEP BY STEP ASSEMBLY INSTRUCTIONS 7-10

Section 1 (Drawings 1 & 2) 7

Section 2 (Drawing 3) 7-8

Section 3 (Drawing 4) 9

Section 4 (Finishing Up) 10

ASSEMBLY DRAWINGS (4 Drawings) 11-12

These are the last 2 pages. They should be separated and used as a reference to help assemble the

kit correctly. Hi-res color versions available on modkitsdiy.com

TOOL LIST

Wire Strippers

Needle Nose Pliers

Hex Key (Allen Wrench)

Cutting Pliers

Desoldering Pump

Solder (60/40 rosin core)

Soldering Station

Phillips Head Screwdrivers

Slotted tip screwdrivers (3 mm tip)

Channellock Pliers (or similar type)

Ruler

Hobby Vise (or other means to secure box while working)

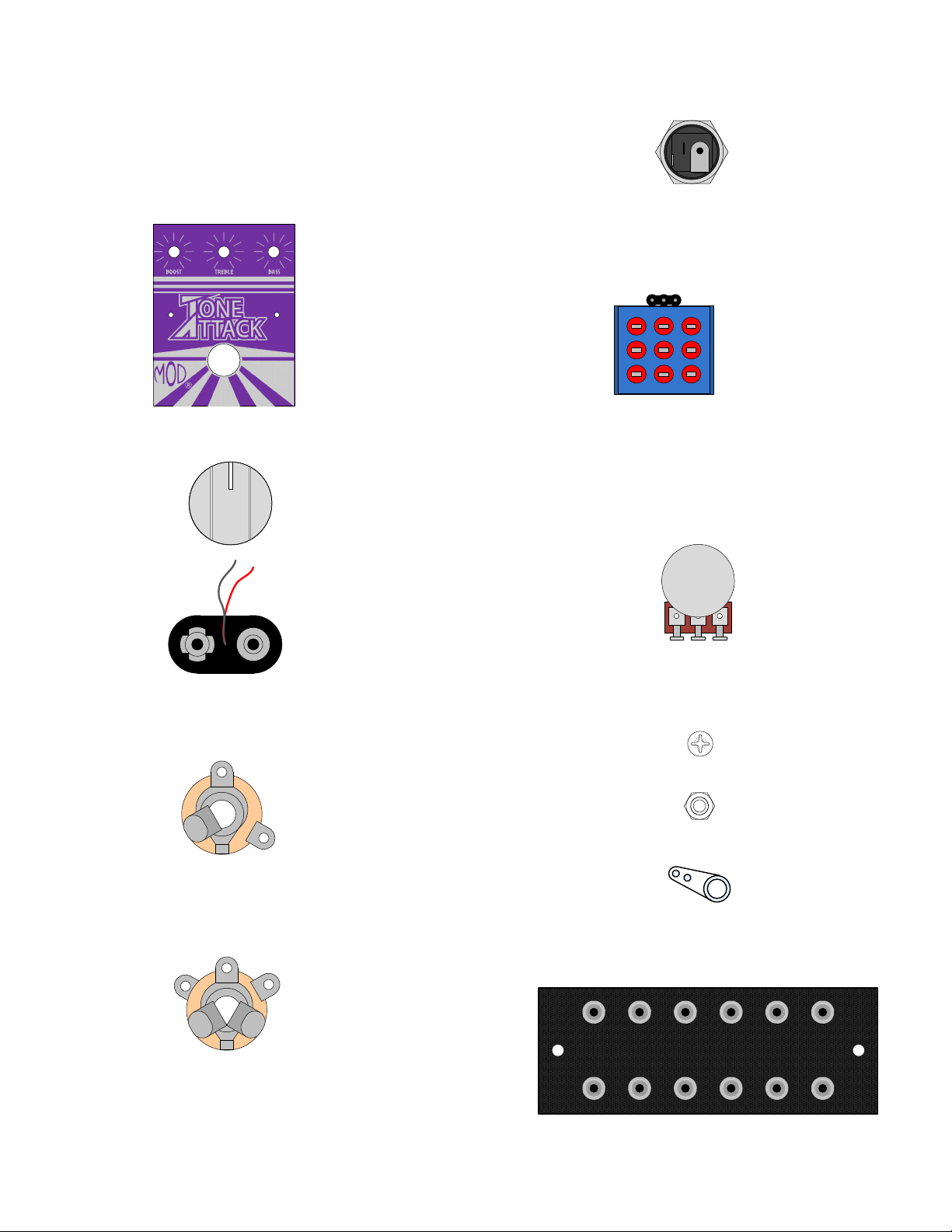

Enclosure

P-H1590BBCE-DP (1)

Light Grey Knob with White Line

P-K380LG (3)

Battery Clip

S-H155 (1)

¼” Mono Jack (Output Jack)

W-SC-11 (1)

¼” Stereo Jack (Input Jack)

W-SC-12B (1)

Stranded Wire (22 AWG) - White

K-PUL1569-WHITE (3 FT)

PARTS LIST 1

RING LUG

SLEEVE LUG

TIP LUG

GROUND LUG

TIP LUG

#4 Screw (1/2" long)

S-HS440-12 (2)

#4 Nut

S-HHN440 (4)

DC Power Jack

S-H750 (1)

3PDT LED Foot Switch

P-H590-RG (1)

#6 Locking Lug

S-H112

Potentiometers:

R-VAM50KL-SS ("B50K")

R-VAM100KA-SS ("A100K") (1)

(2)

Turret Strip

P-HTUR-STRIP-12 (1)

(2)

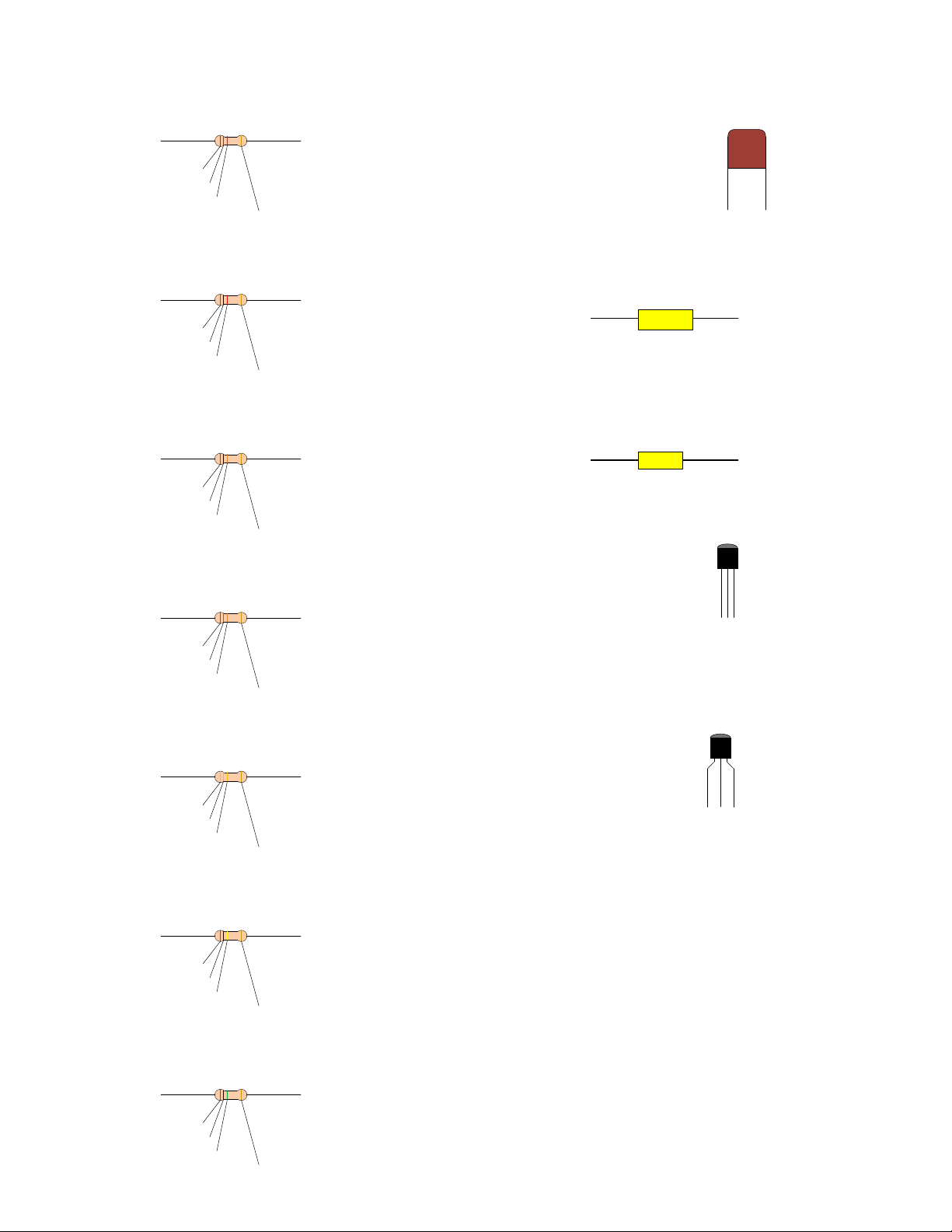

PARTS LIST 2

brown

black

orange

gold

10K

10kΩ Resistor ½ W

R-A10K (1)

270 Ω Resistor ½ W

R-A270 (1)

red

violet

brown

gold

270

1kΩ Resistor ½ W

R-A1K (3)

brown

black

red

gold

1MΩ Resistor ½ W

R-A1M (1)

brown

black

green

gold

brown

green

orange

gold

15K

15kΩ Resistor ½ W

R-A15K (1)

orange

gold

33K

33kΩ Resistor ½ W

R-A33K (1)

brown

black

yellow

gold

100K

R-A100K (1)

100KΩ Resistor ½ W

P-Q2N5088 (1)

NPN BJT (2N5088)

5088

E B C

C-PEID22-100 (4)

0.22µF Capacitor

224

333K

C-TD033-400 (1)

.033µF capacitor

682K

C-TD0068-630 (1)

.0068µF capacitor

N-Channel JFET (PF5102)

P-QPF5102 (1)

5102

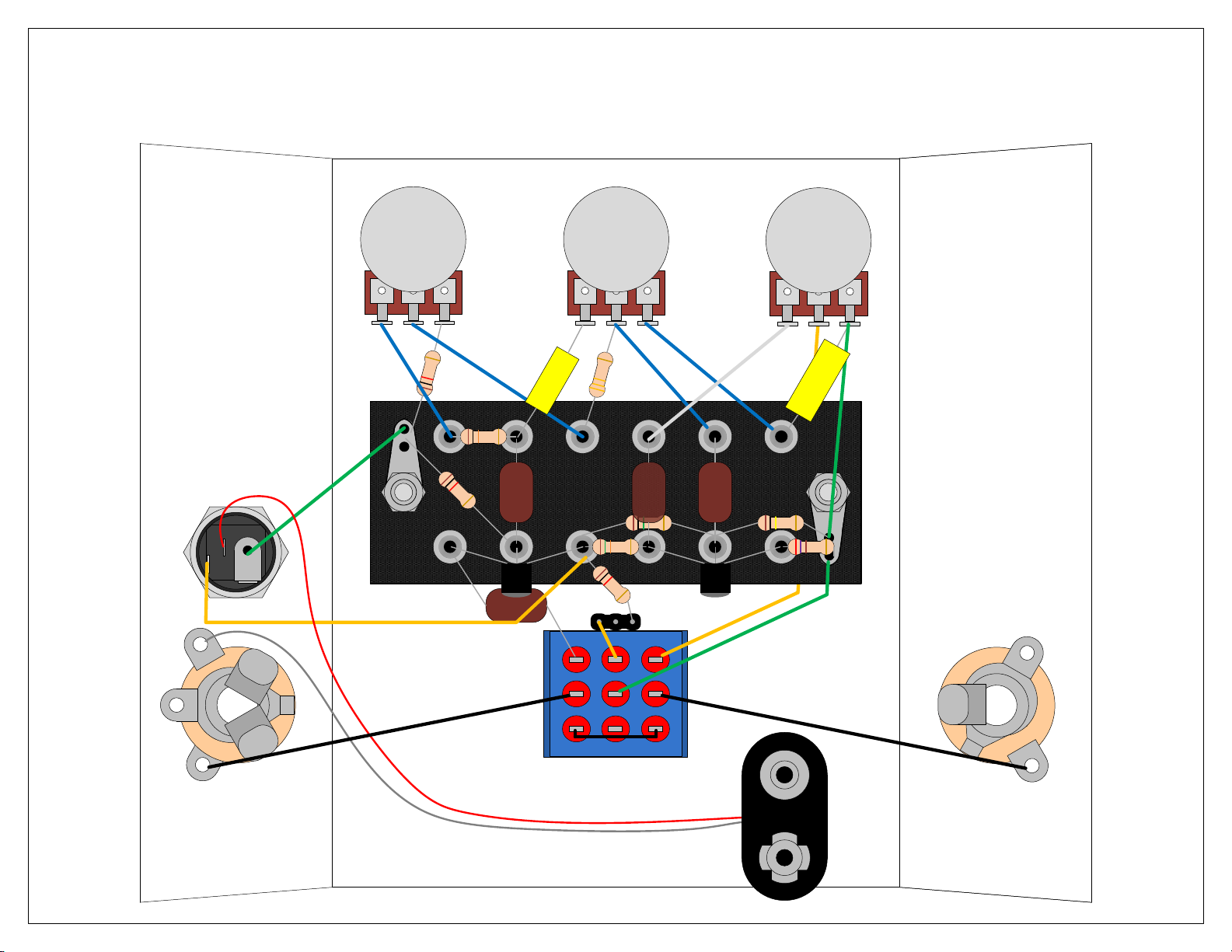

FINAL ASSEMBLY REFERENCE DRAWING

This is a large version of the final assembly drawing. Refer to this drawing as you make your way through each step of the instructions. Before you make a new

connection at a particular terminal or solder lug, notice how many other connections will be made at that terminal. That way you can decide whether it’s best for

you to solder the connection and leave space open for future connections or hold off on soldering until after every connection at that location has been made.

10K

33K

1 2 3 1231 2 3

INPUT OUTPUT

15K

100K

270

224

5088

5102

B50K B50K A100K

682K

333K

RED

BLK

CgACr

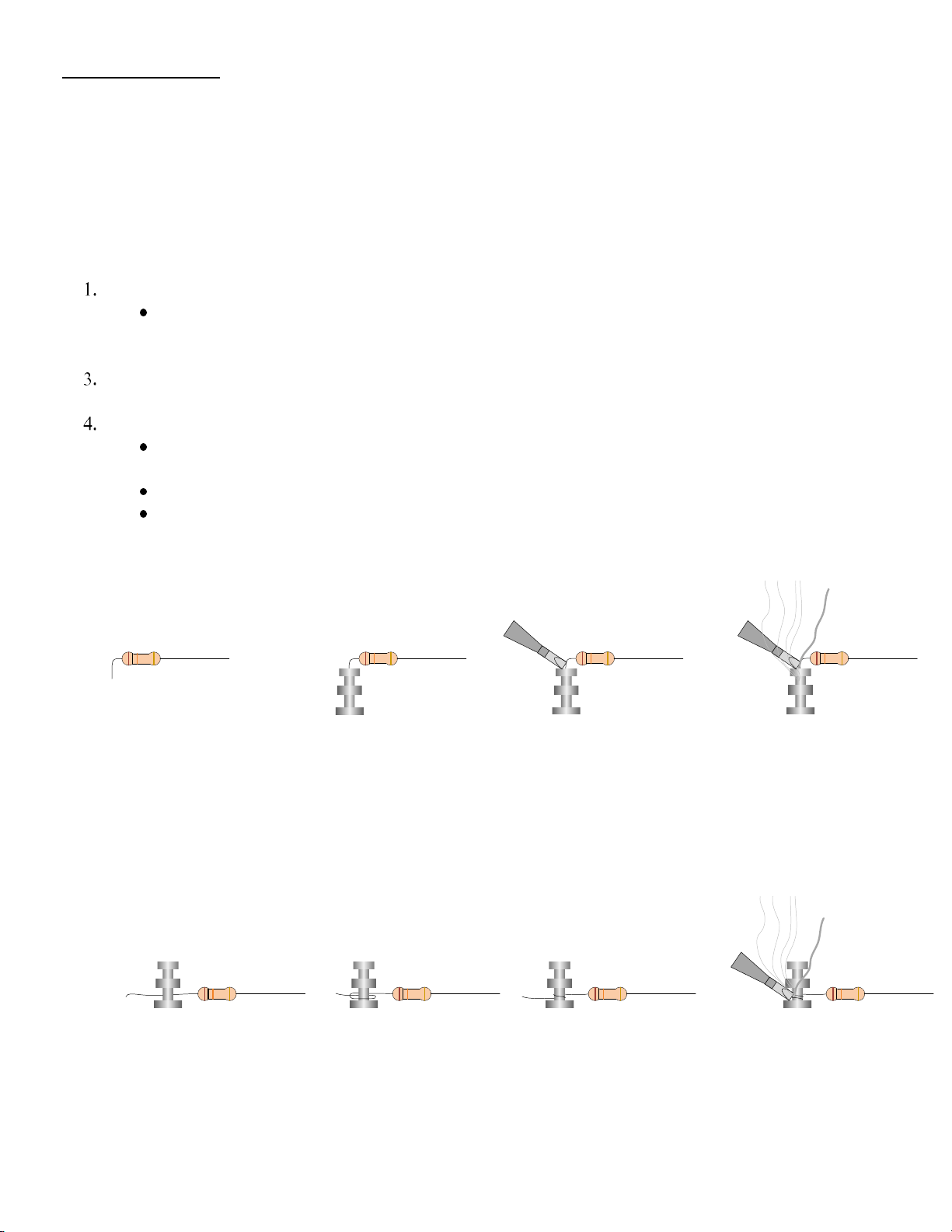

SOLDERING TIPS

1. Bend the component lead

and cut it so that it is shorter

than the turret and won’t stick

out of the bottom

2. Guide the prepared lead

into the top hole of the turret.

3. Heat up both component

lead and connection point with

the soldering iron.

4. Apply solder to both

component lead and

connection point. The hole

should be covered with solder

that slightly slopes up the

component lead when the

connection is cool.

It is important to make a good solder joint at each connection point. A cold solder joint is a connection that

may look connected but is actually disconnected or intermittently connected. (A cold solder joint can keep

your project from working.)

Follow these tips to make a good solder joint. Take your time with each connection and make sure that all

components are connected and will remain connected if your project is bumped or shaken.

Bend the component lead or wire ending and wrap it around the connection point.

Make sure it is not too close to a neighboring component which could cause an

unintended connection.

2. Wrap the component lead so that it can hold itself to the connection point.

Touch the soldering iron to both the component lead and the connection point allowing both to

warm up just before applying the solder to them.

Be sure to adequately cover both component lead and connection point with melted solder.

Remove the soldering iron from your work and allow the solder joint to cool. (The

solder joint should be shiny and smooth after solidifying.)

Cut off any excess wire or component leads with cutting pliers.

Clean the soldering iron's tip by wiping it across the wet sponge again after making the

solder joint.

1. Place the component on the

board in the location it will stay

once mounted.

2. Loop the lead around the

lower section of the turret.

3. Pull the lead tight so that

the wrap is snug around the

lower section of the turret.

Repeat this wrap at least once

more to ensure that it will stay

in place. Cut the excess lead.

4. Heat up both component

lead and connection point with

the soldering iron.

Apply solder to both

component lead and

connection point.

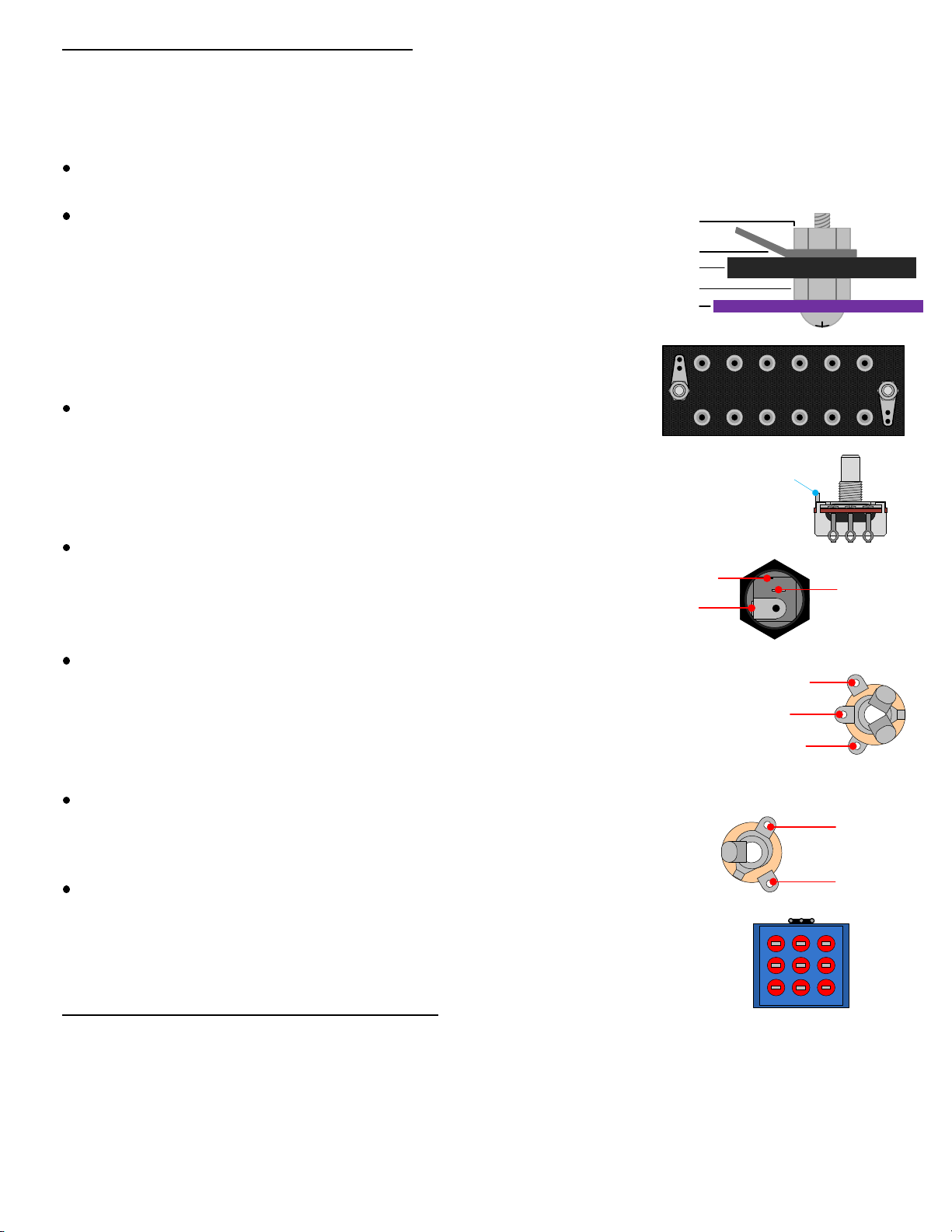

SECTION 1 – Mount Large Components

Stripping wire, tinning wire and soldering. Throughout these instructions you will be told to strip

and tin a length of wire numerous times. Unless noted otherwise, cut the wire to the length stated in

the instructions. Then strip ¼” of insulation off each end. Twist each end of the stranded wire, and

apply a small amount of solder to each end (i.e. tin the wire ends). This will prevent the stranded

wire from fraying and will make the final soldering much easier.

Please refer to DRAWING 1 and DRAWING 2.

Orient the enclosure with the three 9/32" holes on top.

Mount the DC power jack in the 15/32" hole on

the left side of the enclosure. Orient its solder

lugs so that the center-pin lug is facing the

bottom side of the enclosure.

Mount the input jack in the 3/8" hole on the left side of the

enclosure with the hardware provided. The washer goes

under the nut on the outside of the enclosure. Make sure the

center solder lug of the input jack is facing up. Correct

positioning of the jack makes soldering the connections easier.

Mount the output jack in the 3/8" hole on the right side of the enclosure.

Make sure the two solder lugs are in their most upright position before

tightening the nut.

SECTION 2 – Wire Low Lying Components

Please refer to DRAWING 3.

Mount the two #4 screws in the two 1/8" holes in the middle of the chassis using two of the #4 nuts.

Mount the turret board on top of the two nuts on the #4 screws.

Place the #6 locking lugs on each side and orient them as they

are in Drawing 2. Use the remaining #4 nuts to hold them in place.

Bend back and remove the alignment tab on the top of each potentiometer using a pair of

pliers before mounting the pots so that they can mount flush against the enclosure surface.

Alignment

Tab

Mount the three pots in their respective 9/32" holes as shown in

Drawing 2. 50K on the left, 50K in the middle, and 100K on the

right.

RING LUG

SLEEVE LUG

TIP LUG

Input Jack

SLEEVE LUG

TIP LUG

Output Jack

CENTER

PIN LUG

POSITIVE

SWITCH LUG

POSITIVE

LUG

Mount the LED footswitch to the ¾” hole. Be sure to orient the LED leads

towards the top with A on the right and Cgon the left

You must remove the button cap with a hex key before mounting. 1

CgACr

12 3 4 5 6 7

91011121314

The turrets and lugs will be referred to as #1 through #16 throughout this

build. The diagram on the right shows the labeled numbers with their

corresponding connection.

Nut

Washer

Board

Chassis

Strip and tin a 3 ½” piece of wire and connect lug 7 of the footswitch to lug 2 of

the right 100K pot. Run the wire beneath the turret board. Solder both

connections now.

Strip and tin a 1" piece of wire and connect lugs 3 and 9 of the footswitch. Solder

both connections now.

Strip and tin a 1 ¾” piece of wire and connect lug 2 of the footswitch to the input jack's

tip lug. Solder both connections now.

CgACr

Strip and tin a 1 ¾” piece of wire and connect lug 8 of the footswitch to the output

jack's tip lug. Solder both connections now.

Strip and tin a ½” piece of wire and connect lug 4 of the footswitch to the CgLED

pin of the footswitch. Solder both connections now.

12 3 4 5 6 7

91011121314

Connect a 1k resistor from #1 to the lower section of #3. Wrap

the lead around the lower section of the turret. Solder the lower

section of #3 now.

Connect a 1M resistor from #4 to #6. Wrap the leads around the

lower section turrets. Solder the lower section of #4 now.

Connect a 100k resistor from #6 to #8. Wrap the leads around

the lower section turret. Solder the lower section of #6 now.

Connect a 1k resistor from #1 to lug 3 of the left 50k pot. Solder

the connection at lug 3 of the pot now.

Strip and tin a 1 ¾” piece of wire and connect the center pin

lug of the DC jack to #1. Solder both connections now.

Connect a .22µF capacitor from lug 1 of the footswitch to the top

hole of #2. The capacitor’s body should be facing down. Solder

the connection at lug 1 of the footswitch now.

Strip and tin a 2” piece of wire and connect lug 3 of the right 100k pot to

Strip and tin a 2 ¼” piece of wire and connect lug 5 of the footswitch to

#8. Solder the connection at lug 5 of the footswitch now.

Connect a 1k resistor from #4 to the A pin of the LED footswitch.

Wrap the lead around the lower section of the turret. Solder the

connection at the A pin now.

Connect a 33k resistor from #12 to lug 2 of the center 50k pot.

Wrap the lead around the lower section turret. Solder the lower

section of #12 now.

Strip and tin a 1 ¼” piece of wire and connect lug 2 of the center 50k pot to the top hole of #10.

Solder the connection at lug 2 of the center 50k pot now.

Strip and tin a 1 ½” piece of wire and connect lug 3 of the center 50k pot to the top hole of #9.

Solder the connection at lug 3 of the center 50k pot now.

123

SLEEVE LUG

TIP LUG

Output Jack

RING LUG

SLEEVE LUG

TIP LUG

Input Jack

CENTER

PIN LUG

POSITIVE

SWITCH LUG

POSITIVE

LUG

lower section

top hole

SECTION 3 – Mount Components to Terminal Strips

Please refer to DRAWING 4.

Strip and tin a 1 ¼” piece of wire and connect lug 1 of the left 50k pot to the top

hole of #14. Solder the connection at lug 1 of the pot now.

12 3 4 5 6 7

91011121314

Strip and tin a 1 ¾” piece of wire and connect lug 2 of the left 50k

pot to top hole of #12. Solder both connections now.

Strip and tin a 1 ½” piece of wire and connect lug 1 of the right 100k pot to

top hole of #11. Solder the connection at lug 1 of the pot now.

Connect a .033µF capacitor from the top hole of #9 to lug 3 of the right 100k

pot. Solder both connections now.

Connect a 10k resistor from the top hole of #14 to the top

hole of #13. Solder the connection at #14 now.

Connect a .22µF capacitor from the top hole of #13 to the top hole of #3. Solder the connection at

#13 now.

Connect a 15k resistor from the top hole of #4 to the top hole of #5.

Connect a .22µF capacitor from the top hole of #5 to the top

hole of #11. Solder the connection at #11 now.

Connect a .22µF capacitor from the top hole of #6 to the top hole of #10. Solder the connection at

#10 now.

Connect a 270 ohm resistor from the top hole of #7 to the lug #8. Solder the connection at #8 now.

Strip and tin a 1 ½” piece of wire and connect the positive lug of the DC power jack to the top

hole of #4. Solder the connection at DC jack now.

Connect the PF5102 JFET to the top holes of #2, #3 and #4 as listed:

Top Hole #2: Gate

Top Hole #3: Source

Top Hole #4: Drain

5102

DSG

Solder all three connections now.

lower section

top hole

CENTER

PIN LUG

POSITIVE

SWITCH LUG

POSITIVE

LUG

123

Connect the 2N5088 transistor to the top holes of #5, #6 and #7 as listed:

Top Hole #5: Collector

Top Hole #6: Base

Top Hole #7: Emitter

5088

EBC

Solder all three connections now.

Locate the battery clip. Connect the red wire to the positive-switch lug of the DC power jack.

Connect the black wire to the ring lug of the input jack. Solder both connections now.

Connect a .0068µF capacitor from the top hole of #13 to lug 1 of the center 50k pot. Solder

the connection at lug 1 of the pot now.

SECTION 4 – Finishing Up

Fasten the knobs to the potentiometer shafts by tightening their set screws. Install a 9 volt

battery if needed. Fasten the cover using the four screws provided. Plug your guitar into the

input jack on the right side of the pedal. This turns power on when you are not using an AC

adapter for power. Plug another cable from the output jack (left side) to your amp's input.

When using a battery for power, remember to unplug from the input jack of the pedal to turn it off

and save battery life.

It’s always a good idea to thoroughly double-check your connections before applying power. This

will minimize the risk of damaging components.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Mod Pédale musicale

Mod

Mod The Ring Resonator Manuel utilisateur

Mod

Mod CONTORTIONIST Manuel utilisateur

Mod

Mod Nexus Series Manuel utilisateur

Mod

Mod PERSUADER DELUXE Manuel utilisateur

Mod

Mod THUNDERDRIVE (K-950) Manuel utilisateur

Mod

Mod THE PENETRATOR Manuel utilisateur

Mod

Mod WAHTZ WAH K-985 Manuel utilisateur

Mod

Mod THE SUSPENDED CHIME Manuel du propriétaire

Mod

Mod Trill Tremolo Manuel utilisateur

Mod

Mod Nexus Series Manuel utilisateur

Mod

Mod TEA PHILTER Manuel utilisateur

Mod

Mod TEA PHILTER Manuel du propriétaire

Mod

Mod THE PERSUADER Manuel utilisateur

Mod

Mod Aggressor Manuel utilisateur

Mod

Mod The Verb Deluxe Manuel utilisateur

Mod

Mod The Rattler Manuel utilisateur

Mod

Mod The Verb Deluxe Manuel du propriétaire

Mod

Mod THE PILEDRIVER Manuel du propriétaire

Mod

Mod THE PILEDRIVER Manuel utilisateur

Mod

Mod CONTORTIONIST II Manuel utilisateur

Mod

Mod THE SUSPENDED CHIME Manuel utilisateur

Mod

Mod The Erratic Clutch Deluxe Manuel utilisateur

Mod

Mod THE SATURATOR Manuel utilisateur

Mod

Mod Thunderdrive Deluxe Manuel du propriétaire

Manuels Pédale musicale populaires d'autres marques

Behringer

Behringer ULTRA WAH UW300 Manuel utilisateur

Whirlwind

Whirlwind oc-bass Manuel utilisateur

Strymon

Strymon Lex-rotary Manuel utilisateur

Behringer

Behringer PB600 Manuel utilisateur

Lexicon

Lexicon MX200 Manuel utilisateur

Dunlop

Dunlop Hendrix 68 Shrine Octavio Fuzz Series Manuel utilisateur

Matthews Effects

Matthews Effects Whaler V2 Manuel utilisateur

Grid 1

Grid 1 Pedal Jeanie Manuel utilisateur

Amptweaker

Amptweaker tightboost Manuel utilisateur

Ibanez

Ibanez TS-808 Tube Screamer Overdrive Pro Manuel utilisateur

PuzzleSounds

PuzzleSounds DR. Q ENVELOPE FILTER Manuel utilisateur

BYOC

BYOC Analog Chorus Manuel

Dimavery

Dimavery EPVP-50 Manuel utilisateur

Tefi Vintage Lab

Tefi Vintage Lab GEGÈ Manuel utilisateur

Pro-MIDI

Pro-MIDI G25 Manuel utilisateur

DW 7000 Manuel utilisateur

FAMC

FAMC Liquid-Foot Jr. Series Manuel utilisateur

Dimavery

Dimavery EPOD-50 Overdrive Manuel utilisateur
