Mocka Essentials 2 Cube Manuel utilisateur
WARNING: Any furniture that is not anchored to a wall has the potential to
tip over in certain circumstances, i.e. if a child attempts to climb up on the
furniture or in the event of an earthquake. Accordingly, we recommend that
all furniture is anchored to a wall. We supply a free safety wall anchor with
all furniture sold and we recommend these are used to prevent your
product tipping. The fixing device provided should fit most wall types, but
please note that different wall materials may require different fixing devices
from those supplied.
Hardware Supplied
x12
B
A
x12
CD
EF G HIJ
x8
x4
x1
x2
x2 x6
x1
x12
8 mm
2.5
12 mm
35 mm
x1
washer
Z
Wall
Screw
r/washer
screw
x1
Y
wall
anchor
x1
X
Safety
Strap
W
Wall Strap
Phillips & Flathead screwdrivers required
1
mocka.co.nz | mocka.com.au
Mocka Essentials 2 Cube
Assembly Instructions
Thank you for your purchase.
Please follow the instructions below for correct assembly.
12

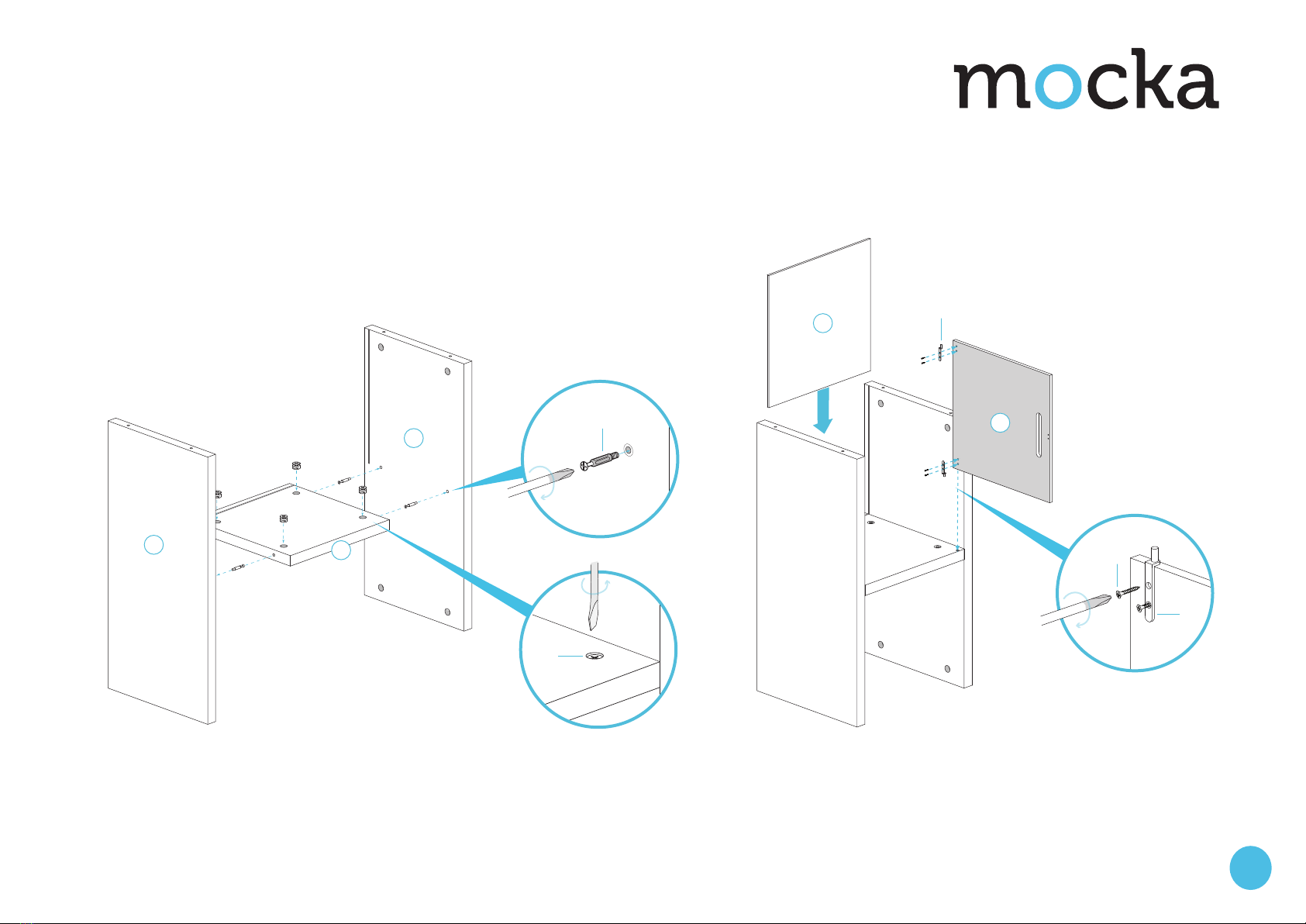

Screw hardware (B) into side panels [1] and [3]. Slide both panels
together with the middle shelf [2], making sure the grooved ends line
up. Insert hardware (A) into the holes on the middle shelf. Tighten (A)
with a screwdriver.
Slide cupboard back panel [4] into groove. Screw hinge pins (F) into the
holes in the cupboard door [5] using screws (H). Lower door pin into hole
in shelf and swing door closed to hold in place.
A
B
B
x4
x4
Ax2
H
F
F
3
1
2
4
5
2
mocka.co.nz | mocka.com.au
Mocka Essentials 2 Cube
Assembly Instructions
12
Screw hardware (B) into side panels [1] and [3]. Slide both panels
together with the middle shelf [2], making sure the grooved ends line
up. Insert hardware (A) into the holes on the middle shelf. Tighten (A)
with a screwdriver.
Slide cupboard back panel [4] into groove. Screw hinge pins (F) into the
holes in the cupboard door [5] using screws (H). Lower door pin into hole
in shelf and swing door closed to hold in place.
A
B
B
x4
x4
Ax2
H
F
F
3
1
2
4
5
34

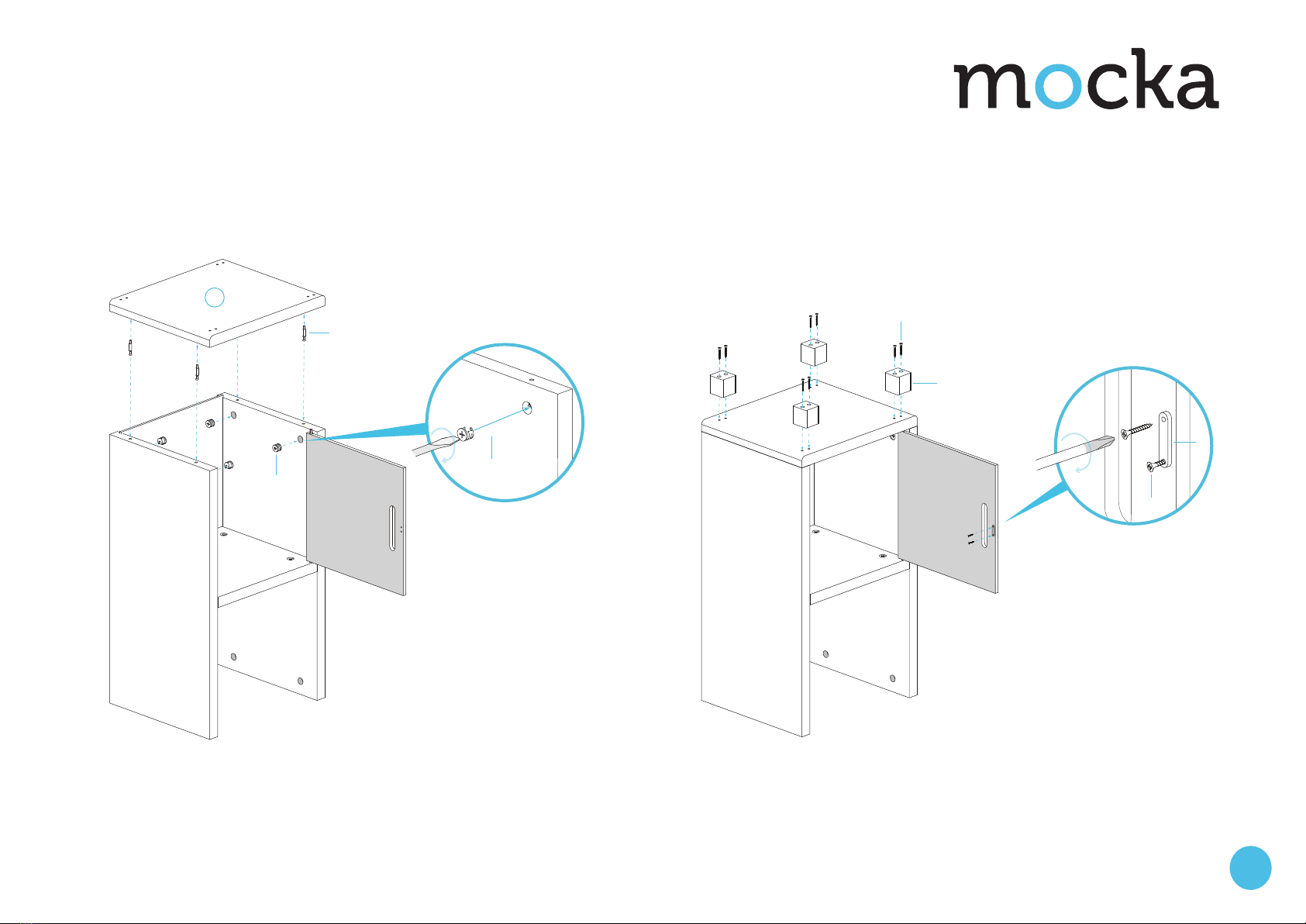

Screw in hardware (B) into base panel [6]. Place base panel on top of side
panels while sliding the ends of (B) into the top of the side panels. Ensure
the door hinge pin (F) also fits into the base panel. Insert hardware (A)
into upper holes in the side panels. Tighten with a screwdriver.
Attach feet blocks (D) to base panel using long screws (C) and the
pre-drilled holes in the base panel. Fasten clip plate (E) to the cupboard
door using screws (H).
A
B
Cx2
D
x1
H
E
A
x4
6
3
mocka.co.nz | mocka.com.au
Assembly Instructions
Mocka Essentials 2 Cube
56
Flip the unit over so the feet stand on the floor. Attach the magnetic clip
(I) inside the cupboard using screws (G). Check that the door can
swing freely and shut.
Screw hardware (B) into top panel. Place top panel [7] on top of side
panels while sliding the ends of panel (B) into holes. Insert locking nut
(A) and tighten with a screwdriver. Use stickers (J) to cover the holes
where hardware (A) is used.
B
A
x1
G
I
A
x4
7
Mocka Essentials 2 Cube
Assembly Instructions
4
mocka.co.nz | mocka.com.au
Jolt Wardrobe
ASSEMBLY INSTRUCTIONS
5
mocka.co.nz | mocka.com.au
56
Flip the unit over so the feet stand on the floor. Attach the magnetic clip
(I) inside the cupboard using screws (G). Check that the door can
swing freely and shut.
Screw hardware (B) into top panel. Place top panel [7] on top of side
panels while sliding the ends of panel (B) into holes. Insert locking nut
(A) and tighten with a screwdriver. Use stickers (J) to cover the holes
where hardware (A) is used.
B
A
x1
G
I
A
x4
7
78
Once assembled lift furniture into place, do not drag. Attach the safety
strap (W) to the top of the back side of the unit using screw (Y). Tighten
with a screwdriver.
Move the unit into the desired location up against a wall. Use a drill to
create a small hole lining up with the top of the safety strap (W). Fasten
to wall using wall anchor (X), washer (Z) and screw. Ensure the unit is
balance and steady before use. You’re done, enjoy!
Wall Strap
Y
Y
Wx1
Y
W
WZ
X
x1
Washer
Strap
wall
anchor
wall
screw
Mocka Essentials 2 Cube
Assembly Instructions
5
mocka.co.nz | mocka.com.au
