Mocka Eclipse Manuel utilisateur
mocka.co.nz I mocka.com.au I PO BOX 18, Pinkenba QLD 4008
ASSEMBLY I N S TRUCTION S
Eclipse
Console Table
Thank you for your purchase.
Please follow the instructions below for correct assembly
WARNING: Any furniture that is not anchored to a wall has the potential to tip over in certain
circumstances, i.e. if a child attempts to climb up on the furniture or in the event of an earth-
quake. Accordingly, we recommend that all furniture is anchored to a wall. We supply a free safety
wall anchor with all furniture sold and we recommend these are used to prevent your product
tipping. The fixing device provided should fit most wall types, but please note that dierent wall
materials may require dierent fixing devices from those supplied.
For quicker assembly, we recommend the
use of a power drill on a low-speed setting.
.
Phillips & Flathead screwdrivers
Wall Strap
x2
Z
washer
Y
wall
x1
X
anchor
safety
WV
strap x1 x1
screw wall
x1
screw
x10
bolt
x4
A B C D EFG H
JKL M
I

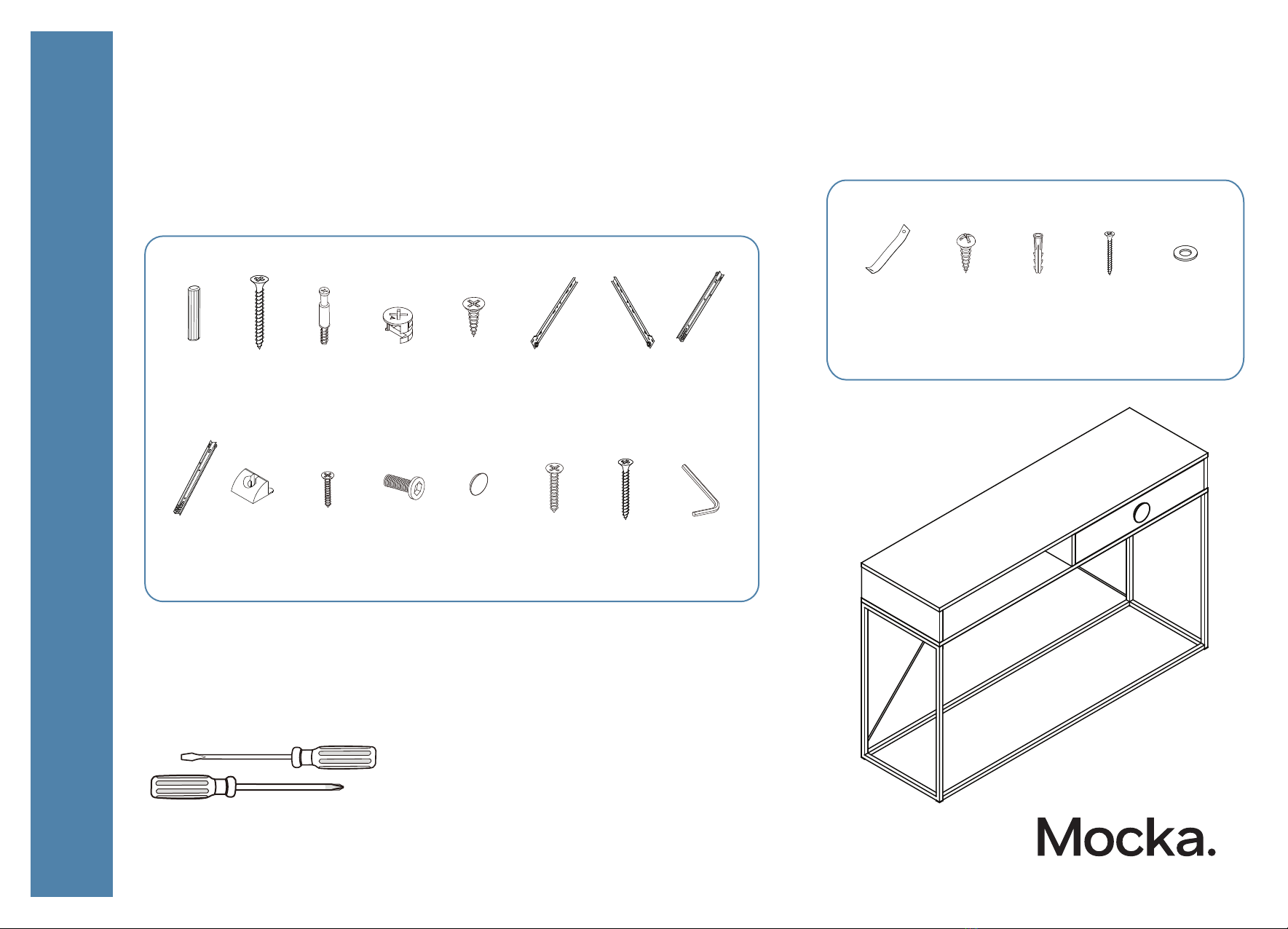

Hardware Supplied
x12
dowelscrew
x10
slide
rail x1
slide
rail x1
slide
rail x1
slide
rail x1
locking
nut x10
x6
screw
wedge
x4
screwbolt
x12
handle
x1
N
screw
x1 Key
Allen
x1
O P
screw
x14
1
Eclipse
mocka.co.nz I mocka.com.au I PO BOX 18, Pinkenba QLD 4008
ASSEMBLY I N S TRUCTION S
2
Console Table
2

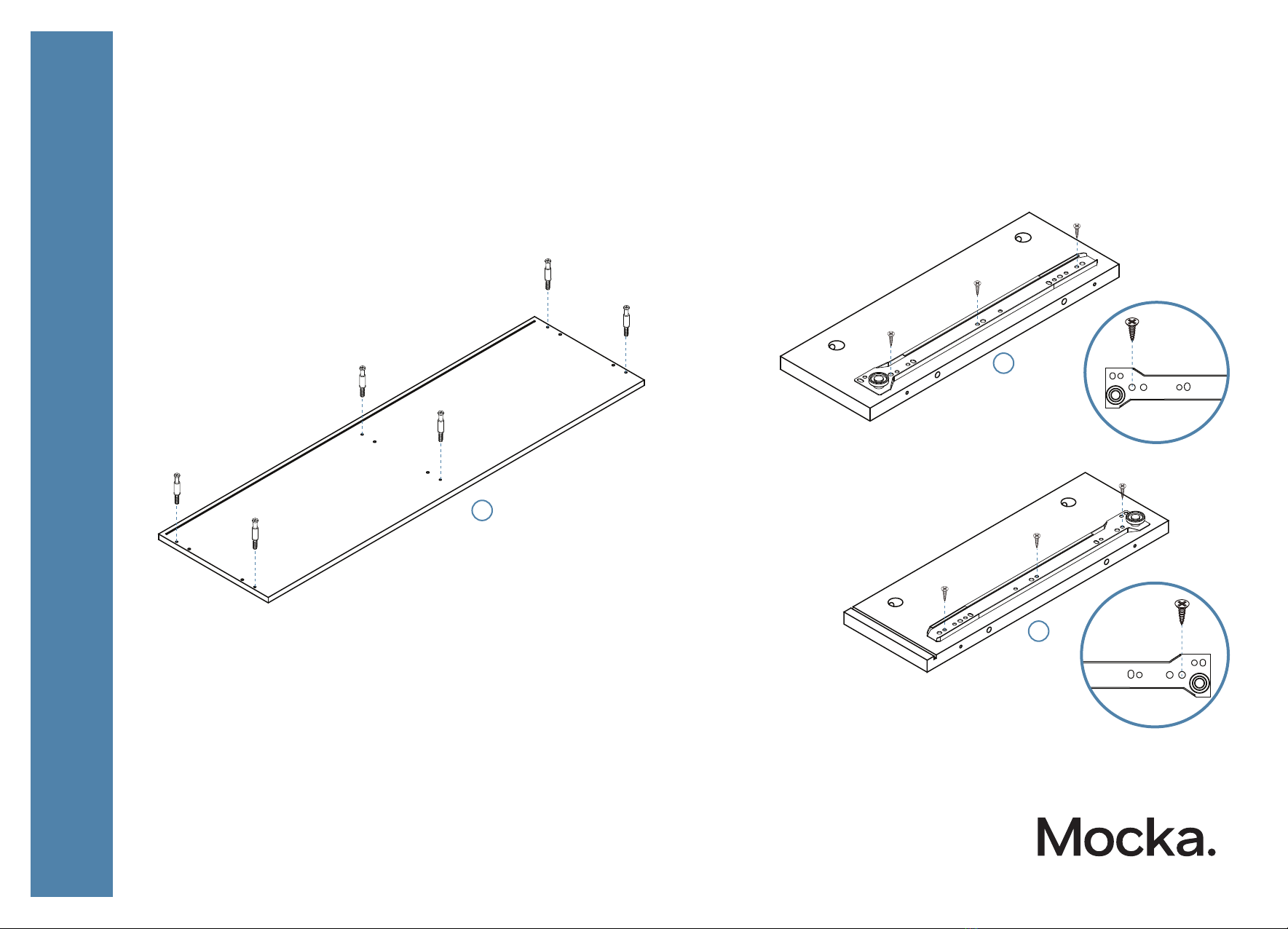

Insert 6x bolts (C) into panel [1] and tighten with a screwdriver. Attach 1x slide rail (F) and 1x slide rail (G) to panel [4] and [5] as
shown and secure with 6x screws (E). Tighten with .a screwdriver.
F
CL
E
C
C
C
C
C
C
E
F
G
E
E
E
E
E
G
CR
E
1
5
4
Eclipse
Console Table
mocka.co.nz I mocka.com.au I PO BOX 18, Pinkenba QLD 4008
ASSEMBLY I N S TRUCTION S

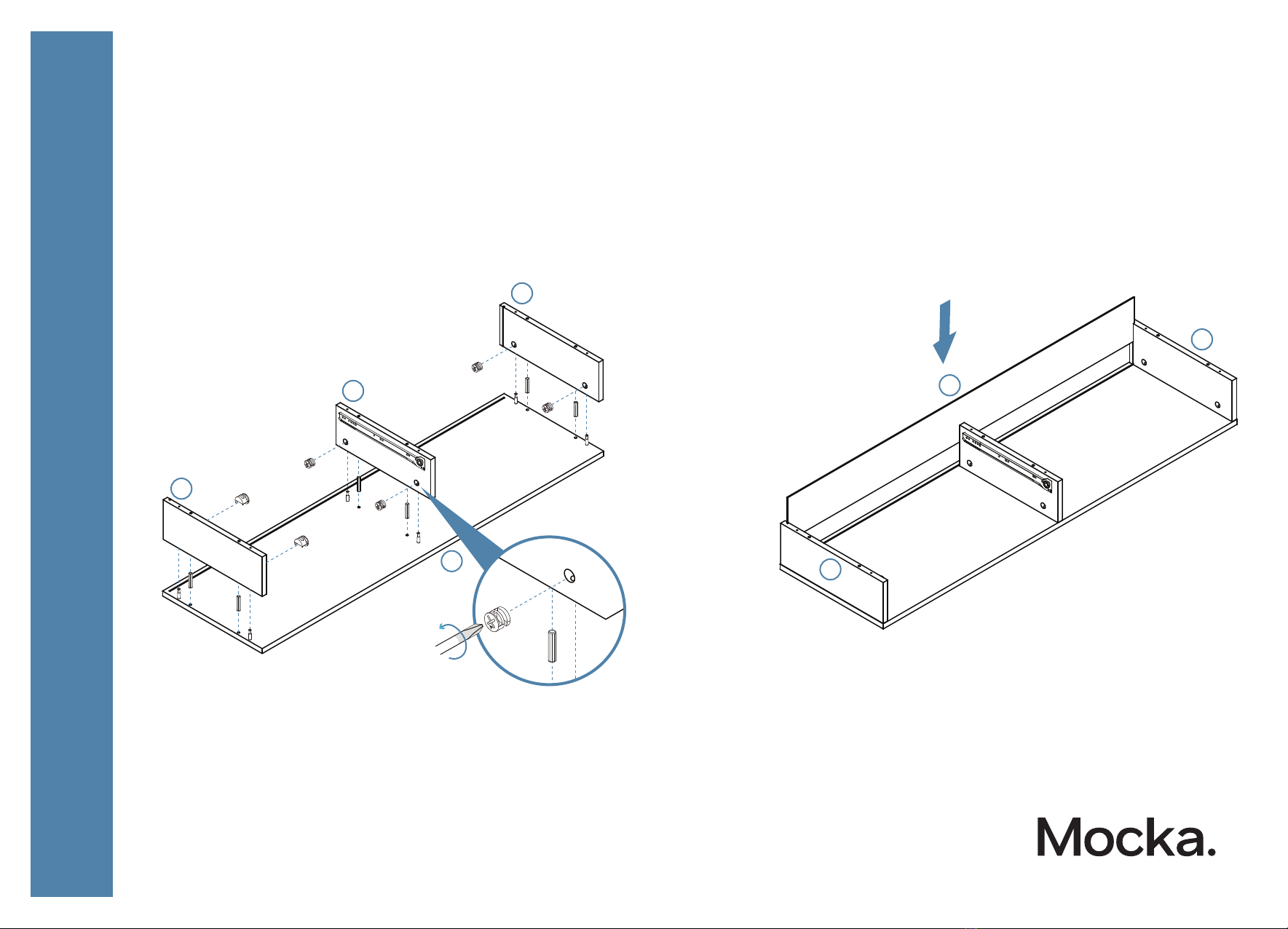

Attach panels [3], [4] and [5] to panel [1] with 6x dowels (A) and
secure with 6x locking nuts (D). Tighten with a screwdriver.
3 4
Slide panel [6] down along the grooves between the panels [3]
and [5] to form the back of the unit as shown.
D
D
A
A
D
D
A
D
5
4
3
3
6
5
1
A
A
A
A
D
D
mocka.co.nz I mocka.com.au I PO BOX 18, Pinkenba QLD 4008
ASSEMBLY I N S TRUCTION S
Eclipse
Console Table
5 6

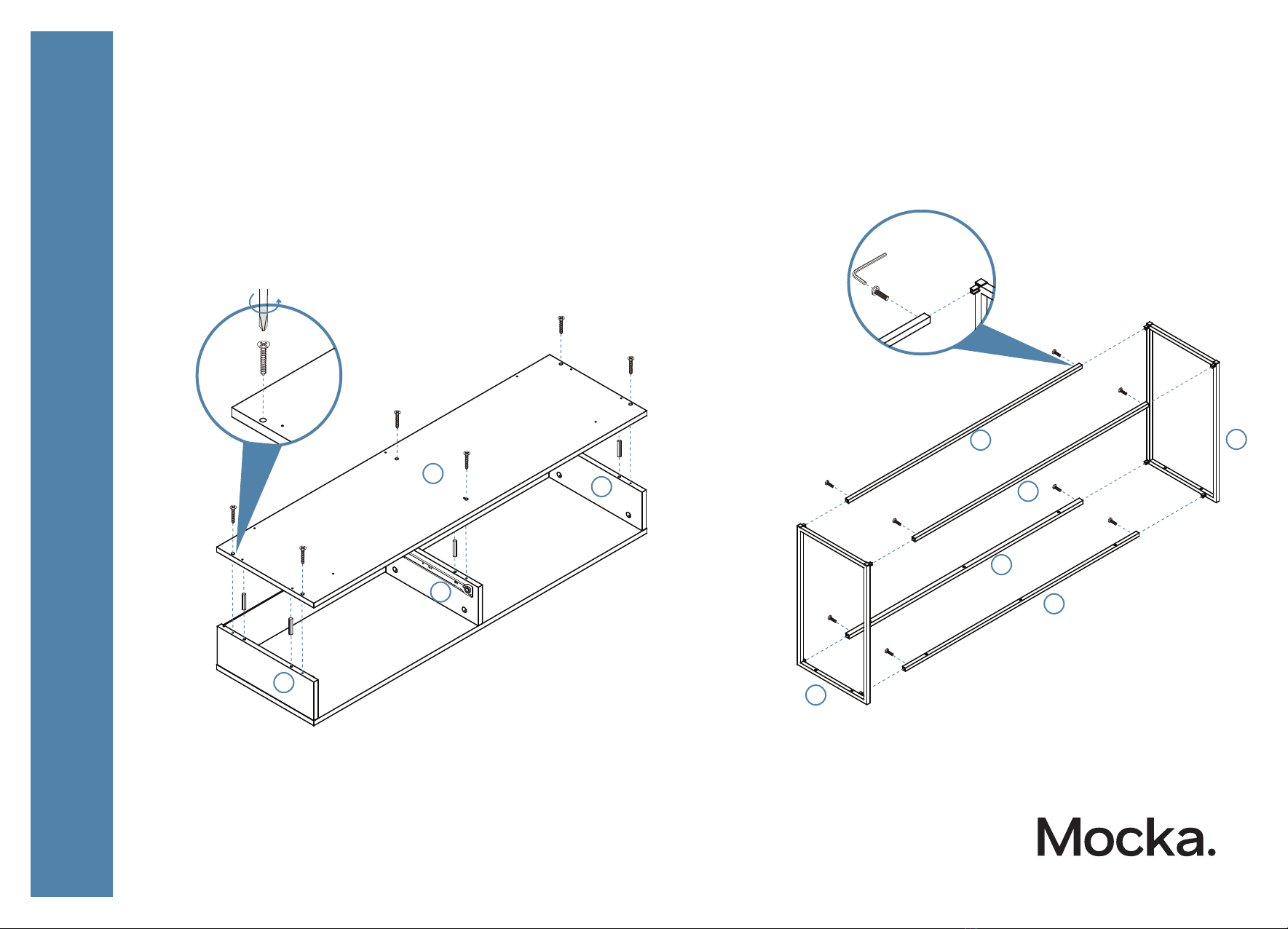

Attach panel [2] to panels [3], [4] and [5] with 6x dowels (A) and
secure with 6x screws (B). Tighten with a screwdriver.
Attach panels [7] and [8] to panels [9], [10] and [11] with 8x bolt (L).
Tighten with an Allen Key (P).
B
B
B
B
B
B
A
A
A
A
L
L
L
L
L
L
L
L
B
2
5
4
3
9
10
11
11
8
7
P
Eclipse
Console Table
mocka.co.nz I mocka.com.au I PO BOX 18, Pinkenba QLD 4008
ASSEMBLY I N S TRUCTION S

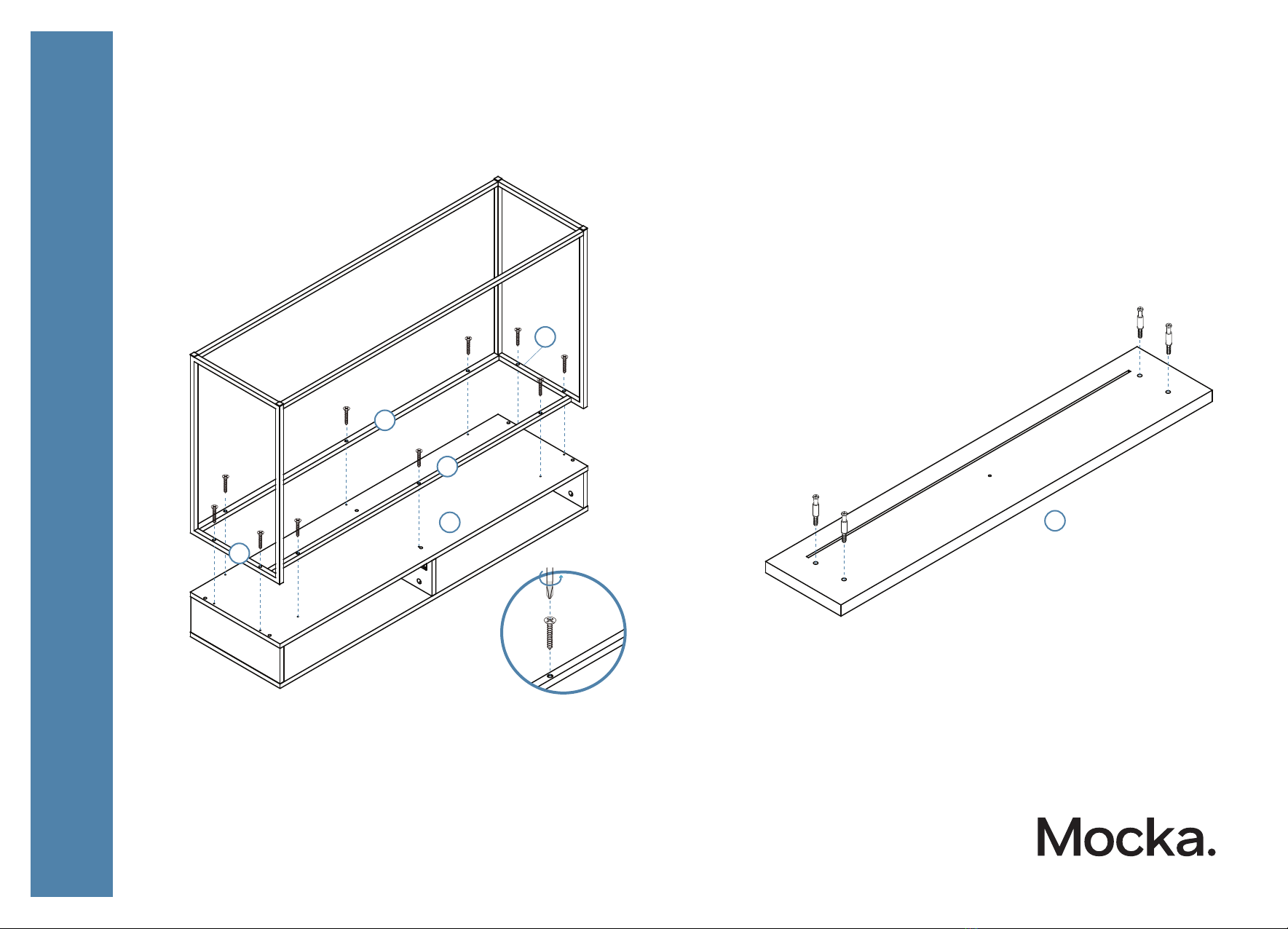

Attach panels [7], [8], [9] and [10] to panel [2] with 10x screws (N).
Tighten with a screwdriver.
Insert 4x bolts (C) into panel [12]. Tighten with a screwdriver.
7 8
N
N
N
N
NN
N
N
N
N
C
C
C
C
N
9
10
3
7
8

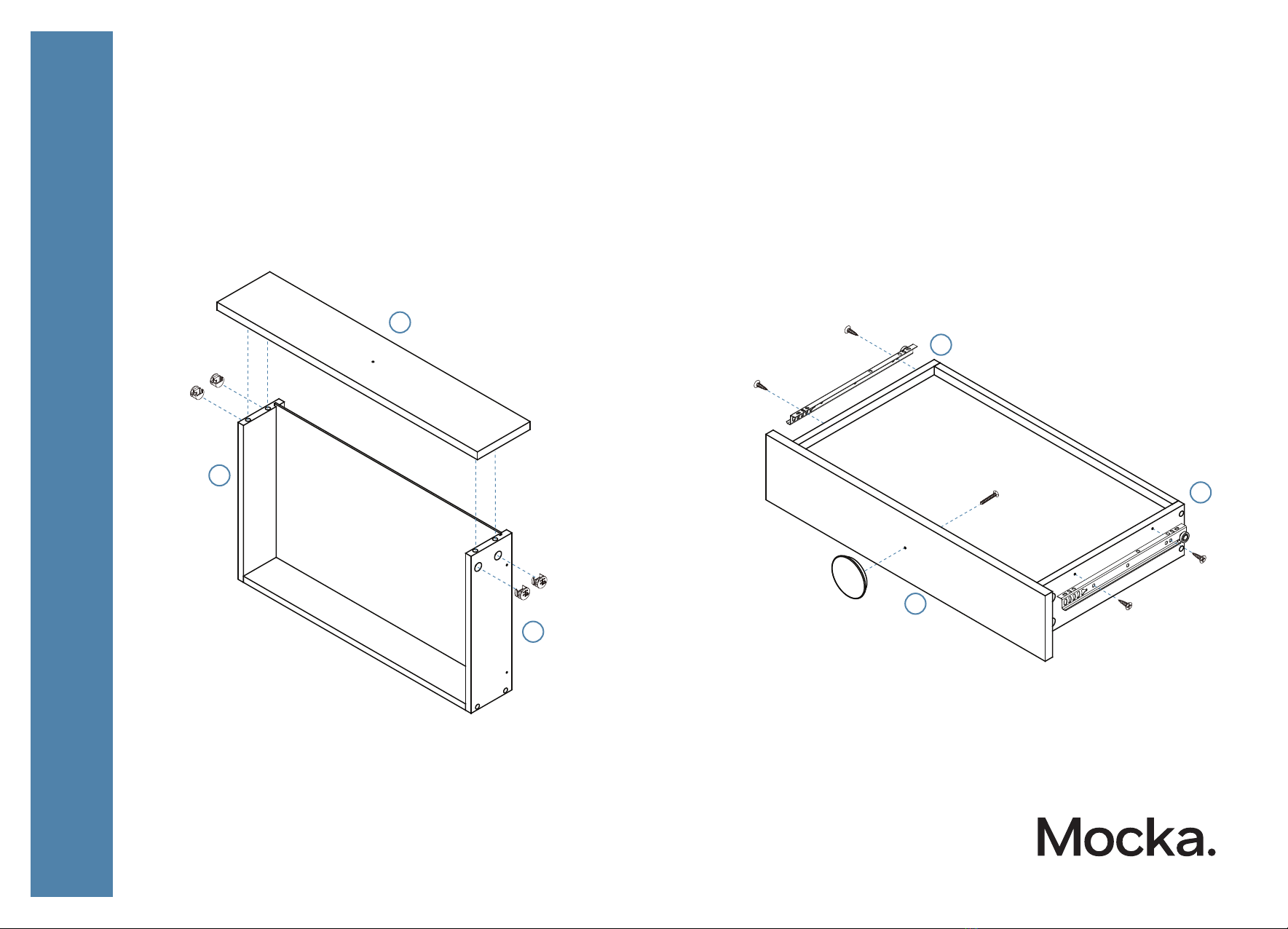

212
10
Eclipse
Console Table
mocka.co.nz I mocka.com.au I PO BOX 18, Pinkenba QLD 4008
ASSEMBLY I N S TRUCTION S

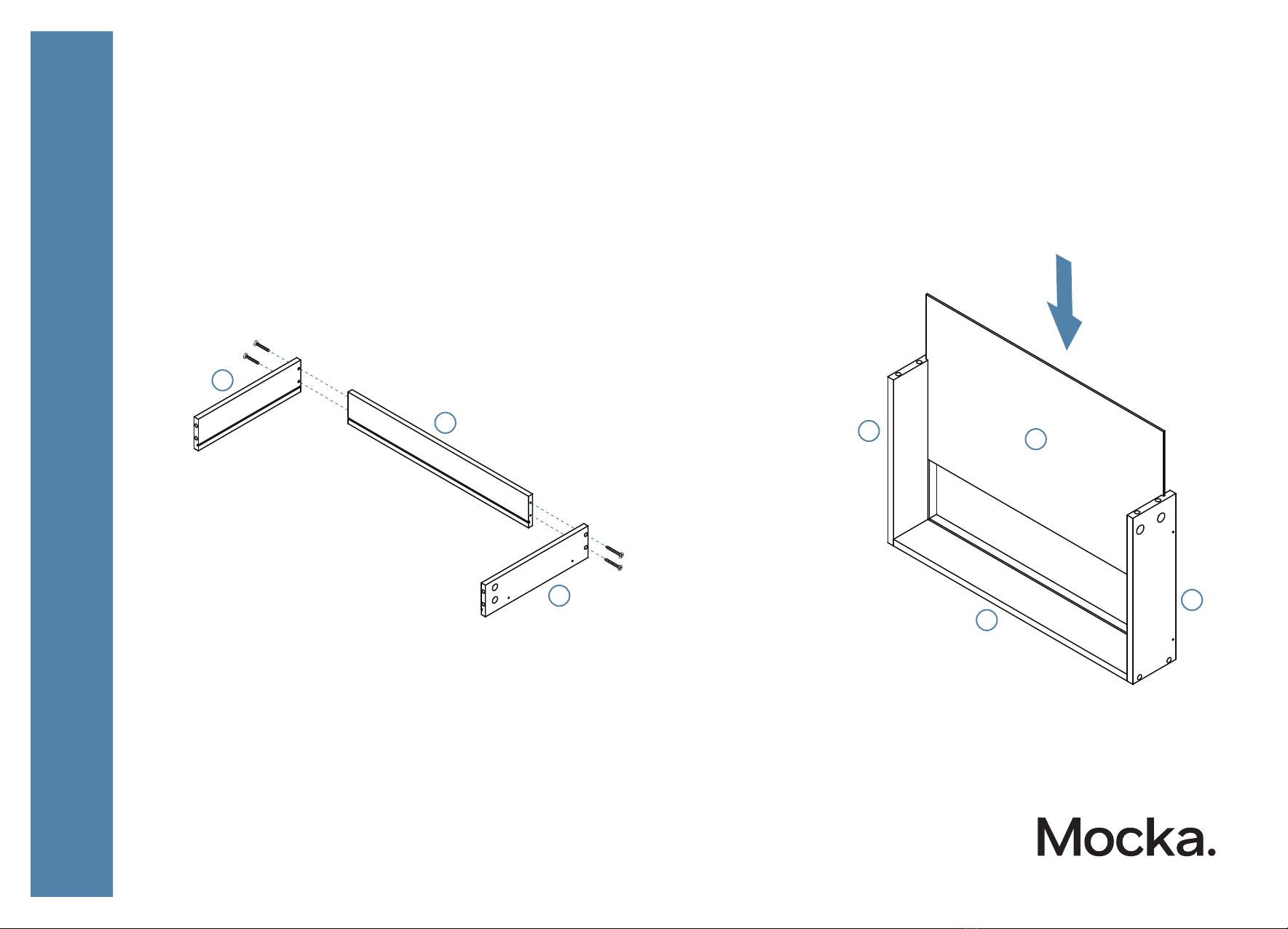

Attach panels [13], [14] and [15] as shown using 4x screws (N).
Tighten with a screwdriver.
Slide panel [16] down along the grooves between the side panels [13] and [15].
109
15
N
N
N
N
13
14
13
15
14
16
11
Eclipse
Console Table
mocka.co.nz I mocka.com.au I PO BOX 18, Pinkenba QLD 4008
ASSEMBLY I N S TRUCTION S
Attach panels [12] to panels [13] and [15] secure with 4x
locking nuts (D). Tighten with a screwdriver.
Attach slide rail (I) and slide rail (H) to the underside of the side panels
as shown. Secure with 4x screws (E) and tighten with a screwdriver.
Attach slide rail (I) and slide rail (H) to the underside of the side panels
as shown. Secure with 4x screws (E) and tighten with a screwdriver.
12
DD
DD
O
M
E
E
H
I
E
E
12
12
13
15
13
15
13
Eclipse
Console Table
mocka.co.nz I mocka.com.au I PO BOX 18, Pinkenba QLD 4008
ASSEMBLY I N S TRUCTION S

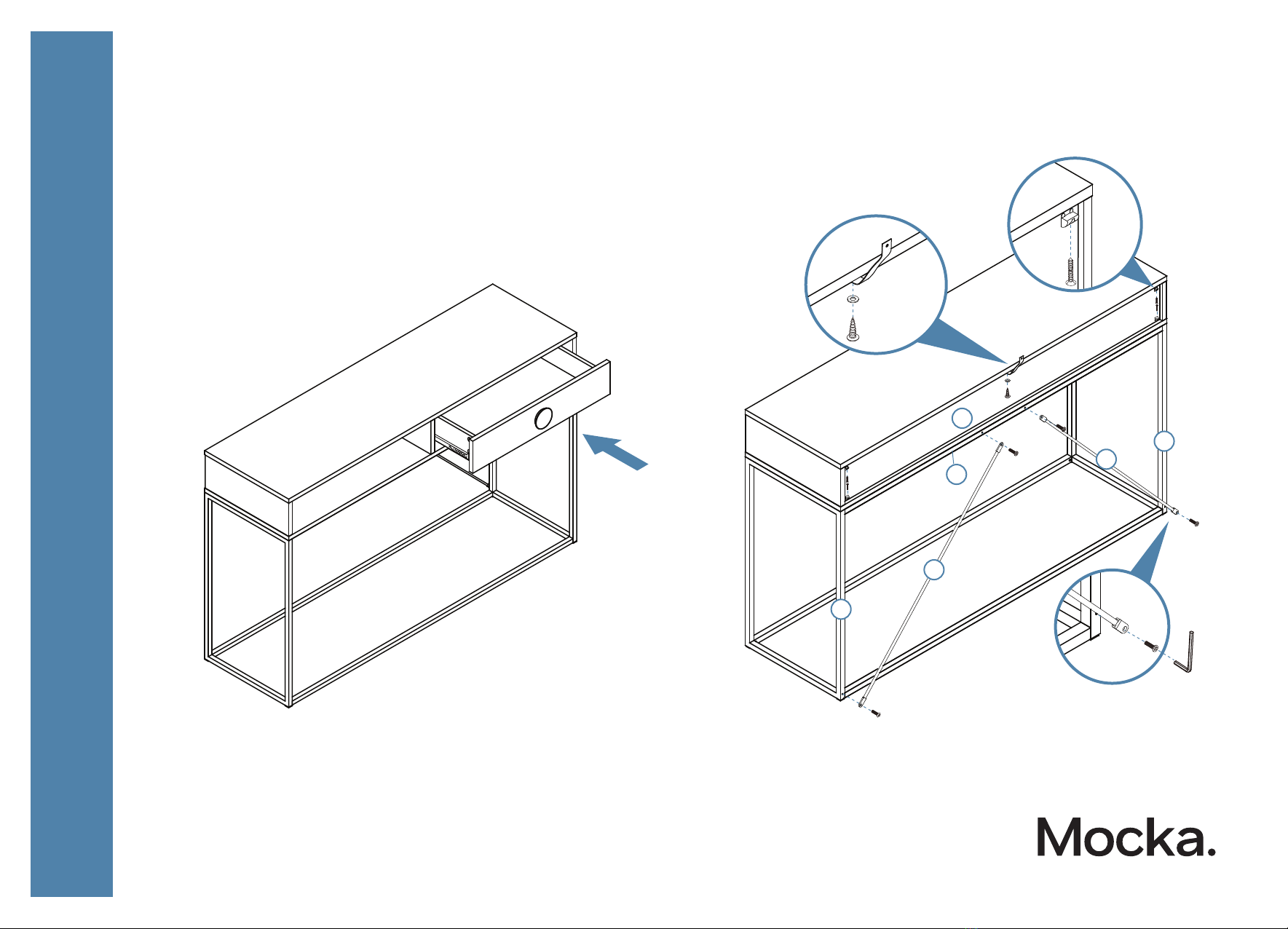

Insert the assembled drawers into the corresponding compartments
as shown. Ensure the drawers slide easily along the rails.
Attach 4x wedges (J) into the corners of the back of the unit and secure with
4x screws (K). Tighten with a screwdriver. Attach 1x safety strap (V) to the top
of the back side of the unit as shown using 1x washer (Z) and 1x screw (W).
Tighten with a screwdriver. Attach panel [17] to panels [7], [8] and [10] with
4x bolt (L). Tighten with an Allen Key (P).
14
6
L
L
L
V
Z
WV
Z
W
K
J
K
K
J
J
LP
10
17
17
7
8
15
Eclipse
Console Table
mocka.co.nz I mocka.com.au I PO BOX 18, Pinkenba QLD 4008
ASSEMBLY I N S TRUCTION S

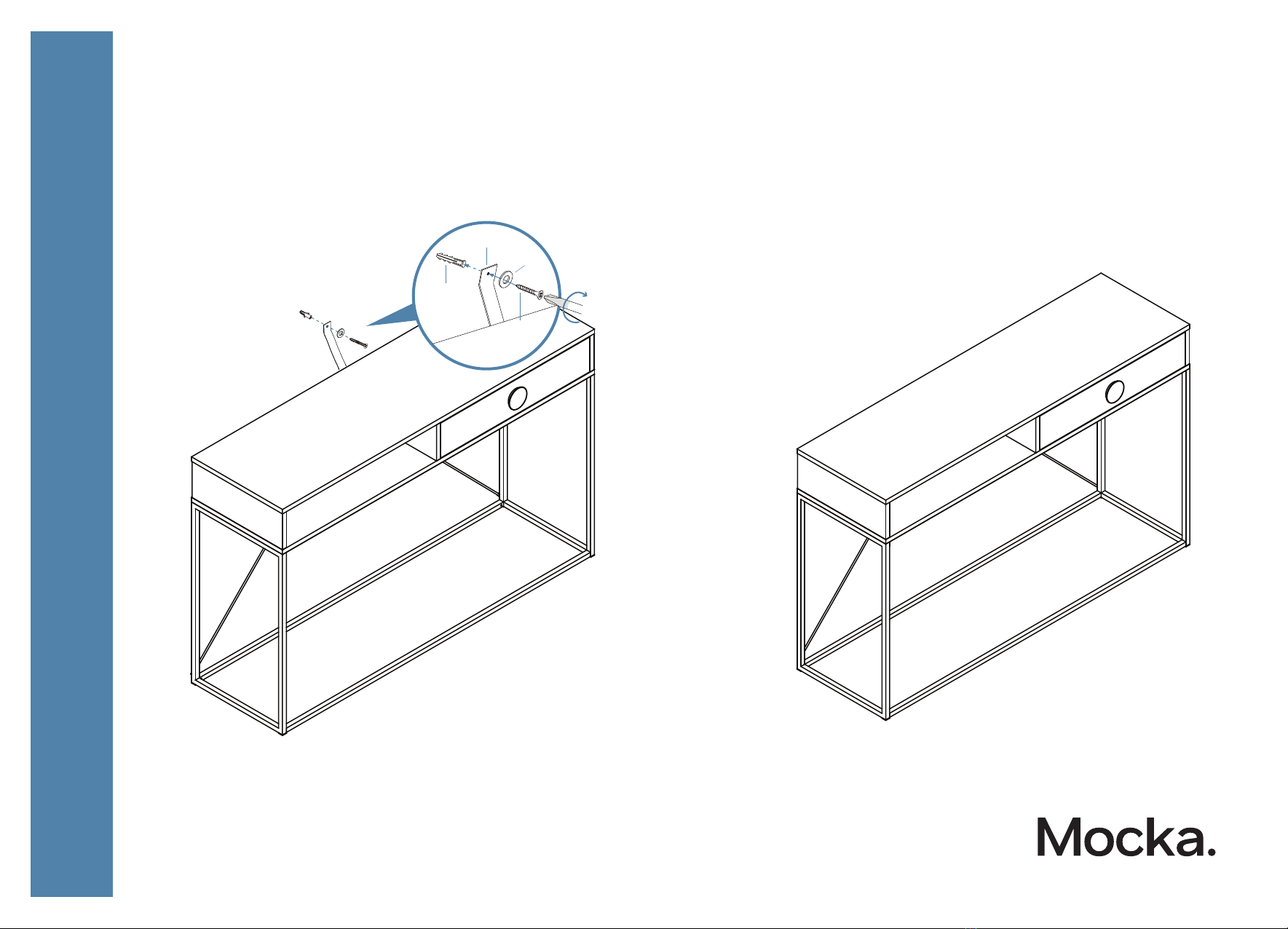

Once assembled lift furniture into place, do not drag. Use a drill to
create a small hole lining up with the top of the safety strap (V).
Fasten to the wall using 1x washer (Z), 1x wall anchor (X) and 1x screw (Y).
Ensure unit is balanced and steady before use.
You’re done, enjoy!
16
X
Y
Z
anchor
wall
screw
strap
washer
