Mocka Bronte Console Table Manuel utilisateur

Bronte Console Table

Assembly Instructions

mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558

Thank you for your purchase.

Please follow the instructions below for correct assembly.

Phillips & Flathead screwdrivers required.

For quicker assembly, we recommend the

use of a power drill on a low-speed setting.

WARNING: Any furniture not anchored to a wall

has the potential to tip over in circumstances, ie. if a

child attempts to climb on or in the event

of an earthquake. we recommend that all

furniture is anchored to a wall. We supply a free safety wall

anchor with all furniture sold and we recommend these are

used to prevent your product tipping. The fixing device

provided should fit most wall types, but please note that

different wall materials may require different fixing devices

from those supplied.

Wall

attachment

wall plug

screw

wall strap

screw

x14

rail

screw

allen key

screw

x20

left rail

right rail

dowel

x12

locking nut

x14

bolt

x14

screw

x16

screw

handle

guide

Hardware Supplied

Bronte Console Table

Assembly Instructions

mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558

Attach 1 x left rail (I) and 1 x right rail (J) to panels [6] and [7] and

secure with 4 x screws (D). Tighten with a screwdriver.

Attach 1 x left rail (J) and 1 x right rail (I) to panel [8] and secure with 4

x screws (D). Tighten with a screwdriver.

Assembly Instructions

mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558

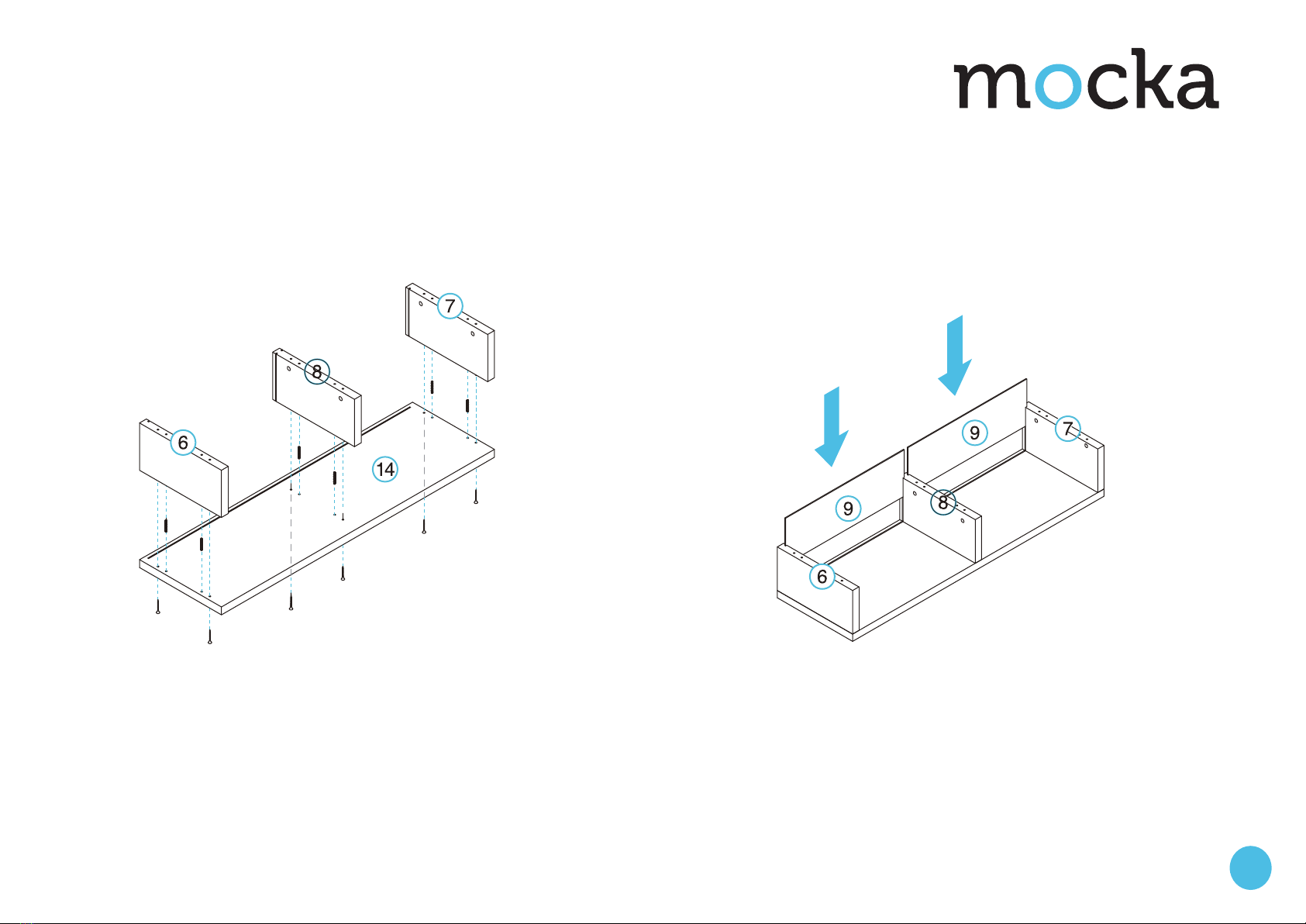

Attach panels [6], [7] and [8] to panel [14] and secure with

6 x dowels (K) and 6 x screws (A). Tighten with a screwdriver.

Slide panels [9] into position as shown.

Bronte Console Table

Assembly Instructions

mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558

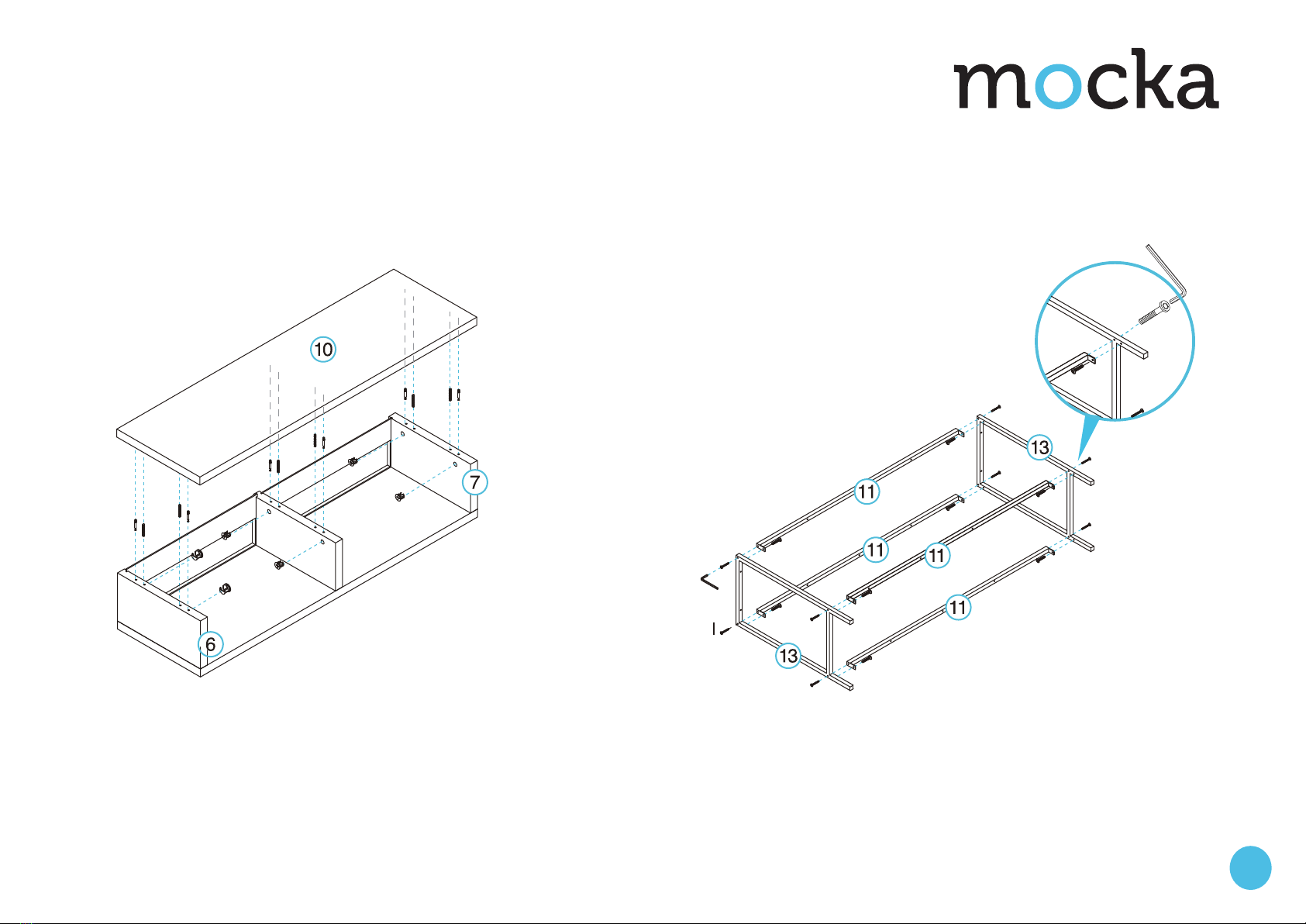

Attach panel [10] to assembled frame and secure with 6 x dowels (C),

6 x bolts (K) and 6 x locking nuts (B). Tighten with a screwdriver.

Attach panels [11] to panels [13] as shown and secure with 8

x screws (N) and 8 x bolts (L). Tighten with a screwdriver and an Allen

Key (M) as shown.

Bronte Console Table

Assembly Instructions

mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558

Attach panels [11], [13] to panel [14],[12] as shown and secure with

20 x screws (H). Tighten with a screwdriver.

Bronte Console Table

8 x2

Attach panels [1], [2] and [3] together as shown and secure with

4 x screws (A). Tighten with a screwdriver.

9 x2

Assembly Instructions

mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558

Bronte Console Table

10 x2

Slide panel [4] into position as shown.

Attach panel [5] to assembled frame and secure with 4 x bolts (C) and

4 x locking nuts (B). Tighten with a screwdriver.

11 x2

Assembly Instructions

mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558

Bronte Console Table

12 x2

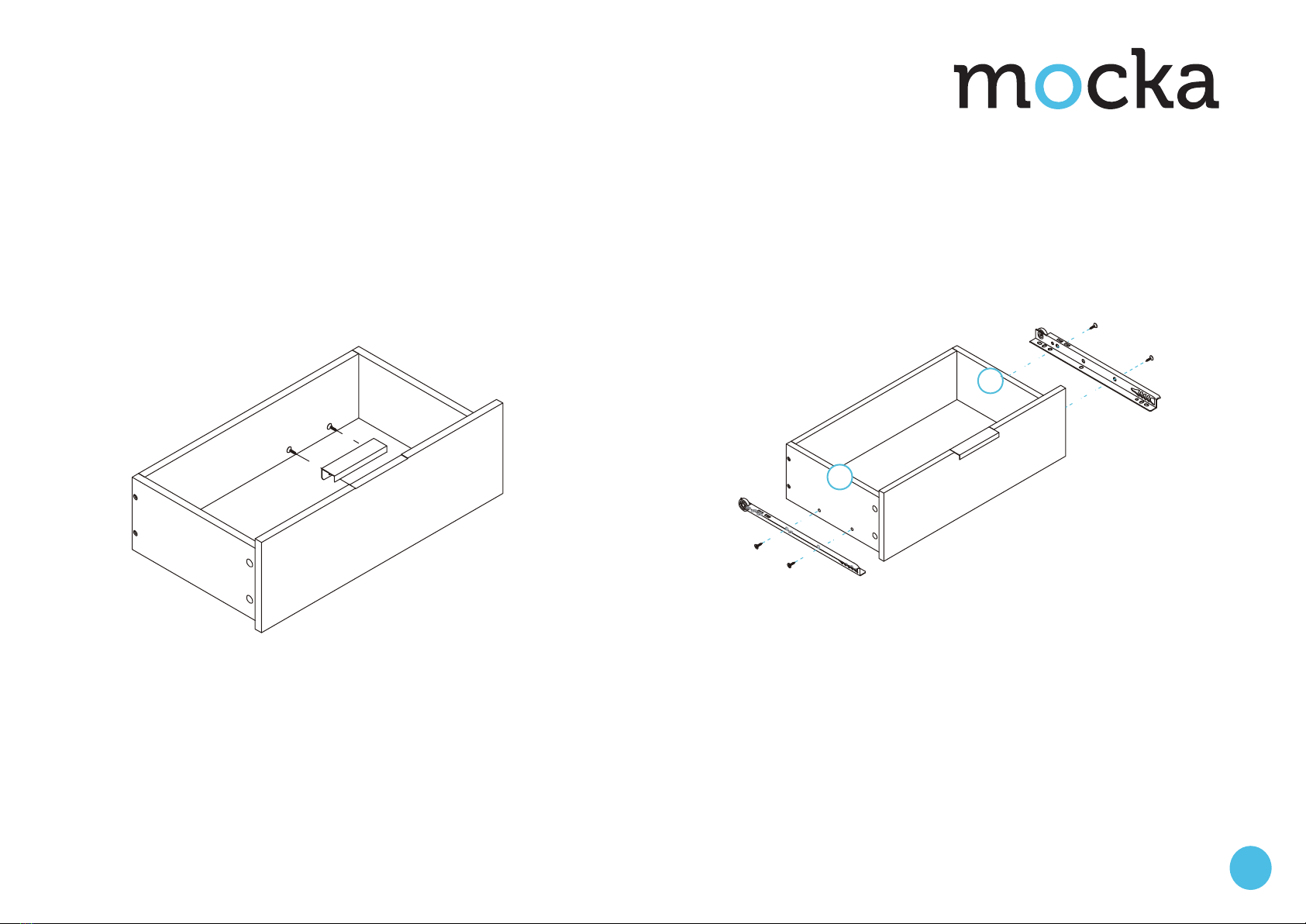

Attach 1 x handle (E) to assembled frame and secure with 2 x screws

(R). Tighten with a screwdriver.

Attach 1 x left rail (F) and 1 x right rail (G) to panels [3] and [1] and

secure with 4 x screws (D). Tighten with a screwdriver.

Assembly Instructions

mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558

Bronte Console Table

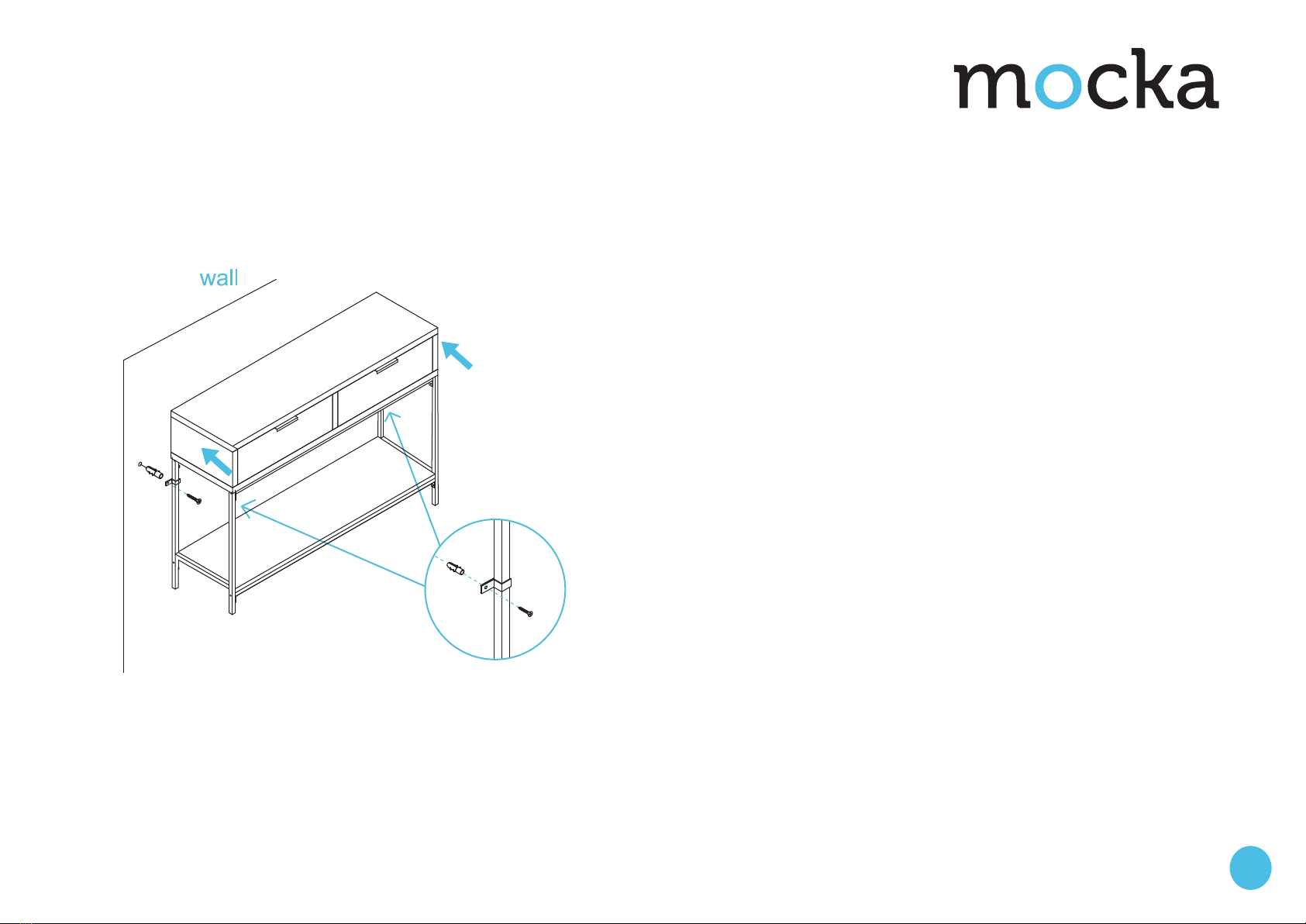

Once assembled lift furniture into place, do not drag. Use a drill to

create a small hole lining up with the top of the 2 x wall strap (O).

Fasten to the wall using 2x wall anchors (Q) and 2x screws (P). Ensure

unit is balanced and steady before use. You’re done, enjoy!
