MobileView 9100 Series Manuel utilisateur

1 MobileView 9100 Series High Resolution Analog/IP Camera Quick Guide

1072870 A September 2014

part of UTC Building & Industrial Systems, a unit of United

Content

Introduction 1

Product overview 1

Installation Environment 1

Package Contents 1

Cable Requirements 2

Camera Description 2

Setting up the Camera 2

Mounting the Camera 2

Accessing the Camera over the Internet 3

Overview of the Camera Web Browser 3

Network and Streaming Configuration 4

FCC Complicance 4

Contact information 4

Introduction

Product overview

This is the Quick Guide for MobileView camera models:

MVC-9100-28-BK (Minidome camera, 2.8mm,

Black)

MVC-9100-28-WI (Minidome camera, 2.8mm)

MVC-9100-40-WI (Minidome camera, 4.0mm)

MVC-9100-60-WI (Minidome camera, 6.0mm)

MVC-9100-80-BK (Minidome camera, 8.0mm

Black)

Installation Environment

When installing your product, consider these factors:

• Electrical: Install electrical wiring carefully. It should

be done by qualified service personnel. Always use

a proper PoE switch or a 12 VDC power supply to

power the camera. Do not overload the power cord

or adapter. PoE and 12 VDC power sources should

not be used together; choose only one.

• Ventilation: Ensure that the location planned for the

installation of the camera is well ventilated.

• Temperature: Do not operate the camera beyond

the specified temperature, humidity or power source

ratings. The operating temperature of the camera is

between -20°C to +60°C.

• Servicing: Do not attempt to repair this camera

yourself. Any attempt to dismantle this product,

except as required for normal installation, will

invalidate the warranty and may also result in injury.

Refer all servicing to qualified service personnel.

• Cleaning: Do not touch the lens with fingers. If

cleaning is necessary, use a clean cloth with some

ethanol and wipe the camera gently.

Package Contents

Check the package and contents for visible damage. If

any components are damaged or missing, do not

attempt to use the unit; contact the supplier immediately.

If the unit is returned, it must be shipped back in its

original packaging.

MobileView 9100 Series High

Resolution Analog/IP Camera Quick

Guide

2 MobileView 9100 Series High Resolution Analog/IP Camera Quick Guide

Package contents:

Camera

Y Splitter cable (optionally used if 12VDC power is

supplied via Cat5)

Hex wrench

Quick Operation Guide

Drill Template

Molex connector/pins

Molex adapter cable (2-pin to 3-pin, optionally used

with 12VDC power if analog audio is not required)

Lens adjusting tool

Cable Requirements

For proper operation, adhere to the following cable and

power requirements for the cameras. All network cabling

must be installed according to applicable codes and

regulations.

Table 1 below lists the requirements for the cables that

connect to the camera. Note that the camera has two

options to receive power; only one should be used at a

time.

Table 1: Recommended power cable requirements

PoE(802.3af):

12VDC: Cat5, or better

18 AWG, or larger

Camera Description

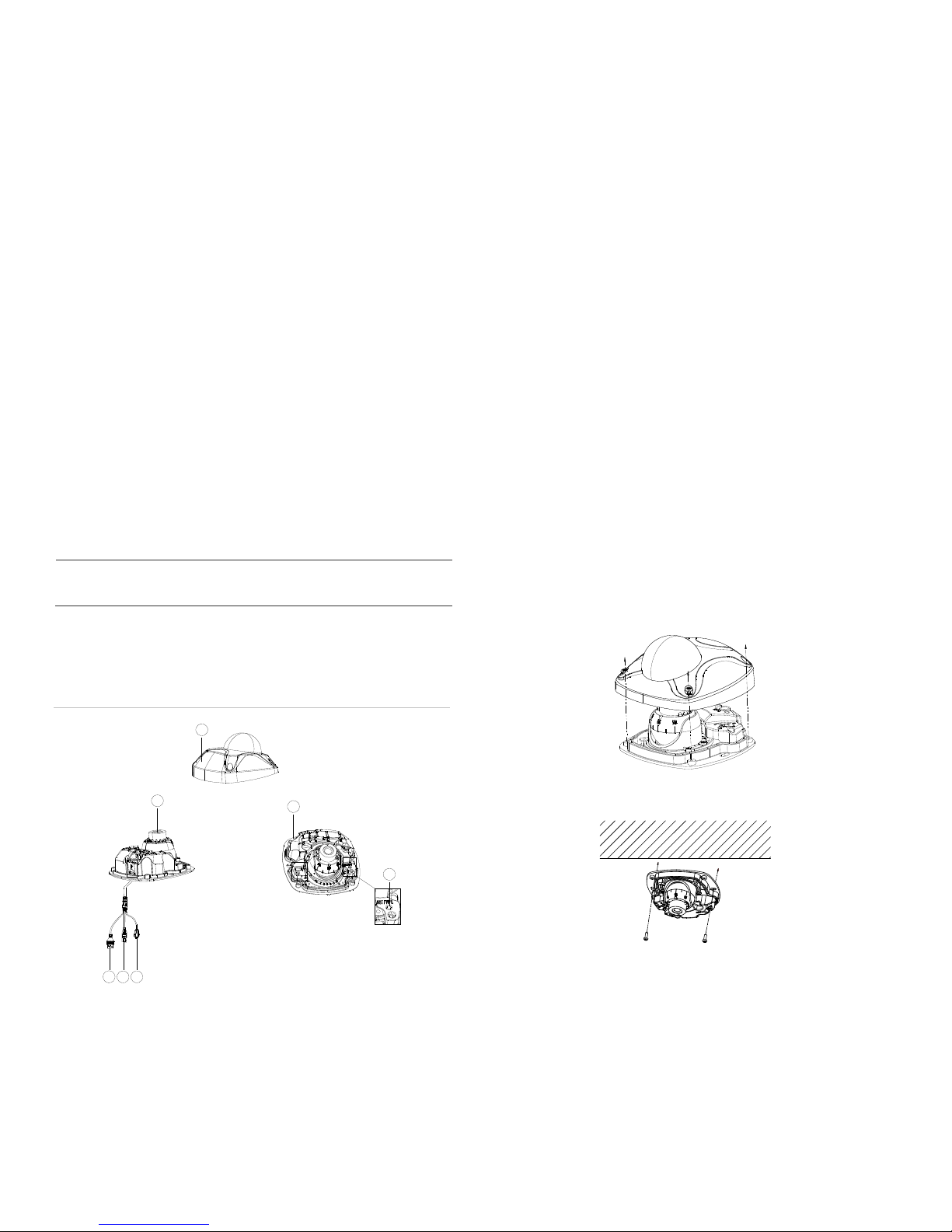

Figure 1: MVC-9100 Minidome Camera

1. Cover

2. Lens

3. Ethernet RJ45

4. BNC Cable

5. 12VDC/audio Molex connector

6. Reset button

7. Base

Setting up the Camera

To quickly put the camera into operation:

1. Prepare the mounting surface.

2 Mount the camera using the appropriate fasteners.

See the following “Mounting the Camera” section.

3. Set up the camera’s network and streaming

parameters so that the camera can be controlled

over the network. See section “Accessing the

Camera over the Internet.” For further information,

please refer to the “MobileView 9000 & 9100 Series

Analog/IP Camera User Manual”.

4. Program the camera to suit its location. For further

information, please refer to the “MobileView 9000 &

9100 Series Analog/IP Camera User Manual”.

Mounting the Camera

To Mount the Minidome Camera:

1. Use the supplied template to mark out the mounting

area. Drill the screw holes on the surface.

2. Loosen the cover screws to remove the cover from

the camera.

3. Fix the mounting base to the ceiling with appropriate

screws.

MobileView 9100 Series High Resolution Analog/IP Camera Quick Guide 3

4. Align the supplied adjusting tool to the small holes

on the camera.

5. Loosen the adjusting screw to adjust the pan, tilt and

rotation angle with the adjusting tool, then re-tighten

the adjusting screw.

6. Visually check to ensure that you did not

accidentally rotate the foam ring around the lens –

both of the small lens adjusting holes should still be

visible. Also check to ensure the rubber cap is still

present over the microphone.

7. Re-install the cover using the cover screws.

Accessing the Camera over the

Internet

Use the camera web browser to access and configure

the camera over the internet (Microsoft Internet

Explorer). Only one camera is accessible from a single

web browser window.

To access the camera online:

1. In the Web browser, enter the camera’s IP address

(default is 192.168.1.70). The Login dialog box

appears.

Note: Ensure that the Active X controls are enabled.

2. Enter your user name and password.

User name: admin

Password: 1234

3. Click Login. The web browser window appears in

live view mode. See Figure 2.

Overview of the Camera Web

Browser

Figure 2: Camera Web browser interface

Item Name Description

1. Live view Click to view live video.

2. Configuration Click to display the configuration

screen for setting up the camera.

3. Current user Displays current user logged on.

4. Logout Click to log out from the system. This

can be done at any time.

5. Start/stop live view Click to start/stop live view.

6. Capture Click to take a snapshot of the video.

The snapshot will be saved to the

default folder in JPEG or BMP format.

7. Start/stop

recording Click to record live video.

8. Digital Zoom Click to enable digital zoom.

Micro

honeFoam

4 MobileView 9100 Series High Resolution Analog/IP Camera Quick Guide

Network and Streaming

Configuration

In the camera Web browser screen click the

Configuration button on the toolbar to display the

configuration screen. See Figure 3.

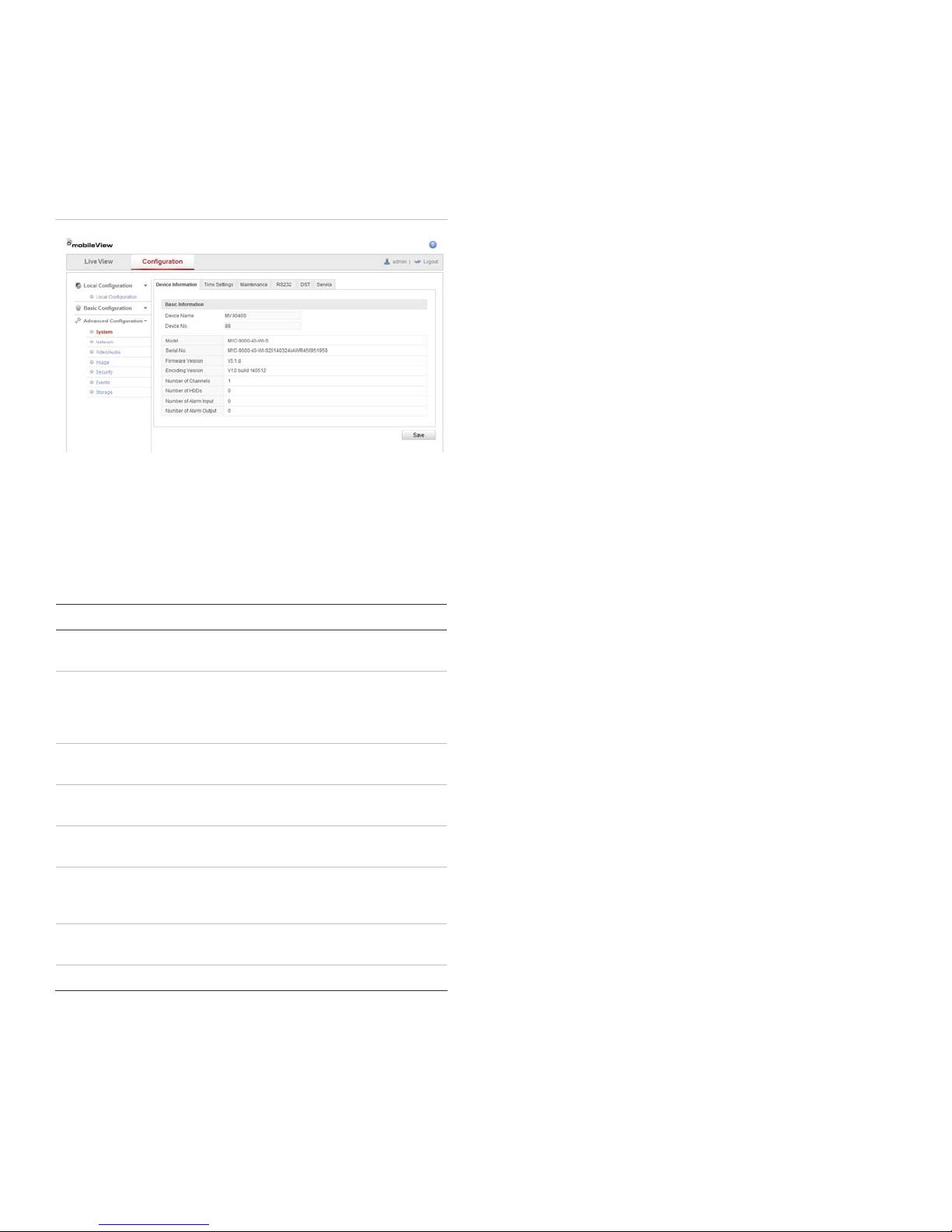

Figure 3: Configuration screen

Refer to the “MobileView 9000 & 9100 Series Analog/IP

Camera User Manual” for detailed information on

configuring the cameras. See Table 2 for an overview of

the configuration parameters.

Table 2: Overview of the configuration parameters

Configuration folders Description

Local configuration Defines the protocol type, live view

performance and local storage paths.

System Displays device information including serial

number and firmware version. Defines time

settings, maintenance and RS232

parameters.

Network Defines the network parameters required to

access the camera over the internet.

Video/Audio Defines recording parameters for each of

the three streams.

Image Defines the image parameters, OSD

settings, overlay text and privacy mask.

Security Defines who can use the camera, their

passwords and access privileges, and RTSP

authentication.

Events Defines motion detection, tamper-detection,

and exceptions.

Storage Defines snapshot configurations.

FCC Complicance

Complies with FCC Part 15; Class A.

Contact information

North America:

855-MOBVIEW (662-8439)

www.interlogix.com/mobileview/
