MobiBlu DAH-220 Manuel utilisateur

Cassette Tape Type MP3/WMA Player

Digital Voice Recorder / Direct Music Encoder

FM Radio & FM Recorder / Mass Storage Drive

DAH-220

P/N : SAFF022M0GQ

User Manual

Safety Warnings and Cautions

Please be aware of these safety instructions and use the product

properly in order to prevent risks of injury or damages to the property.

Avoid exposure to direct sunlight or

heater. (High heat applied to the

product can damage it.)

Avoid places with high moisture or

dust level. (It can cause damage to

the product.)

Do not drop the product and avoid

any heavy inpact to the product. (It

may cause serious damage)

Don’t connect the product to the power

nor touch the product with wet hands.

(Thereisariskofanelectricshock.)

Safety Warnings and Cautions

Don’t wear the headset when

driving a car or riding a motorbike

or a bicycle.

Never disassemble, repair nor

rebuild. Contact to our A/S center if

the product is out of order.

listening to music at high volume for

long periods of time using headphones

may cause hearing problems.

Don’t wash the product with chemicals

or a detergent in order to protect the

outer surface paint from cracks or

deterioration.

When carrying the product in a

pocket with the batteries in place,

avoid contact with other metal items

such as coins or keys. as this may

cause fire.

We are not responsible for the loss of

data stored on the product due to

user’s carelessness (please backup

important data)

The earphone must be attached to a long

string, and when using such earphones, the

stringmustbeletbehindyourneck.

Sharing music without permition is

againstcopyright.

Contents

Welcome to the World of Digital Audio

What is a Digital Audio Player?

Special Features of the Product

Product Specification

Hardware Descriptions

PC System Requirements and Accessories

Simple Use of the Player

Software Installation

USB Cable Separation

File Download/Upload

Formatting

File Converting

OS Update

Charging Rechargeable Battery (AC/DC)

About Power Supply

Power On & Playing Music

Product

Software

HowtoUse?

Volume Control

Selecting Next & Previous Music

Voice Recording & Music Recording

FM Radio

Recording FM Radio

A-B Book marking feature

Using the Player with an Audio Deck

Using Removable Memory Card (MMC)

HowtoUse?

Trouble shooting

Warranty Services

FCC RF INTERFERENCE STATEMENT

Services

What is a Digital Audio Player?

Welcome to the World of Digital Audio

Thank you for purchasing the MP3 Player, a cassette tape-shaped

portable digital audio player.

This product has been designed for you to enjoy high quality digital sound

with normal analog audio system without using any adapter or subsidiary

device. Memory capacity can be easily increased using a Multi Media Card

(MMC) along with a built-in memory. The product can be upgraded with the

new software whenever required and supports various formats (MP3,

WMA, ADP). Using the Mass Storage system the product can be

recognized directly by your PC without using any installation CD. Welcome

to the new World of Digital Audio!

WelcometotheWorldofDigitalAudio WhatisaDigitalAudioPlayer?

MP3 stands for MPEG1-Layer3 and it uses a compression technology that converts

conventional CD music data into an MP3 file format that is used on a PC, at 1/12

compression ratio. It provides near CD-quality music at 128kbps.

CD Data MP3 Data

1/12 1/2

Internet PC

Communication

Digital Audio

File Digital Audio

File

Digital Audio Player

WMA Data

What is the MP3/WMA file?

It is a multimedia compression method from Microsoft. The technology specifically

compresses music data from the window Media Technologies”. As it provides sound quality

equivalent to 128Kbps using only 64Kbps format, it takes only half as much space as MP3

file format for compressing music data.

What is a WMA file?

It is a portable device that stores and plays digital audio files, which once were only playable

on a PC.

What is a Portable Digital Audio Player?

Special Features of the Product

In addition to its self-playing function, the newly developed unique gear

mechanism in the product enables the same FF/ REW/ PLAY/ REC functions

as those of a normal cassette tape, like in-car or domestic audio systems.

In the memory expansion slot, additional memory can be easily added. 32/64/128 MB

MMC are available.

Easy Memory Extension (Memory Extension Slot)

This function enables easy file upload/download as the PC recognize the product as a

“Removable disk” without requiring any software to be installed in the PC.

Mass Storage Function

The product supports many of digital files including over 8kbps MP3, over 32kbps WMA

and ADPCM(Voico Recording) using the Multi Codec.

Multi Codec for Various Digital File

Additional functions or file formats can be available by updating the firmware through

internet.

Firmware Upgrade

TWO-touch (REC Ready – REC) manipulation activates the voice recording function with

a built-in high performance microphone.

Two-Touch Voice Recording (256MB-1040minutes)

Cassette Tape-like Design Without connecting to a PC the product enables to record FM radio, CD or cassette tape

sounds in digital format while enjoying them. It is also very helpful for those who are

learning languages etc.

The F.M Radio Recording feature, enables you to record directly from the On-board F.M

Radio. The stored recording can then be replayed via the player itself or your P.C.

FM Radio Listening/Recording

Using one of the built in equalizer settings :- Live, Dance, Jazz, Latin or Rock, You can enjoy

your music as applicable, or customise to your own music taste using the “User 1&2” settings.

Equalizer Function

This function is activated to save the battery power when the player is not in use. Auto Power

ON function starts when using with an audio deck.

Power-Save Mode and Auto Power On

The player supports the functions such as repeat for one track or all tracks, random play for

all items, high speed search (FF/REW: 4 - 8 - 16 - 32) and ranged repeat.

Repeat Function for Educational Purpose

With this USB interface, it takes only 8 seconds to download a MP3 file (approx. 4MB) at its

highest rate of 4Mbps.

High Speed USB Transferring Rate: 4Mbps

MP3 Direct Encoding (Music Recording)

SpecialFeaturesoftheProduct

Hardware Descriptions

Product Specification

FM TUNER

Audio

File Support

Recording time

Max. play time

80 40 17.2mm (3.15” 1.58” 0.7”)

Dimensions(WxHxD)

Weight(without battery) 35g

Battery 1.2V Ni-MH Rechargeable

Operating temp. range

USB

File type

MP3, WMA no DRM

MP3: 8Kbps or higher WMA: 32Kbps or higher

Bit Rate

Download speed

4Mbps(USB Version 1.1)

Voice recording 1040 min. (based on 256MB,

when the recording MODE is 32kbps)

-5 ~70

Approximately 8 hours

FM Frequency Range

87.5MHz~108.0MHz

20Hz ~ 20KHz

Max. 7mW (16 ) at max. volume

50dB

90db

Headphone/earphone cord antenna

Headphone output

S / N

Antenna

Frequency Characteristics

Headphone output

S / N

Category Item Specification

Volume Controller

Slide Switch (FM/MUSIC)

External Memory(MMC) Slot

Battery Compartment Cover

LED

USB Port

Head

REC/ RPT A-B

Play/Stop/Pause/Power

FF/REW

Earphone Port

High Sensitivity Microphone

Head Adjusting Switch (Rear)

HardwareDescriptions

ProductSpecification

Simple Use of the Player

PC System Requirements and Accessories

PC system requirements for the player are as follows:

1. Microsoft OS (Windows 98SE, ME, 2000, XP)

2. CD-ROM Drive

3. Pentium 200MHz or higher CPU

4. 32MB (64MB for Windows ME or 2000) or higher RAM

5. Available hard disk space of more than 128 MB

(Additional hard disk space is needed for storing music files)

6. Sound Card

7. USB Port

Install the software CD included in the package to your PC.

Fully charge the battery for more than 2 and a half hours and insert it to the player.

Press and hold the PLAY button ( II for seconds to turn the power on.

(The blue LED blinks for 2 second and goes out)

Move the slide switch to “MUSIC” and press the PLAY button ( II) again but

shortly and the music plays. (Blue LED keeps blinking)

Connect the larger end of the USB cable to a USB port and the smaller end to the

player. On the PC screen it appears as a “Removable disk”.

After downloading MP3 or WMA files from the Internet or from a converted Audio

C.D onto your hard drive, transfer your chosen file(s) to the “removable disc” in the

Windows Explorer option on your P.C (drag and drop). And/or create “sub folders”

on the removable disc to segregate albums or artists.

You may use the player in the following methods;

PCSystemRequirements SimpleUseofthePlayer

Accessories

Earphones 1.2V Ni-MH

Rechargeable

Battery

The optional items may not be included depending on areas and markets.

USB cable

instruction

manual Software CD

Portable

Case Encoder Cable AC Adapter Remote controller

(Optional)

Cigar Jack Charger

(Optional)

Software Installation

Simple Use of the Player

After disconnecting the USB cable from the player, press PLAY button ( II) to turn

the power on. Press the Play button again to listen to your music. (Blue LED keeps

blinking)

Enjoy digital sound with an earphone or by inserting the player into an audio deck.

Push the earphone jack completely into the player

If the player does not start even when pressing The PLAY

(II) button with the slide switch in “MUSIC” position, press

the PLAY ( II) button. Remove and replace the battery By

doing this, the player may work correctly after rebooting itself.

Don’t use the player simultaneously with other USB

connections such as a digital camera or a scanner to prevent

any possible communication error.

Visit our webpage for more information.

PleaseNote!

With the Mass Storage Function of the player files can be

downloaded / uploaded without using any software

installed in the PC.

To update and format the player please follow below

procedure;

- When using Windows 98SE: Install the software from the CD before using the

player. (The PC can not recognize the player)

- When using Windows ME, 2000 and XP: Install the software to format the player.

SoftwareInstallation

The software will automatically run showing language selection

box by inserting the CD to the PC. Click on OK after selecting the

language.

Click!

Software Installation

Click on NEXT.

Click on NEXT after selecting a folder wherein the software will be

installed.

By clicking the OK button, the window system will restart at the

completion of installation.

In case of windows XP version the following box will appear when

the window system restarts.

Click!

Click! Click!

Click!

Table des matières

Autres manuels MobiBlu Lecteur MP3

MobiBlu

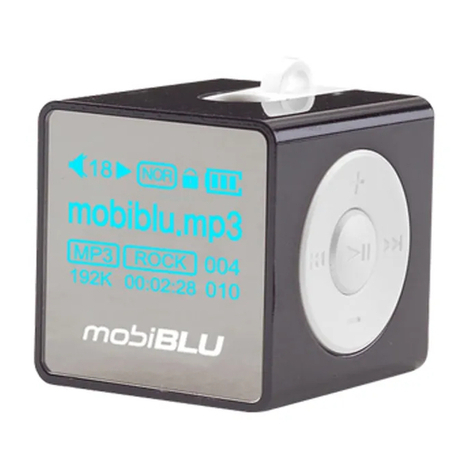

MobiBlu CUBE 3 Manuel utilisateur

MobiBlu

MobiBlu DHH-200 Manuel utilisateur

MobiBlu

MobiBlu CUBE-2 Manuel utilisateur

MobiBlu

MobiBlu DAH-1500 Manuel utilisateur

MobiBlu

MobiBlu DAH-1900 Manuel utilisateur

MobiBlu

MobiBlu Cubisto Manuel utilisateur

MobiBlu

MobiBlu DAH-1400 Manuel utilisateur

MobiBlu

MobiBlu DHH-100-5 Manuel utilisateur

MobiBlu

MobiBlu DHH-100-5 Manuel utilisateur

MobiBlu

MobiBlu DAH-1200 Manuel utilisateur

MobiBlu

MobiBlu DAH-1200 Manuel utilisateur

MobiBlu

MobiBlu DAH-1000 Manuel utilisateur

MobiBlu

MobiBlu DAH-1500i Manuel utilisateur

MobiBlu

MobiBlu DAH-1400 Manuel utilisateur

MobiBlu

MobiBlu DAH-1200T Manuel utilisateur

MobiBlu

MobiBlu DAH-1500S Manuel utilisateur

MobiBlu

MobiBlu B153 Manuel utilisateur

MobiBlu

MobiBlu DAH-1000 Manuel utilisateur

MobiBlu

MobiBlu DAH-900 Manuel utilisateur

Manuels Lecteur MP3 populaires d'autres marques

Blaupunkt

Blaupunkt Compact Drive MP3 Manuel utilisateur

Memorex

Memorex MMP9008 - 8GB USB 2.0 Manuel utilisateur

Meizu Electronic Technology

Meizu Electronic Technology E5 Manuel utilisateur

Naxa

Naxa NMV-173NX Manuel utilisateur

Philips

Philips PSA250 Manuel utilisateur

Zipy

Zipy go! Waving Manuel utilisateur

Sylvania

Sylvania SMPK4068 Manuel utilisateur

Sony

Sony NW-MS7 - Memory Stick Walkman Manuel utilisateur

Irradio

Irradio RF-42UC Manuel utilisateur

NABAIJI

NABAIJI SWIM MUSIC 100 Manuel utilisateur

Laser

Laser MP3-A9-4GB Manuel utilisateur

Samsung

Samsung YP-T7F Manuel utilisateur

Savant

Savant SMS-1001-00 Guide de référence rapide

Trevi

Trevi XP 71 BT Manuel utilisateur

AGPtek

AGPtek C2 Manuel utilisateur

Denver

Denver MPS-201 Manuel utilisateur

Steren

Steren MP3-002 Manuel utilisateur

Kenwood

Kenwood M1GD50 Manuel utilisateur
