English

MA & CONTACT TERMINAL Interface

Model MAC-397IF-E

[FOR INSTALLER]

INSTALLATION MANUAL

1. Safety Instructions

• Read all Safety Instructions before using this device.

• This manual contains important safety information. Be sure to comply with all instructions.

• After installing the Interface, provide this Installation Manual to the user.

Instruct users to store their room air conditioner Instruction Manual and Warranty in a safe location.

Warning

(Improper handling may have serious consequences, including injury or death.)

■Users should not install the Interface on their own.

Improper installation may result in fire, electric shock, or damage/water leaks if the Interface unit falls. Consult the dealer

from whom you purchased the unit or professional installer.

■The Interface should be securely installed in accordance with the enclosed Installation Instructions.

Improper installation may result in fire, electric shock, or damage/water leaks if the Interface unit falls.

■The unit should be mounted in a location that can support its weight.

If installed in an area that cannot support the unit, the Interface unit could fall and cause damage.

■Securely attach the electrical component cover to the Interface unit.

If the electrical component cover of the Interface unit is not securely attached, dust or water penetration could occur,

resulting in a fire or electric shock.

■Mitsubishi components or other designated components must be used for installation.

Improper installation may result in fire, electric shock, or damage/water leaks if the Interface unit falls.

■When performing electrical work, adhere to the technical standards regarding electrical equipment and the interior

wiring standards, follow the instructions provided in the Instruction Manual.

Improper installation could result in a fire or electric shock.

Contents

1. Safety Instructions .......................................................................................................................... 2

2. Before Installation ........................................................................................................................... 3

3. Connecting the MA & CONTACT Terminal Interface to the Indoor Unit .......................................... 4

4. Connecting the MA & CONTACT Terminal Interface with each system .......................................... 5

5. Dip Switch Details ........................................................................................................................... 9

6. Test Run (Check Operations) ....................................................................................................... 12

7. Mounting the MA & CONTACT Terminal Interface Unit ................................................................ 13

8. Specifications................................................................................................................................ 13

2. Before Installation

2.1. How to Use the MA & CONTACT Terminal Interface

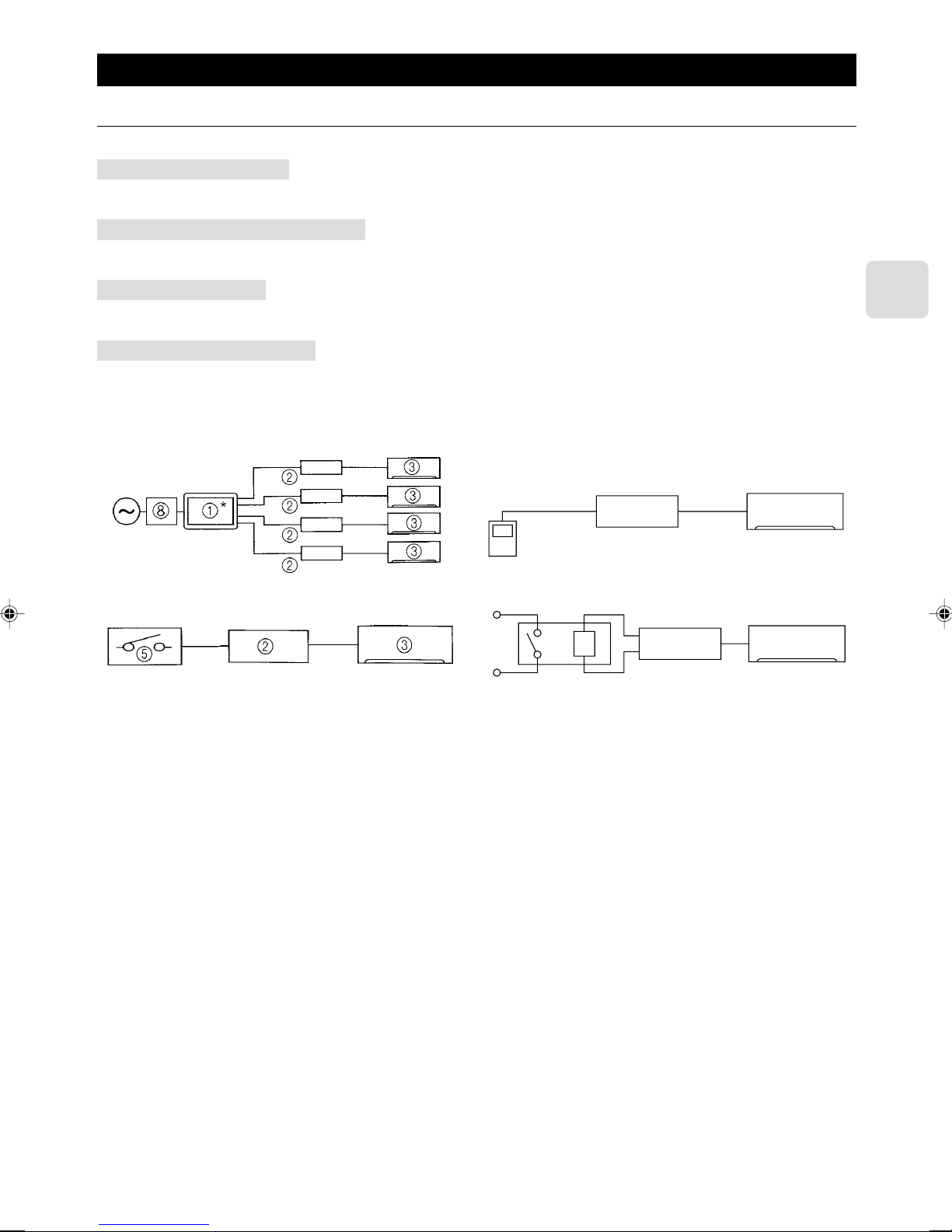

■Sample System Configuration

■Functions

Centralized control (Fig. 2-1)

You can turn multiple air conditioners on and off from one location. (MAC-821SC-E (8-Room))

Use as wired remote controller (Fig. 2-2)

You can use the MA remote controller as a wired remote controller. (PAR-21MAA)

Remote control (Fig. 2-3)

You can turn on and off an air conditioner from a remote location by connecting the ON/OFF contact point.

Status indicator output (Fig. 2-4)

You can control the operation of the relay with either of the on/off or error/ok status output signals.

72 3

1Centralized controller

(MAC-821SC-E)

2MA & CONTACT

Terminal Interface

3Indoor Unit

Fig. 2-1 Fig. 2-2

Fig. 2-3 Fig. 2-4

4MA remote controller

5Contact point

6Relay

7Coil

8Breaker

* A separate AC power supply is required for centralized

controller.

2.2. Parts

Before installing the unit, make sure that you have all the necessary parts.

■Accessory

1Interface unit 1

2Wall mounting brackets 1

3Screws for mounting 2 3.5 × 12 4

4Cushioning material (with adhesive) 1

5Mounting cord clamp (small) 2

6Mounting cord clamp (medium) 2

7Mounting cord clamp (large) 2

8Screws for mounting 5–7 3.5 × 12

* Use when attaching the clamps to the interface unit 2

9Screws for mounting 5–7 4 × 10

* Use when mounting the clamps on or near the M series 1

Screws for mounting 5–7 4 × 16

10* Use when mounting the clamps and electrical wire

mounting bracket

AFasteners (for joining the lead wires) 5

BWiring cord clamp 5

CScrews for mounting B 3.5 × 12 5

DScrews for mounting the interface case 3.5 × 12 2

ELead wires (6) 1

■Items to Prepare at the Installation Site

ASignal wire extension cable (if necessary)

Shield wiring CVVS/CPEVS

BSwitch, relay, coin timer, etc. (if necessary)

* Please use products with supplementary insulation.

Related products sold separately

C* Prepare the necessary number of parts sold separately as needed

for your system.

3. Connecting the MA & CONTACT Terminal Interface to Indoor Unit

•Connect the interface unit and the indoor control board using the connecting cable that came with the interface.

•Extending or shortening the connecting cable that comes out of the interface may cause it to malfunction. Also, keep the

connecting cable as far as possible away from the electrical wires and ground wire. Do not bundle them together.

M series

Connect the connecting cable that comes with the

interface unit to the connector CN105 on the indoor

control board.

Indoor unit

Indoor control board

Interface unit 1

* CPEVS; PE insulated PVC jacketed shielded communication cable

* CVVS; PVC insulated PVC jacketed shielded control cable

PE: Polyethylene PVC: Polyvinyl chloride

•When this interface unit is connected with Indoor Unit, timer operation cannot be set from a wireless remote controller.

•When this interface unit is connected with Indoor Unit, i-see sensor control cannot be used. Normal cooling or heating opera-

tion is performed. (MSZ-FA Series only)

Connect the connecting cable that comes with the

interface unit to the connector CN92/CN105 on the

indoor control board.

Indoor unit

Indoor control board

Interface unit 1

P/S series

4. Connecting the MA & CONTACT Terminal Interface with each system

(For details on each system, see the relevant instruction manual.)

•Replace the interface unit 1 mounting cord clamp with a supplied mounting cord clamp 5–7 based on the thickness of the

connecting cable used for each system.

Interface unit 1 mounting cord clamp or mounting

cord clamps 5–7

Mounting screws 8 3.5 × 12

Connecting cable for each system

Mounting cord clamp 6

Electrical wire mounting

bracket

Mounting screws 0 4 × 16

Mounting screws 9 4 × 10

•The cables connected to the Indoor Unit should be mounted on or near the Indoor Unit.

If the connecting cable is not securely mounted, the connector may detach, break, or malfunction.

•Set the interface dip switch (SW500–502) settings before turning on the power.

•If the interface dip switch (SW500–502) settings are not set correctly, the system will not function properly.

4.1. Centralized Control (When Connecting to a Centralized on-off remote Controller)

Power supply

~/N 220-240 V

50/60 Hz

CN560

TB571

TC1

TC2

TM1

TM2

Indoor unit

Interface unit 1

* Centralized on-off

remote controller C

*Breaker B

Ground

Dip switch settings

■SW500

■SW501 and SW502 do not have to be set.

12345678

* Refer to the installation manual of centralized on-off remote controller.

123456

SW501 SW502

Setting required

Extend the cord using the extension

cord A at the installation site.

12 3 4 5 6 7 8

4.2. Use as a Wired Remote Controller (Using the MA Remote Controller)

Note:

1. Be sure to set the “Auto Heating/Cooling Display Setting” of the MA remote controller OFF before use. When the

setting is turned ON, the remote controller display may differ from the actual operating status of the unit.

• For details on the “Auto Heating/Cooling Display Setting,” refer to the MA remote controller instruction manual.

2. A test run cannot be initiated using the test run switch on the MA remote controller.

3. The horizontal vanes on the unit cannot be operated using the louver switch.

4. The range of room temperature indication is between 10°C and 38°C.

CN560

TB580

Indoor unit

Remote control cord that came with

the MA remote controller A

Dip switch settings

■SW500 does not have to be set.

■SW501:

SW501- No. 1–4: Refrigerant address

•Set this switch when multiple indoor units (and interfaces) are connected to a MA remote controller.

•Always start the refrigerant address at “0”.

•Even when connecting multiple outdoor units, set a different refrigerant address for each indoor unit.

112

3333

44 44

1234

1Outdoor unit

2Multi outdoor units

3Indoor unit

4Interface

5MA remote controller

Refrigerant

address

SW501- No. 5–6

M series

Only turn this ON when the indoor units in the same group include models where the MA remote controller and

indoor unit are directly connected.

Set them to ON only when using the room temperature sensor installed in the MA remote controller.

* This can be switched when an accurate room temperature cannot be detected by the air conditioner unit.

MSZ-GA and MSZ-FA Series models can not use a room temperature sensor on their MA remote controllers.

(Some M series models will not allow the use of the MA remote controller room temperature sensor.)

No. 5 and 6 should normally be set to OFF.

Under the following conditions, however, they should be switched to ON.

Interface unit 1

↓

Refrigerant

address “0”

Refrigerant

address “1”

Refrigerant

address “2”

Refrigerant

address “3”

MA remote controller

(PAR-21MAA)

* PAR-20MAA cannot be used

with this interface.

P/S series

Set SW501-No. 5 to ON

Set SW501-No. 6 to OFF

■SW502:

•Set this switch based on the functions of the Indoor Unit connected to the interface.

•See the Page 12 table and set the switch after checking the functions using the wireless remote control that came with the

Indoor Unit.

4.3. Remote Control (Turning Indoor Unit On and Off from the Contact Point)

•You can turn Indoor Unit on and off using an on/off switch like a light switch.

•Connect the supplied lead wires (6) E to the connector CN591 on the interface board.

• Wire the remote control components, including the switches, at the installation site.

•Please use extension cords with reinforced insulation.

CN560

CN591

123456

100 m max.

Indoor unit Interface unit 1

* Lead wires (6) E

Switch (contact point a)

(about 10 mA) B

•When the switch contact point is closed (ON), the air conditioner will turn on, and when the switch contact point is open (OFF),

the air conditioner will turn off.

* When connecting the connector and the lead wire, connect them using a closed end connector as shown below.

Extend the cord using the extension cord A

at the installation site.

Extension cord A

Closed end connector

Dip switch settings

■SW500

12345678

Setting required

■SW501 and SW502 do not have to be set.

Brown

Red

CN560

CN591

123456

4.5. Status Signal Output Using the Relay

•You can set the external relay to ON/OFF based on whether the Indoor unit is set to either on/off or error/ok.

•Set up and wire the relay and extension cables at the installation site.

•Please use relays with reinforced insulation.

CN560 TB580

12AB

Indoor unit

Interface unit 1

Relay B

(coil rating of DC12 V 75 mA or less)

Dip switch settings

■SW500

■SW501 and SW502 do not have to be set.

12345678

Setting required

100 m max.

Extend the cord using the exten-

sion cord A at the installation

site.

4.4. Restricting Indoor Unit Operations from the Contact Point

•You can use a coin timer or light switch to ensure that Indoor unit will not operate.

•Connect the supplied lead wires (6) E to the connector CN591 on the interface board.

•Wire the remote control components, including the coin timers or switches, at the installation site.

•Please use extension cords with reinforced insulation.

Indoor unit

Interface unit 1

Lead wires (6) E

Contact point a

(about 10 mA)

* When the contact point is open, the unit will turn off and will not be operable from the remote control.

When the contact point is closed, the unit will turn on and will be operable from the remote control.

Coin timer B

100 m max.

Extend the cord using

the extension cord A at

the installation site.

Brown

Red

Dip switch settings

■SW500

1. When outputting the Indoor unit on/off

2. When outputting the Indoor unit error/ok

■SW501 and SW502 do not have to be set.

12 3 4 5 6 7 8

The relay is ON when the unit is running, and OFF when it is not.

Setting required

12345678

The relay is ON when an error has occurred, and OFF when the unit is functioning

properly.

Setting required

5. Dip Switch Details

■SW500 - Input/Output Mode Settings

SW No.

No. 1

No. 2

No. 3

No. 4

No. 5

No. 6

No. 7

No. 8

Functions

Not in use

HA terminal (CN504) input switch

HA terminal (CN504) output switch

Remote control (CN591) mode switch 1

Remote control (CN591) mode switch 2

Remote control (CN591) mode switch 3

Relay, extermination output mode switch

Turn on/off with power option

OFF

Set to OFF

Pulse input

Static mode

See the next page

ON/OFF output

Turn ON/OFF with

power: No

(unit remains OFF

when the source

power is turned ON)

–

Continuous input

Dynamic mode

See the next page

ERROR/OK output

Turn ON/OFF with

power: Yes

(Returns the unit to

the status (ON/OFF)

it was in before the

power was turned

OFF)

Comments

Be sure to set these to OFF (When set to OFF, the

unit cannot communicate with the air conditioner).

There is a switch between TC1 and 2 input on the

TB571.

When there is a problem while the unit is running,

it will output a relay ON signal.

When the Auto Restart function on the air condi-

tioner itself is set to ON, be sure to set these to

OFF.

Remote control (CN591) mode switch

SW 500 Functions

Do not use the CN591 remote control

ON/OFF Prohibited/Allowed mode 1

ON/OFF Prohibited/Allowed mode 2

(level input)

ON/OFF Prohibited/Allowed mode 3

(pulse input)

Coin timer mode 1 (for a no-voltage

contact point a)

Coin timer mode 2 (for a no-voltage

contact point b)

Cooling-Heating/Temperature settings

mode 1 (3 temperature patterns)

Cooling-Heating/Temperature settings

mode 2 (8 temperature patterns)

Operating Details

–

Manual operations prohibited when CN591 No. 1 and No. 3 are closed, permitted

when open.

Only when No. 1 and No. 3 are closed and manual operations are prohibited.

On when CN591 No. 1 and No. 2 are closed, off when open.

(Cannot be operated from the remote control when manual operations are pro-

hibited. Only valid when operated from the CN591.)

On when CN591 No. 1 and No. 2 are closed, off when open.

Manual operations prohibited when No. 1 and No. 3 are closed, permitted when

open.

(Cannot be operated from the remote control when manual operations are pro-

hibited. Only valid when operated from the CN591.)

On when CN591 No. 1 and No. 2 are closed, off when No. 1 and No. 3 are closed.

Manual operations prohibited when No. 1 and No. 4 are closed, and permitted

when No. 1 and No. 5 are closed.

(Same as when they are open.)

Permitted and on when CN591 No. 1 and No. 2 are closed, manual operations

prohibited and off when open.

(When permitted, the unit can be operated from the remote control.)

Manual operations prohibited and off when CN591 No. 1 and No. 2 are closed,

permitted and on when open.

(When permitted, the unit can be operated from the remote control.)

On when CN591 No. 1 and No. 2 are closed, off when open.

When No. 1 and No. 3 are closed 20 °C

When No. 1 and No. 4 are closed 24 °C

When No. 1 and No. 5 are closed 28 °C

(When multiple switches No. 3, 4, and 5 are closed, the highest temperature will

be selected.)

Heat when No. 1 and No. 6 are closed, cool when open.

(Remote control operations are valid as always.)

On when CN591 No. 1 and No. 2 are closed, off when open.

No. 1 and No. 3 No. 4 No. 5 Temperature settings

Open Open Open 16 °C

Closed Open Open 18 °C

Open Closed Open 20 °C

Closed Closed Open 22 °C

Open Open Closed 24 °C

Closed Open Closed 26 °C

Open Closed Closed 28 °C

Closed Closed Closed 30 °C

Heat when No. 1 and No. 6 are closed, cool when open.

(Remote control operations are valid as always.)

No. 5

OFF

No. 6

OFF

No. 4

OFF

Table des matières

Autres manuels Mitsubishi Équipement d'enregistrement

Mitsubishi

Mitsubishi DX-TL1600U Manuel utilisateur

Mitsubishi

Mitsubishi MR-J2-10A Instructions d'installation

Mitsubishi

Mitsubishi FX2N-32CCL-NP Manuel utilisateur

Mitsubishi

Mitsubishi MELSEC QJ71E71-100 Manuel utilisateur

Mitsubishi

Mitsubishi FX-485PC-IF Manuel utilisateur

Mitsubishi

Mitsubishi DX-TL1600EM Manuel utilisateur

Mitsubishi

Mitsubishi DX-TL1600EM Manuel utilisateur

Mitsubishi

Mitsubishi AJ71E71 Manuel utilisateur

Mitsubishi

Mitsubishi A1SJ71PB92D Manuel utilisateur

Mitsubishi

Mitsubishi MAC-568IF-E Manuel utilisateur

Mitsubishi

Mitsubishi m5l8255ap-5 Manuel utilisateur

Mitsubishi

Mitsubishi AJ65BT-R2 Manuel utilisateur

Mitsubishi

Mitsubishi QJ71MT91 Manuel utilisateur

Mitsubishi

Mitsubishi MAC-567IF-E Manuel utilisateur

Mitsubishi

Mitsubishi AL-ASI-BD Manuel utilisateur

Mitsubishi

Mitsubishi DX-TL5000E series Guide de l'utilisateur

Manuels Équipement d'enregistrement populaires d'autres marques

KV2 Audio

KV2 Audio 500 Series Manuel utilisateur

Robotics Technologies

Robotics Technologies microBus-Cam II Manuel utilisateur

Seca

Seca 460 Manuel utilisateur

Cognex

Cognex MVS-8000 Series Manuel utilisateur

Mect

Mect MPNC006 Series Manuel utilisateur

Bad Caf

Bad Caf THE LEASH Manuel utilisateur

Strymon

Strymon NIGHTSKY Manuel utilisateur

Mitsubishi Electric

Mitsubishi Electric 16CH DIGITAL RECORDER DX-TL5000U Manuel utilisateur

Tews Technologies

Tews Technologies TPMC465 Manuel utilisateur

Honeywell

Honeywell Excel 50 Manuel utilisateur

SeaLevel

SeaLevel COMM+8.LPCI Manuel utilisateur

Arturia

Arturia AUDIOFUSE STUDIO Manuel utilisateur

Rukra

Rukra RK-1240 Manuel utilisateur

Samson

Samson SCOM Manuel utilisateur

Dynacord

Dynacord DPS260 Manuel utilisateur

Nice

Nice Core Manuel utilisateur

Pyle Pro

Pyle Pro PSS8 Manuel utilisateur

RF-System

RF-System TinyGate Manuel d'utilisation et d'entretien
