Mitsubishi Electric FR-A7AR E Manuel utilisateur

INSTRUCTION MANUAL

INVERTER

Plug-in option

FR-A7AR

FR-A7AR E kit

Relay output function

INSTALLATION AND WIRING

(FR-A700/F700 SERIES)

INSTALLATION AND WIRING

(FR-E700 SERIES (E kit))

RELAY OUTPUT

PRE-OPERATION INSTRUCTIONS

A-1

Thank you for choosing this Mitsubishi Electric inverter plug-in

option.

This Instruction Manual provides handling information and

precautions for use of this product. Incorrect handling might

cause an unexpected fault. Before using this product, read all

relevant instruction manuals carefully to ensure proper use.

Please forward this Instruction Manual to the end user.

1. Electric shock prevention

2. Injury prevention

This section is specifically about

safety matters

Do not attempt to install, operate, maintain or inspect this

product until you have read this Instruction Manual and

supplementary documents carefully. Do not use this product

until you have a full knowledge of this product mechanism,

safety information and instructions.

In this Instruction Manual, the safety instruction levels are

classified into "WARNING" and "CAUTION".

Incorrect handling may cause hazardous

conditions, resulting in death or severe

injury.

Incorrect handling may cause hazardous

conditions, resulting in medium or slight

injury, or may cause only material

damage.

Note that even the level may lead to a serious

consequence depending on conditions. Be sure to follow the

instructions of both levels as they are critical to personnel safety.

WARNING

CAUTION

SAFETY INSTRUCTIONS

WARNING

Do not remove the front cover or the wiring cover of the

inverter while the inverter power is ON. Do not operate the

inverter with any cover or wiring cover removed, as accidental

contact with exposed high-voltage terminals and internal

components may occur, resulting in an electrical shock.



Even if power is OFF, do not remove the front cover of the

inverter except for wiring or periodic inspection as you may

accidentally touch the charged circuits and get an electric shock.

Before wiring or inspection, check that the display of the

inverter operation panel is OFF. Any person who is involved in

wiring or inspection shall wait for 10 minutes or longer after

power OFF and check that there are no residual voltage using a

tester or the like. The capacitor is charged with high voltage for

some time after power OFF, and it is dangerous.

Any person who is involved in wiring or inspection of this

product shall be fully competent to do the work.

This product must be installed before wiring. Otherwise you

may get an electric shock or be injured.



Do not subject the cables to scratches, excessive stress, heavy

loads or pinching. Doing so may cause an electric shock.

Do not touch this product or handle the cables with wet hands.

Doing so may cause an electric shock.

CAUTION



The voltage applied to each terminal must be as specified in the

Instruction Manual. Otherwise an explosion or damage may occur.

The cables must be connected to the correct terminals.

Otherwise

an explosion or damage

may occur.

The polarity (+ and -) must be correct. Otherwise

an explosion

or damage

may occur.



While power is ON or for some time after power OFF, do not touch

the inverter as it will be extremely hot. Doing so may cause burns.

A-2

3. Additional instructions

The following instructions must be also followed. If this product is

handled incorrectly, it may cause unexpected fault, an injury, or an

electric shock.

1) Transportation and installation

2) Test operation

3) Usage

4) Maintenance, inspection and parts replacement

5) Disposal

6) General instruction

CAUTION

Do not install or operate the plug-in option if it is damaged or

has parts missing.

Do not stand or place heavy objects on this product.

Ensure the mounting orientation of this product is correct.

Foreign conductive objects must be prevented from entering

the inverter. That includes screws and metal fragments or

other flammable substance such as oil.

If halogens (including fluorine, chlorine, bromine, and iodine),

contained in fumigants for wood packages enter this product,

the product may be damaged. Prevent the entry of fumigant

residuals or use an alternative method such as heat

disinfection. Note that sterilization or disinfection of wood

packages should also be performed before packing the

product.

CAUTION

Before starting operation, confirm or adjust the parameter

settings. Failure to do so may cause some machines to make

unexpected motions.

WARNING

Do not modify this product.

Do not remove any part which is not instructed to be removed

in the Instruction Manuals. Doing so may lead to a failure or

damage of this product.

CAUTION



As all parameters return to their initial values after Parameter clear

or All parameter clear is performed, the needed parameters for

operation of the inverter and this product must be set again before

the operation is started.

To avoid damage to this product due to static electricity, static

electricity in your body must be discharged before you touch

this product.

CAUTION

Do not carry out a megger (insulation resistance) test.

CAUTION

This product must be treated as industrial waste.

For clarity, illustrations in this Instruction Manual may be drawn

with covers or safety guards removed. Ensure all covers and

safety guards are properly installed prior to starting operation.

— CONTENTS —

1 PRE-OPERATION INSTRUCTIONS 1

1.1 Unpacking and Product Confirmation .............................................................................................1

1.1.1 Packing confirmation (FR-A700/F700 series)................................................................................................. 1

1.1.2 Packing confirmation (FR-E700 series (E kit)) ............................................................................................... 2

1.2 Parts ....................................................................................................................................................3

1.3 Specifications.....................................................................................................................................4

2 INSTALLATION AND WIRING (FR-A700/F700 SERIES) 5

2.1 Pre-Installation Instructions .............................................................................................................5

2.2 Installation Procedure .......................................................................................................................6

2.3 Wiring..................................................................................................................................................8

3 INSTALLATION AND WIRING (FR-E700 SERIES (E kit)) 11

3.1 Pre-Installation Instructions ...........................................................................................................11

3.2 Installation Procedure .....................................................................................................................11

3.3 Wiring................................................................................................................................................17

4 RELAY OUTPUT 20

4.1 Internal Block Diagram....................................................................................................................20

4.2 Terminals ..........................................................................................................................................21

4.3 Parameter List ..................................................................................................................................21

4.4 Output Signal List (FR-A700/F700 series) .....................................................................................22

4.5 Output Signal List (FR-E700 series)...............................................................................................24

4.6 Connection Diagram When Using Electronic Bypass Sequence Function (FR-A700/F700

series) ...............................................................................................................................................25

APPENDIX 26

Appendix 1 Instructions for compliance with the EU Directives .......................................................26

Appendix 2 Instructions for EAC ..........................................................................................................27

Appendix 3 Restricted Use of Hazardous Substances in Electronic and Electrical Products........28

Appendix 4 Referenced Standard (Requirement of Chinese standardized law) ..............................29

1PRE-OPERATION INSTRUCTIONS

1.1 Unpacking and Product Confirmation

Take the plug-in option out of the package, check the product name, and confirm that the product is as you

ordered and intact.

This product is a plug-in option dedicated for the FR-A700/F700/E700 series.

1.1.1 Packing confirmation (FR-A700/F700 series)

Check the enclosed items.

Plug-in option

......................................... 1

Mounting screw (M3  6mm)

.............. 2 (Refer to page 6.)

Hex-head screw for option

mounting (5.5mm)

............... 1 (Refer to page 6.)

5.5mm

PRE-OPERATION INSTRUCTIONS

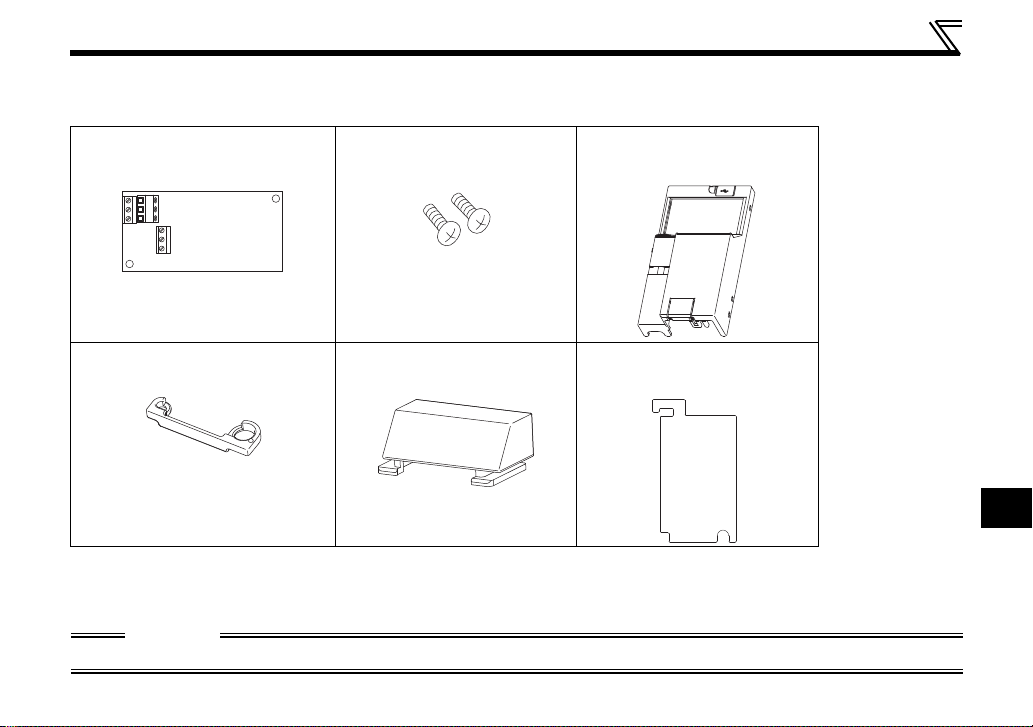

1.1.2 Packing confirmation (FR-E700 series (E kit))

Check the enclosed items.

*1 Used with the FR-E720-3.7K (FR-E720-175) or less and FR-E740-7.5K (FR-E740-170) or less.

*2 Used with the FR-E720-5.5K (FR-E720-240) or more and FR-E740-11K (FR-E740-230) or more.

Plug-in option

............................................... 1

Mounting screw (M3



6mm)

............ 2

(Refer to page 13, 16)

Front cover for plug-in option

...............1

(Refer to page 13, 16)

Option protective cover

...................... 1

(Refer to page 13)

Option small cover

................... 1

(Refer to page 16)

Insulation sheet

...............1

(Refer to page 13, 16)

CAUTION

• In place of the inverter front cover, install a provided front cover for plug-in option.

PRE-OPERATION INSTRUCTIONS

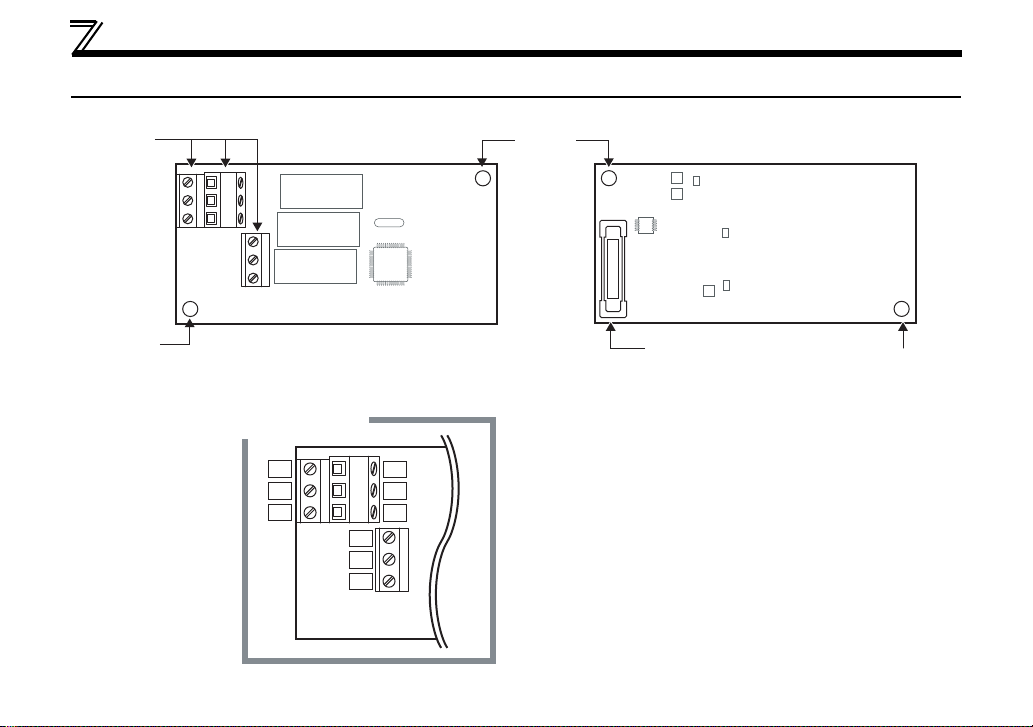

1.2 Parts

Front view

Terminal layout

Rear view

Mounting

hole

Mounting hole

Mounting

hole

Terminal

block

Connector

Connect to the inverter

option connector

(Refer to page 13, 16)

PRE-OPERATION INSTRUCTIONS

1.3 Specifications

(1) Types of output signal

1 changeover contact output (three relays are provided)

(2) Contact capacity

230VAC .......... 0.3A

30VDC............ 0.3A

CAUTION

• The contacts should be used within the rated capacity to prevent contacts weld resulting from faster

contacts wearing.

2INSTALLATION AND WIRING (FR-A700/F700 SERIES)

2.1 Pre-Installation Instructions

Make sure that the input power of the inverter is off.

CAUTION

With input power on, do not install or remove the plug-in option. Otherwise, the inverter and

plug-in option may be damaged.

For prevention of damage due to static electricity, touch nearby metal before touching this

product to eliminate static electricity from your body.

Autres manuels pour FR-A7AR E

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Mitsubishi Electric Onduleur

Mitsubishi Electric

Mitsubishi Electric FR-CC2-H355K Manuel utilisateur

Mitsubishi Electric

Mitsubishi Electric FR-A7AY Manuel utilisateur

Mitsubishi Electric

Mitsubishi Electric FR-D720 K Series Manuel utilisateur

Mitsubishi Electric

Mitsubishi Electric FR-E520 Manuel utilisateur

Mitsubishi Electric

Mitsubishi Electric PV-PNS04ATL-IT Manuel utilisateur

Mitsubishi Electric

Mitsubishi Electric fr-e700 series Manuel utilisateur

Mitsubishi Electric

Mitsubishi Electric FR-A7NC E kit-SC Manuel utilisateur

Mitsubishi Electric

Mitsubishi Electric FR-V5NS Manuel utilisateur

Mitsubishi Electric

Mitsubishi Electric 800 Plus Series Manuel utilisateur

Mitsubishi Electric

Mitsubishi Electric FR-D700-SC-EC Manuel de la liste des pièces

Mitsubishi Electric

Mitsubishi Electric FREQROL HC Manuel utilisateur

Mitsubishi Electric

Mitsubishi Electric FR-A520-0.4K-NA Manuel utilisateur

Mitsubishi Electric

Mitsubishi Electric FR-F820-00046 Manuel utilisateur

Mitsubishi Electric

Mitsubishi Electric FR-D700 Series Feuille d'instructions

Mitsubishi Electric

Mitsubishi Electric i-MTR2-G02-M0 Guide produit

Mitsubishi Electric

Mitsubishi Electric FR-F862-E Series Manuel utilisateur

Mitsubishi Electric

Mitsubishi Electric 800 Series Manuel utilisateur

Mitsubishi Electric

Mitsubishi Electric 800 Series Manuel utilisateur

Mitsubishi Electric

Mitsubishi Electric FR-V500 Manuel utilisateur

Mitsubishi Electric

Mitsubishi Electric FR-A7NP Manuel utilisateur

Mitsubishi Electric

Mitsubishi Electric FR-A5AX Manuel utilisateur

Mitsubishi Electric

Mitsubishi Electric FR-A701 Feuille d'instructions

Mitsubishi Electric

Mitsubishi Electric FR-A8AC Manuel utilisateur

Mitsubishi Electric

Mitsubishi Electric FR-A700 Series Manuel utilisateur

Manuels Onduleur populaires d'autres marques

Fourgroup

Fourgroup Easy Manuel utilisateur

Velleman

Velleman PI300M Manuel utilisateur

Sungrow

Sungrow SG350HX-US Manuel utilisateur

WilTec

WilTec 61897 Manuel utilisateur

SMA

SMA SUNNY BOY STORAGE 2.5 Manuel utilisateur

Simplicity

Simplicity LANDLORD 316 Manuel utilisateur

Santak

Santak SMAX 3000 Manuel utilisateur

ATON

ATON RA.Store-3 Manuel utilisateur

ZIEHL-ABEGG

ZIEHL-ABEGG FXET4AMQ Manuel utilisateur

Tektronix

Tektronix CFG250 Manuel utilisateur

Champion

Champion 200989 Manuel utilisateur

Vanner

Vanner 20-500 Series Manuel utilisateur

GE GEP Manuel utilisateur

Astrel Group

Astrel Group Power Reducer Guide rapide

MULTIQUIP

MULTIQUIP GDP-5H Mode d’emploi

GoWISE

GoWISE PS1007 Manuel utilisateur

Promate

Promate PM13500D ES Manuel utilisateur

Mastervolt

Mastervolt WHISPER 3.5M3000 RPM Manuel utilisateur
