Mitsubishi Electric PAC-YT34STA Manuel utilisateur

Technical Information

User Guide

PAC-YT34STA

Initial Settings

Press and hold “TEMP ” and “CLEAR”

buttons together

Group and to select the group number

Time and to select the unit address

Press small “ON/OFF” (small button middle of key pad)

to store the unit in the group

Repeat above step until all groups set

“PROHIBIT” button shows units in a group

“CLEAR” twice deletes unit from group

Setting the Clock

Press “CLOCK and ”together until clock flashes

Press “CLOCK or ”to set time

Press “DAY ” to set day

Press small “ON/OFF” to store

Setting the Time Pattern

Press “MONITOR/SET” twice to get

program monitor screen

Press “PATTERN” to set pattern number ie. 1 16

Press “OPERATION” to set operation number ie. 1 8

Press “CLOCK or ” to set time

Press small “ON/OFF” to set command “ON” or “OFF”

Press “MODE” to set mode

Press “TEMP or ”to set “ON” temperature

When all patterns are set press “MONITOR/SET”

this will move to daily pattern screen

Setting the Daily Operating Patterns

Press “GROUP or ”to select group number

Press “DAY ” to select day

Press “DAY PATTERN” to select daily pattern number

When all daily patterns are set in each group

press “MONITOR/SET” to exit

External Inputs

Level signal ON/OFF. SW3 Bit 2 and 4 On.

Wires Green(1) and Brown(5)

Emergency Shut Down. SW3 Bit 3 On.Wiring as before

External Outputs

Run Status.Wires Yellow (+) and Orange (-).

12VDC externally supplied

Fault Status.Wires red (+) and Brown (-).

12VDC externally supplied

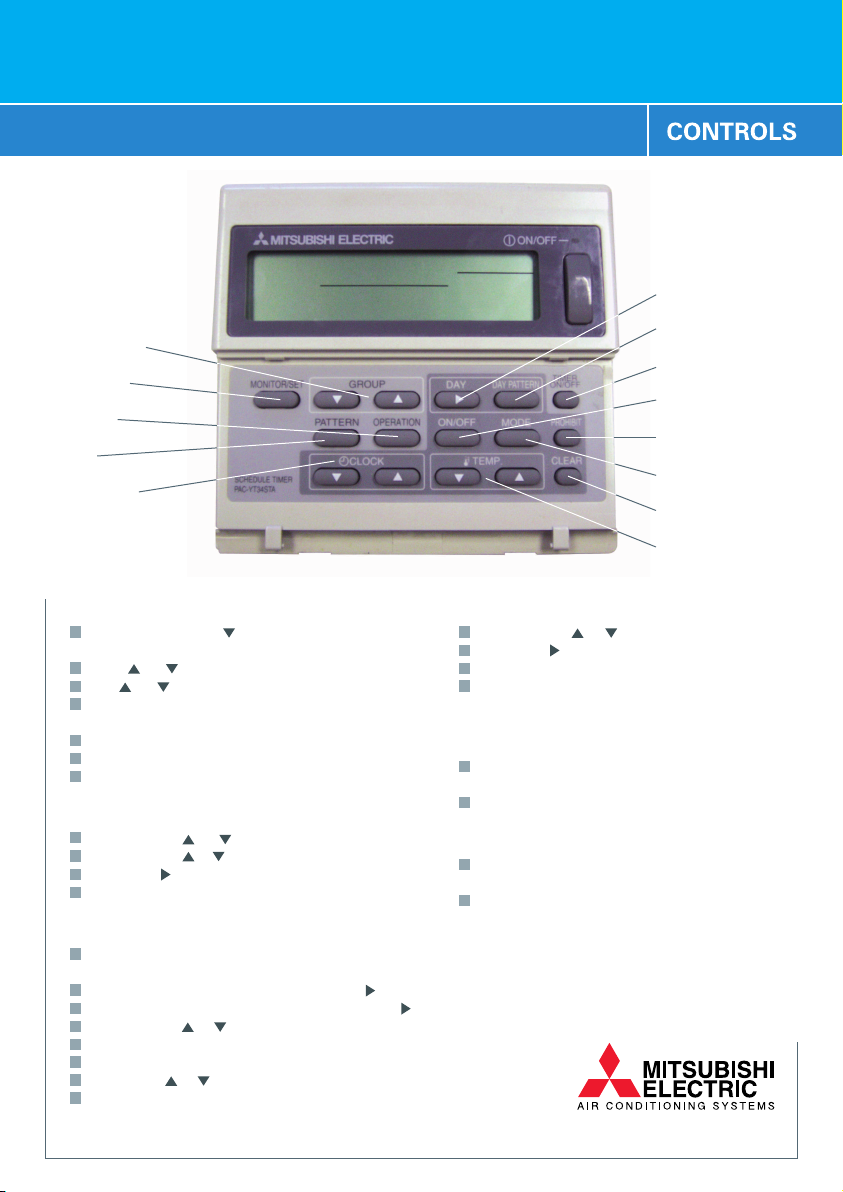

Change Group

Monitor Set

Operation

Pattern

Change Clock

Day

Day Pattern

Timer On/Off

On/Off

Prohibit

Mode

Clear

Change Temperature
