A800 PLC Function Quick Start Guide

For Beginners

READ BEFORE USING 

Before using this product, read this Quick Start Guide and the related manuals referenced in this guide.

Take all safety precautions and use the product correctly.

[Safety precautions for using the inverter]

WARNING

Do not touch the terminals while power is ON. Otherwise you may get an electric shock.

Before opening the front cover, turn OFF the power or ensure safety.

CAUTION

If a fault occurs, immediately stop using the product.

[Detailed information]

This guide describes the basic procedures for using the PLC function. For further details, refer to the

related manuals.

The related manuals are included in the CD-ROM packed with the product.

The manuals are also available for download at MITSUBISHI ELECTRIC FA Global Website (http://

www.Mitsubishi Electric.co.jp/fa), the Mitsubishi Electric FA network service on the world wide web.

The manuals related to this guide are shown below.

[Supplementary information]

• In this guide, operations are described using FR Configurator2 (Developer) Version 1.01. Depending on the

software version used, different menus or screens may appear.

• For consultation and inquiries concerning the PLC function, please contact your sales representative.

Manual name Manual number

FR-A800 Instruction Manual (Startup) IB-0600493

FR-A800 Instruction Manual (Detailed) IB-0600503ENG

FR-A800 PLC Function Programming Manual IB-0600492ENG

FR Configurator2 Instruction Manual IB-0600516ENG

GX Works2 Version 1 Operating Manual (Common) SH-080779ENG

Microsoft, Windows, Windows NT, and Windows Vista are registered trademarks of Microsoft Corporation in the

United States and/or other countries.

Other company and product names herein are the trademarks and registered trademarks of their respective

owners.

Introduction

How to read this guide ............................................................................2

Benefits of using the Mitsubishi A800 PLC function ...........................3

Before using the PLC function...............................................................4

Wiring of the inverter ..............................................................................6

Checking power-ON ................................................................................8

Programming ...........................................................................................9

Writing a program to the inverter.........................................................17

Checking the operation.........................................................................20

Making a program easy to understand <Comment>..........................22

Monitoring the device value/status <Device monitor> ......................28

Changing the device value <Device test> ...........................................32

Checking errors <Error jump> .............................................................33

1. How to read this guide

The following table shows the symbols used in this guide and their descriptions.

Symbol Description

This symbol indicates the necessary information.

This symbol indicates the reference manual or the page where details

can be found.

This symbol indicates that a technical term is explained.

This symbol indicates precautions mandatory for the operation.

Point

Reference

Terminology

CONTENTS

Introduction

2. Benefits of using the Mitsubishi A800 PLC function

Inverter operation sequence customized for the machine

Inverter control such as inverter operations triggered by input signals, signal output according to the inverter

operating status, and monitor output can be freely customized according to the machine specifications, which

enhances the possibilities of the inverter. For example, for opening/closing of a shutter, a signal from a sensor is

used to check the number of opening and closing times. By controlling the opening/closing speed, various

shutter operations can be achieved. Control programs can be created in sequence ladders using FR

Configurator2 (Developer).

Optimum for the decentralized control

The control of the whole system is decentralized to inverters, and each inverter can manage their subordinating

devices.

A group of dedicated sequence programs is created and saved in each inverter. Therefore, the master controller

does not process all the sequence programs, and the decentralized system accepts program changes more

flexibly.

Automatic operation in accordance with the time

With the real-time clock function, automatic operation can be performed at certain times (when the optional FR-

LU08 is used).

User-configurable parameter, protective function, and monitor settings

User parameter

Up to 50 user parameters can be saved. The user parameters are linked with the data registers for the PLC

function. Therefore, changing a user parameter also changes the linked data register.

User initiated fault

Up to five specific fault-initiating conditions can be set to activate a protective function and shut off the inverter

output.

User monitor setting

User-defined data can be displayed on the operation panel.

Useful functions

Inverter parameter read/write

Parameter settings can be changed using sequence programs. The acceleration/deceleration time and patterns

can also be changed according to the operating status. RAM or EEPROM can be selected to save the parameter

settings. When the settings are changed frequently, select RAM.

PID function

Two different loops of PID inverter operations can be preset and controlled using sequence programs.

Inverter operation lock

The inverter operation can be locked against command sources other than the sequence programs.

Outline of the PLC function

Item Description

I/O

General-purpose I/O

Sequence programs enable I/O signal transmission to/from the inverter and its plug-in options.

Analog I/O

Sequence programs enable analog I/O transmission to/from the inverter and its plug-in options.

Pulse train I/O Sequence programs enable pulse train inputs (to terminal JOG) and pulse train outputs

(from terminal F/C (FM)).

Inverter parameter

read/write Sequence programs enable inverter parameter read/write.

User parameter Fifty user parameters (Pr.1150 to Pr.1199) are available and are linked with data registers

D206 to D255, which accept direct access by sequence programs.

CC-Link Installing a plug-in option (FR-A8NC) enables data communication between sequence

programs and master modules.

Special

function

PID operation Inverter PID operations can be controlled (up to two loops) using sequence programs.

User initiated fault Up to five fault-initiating conditions can be set to activate a protective function.

Fault clear The protective function occurring in the inverter can be reset.

Inverter operation lock Inverters can start up while the PLC function is running.

User monitor setting User-defined data can be displayed on the operation panel.

Preparation

3. Before using the PLC function

Procedure before using the PLC function

Description Refer to

page

Using FR Configurator2

(Developer), create a PLC

function project data

model (program).

page 9

Write the created project

data model (program) via

a USB cable to the

inverter.

page 17

Check the operation. page 20

Install

Personal computer + FR Configurator2 (Developer)

Project data

USB cable

A800

PLC function indicator

FWD

REV

STOP

RESET

REV

FWD

STOP

RESET

P.RUN

EX T

NET

MON

PRM

FR-DU08

A connector Mini B

connector

Preparation

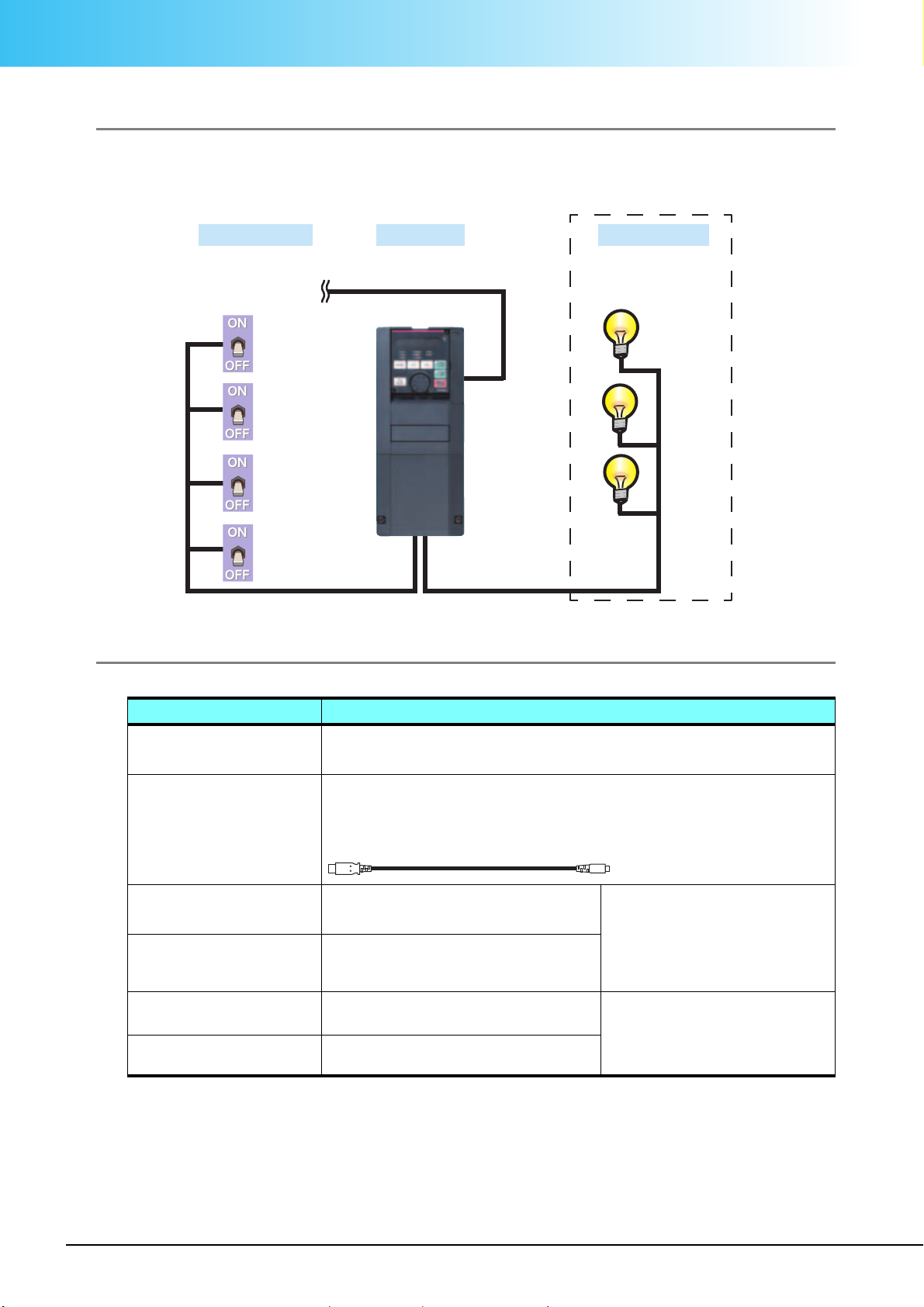

Example system configuration

In this guide, the system configuration below is used as an example.

This system configuration is just an example and various other configurations are available.

Inputs and outputs are configured as switches and lamps respectively.

* The inverter and I/O power supply cables are not shown.

Required system components

The following table shows the minimum system requirements for this guide.

Equipment Description

Personal computer Creates sequence programs and writes them to the inverter.

FR Configurator2 (Developer) (SW1DND-FRC2-E)

USB cable

Connects the personal computer and the inverter.

Recommended USB cable: MR-J3USBCBL3M (cable length 3 m)

Sequence start switch Sequence program execution key.

Switches between RUN and STOP.

Input resistance 4.7 kΩ

Voltage when contacts are open:

21 to 27 VDC

When contacts are short-circuited:

4 to 6 mADC

Switch (input): 3 Connected to the external input terminal of

the inverter.

Lamp (output): 3 Connected to the external output terminal

of the inverter.

Permissible load 24 VDC

(maximum 27 VDC) 0.1 A

(The voltage drop is 2.8 V at

maximum while the signal is ON.)

24 VDC power supply Power supply for the indicator lamps

Switch (input) Lamp (output)Inverter

USB cable

Lamp 1

Lamp 2

Lamp 3

Switch 2

Switch 3

Switch 1

To personal computer

SQ signal

Connector for inverter

Mini B connector (5 pins)

Connector for personal

computer

A connector

Preparation

4. Wiring of the inverter

Perform wiring of the inverter.

Wiring of the power supply

The following shows an example of wiring of the power supply cables and the earthing (grounding)

cable. Earthing (grounding) is performed to prevent electric shocks and malfunctions.

The terminal layout depends on the inverter capacity.

Always switch the inverter power OFF before performing inverter wiring work.

Reference

For the details of wiring, refer to the FR-A800 Instruction Manual (Detailed) (IB-0600503ENG).

Example of 0.4K

R/L1 S/L2 T/L3

P/+

Power

supply Earth

(ground)

Preparation

Wiring of the I/O signals

The following shows an example of wiring of the I/O signal cables.

2 5 4 SD SD S1 S2 PC A1 B1 C1 A2 B2 C2SIC

SOC

510E 10 FU PC RL RM RT AU CSSTP

MRS JOG

Lamp 1

Signal: Y0

Lamp 2

Signal: Y1

Lamp 3

Signal: Y2

Switch

Signal: SQ

Switch 1

Signal: X0

Switch 2

Signal: X1

Switch 3

Signal: X2

24VDC

Output

common

Input

common

F/C +24 SO1

STRSTF

SDRES

RUN

IPF

Preparation

5. Checking power-ON

After the wiring is completed, check that the power is properly supplied to the inverter.

1. Checking before power-ON

• Wiring of the power supply

• Power supply voltage

• Check that the connected switches (page 7) are OFF.

2. Turning the power ON

Check that the LED indicator on the operation panel (FR-DU08) is ON.

3. Changing the inverter parameter settings

Perform parameter settings to use the PLC function.

Enable the PLC function.

Set "2" in Pr.414 PLC function operation selection.

Sequence start (SQ) signal input terminal setting (sequence program execution key (STOP/RUN) setting)

Set "50" in Pr.189.

I/O terminal assignment change

Set "9999" in Pr.178, Pr.179, and Pr.182, and Pr.190, Pr.191, and Pr.192.

Setting "9999" for the I/O terminals enable the use of the terminals as general-purpose I/O terminals.

Consequently, the I/O terminals will be changed as follows.

Operating procedure

Pr. Input terminal

name

Device

number Pr. Output

terminal name

Device

number

178 STF X0 190 RUN Y0

179 STR X1 191 SU Y1

182 RH X2 192 IPF Y2

Point

The SQ signal can be assigned to the terminals other than the terminal RES. For the SQ signal,

set "50" to any of Pr.178 to Pr.189 (input terminal function selection) to assign the function

to the inverter input terminal. (Refer to the Instruction Manual (Detailed) of the inverter for the

details.)

Terminology

Parameter: Setup information necessary to operate the inverter. By setting parameters, the

PLC function is enabled, or the complicated motor control can be achieved.

Creating a sequence program

6. Programming

Create a program (sequence program) for sequence control.

For details, refer to the GX Works2 Version 1 Operating Manual (Common) (SH-080779ENG).

"Devices" and "Instruction symbols" for programming

Combine "Devices" and "Instruction symbols" to create a sequence program.

1. Devices

Devices include two types: bit devices and word devices.

A bit device handles one-bit information such as the ON/OFF of a switch or a lamp.

Examples of bit devices

A word device handles 16-bit information such as numeric values and character strings.

Examples of word devices

Device name Device symbol Description

Input X Receives a signal from an external device such as a switch.

Output Y Outputs a signal to an external device such as a lamp.

Internal relay M Temporarily stores status data in programs.

Timer

(contact) TUsed to measure time.

(When the set time comes, the contact turns ON.)

Counter

(contact) CUsed to count the number of times the input condition turns from OFF to ON.

(When the number of retries reaches the set number, the contact turns ON.)

Device name Device

symbol Description

Data register D Stores numeric values and character strings.

Timer

(present value) TUsed to measure time.

(Stores the present time value being measured.)

Counter

(present value) CUsed to count the number of times the input condition turns from OFF to

ON. (Stores the present count value being measured.)

Terminology

Device: An area to store data such as ON/OFF status, numeric values, and character strings for the

PLC function.

Internal relay: A device that shuts off/connects the sequence circuit by switching ON/OFF.

Contact: An input used for creating a sequence program.

• ON/OFF of a switch • ON/OFF of a lamp

• Numeric value • Character string

Autres manuels pour A800

Table des matières

Autres manuels Mitsubishi Electric Contrôleurs

Mitsubishi Electric

Mitsubishi Electric MELSEC iQ-F FX5 Manuel utilisateur

Mitsubishi Electric

Mitsubishi Electric MELSERVO-J5 MR-J5-G Series Manuel utilisateur

Mitsubishi Electric

Mitsubishi Electric QA1S6ADP-S1-U-E Manuel utilisateur

Mitsubishi Electric

Mitsubishi Electric Melservo-J5 MR-J5 Series Manuel utilisateur

Mitsubishi Electric

Mitsubishi Electric FX2N-8EYR-S-ES/UL Manuel utilisateur

Mitsubishi Electric

Mitsubishi Electric LE-40MT Series Manuel utilisateur

Mitsubishi Electric

Mitsubishi Electric MELSEC L series Manuel utilisateur

Mitsubishi Electric

Mitsubishi Electric MR-J5 Series Manuel utilisateur

Mitsubishi Electric

Mitsubishi Electric PAC-IF081B-E Manuel utilisateur

Mitsubishi Electric

Mitsubishi Electric CR800 Series Manuel utilisateur

Mitsubishi Electric

Mitsubishi Electric Melservo-Jet MR-JET-G Manuel utilisateur

Mitsubishi Electric

Mitsubishi Electric PAC-YT51CRA Manuel utilisateur

Mitsubishi Electric

Mitsubishi Electric NZ2GN2S1-16D Manuel utilisateur

Mitsubishi Electric

Mitsubishi Electric MELSEC-F FX3U-232ADP-MB Manuel utilisateur

Mitsubishi Electric

Mitsubishi Electric FX3U-232-BD Manuel utilisateur

Mitsubishi Electric

Mitsubishi Electric MELSEC-A Series Manuel utilisateur

Mitsubishi Electric

Mitsubishi Electric MELSERVO J5 Series Manuel utilisateur

Mitsubishi Electric

Mitsubishi Electric MELSEC-F Series Manuel utilisateur

Mitsubishi Electric

Mitsubishi Electric PAC-SE51CRA Manuel utilisateur

Mitsubishi Electric

Mitsubishi Electric R60TD8-G Manuel utilisateur

Mitsubishi Electric

Mitsubishi Electric MELSEC iQ-F FX5-4AD-PT-ADP Manuel utilisateur

Mitsubishi Electric

Mitsubishi Electric MELSEC-Q/L Manuel du propriétaire

Mitsubishi Electric

Mitsubishi Electric CITY MULTI PAR-40MAAU Manuel utilisateur

Mitsubishi Electric

Mitsubishi Electric MELSEC iQ-F FX5 Manuel utilisateur

Manuels Contrôleurs populaires d'autres marques

Digiplex

Digiplex DGP-848 Mode d'emploi

YASKAWA

YASKAWA SGM series Manuel utilisateur

Sinope

Sinope Calypso RM3500ZB Manuel utilisateur

Isimet

Isimet DLA Series Style 2 Manuel d'installation

LSIS

LSIS sv-ip5a Manuel utilisateur

Rockwell Automation

Rockwell Automation 1769-L31 Manuel utilisateur

Airflow

Airflow Uno hab Manuel utilisateur

ABB

ABB ACS580-01 drives Manuel utilisateur

Panasonic

Panasonic GM1 Series Manuel utilisateur

Emerson

Emerson SW93 Manuel utilisateur

AutoAqua

AutoAqua Smart ATO micro SATO-120P Manuel utilisateur

Panasonic

Panasonic FP? Positioning Unit RTEX Manuel utilisateur

Samson

Samson Type 5824 Manuel de service

Alpha IP

Alpha IP MIOB 21001 Manuel utilisateur

Siemens

Siemens OpenAir GMA 1 Series Manuel utilisateur

Surecom

Surecom SR-629 Manuel utilisateur

Fishman

Fishman TriplePlay Manuel utilisateur

Regulus

Regulus SRS1 T Manuel utilisateur
