1TECHNICAL CHANGE

PK12FK1➔PK12FK3

PK18FK2➔PK18FK3

PK24FK2➔PK24FK3

PK30FK2➔PK30FK3

PK36FK2➔PK36FK3

●INDOOR CONTROLLER BOARD has changed.

1) From TRANSFORMER to POWER BOARD.

2) From JUMPER CONNECTOR(J1) to DIP SWITCH(SW1).

3) From JUMPER CONNECTOR(J5) to DIP SWITCH(SW5).

4) The number of switches of SW7 changed from 4 to 3 pieces.

5) SW8 for option and SW9 for model selector are added.

OC274--1.qxp 1.12.14 5:30 PM Page 2

OC274-3

FEATURES

1. COMPACT DESIGN

The PK series models have been downsized and now require such minimal wall space that they can even be installed

above windows. For the PK12FK3, 11-13/16in of wall space between the ceiling and the window allows “above window”

installation. (13-3/8in for the PK24/30/36FK3)

2. AUTO FLAP SHUTTER

With a simple flick of the OFF switch the air outlet will be closed off with a shutter. The shutter also functions as a flap

during operation to adjust the air flow angle, with “Auto Angle 1” securing a comfortable air flow.

3. INSTALLATION : FAST AND ENDLESSLY ADAPTABLE

(1) Multi-directional piping

Multi directional drain and refrigerant piping radically improves flexibility in selecting installation layouts.

PK12FK3 drain piping can be installed in 5 directions, while PK18/24/30/36FK3 models boast refrigerant piping in 4

directions and drain piping 2 directions.

(2) Back plate installation guide

The back plate installation guide gives clear instructions on installation positions. The enlarged back plate secures the

unit firmly to the wall, while the support piece which lifts the unit makes left side piping work much easier.

(3) Easily removable filter

The presence of thumbscrews on the filters means that the filters can be quickly and smoothly removed.

FILTER

CHECK MODE

TEST RUN

TIMER OFF TIMER

CHECK SET TEMP.

CLOCK AUTO AUTO

START STOP

SWING

FAN

SPEED AUTO

RETURN

Indoor unit Remote controller

Models Cooling capacity SEER

PK12FK3 12,500 Btu/h 11.5

PK18FK3 18,500 Btu/h 11.3

PK24FK3 24,000 Btu/h 10.6

PK30FK3 30,000 Btu/h 10.7

PK36FK3 34,200 Btu/h 10.2

OC274--1.qxp 1.12.14 5:30 PM Page 3

OC274-4

4. ADVANCED MICROPROCESSOR

(1) Easy to Use Microprocessor

1) Ultra-Thin Remote Controller

The streamlined, wide controller is designed to

blend with any kind of interior and the adoption of

a sophisticated microprocessor allows you to

carry out a wide range of operations easily.

2) Attractive Liquid Crystal Display (LCD)

Units operation mode, set temperature, room tem-

perature, timer setting, fan speed,

and air flow direction are displayed on the

remote controller with the easily understood visual

Liquid Crystal Display (LCD).

3) Convenient 24-Hour ON-OFF Timer

The timer allows Mr.SLIM to be switched on or

off automatically at the time is shown on the LCD.

4) Self-Diagnostic Feature Indicates Instantly

In the rare case when a problem occurs, the unit stops operating and the set temperature indicator changes to the

self-diagnostic indicator, indicating the location of the fault.

If the check switch is pressed twice, the unit stops operating and the check mode is initiated. The cause of the most

recent problem stored in the memory is displayed on the LCD. This is extremely useful for maintenance purposes.

5) Useful Memory Feature for Storing Instructions

The previous set value is memorised so that constant temperature control can be obtained. This is convenient when,

for example, a power failure occurs.

(2) Non-polar Two-Wire Remote Controller Cables

The non-polar, two-wire type remote controller cable is slim, installation is simple and trouble-free. Remote controller

wire can be extended up to 550 yards.

5. REDI-CHARGED REFRIGERANT SYSTEM

PRE-CHARGE REFRIGERANT REQUIRED FOR LINE LENGTH OF 100ft AT

SHIPMENT. PREVENTING TROUBLES DUE TO SHORTAGE OF REFRIGERANT.

The unique refrigerant circuit and a large accumulator always controls the refrigerant to its optimum condition regardless of

the length of 164ft maximum. The additional refrigerant charging work at the field which often caused uncertain problems

heretofore is completely eliminated. This unique system serves to improve the quality of work and reliability, and also helps

to speed up the installation work.

TIMER OFF TIMER

CHECK SET TEMP.

DRY COOL

FAN

CLOCK AUTO AUTO

START STOP

MODE TIMER ON/OFF CLOCK/TIMER FAN SPEED AIR DISCHARGE FILTER

CHECK

TEST RUN

AIR SWEEP

SET TEMP. TIMER SET

FAN

SPEED

SWING

AUTO

RETURN

REMOTE CONTROLLER

[Remote controller]

OC274--1.qxp 1.12.14 5:30 PM Page 4

OC274-5

6. HIGH RELIABILITY AND EASY SERVICING

In addition to the self-diagnostic function, units are also equipped with a 3-minute time delay mechanism (cooling), an auto

restart function, an emergency operation function, a test run switch, etc., to assure high reliability and easy servicing.

7. FOUR-WAY PIPING ACCESS MAKES

INSTALLATION LAYOUT EASY

Piping on the outdoor unit may be connected from either of

four directions: front, rear, side or beneath the base.

This easy-access design makes it possible to install a

number of units in a compact arrangement at a single site.

The outdoor unit allows for unheard-of flexibility in

determining a piping layout, thus greatly simplifying

installation.

8. FRONT-ACCESS FACILITATES

MAINTENANCE

The outdoor unit has been designed with a front access

service panel that allows easy access to all maintenance

point, regardless of the installation layout. What’s more, this

front panel may be removed by loosening only two screws.

It all adds up to greatly simplified maintenance work.

9. NITROGEN GAS IS CHARGED TO

INDOOR UNIT

Indoor unit and refrigerant pipes are charged with nitrogen

gas (N2) instead of R-22 before shipment from the

factory.

Rear

Right

Base

Front

OC274--1.qxp 1.12.14 5:30 PM Page 5

OC274-6

3 PART NAMES AND FUNCTIONS

Remote controller operation buttons

TIMER OFF TIMER

CHECK SET TEMP.

DRY COOL

FAN

CLOCK AUTO AUTO

START STOP

MODE TIMER ON/OFF CLOCK/TIMER FAN SPEED AIR DISCHARGE FILTER

CHECK

TEST RUN

AIR SWEEP

SET TEMP. TIMER SET

FAN

SPEED

SWING

AUTO

RETURN

REMOTE CONTROLLER

FILTER button

This resets the filter service indica-

tion display.

TIMER ON/OFF button

This switches between continuous

operation and the timer operation.

SET TEMPERATURE

button

This sets the room temperature.

The temperature setting can be per-

formed in 2˚F units.

Setting range :

Cooling 65˚F to 87˚F

CHECK-TEST RUN button

Only press this button to perform an

inspection check or test operation.

Do not use it for normal operation.

AIR SWEEP button

This switches the horizontal fan

motion ON and OFF.

(This button is not available)

CLOCK/TIMER button

This sets or switches the current

time,start time and stop time.

FAN SPEED button

This sets the ventilation fan speed.

AIR DISCHARGE

button

This adjusts the vertical angle of the

ventilation.

ON/OFF button

This switches between the opera-

tion and stop modes each time it is

press. The lamp on this button

lights during operation.

OPERATION MODE

button

Press this button to switch the cool-

ing,electronic dry (Dehumidify), fan

modes.

Remote controller

Settings remain in effect until changed.

Air conditioner can be operated by simply pushing ON/OFF button once settings have been made.

OC274--1.qxp 1.12.14 5:30 PM Page 6

OC274-7

TIMER OFF TIMER

CHECK SET TEMP.

DRY COOL

FAN

CLOCK AUTO AUTO

START STOP

MODE TIMER ON/OFF CLOCK/TIMER FAN SPEED AIR DISCHARGE FILTER

CHECK

TEST RUN

AIR SWEEP

SET TEMP. TIMER SET

FAN

SPEED

SWING

AUTO

RETURN

REMOTE CONTROLLER

Operation lamp

This lamp lights during operation,

goes off when the unit stops and

flashes when a malfunction occurs.

CENTRALLY

CONTROLLED display

This indicates when the unit is con-

trolled by optional features such as

central control type remote controller.

TIMER display

This indicates when the continuous

operation and time operation modes

are set.

It also display the time for the timer

operation at the same time as when

it is set.

OPERATION MODE display

This indicates the operation mode.

CHECK display

This indicates when a malfunction

has occurred in the unit which should

be checked.

display

This lamp lights when electricity is

supplied to the unit.

display

This displays the selected setting

temperature.

CLOCK display

The current time , start time and stop

time can be displayed in ten second

intervals by pressing the time switch

button. The start time or stop time is

always displayed during the timer

operation.

AIR DISCHARGE display

This displays the air direction.

display

The temperature of the return air is

displayed during operation. The dis-

play range is 47° to 97°F. The dis-

play flashes 47°F when the actual

temperature is less than 47° and

flashes 97°F when the actual tem-

perature is greater than 97°F.

In this display example on the bottom left, a condi-

tion where all display lamps light is shown for

explanation purposes although this differs from

actual operation.

display

This display lights in the check mode

or when a test operation is per-

formed.

CHECK MODE

TEST RUN

display

This lamp lights when the filter needs

to be cleaned.

FAN SPEED display

The selected fan speed is displayed.

Caution

●Only the display lights when the unit is stopped and power supplied to the unit.

●When power is turned ON for the first time the (CENTRAL CTRL) display appears to go off momentarily but this is not a malfunction.

●When the central control remote control unit, which is sold separately, is used the ON-OFF button,OPERATION MODE button and SET

TEMP button do not operate.

●“NOTAVAILABLE” is displayed when the AIR SWEEP button are pressed.

(AIR SWEEP function is not provided for PK series.)

FILTER

Remote controller display

OC274--1.qxp 1.12.14 5:30 PM Page 7

OC274-8

4 SPECIFICATIONS

MODELS : PK12FK3, PK18FK3, PK24FK3, PK30FK3, PK36FK3

Capacity

Power consumption

EER

SEER

INDOOR UNIT MODEL

External finish

Power supply

Max. fuse size (time delay)

Min ampacity

Fan motor

Airflow Hi-Lo

Moisture removal

Sound level Hi-Lo

Cond. drain connection OD

Dimensions

Weight

OUTDOOR UNIT MODEL

External finish

Power supply

Max. fuse size (time delay)

Min. ampacity

Fan motor

Compressor

Crankcase heater

Refrigerant control

Sound level

Dimensions

Weight

REMOTE CONTROLLER

Control voltage (by built-in transformer)

REFRIGERANT PIPING

Pipe size

Connection method

Between the indoor

& outdoor units

❈1

Dry

Wet

Model

Liquid

Gas

Indoors

Outdoors

Height

Piping length

Btu/h

V, Phase, Hz

F.L.A.

CFM

Pints/h

in.

Ib.

V, Phase, Hz

F.L.A

R.L.A

L.R.A

A(W)

in.

Ib.

in.

PK12FK3

Model

12,500

1.21

10.3

11.5

PK12FK3

0.7

490-350

440-320

3.8

45-38

49-7/32

7-7/8

11-13/16

PU12EK1

0.65

RH167NAB

8.9

0.11/0.12 (23/28)

25-9/16

105

130

PK18FK3

18,500

1.75

10.6

11.3

PK18FK3

0.7

710-530

640-480

5.3

48-41

PU18EK1

0.75

RH247NAB

12.0

0.11/0.12 (23/28)

33-1/2

154

3/8

5/8

55-1/8

34-1/4

11-5/8

PK24FK3

24,000

2.34

10.3

10.6

PK24FK3

Munsell 3.4Y7.7/0.8

115, 1, 60

0.7

710-530

640-480

7.2

48-41

9-1/4

13-3/8

PU24EK1

Munsell 5Y7/1

208/230, 1, 60

0.65+0.65

NH33NBD

11.5

0.16/0.17 (33/39)

Capillary tube

207

With indoor unit

Indoor unit - remote controller : DC12V, Indoor unit - outdoor unit : DC12V

Not supplied (optional parts)

Flared

PK30FK3

30,000

3.06

9.8

10.7

PK30FK3

1.0

990-780

890-700

9.6

49-44

PU30EK1

0.65+0.65

NH41NAD

14.0

0.16/0.17 (33/39)

49-9/16

208

164

1/2

3/4

PK36FK3

34,200

3.47

9.9

10.2

PK36FK3

1.0

990-780

890-700

10.5

49-44

PU36EK1

0.75+0.75

NH47NAD

17.5

0.16/0.17 (33/39)

38-3/16

13-9/16

220

66-5/32

Item

NOTES : ❈1.Rating conditions —indoor : DB 80˚F, WB 67˚F outdoor : DB 95˚F, WB 75˚F.

Operating range

Indoor intake air temperature

DB 95˚F, WB 71˚F

DB 67˚F, WB 57˚F

Outdoor intake air temperature

DB 115˚F

DB 0˚F *

Cooling Maximum

Minimum

*In case of the wind baffle is installed.

(In case of the wind baffle is not installed, the minimum temperature will be DB 23˚F.)

OC274--1.qxp 1.12.14 5:30 PM Page 8

OC274-9

DATA

Notes 1. B.F. : Bypass Factor, IWB : Intake air wet-bulb temperature

TC : Total Capacity (x103 Btu/h), SHC : Sensible Heat Capacity (x103 Btu/h)

TPC : Total Power Consumption (kW)

2. Cooling capacity correction factors and Refrigerant piping length (one way) range.

MODEL Refrigerant piping length (one way)

PK12FK3

PK18FK3

PK24FK3

PK30FK3

PK36FK3

1.0

25ft

0.992

0.981

40ft

0.983

0.968

55ft

0.978

0.952

70ft

0.966

0.940

85ft

0.959

0.925

100ft

0.950

0.913

115ft

0.945

0.900

130ft

—

0.886

150ft

—

0.874

164ft

14.5

13.6

12.7

12.6

12.0

11.8

21.5

20.1

18.8

18.6

17.8

17.4

27.9

26.1

24.3

24.1

23.0

22.6

34.9

32.6

30.4

30.2

28.8

28.3

39.8

37.1

34.7

34.4

32.8

32.2

IWB

(˚F)

62.5

Indoor air

Airflow

(CFM)

B.F

Models

PK12FK3

PK18FK3

PK24FK3

PK30FK3

PK36FK3

490

0.18

710

0.14

710

0.14

990

0.15

990

0.15

DB 80˚F

DB75˚F(50%RH)

DB72˚F(50%RH)

DB70˚F(50%RH)

DB 80˚F

DB75˚F(50%RH)

DB72˚F(50%RH)

DB70˚F(50%RH)

DB 80˚F

DB75˚F(50%RH)

DB72˚F(50%RH)

DB70˚F(50%RH)

DB 80˚F

DB75˚F(50%RH)

DB72˚F(50%RH)

DB70˚F(50%RH)

DB 80˚F

DB75˚F(50%RH)

DB72˚F(50%RH)

DB70˚F(50%RH)

SHC

9.8

11.0

12.0

10.7

10.4

10.1

14.8

16.5

17.9

16.0

15.6

15.0

16.4

18.8

20.7

18.3

17.8

17.3

21.5

24.5

26.9

23.8

23.2

22.5

23.0

26.3

29.3

25.8

25.1

24.3

TPC

1.05

1.03

1.01

0.99

1.52

1.49

1.46

1.45

1.43

2.04

1.99

1.95

1.94

1.92

1.91

2.66

2.61

2.55

2.54

2.51

2.49

3.02

2.96

2.89

2.88

2.84

2.83

14.0

13.1

12.2

12.1

11.5

11.3

20.8

19.3

18.0

17.9

17.1

16.7

26.9

25.1

23.4

23.2

22.1

21.7

33.7

31.4

29.2

29.0

27.7

27.1

38.4

35.7

33.3

33.1

31.5

30.9

SHC

9.5

10.6

11.5

10.3

10.0

9.7

14.3

15.8

17.2

15.4

15.0

14.4

15.8

18.1

20.0

17.6

17.1

16.6

20.8

23.6

25.8

22.9

22.3

21.5

22.1

25.3

28.1

24.8

24.1

23.3

TPC

1.14

1.12

1.09

1.07

1.06

1.65

1.61

1.57

1.55

1.54

2.21

2.16

2.11

2.10

2.07

2.05

2.89

2.82

2.75

2.70

2.69

3.28

3.20

3.12

3.11

3.07

3.05

13.5

12.5

11.6

11.5

11.0

10.8

19.9

18.5

17.2

17.1

16.3

16.0

25.8

24.0

22.4

22.2

21.1

20.7

32.3

30.0

27.9

27.7

26.4

25.9

36.8

34.2

31.9

31.6

30.1

29.5

Outdoor intake air DB temperature(˚F)

SHC

9.1

10.1

10.9

9.8

9.5

9.2

13.7

15.2

16.4

14.7

14.3

13.8

15.1

17.3

19.1

16.8

16.4

15.8

19.9

22.5

24.6

21.9

21.3

20.6

21.2

24.3

26.9

23.7

23.0

22.3

TPC

1.24

1.21

1.18

1.17

1.15

1.80

1.75

1.70

1.67

1.66

2.40

2.34

2.28

2.27

2.23

2.22

3.14

3.06

2.98

2.97

2.92

2.90

3.57

3.47

3.38

3.37

3.31

3.29

12.8

11.9

11.1

11.0

10.4

10.2

19.0

17.6

16.4

16.2

15.5

15.1

24.6

22.9

21.3

21.1

20.0

19.6

30.8

28.6

26.6

26.3

25.1

24.6

35.1

32.6

30.3

30.0

28.6

28.0

105

SHC

8.7

9.6

10.5

9.3

9.0

8.7

13.0

14.4

15.6

13.9

13.6

13.1

14.4

16.5

18.2

16.0

15.5

15.0

19.0

21.5

23.5

20.7

20.2

19.5

20.2

23.1

25.6

22.5

21.9

21.1

TPC

1.35

1.31

1.27

1.26

1.24

1.23

1.95

1.89

1.83

1.79

1.78

2.61

2.53

2.45

2.44

2.40

2.38

3.41

3.30

3.21

3.20

3.14

3.11

3.87

3.74

3.64

3.63

3.56

3.53

12.2

11.3

10.5

10.4

9.9

9.7

18.1

16.7

15.5

15.4

14.6

14.3

23.4

21.7

20.1

19.9

18.9

18.5

29.3

27.1

25.1

24.9

23.7

23.2

33.4

30.9

28.7

28.4

27.0

26.4

115

SHC

8.3

9.2

9.9

8.8

8.6

8.3

12.4

13.7

14.8

13.2

12.8

12.4

13.7

15.6

17.2

15.1

14.7

14.1

18.1

20.3

22.2

19.6

19.1

18.4

19.3

21.9

24.2

21.3

20.7

19.9

TPC

1.45

1.40

1.36

1.35

1.32

1.31

2.10

2.03

1.96

1.92

1.90

2.81

2.71

2.62

2.56

2.54

3.68

3.54

3.43

3.42

3.35

3.32

4.17

4.02

3.89

3.88

3.80

3.77

1. PERFORMANCE DATA

1) COOLING CAPACITY

2) COOLING CAPACITY CORRECTIONS

OC274--1.qxp 1.12.14 5:30 PM Page 9

OC274-10

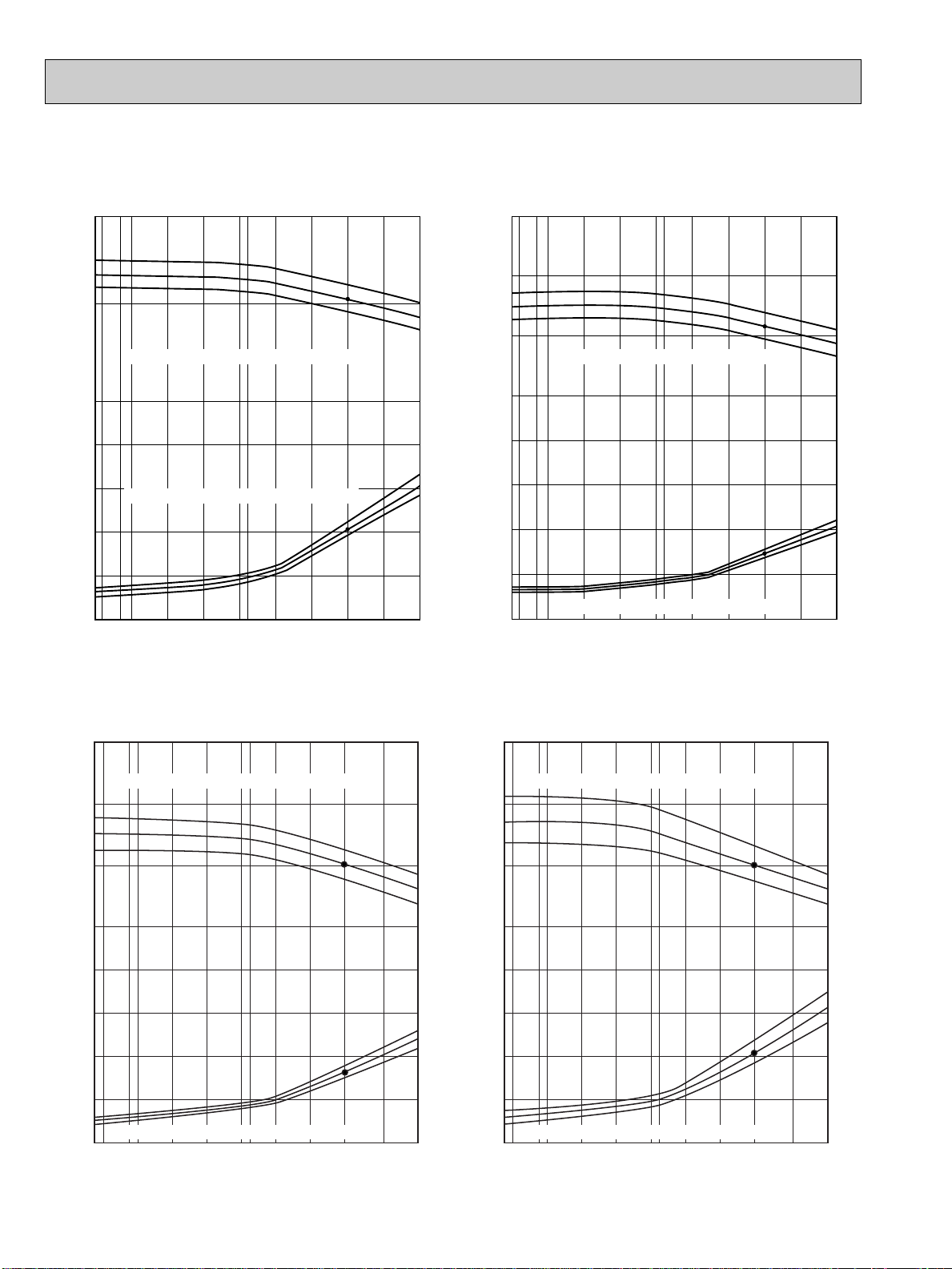

2. PERFORMANCE CURVE

NOTE : A point on the curve shows the reference point.

PK12FK3 COOLING CAPACITY PK18FK3 COOLING CAPACITY

PK24FK3 COOLING CAPACITY PK30FK3 COOLING CAPACITY

1.6

1.4

1.2

1.0

0.8

023 3235

45 55

65(67) 75

85 95 105 115

Total capacity (✕103Btu/h)Total power consumption (kW)

Outdoor intake air DB temperature (°F)

indoor intake air WB temperature (°F)

SHF=0.81

3.0

2.5

2.0

1.5

1.0

023 3235

45 55

65(67)

75 85 95 105 115

Total capacity (✕103Btu/h)Total power consumption (kW)

Outdoor intake air DB temperature (°F)

indoor intake air WB temperature (°F)

SHF=0.82

Total capacity (✕103Btu/h)Total power consumption (kW)

Outdoor intake air DB temperature (°F)

023 3235

65 (67)

75 85 95 105 11555

1.5

2.0

2.5

3.0

3.5

023 3235

65 (67)

75 85 95 105 11555

2.0

2.5

3.0

3.5

4.0

indoor intake air WB temperature (°F)

Total capacity (✕103Btu/h)Total power consumption (kW)

Outdoor intake air DB temperature (°F)

indoor intake air WB temperature (°F)

SHF=0.72 SHF=0.72

OC274--1.qxp 1.12.14 5:30 PM Page 10

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Mitsubishi Electric Climatiseur

Mitsubishi Electric

Mitsubishi Electric MSZ-SF25VE Manuel utilisateur

Mitsubishi Electric

Mitsubishi Electric JG79A476H01 Manuel utilisateur

Mitsubishi Electric

Mitsubishi Electric Mr. SLIM PKH-P3FALH Series Manuel utilisateur

Mitsubishi Electric

Mitsubishi Electric MUZ-DM25VA-E1 Manuel utilisateur

Mitsubishi Electric

Mitsubishi Electric Mr. SLIM PEAD-RP60JA Manuel utilisateur

Mitsubishi Electric

Mitsubishi Electric SUH-1.6VR2 Manuel d'utilisation

Mitsubishi Electric

Mitsubishi Electric MFZ-KJ25VE Manuel utilisateur

Mitsubishi Electric

Mitsubishi Electric CITI-MULTI PEFY-WP10VMS1-E Manuel d'utilisation

Mitsubishi Electric

Mitsubishi Electric PHV2000DXE LO Mode d’emploi

Mitsubishi Electric

Mitsubishi Electric SUZ-KA24NAHZ Manuel utilisateur

Mitsubishi Electric

Mitsubishi Electric MSZ-LN18VG2W-SC1 Manuel utilisateur

Mitsubishi Electric

Mitsubishi Electric Mr.SLIM SUZ-KA09 Manuel utilisateur

Mitsubishi Electric

Mitsubishi Electric CITY MULTI PKFY-P VLM Series Manuel utilisateur

Mitsubishi Electric

Mitsubishi Electric SUZ-KA35VA Manuel utilisateur

Mitsubishi Electric

Mitsubishi Electric MSZ-SF35VE Manuel utilisateur

Mitsubishi Electric

Mitsubishi Electric Trane NTXWMT09A112A Series Manuel utilisateur

Mitsubishi Electric

Mitsubishi Electric OBH839 Manuel utilisateur

Mitsubishi Electric

Mitsubishi Electric PSH-P GAH Manuel utilisateur

Mitsubishi Electric

Mitsubishi Electric MSZ-FD35VA Manuel utilisateur

Mitsubishi Electric

Mitsubishi Electric Mr.SLIM PEAD-A.AA7 Series Manuel utilisateur

Mitsubishi Electric

Mitsubishi Electric Mr. SLIM PKA-M35LA2 Manuel utilisateur

Mitsubishi Electric

Mitsubishi Electric Mr.SLIM PCFY Series Manuel utilisateur

Mitsubishi Electric

Mitsubishi Electric MSD-CF09VB-H1 Manuel utilisateur

Mitsubishi Electric

Mitsubishi Electric PUZ-HA NHA Series Manuel utilisateur

Manuels Climatiseur populaires d'autres marques

Spheros

Spheros CC 355 Manuel utilisateur

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE Manuel utilisateur

Panasonic

Panasonic CS-E12HKEW Manuel utilisateur

nedis

nedis ACMB1WT7 Manuel utilisateur

Samsung

Samsung AR KV Series Mode d’emploi

Daikin

Daikin FCFV50A Manuel utilisateur

Fujitsu

Fujitsu Inverter ASBA30JFC Manuel utilisateur

Toshiba

Toshiba RAS-M10SMUV-E Manuel utilisateur

Daikin

Daikin FXLQ20MAVE Manuel utilisateur

Hitachi

Hitachi RAS-E24CAK Manuel utilisateur

CIAT

CIAT Magister 2 Series Mode d’emploi

Bestron

Bestron AAC6000 Manuel utilisateur

Hisense

Hisense 7K Manuel technique

Frigidaire

Frigidaire FFRE0533S1E0 Manuel utilisateur

Samsung

Samsung AS09HM3N Manuel utilisateur

Frigidaire

Frigidaire CRA073PU11 Manuel du propriétaire

Soleus Air

Soleus Air GB-PAC-08E4 Manuel utilisateur

McQuay

McQuay MCK020A Manuel utilisateur
